Metrohm OMNIS User manual

OMNIS Titrator
2.1001.0XX0
Product information
8.1001.8001EN / 2021-07-23

Metrohm AG
Ionenstrasse
CH-9100 Herisau
Switzerland
[phone]
[email protected]
www.metrohm.com
OMNIS Titrator
2.1001.0XX0
Product information
8.1001.8001EN /
2021-07-23

Technical Communication
Metrohm AG
CH-9100 Herisau
This documentation is protected by copyright. All rights reserved.
This documentation has been prepared with great care. However, errors
can never be entirely ruled out. Please send comments regarding possible
errors to the address above.
Disclaimer
Deficiencies arising from circumstances that are not the responsibility of
Metrohm, such as improper storage or improper use, etc., are expressly
excluded from the warranty. Unauthorized modifications to the product
(e.g. conversions or attachments) exclude any liability on the part of the
manufacturer for resulting damage and its consequences. Instructions and
notes in the Metrohm product documentation must be strictly followed.
Otherwise, Metrohm's liability is excluded.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents
OMNIS Titrator
￭￭￭￭￭￭￭￭ III
Table of contents
1 Overview 1
1.1 OMNIS Titrator – Product description ................................ 1
1.2 OMNIS Titrator – Product versions ..................................... 1
1.3 OMNIS Titrator – Overview .................................................. 2
1.4 Symbols and conventions .................................................... 4
1.5 Further information .............................................................. 4
1.6 Accessories ............................................................................ 4
2 Safety 6
2.1 Intended use ......................................................................... 6
2.2 Responsibility of the operator ............................................. 6
2.3 Requirements for operating personnel ............................... 7
2.4 Safety instructions ................................................................ 7
2.4.1 Danger from electrical potential ............................................... 7
2.4.2 Danger from biological and chemical hazardous substances ..... 7
2.4.3 Danger from highly flammable substances ............................... 8
2.4.4 Danger from leaking liquids ..................................................... 8
2.4.5 Danger during transport of the product ................................... 9
2.5 Design of warning messages ............................................... 9
2.6 Meaning of warning signs ................................................. 10
3 Technical specifications 12
3.1 Ambient conditions ............................................................ 12
3.2 OMNIS Titrator – Energy supply ........................................ 12
3.3 Magnetic stirrer – Energy supply ...................................... 12
3.4 Measuring module – Energy supply .................................. 13
3.5 OMNIS Titrator – Dimensions ............................................ 13
3.6 Magnetic stirrer – Dimensions ........................................... 13
3.7 Measuring module – Dimensions ...................................... 14
3.8 OMNIS Titrator – Housing ................................................. 14
3.9 Magnetic stirrer – Housing ................................................ 14
3.10 Measuring module – Housing ............................................ 15
3.11 OMNIS Titrator – Connectors specifications .................... 15
3.12 Measuring Module Analog – Connectors specifica-
tions ..................................................................................... 16

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
IV ￭￭￭￭￭￭￭￭
OMNIS Titrator
3.13 Measuring Module Digital – Connector specifications .... 17
3.14 Display specifications ......................................................... 17
3.15 Measuring Module Analog – Display specifications ........ 17
3.16 Measuring Module Digital – Display specifications ......... 17
3.17 Measuring Module Analog – Measuring specifications .. 18
3.18 OMNIS Titrator – Liquid Handling specifications ............ 19
3.19 Magnetic stirrer – Specifications ....................................... 19

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview
￭￭￭￭￭￭￭￭ 1
1 Overview
1.1 OMNIS Titrator – Product description
The OMNIS Titrator is the central instrument of an OMNIS titration system.
The OMNIS Titrator is responsible for the energy supply to all of the mod-
ules in the titration system and for communication between the titration
system and the OMNIS Software. The scope of the functions of the
OMNIS Titrator is defined in the selected function license.
1.2 OMNIS Titrator – Product versions
The product is available in the following versions:
Table 1 Product versions
Article number Designation Magnetic stirrer Function license
2.1001.0010 OMNIS Titrator without individual
2.1001.0020 OMNIS Titrator with individual
2.1001.0110 OMNIS Basic Titrator without Basic
2.1001.0120 OMNIS Basic Titrator with Basic
2.1001.0210 OMNIS Advanced
Titrator
without Advanced
2.1001.0220 OMNIS Advanced
Titrator
with Advanced
2.1001.0310 OMNIS Professional
Titrator
without Professional
2.1001.0320 OMNIS Professional
Titrator
with Professional
Information on function licenses is available on the Metrohm website or
from the regional Metrohm representative.
The article number and serial number for identifying the product can be
found on the type plate:

OMNIS Titrator – Overview ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2￭￭￭￭￭￭￭￭
1(01) = Article number in accordance
with GS1 standard
2(21) = Serial number
3(240) = Metrohm article number 4Certification
5Certification 6Technical specifications
1.3 OMNIS Titrator – Overview
Figure 1 OMNIS Titrator – Front
1Lid 2Space for measuring modules

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview
￭￭￭￭￭￭￭￭ 3
3Dosing drive 4Magnetic stirrer
5Platform
For chemical bottles

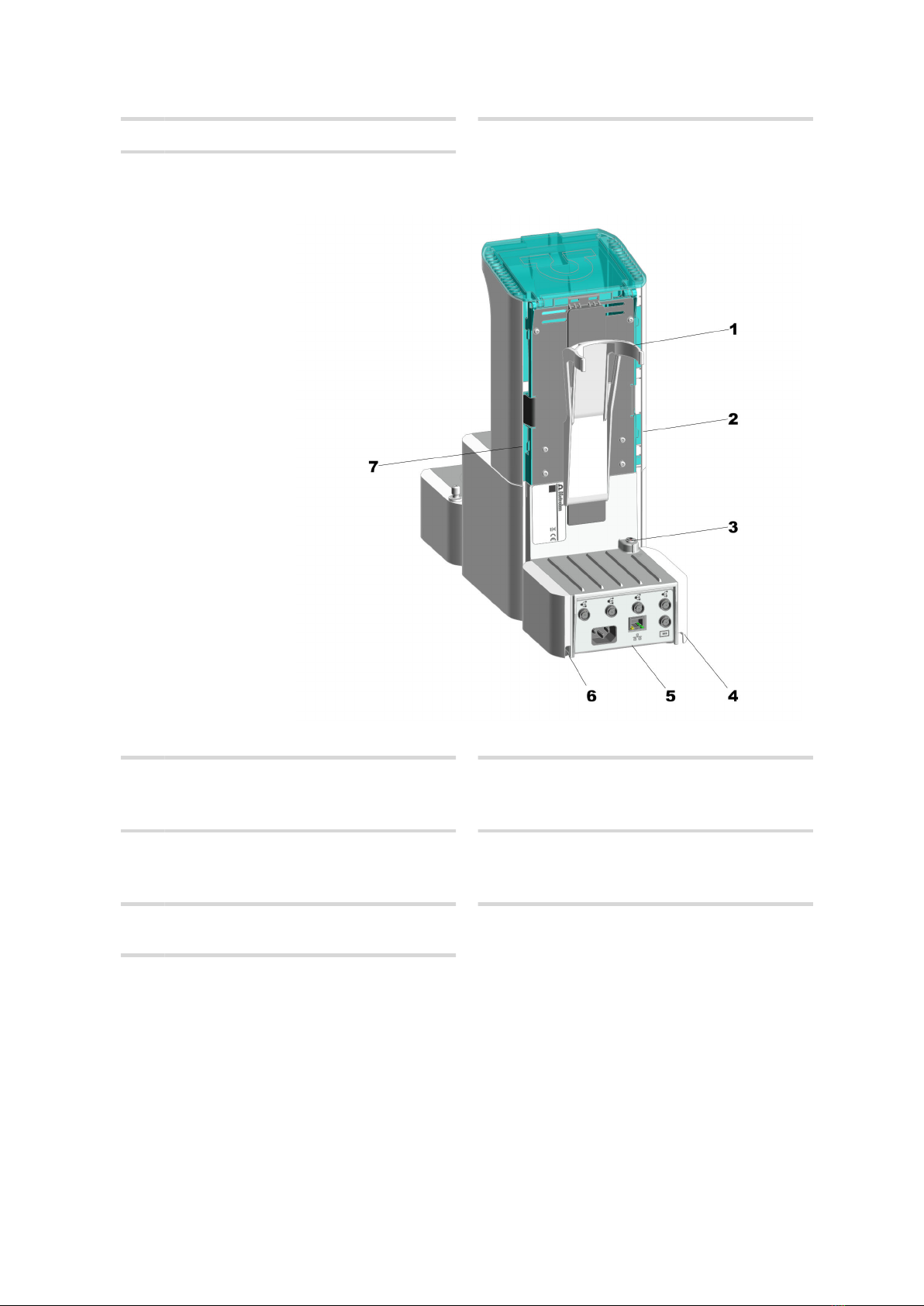

Figure 2 OMNIS Titrator – Rear
1Bottle holder 2Cable guide
On the side to the right. For Liquid Adapter
cable
3MSI connector
MSI = Metrohm Solution Identification. Con-
nection socket for Liquid Adapter cable
4Cable guide
Bottom right
5Interfaces 6Cable guide
Bottom left
7Cable guide
On the side to the left. For rod stirrer cable
or electrode cable

Symbols and conventions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4￭￭￭￭￭￭￭￭
1.4 Symbols and conventions
The following formatting may appear in the documentation:
Cross-reference to figure legend
The first number refers to the figure number. The
second number refers to the product part in the fig-
ure.
Instruction step
Numbers indicate the order of the instructions steps.
Method Names of parameters, menu items, tabs and dialog
windows
File ▶ New Menu path
[Continue] Button or key
1.5 Further information
The Metrohm Knowledge Base https://guide.metrohm.com always pro-
vides the current version of this document. Further instructions, leaflets,
release notes etc. may be available, depending on the product. You can
directly access the required information or the associated PDF document
using the full-text search function and filters.
1.6 Accessories
Up-to-date information on the scope of delivery and on optional accesso-
ries can be found on the Metrohm website. Download this information as
follows:
Downloading the accessories list
1Go to https://www.metrohm.com.
2Enter the article number of the product (e.g. 2.1001.0010) into the
search field.
The search result is displayed.
3Click on the product.
Detailed information regarding the product is shown on various tabs.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview
￭￭￭￭￭￭￭￭ 5
4On the Included parts tab, click the link to download the PDF.
The PDF file with the accessories data is loaded.
NOTICE
Metrohm recommends downloading the accessories list from the
Internet and keeping it for reference purposes.

Intended use ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
6￭￭￭￭￭￭￭￭
2 Safety
2.1 Intended use
Metrohm products are used for the analysis and handling of chemicals.
Usage therefore requires the user to have basic knowledge and experience
in handling chemicals. Knowledge regarding the application of fire preven-
tion measures prescribed for laboratories is also mandatory.
Adherence to this technical documentation and compliance with the
maintenance specifications make up an important part of intended use.
Any utilization in excess of or deviating from the intended use is regarded
as misuse.
Specifications regarding the operating values and limit values of individual
products are contained in the "Technical specifications" section, if relevant.
Exceeding and/or not observing the mentioned limit values during opera-
tion puts people and components at risk. The manufacturer assumes no
liability for damage due to non-observance of these limit values.
The EU declaration of conformity loses its validity as soon as modifications
are carried out on the products and/or the components.
2.2 Responsibility of the operator
The operator must ensure that basic regulations on occupational safety
and accident prevention in chemical laboratories are observed. The opera-
tor has the following responsibilities:
￭Instruct personnel in the safe handling of the product.
￭Train personnel in the use of the product according to the user docu-
mentation (e.g. install, operate, clean, eliminate faults).
￭Train staff on basic occupational safety and accident prevention regula-
tions.
￭Provide personal protective equipment (e.g. protective glasses, gloves).
￭Provide suitable tools and equipment to carry out the work safely.
The product may be used only when it is in perfect condition. The follow-
ing measures are required to ensure the safe operation of the product:
￭Check the condition of the product before use.
￭Remedy defects and malfunctions immediately.
￭Maintain and clean the product regularly.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety
￭￭￭￭￭￭￭￭ 7
2.3 Requirements for operating personnel
Only qualified personnel may operate the product. Qualified personnel are
persons who meet the following requirements:
￭Basic regulations on occupational safety and accident prevention for
chemical laboratories are known and complied with.
￭Knowledge of handling hazardous chemicals is present. Personnel have
the ability to recognize and avoid potential dangers.
￭Knowledge regarding the application of fire prevention measures for
laboratories is available.
￭Safety-relevant information is communicated and understood. The per-
sonnel can operate the product safely.
￭The user documentation has been read and understood. The personnel
operate the product according to the instructions in the user documen-
tation.
2.4 Safety instructions
2.4.1 Danger from electrical potential
Contact with electrical potential can cause serious injuries or death. To
avoid danger from electrical potential, observe the following:
￭Operate the product only if it is in perfect condition. The housing must
also be intact.
￭Only use the product with the covers fitted. If covers are damaged or
missing, disconnect the product from the energy supply and contact
the regional Metrohm service representative.
￭Protect live components (e.g. power supply unit, power cord, connec-
tion sockets) against moisture.
￭Always have maintenance work and repairs on electrical components
carried out by a regional Metrohm service representative.
￭Disconnect the product from the energy supply immediately if at least
one of the following cases occurs:
– The housing is damaged or open.
– Live parts are damaged.
– Moisture penetrates.
2.4.2 Danger from biological and chemical hazardous substances
Contact with biological hazardous substances may cause poisoning from
toxins or infections from microorganisms. Contact with aggressive chemi-
cal substances may cause poisoning or chemical burns. To avoid danger
from biological or chemical hazardous substances, observe the following:

Safety instructions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8￭￭￭￭￭￭￭￭
￭Label the product according to regulations if it is used for substances
that have a potential for chemical hazards and are generally subject to
the Hazardous Substances Ordinance.
￭Wear personal protective equipment (e.g. protective glasses, gloves).
￭Use exhaust equipment when working with vaporizing hazardous sub-
stances.
￭Dispose of hazardous substances in accordance with regulations.
￭Clean and disinfect contaminated surfaces.
￭Only use detergents that do not cause any unwanted side reactions
with the materials to be cleaned.
￭Dispose of chemically contaminated materials (e.g. cleaning material) in
accordance with regulations.
￭Proceed as follows in case of a return shipment to Metrohm AG or a
regional Metrohm representative:
– Decontaminate the product or product component.
– Remove the labeling for hazardous substances.
– Create a declaration of decontamination and enclose it with the
product.
2.4.3 Danger from highly flammable substances
Using highly flammable substances or gases may cause fires or explosions.
To avoid danger from highly flammable substances, observe the following:
￭Avoid ignition sources.
￭Use protective grounding.
￭Use exhaust equipment.
2.4.4 Danger from leaking liquids
Leaking liquids may cause injuries and may damage the product. To avoid
danger from leaking liquids, observe the following:
￭Check the product and its accessories for leakages and loose connec-
tions.
￭Replace leaking parts and connecting elements without delay.
￭Tighten loose connecting elements.
￭Do not loosen tubing connections under pressure.
￭Do not remove aspiration tubing under pressure.
￭Carefully pull the ends of the tubing out of the containers.
￭Carefully let liquids from tubing drain into suitable containers.
￭Insert the buret tips completely into the containers.
￭Remove and dispose of leaked liquids in accordance with regulations.
￭If you suspect that liquid has penetrated the instrument, disconnect the
instrument from the energy supply. Then have the instrument checked
by a regional Metrohm service representative.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety
￭￭￭￭￭￭￭￭ 9
2.4.5 Danger during transport of the product
Chemical or biological substances may be spilled during the transport of
the product. Parts of the product may fall down or may be damaged.
There is a risk of injury from chemical or biological substances and pieces
of broken glass. To ensure safe transport, observe the following:
￭Remove loose parts (e.g. sample racks, sample vessels, bottles) before
transport.
￭Remove liquids.
￭Lift and transport the product with both hands on the base plate.
￭Lift and transport heavy products only according to instructions.
2.5 Design of warning messages
There are 4 hazard levels for warning messages. The following signal
words are used for classifying the hazard levels in warning messages:
￭DANGER indicates a hazardous situation which, if not avoided, will
result in serious injury or death.
￭WARNING indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
￭CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
￭NOTICE indicates a hazardous situation which, if not avoided, could
result in property damage.
Warning messages differ in design (color and warning sign) depending on
the hazard level:
DANGER
Type and source of danger
Consequences when not observing the notice: An irreversible injury
that may result in death is very probable.
￭Measures to avoid the danger

Meaning of warning signs ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10 ￭￭￭￭￭￭￭￭
WARNING
Type or source of danger
Consequences when not observing the notice: A serious injury that
may result in death is probable.
￭Measures to avoid the danger
CAUTION
Type or source of danger
Consequences when not observing the notice: A minor to moderate
injury is probable.
￭Measures to avoid the danger
2.6 Meaning of warning signs
This documentation uses the following warning signs:
Table 2 Warning sign according to ISO 7010
Warning sign Meaning
General warning sign
Warning of electrical voltage
Warning of hand injuries
Warning of sharp object
Warning of hot surface
Warning of biological hazard
Warning of toxic materials

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety
￭￭￭￭￭￭￭￭ 11

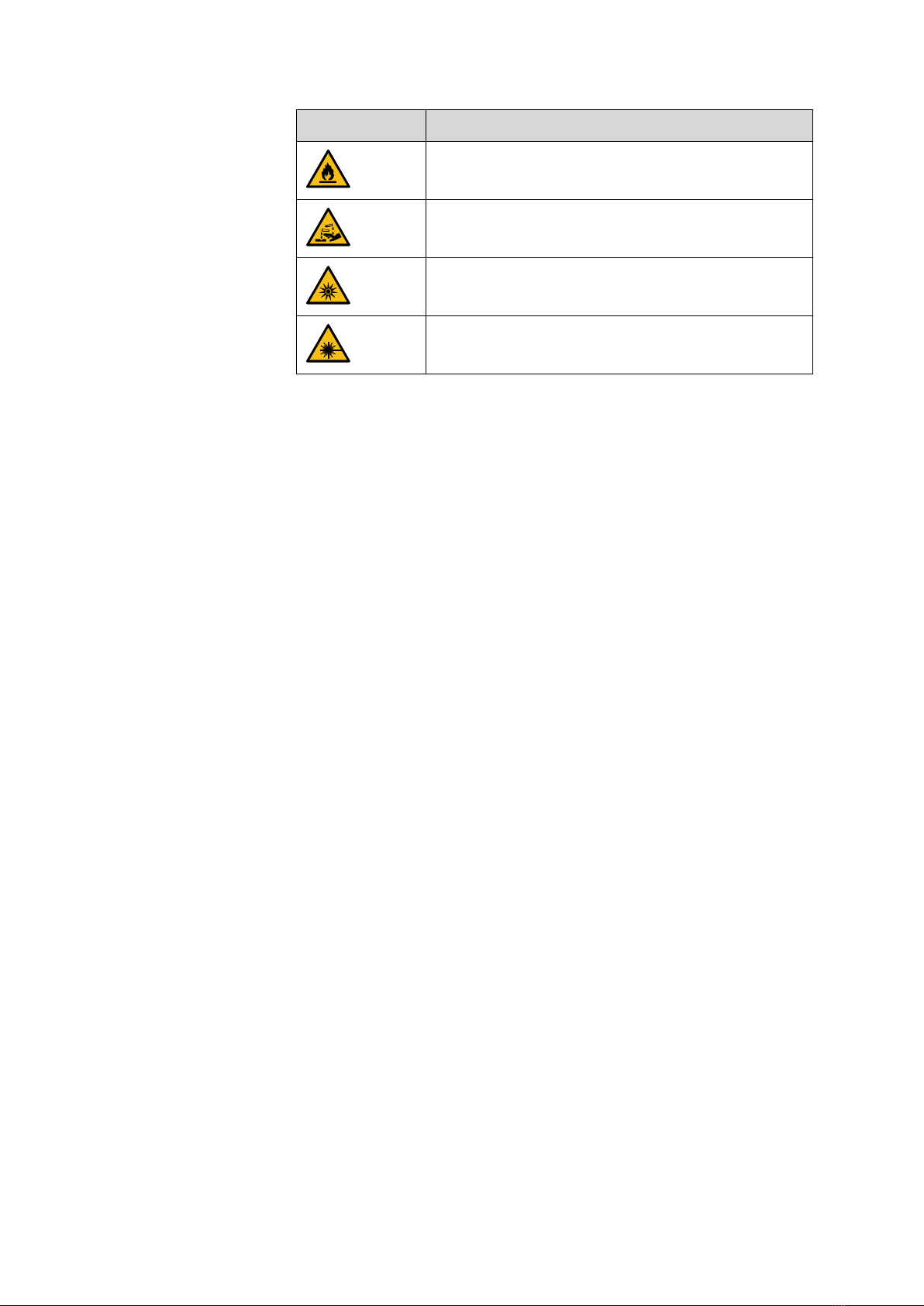

Warning sign Meaning
Warning of flammable materials
Warning of corrosive substances
Warning of optical radiation
Warning of laser beams
Depending on the intended use of the product, the corresponding warn-
ing sign stickers must be placed on the product.

Ambient conditions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭
3 Technical specifications
3.1 Ambient conditions
Nominal function range +5 to +45 °C at
max. 80%
relative humidity, non-
condensing
Storage +5 to +45 °C
3.2 OMNIS Titrator – Energy supply
Nominal voltage range 100 VAC - 240 VAC
Nominal frequency range 50 Hz - 60 Hz
Power consumption max. 100 W
Fuse protection
Internal fuse 4 ATH cannot be replaced by
the user
3.3 Magnetic stirrer – Energy supply
Nominal voltage 24 VDC internal

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Technical specifications
￭￭￭￭￭￭￭￭ 13
3.4 Measuring module – Energy supply
Power consumption max. 0.6 W -
Energy transmission - inductive coupling
3.5 OMNIS Titrator – Dimensions
Measurements
Width 142 mm
Height 358 mm
Depth
Without magnetic stirrer 284 mm
With magnetic stirrer 400 mm
Weight
Type
Without magnetic stirrer 4.4 kg
With magnetic stirrer 5.1 kg
3.6 Magnetic stirrer – Dimensions
Measurements
Width 142 mm
Height 70 mm
Depth 116 mm
Weight 700 g

Measuring module – Dimensions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
14 ￭￭￭￭￭￭￭￭
3.7 Measuring module – Dimensions
Measurements
Width 105 mm
Height 31 mm
Depth 72 mm
Weight approx. 420 g
3.8 OMNIS Titrator – Housing
Materials
Lid PET poly(ethylene tereph-
thalate)
Back panel AW-5754 H12/H22 aluminum, coated
Base 1.4301 high-grade steel
Enclosure PBT poly(butylene tereph-
thalate)
Front foils PET poly(ethylene tereph-
thalate), mat
IP degree of protection IP 40
3.9 Magnetic stirrer – Housing
Materials
Cover PBT poly(butylene tereph-
thalate)
Base chromium steel
Enclosure PBT poly(butylene tereph-
thalate)
Front foils PET poly(butylene tereph-
thalate), mat
IP degree of protection IP 40
