1 About this quick start guide
This short instruction manual contains important chapters from the com-
prehensive manual. In addition to an introduction, safety instructions and
an overview of the instrument, you will also find information about instal-
ling and operating the 930 Compact IC Flex SeS as well as information
regarding the warranty. The comprehensive manual can be downloaded
as a PDF file from the Internet.
Downloading the manual
You can find the detailed manual on the Internet under
http://www.metrohm.com/:
1. Enter the order number for your instrument as the search term (e.g.
2.930.1400).
2. Click on Documents.
All available documents for the instrument will be displayed.
3. Click on the PDF link to download the desired manual.

2.1 Instrument description ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2￭￭￭￭￭￭￭￭ 930 Compact IC Flex SeS (2.930.1400)
2 Introduction
2.1 Instrument description
The 930 Compact IC Flex is a robust ion chromatograph. It is distinguished
by:
￭Its intelligence: All of the functions are monitored, optimized and docu-
mented in an FDA-compatible manner. Intelligent components, such as
iColumns, save important data onto a chip.
￭Its compact design: It has a small footprint.
￭Its transparency: All components are easily accessible and located for
simple visibility and can be monitored during operation through a large
window.
￭Its safety: The wet end and the electronics are physically separated.
This prevents fluids from coming into contact with the electronics to a
large extent. A leak sensor is integrated into the wet end.
￭Its environmental compatibility.
￭Its low noise emission.
￭The intelligent MagIC Net software.
The 930 Compact IC Flex is operated using the MagIC Net software. A
USB cable is used to connect the device to a computer with MagIC Net
installed. The intelligent software detects the device automatically and
checks its functionality. The software controls and monitors the device,
evaluates the measured data and manages it in a database.
The 930 Compact IC Flex SeS consists of the following modules:
Housing
The sturdy housing contains the instrument's electronic components,
including their interfaces and one connector for a separation column. In
addition, the housing provides space for a conductivity detector or an
amperometric detector. Capillaries and cables can be fed into and out of
the instrument through several openings.
Leak sensor
The leak sensor detects leaking liquid that collects in the instrument's base
tray. Liquid that leaks in the instrument is routed to the base tray using
drainage tubing and detected there.
High-pressure pump
The intelligent and low-pulsation high-pressure pump pumps the eluent
through the IC system. It is equipped with a chip where its technical speci-
fications and "life history" (operating hours, service data, etc.) are stored.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Introduction
930 Compact IC Flex SeS (2.930.1400) ￭￭￭￭￭￭￭￭ 3
Inline filter
Inline filters protect the separation column reliably from potential contam-
ination from the eluent. The filter pads with 2 µm pore size can be
replaced quickly and easily. They remove particles from the solutions, such
as bacteria and algae.
Pulsation absorber
The pulsation absorber protects the separation column from damage
caused by pressure fluctuations, e.g. when the injection valve is switched,
and reduces interfering pulsations during highly sensitive measurements.
Injection valve
The injection valve connects the eluent path to the sample path. By a
quick and precise switching of the valve, a quantity of sample solution
defined by the size of the sample loop is injected and flushed to the sepa-
ration column with the eluent.
Metrohm Suppressor Module (MSM)
The chemical suppressor MSM consists of the suppressor drive, a rotor
and, where applicable, an adapter. The suppressor drive gives you the flex-
ibility to use different rotors according to the principle "one drive – many
rotors". Suppression rotors with different capacities and construction or a
rotor for sample preparation (SPM Rotor) are readily interchangeable with
appropriate adapters as needed. The rotors are not included in the instru-
ment's scope of delivery. The rotor required for the application and any
adapter that is required must be ordered separately.
Metrohm CO2 Suppressor (MCS)
The Metrohm CO2 Suppressor (MCS) removes the CO2 from the eluent
stream. This lowers the background conductivity, improves detection sen-
sitivity and minimizes the injection peak and system peak.
Detector
Metrohm offers a series of different detectors for various analysis tasks. A
suitable detector type must be ordered as a separate device.
Separation column
The intelligent separation column separates different components accord-
ing to their interactions with the column. Metrohm separation columns
are equipped with a chip where their technical specifications and history
(start-up, operating hours, injections etc) are stored.

2.2 Accessories and additional information ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4￭￭￭￭￭￭￭￭ 930 Compact IC Flex SeS (2.930.1400)
2.2 Accessories and additional information
Additional information is available on the Metrohm website (https://
www.metrohm.com):
￭Product family
￭Product versions
￭Accessories
￭Documents about the product
Downloading the accessories list
NOTICE
The accessories list is a part of the product documentation. Download
the accessories list and store it as a reference.
1. Use the search function to search for the product.
2. Open the desired product version.
3. Download the accessories list.
2.3 Symbols and conventions
The following symbols and formatting may appear in this documentation:
Cross-reference to figure legend
The first number refers to the figure number, the
second to the instrument part in the figure.
Instruction step
Perform the steps one after the other.
Method Dialog text, parameter in the software
File ▶ New Menu or menu item
[Continue] Button or key
WARNING
This symbol draws attention to a possible life-threat-
ening hazard or risk of injury.
WARNING
This symbol draws attention to a possible hazard due
to electrical current.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Introduction
930 Compact IC Flex SeS (2.930.1400) ￭￭￭￭￭￭￭￭ 5
WARNING
This symbol draws attention to a possible hazard due
to heat or hot instrument parts.
WARNING
This symbol draws attention to a possible biological
hazard.
WARNING
Warning of optical radiation
CAUTION
This symbol draws attention to possible damage to
instruments or instrument parts.
NOTICE
This symbol highlights additional information and
tips.

3.1 Intended use ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
6￭￭￭￭￭￭￭￭ 930 Compact IC Flex SeS (2.930.1400)
3 Safety
3.1 Intended use
The 930 Compact IC Flex SeS is used for the determination of anions, cati-
ons or polar substances with sequential suppression using ion chromato-
graphy.
Sequential suppression consists of:
￭Chemical suppression with a Metrohm Suppressor Module (MSM) and
subsequent
￭CO2 suppression with the Metrohm CO2 Suppressor (MCS).
Background conductivity is reduced to a minimum with sequential sup-
pression.
The instrument can also be used as needed for the determination of cati-
ons, polar substances or anions without suppression.
This instrument is suitable for processing chemicals and flammable sam-
ples. Therefore, the use of the 930 Compact IC Flex requires the user to
have basic knowledge and experience in handling toxic and caustic sub-
stances. Knowledge regarding the application of fire prevention measures
prescribed for laboratories is also mandatory.
3.2 Responsibility of the operator
The operator must ensure that basic regulations on occupational safety
and accident prevention in chemical laboratories are observed. The opera-
tor has the following responsibilities:
￭Instruct personnel in the safe handling of the product.
￭Train personnel in the use of the product according to the user docu-
mentation (e.g. install, operate, clean, eliminate faults).
￭Train staff on basic occupational safety and accident prevention regula-
tions.
￭Provide personal protective equipment (e.g. protective glasses, gloves).
￭Provide suitable tools and equipment to carry out the work safely.
The product may be used only when it is in perfect condition. The follow-
ing measures are required to ensure the safe operation of the product:
￭Check the condition of the product before use.
￭Remedy defects and malfunctions immediately.
￭Maintain and clean the product regularly.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Safety
930 Compact IC Flex SeS (2.930.1400) ￭￭￭￭￭￭￭￭ 7
3.3 Requirements for operating personnel
Only qualified personnel may operate the product. Qualified personnel are
persons who meet the following requirements:
￭Basic regulations on occupational safety and accident prevention for
chemical laboratories are known and complied with.
￭Knowledge of handling hazardous chemicals is present. Personnel have
the ability to recognize and avoid potential dangers.
￭Knowledge regarding the application of fire prevention measures for
laboratories is available.
￭Safety-relevant information is communicated and understood. The per-
sonnel can operate the product safely.
￭The user documentation has been read and understood. The personnel
operate the product according to the instructions in the user documen-
tation.
3.4 Safety instructions
3.4.1 General notes on safety
WARNING
Operate this instrument only according to the information contained in
this documentation.
This instrument left the factory in a flawless state in terms of technical
safety. To maintain this state and ensure non-hazardous operation of the
instrument, the following instructions must be observed carefully.
3.4.2 Electrical safety
The electrical safety when working with the instrument is ensured as part
of the international standard IEC 61010.
WARNING
Only personnel qualified by Metrohm are authorized to carry out service
work on electronic components.

3.4 Safety instructions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8￭￭￭￭￭￭￭￭ 930 Compact IC Flex SeS (2.930.1400)
WARNING
Never open the housing of the instrument. The instrument could be
damaged by this. There is also a risk of serious injury if live components
are touched.
There are no parts inside the housing which can be serviced or replaced
by the user.
Supply voltage
WARNING
An incorrect supply voltage can damage the instrument.
Only operate this instrument with a supply voltage specified for it (see
rear panel of the instrument).
Protection against electrostatic charges
WARNING
Electronic components are sensitive to electrostatic charges and can be
destroyed by discharges.
Do not fail to pull the power cord out of the power socket before you
set up or disconnect electrical plug connections at the rear of the
instrument.
3.4.3 Tubing and capillary connections
CAUTION
Leaks in tubing and capillary connections are a safety risk. Tighten all
connections well by hand. Avoid applying excessive force to tubing con-
nections. Damaged tubing ends lead to leakage. Appropriate tools can
be used to loosen connections.
Check the connections regularly for leakage. If the instrument is used
mainly in unattended operation, then weekly inspections are manda-
tory.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Safety
930 Compact IC Flex SeS (2.930.1400) ￭￭￭￭￭￭￭￭ 9
3.4.4 Flammable solvents and chemicals
WARNING
All relevant safety measures are to be observed when working with
flammable solvents and chemicals.
￭Set up the instrument in a well-ventilated location (e.g. fume cup-
board).
￭Keep all sources of flame far from the workplace.
￭Clean up spilled liquids and solids immediately.
￭Follow the safety instructions of the chemical manufacturer.
3.4.5 Recycling and disposal
This product is covered by European Directive 2012/19/EU, WEEE – Waste
Electrical and Electronic Equipment.
The correct disposal of your old instrument will help to prevent negative
effects on the environment and public health.
More details about the disposal of your old instrument can be obtained
from your local authorities, from waste disposal companies or from your
local dealer.

4.1 Front ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10 ￭￭￭￭￭￭￭￭ 930 Compact IC Flex SeS (2.930.1400)
4 Overview of the device
4.1 Front
Figure 1 Front
1Bottle holder
Offers space for the eluent bottle and addi-
tional accessories.
2Column holder
For hanging the separation column (iCol-
umn). With column recognition.
3Column chamber 4Metrohm Suppressor Module (MSM)
5Inline filter 6Injection valve
7Pulsation absorber 8Base tray
With leak sensor.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 4 Overview of the device
930 Compact IC Flex SeS (2.930.1400) ￭￭￭￭￭￭￭￭ 11
9Purge valve
For purging the high-pressure pump. With
rotary knob in the center and pressure sen-
sor.
10 High-pressure pump
Pumps the eluent through the IC system.
11 Metrohm CO2 Suppressor (MCS) 12 Detector chamber
Room for the detector and the adsorption
cartridge for the MCS.
4.2 Rear

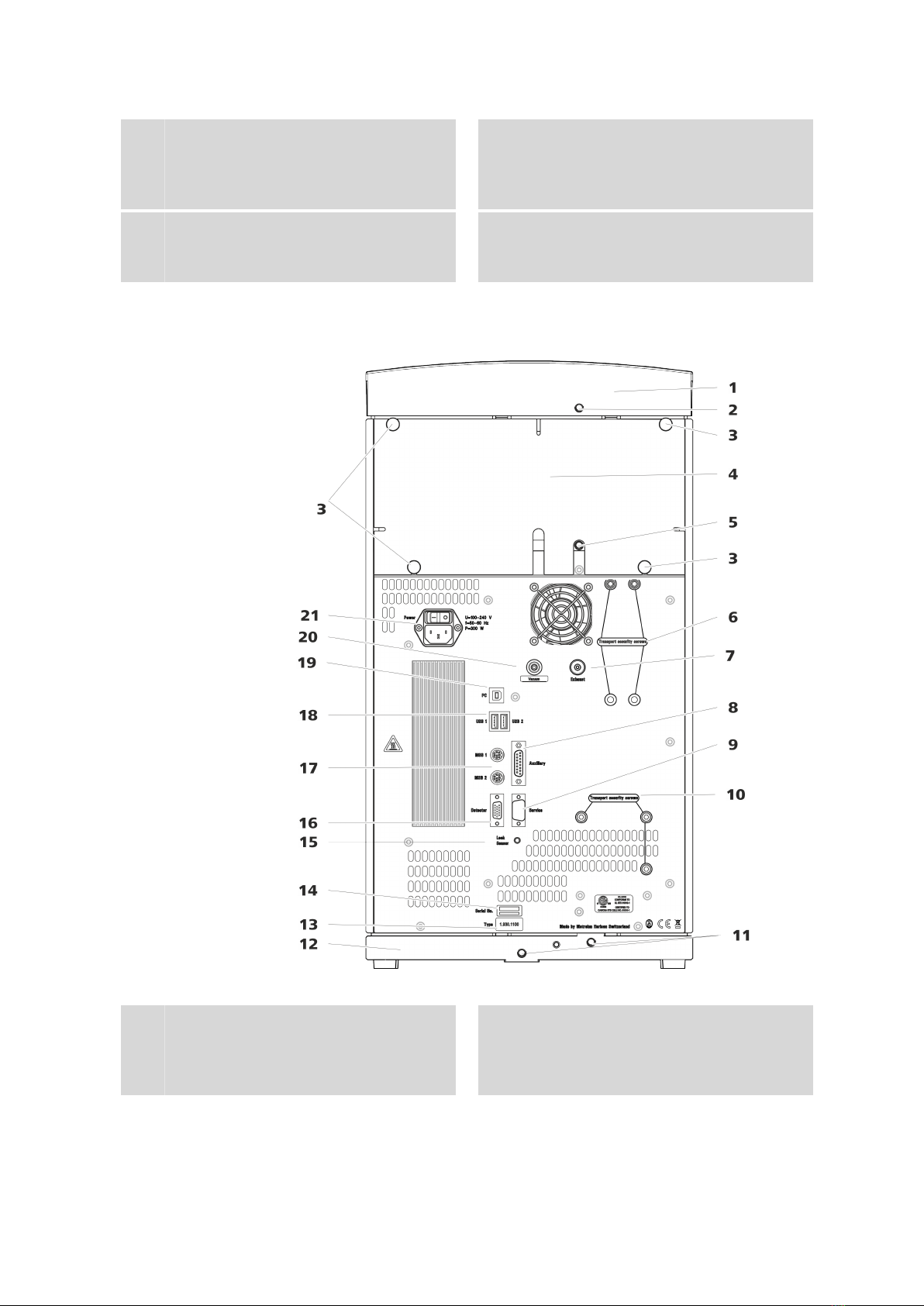

Figure 2 Rear
1Bottle holder 2Drainage tubing connection
For connecting the drainage tubing, which
guides escaped fluids away from the bottle
holder.

4.2 Rear ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭ 930 Compact IC Flex SeS (2.930.1400)
3Knurled screws
For fastening the removable back panel.
4Back panel
Removable. Enables access to the detector
chamber.
5Drainage tubing connection
For connecting the drainage tubing, which
guides escaped liquids away from the detec-
tor chamber.
6Transport locking screws
For securing the vacuum pump when trans-
porting the instrument.
7Exhaust opening
Labeled Exhaust. For extracting the air from
the vacuum chamber.
8Auxiliary connection socket
For connecting an 891 Professional Analog
Out (2.891.0010).
9Service connection socket
For Metrohm service only.
10 Transport locking screws
For securing the high-pressure pump when
transporting the instrument.
11 Drainage tubing connections
For connecting two drainage tubings that
guide the escaped fluid to the leak sensor
and from there to the waste container.
12 Base tray
With leak sensor.
13 Type plate 14 Serial number
15 Leak sensor connection socket
Labeled Leak Sensor. For connecting the
leak sensor connection cable.
16 Detector connection socket
Labeled Detector. For connecting Metrohm
detectors.
17 MSB connection sockets
Labeled MSB 1 and MSB 2. For connecting
MSB devices.
18 USB connection sockets
Labeled USB 1 and USB 2. For connecting
USB devices.
19 PC connection socket
For connecting the instrument to the com-
puter with the USB cable (6.2151.020).
20 Vacuum connection
Plugged with a stopper.
21 Power socket
Power socket for connecting the power
cable and power switch for switching the
instrument on and off.
