Meyra 2.360 User manual

en
Operating manual
We move people.
Lightweight wheelchairs
Model 2.360 / 2.370

2
Contents
Meaning of the applied markers 6
Introduction 6
List of models 6
Indications 6
Acceptance 6
Specifications 6
Use 6
Wheelchair folding/unfolding/carrying 7
Adjustment 7
Reinstallment 8
Life span 8
Overview 9
Model 2.370 9
Overview 10
Model 2.360 10
Brake 11
Pressure brake - user 11
Locking the brakes 11
Releasing the brakes 11
Service brake 11
Butterfly brake - user 12
Locking the brakes 12
Releasing the brakes 12
Service brake 12
Drum brake for accompanying persons 13
Function as operating brakes 13
Leg supports 14
Calf belt model 2.370, 14
Removing the calf belt 14
Attaching the calf belt 14
Length adjustment of the calf belt 14

3
Heel strap 14
Length adjustment of the heel strap 14
Calf belt model 2.360, 15
Removing the calf belt 15
Attaching the calf belt 15
Length adjustment of the calf belt 15
Lower leg support, model 2.370 16
Footplates 16
Footboard 16
Lower leg support, model 2.360 17
Footboard 17
Upper leg support, model 2.370, 18
Turning the leg supports to the side 18
Swivelling in the leg supports 19
Removing the leg supports 20
Attaching the leg supports 20
Mechanically height-adjustable leg supports 21
Lifting/lowering the leg support 21
Arm supports 22
Removing the arm support 22
Inserting the arm support 23
Swivelling up the arm support 24
Height adjustment of the arm support 24
Clothes guard 25
Clothes guard with padded arm support 25
Push bar 26
Push handles 27
Wheels 28
Drive wheels 28
Manoeuvre rollers 28
Support castors 29
Swinging the support castors 29

4
Head support 30
Therapy table 30
Retaining strap 31
Basic safety information 32
Accompanying person 32
Transfer out of the wheelchair 32
Reaching for objects 32
Driving on falling, rising or transverse gradients 32
Crossing obstacles 33
Transport in vehicles 33
Transport safety of the empty wheelchair 33
Transport of people inside a motor vehicle 33
Transport in public methods of transportation 34
Driving on public highways 34
Cleaning 34
Finish 35
Disinfection 35
Disposal 35
Maintenance 35
Maintenance 36
Maintenance schedule 37
Technical data 39
Tyre pressure of pneumatic tyres 39
Data according to ISO for model 2.370 Smart S 40
Further technical data for model 2.370 Smart S 41
Data according to ISO for model 2.360 Smart F 42
Further technical data for model 2.360 Smart F 43
Meaning of the symbols on the washing instruction 44
Meaning of the labels on the wheelchair 45
Meaning of the symbols on the type plate 46

5
Inspection certificate 47
Warranty / Guarantee 48
Warrantee / Guarantee section 49
Inspection certificate for transfer 49
Notes 50

6
MEANING OF THE AP-
PLIED MARKERS
Safety instructions with a coloured back-
ground are mandatory and need to be
observed under any circumstance!
☞This symbol indicates tips and recom-
mendations
[ ] Reference to a picture number
( ) Reference to a function element within
a picture.
INTRODUCTION
Read and observe this manual before first
operation. Children and juveniles should
read this documentation together with
their parents respectively a supervisor or
accompanying person before first use.
This operating manual is to help you get ac-
customed to the handling of the wheelchair
as well as to prevent accidents.
Users with visual impairments can find the
PDF-files together with further information
on our website:
< www.meyra.com >.
☞Contact your specialist dealer when re-
quired.
Information about product safety, possible
recalls and general handling instructions of
our products can be found in the < Informa-
tion center > on our website:
< www.meyra.com >.
Our implemented assembly groups and
components fulfil the demands of the
norms of correspondence acc. to EN 12183
for durability against inflaming.
LIST OF MODELS
This operating manual applies to the follow-
ing models:
Model 2.360 (slanted front section)
Model 2.370 (straight front section)
INDICATIONS
In case of allergic reactions, skin rashes
and/or pressure sores during the use of
the wheelchair sores contact a doctor im-
mediately.
If the following indications occur we rec-
ommend the application of this mobility
product:
☞Walking disability resp. extremely lim-
ited walking ability as part of the ba-
sic need to move around in your own
home.
☞The need to be able to leave home for
a short walk in fresh air or in order to
reach the places, commonly in the pe-
rimeter of the home, required to fulfil
basic needs.
ACCEPTANCE
All products are checked for faults in the
factory and packed in special boxes.
☞However, we request that you check
the vehicle for possible transport dam-
age immediately on receipt – prefera-
bly in the presence of the carrier.
☞The packaging of the wheelchair
should be stored for a further transport
that might become necessary.

7
SPECIFICATIONS
The wheelchair was developed for adults.
The wheelchair solely serves to transport
one person in the seat and not as a hauling
aid, transporter or similar.
USE
Do not reach into the spokes or grip the
tyres of the rotating wheels. – Danger of
injury!
Do not reach into the space between the
pressure brake and the tyre when propel-
ling the wheelchair. – Danger of injury!
Avoid a jerky propulsion of your wheel-
chair. – Danger of tipping over or tilting!
Do not use the wheelchair without at-
tached leg supports and arm support
units!
The wheelchair is applicable on level, firm
surfaces and can be used as follows:
– for indoors (e.g. apartment, day care),
– outdoors (e.g. paved paths in parks),
– as a companion on tours (e.g. in a bus
or train).
☞Your wheelchair with a seat width of
more than 500 mm is not suited for
transport in a train.
– Never expose the wheelchair to ex-
treme temperatures and damaging
environmental conditions, such as sun-
light, extreme cold or salty water.
– Sand and other dirt particles can seize
on moving parts and render them with-
out function.
– Use only the handrims on the drive
wheels to propel your wheelchair.
You must not let yourself be carried in your
wheelchair by having the wheelchair lifted
from the floor. Parts that are not securely
fixed, e.g. side elements or leg supports, can
come away and thus cause an accident.
☞The wheelchair is a vehicle and not a
carrying device.
Only apply the wheelchair within the
scope of the specifications and limitation
described in chapter Technical data on
page 39.
WHEELCHAIR FOLDING/
UNFOLDING/CARRYING
You wheelchair can be folded without the
aid of tools.
1. Remove the seat cushion, if applicable.
2. Lift up the footplates or remove the leg
supports.
3. Pull the seat belt upward in the centre
of the front and back.
4. If necessary remove the connection
rod of the double handrim drive or the
push bar.
Your wheelchair can be carried without dif-
ficulty when folded.
For this, push one lower arm from the front
under the upward folded seat belt. Place
other hand underneath the rear seat fold for
support.
Lift the wheelchair to horizontal position.
Tip the wheelchair slightly to one side in
order to make the unfolding easier. At the
side resting on the floor, press the seat tube
down to the end stop.
☞You may need to press down both seat
tubes with the hands in order to do this.
☞Ensure that the seat tube sits securely
on the support surface.

8
ADJUSTMENT
Always have adaptation and adjustment
work carried out by a specialist dealer.
The wheelchair offers manifold adjustment
possibilities to individual vital statistics.
The wheelchair should be adapted to your
needs by a specialist dealer before the first
use. The adaptation will take into account
the driving experience, the physical limits of
the user and the main place of use of the
wheelchair.
☞We recommend a regular control if
the wheelchair adjustment in order to
ensure a long-term optimal provision
even with changing illness/handicap
patterns of the user.
REINSTALLMENT
The wheelchair is suited for reinstallment.
With the building block system the wheel-
chair can be fit to accommodate different
handicaps body sizes. Before reimplemen-
tation the wheelchair is to undergo a com-
plete inspection.
☞Hygienical measures required for rein-
stallment are to be carried out accord-
ing to a validated hygienic plan and
must include disinfection.
LIFE SPAN
We expect an average life span of about
4 years for this product, as far as the product
is applied for its designated purpose and all
maintenance and service guidelines. The life
span of your product depends upon the fre-
quency of use, the application environment
and care. The implementation of spare parts
can prolong the life span of the product. As
a rule spare parts are available up to 5 years
after production is discontinued.
☞The indicated lifespan does not consti-
tute additional guarantee.

13
12
11
10 8 7
6
5
432
1
9
9
Pos. Description
(1) Push handle
(2) Back support
(3) Arm support
(4) Clothes guard
(5) Seat belt/seat cushion
(6) Locking lever – Leg support
(7) Footboard/footplates divided

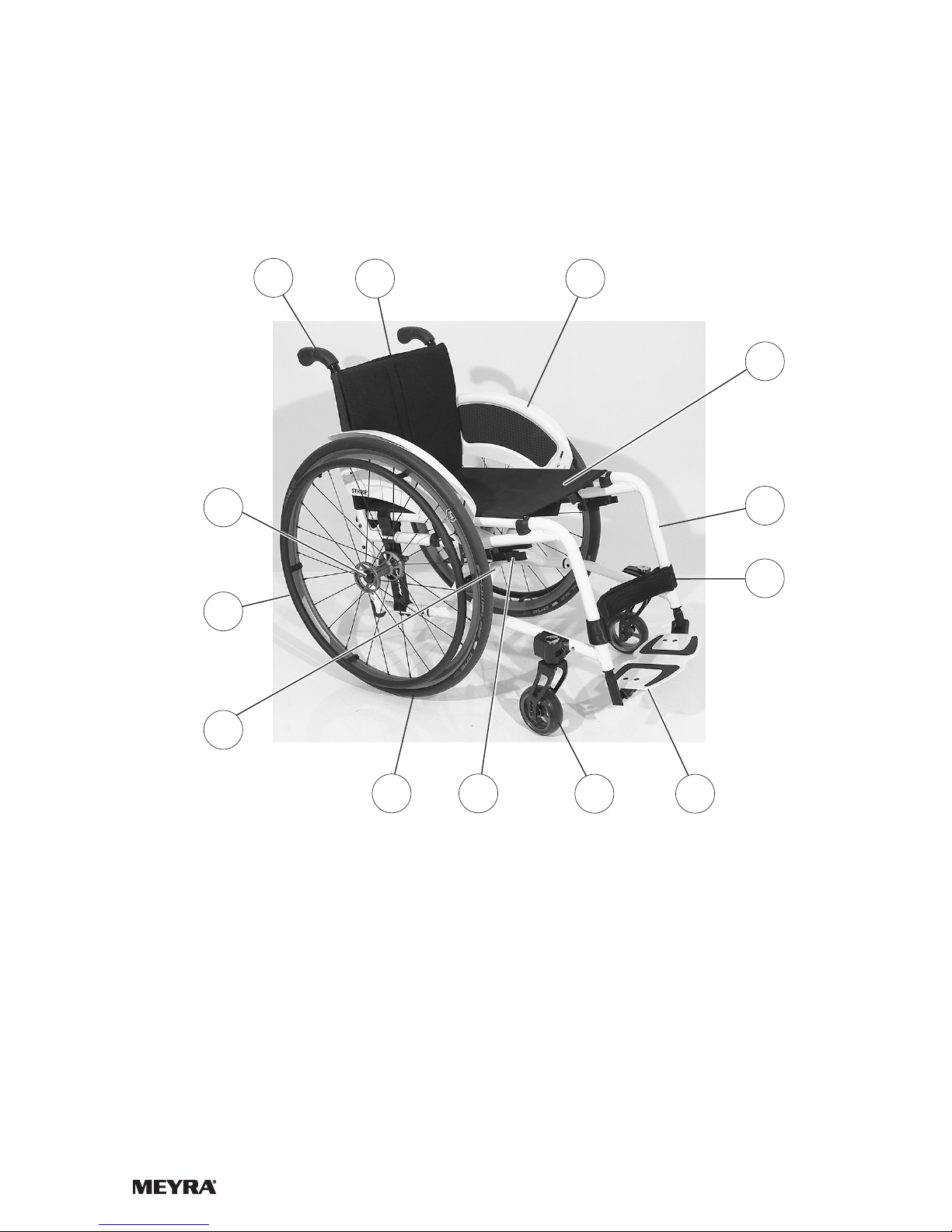

OVERVIEW
Model 2.370
The overview shows, representative for all models, the most important components of the
wheelchair.
(8) Steering wheel
(9) Type plate
(10) Driving wheel
(11) Brake lever – pressure brake
(12) Handrims
(13) Locking knob – Quick release axle

13
12
11
10 8 7
6
4
32
1
9
5
10
OVERVIEW
Model 2.360
The overview shows, representative for all models, the most important components of the
wheelchair.
Pos. Description
(1) Push handle
(2) Back support
(3) Clothes guard
(4) Seat belt/seat cushion
(5) Slanted front section
(6) Calf belt
(7) Footboard/footplates divided
(8) Steering wheel
(9) Brake lever – pressure brake
(10) Driving wheel
(11) Type plate
(12) Handrims
(13) Locking knob – Quick release axle

3
2
1
1
4
11
BRAKE
Arrange an immediate repair of the brakes
by your specialist workshop if the braking
performance reduces.
Wheelchairs with PU-tyres should be
stored safely without activated pressure
brakes in case of longer standing periods.

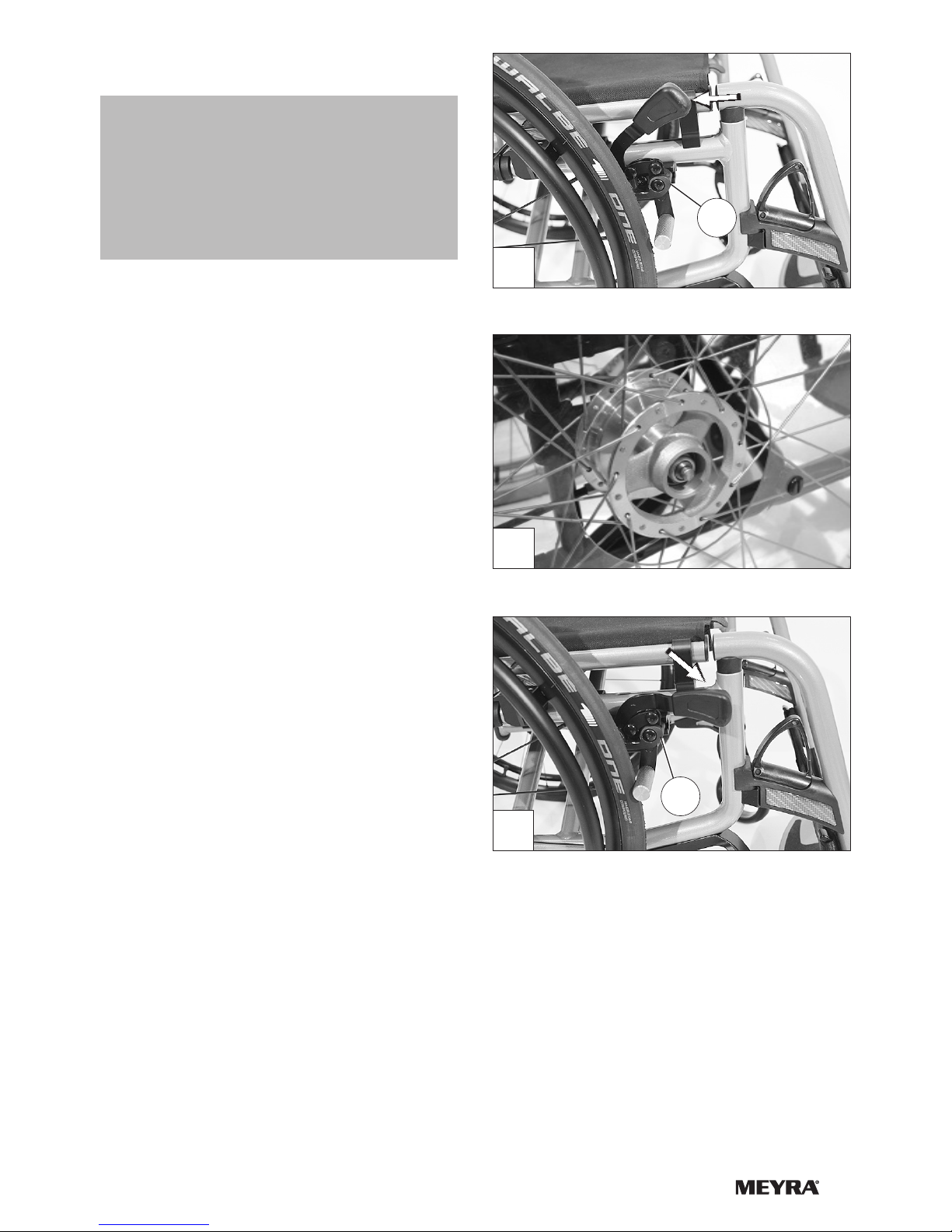

By locking the brakes with the brake lever
(1), the wheelchair is secured against rolling
away unintentionally (parking brake).
Depending on the version, the wheelchair
can be equipped with pressure brakes (2) or
with drum brakes (3).
☞Therefore observe the Maintenance
schedule on page 37.
Pressure brake - user
Locking the brakes
To secure the wheelchair against any unin-
tentional rolling, press both brake levers for-
ward all the way [4].
☞It should not be possible to push the
wheelchair forward when both brakes
are locked.
Releasing the brakes
Pull both brake levers back all the way [2].
Service brake
The wheelchair is braked down with help of
the handrims.
☞If needed use suitable gloves in order to
brake down the wheelchair.

2
1
12

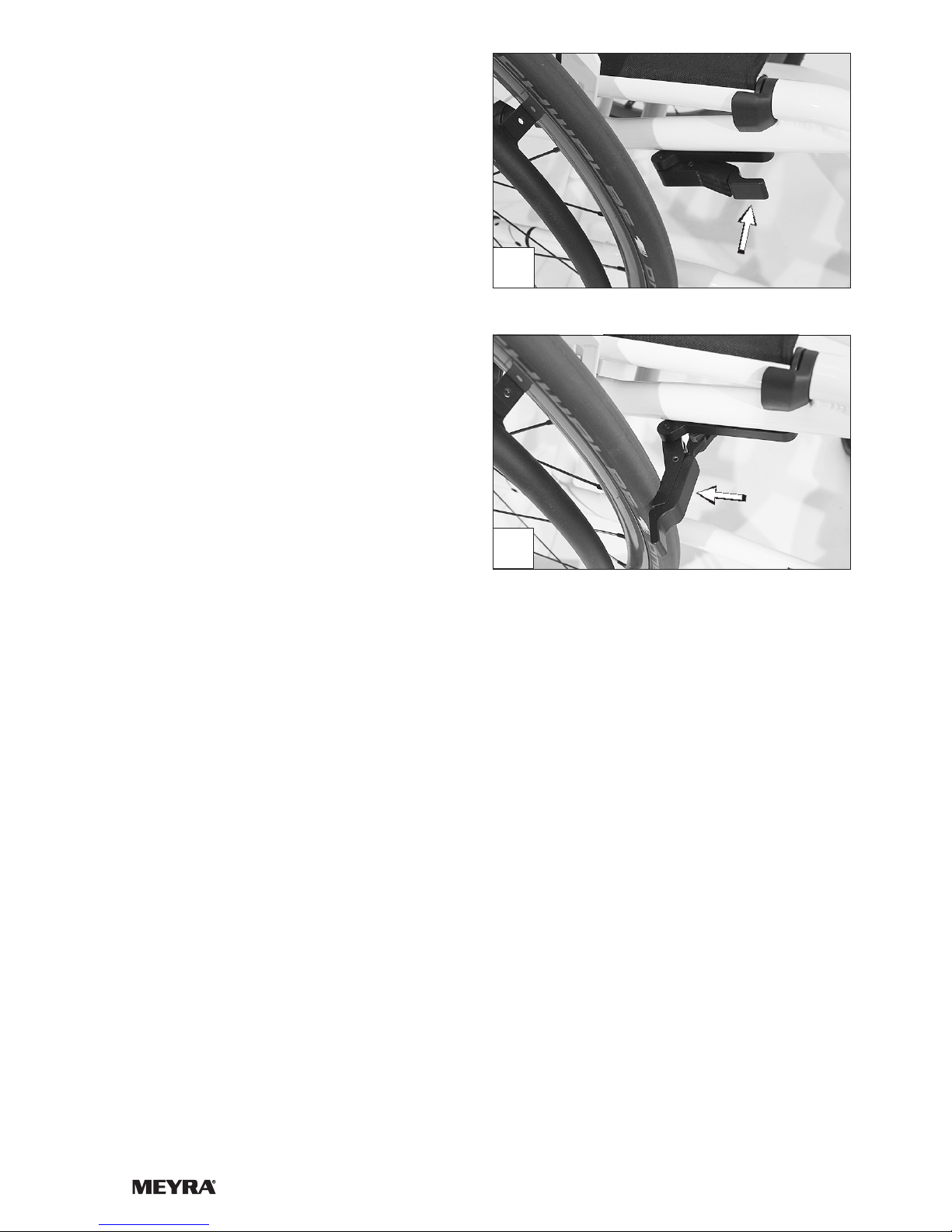

Butterfly brake - user
Locking the brakes
To secure the wheelchair against any un-
intentional rolling, swivel both brake levers
outward all the way [2].
☞It should not be possible to push the
wheelchair forward when both brakes
are locked.
Releasing the brakes
Swivel both brake levers inward all the way
[1].
Service brake
The wheelchair is braked down with help of
the handrims.
☞If needed use suitable gloves in order to
brake down the wheelchair.

1
C
A
B
2
13
Drum brake for accompanying
persons
Model 2.370
The drum brake is activated by the accom-
panying person through the brake levers [1].
Function as operating brakes
Use both brake levers evenly and only light-
ly in order to achieve a controlled decelera-
tion of the wheelchair.
Locking the drum brakes
Pull both brake levers [1] and press the lock-
ing latch (2) forward.
Release the brake lever. – Depending on the
adjustment the latch engages in the first (A)
or second (B) locking position and activates
the brake.
☞If the third locking position (C) is re-
quired to activate the brake, it must be
readjusted by a specialist workshop.
Loosen the drum brakes
Pull both brake levers (1) until the latches
(2) automatically jump out of the locking
points.
Let go of both brake levers. – The parking
brakes are released and the wheelchair
ready for use.

1
3
2
14
LEG SUPPORTS
Before any actions on the leg supports
the wheelchair is to be secured against
unintentional rolling motions.
☞Therefore observe chapter Brake on
page 11.
Calf belt model 2.370,
Do not drive without the calf belt. – Dan-
ger of accidents.
The removable calf belt (1) prevents the feet
from sliding off the back of the footboard.
☞The calf belt must be removed in order
to swivel away the leg supports.
☞The calf belt is omitted for height ad-
justable leg supports and is replaced by
a calf pad.
Removing the calf belt
For removal the calf belt is to be pulled from
the attachment pins (2).
Attaching the calf belt
For attachment both loops of the calf belt
are slid over the attachment pins (2).
Length adjustment of the calf belt
For length adjustment, the calf belt is guid-
ed around the special attachment pins (2)
and adjusted in length with a velcro fasten-
er.
Heel strap
The heel strap (3) prevents the feet from
sliding off the back of the footplates.
Length adjustment of the heel strap
For length adjustment, the heel strap is
guided around the special attachment pins
(2) and adjusted in length with a velcro fas-
tener.

3
1
2
15
Calf belt model 2.360,
Do not drive without the calf belt. – Dan-
ger of accidents.
The removable calf belt (1) prevents the feet
from sliding off the back of the footboard.
☞The calf belt must be removed in order
to swivel away the leg supports.
☞The calf belt is omitted for height ad-
justable leg supports and is replaced by
a calf pad.
Removing the calf belt
To remove the calf belt, open the velcro fas-
tener (2).
Attaching the calf belt
To attach the calf belt, guide it around the
slanted frame tube [3] and close the velcro
fastener (2).
Length adjustment of the calf belt
For length adjustment, the calf belt is guid-
ed around the slanted frame tubes [3] and
adjusted in length with a velcro fastener (2).

1
4
5
3
16

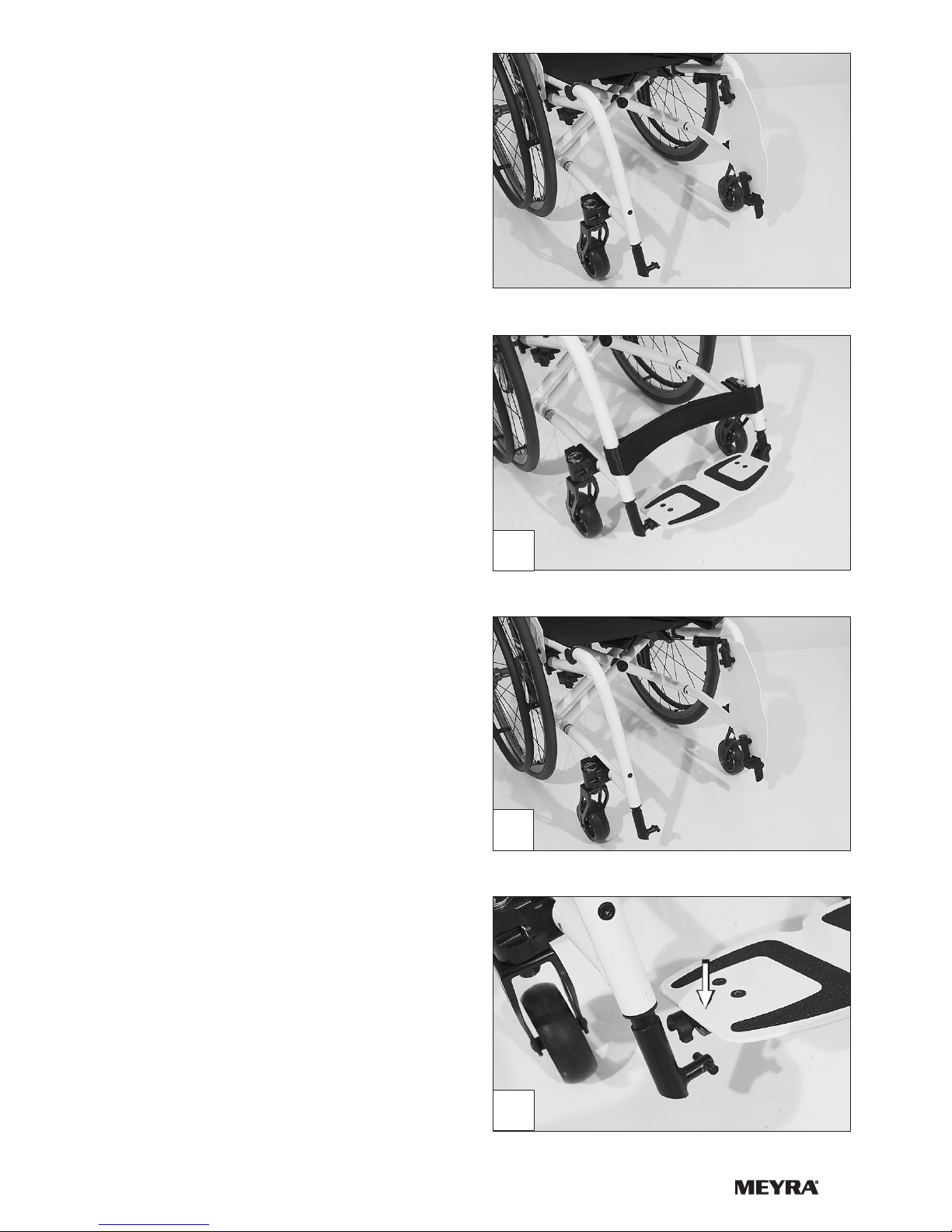

Lower leg support, model 2.370
The footplates, resp. footboard needs to be
folded up before entry or exit [1].
☞Check the locking points!
– Remove both feet from the footplates.
– Remove lower calf belt, if present.
☞Therefore observe chapter Calf belt
model 2.370, on page 14.
☞Before starting to drive the footplates
resp. footboard need to be folded back
down [3] and the calf belt attached.
Footplates
The footplates can be folded outward and
up [1] resp. inward and down [3].
Footboard
Fold the footboard up before swivelling
away and removing the upper leg support
[4].
Folding up the footboard
In order to fold up the footboard lift the
loose end of the footboard as far as possible
[4].
Folding the footboard down
In order to fold down the footboard, lower
the loose end of the footboard as far as pos-
sible down onto the footboard bracket [5].

1
4
5
3
17
Lower leg support, model 2.360
The footplates, resp. footboard needs to be
folded up before entry or exit [1].
☞Check the locking points!
– Remove both feet from the footplates.
– Remove lower calf belt, if present.
☞Therefore observe chapter Calf belt
model 2.370, on page 14.
☞Before starting to drive the footboard
need to be folded back down [3] and
the calf belt attached.
Footboard
The footboard can be folded upward for en-
tering or exiting into/out of the wheelchair
[4].
Folding up the footboard
In order to fold up the footboard lift the
loose end of the footboard as far as possible
[4].
Folding the footboard down
In order to fold down the footboard, lower
the loose end of the footboard as far as pos-
sible down onto the footboard bracket [5].

1
2
2
18

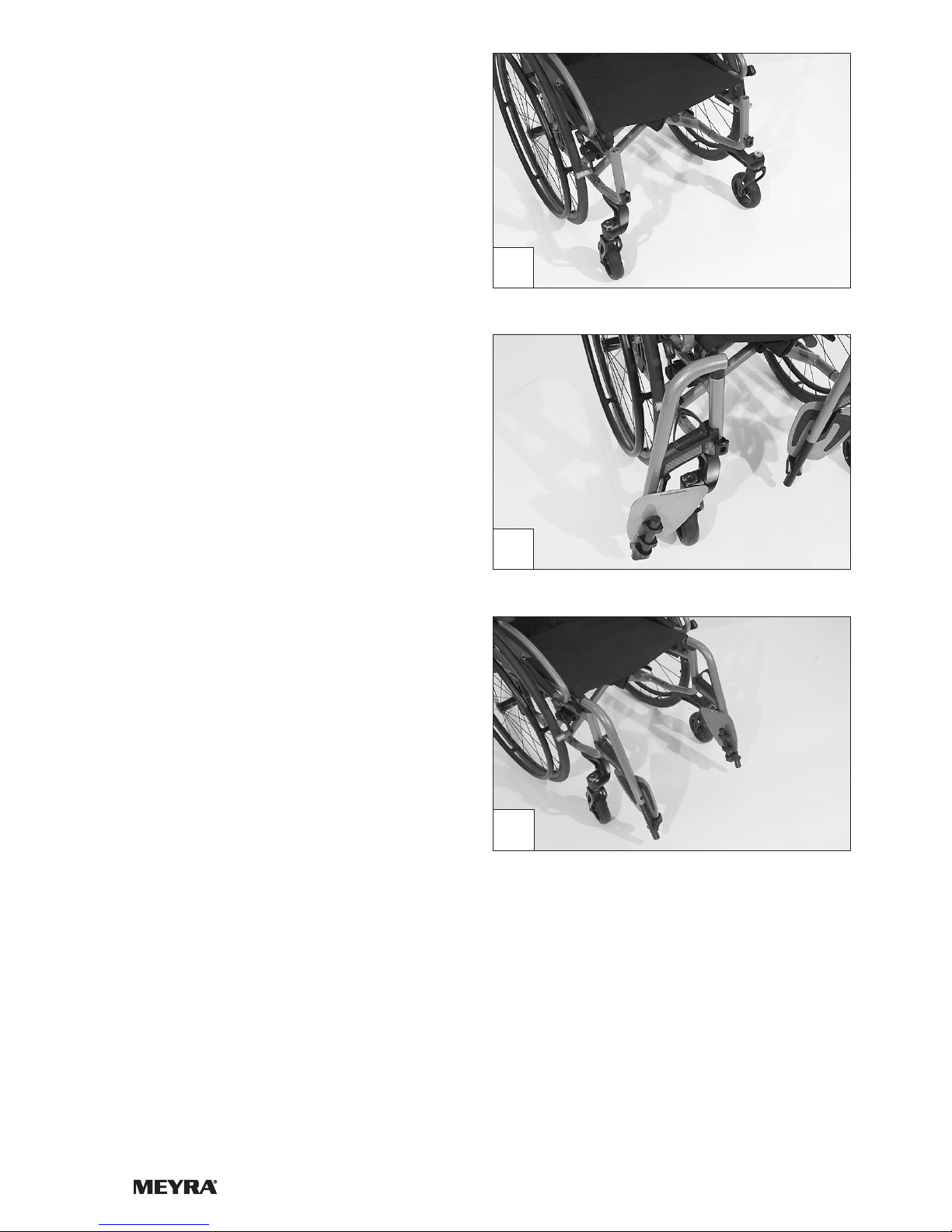

Upper leg support, model 2.370,
The upper leg support with an inserted
lower leg support is termed leg support.
Turning the leg supports to the side
Leg supports turned to the side are re-
leased automatically and can easily come
off. Note this when handling (e.g. trans-
port).
For easy transfer out of/into the wheelchair
as well as driving closer to a closet, bed or
bathtub the leg supports can be swivelled
away toward the in-/outside [1].
☞Remove the calf belt, if applicable, be-
fore swivelling away the leg supports.
☞Therefore observe chapter Calf belt
model 2.370, on page 14.
Fold up the footplates resp. footboard in or-
der to swivel away the leg supports.
☞Therefore observe chapter Lower leg
support, model 2.370 on page 16.
Afterwards pull or press the respective lock-
ing lever (2) backward and swivel the corre-
sponding leg support outward.

1
19
Swivelling in the leg supports
For inward swivelling, let the leg supports
swivel forward until the lock audibly engag-
es [1].
☞After audibly swivelling the leg sup-
ports inward check the respective lock-
ing device.
☞Afterwards observe chapter Low-
er leg support, model 2.370 on
page 16.

1
3
2
20
Removing the leg supports
For easy transfer into and out of the wheel-
chair as well as a reduced wheelchair length
(important for transport) the leg supports
can be removed [1].
☞Remove the calf belt before swivelling
away the leg supports.
☞Therefore observe chapter Calf belt
model 2.370, on page 14.
For removal first swivel the leg support side-
ways [2] and then remove them toward the
top [1].
☞Therefore observe chapter Turn-
ing the leg supports to the side on
page 18.
☞Watch for possible danger of jam-
ming!
Attaching the leg supports
For inserting press the leg supports, swiv-
elled to the side, parallel to the front frame
tube and lower it into place. – In doing so
the holding pin must slide into the frame
tube.
☞After attachment swivel the leg sup-
ports inward [3].
☞Therefore observe chapter Swivel-
ling in the leg supports on page 19.
