Meyra ORTOPEDIA Solero Light 9.072 User manual

en
Operating manual
Multifunctional and lying
and positioning wheelchair
Model 9.072, Solero Light

2
Contents
Meaning of the applied markers 6
Introduction 6
List of models 6
Indications / contraindications 6
Acceptance 7
Intended purpose 7
Use 8
Folding/unfolding the wheelchair 8
Adjustment 9
Combination with manufacturer foreign products 9
Reinstallment 10
Life span 10

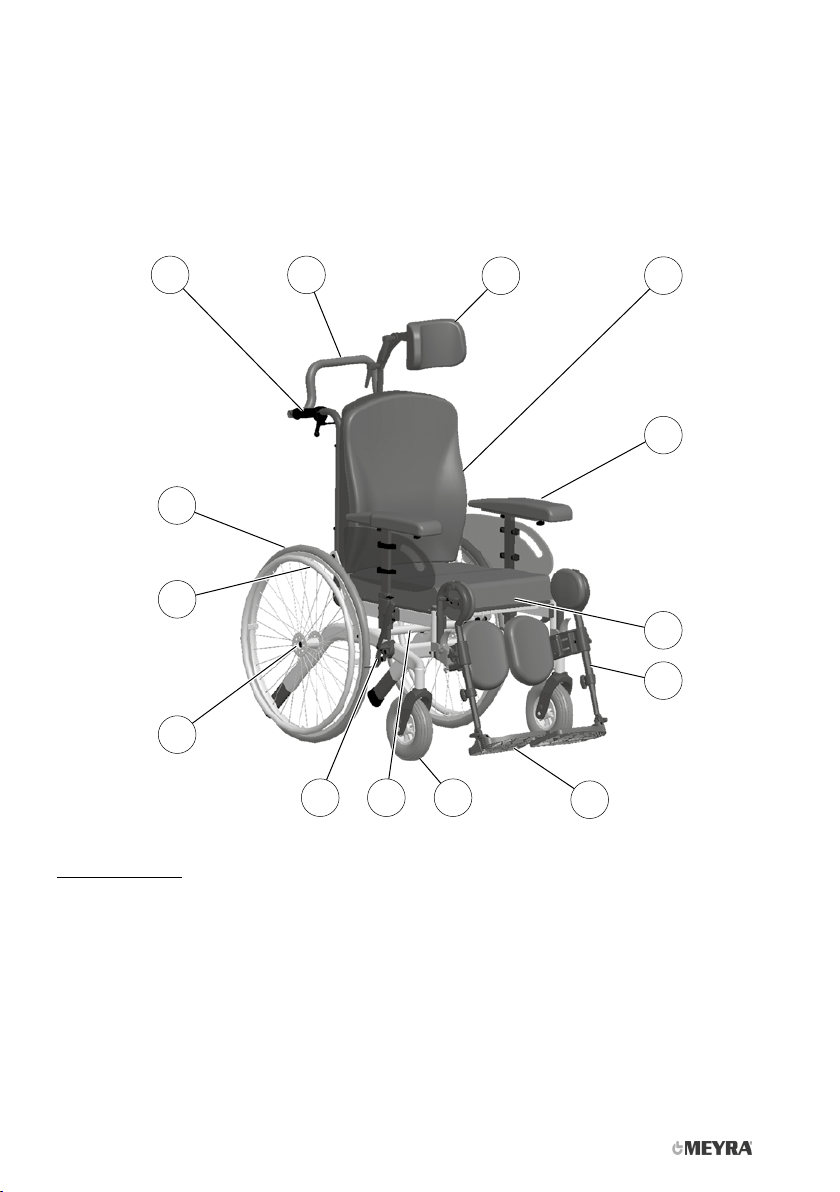

Overview 11

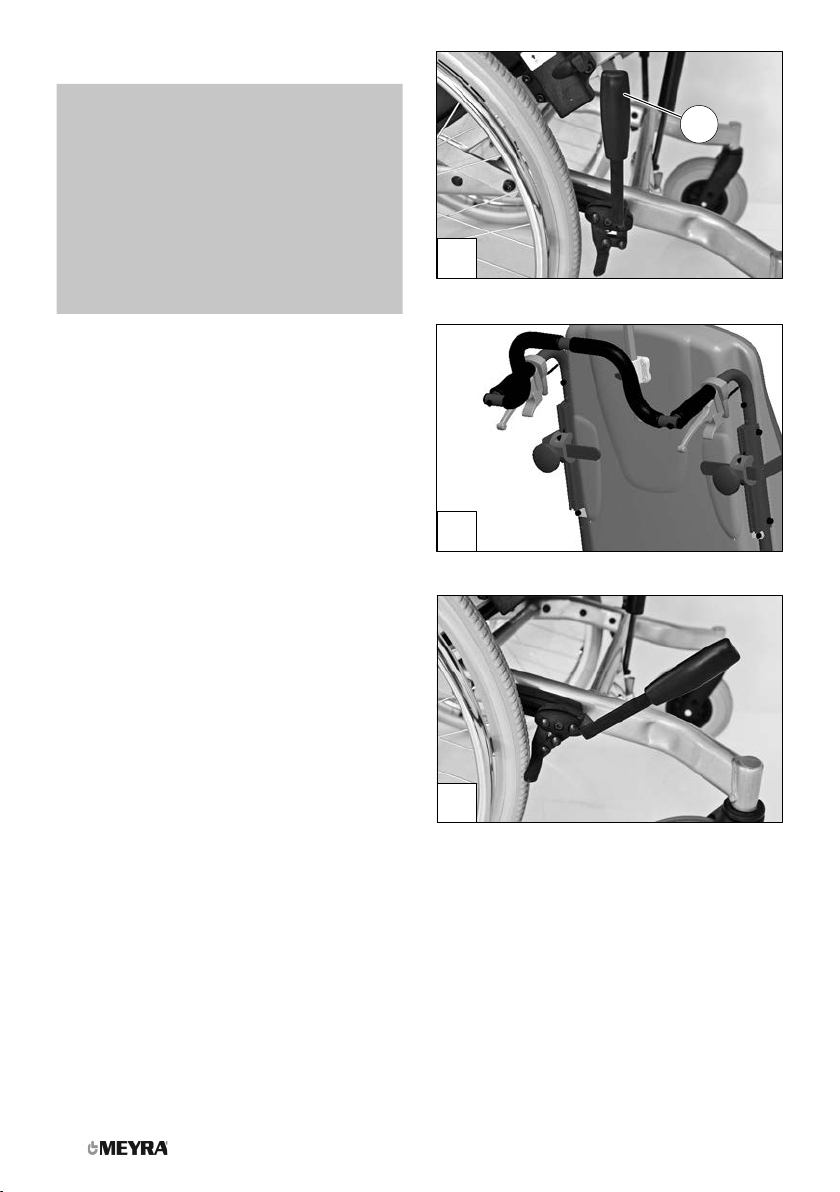

Brake 12
Pressure brake - user 12
Locking the brakes 12
Releasing the brakes 12
Service brake 12
Drum brake for accompanying persons 13
Function as operating brakes 13
Leg supports 14
Lower leg support 14
Footplates 14
Leg support upper part 15
Turning the leg supports to the side 15
Swivelling in the leg supports 16
Removing the leg supports 16
Attaching the leg supports 16

3

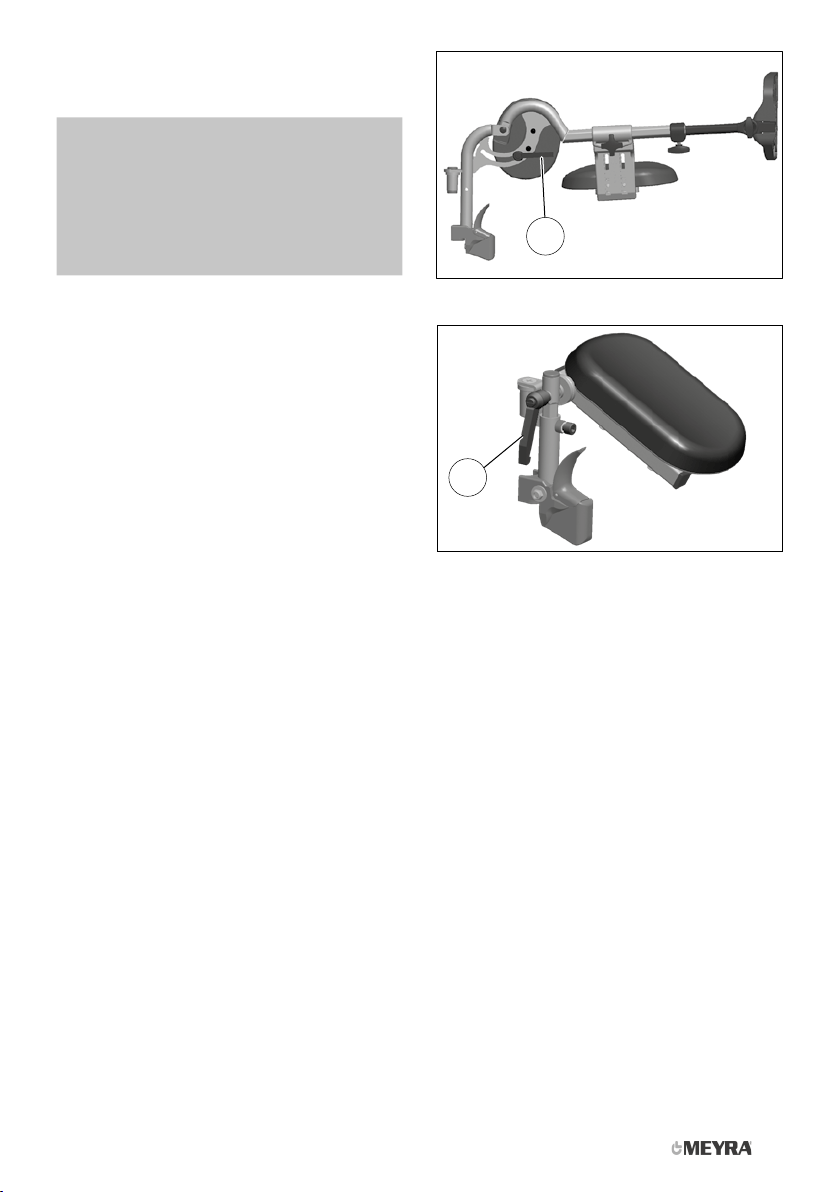

Mechanically height-adjustable leg supports 17
Lifting/lowering the leg support 17
Lifting/lowering the amputee leg support 17
Adjusting the height of the footplate 18
Height adjustment of the calf pad 18

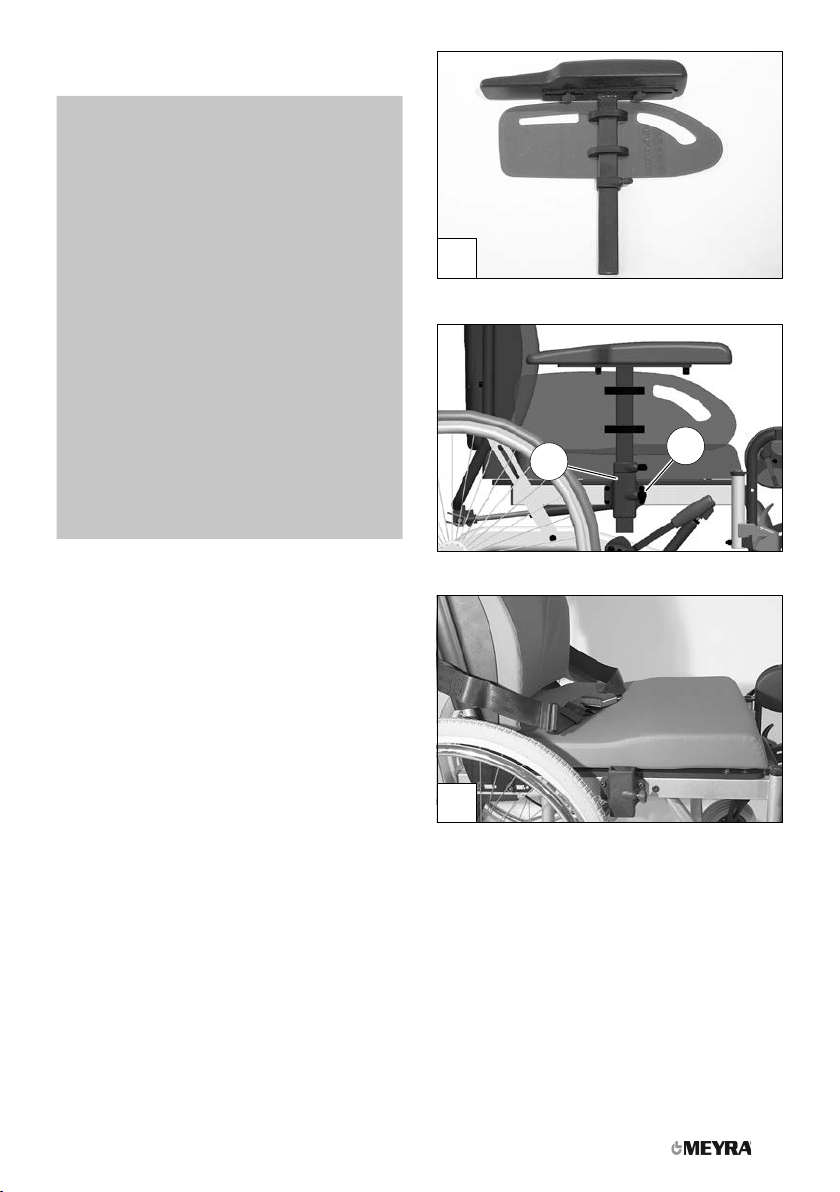

Arm supports 19
Removing the arm support 19
Inserting the arm support 19
Adjustment of the armrest height 20
Depth adjustment of the arm support cushions 20
Repositioning the arm support cushion 20
Back support with angle adjustment 21
Adjusting the angle of the back support 21
Folding down the back support 22
Unfolding the back support 22
Back support upholstery 23
Head support 24
Seat 24
Seat inclination 25
Adjustment of seat inclination 25
Rising aid 26
Torso supports 26
Removing the torso support 26
Wheels 27
Drive wheels 27
Tyre damage on pneumatic tyres 27
Handrim 28
Tilt protection 28
Insertable tilt protection 28
Retaining strap 29

4
Therapy table 29
Folding/Unfolding 30
Folding the wheelchair 30
Unfolding the wheelchair 30
Basic safety information 31
Accompanying person 32
Transfer out of the wheelchair 32
Reaching for objects 32
Driving on falling, rising or transverse gradients 32
Crossing obstacles 33
Loading the wheelchair 33
Transport in vehicles 34
Transport safety of the unoccupied multifunction and bearing wheelchair 34
Transport of people inside a motor vehicle 34
Transport in public methods of transportation 34
Driving on public highways 35
Cleaning 35
Finish 36
Disinfection 36
Repairs 36
Repairs 36
Customer Service 36
Spare parts 36
Information for extended pauses of use 37
Disposal 37
Maintenance 37
Maintenance 37
Maintenance schedule 38

5
Technical data 40
Tyre pressure of pneumatic tyres 40
Applied norms 40
Data according to ISO for model 9.072 Solero light 41
Further technical data for model 9.072 Solero light 42
Meaning of the symbols on the washing instruction 43
Meaning of the labels on the wheelchair 44
Meaning of the symbols on the type plate 45
Inspection certificate 46
Warranty / Guarantee 47
Warrantee / Guarantee section 48
Inspection certificate for transfer 48

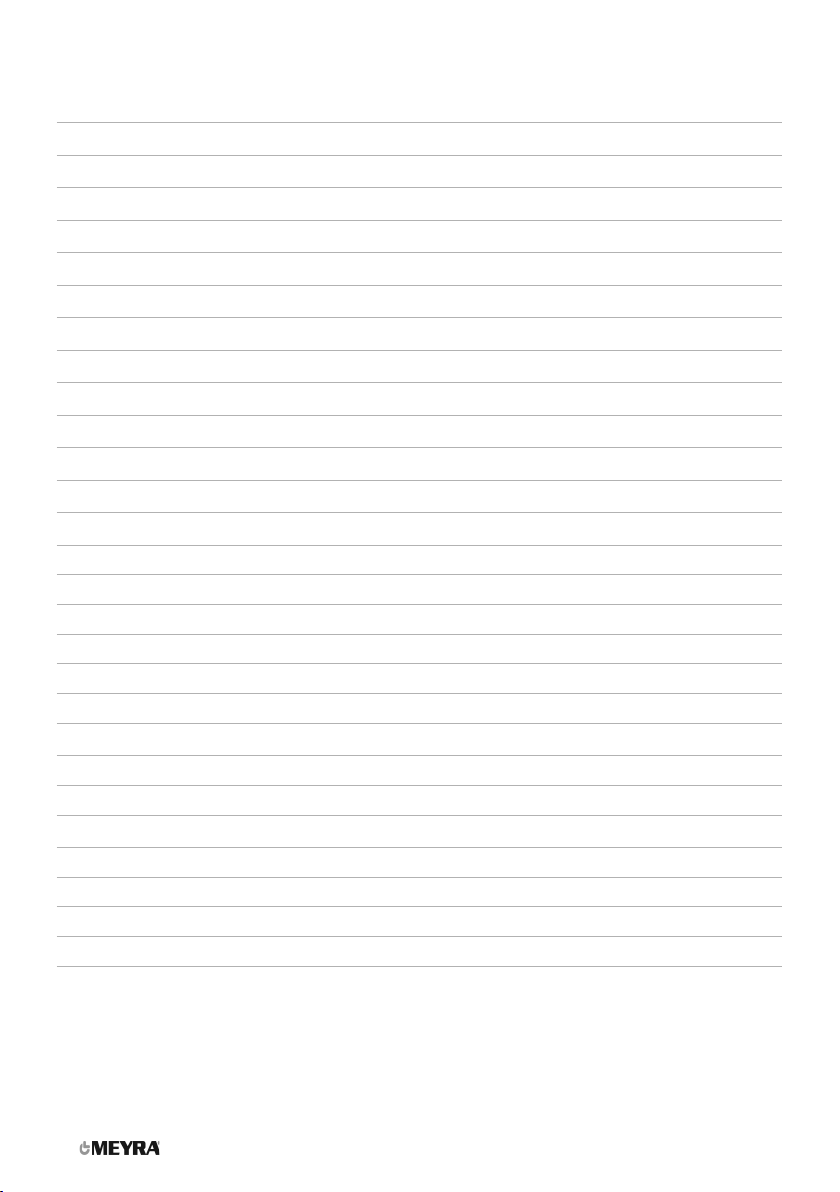

Notes 49

6
MEANING OF THE AP-
PLIED MARKERS
Safety instructions with a coloured back-
ground are mandatory and need to be
observed under any circumstance!
This symbol indicates tips and recommen-
dations.
[ ] Reference to a picture number.
( ) Reference to a function element within
a picture.
INTRODUCTION
Read and observe this manual before first
operation.
Children and juveniles should read this
documentation together with their par-
ents respectively a supervisor or accom-
panying person before first use.
Your specialist dealer should also intro-
duce you into the use of your wheelchair.
This operating manual is to help you get ac-
customed to the handling of the wheelchair
as well as to prevent accidents.
Please note that the illustrated equipment
variants can deviate from your model.
Therefore you will also find chapters with
listed options that might not apply to your
individual multifunction and bearing wheel-
chair. A list of the available options and ac-
cessories can be viewed in the order form of
your multifunction and bearing wheelchair.
Users with visual impairments can find the
PDF-files together with further information
on our website:
< www.meyra.com >.
Contact your specialist dealer when re-
quired.
Alternatively users with visual impairments
can have the documentation read out by a
helper.
Inform yourself regularly about product
safety and possible recalls of our products
in the < Information center > on our website:
< www.meyra.com >.
We have developed a product that fulfils
the technical and legal requirements of
medical devices. For information about a se-
vere accident that can still not be ruled out
completely, please use our E-mail address
< [email protected] > and inform the respon-
sible governmental agency of your country.
LIST OF MODELS
This operating manual applies to the follow-
ing models:
Model 9.072
INDICATIONS /
CONTRAINDICATIONS
In case of allergic reactions, skin rashes
and/or pressure sores during the use of
the multifunction and bearing wheelchair
contact a doctor immediately.
In order to prevent contact allergies, we
recommend to use the multifunction and
bearing wheelchair only when wearing
clothes.
The multifunction and bearing wheelchair
serves to support in case of physical resp.
psychological handicaps, when a long-term
upright sitting posture is not possible in a
common wheelchair, resp. the user has
an increased demand for regular posture
changes and needs to stay in the multifunc-
tion and bearing wheelchair for longer peri-
ods of time, e. g. in case of:

7
– Extreme to fully pronounced limitations
in mobility/walking with structural and/
or functional damages of the lower ex-
tremities (u.o. amputation, after-effects
of injuries, musculoskeletal/neuromus-
culoskeletally caused motion limita-
tions).
– Impairments in sitting, the sitting stabil-
ity or/and damages to the cardio vascu-
lar system (e. g. orthostasis),
– Extreme to fully pronounced lack of
muscle strength,
– Missing or limited torso and body sta-
bility,
– Neurological disease patterns, such as
cerebrocranial injuries, MS, ALS, severe
dementia,
– Hemiplegia,
– Geriatric diseases,
– Rheumatistic diseases, other neurologi-
cal or geriatric diseases.
The multifunction and bearing wheelchair
may not be used in case of the inability to
sit.
The multifunction and bearing wheelchair
may not be used without an accompanying
person in case of:
– uncontrolled balance disorders,
– cognition disorders,
– loss of extremities on both arms,
– contractures / damages of the joints on
both arms,
– insufficient or no eyesight,
– people for whom, due to their physical
proportions, the wheelchair cannot be
adapted properly,
– A seat inclination/ seat camber can lead
to problems for people, who react sen-
sitively to high blood pressure, du to
the increased venous backflow from
the lower extremities.
☞Please ask your doctor, therapist or
specialist dealer to these and possi-
ble other risks in combination with
this product.
ACCEPTANCE
All products are checked for faults in the
factory and packed in special boxes.
We nevertheless ask you, immediately after
receipt of the multifunction and bearing
wheelchair – best while the delivery agent
is present – to check for any damages that
might have occurred during transport.
☞The packaging of the multifunction
and bearing wheelchair should be
stored for a further transport that might
become necessary.
INTENDED PURPOSE
The multifunction and bearing wheelchair
serves independent mobility of one person
or transport by an accompanying person.
In excess to the mobility aspect, the multi-
function and bearing wheelchair serves the
bearing position of the user, when he is not
able to do so by himself and an upright sit-
ting position can muscularly or cognitively
not be stabilised for a longer period of time.

8
USE
Do not reach into the spokes or grip the
tyres of the rotating wheels. – Danger of
injury!
Do not reach into the space between the
pressure brake and the tyre when propel-
ling the multifunction and bearing wheel-
chair. – Danger of injury!
Avoid abrupt forward propelling of your
multifunction and bearing wheelchair.
– Danger of tipping over or tilting!
Do not use the multifunction and bearing
wheelchair without attached leg sup-
ports and arm support units!
Your multifunction and bearing wheel-
chair from seat width 500 mm is not suit-
ed for transport in trains.
The multifunction and bearing wheelchair
is applicable on level, firm surfaces and can
be used as follows:
– for indoors (e.g. apartment, day care),
– outdoors (e.g. paved paths in parks),
– as a companion on tours (e.g. in a bus
or train),
☞In specific dimensions (overall
height, overall width, overall length,
turning radius) your multifunction
and bearing wheelchair is not suit-
ed for transport within a train.
☞Get information on possible limita-
tions before the transport.
– transport within an airplane should
only be done with PU-tyres.
☞Ask the airline for possible limita-
tions before transport in an airplane.
– National regulations may prevent tak-
ing them on busses or trains.
☞Inform yourself at the transportation
companies concerning limitations.
– Never expose the multifunction and
bearing wheelchair to extreme temper-
atures and damaging environmental
conditions, such as sunlight, extreme
cold or salty water.
– Sand and other dirt particles can seize
on moving parts and render them with-
out function.
– Use only the handrims on the drive
wheels to propel your multifunction
and bearing wheelchair.
In certain configurations your multifunction
and bearing wheelchair might exceed the
maximum dimensions of emergency routes.
Always make sure whether possible escape
routes are wide enough for your multifunc-
tion and bearing wheelchair.
You must not let yourself be carried in
your multifunction and bearing wheelchair
through the lifting of the wheelchair. Parts
that are not securely fixed, e.g. side ele-
ments or leg supports, can come away and
thus cause an accident.
The multifunction and bearing wheelchair
is a vehicle and not carrying equipment.
Only apply the multifunction and bearing
wheelchair within the scope of the specifi-
cations and limitations described in chapter
Technical data on page 40.
FOLDING/UNFOLDING THE
WHEELCHAIR
Your multifunction and bearing wheelchair
can be folded without the help of tools.
1. Remove the seat cushion, if applicable.
2. Remove or swivel away the leg sup-
ports.
3. Remove the arm supports.
4. Fold the back support forward onto the
seat.

9
5. If necessary remove the drive wheels.
To unfold the multifunction and bearing
wheelchair proceed in reverse order.
Ensure the correct fit of all parts.
ADJUSTMENT
Always have adaptation, adjustment or re-
pair work carried out by a specialist dealer.
The multifunction and bearing wheelchair
offers manifold adjustment possibilities to
individual vital statistics. Before first use an
adaptation of the multifunction and bear-
ing wheelchair and a practical instruction
in the functionalities of your shower and
toilet wheelchair should be carried out by
your specialist dealer. The adaptation will
take into account the driving experience,
the physical limits of the user and the main
place of use of the multifunction and bear-
ing wheelchair. Before first use, check the
functionality of your multifunction and
bearing wheelchair.
We recommend a regular control if the
wheelchair adjustment in order to ensure
a long-term optimal provision even with
changing illness/handicap patterns of the
user. Especially for juveniles an adjustment
every 6 months is recommendable.
COMBINATION WITH MAN-
UFACTURER FOREIGN
PRODUCTS
Any combination of your multifunction
and bearing wheelchair with components
not supplied by us generally results in an
amendment to your multifunction and
bearing wheelchair. Please inquire with us
if there is a valid combination clearance/
release.
Auxiliary drives
Mounting of additional- and front attach-
ment drives constitute an extreme amend-
ment of the multifunction and bearing
wheelchair. Due to this amendment the
declaration of conformity for this multifunc-
tion and bearing wheelchair expires.
The verification of conformity in combina-
tion with the valid medical device directive
/ medical device ordinance lies in the re-
sponsibility of the supplier of the additional
or header drive. He is also responsible for
the product included documentation of the
medical product combination.

10
REINSTALLMENT
The multifunction and bearing wheelchair
is suited for reinstallment. With the building
block system the multifunction and bearing
wheelchair can be fit to accommodate dif-
ferent handicaps body sizes. Before reimple-
mentation the multifunction and bearing
wheelchair is to undergo a complete clean-
ing and inspection.
Hygienical measures required for reinstall-
ment are to be carried out according to a
validated hygienic plan and must include
disinfection.
The service manual, intended for the spe-
cialist dealer provides information to the re-
installment and reinstallment frequency of
your multifunction and bearing wheelchair.
LIFE SPAN
We expect an average life span of about
4 years for this multifunction and bearing
wheelchair, as far as the multifunction and
bearing wheelchair is applied for its des-
ignated purpose and all maintenance and
service guidelines. The life span of your mul-
tifunction and bearing wheelchair depends
upon the frequency of use, the application
environment and care. The implementation
of spare parts can prolong the life span of
the multifunction and bearing wheelchair.
As a rule spare parts are available up to
5 years after production is discontinued.
The indicated lifespan does not constitute
additional guarantee.

1
6
4
5
8
9
12
13
11
14
7
23
10
11
Pos. Description
(1) Push handle
(2) Pushing bar
(3) Head support
(4) Back support
(5) Arm support
(6) Seat cushion
(7) Leg support
OVERVIEW
The overview shows, representative for all models, the most important components of the
multifunction and bearing wheelchair.
(8) Footplate
(9) Steering wheel
(10) Type plate
(11) Brake lever – pressure brake
(12) Locking knob – Quick release axle
(13) Handrim
(14) Driving wheel

1
2
3
4
12
BRAKE
Arrange an immediate repair of the brakes
by your specialist workshop if the braking
performance reduces.
Multifunction and bearing wheelchairs
with PU-tyres when stored for longer pe-
riods of time, should be put away safely
without activated pressure brakes, since
otherwise permanent deformations to
the tyre surface could occur.
By locking the brakes with the brake lever
(1), the multifunction and bearing wheel-
chair is secured against rolling away unin-
tentionally (parking brake).
Depending on the version, the multi-
function and bearing wheelchair can be
equipped with pressure brakes (2) or with
drum brakes (3).
Pressure brake - user
Locking the brakes
To secure the multifunction and bearing
wheelchair against any unintentional roll-
ing, press both brake levers forward all the
way [4].
☞Check the locking points!
☞It should not be possible to push the
multifunction and bearing wheelchair
forward when both brakes are locked.
Releasing the brakes
Pull both brake levers back all the way [2].
Service brake
The multifunction and bearing wheelchair
is braked down with help of the handrims.
☞If needed use suitable gloves in order
to brake down the multifunction and
bearing wheelchair.

1
C
A
B
2
13
Drum brake for accompanying
persons
The drum brake is activated by the accom-
panying person through the brake levers (1).
Check the locking points!
Function as operating brakes
Use both brake levers evenly and only light-
ly in order to achieve a controlled decel-
eration of the multifunction and bearing
wheelchair.
Locking the drum brakes
Pull both brake levers (1) and press the lock-
ing latch (2) forward.
Release the brake lever. – Depending on the
adjustment the latch engages in the first (A)
or second (B) locking position and activates
the brake.
☞If the third locking position (C) is re-
quired to activate the brake, it must be
readjusted by a specialist workshop.
Loosen the drum brakes
Pull both brake levers (1) until the latches
(2) automatically jump out of the locking
points.
Let go of both brake levers. – The parking
brakes are released and the multifunction
and bearing wheelchair is ready for use
again.

3
4
1
2
14
LEG SUPPORTS
Before any actions on the leg supports
the multifunction and bearing wheelchair
is to be secured against unintentional roll-
ing motions.
☞Therefore observe chapter Brake on
page 12.
Lower leg support
For entry into, exiting or "scuttling" (forward
motion of the multifunction and bearing
wheelchair with the feet) the footplates (1)
are to be folded up and the calf pads (2)
folded outward in driving direction [3].
☞Check the locking points!
– Remove both feet from the footplates.
☞Before starting to drive the footplates
resp. footboard need to be folded back
down [3] and the calf belt attached.
Footplates
The footplates can be folded outward and
up [3] resp. inward and down [4].

2
1
3
15
LEG SUPPORT UPPER
PART
The upper leg support with an inserted
lower leg support is termed leg support [1].
Turning the leg supports to the
side
Leg supports turned to the side are re-
leased automatically and can easily come
off. Note this when handling (e.g. trans-
port).
For easy transfer out of/into the multifunc-
tion and bearing wheelchair as well as driv-
ing closer to a closet, bed or bathtub the leg
supports can be swivelled outward [2].
☞Remove the calf belt, if applicable, be-
fore swivelling away the leg supports.
☞View chapter Lower leg support on
page 14.
Fold up the footplates in order to swivel the
leg supports to the sides.
☞Therefore observe chapter Lower leg
support on page 14.
Afterwards pull or press the respective lock-
ing lever (3) backward and swivel the corre-
sponding leg support outward.

1
2
16
Swivelling in the leg supports
For inward swivelling, let the leg supports
swivel forward until the lock audibly engag-
es [1].
☞After audibly swivelling the leg sup-
ports inward check the respective lock-
ing device.
☞Afterwards observe the chapter
Lower leg support on page 14.
Removing the leg supports
For easy transfer into and out of the multi-
function and bearing wheelchair as well as
a reduced wheelchair length (important for
transport) the leg supports can be removed
[2].
☞Fold the calf pads outward before re-
moving the leg supports.
☞Therefore observe chapter Lower leg
support on page 14.
For removal first swivel the leg support side-
ways [2] and then remove them toward the
top [1].
☞Therefore observe chapter Lower leg
support on page 14.
☞Watch for possible danger of jam-
ming!
Attaching the leg supports
For inserting press the leg supports, swiv-
elled to the side, parallel to the front frame
tube and lower it into place. – In doing so
the holding pin must slide into the frame
tube.
After attachment swivel the leg supports
inward [1].
☞Therefore observe chapter Swivel-
ling in the leg supports on page 16.

1
2
17
Mechanically height-adjustable
leg supports
Never put the free hand into the adjust-
ment mechanism. Have the leg support
secured by an accompanying person
against unintentionally falling down.
Do not let the leg support drop on its
own weight. – Danger of injury!
Lifting/lowering the leg support
Before lifting/lowering relieve the leg sup-
port by an accompanying person by slightly
lifting it up.
Afterwards loosen the clamping lever (1)
and have the leg support lifted/lowered
slowly to the desired level by an accompa-
nying person.
After the adjustment retighten the clamp-
ing lever (1).
Lifting/lowering the amputee leg sup-
port
Before lifting/lowering relieve the amputee
leg support by an accompanying person by
slightly lifting it up.
Afterwards loosen the clamping lever (2)
and have the amputee leg support lifted/
lowered slowly to the desired level by an ac-
companying person.
After the adjustment retighten the clamp-
ing lever (2).
☞In doing so ensure that the toothing of
the angle adjustment grips into place.

2
4
3
1
18
Adjusting the height of the footplate
Loosen the clamping screw (1) to adjust the
height.
☞Loosen the clamping screw (1) so far
that no damage to the coating occurs
during the adjustment.
☞Observe the maximum extension mark
(2).
Telescope the footplate to the desired
height and then retighten the clamping
screw (1).
Height adjustment of the calf pad
Loosen the respective clamping screws (4)
to adjust the height of the calf pad (3).
After the height adjustment retighten the
clamping screw (4).

1
2
4
3
19
ARM SUPPORTS
Do not use the arm supports [1] to lift
or carry the multifunction and bearing
wheelchair.
Do not drive without the arm supports.
No not grab between the frame and arm
support. – Danger of squashing!
When the multifunction and bearing
wheelchair is being pushed by an accom-
panying person the user is to place his
hands onto the arm cushions or in his lap
and not at the sides between body and
arm support. – Danger of squashing the
fingers!
During lateral transfer without arm sup-
port, there is a danger of unintentionally
releasing the brake and soiling the clothes
on the drive wheel.
The arm supports [1] are removable [2] and
simultaneously serve as padded arm sup-
port, clothes guard and wind protector.
Removing the arm support
To remove the arm support, loosen the
clamping screw (2) first and then remove
the arm support toward the top [3].
☞If necessary previously remove the tor-
so support cushion.
☞Therefore observe chapter Remov-
ing the torso support on page 26.
Inserting the arm support
For inserting the arm support, first slide
the arm support as far as possible into the
bracket (4) and then tighten the clamping
screw (2).
☞Check the locking points!

1
2
3
4
20
Adjustment of the armrest height
For height adjustment of the arm support
secure the support pad with one hand to
prevent it from falling down.
The maximum arm support height has
been reached when the marking on the
square tube is visible.
First loosen the clamping screw (1) of the
height stopper before adjusting the height
of the arm support.
Afterwards loosen the clamping screw (2).
☞Loosen the clamping screws (1)+(2) so
far that no damage to the coating oc-
curs during the adjustment.
Hold the arm support at the desired height
and then tighten the clamping screw (2).
Push the height stopper (3) down to the
stop and tighten the clamping screw (1).
☞If necessary the clothes guard can
be adjusted to the new arm support
height by the specialist dealer.
Depth adjustment of the arm
support cushions
To adjust the arms support cushion accord-
ing to the seat depth, loosen the respective
clamping screw (4).
☞After the adjustment by sliding the arm
support cushions, retighten the respec-
tive clamping screws (4).
Repositioning the arm support cushion
After the required depth adjustment the
arm support cushion can be displaced by
two further positions.
To displace the arm support cushion un-
screw the respective clamping screw (4).
☞After displacement of the arm support
cushions, reinsert and tighten the re-
spective clamping screws (4).
