Miboxer TRI-C1WR User manual

Subordinate New Brand
AC Triac Dimmer (WiFi + 2.4G + Push)
Model No.: TR-C1WR
Feature
Parameter
Connecon Diagram
Breaker mode instrucon
Installaon Diagram
PUSH Dimming
Remote control instrucon
Link remote
Unlink with remote
Compable remote
Set up min brightness
Auto transming
Smartphone APP control instrucon
Alexa voice control instrucon
Google Home voice control instrucon
Aenon
................................................................................................. 2
............................................................................................ 3
........................................................................... 4
................................................................. 4
........................................................................... 5
................................................................................... 5
............................................................ 6-9
................................................................................... 6
...................................................................... 7
...................................................................... 8
.................................................................. 8
......................................................................... 9
....................................... 10-13
...................................................... 14
......................................... 15
........................................................................................... 16
Contents

1. Feature
Don’t need signal cable and change original wire layout, it’s very simple
to install it with low cost. Mini appearance can fit for EU/USA standard
juncon box. Wide applicaon for single color triac LED lights, filament
lamps, Halogen lamps.
Various control soluon:
● Uses WiFi + Bluetooth + 2.4G wireless transmission technology
● Smartphone APP control
● 2.4G RF wireless remote control
● Push dimming funcon
● Trailing edge phase-cut technology
● 0~100% stepless dimming and flicker free
● Lowest brightness seng funcon
● Built-in temperature detecng switch, over heart /loading protecon
● Auto transming funcon, unlimited control distance
● Screw connector is reliable and easy to do installaon
● An-fire PC shell is more safety
Powered b
с Алисой
Paбoтaeт
⸺2⸺

2. Parameter
25mm 49mm
49mm
SET
Indicator light
⸺2⸺
⸺3⸺
Model No.: TRI-C1WR
Input Voltage: 100-240V~ 50/60Hz
Output Voltage: 100-240V~
Output Current: Max 1.36A
Output Power: 150W @110V; 300W @220V
Dim Method: WiFi + 2.4G + Push
Working Temperature: -10~40°C
2.4G RF Control Distance: 30m

3. Connecon Diagram
L
N
PUSH switch
Input: AC100~240V
Triac dimming led light
Filament lamps and Halogen lamps
Please check and ensure that all cable had done correct connecon
before turn on it, otherwise the dimmer is easy to be damaged.
Aenon
S1
S1S2 N LS2
N L1
INPUT
OUTPUT
Aenon: It only support to turn on/off light, user can not dim
device once this mode is acvated
“Breaker mode” is acvated or shut down
Turn On: short press “SET” 5 mes quickly, mode had acvated once
indicator blink 3 mes quickly
Turn Off: short press “SET” 5 mes quickly, mode had shut down once
indicator flash 3 mes slowly
APP ON/OFF, review page 13
⸺3⸺
⸺4⸺

4. Installaon Diagram
Support following standing juncon box
PUSH switch The depth of juncon box is over 50mm
5. PUSH Dimming
Short press PUSH switch:
Turn ON/OFF light
Stepless dimming brightness.
Long press PUSH switch:
Long press and release your finger, then repeat long pressing to increase or
decrease brightness
Please long press switch 20 seconds unl all lights have same brightness with
100% level if mul dimmers had connect with same self-return switch. The
quanty of dimmers which connect with same self-return switch can not be
over 25 pieces, the connecon cable of self-return switch can not be over 20m.
⸺4⸺
⸺5⸺

2). Press “ ” any “ ” buon in group zones
3 mes within 3 seconds, linking code is
done once the light flashes 3 mes slowly
2). Press “SET” 3 mes within 3 seconds, linking
code is done once the light flashes 3 mes slowly
1). Learning code
6. Remote control instrucon
6.1. Link remote
For K1 remote
For other remote
Way 1: short press “SET” one me, indicator is
bursng
Way 2: power off dimmer 10 seconds and
power on again
Way 3: short press Push switch to keep light ON
1). Learning code SET
SET
Turn ON light buon
Indicator light
⸺5⸺
⸺6⸺

For K1 remote
2). Press “SET” 5 mes within 3 seconds,
unlinking is done once the light flashes
10 mes quickly
1). Learning code
SET
6.2. Unlink with remote
2). Press “ ” any “ ” buon in group zones
5 mes within 3 seconds, unlinking is done
once the light flashes 10 mes quickly
1). Learning code
For other remote
Turn ON light buon
⸺6⸺
⸺7⸺

6.4. Set up min brightness with remote
This funcon should be paired with remote firstly before seng.
For K1 remote
1). Long press “SET” 3 seconds unl the light flashes one me,
indicator is going into flashing status
2). Short press “SET” to get 10 kinds of brightness: 3%, 5%, 7%, 9%,
12%, 17%, 22%, 28%, 34%, 40%
3). Short press rotang buon to confirm seng or waing for 10
seconds to be confirmed automacally, the light will recover
brightness to previous level.
6.3. Compable remote (purchase separately)
K1 / K1-B S1-B / S1-W / S1-GFUT087 / FUT087-B
B1 / B1-B / T1
⸺7⸺
⸺8⸺

For other remote
1). Long press the " " buon on the remote or " " buon on the
zone, unl the light flashes one me, indicator is going into flashing
status
2). Short press the " " buon on the remote or " " buon on the
zone to set up 10 different brightness (3%, 5%, 7%, 9%, 12%, 17%,
22%, 28%, 34%, 40%)
Short press any buon except “OFF” to confirm seng or waing for 10
seconds to be confirmed automacally, the light will recover brightness
to previous level
Aenon: Master OFF buon can set up lowest brightness for all
connected dimmer
6.5. Auto transming
One light can transmit the signals from the remote control to another
light within 30m, as long as there is a light within 30m, the remote
control distance can be limitless.
Aenon: All dimmer must link with same remote
Distance 30mDistance 30m
Signal transming
Triac Dimmer Triac Dimmer
⸺8⸺
⸺9⸺

7.2. Pairing Network
7. Smartphone APP control instrucon
1). Connect with power supply
2). Pairing network (aenon: factory default is pairing network)
3). Connect phone with home WiFi network in the 2.4GHz
frequency.
Way 1: Long press “SET” about 3 seconds unl indicator flashes
quickly
Way 2: Long press push switch 10 seconds while light is OFF status
(aenon: need to wire with Push switch)
Way 3: Disconnect power - Connect power *3 mes.
Network Configuraon (Don’t support 5G router)
7.1. Download and install [Tuya Smart] app
Search for [Tuya Smart] in Apple or Google
store or scan following QR code to download
and install the app.
Please open the app click "Register" buon to
create account while using it in the first me,
Log in directly if you already had account.
⸺9⸺
⸺10⸺

4). Open homepage of app and click " + " buon at the upper right
corner of page.
5). Click " Lighng " on the le side of page and then click " Light
Source (BLE+Wi-Fi) "
6). Follow app prompts to complete configuraon.
⸺10⸺
⸺11⸺

1). Click “Sengs” in APP
2). Move slip to finish seng
The light is off once dim brightness into 1%, please increase lowest
brightness
Seng way:
7.3. App set up lowest brightness
⸺11⸺
⸺12⸺

Aenon: It only support to turn on/off light, user can not dim
device once this mode is acvated
7.4. Breaker Mode (ON/OFF)
1). Click “ Sengs ” in APP
2). Click buon on the right side of “ Breaker Mode ”
Seng way:
⸺12⸺
⸺13⸺

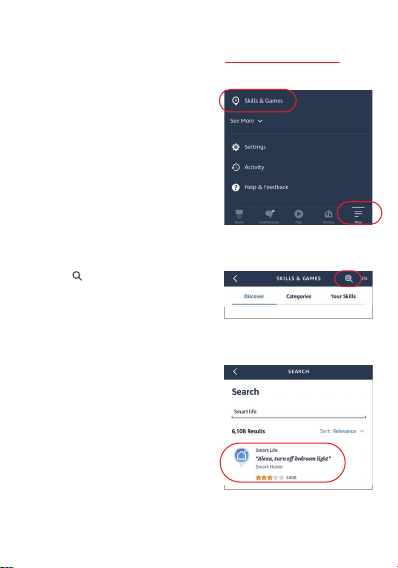

8. Alexa voice control instrucon
1). Open Alexa App
2). Click “More” on the boom of
right corner
3). Click “Skills & Games”
4). Click “ ” on the top of right
corner
5). Type into “Smart life” and search
6). Click “Smart life” skill, follow
instrucon to finish configuraon
and start voice control
Please add device into [Tuya Smart] app (check details in page 10),
then start following steps
⸺13⸺
⸺14⸺

5). Click “ ” on the top of right
corner
6). Type into “Smart life” and search
7). Click “Smart life” skill, follow
instrucon to finish configuraon
and start voice control
9. Google Home voice control instrucon
1). Open Google Home App
2). Click “+” on the top of le corner
3). Click “Set up device”
4). Click “Works with Google”
Please add device into [Tuya Smart] app (check details in page 10),
then start following steps
⸺15⸺
⸺14⸺

10. Aenon
Dimmer can not
use in humid area
1. Please turn off power supply before installaon.
2. Please ensure input voltage to be same as requirements from device.
3. Don’t disassemble device if you are not expert, otherwise it will
damage it.
4. Please do not use the light in the place with widely range metal area
or strong electromagnec wave nearby, otherwise, the remote
distance will be seriously affected.
Made in China
⸺15⸺
