Mibrasa PARRILLA User manual

Read all instructions before installing and using the appliance.
Save these instructions.
www.mibrasa.com
MIBRASA®
PARRILLA FIRE
USER MANUAL
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
GMB 160 FIRE_MCGMB160
Usuario 08/12/2020
Designed by Checked by Approved by Date
1 / 3
Edition Sheet
Date
The Craftsmen of Fire!

We are fascinated by re and invite you to
experience grill cooking for yourselves. Cook
and create in a way that awakens your taste
buds and remind us of the beauty in simplicity.
Mibrasa,
The Craftsmen of Fire!

Contents
1. Introduction 1
2. Mibrasa®Parrilla Fire dimensions 2
3. Parts of the Mibrasa® Parrilla Fire 3
4. Installation instructions 5
4.1. Installation guidelines and safety standards
5. Lighting up 6
6. Parrilla operation 6
7. Maintenance and safety standards 7
7.1. Daily cleaning
7.2. Maintenance
7.3. Special care
7.4. Safety standards
8. General conditions 9
8.1. Warranty
8.2. Returns
8.3. Property Reserve

1
Precision and strength denes the Mibrasa® Parrilla Fire. Thanks to the carefully engi-
neered design with elevation system and positional brake, the Mibrasa® Parrilla Fire effort-
lessly regulates the height of the grill from the heat of embers with maximum safety and
minimum maintenance.
The Mibrasa® Parrilla Fire lets us sear, cook and rest our ingredients, achieving the optimal
result every time.
The Mibrasa® Parrilla Fire is manufactured with steels of the latest technology following
the most rigorous quality controls. Like all Mibrasa® units, they comply to the strict stan-
dards & regulations set by internationally recognized certications of quality.
Our Parrilla Fire
Ergonomic design, maximum quality and security .
Our Parrilla Fire has an elevating system designed and patented by Mibrasa®that enables
height adjustments between the grill and hot coals to provide the chef with total control
allowing them to cook with more efciency .
With a sloping grill, the grease runs down the weld-free grill bars to prevent grease build-up.
Grease drips down to the collector with an easy to remove mechanism ready to clean .
The base is lined with refractory bricks to ensure maximum heat efciency and resistance to
pure re. The built-in cooling system in the outer case guarantees maximum level of safety .
Built using quality steels providing strength and durability; ergonomically designed for
practicality and ease of use, each feature plays a crucial part in delivering the ultimate
grilling machine for every chef .
1. Introduction

2

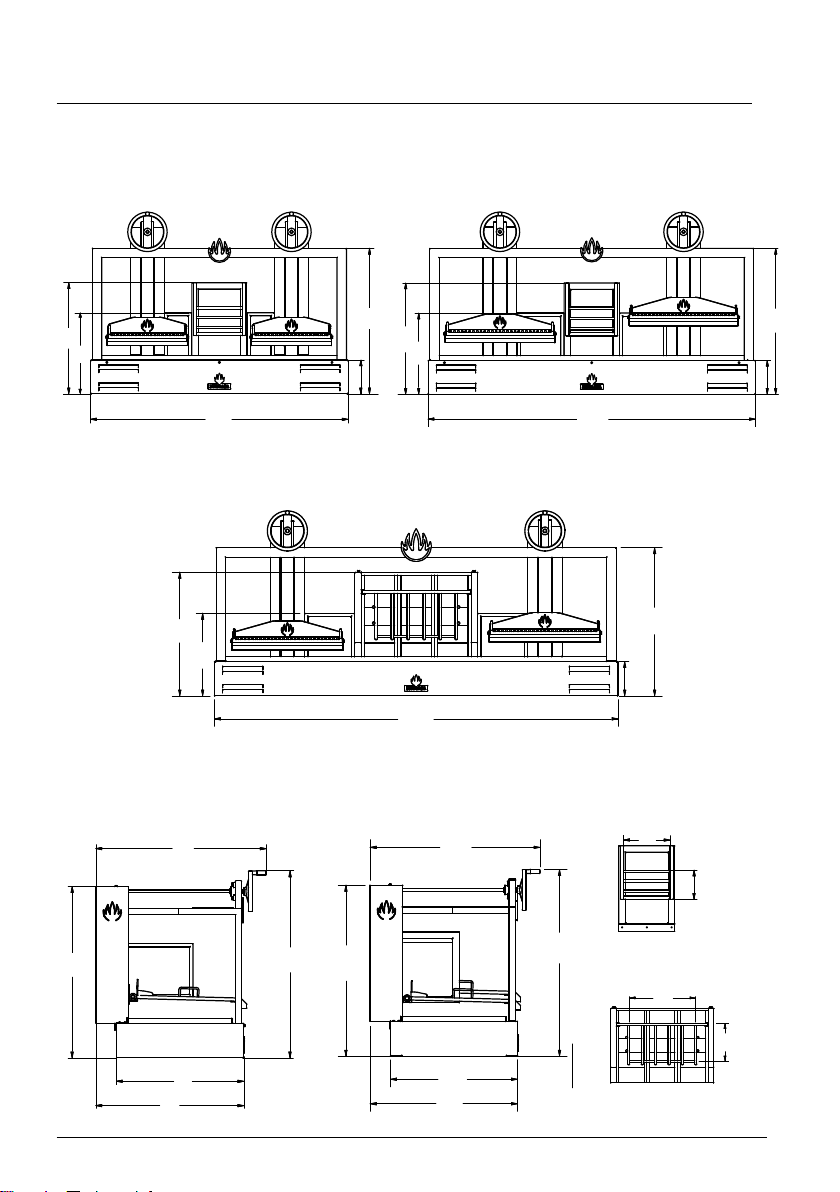

2. Mibrasa®Parrilla Fire dimensions
Dimensions in mm
FRONT VIEW
GMB 160 FIRE
FRONT VIEW
GMB 252 FIRE
FRONT VIEW
GMB 200 FIRE
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
GMB 200 FIRE
Usuario 09/12/2020
Designed by Checked by Approved by Date
2 / 3
Edition Sheet
Date
788
915
1060
1053
1158
349 950
558
1890 290
183
420
Quemador
706
515
215
925
2077
1234
4
5
5
6
6
BB
CC
DD
925
215
2520
515
773
2364
1393
349
588
1053
1060
788
915
1158
485
280
315
Fondo 315
253
706
1637
215
925
1450
253 701
420
183
290
915
788
1060
1053
1158
515
Fondo 420
SIDE VIEW
GMB 160 FIRE & GMB 200 FIRE
253
706
1637
215
925
1450
253 701
420
183
290
915
788
1060
1053
1158
515
Fondo 420
SIDE VIEW
GMB 252 FIRE
1234
4
5
5
6
6
BB
CC
DD
925
215
2520
515
773
2364
1393
349
588
1053
1060
788
915
1158
485
280
315
Fondo 315
GMB 252 FIRE
1234
4
5
5
6
6
BB
CC
DD
925
215
2520
515
773
2364
1393
349
588
1053
1060
788
915
1158
485
280
315
Fondo 315
253
706
1637
215
925
1450
253 701
420
183
290
915
788
1060
1053
1158
515
Fondo 420
FIRE BASKET GMB
160 FIRE & 200 FIRE
Depth 420
Depth 315

3
3. Parts of the Mibrasa® Parrilla Fire
6. Rod grill
4. Heating rack grids
1. Structure 2. Main body
8. Grease collector
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
BASE GMB 160 FIRE
Usuario 04/02/2021
Diseño de Revisado por Aprobado por Fecha
1 / 1
EdiciónHoja
Fecha
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
ESTRUCTURA 160 FIRE
Usuario 04/02/2021
Diseño de Revisado por Aprobado por Fecha
1 / 1
EdiciónHoja
Fecha
Guide column
Drive shaft
The Mibrasa®Parrilla is subject to technical and design changes.
Heating rack
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
CPV160FIRE
Usuario 08/12/2020
Designed by Checked by Approved by Date
1 / 1
Edition Sheet
Date
Cooking Grill
DRAWN
A A
D D
GMB 160 FIRE
GMB 200 FIRE & 252 FIRE GMB 200 FIRE & 252 FIRE
DRAWN
A A
D D
340 395
500
685
635
635
1
1
2
2
3
3
4
4
5
5
6
6
AA
BB
CC
DD
CPV
Usuario 21/04/2020
Diseño de Revisadopor Aprobado por Fecha
1 / 1
Edición Hoja
Fecha
Cooking support rack
GMB 160 FIRE
GMB 200 FIRE
GMB 252 FIRE
9. Refractory bricks7. Elevating wheel
3. Fire basket
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
CREMADOR 252
Usuario 22/01/2021
Designed by Checked by Approved by Date
1 / 1
Edition Sheet
Date
5. Cooking support rack
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
CPH-160-FIRE
Usuario 22/01/2021
Designed by Checked by Approved by Date
1 / 1
Edition Sheet
Date
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
CPH-160-FIRE
Usuario 22/01/2021
Designed by Checked by Approved by Date
1 / 1
Edition Sheet
Date
1515
Dimensions en mm
250
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
CPH-160-FIRE
Usuario 22/01/2021
Designed by Checked by Approved by Date
1 / 1
Edition Sheet
Date
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
CPH-160-FIRE
Usuario 22/01/2021
Designed by Checked by Approved by Date
1 / 1
Edition Sheet
Date
250
1080
830
250
GMB 160 FIRE
DRAWN
A A
D D
340 300

4

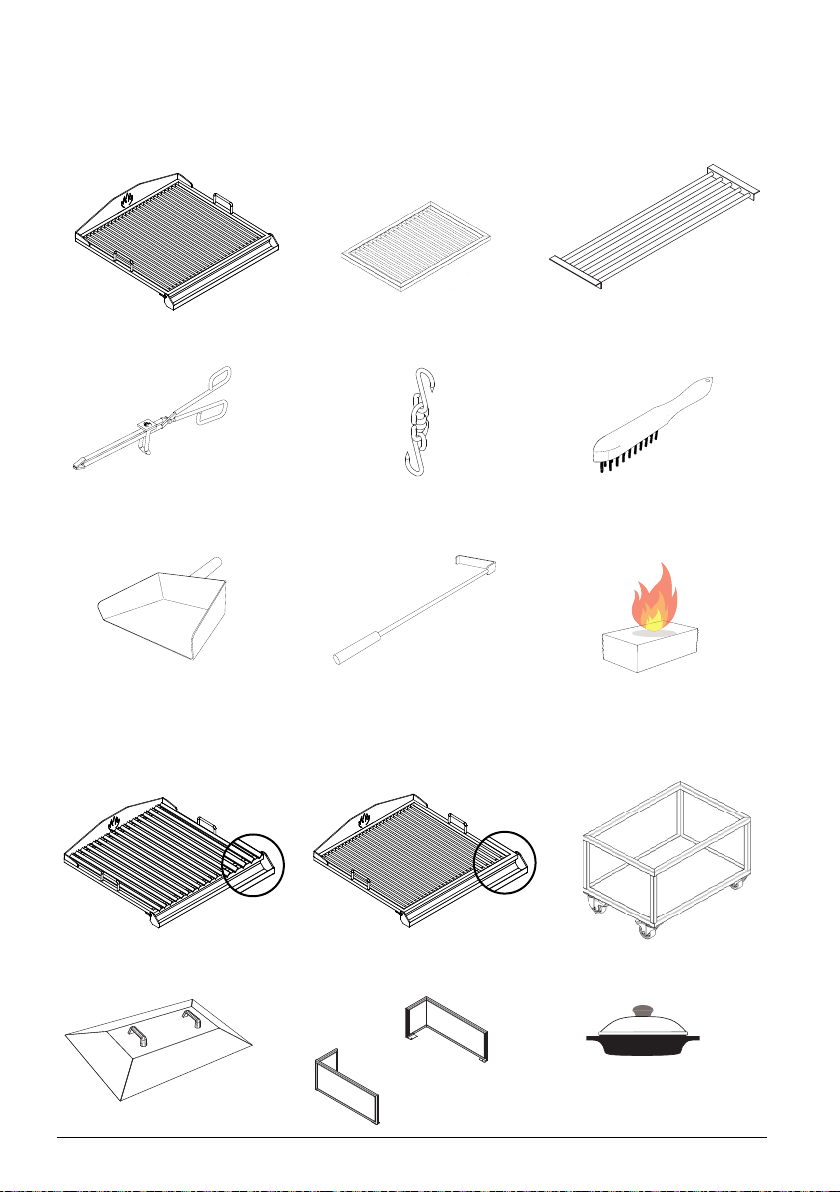

Included accessories:

Optional accessories:
Mibrasa tongs (x2)
Ash shovel
Grill brush (x2)
Rod grill (x2)
Ember poker Mibrasa Ecofire firelighters
(Consult our catalogue at
www.mibrasa.com)
Heating rack grids (x2)
Stand / Complete stand V-channel grill Extra rod grill
1
1
2
2
3
3
4
4
5
5
6
6
AA
BB
CC
DD
CPV
Usuario 21/04/2020
Diseño de Revisado por Aprobado por Fecha
1 / 1
Edición Hoja
Fecha
1
1
2
2
3
3
4
4
5
5
6
6
AA
BB
CC
DD
CPV
Usuario 21/04/2020
Diseño de Revisado por Aprobado por Fecha
1 / 1
Edición Hoja
Fecha
1
1
2
2
3
3
4
4
5
5
6
6
AA
BB
CC
DD
CPV
Usuario 21/04/2020
Diseño de Revisado por Aprobado por Fecha
1 / 1
Edición Hoja
Fecha
Kitchenware
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
CPH-160-FIRE
Usuario 22/01/2021
Designed by Checke d by Approved by Date
1 / 1
Edition Sheet
Date
Cooking support rack
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
INOXHOOK
Usuario 10/12/2020
Designed by Checked by Approvedb y Date
4 / 4
Edition Sheet
Date
160mm
5 mm
28 mm
Swivel hook (x2)
End of service lid Thermic protective structure
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
TAPA GMB100
Usuario 04/02/2021
Diseño de Revisadopor Aprobado por Fecha
1 / 1
EdiciónHoja
Fecha
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
EPGMB160F
Usuario 04/02/2021
Diseño de Revisado por Aprobado por Fecha
1 / 1
EdiciónHoja
Fecha

5
4. Installation instructions
4.1 Installation and safety standards
• Do not place combustible materials within a distance of
300mm from the bottom, rear or side of the Mibrasa
®
Parrilla.
• Clearances to construction/other appliances from unit
back and sidewalls:100mm.
• Workspace for the chef and recommended height of
the worktop:
Ventilation recommendations
Model Flow rate
(m3/h)
Hood dimensions
(Width x depth in mm)
Minimum height of hood
from floor (mm)
GMB 160 FIRE 4600 2000 x 1300 2000
GMB 200 FIRE 5100 2500 x 1300 2000
GMB 252 FIRE 5600 3000 x 1300 2000
Remove the cooking support
rack and the heating rack grids
2
Ready to work
6
Replace the cooking
support rack and the
heating rack grids
4Replace the grills and
the grease collectors
5
Place the main body
on top of the stand
3
1Remove the grease
collectors and the grills
700 mm
700 mm

6
5. Lighting up
6. Parrilla operation
Adjusting grill height:
Approximate quantity of charcoal according
to Parrilla model:
Raise the grills
1Place and light the
Ecofire firelighters
3
Load the charcoal
2
Spread the embers
4
30 MIN
Always light the charcoal
inside the refractory base.
To raise
ReturnRemove
Grease collector:
Model Initial charcoal load
GMB 160 FIRE 12 Kg
GMB 200 FIRE 15 Kg
GMB 252 FIRE 15 kg
To lower
Ready to cook
6
Regulate the grill to
the desired height
5

7
7. Maintenance and safety standards
7.1. Daily cleaning
Do not use chemical products or water to clean the inside of the Parrilla.
Lifting system: Once cold, clean the entire surface of the guide column and the drive shaft
with degreaser.
Grills: Clean using the grill brush before and after each use.
Ash extraction: Use the ash shovel to remove the ash. Once the ashes have completely
cooled down they can be used as fertilizer.
WARNING Do not dispose the ashes in a ammable-container or heat-deformable container.
7.2. Maintenance
Every six months, remove the protection casing from the gears and clean the gears, pulleys
and the lift truck with degreaser. Once this cleaning has been carried out, grease the entire
system with special grease for high temperatures (minimum use temperature 300º).
It is recommended, to review the status of the steel cable of the elevation system every two
years.
7.3. Special care
Exhaust hood and ductwork: It is very important to keep the exhaust hood lters clean as
well as the interior and ducts, to avoid a build up of soot and fat, which could result in a
possible re.
Follow the weekly cleaning procedures and annual maintenance of the hood, ventilation box
and ue ducts in accordance to the exhaust hood manufacturer’s requirements. Pulverisa-
tion water ltration systems are also accepted to compliment the use of this Parrilla. The
ductwork should be inspected at least twice a year to determine when creosote build up has
occured.
Mibrasa®is not responsible for any damages occurred caused by wrongful use, when the
installation instructions have not been followed or wrongful maintenance of the exhaust
hood.

8
Please read this entire manual before you install the Mibrasa®Parrilla.
Failure to follow instructions may result in property damage, bodily injury, or even death.
7.4. Safety standards
• Only use charcoal in the Mibrasa® Parrilla.
• The rst time the Parrilla is used do not cook food for at least one hour after lighting.
• Proceed with reasonable care when operating a Mibrasa® Parrilla. Never leave it
unattended when lit.
• CAUTION Do not overload/re. Consult the charcoal loads in the chart in point 5
• Disposal of ashes – Ashes should be placed in a metal container with a tight-tting
lid. The closed container of ashes should be placed on a non-combustible oor or on
the ground, well away from all combustible materials, pending nal disposal. When the
ashes are disposed by burial in soil or otherwise locally dispersed, they should be
retained in the closed container until all cinders have thoroughly cooled.
• Do not attempt to pour water over the hot coals.
• Do not clean the Parrilla when it is in operation or hot.
• Do not use chemical products to clean the exterior of the Parrilla when in use or hot.
DANGERS
• If the Parrilla is not correctly installed, a re may result. To reduce the risk of re,
follow the installation instructions.
• Keep children and pets away from the oven and ammable products. Accessible parts
of the Parrilla may be very hot.
• Do not use alcohol, oil or other liquids similar to ignite or rekindle hot coals. Use only
Mibrasa® ecore relighters.
• In the case of installing the Parrilla in an outdoor setting, do not cover it with any type
of protective cover or inammable material when it is in operation or hot.
• Read the restrictions in point 4.1 on minimum distances from combustible materials.
