Microcare 310V User manual

PV
BOOSTER
310/350/550V
User Manual
Manual Version: PVB-2017-2

Table of Contents
1. IMPORTANT INFORMATION AND SAFETY INSTRUCTIONS ..........................................1
2. INTRODUCTION .................................................................................................................2
2.1 General Description ........................................................................................................2
2.2 Key Features...................................................................................................................2
3. PV BOOSTER OVERVIEW .................................................................................................3
3.1 PV Booster Top View......................................................................................................3
3.2 PV Booster Side View.....................................................................................................3
4. PV Booster Sizing Criteria ...................................................................................................4
5. PV Booster Installation.........................................................................................................4
6. PV Booster Wiring –1 x PV Panel & 1 X PV Booster..........................................................5
7. PV Booster Wiring –2 x PV Panels & 2 X PV Boosters ......................................................6
8. PV Booster Wiring –3 x PV Panels & 3 X PV Boosters ......................................................7
9. PV BOOSTER SPECIFICATIONS.......................................................................................8
10. DESTRIER ELECTRONICS LIMITED CARRY- IN WARRANTY ........................................9
11. REGISTRATION OF MY MICROCARE PRODUCT..........................................................10

IMPORTANT INFORMATION AND SAFETY INSTRUCTIONS
1
1. IMPORTANT INFORMATION AND SAFETY INSTRUCTIONS
Installers should be qualified electricians or technicians
The installation information in the manual is for information purposes only.
Read the instructions carefully before installing and operating the PV Booster.
Retain the load within the rating to prevent faults.
Sketches are intended for illustrative purposes only and are not intended to provide an
electrical design.
High voltages are present –With this device even a single PV panel can produce a lethal 800
Volt DC.
This unit is not a consumer product and should only be handled by qualified electricians.
Always ground the device to avoid electric shock. A grounding wire connection is provided.
The inherent current limiting associated with a solar panel is part of the Solar Voltage Booster
design.
Running the unit from a battery or bench supply will cause it to fail, even when lightly loaded.
Never series the output of individual PV Boosters, as this will increase the output voltage
above the isolation specification of the unit and may cause electric shock
WARNING
HIGH VOLTAGES PRESENT
Voltages capable of causing severe injury or death by electrical shock are present in this
unit.
WARNING
Maximum Panel Input Voltage: 10V to 50V
Panel Power: Max 360W

INTRODUCTION
2
2. INTRODUCTION
General Description2.1
The Solar Voltage Booster steps up the voltage level of a photovoltaic (PV) panel to the level
required for the Microcare pump controller. This allows any number of voltage boosted solar panels
to be paralleled, removing the concept of „array voltage‟ when designing a solar pump system.
Key Features2.2
Solar Voltage Boosters are installed on a per-panel basis.
Each panel in the array requires an accompanying Booster. This limits the usefulness of the
Solar Voltage Booster to 375W, 550W, 750W and possibly 1.1kW installations. After that the
costs associated with the addition of Boosters are not currently economical.
The Solar Voltage Booster is specifically designed for standard 300W (250W to 350W) with a
Maximum Power voltage (VMP) of 35V to 40V.
Only PV Panels with an open circuit voltage (VOC) lower than 50V are supported.
At higher voltage levels the safety circuits will protect the Booster by short-circuiting the panel
input.
The Solar Voltage Booster is designed for mounting behind an accompanying PV panel.
Long feed-wires are not supported (longer than 4 meters) and may cause voltage spikes to
activate the protection circuits.
Solar Voltage Booster outputs should be paralleled.
To this end each Booster is fitted with a high voltage input.
The high voltage output of one Booster feeds into the high voltage input of the next Booster in
the string.
Please Note : Max Panel Input Voltage Voc : 10V to 50V
Panel Power: Max 360W

PV BOOSTER OVERVIEW
3
3. PV BOOSTER OVERVIEW

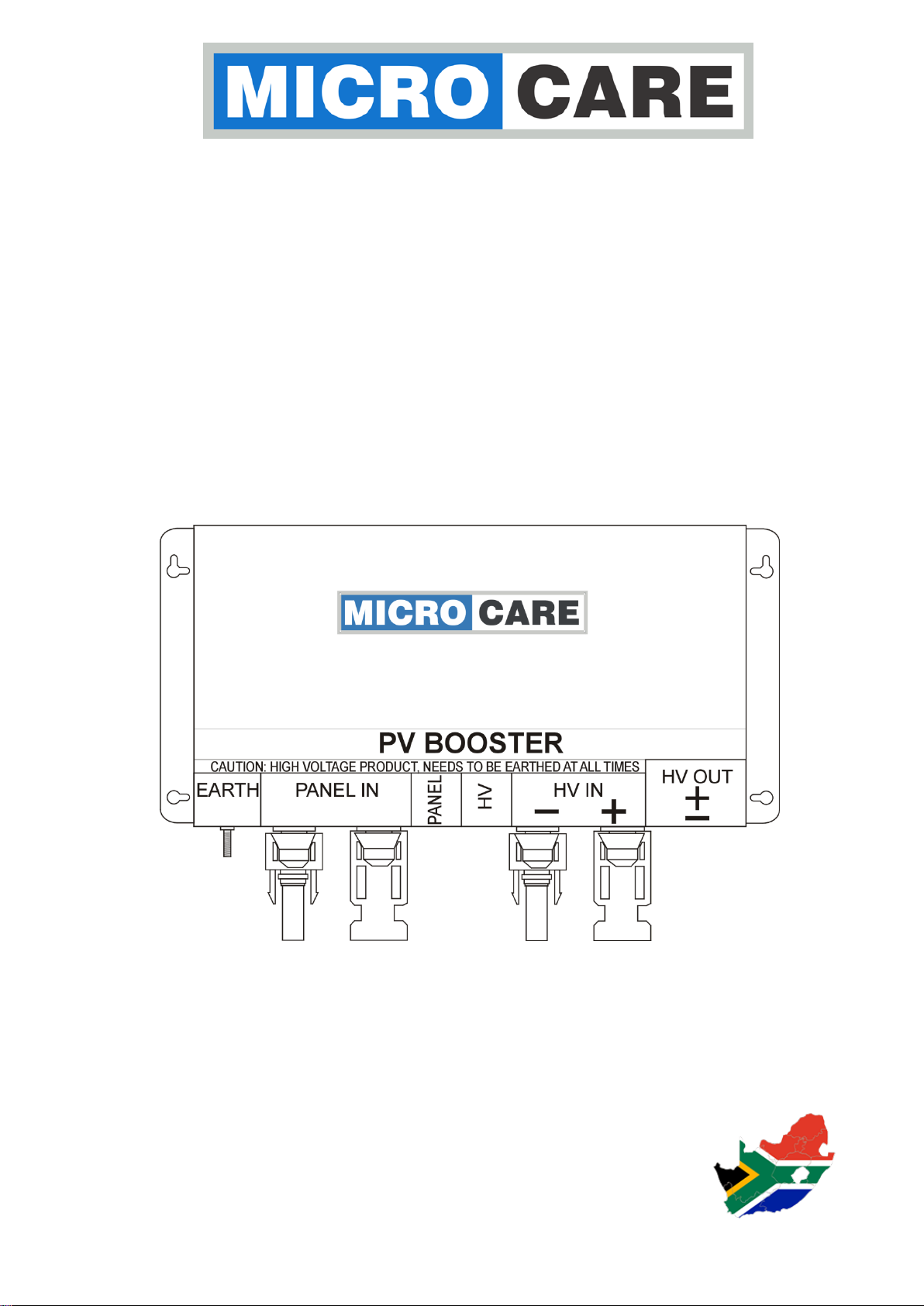

PV Booster Top View3.1 Figure 3-1
PV Booster Side View3.2
No
Description
1
Earth Connection
2
Solar Panel Negative Input -
3
Solar Panel Positive Input +
4
Panel LED
5
High Voltage LED
6
High Voltage Input Negative -
7
High Voltage Input Postitive +
8
High Voltage Output Negative -
9
High Voltage Output Positive +
1 2 3 4 5 6 7 8 9

PV Booster Sizing Criteria
4
4. PV Booster Sizing Criteria
Our PV Boosters are mostly used in conjunction with PV Arrays for our Solar Pump Controllers when
used to drive smaller submersible pumps. “0,375 – 0,75KW”.
350V Boosters to be used with 220V pump applications
550V Boosters to be used with 380V pump applications
Voc PV Panel Input Voltage : >20V and <50V
Vmp PV Panel Input Voltage : >12V and <40V
Panel Power : Max 360W panel per PV booster
Panel Voltage Input
310V Model Booster
Approximate Output
Voltage DC
350V Model Booster
Approximate Output
Voltage
550V Model Booster
Approximate Output
Voltage
Panel Vmp - 37V
310V
350V
550V
Panel Vmp –38V
315V
357V
566V
Panel VMP –39V
324V
367V
581V
Panel VMP –40V
332V
376V
596V
Ratio Vin:Vout
1:8,3
1:9,4
1:14,9
5. PV Booster Installation
Mount the PV Booster to the PV panel by means of screws.
Ensure that the load is disconnected from the solar panels before connecting the booster/s wiring to
the panel/s.

PV Booster Wiring –1 x PV Panel & 1 X PV Booster
5

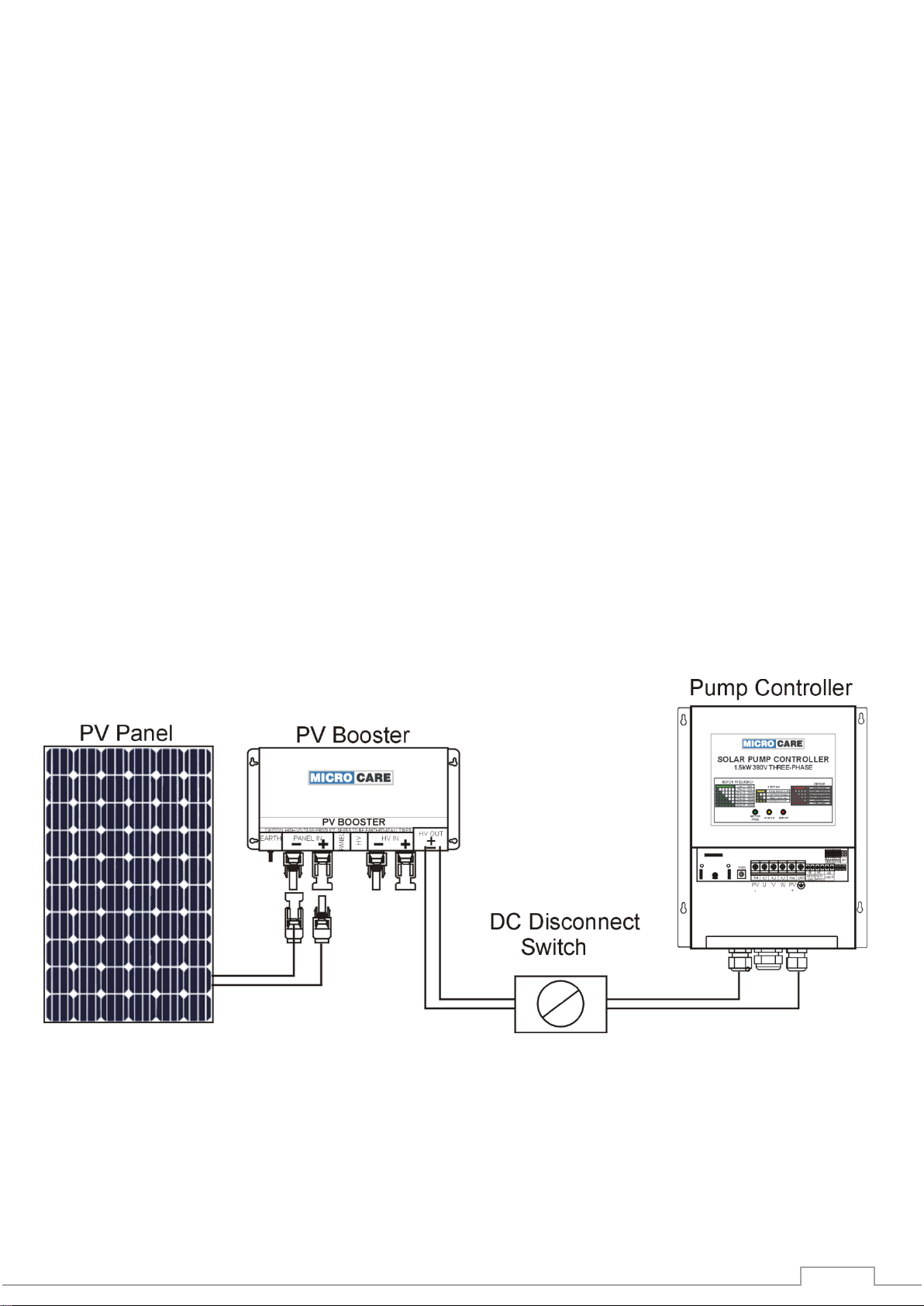

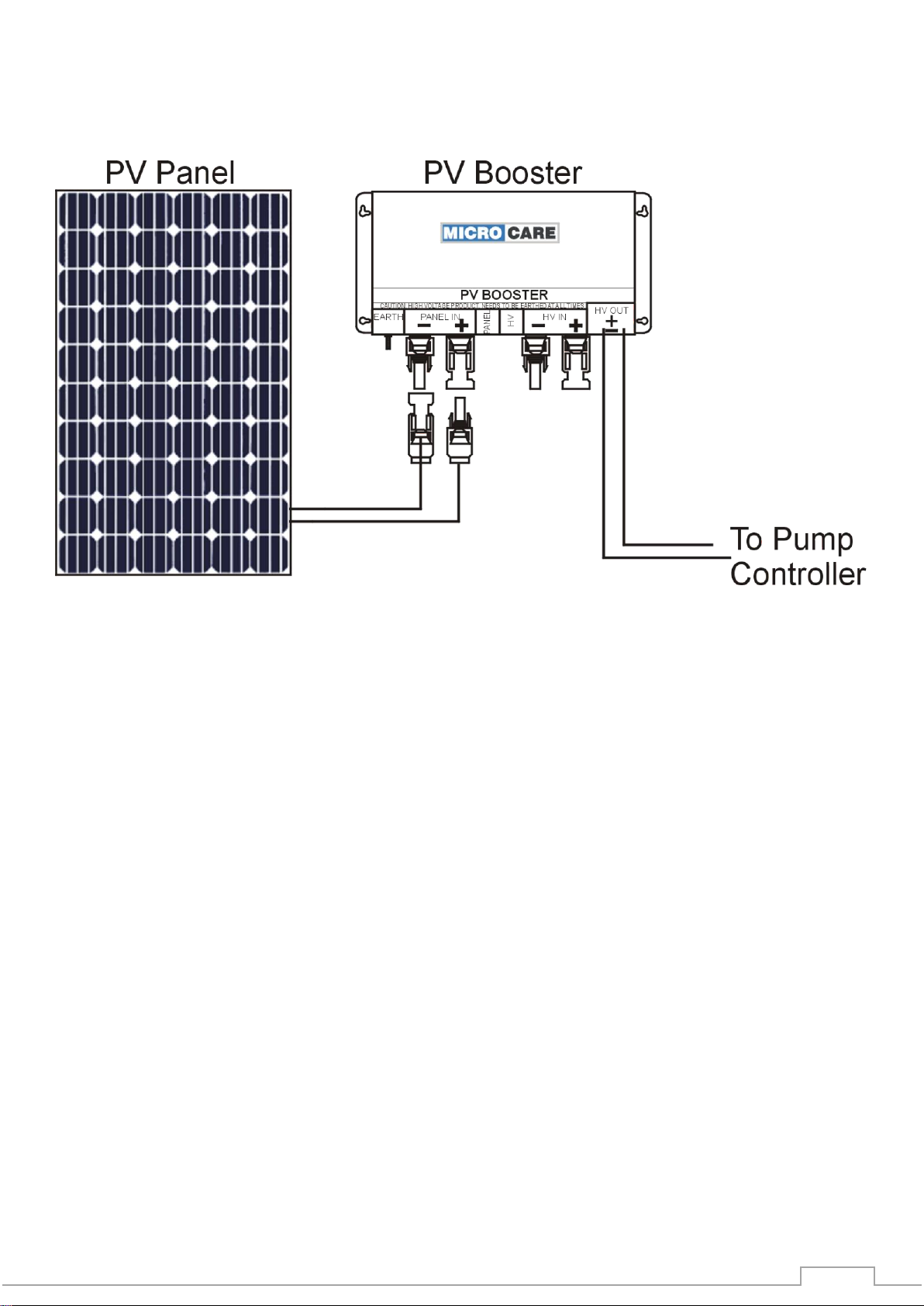

6. PV Booster Wiring –1 x PV Panel & 1 X PV Booster
Panel Input 37V –Booster Output 350V

PV Booster Wiring –2 x PV Panels & 2 X PV Boosters
6

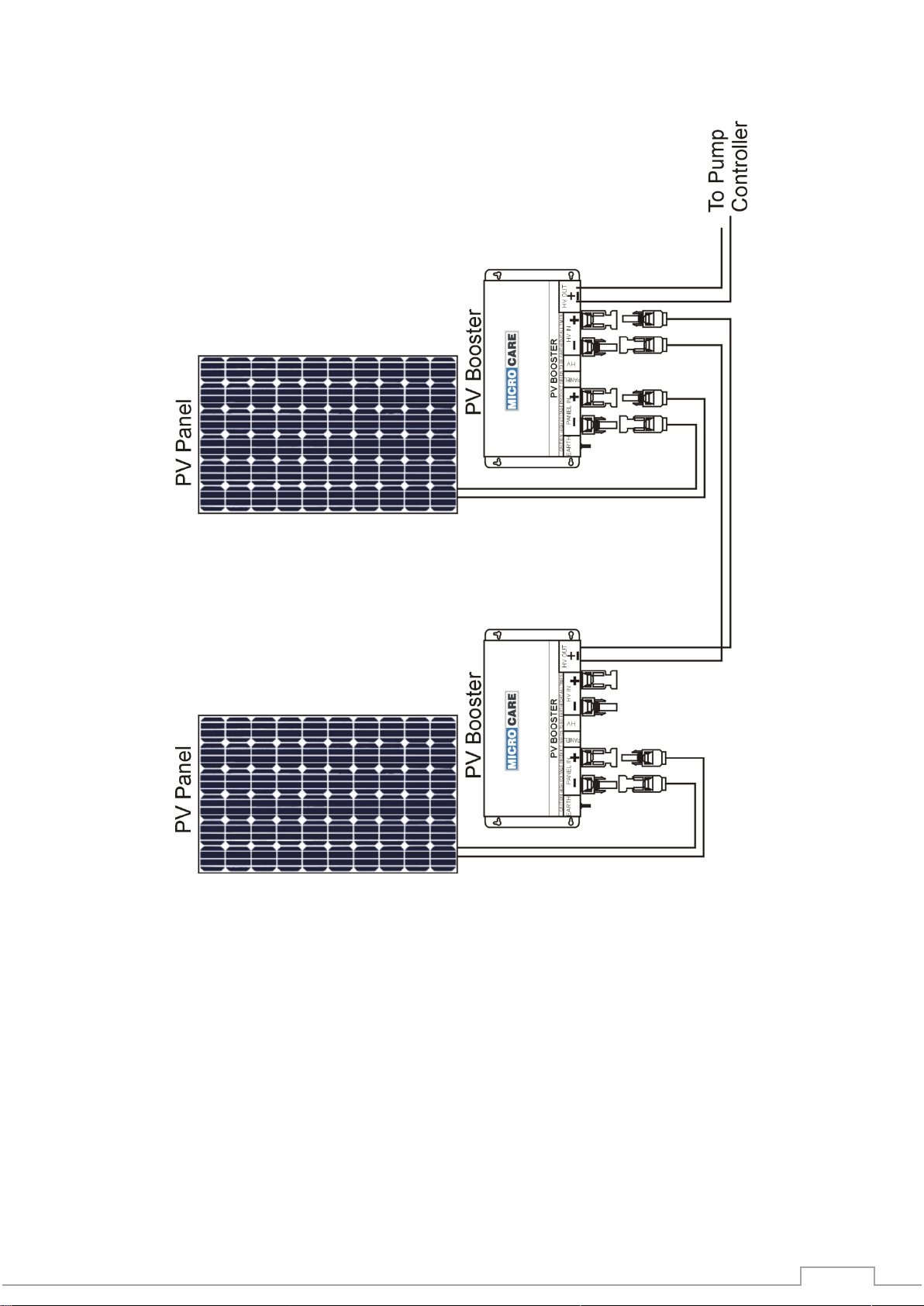

7. PV Booster Wiring –2 x PV Panels & 2 X PV Boosters
Panel Input 37V –Booster Output 350V

PV Booster Wiring –3 x PV Panels & 3 X PV Boosters
7
8. PV Booster Wiring –3 x PV Panels & 3 X PV Boosters
Panel Input 37V –Booster Output 350V

PV BOOSTER SPECIFICATIONS
8
9. PV BOOSTER SPECIFICATIONS
Model
310
350
550
PV VOC Range
20V to 50V
20V to 50V
20V to 50V
PV VMP Range
12V to 40V
12V to 40V
12V to 40V
Output Voltage at
37V input
350V
350V
550V
Voltage multiplication
factor
8.3
9.4
14.9
Rated Output Power
360W
360W
360W
Efficiency
95% (over wide range)
95% (over wide range)
95% (over wide range)
Ambient Temp Range
-40°C to 75°C
-40°C to 75°C
-40°C to 75°C
Protection
4.5kA surge protection
4.5kA surge protection
4.5kA surge protection
Dimensions (HxWxD)
70x100x36mm
70x100x36mm
70x100x36mm
Warranty

DESTRIER ELECTRONICS LIMITED CARRY- IN WARRANTY
9
10. DESTRIER ELECTRONICS LIMITED CARRY- IN WARRANTY
Destrier Electronics warrants the Panel Booster against defects in workmanship and materials, fair
wear and tear accepted, for a period of 1 (one) year from the date of delivery/collection for all
equipment and is based on a carry-in basis. Where the installation of the product makes it impractical
to carry-in to our workshops, Destrier Electronics reserves the right to charge for travel time and
kilometres travelled to and from the site where the product is installed.
During this warranty period, Destrier Electronics will, at its own discretion, repair or replace the
defective product free of charge. This warranty will be considered void if the unit has suffered any
physical damage or alteration, either internally or externally, and does not cover damages arising
from improper use such as, but not exclusive to:
•Reverse of battery polarity.
•Inadequate or incorrect connection of the product and/or of its accessories.
•Mechanical shock or deformation.
•Contact with liquid or oxidation by condensation.
•Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature,
biological infestation.)
•Breakage or damage due to lightning, surges, spikes or other electrical events.
•Connection terminals and screws destroyed or other damage such as overheating due to
insufficient tightening of terminals.
•When considering any electronic breakage except due to lightning, reverse polarity, over-
voltage, etc. the state of the internal control circuitry determines the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or
repaired by anyone else than Destrier Electronics or one of its authorised Qualified Service Partners.
In order to qualify for the warranty, the product must not be disassembled or modified. Repair or
replacements are our sole remedies. Destrier Electronics shall not be liable for damages, whether
direct, incidental, special, or consequential, even caused by negligence or fault. Destrier Electronics
owns all parts removed from repaired products. Destrier Electronics uses new or re-conditioned parts
made by various manufacturers in performing warranty repairs and building replacement products. If
Destrier Electronics repairs or replaces a part of a product, its warranty term is not extended.
Removal of serial nos. may void the warranty.
All remedies and the measure for damages are limited to the above. Destrier Electronics shall in no
event be liable for consequential, incidental, contingent or special damages, even if having been
advised of the probability of such damages. Any and all other warranties expressed or implied arising
by law, course of dealing, course of performance, usage of trade or otherwise, including but not
limited to implied warranties of merchantability and fitness for a particular purpose, are limited in
duration to a period of 1 (one) year from the date of purchase.
Life Support Policy:
As a general policy, Destrier Electronics does not recommend the use of any of its products in life
support applications where failure or malfunction of the Destrier Electronics product can be
reasonably expected to cause failure of the life support device or to significantly affect its safety or
effectiveness.
Destrier Electronics does not recommend the use of any of its products in direct patient care. Destrier
Electronics will not knowingly sell its products for use in such applications unless it receives in writing
assurances satisfactory to Destrier Electronics that the risks of injury or damage have been
minimised, the customer assumes all such risks, and the Liability of Destrier Electronics is adequately
protected under the circumstances.
Caution:
Our products are sensitive. While all care is taken by us to dispatch goods with adequate packaging,
Destrier Electronics is not responsible for any damages caused to products after they have left our
premises.

10
11. REGISTRATION OF MY MICROCARE PRODUCT
Product Serial Number:
Product Description:
Date Purchased
Where was the Product Purchased?
Company Name
Contact Person
Contact Number
E-mail Address
Installation Company Information:
Company Name
Contact Person
Contact Number
E-mail Address
Details of Product Owner
Name & Surname
Address
City & Province
Contact Number
E-mail Address
Date Installed
Microcare: 1st Floor, Neave Industrial Park, Korsten, Port Elizabeth
P.O.Box 7227, Newton Park, 6055
Tel: [phone], Fax: [phone]
Technical Support e-mail: [email protected]
Website: www.microcare.co.za
Registration by fax: [phone]
Registration by e-mail: [email protected]
Online Registration: www.microcare.co.za/register-my-product
