Microlife BP AG1-30 User manual

IB AG1-30 Var1 3311
Europe / Middle-East / Africa
Microlife AG
Espenstrasse 139
9443 Widnau / Switzerland
Tel. +41 / 71 727 70 30
Fax +41 / 71 727 70 39
Email [email protected]
www.microlife.com
Asia
Microlife Corporation.
9F, 431, RuiGang Road, NeiHu
Taipei, 114, Taiwan, R.O.C.
Tel. [phone]
Fax.[phone]
Email [email protected]
www.microlife.com
North / Central / South America
Microlife USA, Inc.
1617 Gulf to Bay Blvd., 2nd Floor Ste A
Clearwater, FL 33755 / USA
Tel. [phone]
Fax [phone]
Email [email protected]
www.microlife.com
Read the instructions carefully before using this device.
Veuillez lire attentivement les instructions avant d’utiliser ce produit.
Lea atentamente las instrucciones antes de usar este dispositivo.
Leia atentamente este manual de instruções antes de utilizar
o dispositivo.

Microlife BP AG1-30
Aneroid Blood Pressure Kit
Instruction Manual (1-13)
Tensiomètre anéroïde en trousse
Mode d’emploi (14-27)
Kit aneroide de tensión arterial
Manual de instrucciones (28-41)
Tensiómetro manual aneróide
Manual de instruções (42-55)
EN
FR
ES
PT

Aneroid Blood Pressure Kit
Instruction Manual
1

1
Table of contents
1. Introduction
1.1. Features
1.2. Important information about self-measurement
2. Important information on the subject of blood-pressure and its measurement
2.1. How does high/low blood-pressure arise?
2.2. Which values are normal?
2.3. What can be done, if regular high/low values are obtained?
3. The various components of the Aneroid Blood Pressure Kit
4. Carrying out a measurement
4.1. Before the measurement
4.2. Common sources of error
4.3. Fitting the cuff
4.4. Measuring procedure
4.4.1. Connect stethoscope tubing to the chestpiece
4.4.2. Inflating the cuff
4.4.3. Systolic blood pressure reading
4.4.4. Diastolic blood pressure reading
4.4.5. Recording your readings
5. Other possible malfunctions and their elimination
6. Care and maintenance, recalibration
7. Guarantee
8. Reference to standards
9. www.microlife.com
10. Technical specifications
EN

2
1. Introduction
1.1. Features
The aneroid blood pressure kit is a non-automated, mechanical blood-pressure measuring device
for use on the upper arm. It offers proven reliability and superior performance at an economical
price. With the advanced non-stop pin mechanism and ergonomic bulb with complete valves, the
BP AG1-30 ensure you a precise and consistent measurement. With stethoscope attached to the
D-ring cuff, BP AG1-30 can be easily operated. Nevertheless, its durable nylon cuff, high-grade
bearing and aneroid bellow provide consistent operation. The entire unit stores in a zippered
Nylon bag for easy portability.
Before using, please read through this instruction manual carefully and then keep it in a safe
place. For further questions on the subject of blood-pressure and its measurement, please
contact your doctor.
Attention!
1.2. Important information about self-measurement
• Donotforget:self-measurement means control, not diagnosis or treatment. Unusual
values must always be discussed with your doctor. Under no circumstances should you alter
the dosages of any drugs prescribed by your doctor.
2. Important information on the subject of blood-pressure and its measurement
2.1. How does high/low blood-pressure arise?
The level of blood-pressure is determined in a part of the brain, the so-called circulatory centre,
and adapted to the respective situation by way of feedback via the nervous system. To adjust the
blood-pressure, the strength and frequency of the heart (Pulse), as well as the width of circulatory
blood vessels is altered. The latter is effected by way of fine muscles in the blood-vessel walls.
Thelevelofarterialblood-pressurechangesperiodicallyduringtheheartactivity:Duringthe
«blood ejection» (Systole) the value is maximal (systolic blood-pressure value), at the end of

the heart’s «rest period» (Diastole) minimal (diastolic blood-pressure value). The blood-pressure
values must lie within certain normal ranges in order to prevent particular diseases.
2.2 Which values are normal?
Blood pressure is too high if at rest, the diastolic pressure is above 90 mmHg and/or the systolic
blood-pressure is over 140 mmHg. In this case, please consult your doctor immediately. Long-
term values at this level endanger your health due to the associated advancing damage to the
blood vessels in your body.
With blood-pressure values that are too low, i.e. systolic values under 100 mmHg and/or diastolic
values under 60 mmHg, likewise, please consult your doctor.
Even with normal blood-pressure values, a regular self-check with your blood-pressure monitor is re-
commended. In this way you can detect possible changes in your values early and react appropriately.
If you are undergoing medical treatment to control your blood pressure, please keep a record of
the level of your blood pressure by carrying out regular self-measurements at specific times of
the day. Show these values to your doctor. Never use the results of your measurements to
alter independently the drug doses prescribed by your doctor.
Tableforclassifyingblood-pressurevalues(unitsmmHg)accordingtoWorldHealthOrganization:
Range Systolic Diastolic Measures
Blood-pressure Blood-pressure
Hypotension lower than 100 lower than 60 Consult your doctor
Normal range between 100 and 140 between 60 and 90 Self-check
Mild hypertension between 140 and 160 between 90 and 100 Consult your doctor
Moderately serious between 160 and 180 between 100 and 110 Consult your doctor
hypertension
Serious hypertension higher than 180 higher than 110 Consult your doctor
immediately
3

☞Further information
• Ifyourvaluesaremostlystandardunderrestingconditionsbutexceptionallyhighundercon-
ditions of physical or psychological stress, it is possible that you are suffering from so-called
«labile hypertension». Please consult your doctor if you suspect that this might be the case.
• Correctlymeasureddiastolicblood-pressurevaluesabove120mmHgrequireimmediate
medical treatment.
2.3. What can be done, if regular increased/low values are obtained?
a) Please consult your doctor.
b) Increased blood-pressure values (various forms of hypertension) are associated long- and
medium term with considerable risks to health. This concerns the arterial blood vessels of
your body, which are endangered due to constriction caused by deposits in the vessel walls
(Arteriosclerosis). A deficient supply of blood to important organs (heart, brain, muscles) can
be the result. Furthermore, with long-term continuously increased blood-pressure values, the
heart will become structurally damaged.
c) There are many different causes of the appearance of high blood pressure. We differentiate
between the common primary (essential) hypertension, and secondary hypertension. The
latter group can be ascribed to specific organic malfunctions. Please consult your doctor for
information about the possible origins of your own increased blood pressure values.
d) There are measures which you can take, not only for reducing a medically established high
bloodpressure,butalsoforprevention.Thesemeasuresarepartofyourgeneralwayoflife:
A) Eating habits
• Striveforanormalweightcorrespondingtoyourage.Reduceoverweight!
• Avoidexcessiveconsumptionofcommonsalt.
• Avoidfattyfoods.
B) Previous illnesses
Followconsistentlyanymedicalinstructionsfortreatingpreviousillnesssuchas:
 •Diabetes(Diabetesmellitus)
 •Fatmetabolismdisorder
 •Gout
4

5
C) Habits
• Giveupsmokingcompletely
• Drinkonlymoderateamountsofalcohol
• Restrictyourcaffeineconsumption(Coffee)
D) Physical constitution
• Afterapreliminarymedicalexamination,doregularsport.
• Choosesportswhichrequirestaminaandavoidthosewhichrequirestrength.
• Avoidreachingthelimitofyourperformance.
• Withpreviousillnessesand/oranageofover40years,pleaseconsultyourdoctorbefore
beginning your sporting activities. He will advise you regarding the type and extent of types
of sport that are possible for you.
3. The various components of the Aneroid Blood Pressure Kit
TheillustrationshowstheBPAG1-30,consistingof:
a) Measuringunit:
b) Cuff:Type AC-1M, for arm circumference 22 - 32 cm or
Type AC-1L, for arm circumference 32 - 42 cm (available as special accessory)
Soft bag Cuff
Manometer
Bulb & Valves
Ear piece
Stethoscope

6
4. Carrying out a measurement
4.1. Before the measurement
• Avoideating,smokingaswellasallformsofexertiondirectlybeforethemeasurement.All
these factors influence the measurement result. Try and find time to relax by sitting in an
armchair in a quite atmosphere for about 5 minutes before the measurement.
• Removeanygarmentthatfitscloselytoyourupperarm.
• Measurealwaysonthesamewrist(normallyleft).
• Attempttocarryoutthemeasurementsregularlyatthesametimeofday,sincetheblood-
pressure changes during the course of the day.
4.2. Common sources of error
Note: Comparableblood-pressuremeasurementsalwaysrequirethesameconditions!Theseare
normally always quiet conditions.
• Alleffortsbythepatienttosupportthearmcanincreasetheblood-pressure.Makesureyou
are in a comfortable, relaxed position and do not activate any of the muscles in the measu-
rement arm during the measurement. Use a cushion for support if necessary.
• Ifthearmarteryliesconsiderablylower(higher)thantheheart,anerroneouslyhigher(lower)
blood-pressurewillbemeasured!(Each15cmdifferenceinheightresultsinameasurement
errorof10mmHg!)
• Cuffsthataretoonarrowortooshortresultinfalsemeasurementvalues.Selectingthecorrect
cuff is of extraordinary importance. The cuff size is dependent upon the circumference of the arm
(measured in the centre). The permissible range is printed on the cuff. If this is not suitable for
your use, please contact your dealer. Note: Only use clinically approved Original-Cuffs!
• Aloosecufforasidewaysprotrudingair-pocketcausesfalsemeasurementvalues.

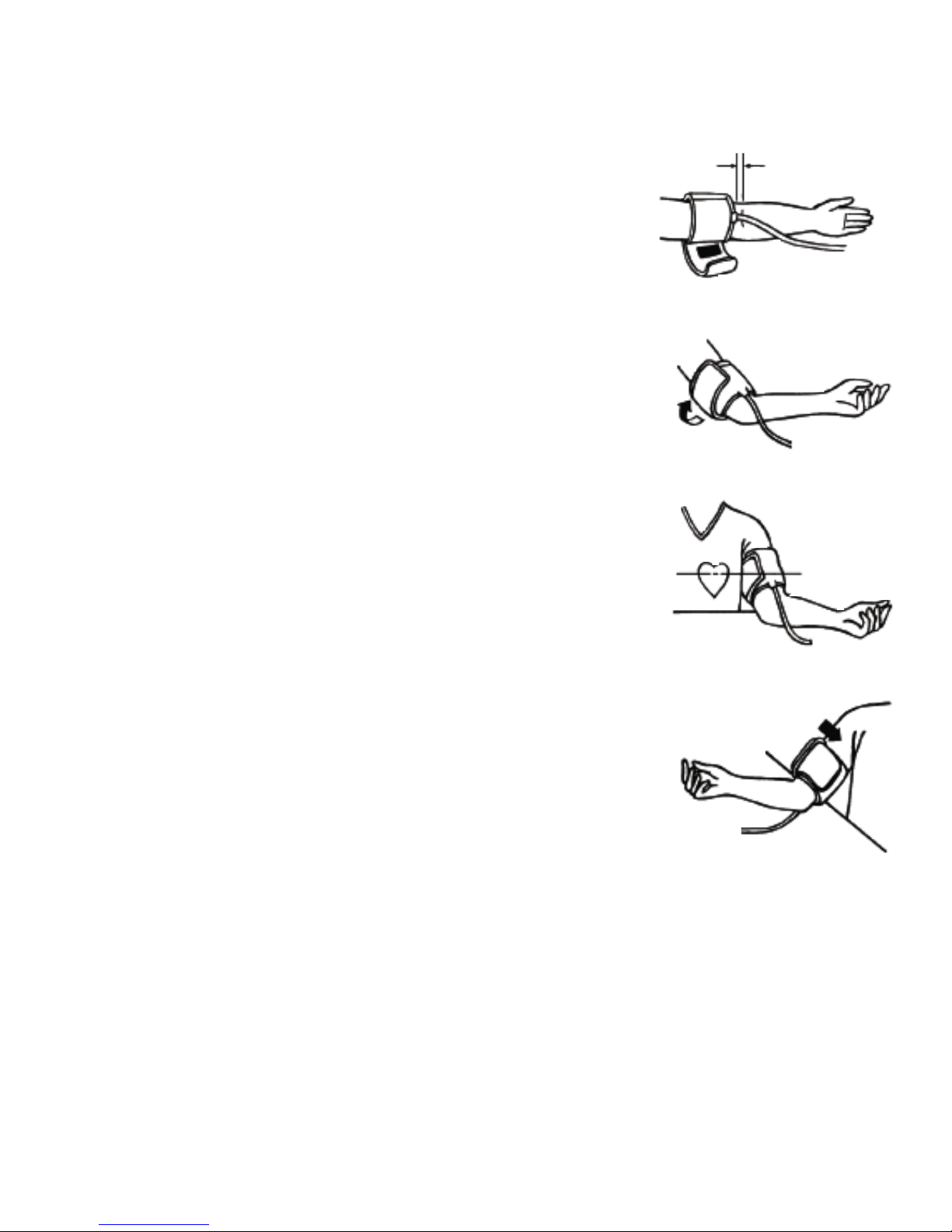

4.3. Fitting the cuff
a) Push the cuff over the left upper arm so that the tube
points in the direction of the lower arm.

7
b) Lay the cuff on the arm as illustrated. Make certain
that the lower edge of the cuff lies approximately
2 to 3 cm above the elbow and that the rubber tube
leaves the cuff on the inner side of the arm.
Important! The mark (ca. 3 cm long bar) must lie
exactly over the artery which runs down the inner
side of the arm.
c) Tighten the free end of the cuff and close the cuff
with the closer.
d) There must be no free space between the arm and
the cuff as this would influence the result. Clothing
must not restrict the arm. Any piece of clothing which
does (e.g. a pullover) must be taken off.
e) Secure the cuff with the closer in such a way that it
lies comfortably and is not too tight. Lay the arm on
the table (palm upwards) so that the cuff is at the
same height as the heart. Make sure that the tube is
not kinked.
Comment:
If it is not possible to fit the cuff to the left arm, it
can also be placed on the right one. However all
measurements should be made using the same arm.
2–3 cm
tube

8
4.4. Measuring procedure
4.4.1. Connect stethoscope tubing to the chestpiece
After the cuff is properly worn on the arm, connect stethoscope
tubing of to the chestpiece attached on the cuff. Make sure the
chestpiece is in contact with skin and above the brachial artery.
Wear the binaural (earpieces) properly to check the Korotkoff’s
sound during measurement.
Before using the stethoscope, be sure there is no crack on
the diaphragm, earpieces, and tubing. Any improper setup or
damage of the stethoscope will cause distorted sound or poor
sound transmission to make inaccurate reading.
4.4.2. Inflating the cuff
Close the air valve on the bulb by turning the screw clockwise.
Do not over-tighten. Squeeze the inflation bulb with the hand at
a steady rate until the pointer on the gauge is 30 mmHg above
your normal systolic pressure value. If you are not sure the
value, inflate to 200 mmHg first.
4.4.3. Systolic blood pressure reading
Slowly open air valve by turning screw counter clockwise and
hold stethoscope chestpiece over brachial artery. Proper de-
flation rate is essential for an accurate reading, so you should
practice and master a recommended deflation rate of 2 - 3 mmHg
per second or a drop of 1 - 2 marks on the pressure gauge each
heartbeat. You should not keep the cuff inflated any longer than
necessary. As the cuff begins to deflate, you must listen care-
fully with the stethoscope. Note the reading on the gauge as
soon as you hear a faint, rhythmic tapping or thumping sounds.
This is the systolic blood pressure reading. Listen carefully and
familiarize yourself with pulse (Korotkoff’s) sound.

4.4.4. Diastolic blood pressure reading
Allow the pressure to continue dropping at the same deflation rate. When your diastolic blood
pressure value reached, the thumping sound stops. Deflate the cuff valve completely. Remove
the cuff from arm and stethoscope from ears.
4.4.5. Record your readings
Repeat the measurement at least two times. Do not forget to record your readings and the time
of the day measurement is made immediately after you finish measuring. A suitable time is first
thing in the morning, or just before evening meals. Remember that your physician is the only
person qualified to analyze your blood pressure.
☞Further information
Measurements should not occur soon after each other, since otherwise, the results will be
falsified. Wait therefore for 2 minutes in a relaxed position, sitting or lying, before you repeat
a measurement.
5. Other possible malfunctions and their elimination
If problems occur when using the device, the following points should be checked and if
necessary,thecorrespondingmeasuresaretobetaken:
Malfunction
The sound transmission is poor,
distorted or there is extraneous noise.
9
Remedy
1. Check the earpieces if they are plugged or cracked.
If not, make sure they do not fit poorly as worn.
2. Check the tube if it is broken or twisted.
3. Check the bell and diaphragm of chestpiece if there
is any crack.
4. Make sure the chestpiece is in proper contact with
skin and over brachial artery during measuring.
Clean or replace any defective parts if found to
avoid inaccurate reading.

10
The pressure does not rise although
the bulb is pumping.
The deflation rate can not be set to
2 - 3 mmHg/sec. by adjusting the air
release valve.
Pointer is not at 0 +/- 3 mmHg at rest.
☞FURTHER INFORMATION
The level of blood-pressure is subject to fluctuations even with healthy people. Important thereby
is, that comparable measurements always require the same conditions (rest condition)!
If, in spite of observing all these factors, the fluctuations are more than 15 mmHg, and/or you
hear irregular pulses on several occasions, please consult your doctor.
You must consult your specialist dealer or chemist if there are technical problems with the blood-
pressure instrument. Never attempt to repair the instrument yourself!
Anyunauthorisedopeningoftheinstrumentinvalidatesallguaranteeclaims!
6. Care and maintenance, recalibration
With proper care and maintenance, this blood-pressure measuring device will provide years of
satisfactoryservice.Followthegeneralrulesbelow:
•Donotdrop.
•Neverinflatebeyond300mmHg.
•Donotexposethedevicetoeitherextremetemparatures,humidity,ordirectsunlight.
•Nevercontactthecufffabricwithasharpinstrument,sincethiscouldcausedamage.
1. Make sure that the valve is closed.
2. Make sure the cuff is properly connected to bulb
and manometer
3. Check if the cuff, tube and bulb is leaky. Replace
the defective parts if any
•Disassemblethevalvefrombulbtocheckifthere
is any blockage in the airway of the valve. Clean
the blockage and try again. If it still does not work,
replace it to avoid inaccurate reading.
1. Make sure that the valve is open for zero check.
2. If still more than 3 mmHg deviation, contact your
dealer to recalibrate the manometer.

11
•Alwaysdeflatecuffcompletelybeforestorage.
•Donotdismantlemanometerunderanycircumstance.
•Storethewholedeviceinstoragebagprovided,tokeepallthepartsclean.
•Storagetemperaturecondition:-20°Cto70°C at a relative air humidity of 85 % (non-
condensing).
•Wipeoffthemanometerandbulbwithadampcloth.Sterilizationisnotnecessary,sincethe
parts of manometer should not come into direct contact with the patient‘s body during
measurement.
•Removethebladderfirst,andwipethecloser,bladderandtubeswithadampcloth.Thecuffcan
be washed with soap and cold water. But do rinse the cuff with clear water and keep it air dry.
Periodical recalibration
Sensitive measuring devices must from time to time be checked for accuracy. We therefore
recommend a periodical inspection of the static pressure display every 2 years.
Your specialist dealer would be pleased to provide more extensive information about this.
7. Guarantee
This blood-pressure monitor is guaranteed for 2 years from date of purchase. This guarantee
includes the instrument and the cuff. The guarantee does not apply to damage caused by
improper handling, accidents, not following the operating instructions or alterations made to the
instrument by third parties.
The guarantee is only valid upon presentation of the guarantee card filled out by the dealer.
Nameandcompanyaddressoftheresponsibledealer:

12
8. Reference to standards
Device standard: Device corresponds to the requirements of the
EN1060-1 /-2 / 1995
ANSI / AAMI SP09
This device complies with the requirements of the Medical Device Directive 93/42/EEC.
9. www.microlife.com
Detailed user information about our products as well as services can be found at
www.microlife.com

10. Technical specifications
Weight: 450 g
Size: 175 x 70 x 103 mm
Storage temperature: –20°Cto+70°C
Humidity: 85 % relative humidity maximum
Operation temperature: 0°Cto46°C
Measuring range: 0 to 300 mmHg
Measuring resolution: 2 mmHg
Accuracy: within±3mmHgin18°Cto33°C;
 within±6mmHgin34°Cto46°C
Inflation source: a volume of at least 200cc to a pressure of
300 mmHg in 4 to 10 sec
Air leakage: <± 4 mmHg/min
Hysteresis error: within 0 mmHg to 4 mmHg
Accessories: 1. cuff (adult size with arm circumference of
22 - 32 cm) with inlaid bladder
2. bulb and valve
3. stethoscope (chestpiece attached to the cuff)
4. soft bag
Technical alterations reserved.
13

14
Tensiomètre anéroïde en trousse
Mode d’emploi

Table des matières
1. Introduction
1.1. Caractéristiques
1.2. Informations importantes pour prendre soi-même sa tension artérielle
2. Informations importantes concernant la tension artérielle et sa mesure
2.1. Quelle est l’origine d’une tension basse/haute?
2.2. Quelles sont les valeurs normales?
2.3. Que faire lorsque les valeurs déterminées sont régulièrement trop élevées/trop basses?
3. Les différents éléments du tensiomètre anéroïde en trousse
4. Prise de mesure
4.1. Avant d’effectuer une mesure
4.2. Sources fréquentes d’erreur
4.3. Mise en place du brassard
4.4. Procédure de mesure
4.4.1. Connection du tuyau du stéthoscope au pavillon
4.4.2. Gonflage du brassard
4.4.3. Lecture de la tension artérielle systolique
4.4.4. Lecture de la tension artérielle diastolique
4.4.5. Enregistrement des relevés
5. Dysfonctionnements / solutions
6. Entretien, précautions et réétalonnage
7. Garantie
8. Références aux normes
9. www.microlife.fr
10. Données techniques
15
FR

1. Introduction
1.1. Caractéristiques
Le tensiomètre est un appareil de prise de tension artérielle mécanique, non automatisé, qui
s’utilise sur le haut du bras. Sa fiabilité et ses excellentes performantes sont prouvées et il
est d’un prix économique. Grâce à son mécanisme perfectionné rotatif en continu et à sa poire
ergonomique à valve intégrée, le BP AG1-30 vous garantit un relevé précis et stable. Avec le
stéthoscope fixé au brassard circulaire D, le BP AG1-30 est d’une utilisation facile. En outre, son
brassard en nylon résistant, son palier de haute qualité et son soufflet anéroïde garantissent un
fonctionnement régulier. L’unité complète se range dans un sac en nylon avec fermeture éclair
facile à transporter.
Veuillez lire attentivement ce mode d’emploi avant utilisation puis rangez-le dans un endroit sûr.
Pour toute autre question concernant la tension artérielle et sa mesure, veuillez vous adresser
à votre médecin.
Attention !
1.2. Informations importantes pour prendre soi-même sa tension artérielle
• N’oubliezpas:enprenantsoi-mêmesatension,onnefaitqu’uncontrôle, ce n’est ni un
diagnostic ni un traitement. Lorsque les valeurs sont anormales, il faut toujours en parler
à un médecin. Ne modifiez sous aucun prétexte par vous-même les doses de médicament
prescrites par votre médecin.
2. Informations importantes concernant la tension artérielle et sa mesure
2.1. Quelle est l’origine d’une tension basse/haute?
Le niveau de la tension est déterminé dans une partie du cerveau appelée centre cardio-vascu-
laire et est adapté à chaque situation par le biais de réactions passant par le système nerveux.
Pour réguler la tension sont modifiés la force de battement du cœur et sa fréquence (pouls) ainsi
que le diamètre des vaisseaux sanguins. Cette modification est faite par de fins muscles qui se
trouvent dans les parois des vaisseaux sanguins.
16

Leniveaudelatensionartériellechangepériodiquementaucoursdel’activitécardiaque:Lorsque
le sang est «éjecté» (systole), la valeur est à son maximum (tension systolique), à la fin de la
«période de repos» du cœur (diastole), elle est à son minimum (tension diastollique). Les valeurs
de la tension doivent se situer dans des registres normaux pour prévenir certaines maladies.
2.2 Quelles sont les valeurs normales?
La tension est trop élevée lorsqu’au repos, la tension diastolique dépasse 90 mmHg et/ou la
tension systolique 140 mmHg. Dans ce cas, veuillez consulter immédiatement votre médecin.
A long terme, un niveau de tension aussi élevé est un risque pour votre santé parce qu’il
s’accompagne de lésions progressives des vaisseaux sanguins de votre corps.
De même, veuillez consulter votre médecin si la tension est trop basse, c’est à dire si les valeurs
systoliques sont inférieures à 100 mmHg et/ou les valeurs diastoliques inférieures à 60 mmHg.
Même si votre tension est normale, il est recommandé que vous fassiez vous-même des
contrôles réguliers avec votre tensiomètre. Vous pouvez ainsi détecter suffisamment tôt
d’éventuels changements de vos valeurs et réagir en conséquence.
Si vous deviez vous trouver en traitement médical pour réguler votre tension, veuillez tenir à jour
le niveau de votre tension en prenant régulièrement des mesures à heures fixes. Présentez ces
valeurs à votre médecin. Ne modifiez jamais par vous-même les doses de médicament
prescrites par votre médecin en vous basant sur vos résultats.
Tableaudeclassificationdesvaleursdetension(unitémmHg)selonl’OrganisationMondialedelaSanté:
Plage Tension systolique Tension diastolique Dispositions à prendre
Hypotension inférieure à 100 inférieure à 60 Consultation médicale
Tension normale entre 100 et 140 entre 60 et 90 Contrôle personnel
Légère hypertension entre 140 et 160 entre 90 et 100 Consultation médicale
Hypertension entre 160 et 180 entre 100 et 110 Consultation médicale
moyennement grave
Hypertension grave supérieure à 180 supérieure à 110 Consultation médicale
d’urgence
17
