Microsens MS400863M User manual

Gigabit Ethernet Switch
With 10G Uplinks
User Manual
MS400863M
July 2019

MS400863M –User Manual Page 2of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
Table of Contents
1About this User Manual ..................................................................................................3
2Introduction ......................................................................................................................3
2.1 Overview............................................................................................................................3
2.2 Features .............................................................................................................................3
3Hardware ...........................................................................................................................4
3.1 Redundant Power Interface ...........................................................................................4
3.2 Earth Terminal..................................................................................................................4
3.3 RJ-45 Ports........................................................................................................................5
3.4 SFP/SFP+ Ports ................................................................................................................5
3.5 LEDs....................................................................................................................................5
3.6 Management Port.............................................................................................................7
3.7 Console Port ......................................................................................................................7
3.8 Reset Button .....................................................................................................................7
4Installing the Switch .......................................................................................................8
4.1 Mounting............................................................................................................................8
4.1.1 Rack Mounting ..........................................................................................................8
4.1.2 Desktop or Shelf Mounting.....................................................................................9
4.2 Power Supply and Grounding........................................................................................9
4.2.1 AC Power Supply ......................................................................................................9
4.2.2 DC Power Supply ....................................................................................................10
4.3 Network Interfaces and Cabling .................................................................................10
4.3.1 RJ-45 Ports ..............................................................................................................10
4.3.2 SFP/SFP+ Slots .......................................................................................................11
5Management Interfaces................................................................................................12
5.1 WEB Interface.................................................................................................................12
5.2 CLI Interface ...................................................................................................................13
6Specification....................................................................................................................14
7 Disclaimer........................................................................................................................15

MS400863M –User Manual Page 3of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
1About this User Manual
This installation guide describes the commissioning of the switch (mechanical handling) incl.
connecting power supply and network link, resetting to factory settings and activating the
network management access.
For further documentation see the CLI reference manual and use the help function of the WEB
interface.
This guide will help you with
connecting the power supply and commissioning the device,
understanding the status LEDs and
accessing the network management via CLI or WEB interface
2Introduction
2.1 Overview
The Gigabit Ethernet switch MS400863M provides 20 regular SFP slots, 4x SFP/TP combo
ports and 4x 1/10G SFP+ uplink ports. The device performs a wire-speed, non-blocking
switching fabric. This allows wire-speed transport of multiple packets at low latency on all
ports simultaneously. Store-and-forward technology is used to ensure maximum data
integrity. With this technology, the entire packet must be received into a buffer and checked
for validity before being forwarded. This prevents errors from being propagated throughout
the network. Additionally the device supports advanced security management capabilities and
network features. This switch is easy to deploy and configure, providing stable and quality
performance network services your business needs. Several management interfaces like
http/https, telnet, SSH, SNMP and a local serial port are implemented.
2.2 Features
The following list summarizes the most important features:
24x 100/1000Base-X SFP slots
4x 10/100/1000Base-T RJ-45 ports (combo ports, shared with four SFP slots)
4x 1G/10G SFP/SFP+ slots
Redundant power input (230 VAC and 24-48 VDC)
Serial CLI port
10/100/1000Base-T management port
19’’ 1U rack mounting
Network management via http/https, telnet, SSH, SNMP or the local CLI port
STP/RSTP and MSTP
VLANs (port-based, tag-based, protocol-base, GVRP…)
QoS
IPv6/ IPv4 dual stack
Security features like RADIUS, TACACS+, configurable privileged levels and access
management
EPS, MEP and ERPS
IGMP / MLD
LLDP / LLDP-MED
1588 PTP master/slave
Extensive logging, monitoring and status information
Energy Efficient Ethernet according to IEEE 802.3az

MS400863M –User Manual Page 4of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
3Hardware

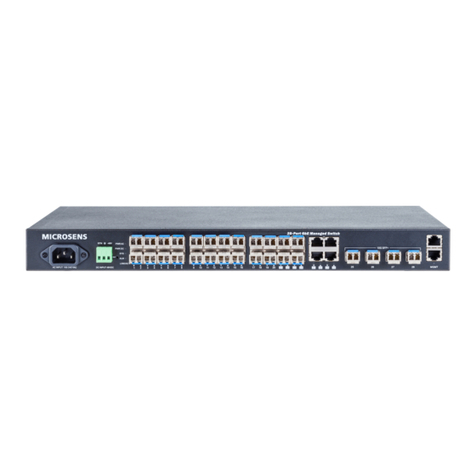

Figure 1: Front View
All connectors and LEDs are placed at the front side (figure 1); only the earth screw is placed
at the rear side.
3.1 Redundant Power Interface
There are dual power inputs on the front panel of the switch for power redundancy
requirement, the switch has 100~240 VAC power socket for AC power input and 48 VDC
power input via terminal block.
Figure 2: Power Interface
3.2 Earth Terminal
Figure 3 shows the earth screw including PE symbol.
Figure 3: Earth Screw

MS400863M –User Manual Page 5of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
3.3 RJ-45 Ports
The switch contains 4x 10/100/1000BASE-T RJ-45 ports. All RJ-45 ports support automatic
MDI/MDI-X operation and auto-negotiation, so the optimum data rate and transmission can
be selected automatically.
3.4 SFP/SFP+ Ports
MS400863M provides the Small Form Factor Pluggable (SFP) transceiver slots port 1 to port
24. The SFP slots 21-24 are shared with RJ-45 ports (combo interface RJ-45/SFP). In the
default configuration, if an SFP transceiver (purchased separately) is installed in a slot and
has a valid link on the port, the associated RJ-45 port is disabled. The ports 25 to 28 support
1/10GbE SFP+ transceiver slots. Generally, they are used as high performance backbone
interface, but it is also possible to insert GbE SFP transceivers. Ensure that the configuration
of the port speed matches with the used SFP or SFP+ module.
3.5 LEDs
The switch includes a display panel for system and port indications that simplify installation
and network troubleshooting. The red marked LEDs, which are located on left hand side of
the front panel for easy viewing provides general information about the switch status.
Additional LEDs indicate link and activity status for each port. Details are shown below, and
described in the following tables:
Figure 4: LEDs
The table below informs about the system LEDs:
LED
Color
State
Description
AC Power
Green
On
The switch is powered on correctly.
Off
The switch is not receiving power from AC input.
DC Power
Green
On
The switch is powered on correctly.
Off
The switch is not receiving power from DC input.
System
Green
On
The switch is ready and running ok.
Off
The switch is not ready or failed.
Blinking
The switch is booting.
Alarm
Red
On
An abnormal state, such as temperature, voltage
or fan speed, has been detected in the switch.
Off
The system is normal
Table 1: System LEDs

MS400863M –User Manual Page 6of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
The following informs about the port LEDs:
LED
Color
State
Description
RJ-45 Ports
Green
On
The port is enabled and established a link to
connected device, and the connection speed is
1000 Mbps.
Green
Blinking
The port is transmitting/receiving packets, and
the connection speed is 1000 Mbps.
Amber
On
The port is enabled and established a link to
connected device, and the connection speed is
10/100 Mbps.
Amber
Blinking
The port is transmitting/receiving packets, and
the connection speed is 10/100 Mbps.
--
Off
The port has no active network cable connected,
or it is not established a link to connected device.
Otherwise, the port may have been disabled
through the switch user interface.
SFP Ports
Green
On
The port is enabled and established a link to
connected device, and the connection speed is
1000 Mbps.
Green
Blinking
The port is transmitting/receiving packets, and
the connection speed is 1000 Mbps.
Amber
On
The port is enabled and established a link to
connected device, and the connection speed is
100 Mbps.
Amber
Blinking
The port is transmitting/receiving packets, and
the connection speed is 100 Mbps.
--
Off
The port has no active network cable connected,
or it is not established a link to connected device.
Otherwise, the port may have been disabled
through the switch user interface.
SFP+ Ports
Blue
On
The port is enabled and established a link to
connected device, and the connection speed is
10 Gbps.
Blue
Blinking
The port is transmitting/receiving packets, and
the connection speed is 10 Gbps.
Green
On
The port is enabled and established a link to
connected device, and the connection speed is
1 Gbps.
Green
Blinking
The port is transmitting/receiving packets, and
the connection speed is 1 Gbps.
--
Off
The port has no active network cable connected,
or it is not established a link to connected device.
Otherwise, the port may have been disabled
through the switch user interface.
Table 2: Port LEDs

MS400863M –User Manual Page 7of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
3.6 Management Port
An additional 10/100/1000Base-T RJ-45 port is intended for IP-based management access.
Per default, the port works like the other RJ-45 ports but the user can configure all needed
options by defining a new IP interface and configuring VLANs. Especially it is possible to
isolate the port from other data traffic.
3.7 Console Port
The device contains a serial RS-232 interface, the console port, as local management
interface. For the console port, a standard RJ-45 connector is used. Nevertheless, the pinning
is different. Use the attached RS-232 cable (Sub-D9 to RJ-45) to connect the console port
with the COM port of a PC. Per default, the following parameters are set:
-Speed: 115200 bps
-Data bits: 8
-Stop bits: 1
-Flow control: none
-Parity bit: none
This interface can be used if the IP settings are unknown. Only login (default: admin) and
password (default: microsens) must be known.
3.8 Reset Button
By pressing the reset button for a certain period of time, users can perform the following
tasks:
Reset: To reboot and get the switch back to the previous configuration settings saved.
Factory Default Reset: To restore the original factory default settings back to the switch.
Note: According to the table below, users can easily judge which task is being performed by
reading the LED behaviors while pressing the reset button. Once the LED behaviors are
correctly displayed, users may just release the button.
Task to be
Performed
Time Period of
Pressing Button
SYS LED
Port Status LED
Behavior
Behavior
Reset the switch
2 ~ 7 seconds
blinking
All LEDs are
switched off
green
Restore to defaults
7 ~ 12 seconds
blinking
All LEDs stay on
green
Table 3: Reset and Factory Default Reset

MS400863M –User Manual Page 8of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
4Installing the Switch
This chapter describes the mechanical installation, the power connection and grounding of the
switch. Furthermore cabling of the Ethernet interfaces is explained.
The following precautions must be considered:
ESD Note: Circuit devices are sensitive to static electricity, which can damage their delicate
electronics. Dry weather conditions or walking across a carpeted floor may cause you to
acquire a static electrical charge. To protect your device, always:
-Touch the metal chassis of your computer to ground the static electrical charge
before you pick up the circuit device.
-Pick up the device by holding it on the left and right edges only.
Note: The switch is an indoor device. If it is to be used with outdoor devices such as outdoor
IP cameras or outdoor WiFi APs, then users are strongly suggested to install a surge protector
or surge suppressor in order to protect the switch.
4.1 Mounting
The switch can be mounted in a standard 19-inch equipment rack or on a desktop or shelf.
Both mounting options are explained in the following sections.
4.1.1 Rack Mounting
Step 1: Attach the mounting brackets to both sides of the chassis. Insert screws and tighten
then with a screwdriver to secure the brackets.
Figure 5: Attaching Brackets to the Switch
Step 2: Place the switch on a rack shelf in the rack. Push it in until the oval holes in the
brackets align with the mounting holes in the rack posts.
Step 3: Attach the brackets to the posts. Insert screws and tighten them.

MS400863M –User Manual Page 9of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
Figure 6: Mounting the Switch at the Rack Post
4.1.2 Desktop or Shelf Mounting
Step 1: Verify that the workbench is sturdy and reliably grounded.
Step 2: Attach the four adhesive rubber feet to the bottom of the switch.
Figure 7: Attaching the Rubber Feet
4.2 Power Supply and Grounding
Before the power supply cable is connected, the device must be grounded. Connect the
grounding screw at the rear side with protective earth of the buildings installation. Ensure
strain-relief and defined cable routing. Any damage of the cable must be prevented.
4.2.1 AC Power Supply
Step 1: Connect the AC power cord to the AC power receptacle of switch.
Step 2: Connect the other end of the AC power cord to the AC power outlet.
Step 3: Check the system LED. If it is on, the power connection is correct.

MS400863M –User Manual Page 10 of 15
©2019_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
Figure 8: AC Power
4.2.2 DC Power Supply
Step 1: Insert the negative/positive DC wires into the RTN/-48V terminals, respectively.
Step 2: To keep the DC wires from pulling loose, use a small flat-blade screwdriver to tighten
the wire-clamp screws on the front of the terminal block connector.
Step 3: Insert the terminal block into the receptor.
Step 4: Check the system LED. If it is on, the power connection is correct.
Step 5: Ensure strain relief and defined cable routing for the RJ-45 wires.
Figure 9: DC Power
Note: When wiring the DC power input, it is suggested to use AWG 20 –26 (American Wire
Gauge). Be sure to disconnect the power cord before installing and/or wiring the switch.
4.3 Network Interfaces and Cabling
4.3.1 RJ-45 Ports
Figure 10 shows a RJ-45 port and the corresponding connector. The RJ-45 ports are
supporting auto-crossing. Therefore, the use of crossed or straight cables is possible. The
auto-crossing function ensures that transmit lines are correctly connected with receiver lines.
