Microsoft lumia 635 User manual

Key Features
•Nokia Services Catalog
•Windows Phone 8.1
•Cortana personal digital assistant
•Live tiles
Specs
Battery
Usage time: 13 hours
Standby time: 780 hours
Dimensions
Length 129.5mm x 66.7mm x 9.2mm
Weight: 134 grams
Display
4.5" 854x480 screen
Color depth 24 bit, 16M
Keyboard
Touch screen with on-screen keyboard
Memory
512MB RAM, *GB ROM
Up to SDXC/64GB MicroSD supported
Supports up to 32 GB microSD card
Network
WCDMA 850 / 1700 / 1900
GSM 850 / 900 / 1800 / 1900
Operating System
Android 4.2
Processor
QCT, MSM8930
System Manager (Carrier IQ)
Yes
Emergency Alerts (CMAS)
Yes
HD Voice Capable
No
MobileLife Contacts
No
Connectivity
Wi-Fi 802.11 b, g, n (2.4 GHz)
Connect authentications: WPA-PSK, WPA2-PSK,
WPA-Enterprise, WPA2-Enterprise, Protected EAP
(PEAP)
1X1 802.11n connect Implementation
Wi-Fi web browsing
Wi-Fi sharing
Wi-Fi Calling with included Micro GBA SIM card
USB file transfer
USB mass storage
uUSB, DLNA
Bluetooth® 4.0 A2DP 1.2, AVCTP 1.3, AVDTP 1.2,
AVRCP 1.4, GAVDP 1.2, OPP 1.1, PBAP (PSE),
RFCOMM, SPP, SDAP
Smartphone Mobile HotSpot - up to 8 connections
Web
Internet Explorer Mobile 10
Compatible: MSIE 10.0; Windows NT 6.2;
Trident/6.0; ARM; Touch; WPDesktop; MSIE 10.0;
Windows Phone 8.0; IEMobile/10.0; NOKIA, Lumia
XXX
HTML XHTML Version 5
Camera
5 MP rear facing
No front-facing, but has voice guided "selfies" with
rear camera
No flash, but new imaging algorithms for better low
light
Camera Sensor Manufacturer: Toshiba, ST
Optical Sensor Size (Units of 1/xx Inches): 1/4
Image Stabilizer: None
Max Shutter Speed: 1ms
Min Shutter Speed: 200ms
Min Focus Range: 10cm
Continuous Shooting Speed: 7 frames in 2 seconds
with Nokia Smart camera
Max Light Sensitivity: ISO1600
Focal Length: 3.16mm
F/# Aperture: F2.4
Sensor Pixel Size: 1.4um
Screen Pixel Density: 220ppi
Digital zoom: 4x

Specs
Multimedia
Stereo audio (with headset)
Audio support: MP3, AAC, AAC+, eAAC, WMA,
MPEG4, WAV, MIDI
Image support: GIF87A, GIF87A, PNG
Video support: 3GP, MP4, AVI, WMV
What's in the Box
The device comes with the following accessories included in the box:
•Device
•Charger
•USB cable
•SIM door key
•Micro SIM card
•Start guide
•Terms & Conditions

Call Basics
Answer calls
To answer a call, follow these steps:
When receiving a call touch the phone icon and slide to the right to answer.
Block calls
Block calls from a number
To block incoming calls from a number, follow these steps:
1. From the start screen, tap the Phone tile.
2. Tap the history tab.
3. Touch and hold the number you want to block.
4. Tap block number...
5. Tap ok.
Unblock a number
To allow incoming calls from a blocked number, follow these steps:
1. From the start screen, swipe left.
2. Scroll down to and tap settings.
3. Scroll down to and tap call + SMS filter.
4. Tap blocked numbers.
5. Tap and hold on the number you want to unblock.
6. Tap unblock.
Reject calls
To reject a call, follow these steps:
When receiving a call touch the phone icon and slide to the left to reject.
Call Forwarding
Cancel call forwarding
To turn off or cancel call forwarding that you have set up, follow these steps:
1. From the Start screen, tap the T-Mobile tile.
2. Tap the More icon (...) at the bottom-right of the screen.
3. Tap settings.
4. Scroll to and tap the Call forwarding switch.

Call Settings
Turn on / off touch tones (DMTF)
Your phone uses touch tones (DTMF) but you cannot turn the feature off.
Your device can send a number to the network as dual tone multi-frequency (DTMF) tones. DTMF tones
are used to communicate with automated systems that require you to type a number such as a code,
password, or credit card number. Your phone uses DTMF tones but you cannot turn off or change them.
Call Timer/Call Log
Reset call log
To reset or clear the call log or history, follow these steps:
1. From the start screen, tap the Phone tile.
2. Tap the history tab.
3. Tap the More icon at bottom-right of the screen.
4. Tap delete all.
5. Tap delete to confirm.
View call log
Call logs may approximate the amount of time you have spent on phone calls, but they do not accurately
show how much time Family Mobile bills.
To view call logs or history, follow these steps:
1. From the start screen, tap the Phone tile.
2. Tap the history tab.
3. View the call log.
Voice Commands
To set up Cortana to use for voice commands, follow these steps:
1. Create or sign into your existing Microsoft account.
2. On the start screen, swipe left, and tap Cortana.
3. Follow the instructions shown on your phone.

Open an app
To open an app with Cortana, follow these steps:
1. On the start screen, swipe left, and tap Cortana.
2. Tap the microphone.
3. Say "open" followed by the name of the application.
4. Answer any clarifying questions from Cortana.
Voice dial a contact
To use with Cortana to call a contact, follow these steps:
1. On the start screen, swipe left, and tap Cortana.
2. Tap the microphone.
3. Say "call" followed by the name of the contact.
4. Answer any clarifying questions from Cortana.
Write a text message (SMS) with voice
To write and send a text message (SMS) using Cortana, follow these steps:
1. On the start screen, swipe left, and tap Cortana.
2. Tap the microphone.
3. Say "text message."
4. Answer any clarifying questions from Cortana create and send message.
Voicemail
Call voicemail
To call your voicemail and retrieve messages, follow these steps:
1. From the start screen, tap the T-Mobile tile.
2. Tap the keypad icon.
3. Touch and hold the 1key.
Set voicemail number
To change the voicemail number on your device, follow these steps:
1. From the Start screen, tap the T-Mobile tile.
2. Swipe to and tap the voicemail tab.
3. Tap More... at the bottom of the screen.

4. Tap settings.
5. Tap the Use default voicemail number switch to turn off.
6. Tap the new voicemail number field.
7. Enter the desired phone number.
8. Tap anywhere outside of the phone number field to save your changes.
Bluetooth
Pair/Unpair Bluetooth device
To turn on Bluetooth and pair with a headset or other device, follow these steps:
1. From the Start screen, touch the screen and slide left.
2. Scroll down to and tap Settings.
3. Scroll down to and tap Bluetooth.
4. Tap the Status switch to turn on Bluetooth.
5. On the other device, turn on Bluetooth and make it discoverable.
6. Your phone automatically searches for other Bluetooth-enabled devices. Select the device for
pairing.
7. If prompted, compare the PIN numbers on the respective devices. If they match, tap OK.
8. If necessary enter the PIN number, then tap OK.
9. On the other device, accept the pairing.
Turn on / off Bluetooth
To turn on or turn off Bluetooth, follow these steps
1. From the Start screen, touch the screen and slide left.
2. Scroll down to and tap Settings.
3. Scroll down to and tap Bluetooth.
4. Tap the Status switch to turn Bluetooth on or off.
GPS
Turn on / off GPS
To turn on or turn off GPS, follow these steps:
1. From the start screen, swipe left.
2. Scroll down to and tap Settings.
3. Scroll down to and tap location.
4. Swipe the Location services switch right to turn on GPS or left to turn off GPS.
Network

Manual network selection
To manually select the wireless network the device connects to, follow these steps:
1. From the start screen, swipe left.
2. Scroll down to and tap Settings.
3. Scroll down to and tap cellular+SIM.
4. Scroll down to and tap SIM settings.
5. Tap Network selection.
6. Tap search for networks.
7. Tap to select the desired network.
The device detects and registers on wireless networks inside Family Mobile’s calling area, but roaming
networks are usually restricted to Family Mobile SIM cards. You can manually select a network only in
areas where Family Mobile does not own GSM spectrum.
Turn on / off Airplane mode
Airplane mode turns off wireless connections. This allows you to use apps and menus, but not make calls
or use the internet.
To turn on or turn off airplane mode, follow these steps:
1. From the start screen, swipe left.
2. Scroll down to and tap Settings.
3. Tap airplane mode.
4. Move the Status switch right to turn on or left to turn off.
Turn on / off data roaming
To turn on or turn off data roaming, follow these steps
1. From the start screen, swipe left.
2. Scroll down to and tap Settings.
3. Scroll down to and tap cellular+SIM.
4. Tap Data roaming options.
5. Tap to select roam or don't roam.
System Manager (Carrier IQ)
This feature is not available.
Wi-Fi

Turn On
1. Swipe left on the start screen.
2. Scroll down to and tap Settings.
3. Tap Wi-Fi.
4. Tap the Wi-Fi networking switch to turn on.
Turn Off
1. Swipe left on the start screen.
2. Scroll down to and tap Settings.
3. Tap Wi-Fi.
4. Tap the Wi-Fi networking switch to turn off.
Backlight
Brightness
To make the screen backlight brighter or darker, follow these steps:
1. From the Start screen, touch the screen and slide left.
2. Tap Settings > brightness.
3. Tap the Level field.
4. Tap to select a brightness option:
olow
omedium
ohigh
Timeout
To change the time before the backlight times out, follow these steps:
1. From the Start screen, touch the screen and slide left.
2. Scroll to and tap Settings.
3. Tap lock screen.
4. Tap Screen times out after.
5. Tap to select a timeout option.
o30 seconds
o1 minute
o3 minutes
o5 minutes
o15 minutes
o30 minutes
onever
Home Screen

Your phone has two views, start screen and apps menu. To switch between the views, swipe left or right.
•Start screen: The animated live tiles show your missed calls and received messages, the latest
news.
•Apps menu: All your apps are listed here, all neatly ordered. If you have a lot of apps, to look
one up, tap Search.
Add widget or shortcut
To customize the Home screen, follow these steps:
1. Swipe left on the start screen.
2. Scroll to and tap Settings.
3. Tap start+theme.
4. Tap Background, then choose light or dark.
5. Tap Accent color, then choose from available colors.
6. Tap choose photo to set a photo as the screen background.
Home screen wallpaper
To change the background photo, follow these steps
1. On the start screen, swipe down from the top of the screen.
2. Tap ALL SETTINGS > lock screen.
3. Tap change photo.
4. Choose photo location and tap desired photo or background.
5. Adjust to get the best possible fit, and tap the check mark to save.
Lock screen wallpaper
To customize the lock screen, follow these steps:
1. On the start screen, swipe down from the top of the screen.
2. Tap ALL SETTINGS > lock screen.
3. Tap the Background box.
4. Tap to select from the following backgrounds.
Keyboard
Enter symbols & numbers
To enter symbols and numbers with the keyboard, follow these steps:
1. From the alphabet keyboard, tap the &123 key.
2. Tap the desired symbol(s) or number(s).
3. To see additional symbols, tap the Arrow key.
4. To access emoticons, tap the smiley face key.
5. Tap abcd to switch back to the alphabet keyboard.

Text entry mode
To change the text entry or predictive text mode, follow these steps:
1. From the Start screen, touch the screen and slide left.
2. Scroll down to and tap Settings.
3. Scroll down to and tap keyboard.
4. If desired, tap add keyboards to add an additional keyboard language.
5. For the desired keyboard, tap Tap to change.
6. Select or clear the check boxes for the following settings:
oSuggest text
oHighlight misspelled words
oCorrect misspelled words
oSuggest emoticons
oInsert a space after I select a suggestion
oInsert a period after I double-tap the Spacebar
oCapitalize the first letter of a sentence
oType as I swipe through letters

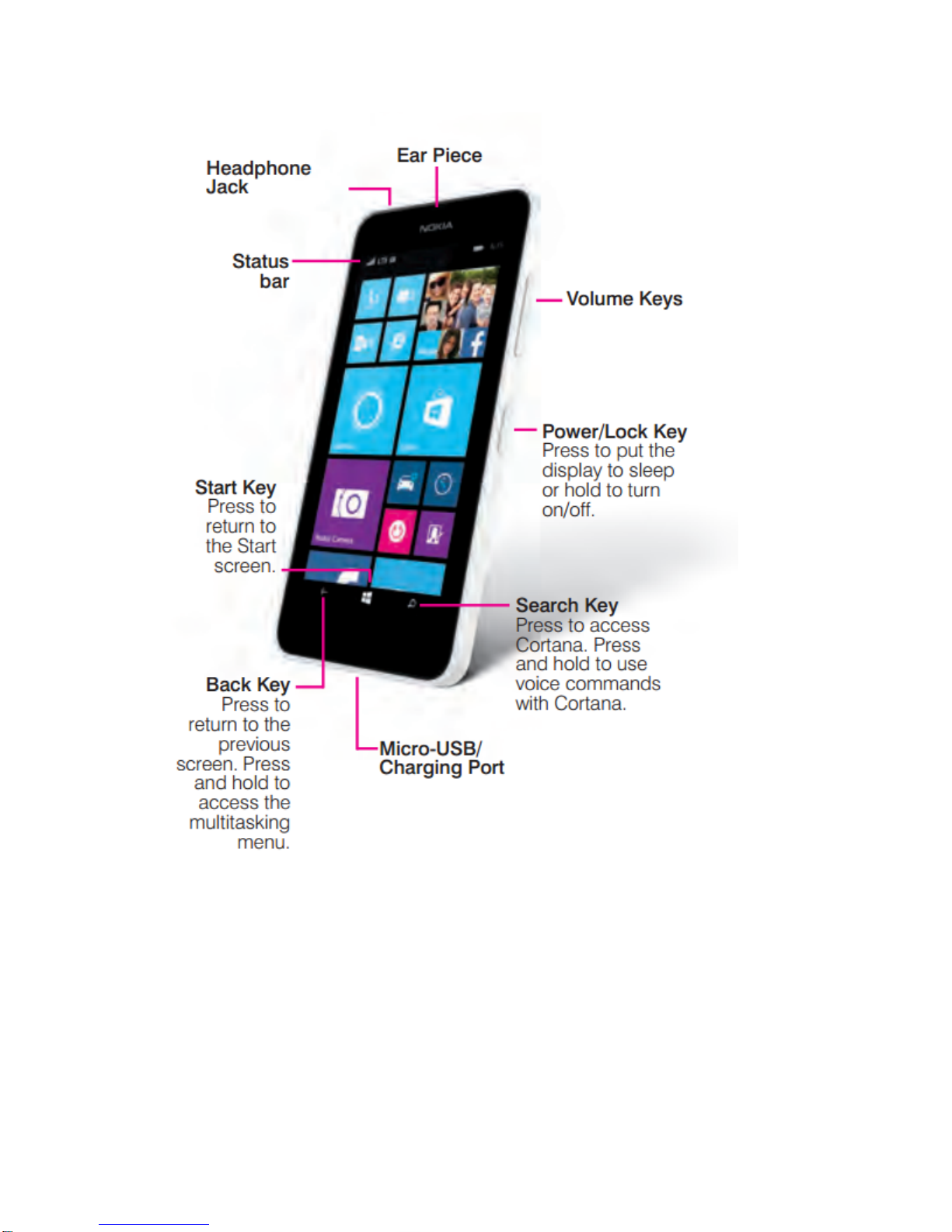

Buttons
To find buttons and what they do, refer to the following:

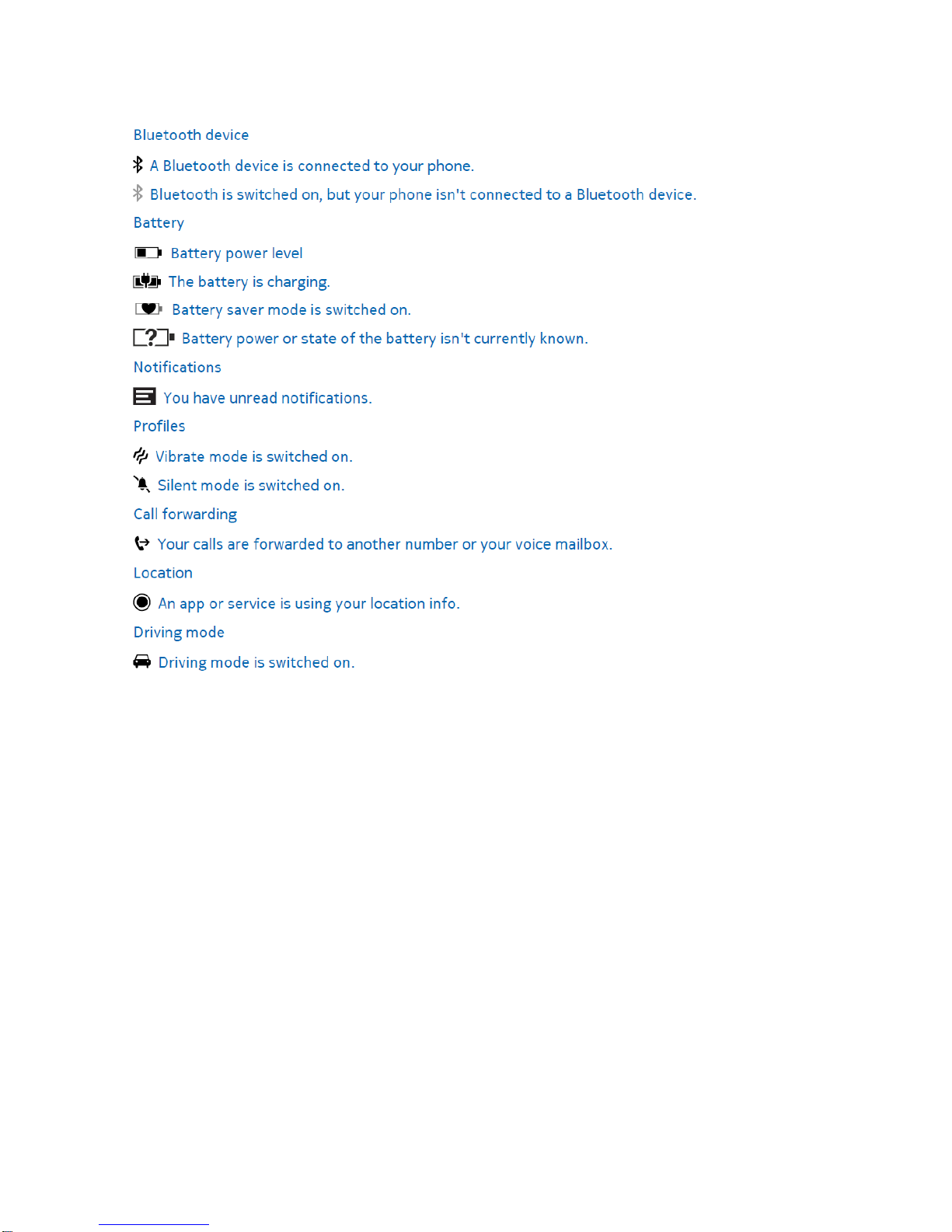

Icons
To understand what icons and indicators on the display screen mean, refer to the following:

IMEI
To find the IMEI serial number of your device, follow these steps:
1. From the start screen, swipe left.
2. Scroll to and tap settings.
3. Scroll to and tap about.
4. Tap more info.
5. View the IMEI.
Liquid Damage Indicator (LDI)
Family Mobile devices have an indicator that shows if it has been subjected to liquid damage. To read the
Liquid Damage Indicator (LDI), follow these steps:
1. Remove the back cover and battery from your device.

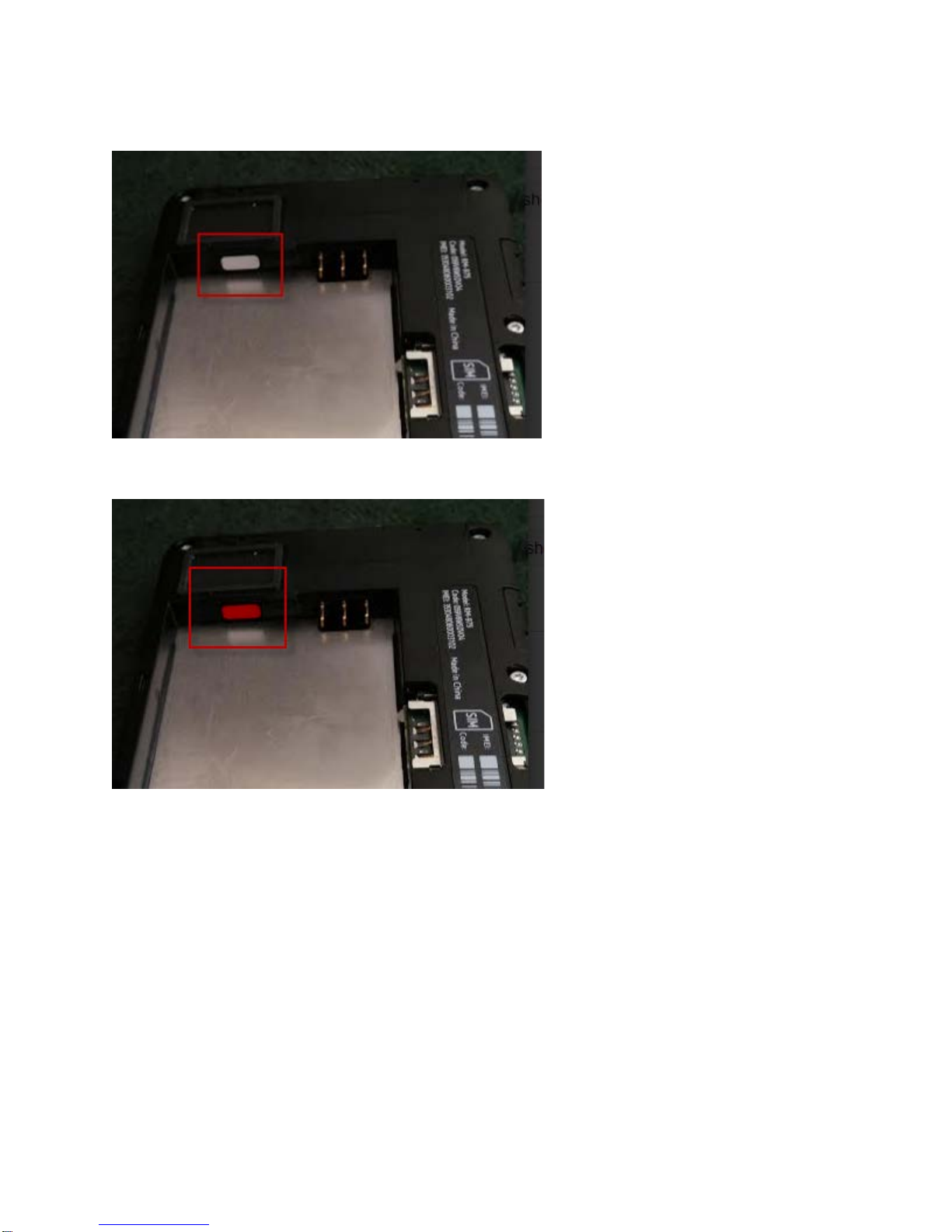

2. View the images to read the label:

White LDI (indicates no liquid damage)
Pink or red LDI (indicates liquid damage)
Internal Memory (RAM)
Manage memory
To manage the internal memory, follow these steps:
You should restart the phone at least once a day:
1. Press and hold the Power key.
2. Touch the screen and slide down to turn off.
3. To turn the phone on again, press and hold the Power key.

Task manager
A task manager can view running apps and close them. To use the task manager, follow these steps:
1. From any open window, touch and hold the Back button.
2. Each open application appears in a carousel of thumbnails.
3. Swipe left or right to view the open applications.
4. Swipe down on a application to end task..
5. When finished, tap the Back button.
View free memory
This feature is not available on your device.
Internal Storage (ROM)
Manage storage
To manage the internal storage space, follow these steps:
1. On the start screen, swipe down from the top of the screen and tap ALL SETTINGS.
2. Scroll down to and tap storage sense.
3. Tap to change the storage location from phone to SD card.
View free storage space
To view the amount of free internal storage, follow these steps:
1. On the start screen, swipe down from the top of the screen and tap ALL SETTINGS.
2. Scroll down to and tap storage sense.
3. Tap phone and view the free value.
SD Card
Insert / remove microSD card
To insert or remove the SD card, follow these steps:
1. Turn your phone off.

2. On the corner of the phone, put the tip of your index finger in the seam between the screen frame
and the back cover. Press the middle of the back cover, bend the cover open, and remove it. Do
not use any sharp tools, as they may damage the screen.
3. If the battery is in, lift it out.

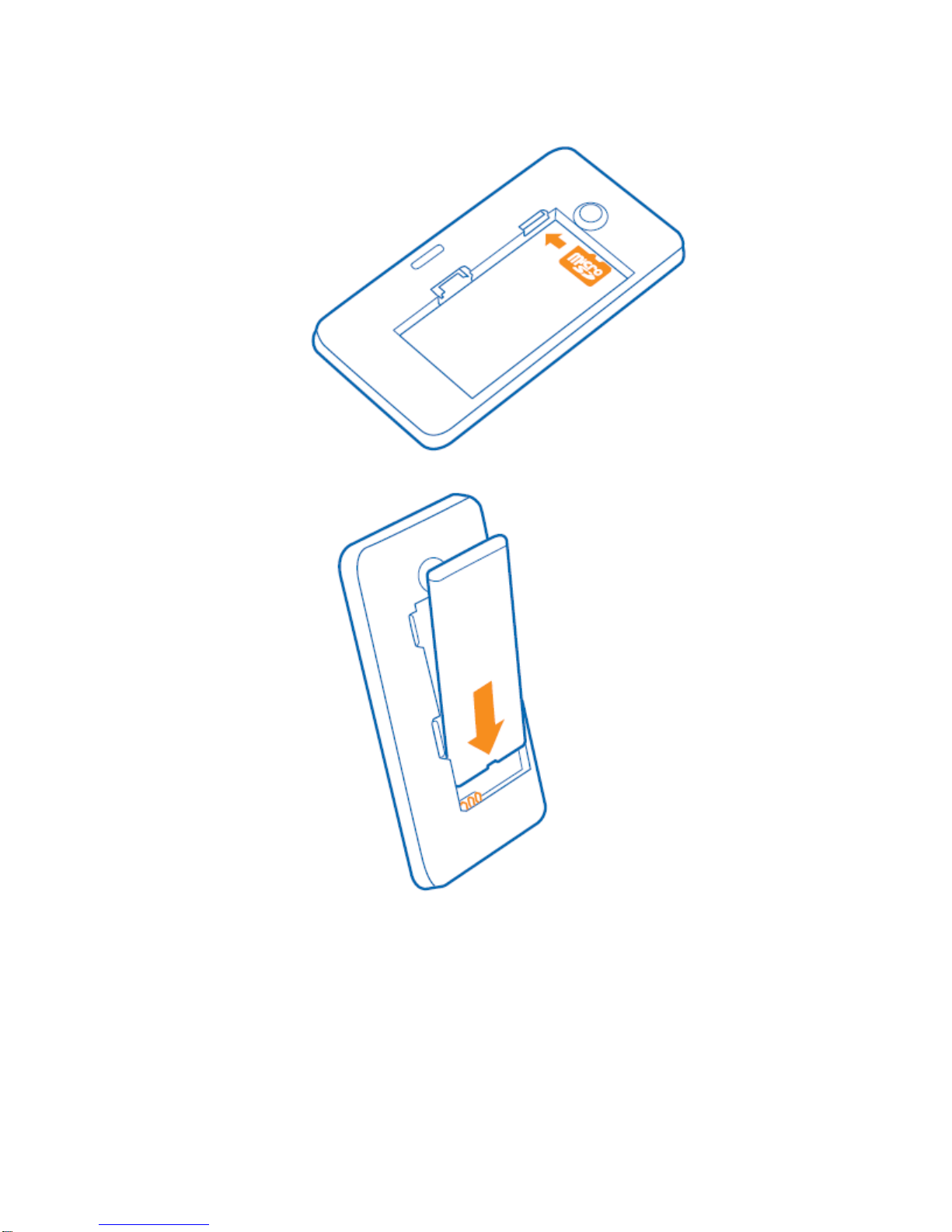

4. Push the mircoSD card into the SD slot as shown.
5. Line up the battery contacts, and put the battery in.

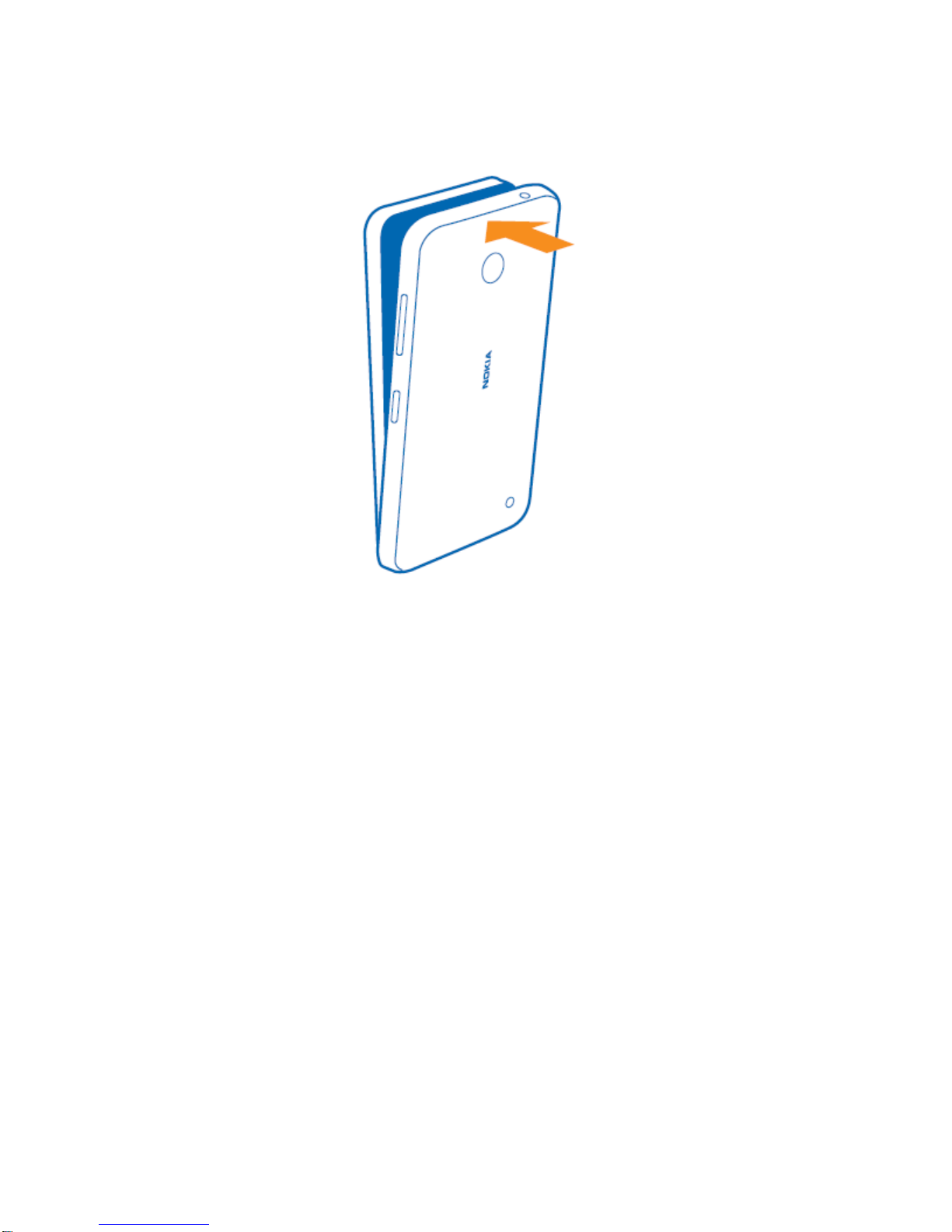

6. Press the bottom edge of the back cover against the bottom edge of your phone, and snap the
cover into place. Don't press the keys while attaching the cover.
7. Turn your phone on.
To remove the memory card, follow these steps:
1. Swipe left on the home screen.
2. Scroll down to and tap Settings.
3. Tap storage sense.
4. Tap SD card.
5. Scroll down to and tap remove SD card.
6. Turn your phone off.
7. On the corner of the phone, put the tip of your index finger in the seam between the screen frame
and the back cover. Press the middle of the back cover, bend the cover open, and remove it. Do

not use any sharp tools, as they may damage the screen.
8. If the battery is in, lift it out.

9. To remove the memory card, pull it out from the slot.
10. Line up the battery contacts, and put the battery in.
