1M thermal Mono System
1.1 System Schematic

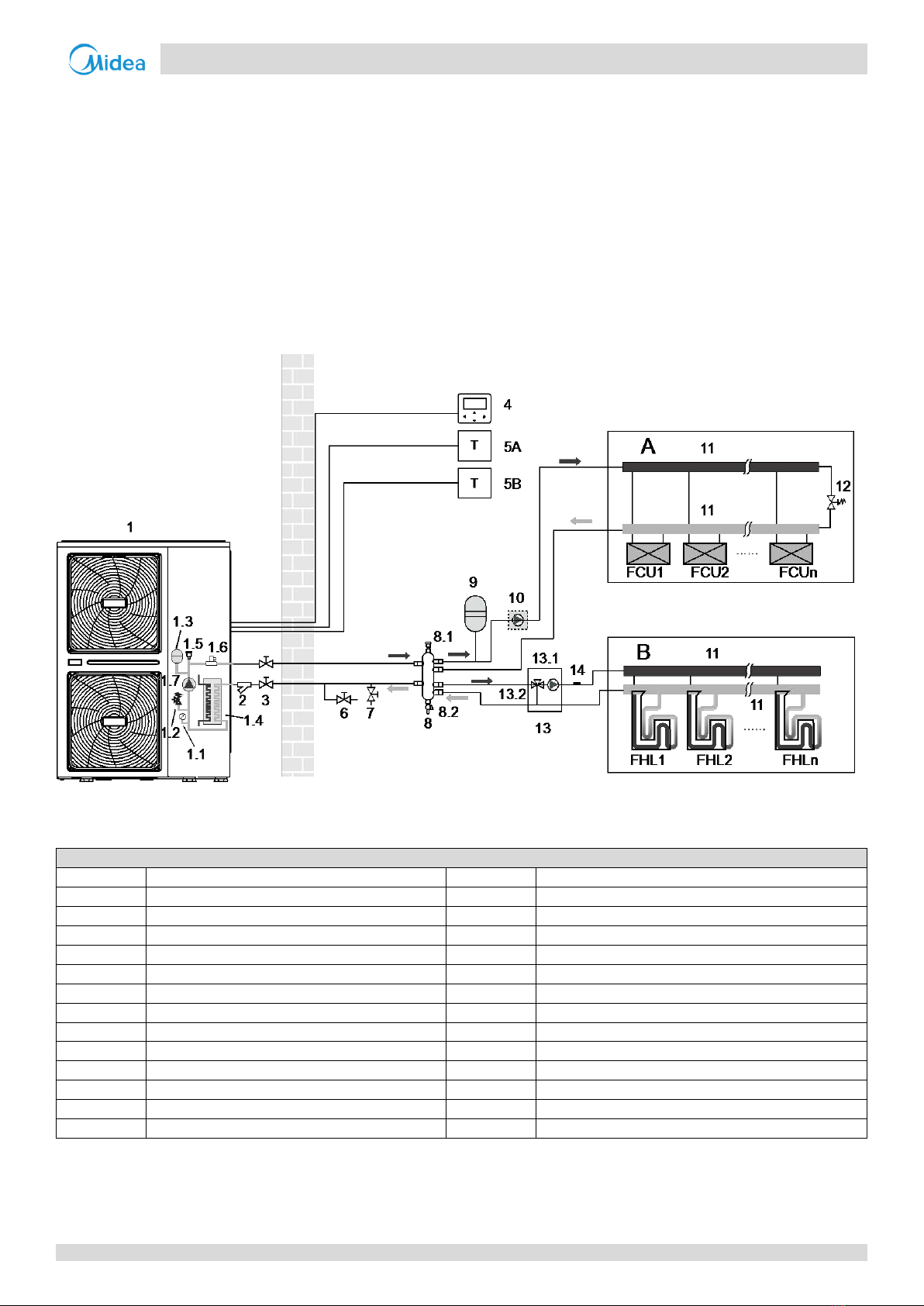

Figure 1-1.1: System schematic
M thermal Mono is an integrated air-to-water space heating, space cooling and domestic hot water heat pump system.
The outdoor heat pump system extracts heat from the outdoor air and transfers this heat through refrigerant piping to the
plate heat exchanger in the hydronic system. The heated water in the hydronic system circulates to low temperature heat
emitters (floor heating loops or low temperature radiators) to provide space heating, and to the domestic hot water tank
to provide domestic hot water. The 4-way valve in the outdoor unit can reverse the refrigerant cycle so that the hydronic
system can provide chilled water for cooling using fan coil units.
M thermal Mono is an integrated air to water heat pump system which is one-stop solution for space heating, space
cooling and domestic hot water. The outdoor heat pump system extracts heat from the outdoor air and transfers this heat
through refrigerant piping to the plate heat exchanger in the hydronic system. The heated water in the hydronic system
circulates to low temperature heat emitters (floor heating loops or low temperature radiators) to provide space heating,
and to the domestic hot water tank to provide domestic hot water. The 4-way valve in the outdoor unit can reverse the
refrigerant cycle so that the hydronic system can provide chilled water for cooling using fan coil units.
The heating capacity of heat pumps decreases with ambient temperature dropping. M thermal Mono can be equipped
with a backup electric heater to provide additional heating capacity for use during extremely cold weather when the heat
pump capacity is insufficient. The backup electric heater also serves as a backup in case of heat pump malfunction and for
anti-freeze protection of the outside water piping in winter.
M thermal Mono Outdoor Unit
Distributor
Collector
Midea CAC Confidential

M thermal Mono
202005 5
Part 1 - General Information
1.2 System Configurations
M thermal Mono can be configured to run with the electric heater either enabled or disabled and can also be used in
conjunction with an auxiliary heat source such as a boiler.
The chosen configuration affects the size of heat pump that is required. Three typical configurations are described below.
Refer to Figure 1-1.2.
Configuration 1: Heat pump only
The heat pump covers the required capacity and no extra heating capacity is necessary.
Requires selection of larger capacity heat pump and implies higher initial investment.
Ideal for new construction in projects where energy efficiency is paramount.
Configuration 2: Heat pump and backup electric heater
Heat pump covers the required capacity until the ambient temperature drops below the point at which the heat
pump is able to provide sufficient capacity. When the ambient temperature is below this equilibrium point (as shown
in Figure 1-1.2), the backup electric heater supplies the required additional heating capacity.
Best balance between initial investment and running costs, results in lowest lifecycle cost.
Ideal for new construction.
Configuration 3: Heat pump with auxiliary heat source
Heat pump covers the required capacity until the ambient temperature drops below the point at which the heat
pump is able to provide sufficient capacity. When the ambient temperature is below this equilibrium point (as shown
in Figure 1-1.2), depending on the system settings, either the auxiliary heat source supplies the required additional
heating capacity or the heat pump does not run and the auxiliary heat source covers the required capacity.
Enables selection of lower capacity heat pump.
Ideal for refurbishments and upgrades.
Figure 1-1.2: System configurations
Midea CAC Confidential

M thermal Mono
6 202005
Midea M thermal Mono Engineering Data Book
2Unit Capacities

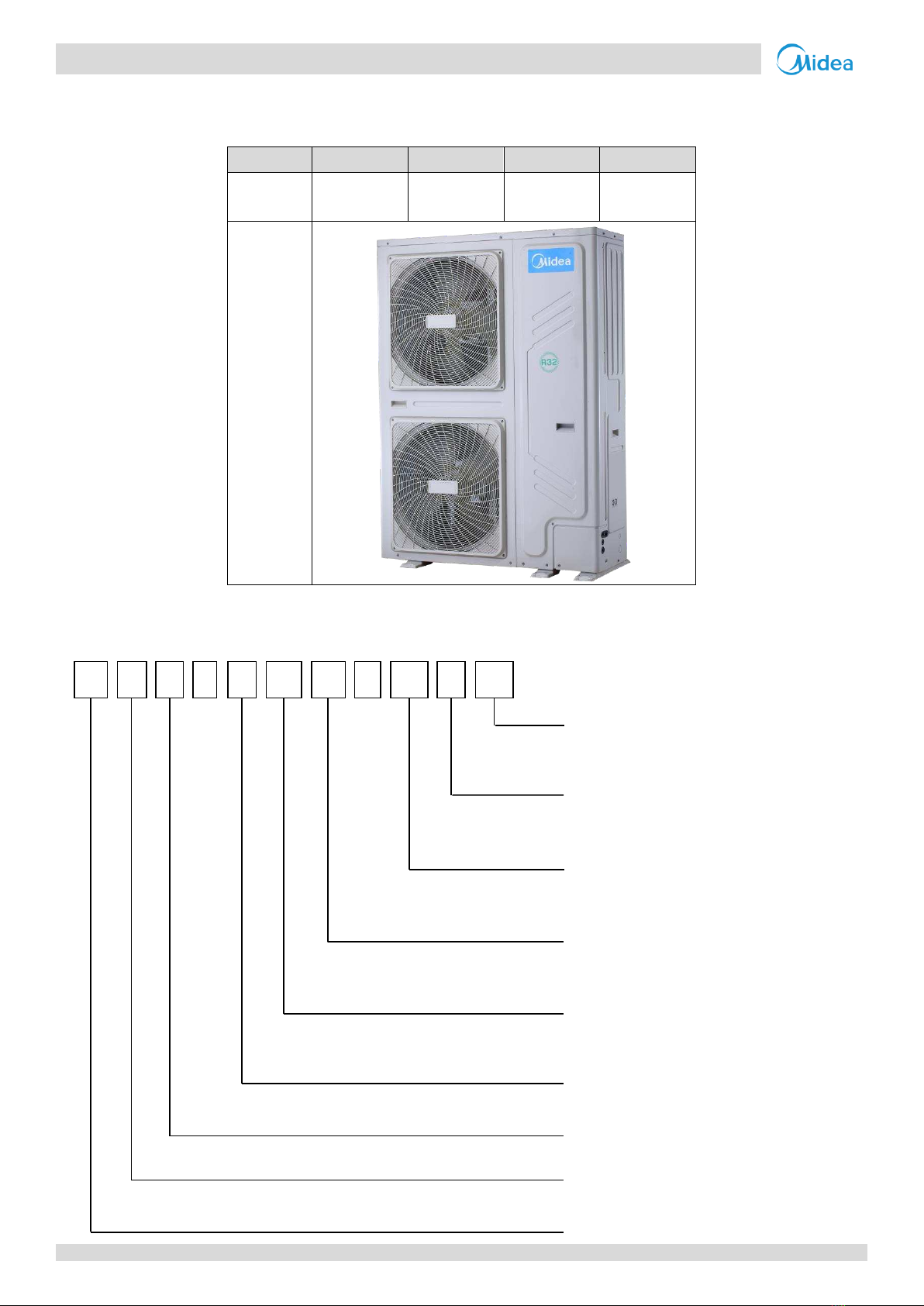

Table 1-2.1: Unit capacities range and appearances
Capacity
18kW
22kW
26kW
30kW
Model
(MHC-)
V18W/D2RN8
V22W/D2RN8
V26W/D2RN8
V30W/D2RN8
Appearance
3Nomenclature
H
30
M
C
V
W
D2
R
-
N8
/
Refrigerant
N8: R32
Power Supply
R: 3-phase, 380-415V, 50Hz
Compressor and fan motor types
D2: All DC
Unit category
W: Outdoor unit
Capacity index
The capacity in kW
Inverter
Mono
Heat pump
Midea
Midea CAC Confidential

M thermal Mono
202005 7
Part 1 - General Information
4System Design and Unit Selection
4.1 Selection Procedure
Step 1: Total heat load calculation
Calculate conditioned surface area
Select the heat emitters (type, quantity, water temperature and heat load)
Step 2: System configuration
Decide whether to include AHS and set AHS’s switching temperature
Decide whether backup electric heater is enabled or disabled
Step 3: Selection of outdoor units
Determine required total heat load on outdoor units
Set capacity safety factor
Select power supply
Provisionally select M thermal Mono unit capacity based on nominal
capacity
Correct capacity of the outdoor units for the following items:
Outdoor air temperature / Outdoor humidity / Water outlet temperature1/
Altitude / Anti-freeze fluid
Is corrected M thermal Mono unit capacity ≥Required total heat load on
outdoor units2
Yes
No
M thermal Mono system
selection is complete
Select a larger model or enable
backup electric heater operation
Notes:
1. If the required water temperatures of the heat emitters are not all the same, the M thermal Mono’s outlet water temperature setting should be set at the
highest of the heat emitter required water temperatures. If the water outlet design temperature falls between two temperatures listed in the outdoor
unit's capacity table, calculate the corrected capacity by interpolation.
2. Select Mono units which should satisfy both total heating and cooling load requirements.
Midea CAC Confidential

M thermal Mono
8 202005
Midea M thermal Mono Engineering Data Book
4.2 M thermal Leaving Water Temperature (LWT) Selection
The recommended design LTW ranges for different types of heat emitter are:
For floor heating: 30 to 35⁰C
For fan coil units: 30 to 45⁰C
For low temperature radiators: 40 to 50⁰C
4.3 Optimizing System Design
To get the most comfort with the lowest energy consumption with M thermal, it is important to take account of the
following considerations:
Choose heat emitters that allow the heat pump system to operate at as low a hot water temperature as possible
whilst still providing sufficient heating.
Make sure the correct weather dependency curve is selected to match the installation environment (building
structure, climate) as well as ender user’s demands.
Connecting room thermostats (field supplied) to the hydronic system helps prevent excessive space heating by
stopping the outdoor unit and circulator pump when the room temperature is above the thermostat set point.
Midea CAC Confidential

M thermal Mono
202005 9
Part 1 - General Information
5Typical Applications
5.1 Space Heating
The room thermostat is used as a switch. When there is a heating request from the room thermostat, the Mono unit
operates to achieve the target water temperature set on the user interface. When the room temperature reaches the
thermostat’s set temperature, the unit stops.
Figure 1-5.1: Space heating
Table 1-5.1: Space heating
Legend
1
Outdoor unit
5
Room thermostat (field supplied)
1.1
Manometer
6
Drain valve (field supplied)
1.2
Pressure relief valve
7
Fill valve (field supplied)
1.3
Expansion vessel
8
Balance tank (field supplied)
1.4
Plate heat exchanger
8.1
Air purge valve
1.5
Air purge valve
8.2
Drain valve
1.6
Flow switch
9
Expansion vessel (field supplied)
1.7
P_i: Circulation pump inside the unit
10
P_o: Outside circulation pump (field supplied)
2
Y-shape filter
11
Collector / Distributor (field supplied)
3
Stop valve (field supplied)
FHL 1...n
Floor heating loop (field supplied)
4
Wired controller
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

M thermal Mono
10 202005
Midea M thermal Mono Engineering Data Book
5.2 Space Heating and DHW with solar system
Space heating without room thermostat connected to the unit. Domestic hot water tank is connected to the unit, and the
tank is with solar heating system. Solar water pump is controlled by Tsolar temperature sensor. Balance tank temperature
sensor is used to control on/off of heat pump. Once the heat pump stops, internal pump stops to save energy and then
balance tank provides hot water for space heating. In addition, balance tank temperature control can meet both space
heating and domestic hot water needs at the same time.
Figure 1-5.2: Space heating and DHW with solar system
Table 1-5.2: Space heating and DHW with solar system
Legend
1
Outdoor unit
8.2
Drain valve
1.1
Manometer
9
Expansion vessel (field supplied)
1.2
Pressure relief valve
10
P_o: Outside circulation pump (field supplied)
1.3
Expansion vessel
11
Collector / Distributor (field supplied)
1.4
Plate heat exchanger
12
Domestic hot water tank (field supplied)
1.5
Air purge valve
12.1
Air purge valve
1.6
Flow switch
12.2
Heat exchanger coil
1.7
P_i: Circulation pump inside the unit
12.3
Booster heater
2
Y-shape filter
13
T5: Temperature sensor
3
Stop valve (field supplied)
14
Hot water tap(field supplied)
4
Wired controller
15
P_d: Cycle hot water pump (field supplied)
5
SV1: 3-way valve (field supplied)
16
One way valve(field supplied)
6
Drain valve (field supplied)
17
Bypass valve(field supplied)
7
Fill valve (field supplied)
18
Solar heater(field supplied)
8
Balance tank (field supplied)
19
P_s: Solar pump(field supplied)
8.1
Air purge valve
FHL 1...n
Floor heating loop (field supplied)
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

M thermal Mono
202005 11
Part 1 - General Information
5.3 Space Heating, Cooling and DHW with solar system
Space cooling and heating application with a room thermostat suitable for heating/cooling changeover when connected to
the unit. Heating is provided through floor heating loops and fan coil units. Cooling is provided through the fan coil units
only. Domestic hot water is provided through the domestic hot water tank which is connected to the unit.
Figure 1-5.3: Space heating, cooling and DHW with solar system
Table 1-5.3: Space heating, cooling and DHW with solar system
Legend
1
Outdoor unit
10
P_o: Outside circulation pump (field supplied)
1.1
Manometer
11
Collector / Distributor (field supplied)
1.2
Pressure relief valve
12
Domestic hot water tank (field supplied)
1.3
Expansion vessel
12.1
Air purge valve
1.4
Plate heat exchanger
12.2
Heat exchanger coil
1.5
Air purge valve
12.3
Booster heater
1.6
Flow switch
13
T5: Temperature sensor
1.7
P_i: Circulation pump inside the unit
14
Hot water tap(field supplied)
2
Y-shape filter
15
P_d: Cycle hot water pump(field supplied)
3
Stop valve (field supplied)
16
One way valve(field supplied)
4
Wired controller
17
Bypass valve(field supplied)
5
Room thermostat (field supplied)
18
SV1: 3-way valve(field supplied)
6
Drain valve (field supplied)
19
SV2: 3-way valve (field supplied)
7
Fill valve (field supplied)
20
Solar heater(field supplied)
8
Balance tank (field supplied)
21
P_s: Solar pump(field supplied)
8.1
Air purge valve
FHL 1...n
Floor heating loop (field supplied)
8.2
Drain valve
FCU 1…n
Fan coil units(field supplied)
9
Expansion vessel (field supplied)
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

M thermal Mono
12 202005
Midea M thermal Mono Engineering Data Book
5.4 AHS provides heat for space heating
Space heating application by either the unit or by AHS connected in the system.
If AHS only provides heat for space heating, AHS must be integrated in the piping work.
Figure 1-5.4: AHS provides heat for space heating
Table 1-5.4: AHS provides heat for space heating
Legend
1
Outdoor unit
8.2
Drain valve
1.1
Manometer
9
Expansion vessel (field supplied)
1.2
Pressure relief valve
10
P_o: Outside circulation pump (field supplied)
1.3
Expansion vessel
11
Collector / Distributor (field supplied)
1.4
Plate heat exchanger
12
Domestic hot water tank (field supplied)
1.5
Air purge valve
12.1
Air purge valve
1.6
Flow switch
12.2
Heat exchanger coil
1.7
P_i: Circulation pump inside the unit
12.3
Booster heater
2
Y-shape filter
13
T5: Temperature sensor
3
Stop valve (field supplied)
14
Hot water tap(field supplied)
4
Wired controller
15
P_d: Cycle hot water pump(field supplied)
5
Stop valve (field supplied)
16
One way valve(field supplied)
6
Drain valve (field supplied)
17
T1: Outlet water temperature sensor(field supplied)
7
Fill valve (field supplied)
18
SV1: 3-way valve (field supplied)
8
Balance tank (field supplied)
FHL 1...n
Floor heating loop (field supplied)
8.1
Air purge valve
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

M thermal Mono
202005 13
Part 1 - General Information
5.5 AHS provides heat for space heating and DHW
Space heating application by either the unit or by AHS connected in the system. Bivalent operation is possible for both
space heating operation and domestic water heating operation. If AHS is also providing heat for domestic hot water, AHS
can be integrated in the piping work. In this condition, the unit can sent ON/OFF signal to AHS in heating mode, but AHS
control itself in DHW mode.
Figure 1-5.5: AHS provides heat for space heating and DHW
Table 1-5.5: AHS provides heat for space heating and DHW
Legend
1
Outdoor unit
8.2
Drain valve
1.1
Manometer
9
Expansion vessel (field supplied)
1.2
Pressure relief valve
10
P_o: Outside circulation pump (field supplied)
1.3
Expansion vessel
11
Collector / Distributor (field supplied)
1.4
Plate heat exchanger
12
Domestic hot water tank (field supplied)
1.5
Air purge valve
12.1
Air purge valve
1.6
Flow switch
12.2
Heat exchanger coil
1.7
P_i: Circulation pump inside the unit
12.3
Booster heater
2
Y-shape filter
13
T5: Temperature sensor
3
Stop valve (field supplied)
14
Hot water tap(field supplied)
4
Wired controller
15
P_d: Cycle hot water pump(field supplied)
5
Stop valve (field supplied)
16
One way valve(field supplied)
6
Drain valve (field supplied)
17
Additional heat source(field supplied)
7
Fill valve (field supplied)
18
SV1: 3-way valve (field supplied)
8
Balance tank (field supplied)
19
T1: Outlet water temperature sensor(field supplied)
8.1
Air purge valve
FHL 1...n
Floor heating loop (field supplied)
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

M thermal Mono
14 202005
Midea M thermal Mono Engineering Data Book
5.6 AHS provides heat for DHW
Figure 1-5.6: AHS provides heat for DHW
Table 1-5.6: AHS provides heat for DHW
Legend
1
Outdoor unit
8.2
Drain valve
1.1
Manometer
9
Expansion vessel (field supplied)
1.2
Pressure relief valve
10
P_o: Outside circulation pump (field supplied)
1.3
Expansion vessel
11
Collector / Distributor (field supplied)
1.4
Plate heat exchanger
12
Domestic hot water tank (field supplied)
1.5
Air purge valve
12.1
Air purge valve
1.6
Flow switch
12.2
Heat exchanger coil
1.7
P_i: Circulation pump inside the unit
12.3
Booster heater
2
Y-shape filter
13
T5: Temperature sensor
3
Stop valve (field supplied)
14
Hot water tap(field supplied)
4
Wired controller
15
P_d: Cycle hot water pump(field supplied)
5
Stop valve (field supplied)
16
One way valve(field supplied)
6
Drain valve (field supplied)
17
Additional heat source(field supplied)
7
Fill valve (field supplied)
18
SV1: 3-way valve (field supplied)
8
Balance tank (field supplied)
FHL 1...n
Floor heating loop (field supplied)
8.1
Air purge valve
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

M thermal Mono
202005 15
Part 1 - General Information
5.7 Dual setpoint function application with two room thermostats
Space heating with two room thermostats application is through floor heating loops and fan coil units. The floor heating
loops and fan coil units require different operating water temperature. The floor heating loops require a lower water
temperature in heating mode compared to fan coil units. To achieve these two set points, a mixing station is used to adapt
the water temperature according to requirements of the floor heating loops. The fan coil units are directly connected to
the unit water circuit and the floor heating loops are after the mixing station. The mixing station is controlled by the unit
(or field supply, controls by itself). With the help of hydronic adapter board(optional) which is connected between hydronic
box and thermostats, maximum 8 thermostats for 8 rooms are available to control heat pump, which greatly improves the
operation convenience.
Figure 1-5.7: Dual setpoint function application with two room thermostats
Table 1-5.7: Dual setpoint function application with two room thermostats
Legend
1
Outdoor unit
7
Fill valve (field supplied)
1.1
Manometer
8
Balance tank (field supplied)
1.2
Pressure relief valve
8.1
Air purge valve
1.3
Expansion vessel
8.2
Drain valve
1.4
Plate heat exchanger
9
Expansion vessel (field supplied)
1.5
Air purge valve
10
P_o: Outside circulation pump (field supplied)
1.6
Flow switch
11
Collector / Distributor (field supplied)
1.7
P_i: Circulation pump inside the unit
12
Bypass valve (field supplied)
2
Y-shape filter
13
Mixing station(field supplied)
3
Stop valve (field supplied)
13.1
P_c: zone 2 pump (field supplied)
4
Wired controller
13.2
SV3: 3-way valve (field supplied)
5A
Room thermostat for zone 1 (field supply)
14
Tw2: Zone 2 water flow temp.(field supplied)
5B
Room thermostat for zone 2 (field supply)
FHL 1...n
Floor heating loop (field supplied)
6
Drain valve(field supplied)
FCU 1...n
Fan coil units (field supplied)
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

M thermal Mono
16 202005
Midea M thermal Mono Engineering Data Book
5.8 Dual setpoint function application without thermostats
Heating is provided through floor heating loops and fan coil units. The floor heating loops and fan coil units require
different operating water temperatures. The floor heating loops require a lower water temperature in heating mode
compared to fan coil units. To achieve these two set points, a mixing station is used to adapt the water temperature
according to requirements of the floor heating loops. The fan coil units are directly connected to the unit water circuit and
the floor heating loops are after the mixing station. The mixing station is controlled by the unit (or field supply, controls by
itself).
Figure 1-5.8: Dual setpoint function application without thermostats
Table 1-5.8: Dual setpoint function application without thermostats
Legend
1
Outdoor unit
8
Balance tank (field supplied)
1.1
Manometer
8.1
Air purge valve
1.2
Pressure relief valve
8.2
Drain valve
1.3
Expansion vessel
9
Expansion vessel (field supplied)
1.4
Plate heat exchanger
10
P_o: Outside circulation pump (field supplied)
1.5
Air purge valve
11
Collector / Distributor (field supplied)
1.6
Flow switch
12
Bypass valve (field supplied)
1.7
P_i: Circulation pump inside the unit
13
Mixing station(field supplied)
2
Y-shape filter
13.1
P_c: zone 2 pump (field supplied)
3
Stop valve (field supplied)
13.2
SV3: 3-way valve (field supplied)
4
Wired controller
14
Tw2: Zone 2 water flow temp.(field supplied)
5
Stop valve (field supplied)
FHL 1...n
Floor heating loop (field supplied)
6
Drain valve(field supplied)
FCU 1...n
Fan coil units (field supplied)
7
Fill valve (field supplied)
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

M thermal Mono
202005 17
Part 2 - Engineering Data
Part 2
Engineering Data
1 Specifications ........................................................................................... 18
2 Dimensions and Center of Gravity ............................................................ 19
3 Piping Diagrams ....................................................................................... 20
4 Wiring Diagrams....................................................................................... 21
5 Capacity Tables......................................................................................... 22
6 Operating Limits....................................................................................... 28
7 Hydronic Performance.............................................................................. 29
8 Sound Levels ............................................................................................ 30
9 Accessories .............................................................................................. 33
Midea CAC Confidential

M thermal Mono
18 202005
Midea M thermal Mono Engineering Data Book
1Specifications
Table 2-1.1: MHC-V18(22, 26,30)W/D2RN8 specifications1
Model name MHC-V
18W/D2RN8
22W/D2RN8
26W/D2RN8
30W/D2RN8
Power supply
V/Ph/Hz
380-415/3/50
Heating2
Capacity
W
18000
22000
26000
30100
Rated input
W
3830
5000
6373
7698
COP
4.70
4.40
4.08
3.91
Heating3
Capacity
W
18000
22000
26000
30000
Rated input
W
5143
6471
8387
10345
COP
3.50
3.40
3.10
2.90
Heating4
Capacity
W
18000
22000
26000
30000
Rated input
W
6545
8302
10612
13043
COP
2.75
2.65
2.45
2.30
Cooling5
Capacity
W
18500
23000
27000
31000
Rated input
W
3895
5000
6279
7750
EER
4.75
4.60
4.30
4.00
Cooling6
Capacity
W
17000
21000
26000
29500
Rated input
W
5574
7119
9630
11569
EER
3.05
2.95
2.70
2.55
Seasonal space heating energy
efficiency class7
Water outlet at 35⁰C / 55⁰C
class
A+++ / A++
A+++ / A++
A+++ / A+
A++ / A+
SCOP
Water outlet at 35⁰C / 55⁰C
4.60 / 3.21
4.53 / 3.22
4.50 / 3.14
4.19 / 3.14
SEER
Water outlet at 7⁰C / 18⁰C
4.70 / 5.48
4.70 / 5.67
4.66 / 5.88
4.49 / 5.71
MOP / MCA
A
18.0 / 21.0
21.0 / 24.5
24.0 / 27.0
28.0 / 28.5
Compressor
Type
Twin rotary DC inverter
Outdoor fan motor
Type
Brushless DC motor
Water side heat exchanger
Plate type
Water pump
Max. pump head
m
12
12
12
12
Refrigerant (R32)
Charged volume
kg
5.0
Throttle type
Electronic expansion valve
Sound power level8
dB
71
73
75
77
Unit dimension / Packing dimension (W×H×D)
mm
1129×1558×440 / 1220×1735×565
Net / Gross weight
kg
177 / 206
Water piping connections Dia.
inch
1-1/4“ BSP
1-1/4“ BSP
1-1/4“ BSP
1-1/4“ BSP
Ambient temperature range
Cooling
⁰C
-5-46
Heating
⁰C
-25-35
DHW
⁰C
-25-43
Water outlet temperature range
Cooling
⁰C
5-25
Heating
⁰C
25-60
DHW
⁰C
40-60
Notes: 1. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02.
2. Outdoor air temperature 7⁰C DB, 85% R.H.; EWT 30⁰C, LWT 35⁰C.
3. Outdoor air temperature 7⁰C DB, 85% R.H.; EWT 40⁰C, LWT 45⁰C.
4. Outdoor air temperature 7⁰C DB, 85% R.H.; EWT 47⁰C, LWT 55⁰C.
5. Outdoor air temperature 35⁰C DB; EWT 23⁰C, LWT 18⁰C.
6. Outdoor air temperature 35⁰C DB; EWT 12⁰C, LWT 7⁰C.
7. Seasonal space heating energy efficiency class tests in average climate conditions.
8. Test standard：EN12102-1
Midea CAC Confidential

M thermal Mono
202005 19
Part 2 - Engineering Data
2Dimensions and Center of Gravity
Figure 2-2.1: MHC-V18(22, 26,30)W/D2RN8 dimensions and center of gravity (unit: mm)
304
670
425
670
Midea CAC Confidential
