Midea MAW Series User manual

Window Air Conditioner
version B - 02 - 2020
MAW12V1DWT
MAW10V1DWT
MAW08V1DWT
midea.com
USER MANUAL
en
MAW
Warning notices: Before using
this product, please read this
manual carefully and keep it for
future reference. For additional
support, please call customer
service at 1-866-646-4332.
The design and specifications are
subject to change without prior
notice for product improvement.
Consult with your dealer or
the manufacturer for details.
Capacity: 8000 ~ 12000BTU/h
version D - 03 - 2020
Free 3 months
extension* of the
original limited warranty
period! Simply text a
picture of your proof of
purchase to:
1-844-224-1614
*The warranty extension is for the
three months immediately following
the completion of the product’s
original warranty period.

Page 2 
Read This Manual
Inside you’ll find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You’ll find many answers to common
problems in the troubleshooting tips - you should be able to fix most of them quickly
before calling service. These instructions may not cover every possible condition of
use, so common sense and attention to safety is required when installing, operating
and maintaining this product.
• For support, please call the Service Center at 1-866-646-4332.
• This appliance is not intended for use by people (including children) with reduced
physical, sensory, or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
Owner’s Manual
0
1
2
3
4
5
CAUTION
Safety Precautions ............................................................................ 3
Operating Instructions ..................................................................... 8
Installation Instructions ................................................................... 13
Care and Cleaning ........................................................................... 24
Troubleshooting Tips ...................................................................... 25
Warranty ............................................................................................ 27

Page 3 
Safety Precautions
Safety
Precautions
To prevent injury to the user or other people and property damage, the instructions
shown here must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The level of risk is shown by the following indications.
WARNING
• Be sure the air conditioner has been securely and correctly installed according to
the installation instructions in this manual. Save this manual for possible future use
in removing or installing this unit.
• Plug in power cord plug properly.
Otherwise, it may cause electric shock or fire due to excess heat generation.
• Do not modify power cord length or share the outlet with other appliances as it
may cause electric shock or fire due to overheating.
• Always ensure effective grounding.
Incorrect grounding may cause electric shock.
• Unplug the unit if you notice unusual sounds or smells or smoke coming fromit.
A damaged product may cause fire and electric shock.
• Ventilate roombefore operating the air conditioner if there is a gas leakage from
another appliance.
• Do not operate or stop the unit by inserting or pulling out the power cord plug.
• Do not operate with wet hands or in very humid enviroments.
It may cause electric shock.
• Do not allow water to come into contact with any electric parts.
It may cause failure or electric shock.
• Do not use the socket if it is loose or damaged.
It may cause fire and electric shock.
• Do not use or keep the power cord close to heating appliances.
It may cause fire and electric shock.
• Do not use any devices or materials for installation that are not recommended in
this manual.
WARNING This symbol indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
This symbol indicates a hazardous situation, which, if not
avoided, could result in minor or moderate injury.
NOTICE
This symbol addresses practices not related to physical
injury.

Page 4 
WARNING
• Do not disassemble or modify unit.
It may cause failure and electric shock.
• Do not damage or use an alternate power cord.
It may cause fire and electric shock.
If the power cord is damaged, it must be replaced by the manufacturer or an
authorized service center or a similarly qualified person in order to avoid a hazard.
• Do not direct airflow straight into persons to avoid possible health hazard.
• Do not open the unit during operation.
It may cause electric shock.
• Do not use the power cord near flammable gas or combustibles, such as gasoline,
benzene, thinner, etc.
It may cause an explosion or fire.
• Do not let children hang on the air conditioner or bracket.
A serious injury may occur.
• Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor
plug. Do not remove any prongs fromthe power cord.
• Be sure the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the
wall receptacle you intend to use is not adequately grounded or protected by a
time delay fuse or circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit installation.
• Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the
cabinet and behind the grille.
CAUTION
• When the air filter is to be removed, do not touch the metal parts of the unit.
It may cause injury.
• When the unit needs cleaning, switch off, and turn off the circuit breaker.
Do not clean unit when power is on as it may cause fire, electric shock or injury.
• Do not place obstacles around air inlets or inside of air outlet.
It may cause failure or accident.
• Clean with a soft cloth only. Do not use strong detergents that contain wax or
thinners as it may damage the product.
• Use caution when unpacking and installing. Sharp edges could cause injury.
• Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation which could lead to
electric shock.
Safety
Precautions

Page 5 
Safety
Precautions
CAUTION
• Do not put a pet or house plant where it will be exposed to direct air flow.
This could injure the pet or harmthe plant.
• Hold the plug by the head of the power plug when taking it out.
Otherwise, it may cause electric shock and damage.
• Ensure that the installation is properly secured to prevent the product from
potentially falling.
• Do not place heavy objects on the power cord and ensure that the cord is not
compressed.
Otherwise, there is danger of fire or electric shock.
• If water is spilled on the unit, turn off the unit and switch off the circuit breaker.
Isolate supply by taking the power-plug out and contact a qualified service
technician.
• Do not use near gas stove or other gas burning appliances, as air flow may affect
gas combustion.
• Do not use for any purpose other than roomcomfort.
Do not use this air conditioner to preserve precision devices, food, pets, plants,
and art objects. It may cause deterioration.
• Turn off the main power switch if the unit is not to be used for an extended time.
• Always insert the filters securely. Clean filter once every two weeks.
Operation without filters may cause failure.
• Do not drink water drained fromthe air conditioner.

Page 6 
Safety
Precautions
NOTICE
• Do not use this device to turn the unit on or off.
• Always make sure the RESET button is pushed in for correct operation.
• The power supply must be replaced if it fails to reset when either the TEST button
is pushed, or it can not be reset. Please contact Customer Service.
NOTICE
The power supply cord with this
air conditioner contains a current
detection device designed to reduce
the risk of fire.
In the event that the power supply
cord is damaged, it can not be
repaired. It must be replaced with a
cord fromthe manufacturer.
Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove or bypass
the grounding prong.
Power supply cord with 3-prong grounding
plug and current detection device.
The power supply cord contains a current
device that senses damage to the power

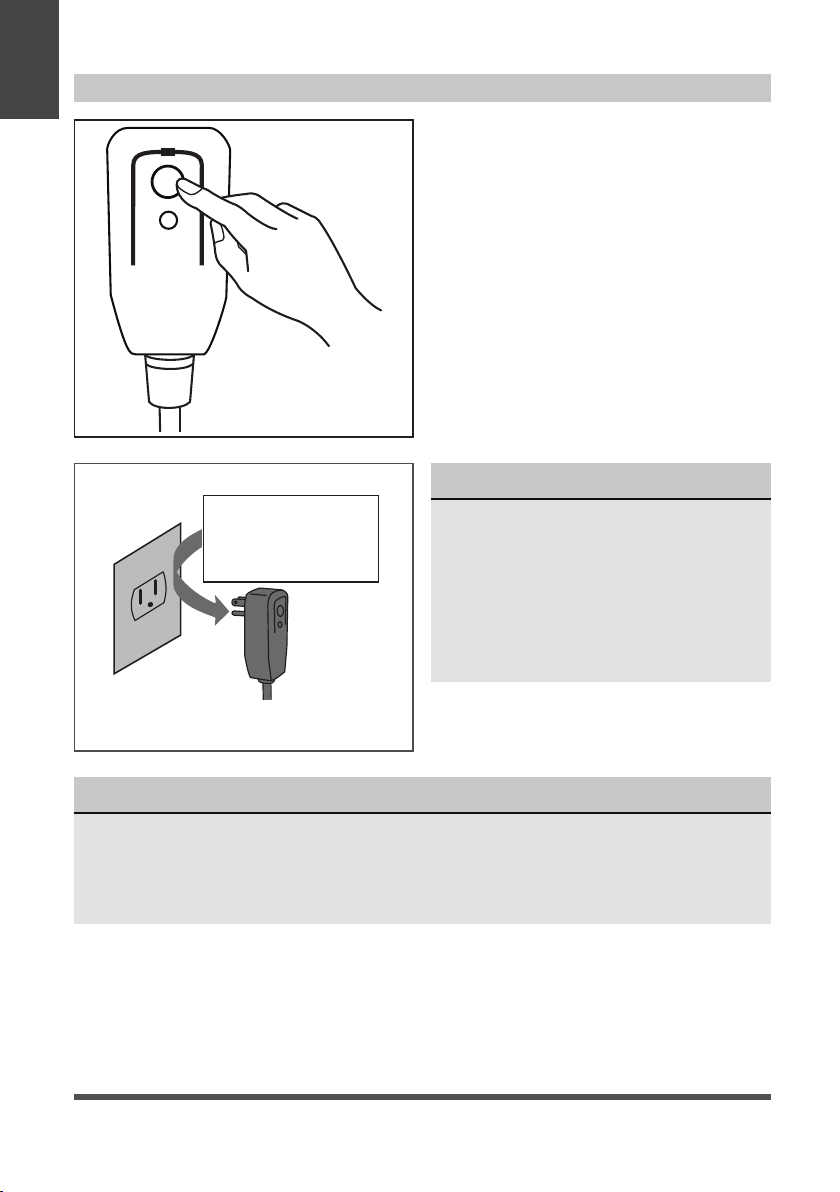

cord. Test your power supply cord as
follows:
1. Plug in the air conditioner.
2. The power supply cord will have TWO
buttons on the plug head. Press the
TEST button. You will notice a click as
the RESET button pops out.
3. Press the RESET Button. You will
notice a click as the button engages.
4. The power supply cord is now
supplying electricity to the unit. (On
some products this is also indicated
by a light on the plug head.)
RESET
TEST
Plug in &
press RESET
Operation of Current Device

Page 7 
Safety
Precautions
WARNING
This symbol shows that this appliance used a flammable
refrigerant. If the refrigerant is leaked and exposed to an
external ignition source, there is a risk of fire.
CAUTION This symbol shows that the operation manual should be read
carefully.
CAUTION This symbol shows that a service personnel should be handling
this equipment with reference to the installation manual.
CAUTION This symbol shows that information is available such as the
operating manual or installation manual.
EXPLANATION OF SYMBOLS DISPLAYED ON THE UNIT
• Do not try to accelerate the defrosting process or methods of cleaning that are
not recommended by the manufacturer.
• The appliance shall be stored in a roomwithout a continuously operating ignition
source (for example, open flames or an operating gas appliance) or an ignition
source (for example, an operating electric heater) close to the appliance. The
appliance shall also be stored in a roomwithout ignition sources.
• Do not pierce or burn.
• Be aware that the refrigerants may not contain an odor.
• Compliance with national gas regulations shall be observed.
• Keep ventilation openings clear of obstruction.
• The appliance shall be stored in a well-ventilated area where the roomsize
corresponds to the roomarea as specied for operation.
• Unit is only to be serviced by a Midea authorized servicer, please call Customer
Service at 1-866-646-4332 for support.
• Flammable refrigerant R32 is used within air conditioner. Please follow the
instructions carefully to handle, install, clean, and service the air conditioner
to avoid damage or hazard. Do not dispose of air conditioner in regular trash.
Contact qualified agency for proper disposal.
• No open fire or devices that generate spark/arcing shall be around the air
conditioner to avoid causing ignition of the flammable refrigerant used. Please
follow the instructions carefully to store or maintain the air conditioner to
prevent mechanical damage fromoccurring.
• Be aware that refrigerants may not contain an odor.
WARNING

Page 8 
1
Operating Instructions
Normal Sounds
Sound Performance
Sound of Rushing Air
In front of the unit, you
may hear the sound of
rushing air being moved
by the fan.
High Pitched Chatter
+LJKHI´FLHQF\FRPSUHVVRUV
PD\KDYHDKLJKSLWFKHG
VRXQGGXULQJFRROLQJF\FOH
Vibration
Unit may vibrate and
PDNHQRLVHEHFDXVH
RISRRUZDOORU
ZLQGRZFRQVWUXFWLRQ
RULQFRUUHFW
LQVWDOODWLRQ
Trickling Sound
'URSOHWVRIZDWHUKLWWLQJ
FRQGHQVHUGXULQJQRUPDO
RSHUDWLRQPD\FDXVHD
WULFNOLQJVRXQG
Gurgle/Hiss
*XUJOLQJRUKLVVLQJ
noises may be heard
GXHWRUHIULJHUDQWµRZLQJ
WKURXJKHYDSRUDWRU
GXULQJQRUPDORSHUDWLRQ
Model Number Sound Power, dB(A)*
MAW08V1QWT 42
MAW10V1QWT 42
MAW12V1QWT 42
The following table shows the sound performance data for these window air conditioners.
Please use your specific model number to reference the correct sound power number
in the table.
* per ISO 3744 at low fan speed
Operating
Instructions

Page 9 
NOTICE
The cool circuit has an automatic 3 minutes time delayed start if the unit is turned off and on
quickly. This prevents overheating of the compressor and possible circuit breaker tripping.
Air Conditioner Operation
WARNING
To reduce the risk of fire, electrical shock, or injury to people or property, read the
SAFETY PRECAUTIONS before operating this appliance.
To begin operating the air conditioner, follow these steps:
1. Plug in the air conditioner (be sure to follow the power cord instructions on Page 6).
2. Turn the power on to the air conditioner, using the ON/OFF button.
3. Set the thermostat to the coldest temperature setting.
4. Select the Cool mode setting.
5. Adjust the louver for comfortable air flow (see Air Directional Louvers).
6. Once the room has cooled, adjust the thermostat to the setting you find most comfortable.
7. Make sure the air flow inside and outside is not obstructed by anything.
Cooling Operation
Outdoor temp.: 64°F ~ 109°F / 18°C ~ 43°C
(64°F ~ 125°F / 18°C ~ 52°C for special tropical models)
Indoor temp.: 60°F ~ 90°F / 16°C ~ 32°C
NOTICE
• The relative humidity of roomshould be less than 80%. If the unit is used in a condition with
a relative humidity over 80%, there will be condensed water on the surface of the unit.
• Performance may be reduced outside of these operating temperatures.
Operating
Instructions
Air Directional Louvers
The louvers will allow you to direct the air
flow up or down (on some models) and left
or right throughout the room as needed.
Pivot horizontal louvers until the desired
up/down direction is obtained.
Move the louvers from side to side until the
desired left/right direction is obtained.
Air Direction
Lever
Lever
Lever
Air Direction

Page 10 
Operating
Instructions
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
3. (TIMER) Button
• Press Timer button, the TIMER ON or
TIMER OFF indicator light illuminates.
lt indicates the Auto Start or Auto Stop
program is initiated. For some units,
continuing to press the Timer button
will cancel the timer settings.
• Press or hold the UP ( ) or DOWN ( )
button to change the Auto time by 0.5
hour increments, up to 10 hours, then
at 1 hour increments up to 24 hours.
The display will count down the time
remaining until start.
• The selected time will register in
5 seconds, and the system will
automatically revert back to display
the previous temperature setting or
room temperature when the unit is
on. When the unit is off, there is no
display.
• Turning the unit ON or OFF at any time
or adjusting the timer setting to 0.0
will cancel the Auto Start/Stop timed
program.
1. (ON/OFF) Button
Press ON/OFF button to turn unit on or off.
2. (CONNECT) Button
For the first time using the WiFi function,
press the button for 3 seconds to initiate
the WiFi connection mode. The LED
DISPLAY shows ‘AP’ to indicate you can
set up the WiFi connection. Please also
refer to the included WiFi manual for
further instructions.
If connection (router) is successful
within 8 minutes, the unit will exit WiFi
connection mode automatically and the
CONNECT indicator illuminates.
If connection failed within 8 minutes,
the unit exits WiFi connection mode
automatically.
After WiFi connection is successful, you
can press and hold CONNECT and DOWN
() buttons at the same time for 3
seconds to turn off WiFi function and the
LED DISPLAY shows ‘OF’ for 3 seconds,
press CONNECT and UP ( ) buttons at
the same time to turn on WiFi function and
the LED DISPLAY shows ‘On’ for 3 seconds.
1
25
3 4 6 7 8 9
Before you begin, thoroughly familiarize yourself with the control panel as shown
below and all its functions, then follow the symbol for the functions you desire. The
unit can be controlled by the unit control panel, with the remote control, smart
phone app, or voice control

Page 11 
Operating
Instructions
4. (EC0) Button
Press ECO button to initiate this function.
This function is available on COOL, DRY,
and AUTO (only AUTO-COOLING and
AUTO-FAN) modes. The fan will continue
to run for 3 minutes after the compressor
shuts off.
The fan then cycles on for 2 minutes
at 10 minute intervals until the room
temperature is above the set temperature,
at which time the compressor turns back
on and Cooling Starts.
5. (MODE) Button
• To choose operating mode, press
MODE button. Each time you press
the button, a mode is selected in a
sequence that goes from Auto, Cool,
Dry and Fan. The indicator light beside
the button will be illuminated and
remain on once that mode is selected.
• The unit will automatically initiate the
Energy Saver function under Cool,
Dry, and Auto (only Auto-Cooling and
Auto-Fan) modes.
To operate on AUTO feature:
• When you set the air conditioner to
AUTO mode, it will automatically
select cooling or fan only operation,
depending on what temperature you
have selected and the current room
temperature.
• The air conditioner will control room
temperature automatically according
based on the temperature you’ve set.
• In this mode, the fan speed cannot
be adjusted, it starts automatically
at a speed according to the room
temperature.
To operate on COOL mode:
• Choose Cool Mode to set the cooling
function. Use the UP ( ) or DOWN
() buttons to choose the desired
temperature. When Cool Mode is
selected, the fan speed can be adjusted
by pressing the FAN button.
To operate on DRY mode:
• In this mode, the air conditioner will
generally operate as a dehumidifier.
Since the conditioned space is a closed
or sealed area, some degree of cooling
will continue. On Dry mode, the fan
speed is not adjustable.
To operate on FAN mode:
• Use this function only when cooling
is not desired, such as for room air
circulation or to exhaust stale air (on
some models). (Remember to open
the vent during this function, but keep
it closed during cooling for maximum
cooling efficiency.) You can choose any
fan speed you prefer.
• In Fan Only mode, the temperature can
not be adjusted.
6. (UP/DOWN) Button
Press UP ( ) or DOWN ( ) button to
change temperature setting.
7. (FAN SPEED) Button
Press FAN button to select the Fan Speed
in four steps - Auto, Low, Med or High.
Each time the button is pressed, the fan
speed mode is shifted.
8. (SLEEP) Button
Press SLEEP button to initiate the
sleep mode. In this mode the selected
temperature will increase (in cooling
mode) by 2°F/1 (or 2)°C 30 minutes after
the mode is selected. The temperature
will then increase (in cooling mode) by
another 2°F/1(or 2)°C after an additional
30 minutes.
This new temperature will be maintained
for 7 hours before it returns to the
originally selected temperature.
This ends the Sleep mode and the unit
will continue to operate as originally
programmed. The Sleep mode program can
be cancelled at any time during operation
by pressing the SLEEP button again.

Page 12 
LED Display:
Shows the set temperature in “°C” or
“°F” and the Auto-timer settings. While
on Fan Only mode, it shows the room
temperature. If the room temperature is
too high or low, it will display “ HI” or “ LO”.
To convert from one to the other, press and
hold the UP ( ) and DOWN ( ) buttons
at the same time for 3 seconds.
Error codes:
The unit may stop operation or continue
to run safely. If the error codes appear,
wait for about 10 minutes.
The problem may resolve itself. If not,
disconnect the power, then connect it
again. Turn the unit on.
If the problem persists, disconnect the
power and contact customer service.
Error code appears and begins with the
letters as the following in the window
display of indoor unit:
EH(xx), EL(xx), EC(xx) , PH(xx), PL(xx),
PC(xx).
Display
NOTICE
If your problem persists after performing
the checks and diagnostics above, turn
off your unit immediately and contact
an authorized service center by calling
1-866-646-4332.
NOTICE
If the unit turns off unexpectedly due to
the power being cut, it will automatically
restart with the previous function setting
when the power resumes.
DISPLAYS
Operating
Instructions
9. (SWING) Button
Used to initiate the Auto swing feature.
When the operation is ON, pressing the
SWING button can stop the louver at the
desired angle.
Press SWING button for 3 seconds to
initiate the lter feature. This feature is a
reminder to clean the Air Filter for more
ecient operation. The LED (the light above
the button) will illuminate after 250 hours
of operation.
12 5
3 4 6 7 8 9

Page 13 
2
Installation Instructions
Installation
Instructions
NOTICE
The unit you purchased may look like the following:
NOTICE
All the illustrations in this manual are
for explanation purpose only. The actual
installation may vary.

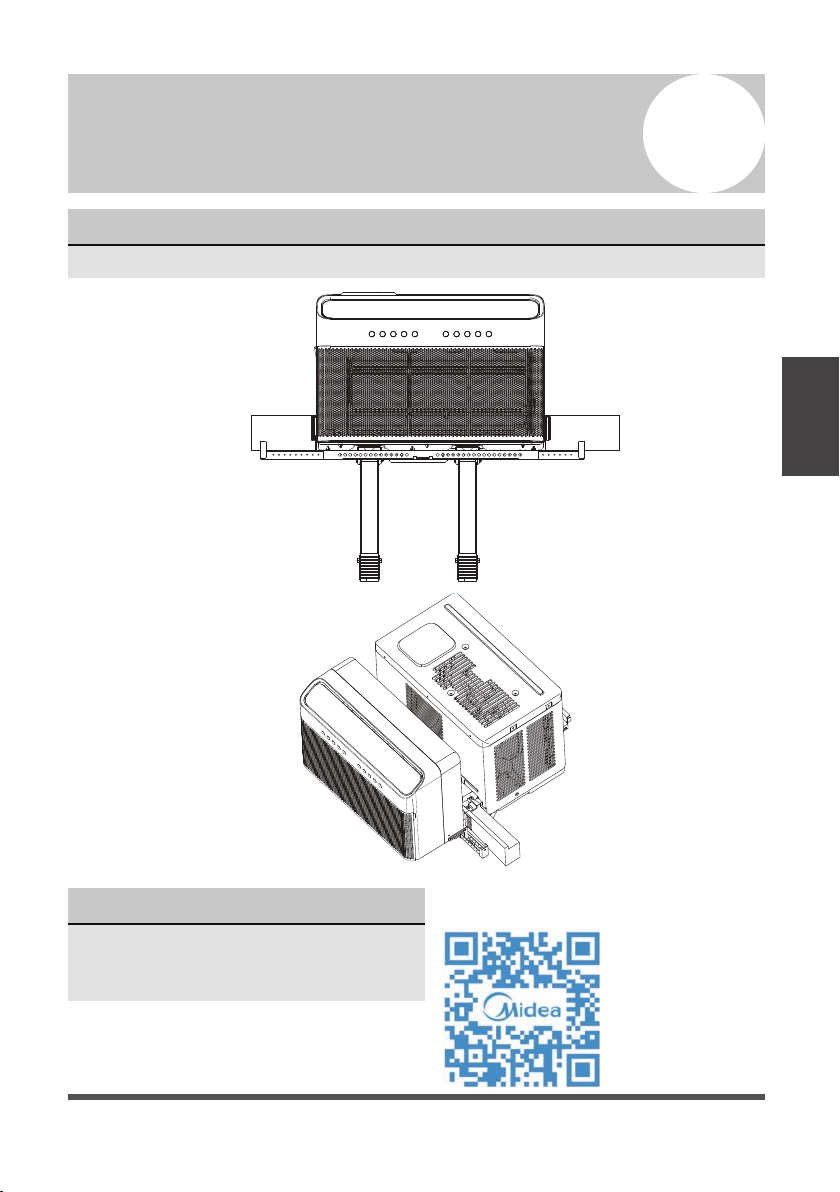

Scan the following QR code for an
installation video.

Page 14 
Installation
Instructions
WARNING - Before You Begin
Read these instructions completely
and carefully.
• IMPORTANT - Save these instructions.
• IMPORTANT - Observe all governing
codes and ordinances.
We recommend that two people
install this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper
installation is not covered under the
Limited Warranty.
You MUST use all supplied parts and
use proper installation procedures as
described in these instructions when
installing this air conditioner.
Do not, under any circumstances, cut
or remove the third (ground) prong
fromthe power cord.
Do not change the plug on the power
cord of the air conditioner.
Aluminumhouse wiring may present
special problems - consult a qualified
electrician.
When handling unit, be careful to
avoid cuts fromsharp metal edges and
aluminumfins on front and rear coils.
Please wear cut-resistant gloves.
Tools You Will Need

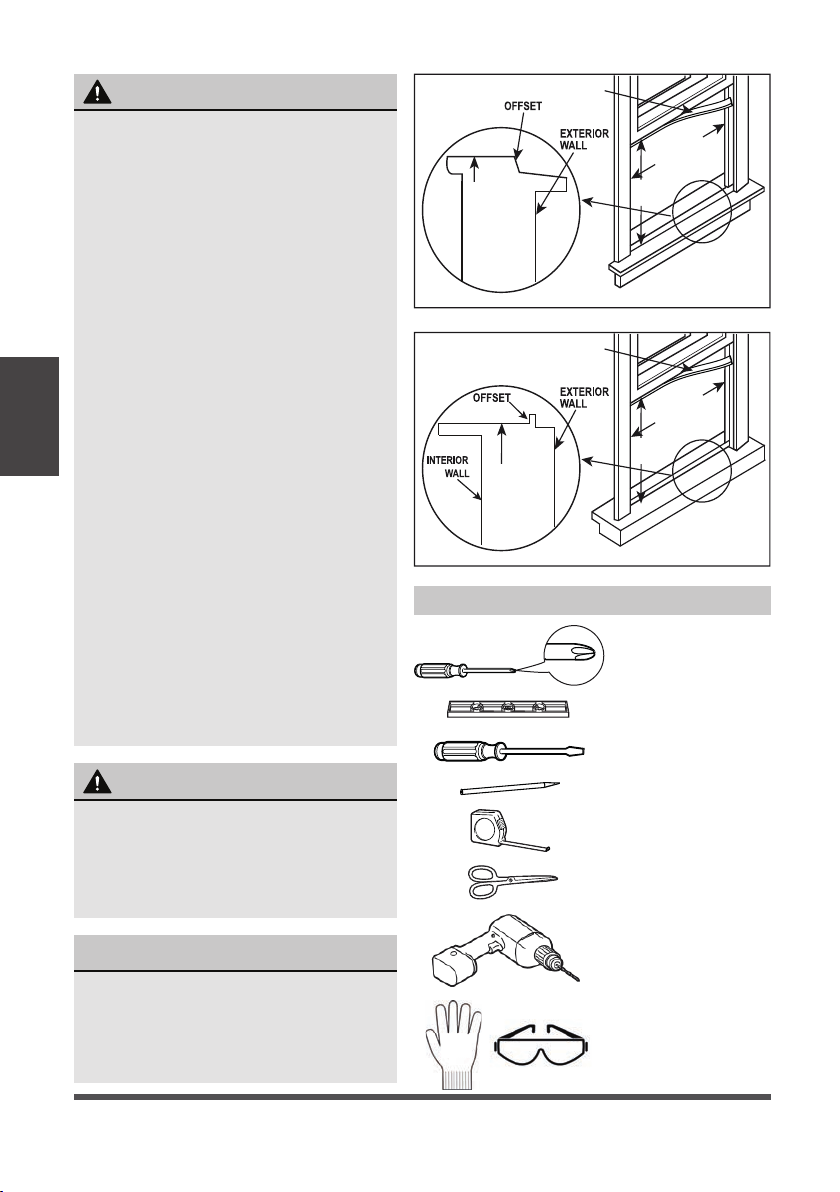

WINDOW REQUIREMENTS
Your air conditioner is designed
to install in standard double hung
windows with opening widths of 22
to 36 inches (558mm to 914mm) and
a window height of 13.75” (349mm).
Wooden Windows
INNER
WINDOW SILL
INTERIOR
WALL
13.75" min
(349 mm)
22" to 36"
(558 mm to 914mm)
SEAL FOAM
Vinyl-Clad Windows
INNER
WINDOW SILL
13.75" min
(349 mm)
22" to 36"
(558 mm to 914mm)
SEAL FOAM
Flathead
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife
Drill and 1/8” drill bit
Phillips
Screwdriver
Level
Proper PPE
NOTICE
You will probably want to clean both
sides of the glass first. If the window
is a triple-track type with a screen
panel included, remove the screen
completely before installation.

Page 15 
Installation
Instructions
Lower sash must open sufficiently to allow a clear vertical opening of 13.5 inches. Side
louvers and the rear of the AC must have clear air space to allow enough airflow through
the condenser for heat removal. The rear of the unit must be outdoors, not inside a
building or garage.
Remove the air conditioner and hardware from the carton and place on a flat surface.
1. INSTALL THE SUPPORT BRACKET
NOTICE
Save carton and these Installation Instructions for future reference. The carton is the best
way to store unit during winter, or when not in use.
NOTICE
If any piece of hardware is missing, DO
NOT INSTALL THE PRODUCT, and call
customer service at 1-866-646-4332.
Angled Support
Arms
Right
Extension
Arm
Left Extension
Arm
Spring Push Pin
Main Support
Rear Cross
Brace
Horizontal Bracket
Required Installation Hardware Optional Installation Hardware
Side Arm Foam 2
Right Extension Arm – Short
(For 22”-26” windows) 1
Cotter Pin 2
Open Window Bracket – LH 1
Open Window Bracket – RH 1
Main Support Pin 2
Right Extension Arm
(For 26”-36” windows) 1
1Main Bracket
1/2” Type B Screw 2
1/4” Type B Screw 2
1/2” Type A Screw 3
Window Sash Lock
Thick Window Sash Seal Foam
Thin Window Sash Seal Foam
Miscellaneous Sealing Foam
Additional Side Arm Foam
1” Type A Screw 2
2
1
1
1
1
WARNING
Bracket should only be used for its intended purpose. If not, the warranty will be voided.

Page 16 
NOTICE
The Angled Support Arms should
come installed into the Main Supports
fromthe factory.
The small tabs on the sides of the
Angle Support Arms must sit on the
inside bottomof the Main Support.
On a flat surface such as a table,
press the spring push pin and adjust
the Left Extension Arm to the Left
side of the Horizontal Bracket.
Then install the Right Extension Arm
into the Right side of the Horizontal
Bracket. These will be adjusted in a
later step.
For windows where the front of the
bracket to sit on the window sill,
adjust the extension arms to your
window sill width. For windows
where the front of the bracket will
rest against the vinyl lip, these arms
will be adjusted in a later step.
A. Before placing the bracket in the
window, allow the Angled Support Arms
to rotate down and make sure they
don’t fall out of the Main support arms.
Place the support bracket assembly in
your window opening on the bottom
windowsill. The Horizontal Bracket and
Extension Arms must be located on the
indoor side of your window frame.
For installations where the bracket sits
on the window sill, secure the bracket
to the window (reference Step E).
Spring Push Pin
Horizontal Bracket
Right
Extension
Arm
Left
Extension
Arm
WARNING
Maintain control of the bracket until
installation is complete.
Window Frame
Installation
Instructions

Page 17 
NOTICE
The front of the Support Bracket
should be located on the indoor side
of the window frame (refer to image
on the left).
Do not place the Horizontal Bracket
and Extension Arms inside the Window
Track where the window sash sits.
B. Move the Angled Support Arms
toward the exterior wall until the
Angled Support Feet touch the
wall. Place a level on a flat area of
the bracket and adjust the Angled
Support Arms so the bracket is
tilted downwards toward the
outdoors to allow condensate to
drain out. The proper angle is
when the level reads 1/4 bubble
(reference image for 1/4 bubble).
Indoor Side Window Frame
C. Insert the Main Support Pin through
the Main Support holes and Angled
Support Arm holes to secure the
Angled Support Arm. Repeat for the
other Angled Support Arm using
the numbers stamped on the Main
Support to help place both Angled
Support Arms in equal locations.
Here is what
1/4 bubble on
the level
should look
like.
Depending on the
level used, place at
either location below
to check level.
Wooden Windows
INSIDE
OUTSIDE INSIDE OUTSIDE
Vinyl-Clad Windows
Vinyl Lip
Installation
Instructions
Spring Pin Locks

Page 18 
D. After securing both
Angled Support Arms,
check the level and ensure
the bracket feels secure.
Minor adjustments may be
needed.
Once secured, insert the
Cotter Pins into the Main
Support Pins.

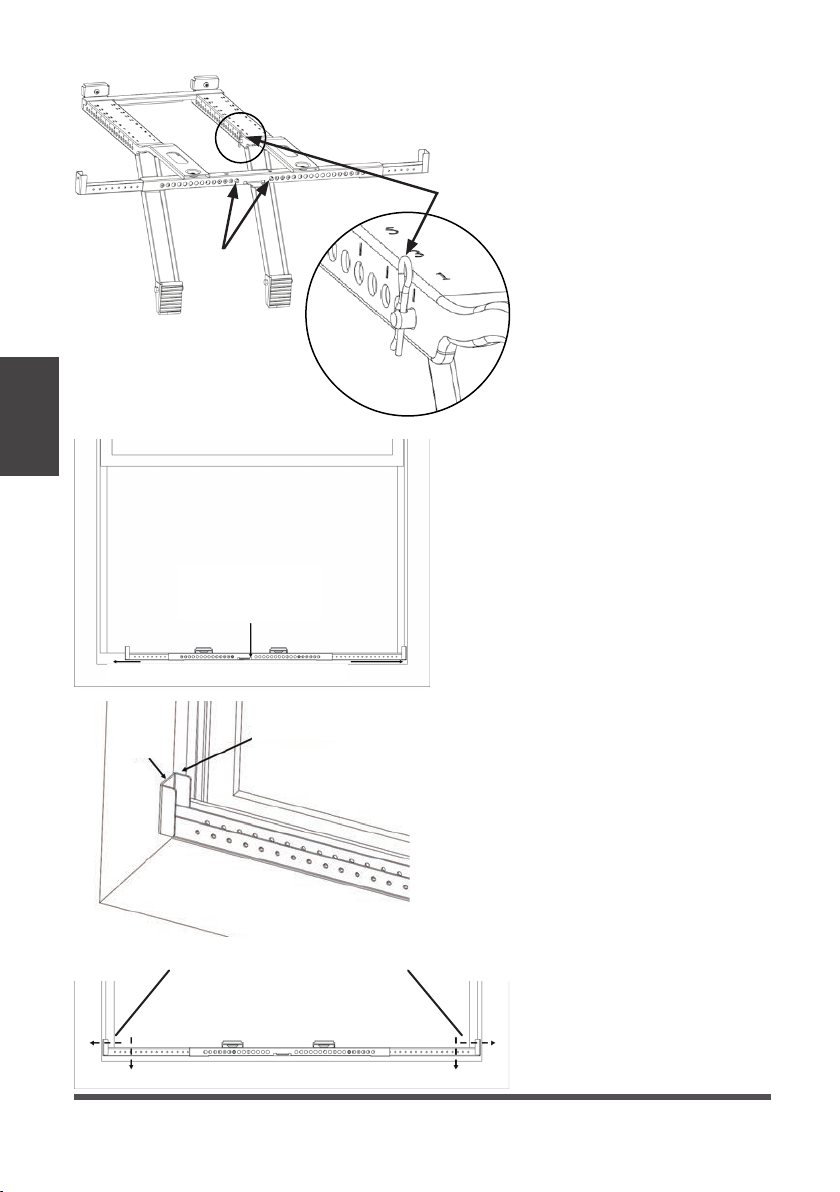

E. Center the Support Bracket with the
center of the window. Note, due to
the design of the Air Conditioner, the
Support Bracket is biased to the left.
Once centered, extend the Left and
Right Extension Arms until they touch
the side of the windowsill and are in
front of the side window frame.
Secure the bracket to the window
with a screw at the end of each
extension arm as shown. Holes at the
end or bottom of the Extension Arms
can be used to secure the Support
Bracket to the window.
Window Frame Side
Window
Side
Center this part of the
bracket with the center
of the windows.
Extend the ExtensionArms until they touch the
Windowsill and the Spring Pin locks in place.
Use the provided 1/2” Type A screws.
NOTE: Drill 1/8” pilot holes before
screwing into the window sill.
Installation
Instructions
Cotter Pin
Spring Pin
Locks

Page 19 

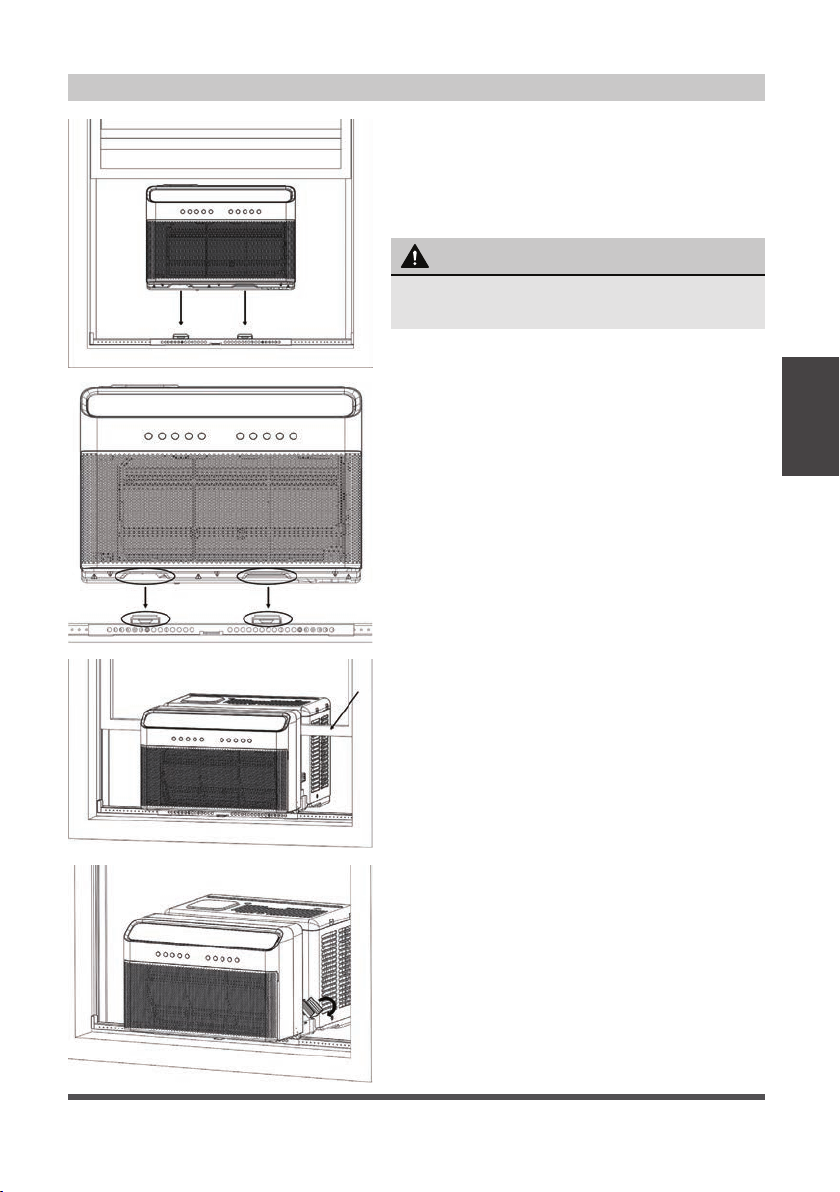

2. SECURE THE UNIT ON THE BRACKET
A. Set the air conditioner on top of the
support bracket. Ensure the grooves on
the bottom of the air conditioner align with
the Main Supports. Using a level, check for
proper tilt towards the outside.
B. Fold both Side Arm Hinges down and
measure the distance between the Side
Arm Hinge and the Window Frame.
WARNING
Do not leave the unit unattended during
installation.
Installation
Instructions
Pull the window down into the slot to
help align the unit in the correct location.
Keep the window partially inserted into
the window slot to help support the air
conditioner during installation.

Page 20 
D. Measure the distance between
the Side Arm Hinge and the
closest part of the window
frame in line with the Side Arm.
Add 1/4” to this distance and cut
the Side Arm Foam to length.
Insert the Side Arm Foam
into the Side Arm Hinge and
repeat for the other side.
WARNING
Failing to install the Open Window
Brackets could cause injury or
property damage.
E. You must extend the Anti-Tip Brackets into
the Window Track Opening (the vertical track
that your window slides up and down in) until
they touch the window frame.
Secure the Anti-Tip Bracket in place with the
provided phillips screw. The air conditioner
may need to be adjusted front to back so
the Anti-Tip Brackets align with the Window
Track Opening.
C. You must install the Open Window
Brackets using the provided screws
shown here.
-or-
For installations where the bracket
sits on the window sill or a storm
window spacer – Use the provided 1”
Type A screw to secure the bracket
to the window sill.
NOTE: Drill 1/8” pilot holes before
screwing into the window sill.
WARNING
Do not leave the unit
unattended during installation.
Installation
Instructions
Use the 1/2”
Type B screw.
Use the 1/4”
Type B screw.
3. SEAL AND CLOSE THE WINDOW
