Service manual
MIV V4+ Indoor units
Floor Standing
MVF22A-VA1
MVF28A-VA1
MVF36A-VA1
MVF45A-VA1
MVF56A-VA1
MVF71A-VA1
MVF80A-VA1
MVB22A-VA1
MVB28A-VA1
MVB36A-VA1
MVB45A-VA1
MVB56A-VA1
MVB71A-VA1
MVB80A-VA1

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 1
Floor Standing

1. Feature ............................................................................... 2
2. Specifications .................................................................... 3
3. Dimensions ........................................................................ 6
4. Service Spaces .................................................................. 8
5. Piping Diagrams ................................................................ 9
6. Wiring Diagrams ............................................................. 10
7. Capacity Tables ............................................................... 11
8. Electrical Characteristics ............................................... 17
9. Sound Levels ................................................................... 18

MIV V4+ Indoor Units DM16-01.01.02-09en
2 Floor Standing Type MVF-A-VA1 MVB-A-VA1
1. Feature
1.1 Exposed & Concealed type
Air intake from front (F4 series) Air intake from below (F5 series)
1.2 Lower noise
Flat shape air outlet, three speeds adjustment. Smoother airflow with less turbulence.
Adoption of the built-in Fujikoki brand electronical expansion valve, ensures precise flow control, as well as
lower modulation noise when EXV operating.
1.3 Easy Installation
Floor standing types can be hung on the wall or installed on the floor. The former can make cleaning and
maintenance much more easily. Running the piping from the back allows the unit to be hung on walls.
Cleaning under the unit, where dust tends to accumulate, is considerably easier.
1.4 Easy maintenance
Filter is equipped as standard accessory; and it can be removed and cleaned easily due to Midea’s
sophisticated design as well as the removable blades.
Streamlined appearance makes it much more harmonious with the decoration. All metal parts are made of
commercial grade galvanized steel, providing maximum protection against corrosion.
1.5 Auto restart
When the indoor unit is powered off, it will auto restart when powered on again after 3 minutes and operate in
the original state.

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 3
2. Specifications
Model MVF22A-VA1 MVF28A-VA1 MVF36A-VA1
MVB22A-VA1 MVB28A-VA1 MVB36A-VA1
Power supply V- Ph-Hz 220-240V, 1Ph, 50Hz
Cooling
Capacity kW 2.2 2.8 3.6
Input W 40 46 55
Rated current A 0.18 0.19 0.22
Heating
Capacity kW 2.4 3.2 4.0
Input W 40 46 46
Rated current A 0.18 0.19 0.22
Indoor fan
motor
Model YSK20-4A YSK20-4A YSK20-6
Type AC motor
Brand Welling Welling Yongan
Input W 40 42 49
Capacitor μF 0.8 1 1.2
Speed (h/m/l) r/min 870/745/660 935/810/720 750/645/500
Indoor
coil
Number of rows 2 2 3
Tube pitch(a)x row pitch(b) mm 25.4*22 25.4*22 25.4*22
Fin spacing mm 1.8 1.8 1.8
Fin type Hydrophilic aluminum
Tube outside diameter and mm Ф9.52 Inner grooved tube
Coil length×height×width mm 568×254×44 568×254×44 768×254×66
Number of circuits 3 3 3
Indoor air flow (H/M/L) m3/h 530/456/400 569/485/421 624/522/375
Indoor external static pressure (H) Pa 12 12 12
Indoor noise level (Hi/Mid/Lo) F4 dB(A) 36/33/29 36/33/29 37/34/30
F5 36/33/29 36/33/29 37/34/30
Indoor unit
Dimension (W×H×D) F4 mm 1000×569×225 1000×569×225 1200×596×225
F5 1000×677×220 1000×677×220 1200×677×220
Packing (W×H×D) F4 mm 1089×683×312 1089×683×312 1289×683×312
F5 1182×683×312 1182×683×312 1382×683×312
Net/Gross weight F4 kg 30/35 30/35 36/44
F5 30/38 30/38 35.5/41
Refrigerant type R410A
Throttle Type EXV (Built-in)
Model D20MISZ-1R(L)
Design pressure MPa 4.4/2.6
Refrigerant piping Liquid side/ Gas side mm Ф6.35/Ф12.7 Ф6.35/Ф12.7 Ф6.35/Ф12.7
Connecting wiring Power wiring mm2 3×2.5
(
L≤20m
);
3×3.5
(
L≤50m
)
Signal wiring mm2 3×0.75
Drainage water pipe diameter mm ODФ25
Controller Wireless remote controller (RM05/BG(T)E-A)
Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature: 27°CDB, 19°CWB,
outdoor temperature:35°CDB,equivalent ref. Piping: 8m(horizontal)
2. Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,outdoor temperature:
7°CDB,6°CWB,equivalent ref. Piping: 8m(horizontal)

MIV V4+ Indoor Units DM16-01.01.02-09en
4 Floor Standing Type MVF-A-VA1 MVB-A-VA1
Model MVF45A-VA1 MVF56A-VA1
MVB45A-VA1 MVB56A-VA1
Power supply V- Ph-Hz 220-240V, 1Ph, 50Hz
Cooling
Capacity kW 4.5 5.6
Input W 49 88
Rated current A 0.22 0.43
Heating
Capacity kW 5.0 6.3
Input W 49 88
Rated current A 0.22 0.43
Indoor
fan motor
Model YSK20-6 YSK28-4E
Type AC motor
Brand Yongan Welling
Input W 49 95
Capacitor μF 2 2.5
Speed (h/m/l) r/min 820/745/600 915/770/660
Indoor
coil
Number of rows 3 2
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22
Fin spacing mm 1.8 1.8
Fin type Hydrophilic aluminum
Tube outside diameter and mm Ф9.52 Inner grooved tube
Coil length×height×width mm 768×254×66 1068×254×44
Number of circuits 3 4
Indoor air flow (H/M/L) m3/h 660/542/440 1150/970/830
Indoor external static pressure (H) Pa 12 12
Indoor noise level (H/M/L) F4 dB(A) 37/34/30 41/35/31
F5 37/34/30 41/35/31
Indoor
unit
Dimension (W×H×D) F4 mm 1200×596×225 1500×596×225
F5 1200×677×220 1500×677×220
Packing (W×H×D) F4 mm 1289×683×312 1589×683×312
F5 1382×683×312 1682×683×312
Net/Gross weight F4 kg 36/44 41/46.5
F5 35.5/41 42/51
Refrigerant type R410A
Throttle Type EXV (Built-in)
Model D20MISZ-1R(L)
Design pressure MPa 4.4/2.6
Refrigerant piping Liquid side/ Gas mm Ф6.35/Ф12.7 Ф9.53/Ф15.9
Connecting wiring Power wiring mm2 3×2.5(L≤20m); 3×3.5(L≤50m)
Signal wiring mm2 3×0.75
Drainage water pipe diameter mm ODФ25
Controller Wireless remote controller (RM05/BG(T)E-A)(Standard)
Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature : 27°CDB, 19°CWB,
outdoor temperature:35°CDB,equivalent ref. Piping: 8m(horizontal)
2. Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,outdoor temperature:
7°CDB,6°CWB,equivalent ref. Piping: 8m(horizontal)

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 5
Model MVF71A-VA1 MVF80A-VA1
MVB71A-VA1 MVB80A-VA1
Power supply V- Ph-Hz 220-240V, 1Ph, 50Hz
Cooling
Capacity kW 7.1 8.0
Input W 130 130
Rated current A 0.63 0.63
Heating
Capacity kW 8.0 9.0
Input W 130 130
Rated current A 0.63 0.63
Indoor fan
motor
Model YSK74-4E YSK74-4E
Type AC motor
Brand Yongan Yongan
Input W 138.5 138.5
Capacitor μF 3 3
Speed (h/m/l) r/min 1120/1020/880 1120/1020/880
Indoor coil
Number of rows 2 3
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22
Fin spacing mm 1.8 1.8
Fin type Hydrophilic aluminum
Tube outside diameter and type mm Φ9.52 inner grooved tube
Coil length×height×width mm 1068×254×44 1068×254×66
Number of circuits 4 3
Indoor air flow (H/M/L) m3/h 1380/1100/870 1380/1100/870
Indoor external static pressure (H) Pa 12 12
Indoor noise level (H/M/L) F4 dB(A) 44/39/33 44/39/33
F5 44/39/33 44/39/33
Indoor
unit
Dimension (W×H×D) F4 mm 1500×596×225 1500×596×225
F5 1500×677×220 1500×677×220
Packing (W×H×D) F4 mm 1589×683×312 1589×683×312
F5 1682×683×312 1682×683×312
Net/Gross weight F4 kg 41/46.5 42.5/48.5
F5 42/51 44/53
Refrigerant type R410A
Throttle Type EXV (Built-in)
Model D20MISZ-1R(L)
Design pressure MPa 4.4/2.6
Refrigerant piping Liquid side/ Gas side mm Ф9.53/Ф15.9 Ф9.53/Ф15.9
Connecting wiring Power wiring mm2 3×2.5(L≤20m); 3×3.5(L≤50m)
Signal wiring mm2 3×0.75
Drainage water pipe diameter mm ODФ25
Controller Wireless remote controller (RM05/BG(T)E-A)
Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature : 27°CDB, 19°CWB,
outdoor temperature:35°CDB,equivalent ref. Piping: 8m(horizontal)
2. Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,outdoor temperature:
7°CDB,6°CWB,equivalent ref. Piping: 8m(horizontal)

MIV V4+ Indoor Units DM16-01.01.02-09en
6 Floor Standing Type MVF-A-VA1 MVB-A-VA1

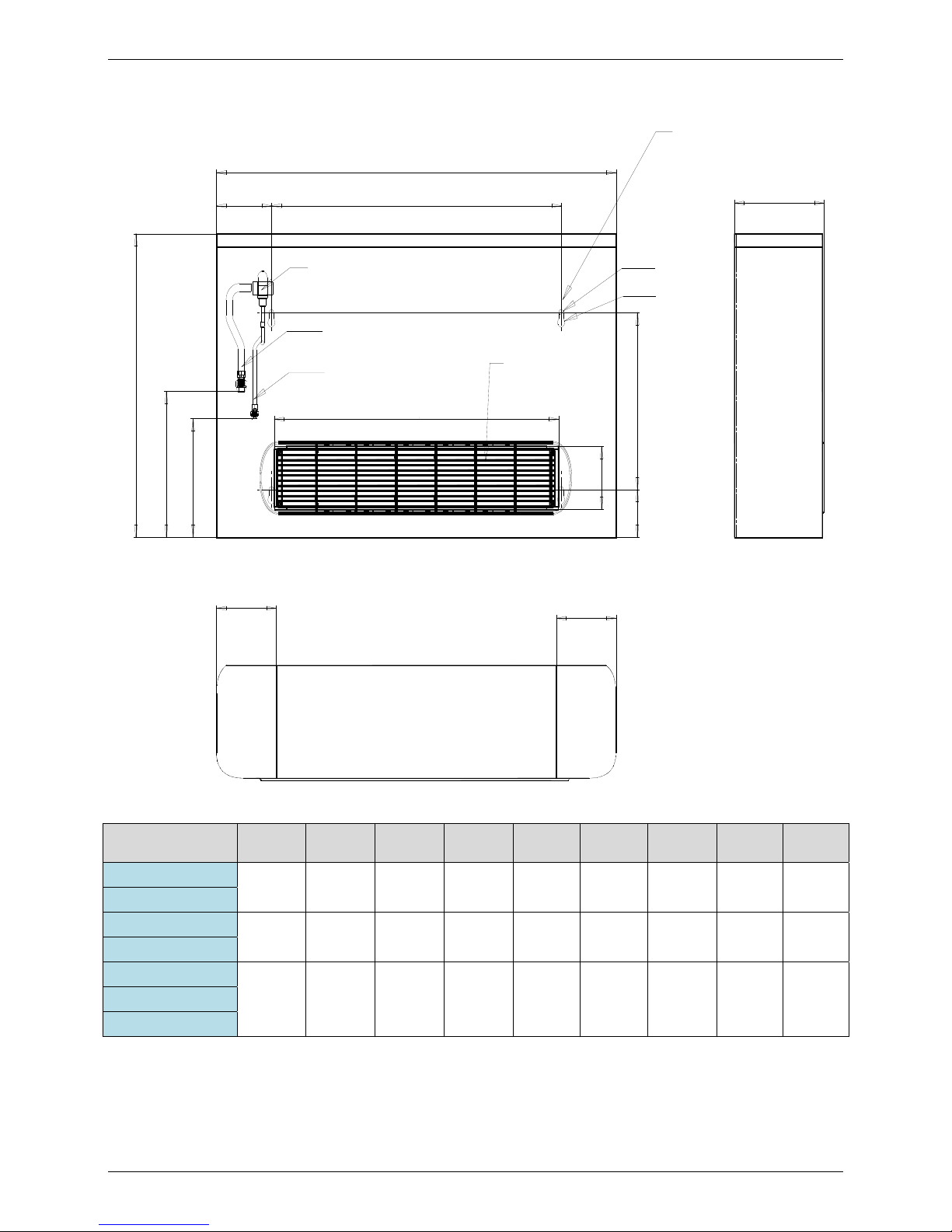

3. Dimensions
3.1 Exposed Floor-standing (air inlet from front)
Mounting hole, 4
Liquid side
connector
Gas side
connector
EXV
Air outlet grille
Left
Cover
Right
Cover
Air inlet grille
A
B
C
D
E
F
G
H
I
4¡ Á¦µ11
4¡ Á
¦µ18
138
149.5 149.5
J
Unit: mm
MODEL
(MVF-A-VA1) A B C D E F G H I
22 1000 725 596 284 232 112 345 94 225
28
36 1200 925 596 310 258 112 345 100 225
45
56
1500 1225 596 310 258 112 345 100 225
71
80

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 7
3.2 Exposed Floor-standing (air inlet from bottom)
Mounting hole, 4
Air inlet grille
Liquid side
connector
Gas side
connector
EXV
Air outlet grille
Left
Cover
Right
Cover
A
B
C
D
E
F
G
H
I
J
149.5 149.5
4¡ Á
¦µ11
4¡ Á
¦µ18
Unit: mm
MODEL
(MVB-A-VA1) A B C D E F G H I J
22 1000 725 677 592 284 232 345 94 220 150
28
36 1200 925 677 592 310 258 345 100 220 150
45
56
1500 1225 677 592 310 258 345 100 220 150
71
80

MIV V4+ Indoor Units DM16-01.01.02-09en
8 Floor Standing Type MVF-A-VA1 MVB-A-VA1
4. Service Spaces
F4 series
Vertical unit with casing , with air intake from front and air
outlet on top, for installation on a wall or on feet on the floor.
F5 series
Vertical unit with casing , with air intake from below and air
outlet on top, for installation on a wall or on feet on the floor.
Required clearance for above 2 versions:
Additionally, it is required to keep 20mm between the rear and wall; 600mm between the front face and the
obstacle. 1700mm vertical distance between the top of unit(outlet) and the upper obstacle.
Model F4 F5
a (mm) ≥150 ≥150
b (mm) - (with bottom feet)
a
a
a
a

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 9
5. Piping Diagrams
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1

MIV V4+ Indoor Units DM16-01.01.02-09en
10 Floor Standing Type MVF-A-VA1 MVB-A-VA1

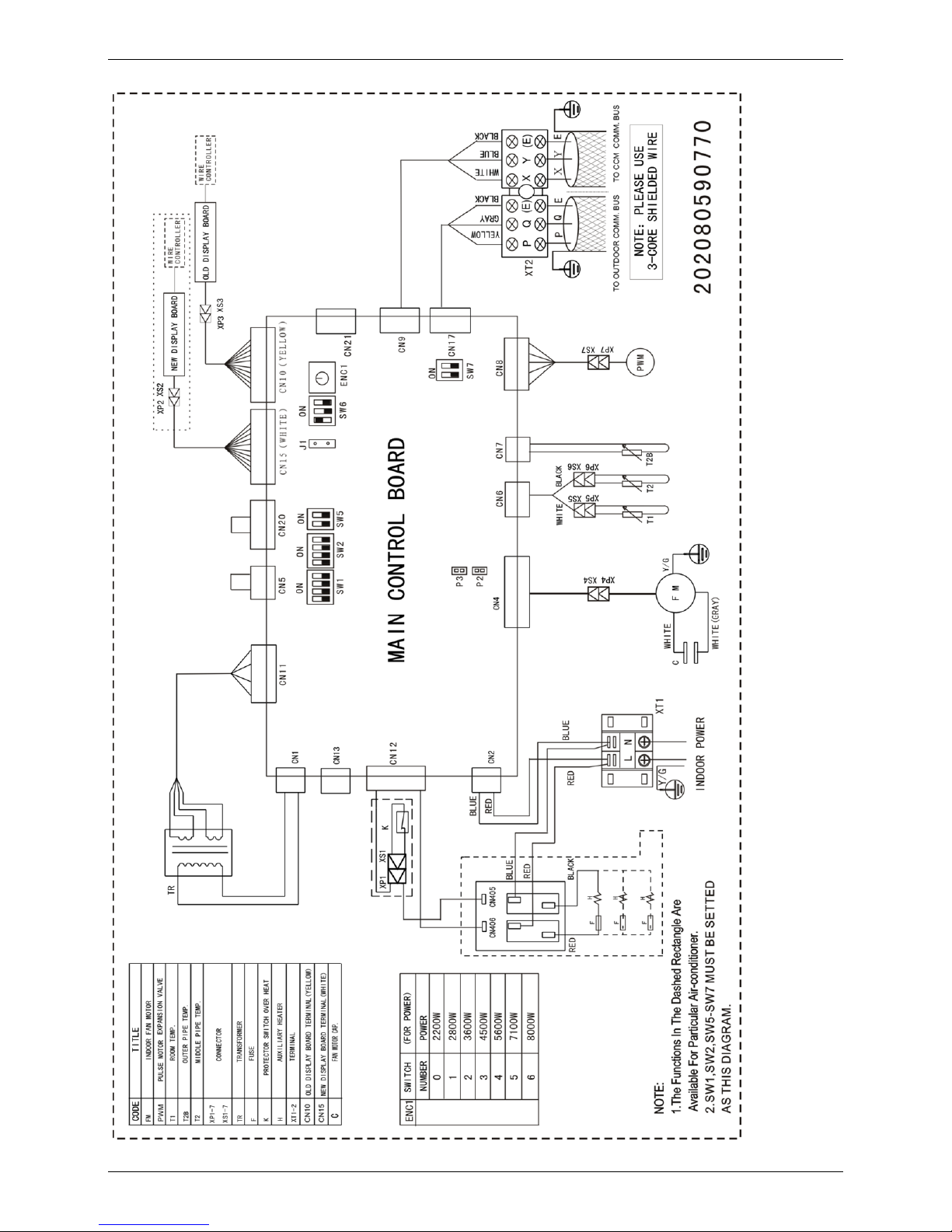

6. Wiring Diagrams

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 11
7. Capacity Tables
7.1 Cooling TC: total capacity SC: sensible capacity
WB: wet-bulb temperature DB: dry-bulb temperature
Indoor
Unit size
(kW)
Outdoor
temperature
(DB)
Indoor temperature (WB/DB)
14/20 16/23 18/26 19/27 20/28 22/30 24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
2.2
10.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.9 1.5
12.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
14.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
16.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
18.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.4
20.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.7 1.4
21.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.7 1.4
23.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.7 1.4
25.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.6 1.4
27.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.6 1.4
29.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.5 1.4
31.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.5 1.4
33.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.4 1.4
35.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.3 1.3 2.4 1.4
37.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.3 1.3 2.3 1.4
39.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
42.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
44.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
46.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
2.8
10.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.3 2.0 3.7 2.0
12.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.3 2.0 3.6 2.0
14.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.3 2.0 3.6 2.0
16.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.3 2.0 3.5 1.9
18.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.3 2.0 3.5 1.9
20.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.3 2.0 3.4 1.9
21.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.3 2.0 3.4 1.9
23.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.3 2.0 3.4 1.9
25.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.2 1.9 3.3 1.9
27.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.2 1.9 3.3 1.9
29.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.1 1.8 3.2 1.8
31.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.1 1.8 3.2 1.7
33.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
3.0 1.9
3.1 1.8 3.1 1.7
35.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
2.9 1.9
3.0 1.8 3.1 1.7
37.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
2.9 1.9
3.0 1.8 3.0 1.7
39.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
2.9 1.9
3.0 1.9 3.0 1.7
42.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
2.9 1.9
3.0 1.9 3.0 1.7
44.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
2.9 1.9
3.0 1.9 3.0 1.7
46.0 1.9 1.6 2.3 1.8
2.6 1.9
2.8 1.9
2.9 1.9
3.0 1.9 3.0 1.7
3.6
10.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.3 2.4 4.7 2.5
12.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.3 2.4 4.7 2.5
14.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.3 2.4 4.6 2.4
16.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.3 2.4 4.5 2.4
18.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.3 2.4 4.5 2.4
20.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.3 2.4 4.4 2.3
21.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.3 2.4 4.4 2.3
23.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.1 2.3 4.3 2.2
25.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.1 2.3 4.2 2.2
27.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.0 2.2 4.2 2.2
29.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.0 2.2 4.1 2.2
31.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.2 2.6 4.1 2.2
33.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.2 2.6 3.9 2.1
35.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.8 2.5
4.2 2.6 3.9 2.1
37.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.7 2.4
3.8 2.3 3.9 2.1
39.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.7 2.4
3.8 2.3 3.8 2.1
42.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.7 2.4
3.8 2.3 3.8 2.1
44.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.7 2.4
3.8 2.3 3.8 2.1
46.0 2.5 1.9 2.9 2.1
3.4 2.3
3.6 2.4
3.7 2.4
3.8 2.3 3.8 2.1
4.5 10.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.3 3.4 5.9 3.0

MIV V4+ Indoor Units DM16-01.01.02-09en
12 Floor Standing Type MVF-A-VA1 MVB-A-VA1
12.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.3 3.4 5.9 3.0
14.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.3 3.4 5.8 3.0
16.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.3 3.4 5.6 2.9
18.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.3 3.4 5.7 3.0
20.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.3 3.4 5.7 3.0
21.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.3 3.4 5.6 3.0
23.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.3 3.4 5.5 3.0
25.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.2 3.0 5.4 2.9
27.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.1 3.0 5.2 2.8
29.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.1 2.9 5.2 2.8
31.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
5.0 2.9 5.1 2.7
33.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
4.9 2.8 5.1 2.7
35.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
4.8 2.8 5.0 2.7
37.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.8 3.0
4.8 2.9 4.9 2.6
39.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.6 2.8
4.7 2.8 4.8 2.6
42.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.6 2.8
4.7 2.8 4.8 2.6
44.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.6 2.8
4.7 2.8 4.8 2.6
46.0 3.1 2.4 3.7 2.6
4.2 2.8
4.5 2.9
4.6 2.8
4.7 3.1 4.8 2.6
5.6
10.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 7.3 3.5
12.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 7.2 3.5
14.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 7.1 3.5
16.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 7.0 3.4
18.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 6.8 3.4
20.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 6.7 3.3
21.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 6.6 3.3
23.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 6.6 3.3
25.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.6 3.6 6.5 3.2
27.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.4 3.5 6.4 3.2
29.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.3 3.5 6.4 3.3
31.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.2 3.4 6.2 3.2
33.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.2 3.4 6.2 3.2
35.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
6.0 3.3 6.0 3.1
37.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.9 3.5
5.9 3.2 6.0 3.1
39.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.7 3.4
5.8 3.2 6.0 3.1
42.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.7 3.4
5.8 3.2 6.0 3.1
44.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.7 3.4
5.8 3.2 6.0 3.1
46.0 3.9 2.7 4.6 3.0
5.3 3.3
5.6 3.4
5.7 3.7
5.8 3.2 6.0 3.1
7.1
10.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 9.2 4.6
12.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 9.1 4.5
14.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 9.0 4.5
16.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 8.9 4.4
18.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 8.7 4.3
20.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 8.5 4.2
21.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 8.4 4.2
23.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 8.3 4.1
25.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.4 4.5 8.2 4.1
27.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.4
8.1 4.3 8.2 4.1
29.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.5
8.0 4.3 8.1 4.1
31.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.5
7.9 4.3 7.8 4.0
33.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.5
7.8 4.2 7.8 4.0
35.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.5 4.5
7.6 4.1 7.7 3.9
37.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.4 4.4
7.5 4.1 7.6 4.0
39.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.2 4.3
7.4 4.1 7.6 4.0
42.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.2 4.3
7.4 4.1 7.6 4.0
44.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.2 4.3
7.4 4.1 7.6 4.0
46.0 4.9 3.6 5.8 4.0
6.7 4.3
7.1 4.5
7.2 4.3
7.4 4.1 7.6 4.0
8.0
10.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.4 5.6
12.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.2 5.5
14.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.2 5.5
16.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.0 5.4
18.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.8 5.3
20.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.6 5.2
21.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.4 5.1
23.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.4 5.1
25.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.3 5.0

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 13
27.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.1 5.3 9.2 5.1
29.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 9.0 5.3 9.1 5.0
31.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.9 5.2 8.8 4.8
33.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.8 5.2 8.8 4.8
35.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.6 5.1 8.6 4.8
37.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.3 5.4 8.4 5.0 8.6 4.9
39.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
42.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
44.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
46.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9

MIV V4+ Indoor Units DM16-01.01.02-09en
14 Floor Standing Type MVF-A-VA1 MVB-A-VA1
7.2 Heating
TC: total capacity WB: wet-bulb temperature DB: dry-bulb temperature
Indoor Unit size
(kW)
Outdoor temperature
()
Indoor temperature ( DB)
16.00 18.00 20.00 21.00 22.00 24.00
TC TC TC TC TC TC
WB DB kW kW kW kW kW kW
2.2
-20 -19.8 1.46 1.46 1.46 1.46 1.46 1.46
-19 -18.8 1.56 1.56 1.56 1.56 1.56 1.56
-17 -16.7 1.64 1.64 1.64 1.64 1.64 1.64
-15 -14.7 1.69 1.69 1.69 1.69 1.69 1.69
-13.00 -12.60 1.79 1.79 1.79 1.79 1.79 1.79
-11.00 -10.50 1.82 1.85 1.85 1.85 1.85 1.85
-10.00 -9.50 1.90 1.90 1.90 1.90 1.90 1.90
-9.10 -8.50 1.95 1.95 1.95 1.95 1.95 1.95
-7.60 -7.00 1.98 1.98 1.98 1.98 1.98 1.98
-5.60 -5.00 2.05 2.05 2.05 2.05 2.05 2.05
-3.70 -3.00 2.16 2.16 2.16 2.16 2.16 2.16
-0.70 0.00 2.31 2.31 2.31 2.31 2.31 2.18
2.20 3.00 2.44 2.44 2.44 2.44 2.39 2.18
4.10 5.00 2.52 2.52 2.52 2.52 2.39 2.18
6.00 7.00 2.60 2.60 2.60 2.52 2.39 2.18
7.90 9.00 2.68 2.68 2.60 2.52 2.39 2.18
9.80 11.00 2.76 2.76 2.60 2.52 2.39 2.18
11.80 13.00 2.86 2.81 2.60 2.52 2.39 2.18
13.70 15.00 2.94 2.81 2.60 2.52 2.39 2.18
2.8
-20 -19.8 1.79 1.79 1.79 1.79 1.79 1.79
-19 -18.8 1.92 1.92 1.92 1.92 1.92 1.92
-17 -16.7 2.02 2.02 2.02 2.02 2.02 2.02
-15 -14.7 2.02 2.02 2.02 2.02 2.02 2.02
-13.00 -12.60 2.14 2.14 2.14 2.14 2.14 2.14
-11.00 -10.50 2.24 2.24 2.24 2.24 2.24 2.24
-10.00 -9.50 2.34 2.34 2.34 2.34 2.34 2.34
-9.10 -8.50 2.40 2.40 2.40 2.40 2.40 2.40
-7.60 -7.00 2.43 2.43 2.43 2.43 2.43 2.43
-5.60 -5.00 2.53 2.53 2.53 2.53 2.53 2.53
-3.70 -3.00 2.66 2.66 2.66 2.66 2.66 2.66
-0.70 0.00 2.85 2.85 2.85 2.85 2.85 2.69
2.20 3.00 3.01 3.01 3.01 3.01 2.94 2.69
4.10 5.00 3.10 3.10 3.10 3.10 2.94 2.69
6.00 7.00 3.20 3.20 3.20 3.10 2.94 2.69
7.90 9.00 3.30 3.30 3.20 3.10 2.94 2.69
9.80 11.00 3.39 3.39 3.20 3.10 2.94 2.69
11.80 13.00 3.52 3.46 3.20 3.10 2.94 2.69
13.70 15.00 3.62 3.46 3.20 3.10 2.94 2.69
3.6
-20 -19.8 2.24 2.24 2.24 2.24 2.24 2.24
-19 -18.8 2.40 2.40 2.40 2.40 2.40 2.40
-17 -16.7 2.52 2.52 2.52 2.52 2.52 2.52
-15 -14.7 2.60 2.60 2.60 2.60 2.60 2.60
-13.00 -12.60 2.68 2.68 2.68 2.68 2.68 2.68
-11.00 -10.50 2.80 2.80 2.80 2.80 2.80 2.80
-10.00 -9.50 2.92 2.92 2.92 2.92 2.92 2.92
-9.10 -8.50 3.00 3.00 3.00 3.00 3.00 3.00
-7.60 -7.00 3.04 3.04 3.04 3.04 3.04 3.04
-5.60 -5.00 3.16 3.16 3.16 3.16 3.16 3.16
-3.70 -3.00 3.32 3.32 3.32 3.32 3.32 3.32
-0.70 0.00 3.56 3.56 3.56 3.56 3.56 3.36
2.20 3.00 3.76 3.76 3.76 3.76 3.68 3.36
4.10 5.00 3.88 3.88 3.88 3.88 3.68 3.36
6.00 7.00 4.00 4.00 4.00 3.88 3.68 3.36
7.90 9.00 4.12 4.12 4.00 3.88 3.68 3.36
9.80 11.00 4.24 4.24 4.00 3.88 3.68 3.36
11.80 13.00 4.40 4.32 4.00 3.88 3.68 3.36
13.70 15.00 4.52 4.32 4.00 3.88 3.68 3.36
4.5 -20 -19.8 2.80 2.80 2.80 2.80 2.80 2.80
-19 -18.8 3.00 3.00 3.00 3.00 3.00 3.00

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 15
-17 -16.7 3.15 3.15 3.15 3.15 3.15 3.15
-15 -14.7 3.25 3.25 3.25 3.25 3.25 3.25
-13.00 -12.60 3.35 3.35 3.35 3.35 3.35 3.35
-11.00 -10.50 3.50 3.50 3.50 3.50 3.50 3.50
-10.00 -9.50 3.65 3.65 3.65 3.65 3.65 3.65
-9.10 -8.50 3.75 3.75 3.75 3.75 3.75 3.75
-7.60 -7.00 3.80 3.80 3.80 3.80 3.80 3.80
-5.60 -5.00 3.95 3.95 3.95 3.95 3.95 3.95
-3.70 -3.00 4.15 4.15 4.15 4.15 4.15 4.15
-0.70 0.00 4.45 4.45 4.45 4.45 4.45 4.20
2.20 3.00 4.70 4.70 4.70 4.70 4.60 4.20
4.10 5.00 4.85 4.85 4.85 4.85 4.60 4.20
6.00 7.00 5.00 5.00 5.00 4.85 4.60 4.20
7.90 9.00 5.15 5.15 5.00 4.85 4.60 4.20
9.80 11.00 5.30 5.30 5.00 4.85 4.60 4.20
11.80 13.00 5.50 5.40 5.00 4.85 4.60 4.20
13.70 15.00 5.65 5.40 5.00 4.85 4.60 4.20
5.6
-20 -19.8 3.53 3.53 3.53 3.53 3.53 3.53
-19 -18.8 3.78 3.78 3.78 3.78 3.78 3.78
-17 -16.7 3.97 3.97 3.97 3.97 3.97 3.97
-15 -14.7 4.10 4.10 4.10 4.10 4.10 4.10
-13.00 -12.60 4.22 4.22 4.22 4.22 4.22 4.22
-11.00 -10.50 4.41 4.41 4.41 4.41 4.41 4.41
-10.00 -9.50 4.60 4.60 4.60 4.60 4.60 4.60
-9.10 -8.50 4.73 4.73 4.73 4.73 4.73 4.73
-7.60 -7.00 4.79 4.79 4.79 4.79 4.79 4.79
-5.60 -5.00 4.98 4.98 4.98 4.98 4.98 4.98
-3.70 -3.00 5.23 5.23 5.23 5.23 5.23 5.23
-0.70 0.00 5.61 5.61 5.61 5.61 5.61 5.29
2.20 3.00 5.92 5.92 5.92 5.92 5.80 5.29
4.10 5.00 6.11 6.11 6.11 6.11 5.80 5.29
6.00 7.00 6.30 6.30 6.30 6.11 5.80 5.29
7.90 9.00 6.49 6.49 6.30 6.11 5.80 5.29
9.80 11.00 6.68 6.68 6.30 6.11 5.80 5.29
11.80 13.00 6.93 6.80 6.30 6.11 5.80 5.29
13.70 15.00 7.12 6.80 6.30 6.11 5.80 5.29
7.1
-20 -19.8 4.48 4.48 4.48 4.48 4.48 4.48
-19 -18.8 4.80 4.80 4.80 4.80 4.80 4.80
-17 -16.7 5.04 5.04 5.04 5.04 5.04 5.04
-15 -14.7 5.20 5.20 5.20 5.20 5.20 5.20
-13.00 -12.60 5.36 5.36 5.36 5.36 5.36 5.36
-11.00 -10.50 5.60 5.60 5.60 5.60 5.60 5.60
-10.00 -9.50 5.84 5.84 5.84 5.84 5.84 5.84
-9.10 -8.50 6.00 6.00 6.00 6.00 6.00 6.00
-7.60 -7.00 6.08 6.08 6.08 6.08 6.08 6.08
-5.60 -5.00 6.32 6.32 6.32 6.32 6.32 6.32
-3.70 -3.00 6.64 6.64 6.64 6.64 6.64 6.64
-0.70 0.00 7.12 7.12 7.12 7.12 7.12 6.72
2.20 3.00 7.52 7.52 7.52 7.52 7.36 6.72
4.10 5.00 7.76 7.76 7.76 7.76 7.36 6.72
6.00 7.00 8.00 8.00 8.00 7.76 7.36 6.72
7.90 9.00 8.24 8.24 8.00 7.76 7.36 6.72
9.80 11.00 8.48 8.48 8.00 7.76 7.36 6.72
11.80 13.00 8.80 8.64 8.00 7.76 7.36 6.72
13.70 15.00 9.04 8.64 8.00 7.76 7.36 6.72
8.0
-20 -19.8 5.04 5.04 5.04 5.04 5.04 5.04
-19 -18.8 5.40 5.40 5.40 5.40 5.40 5.40
-17 -16.7 5.67 5.67 5.67 5.67 5.67 5.67
-15 -14.7 5.85 5.85 5.85 5.85 5.85 5.85
-13.00 -12.60 6.03 6.03 6.03 6.03 6.03 6.03
-11.00 -10.50 6.30 6.30 6.30 6.30 6.30 6.30
-10.00 -9.50 6.57 6.57 6.57 6.57 6.57 6.57
-9.10 -8.50 6.75 6.75 6.75 6.75 6.75 6.75
-7.60 -7.00 6.84 6.84 6.84 6.84 6.84 6.84
-5.60 -5.00 7.11 7.11 7.11 7.11 7.11 7.11

MIV V4+ Indoor Units DM16-01.01.02-09en
16 Floor Standing Type MVF-A-VA1 MVB-A-VA1
-3.70 -3.00 7.47 7.47 7.47 7.47 7.47 7.47
-0.70 0.00 8.01 8.01 8.01 8.01 8.01 7.56
2.20 3.00 8.46 8.46 8.46 8.46 8.28 7.56
4.10 5.00 8.73 8.73 8.73 8.73 8.28 7.56
6.00 7.00 9.00 9.00 9.00 8.73 8.28 7.56
7.90 9.00 9.27 9.27 9.00 8.73 8.28 7.56
9.80 11.00 9.54 9.54 9.00 8.73 8.28 7.56
11.80 13.00 9.90 9.72 9.00 8.73 8.28 7.56
13.70 15.00 10.17 9.72 9.00 8.73 8.28 7.56

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 17
8. Electrical Characteristics
Model Indoor Unit Power Supply IFM
Hz Voltage Min. Max. MCA MFA KW FLA
MVF22A-VA1 50 220-240V 198 254 0.25 5 0.042 0.2
MVB22A-VA1 50 220-240V 198 254 0.25 5 0.042 0.2
MVF28A-VA1 50 220-240V 198 254 0.25 5 0.042 0.2
MVB28A-VA1 50 220-240V 198 254 0.25 5 0.042 0.2
MVF36A-VA1 50 220-240V 198 254 0.3 5 0.049 0.24
MVB36A-VA1 50 220-240V 198 254 0.3 5 0.049 0.24
MVF45A-VA1 50 220-240V 198 254 0.4 5 0.06 0.3
MVB45A-VA1 50 220-240V 198 254 0.4 5 0.06 0.3
MVF56A-VA1 50 220-240V 198 254 0.6 5 0.095 0.48
MVB56A-VA1 50 220-240V 198 254 0.6 5 0.095 0.48
MVF71A-VA1 50 220-240V 198 254 0.8 5 0.138 0.62
MVB71A-VA1 50 220-240V 198 254 0.8 5 0.138 0.62
MVF80A-VA1 50 220-240V 198 254 0.8 5 0.138 0.62
MVB80A-VA1 50 220-240V 198 254 0.8 5 0.138 0.62
Remark:
MCA: Min. Current Amps. (A)
MFA: Max. Fuse Amps. (A)
KW: Fan Motor Rated Output (kW)
FLA: Full Load Amps. (A)
IFM:Indoor Fan Motor

MIV V4+ Indoor Units DM16-01.01.02-09en
18 Floor Standing Type MVF-A-VA1 MVB-A-VA1
9. Sound Levels
9.1 Test condition
Note:
1, during actual operation, these values are normally somewhat higher as a result of ambient conditions.
2, Semi-anechoic chamber conversion value, measured at a point 1m in front of the unit at a height of 1.5m.
9.2 Test value
Model
Sound test value dB(A)
H M L
MVF22A-VA1 36 33 29
MVB22A-VA1 36 33 29
MVF28A-VA1 36 33 29
MVB28A-VA1 36 33 29
MVF36A-VA1 37 34 30
MVB36A-VA1 37 34 30
MVF45A-VA1 37 34 30
MVB45A-VA1 37 34 30
MVF56A-VA1 41 35 31
MVB56A-VA1 41 35 31
MVF71A-VA1 44 39 33
MVB71A-VA1 44 39 33
MVF80A-VA1 44 39 33
MVB80A-VA1 44 39 33

DM16-01.01.02-09en MIV V4+ Indoor Units
Floor Standing Type MVF-A-VA1 MVB-A-VA1 19
9.3 Octave Band Level
Octave band center frequency（Hz）
Sound pressure level dB（0dB=0.0002μ bar）
Audibility limits of
continuous white
sound
Octave band center frequency（Hz）
Sound pressure level dB（0dB=0.0002μ bar）
Audibility limits of
continuous white
sound
Octave band center frequency（Hz）
Sound pressure level dB（0dB=0.0002μ bar）
Audibility limits of
continuous white
sound
Octave band center frequency（Hz）
Sound pressure level dB（0dB=0.0002μ bar）
Audibility limits of
continuous white
sound
MVF22A-VA1 MVB22A-VA1
MVF28A-VA1 MVB28A-VA1
MVF36A-VA1 MVB36A-VA1
MVF45A-VA1 MVB45A-VA1
MVF56A-VA1 MVB56A-VA1 MVF71A-VA1 MVB71A-VA1
MVF80A-VA1 MVB80A-VA1
