Midea WQP12-5201 User manual

PART Ⅱ: Special Version
WQP12-5201
Please read this manual carefully
before using the dishwasher and
Keep this manual for future reference.

CONTENTS
ERROR CODES
NOTE:
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
PROGRAMMING THE DISHWASHER
Wash Cycle Table
Starting A Cycle Wash
Changing The Program Mid-cycle

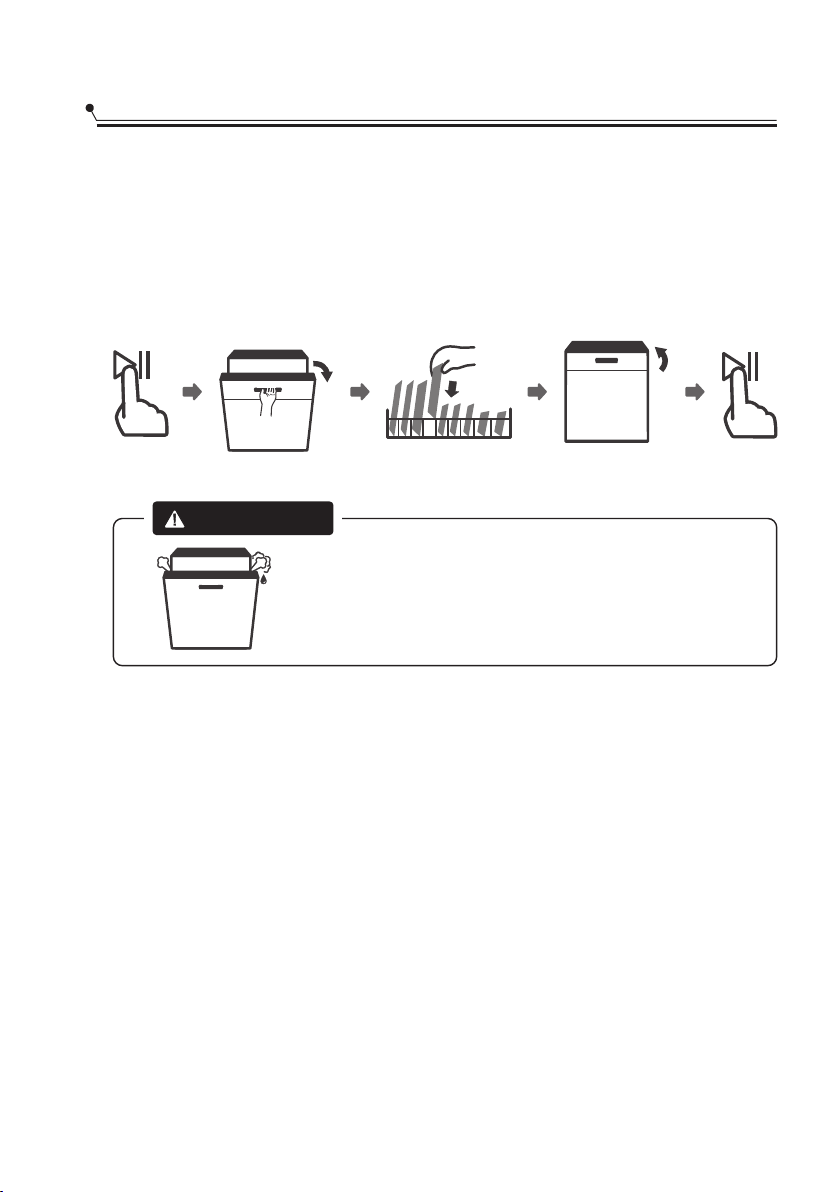

Forget To Add A Dish?
USING YOUR DISHWASHER
Control Panel
Water Softener
Preparing And Loading Dishes
Function Of The Rinse Aid And Detergent
Filling The Rinse Aid Reservoir
Filling The Detergent Dispenser
4
4
6
12
7
10
11
13
13
14
14
15
TECHNICAL INFORMATION
17
16

5

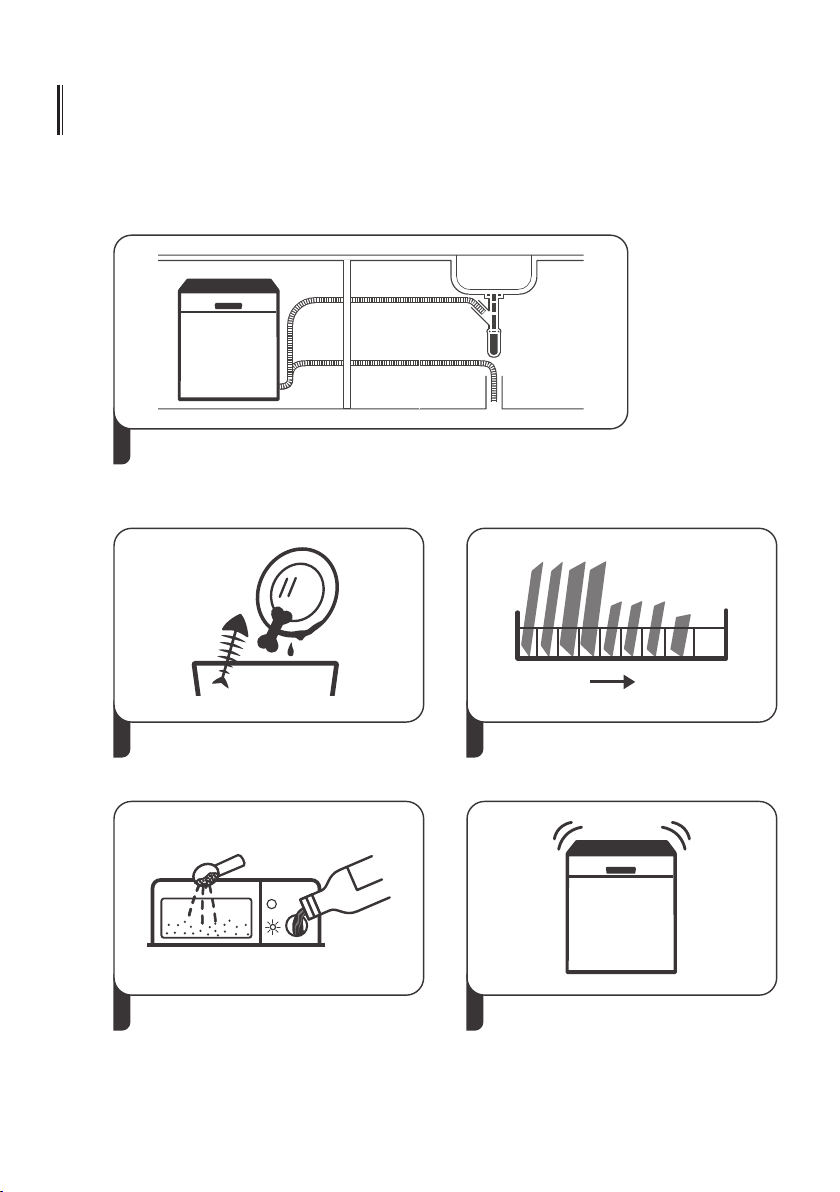

QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2Removing the larger residue on the
cutlery
3Loading the baskets
4Filling the dispenser Selecting a program and running
the dishwasher
Inside Outside
3
1Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)

USING YOUR DISHWASHER

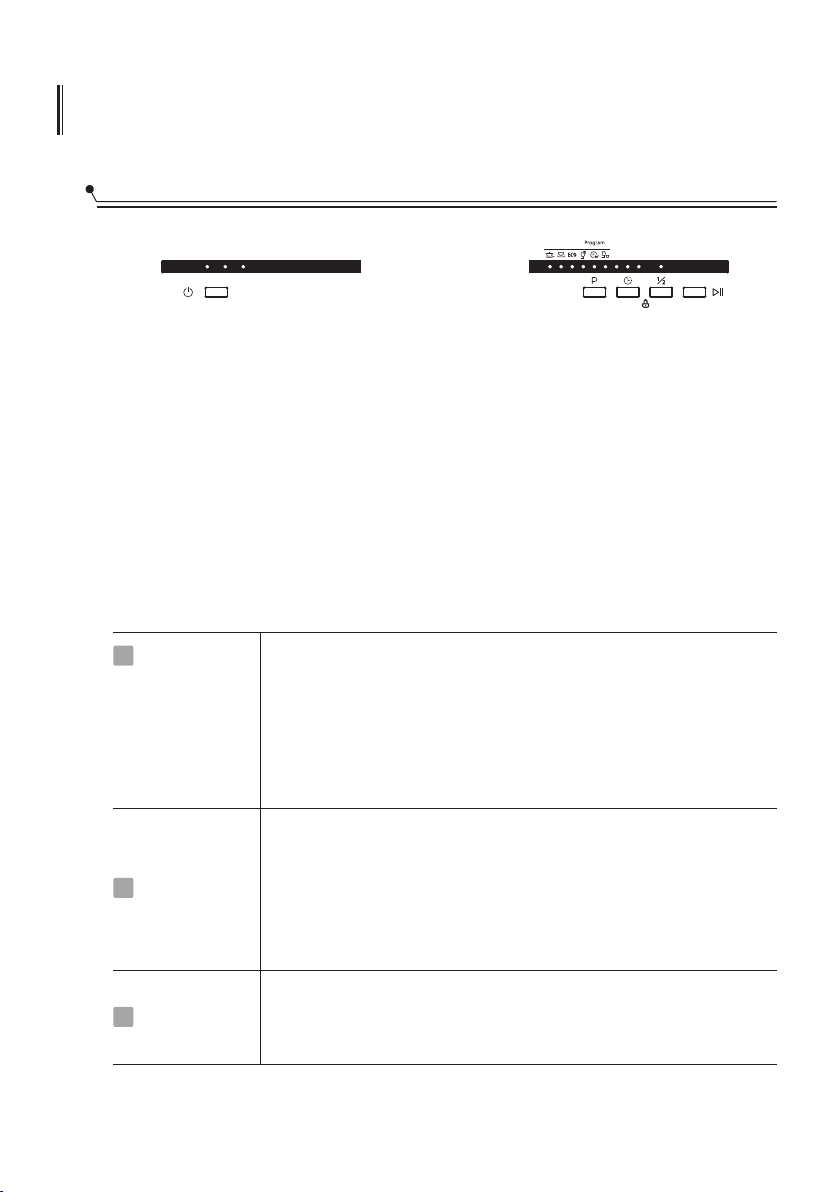

Control Panel
Operation (Button)
Power
Child lock
Half-load
Press this button to turn on your dishwasher, the screen lights up.
This option allows you to lock the buttons on the control panel -
except the Power button - so children cannot accidently start the
dishwasher by pressing the buttons on the panel. To lock or
unlock the buttons on the control panel, press and hold the Delay
button + Half-load button for 3 seconds simultaneously.
When pressing this button, corresponding indicator will be lit.
When you have about or less than 6 place setting dishware to
wash, you can choose this function to save energy and water.(It
can only be used with Intensive, Normal, ECO, Glass and 90 mins.)
4
1
4
5

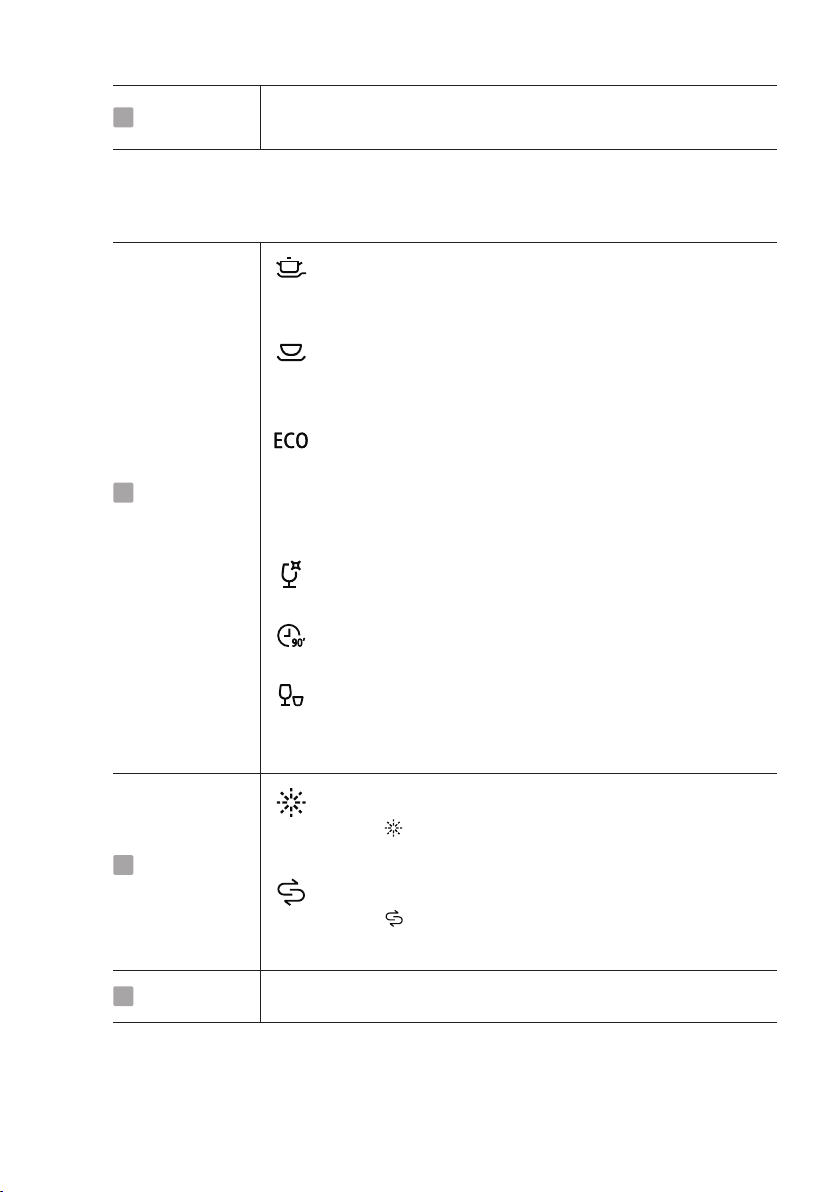

Rapid
A shorter wash for lightly soiled loads that do not
need drying.
90 mins
For normally soiled loads that need quick wash.
Display
Warning
indicator Salt
Rinse Aid
Program
indicator
5
7
8
Glass
For lightly soiled crockery and glass.
Intensive
For heaviest soiled crockery, and normally soiled pots,
pans, dishes etc. With dried-on food.
Normal
For normally soiled loads, such as pots, plates, glasses
and lightly soiled pans.
ECO
This is standard program, it is suitable to clean normally
soiled tableware and it is the most efficient program
in terms of its combined energy and water consumption
for that type of tableware.
To start the selected washing program or pause it when the
dishwasher is working.
Start / Pause6
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires a refill.
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher salt and needs to be refilled.
Delay time
9To show the delay time(3h/6h/9h).

Water Softener

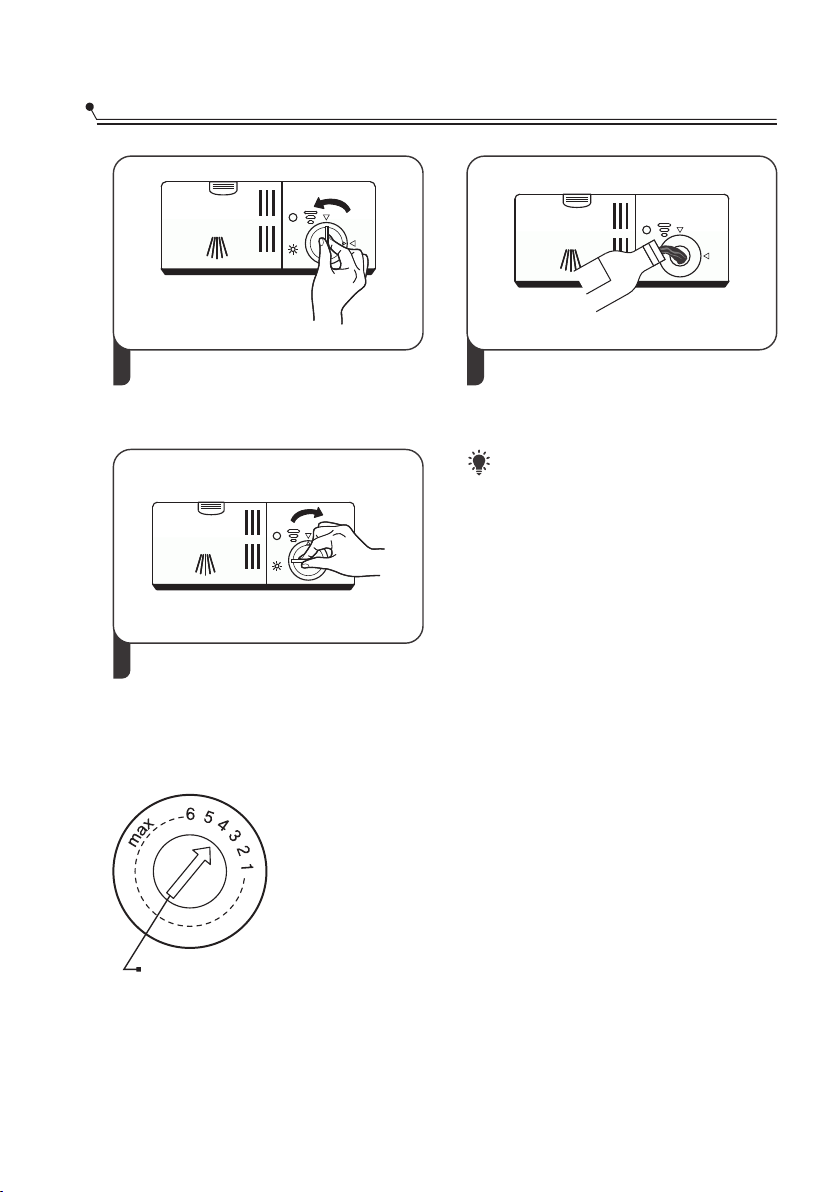

The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which
would have a detrimental or adverse effect on the operation of the appliance.
The more minerals there are, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area.
Your local Water Authority can advise you on the hardness of the water in your area.
Adjusting salt consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed
based on the hardness of the water used. This is intended to optimise and customise
the level of salt consumption.

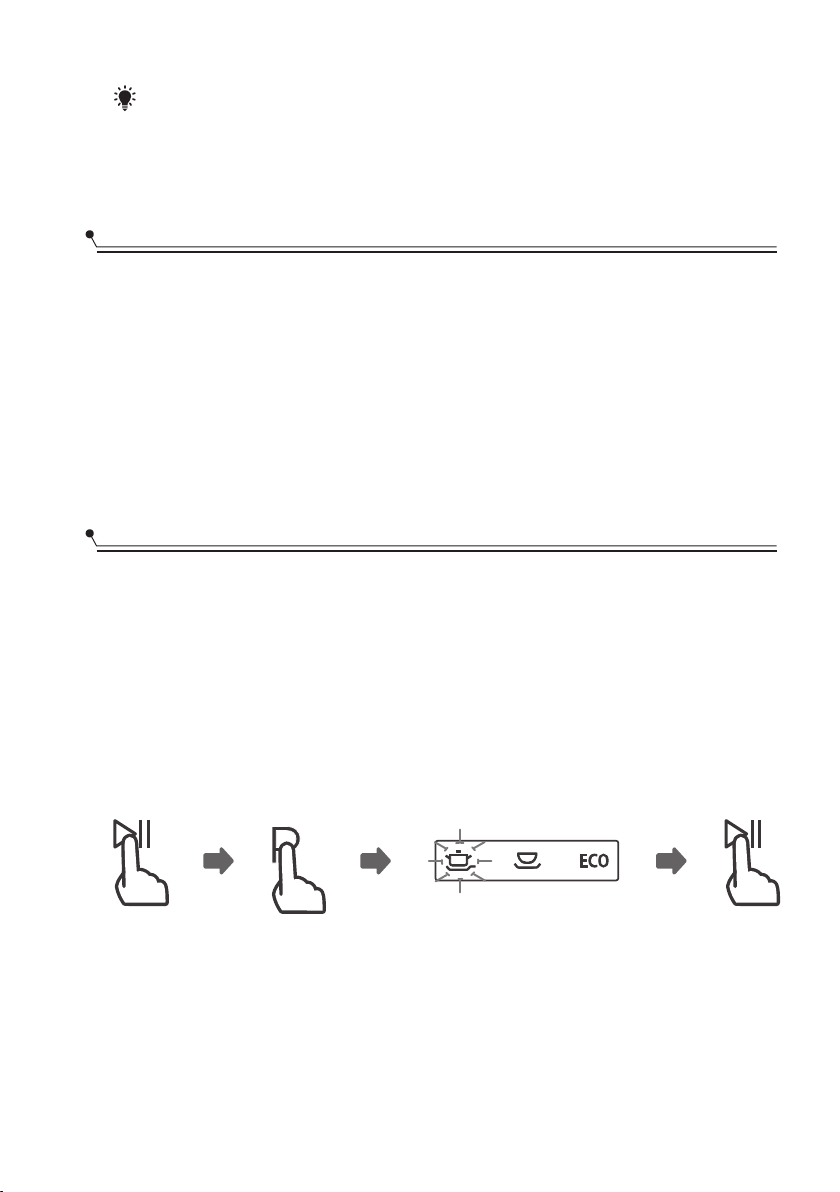

1. Switch on the appliance;
2. Press the Start/Pause button for more than 5 seconds to start the water softener set
model within 60 seconds after the appliance was switched on;
3. Press the Start/Pause button to select the proper set according to your local
environment, the sets will change in the following sequence:
H1->H2->H3->H4->H5->H6;
4. Press the Start/Pause button to end the set up model.
Please follow the steps below for adjustment in salt consumption.
dH=1.25 Clarke=1.78 fH=0.178mmol/l
°° °
1
The manufactory setting: H3
Contact your local water board for information on the hardness of your water supply.
6
0 - 5
6 - 11
12 - 17
18 - 22
23 - 34
35 - 55
German
dH
German
dH
Salt consumption
(gram/cycle)
Salt consumption
(gram/cycle)
0 - 9
10 - 20
21 - 30
31 - 40
41 - 60
61 - 98
0 - 6
7 - 14
15 - 21
22 - 28
29 - 42
43 - 69
0 - 0.94
1.0 - 2.0
2.1 - 3.0
3.1 - 4.0
4.1 - 6.0
6.1 - 9.8
H1-> indicators flicker
H2-> 90 Min indicators flicker
H3-> 90 Min, Rapid indicators flicker
H4-> Glass indicators flicker
H5-> Glass, Rapid indicators flicker
H6-> Glass, 90 Min indicators flicker
Rapid 0
9
12
20
30
60
French
fH
French
fH Mmol/lMmol/l
Water softener levelWater softener level
British
Clarke
British
Clarke
WATER HARDNESS

NOTE:
If your model does not have any water softener, you may skip this section.
Water Softener
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container
specifically designed to eliminate lime and minerals from the water.
Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolour during washing
Glazed patterns may fade if machine washed frequently
For washing the following cutlery/dishes
Are not suitable
Are of limited suitability
7
Please check the section 3 “Loading The Salt Into The Softener”
of PART Generic Version, If your dishwasher lacks salt.Ⅰ:
Please check the section 3 “Loading The Salt Into The Softener”
of PART Ⅰ: Generic Version, If your dishwasher lacks salt.

Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run
off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during
washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
Removing the dishes
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
8
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
your model.)
Place objects in the dishwasher in following way:

Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups
and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by
the spray of water.
9
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with the
sharp point down!

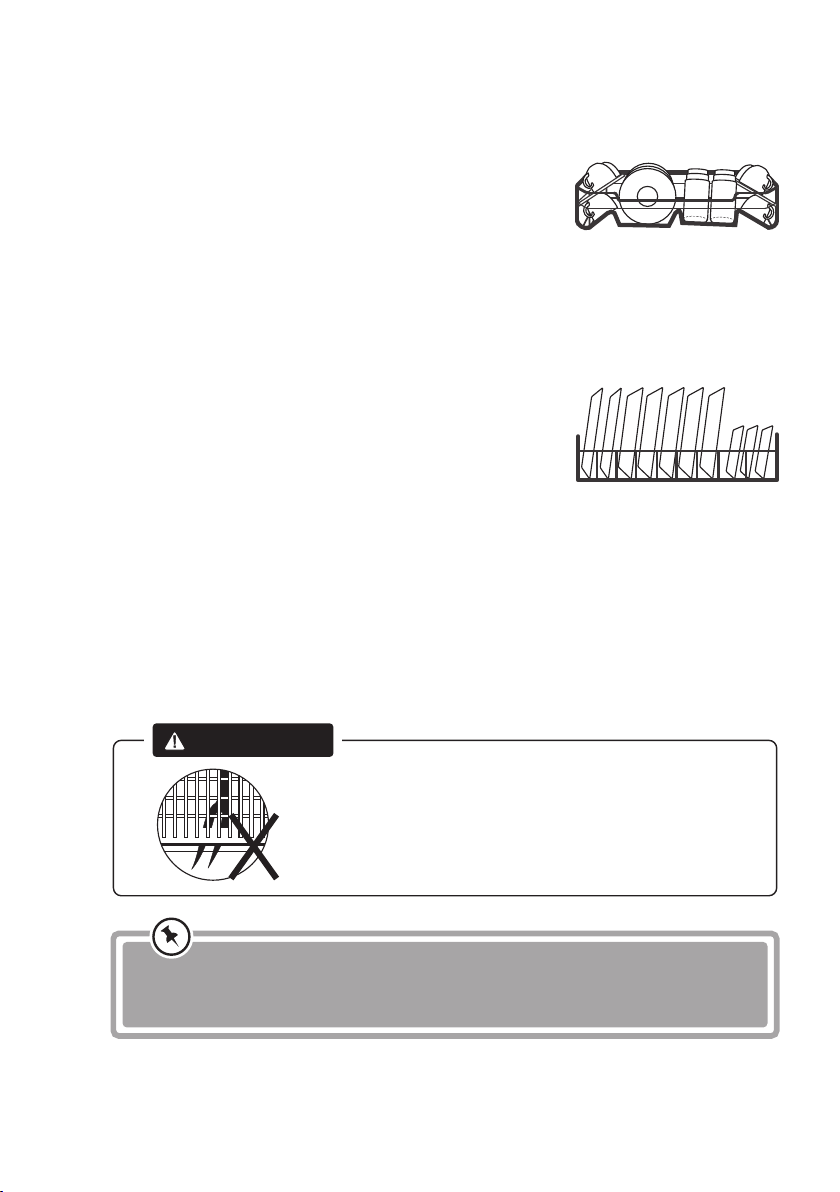

Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together, this may
cause bad performance.
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Generic VersionⅠ:
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Ⅰ: Generic Version
Loading the lower basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and bowls,
as shown in the figure below. It is preferable to place
serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the
detergent dispenser is of 19 cm, this not to hamper the
opening of it.

The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
Function Of The Rinse Aid And Detergent
10
When to refill the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control
panel is on, you can always estimate the amount from the
color of the optical level indicator located next to the cap.
When the rinse-aid container is full, the indicator will be
fully dark. The size of the dark dot decreases as the rinse-
aid diminishes. You should never let the rinse aid level be
less than 1/4 full.
Full 3/4 full 1/2 full 1/4 full Empty
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
WARNING
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher
detergent out of the reach of children.

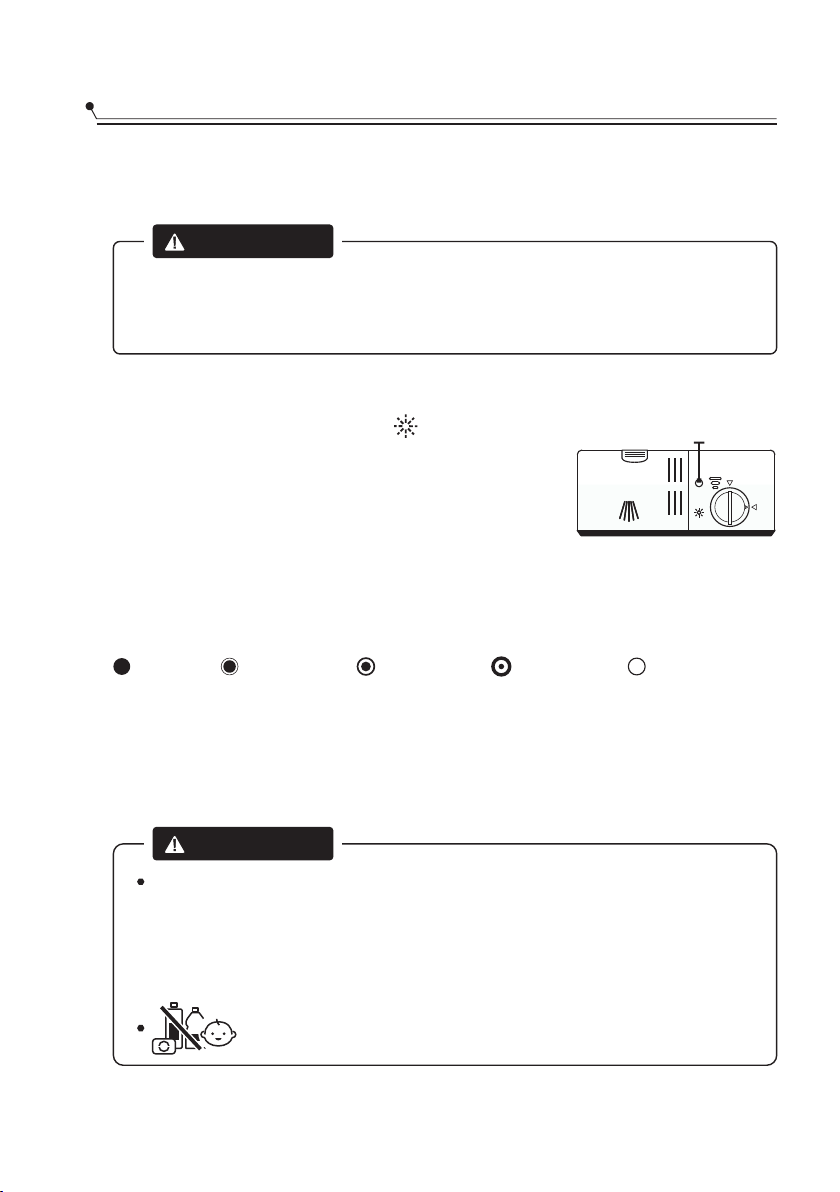

Rinse aid level indicator
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.

11
Filling The Rinse Aid Reservoir
3
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2 Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Adjusting the rinse aid reservoir
Adjust lever(Rinse)
Turn the rinse aid indicator dial to a number between 1 and 6.
The higher the number, the more rinse aid the dishwasher uses.
If the dishes are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.
Close the rinse aid reservoir cap by
rotating it clockwise.
Remove the rinse aid reservoir cap
by rotating it counterclockwise.

12
Filling The Detergent Dispenser
1 2
Press the release catch on the detergent
dispenser to open the cover.
Push latch to open
AAB
Add detergent into the larger cavity
(A) for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
3Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.

PROGRAMMING THE DISHWASHER
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.
( )Means: need to fill rinse into the Rinse-Aid Dispenser.
Program Running
Time(min)
Energy
(Kwh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main
13
170
180
195
30
1.6
1.3
1.02
0.75
17.5
13.5
11
11
Pre-wash(50℃)
Wash(60℃)
Rinse
Rinse
Rinse(70℃)
Drying
Pre-wash(45℃)
Wash(55℃)
Rinse
Rinse(65℃)
Drying
Pre-wash
Wash(45℃)
Rinse(65℃)
Drying
Wash(45℃)
Rinse(50℃)
Rinse(55℃)
20g
(1 or 2 pieces)
5/25g
(1 or 2 pieces)
5/25g
(1 or 2 pieces)
5/25g
90 1.35 12.5
130 0.9 13
Pre-wash
Wash(40℃)
Rinse
Rinse(60℃)
Drying
5/25g
(1 piece)
Wash(65℃)
Rinse
Rinse(65℃)
Drying
5/25g
(1 piece)
Intensive
Normal
(*EN 5 0242)
Glass
90 mins
Rapid

EN 50242:
accordance with EN 50242.
This program is the test cycle. The information for comparability test in
NOTE:
Starting A Cycle Wash
1. Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button, to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause
button, the dishwasher will start its cycle.
Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have already
drained the wash water. If this is the case, the dishwasher needs to be reset and the
detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
1. Press the Start/Pause button to pause the washing.
2. Press Program button for more than 3 seconds - the program will cancel.
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, after 10 seconds, the dishwasher will start.
3 sec
14

Forget To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. Wait 5 seconds then open the door.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.
After 5 sec
WARNING
It is dangerous to open the door
mid-cycle, as hot steam may
scald you.
15

16
ERROR CODES
If there is a malfunction, the dishwasher will display error codes to identify these:
Codes Meanings Possible Causes
Longer inlet time.
Not reaching required
temperature.
Overflow.
Malfunction of heating element.
Some element of dishwasher leaks.
Faucets is not opened, or water intake is
restricted, or water pressure is too low.
WARNING
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water
should be removed before restarting the dishwasher.
The Rapid
fleets frequently
indicator
The Glass indicator
fleets frequently
The 90 Min and
Rapid indicator
fleets frequently

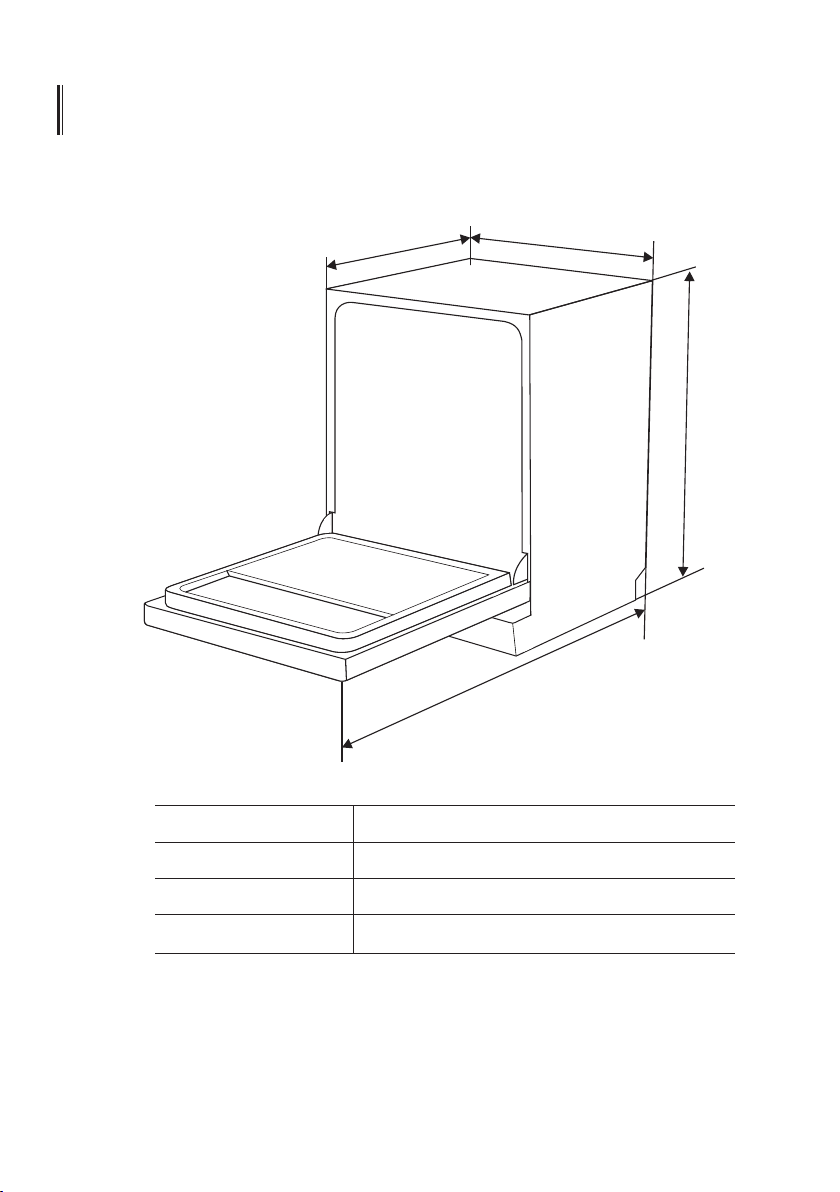

TECHNICAL INFORMATION
Height (H)
Width (W)
Depth (D1)
Depth (D2)
845mm
598mm
600mm (with the door closed)
1175mm (with the door opened 90°)
WW
D1
D1
H
H
17
D2D2

MIDEA
WQP12-5201
12
A+
290 kWh
1.02 kWh
0.45 W
0.49W
3080 liter
A
195 min
1760W
Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010:
Manufacturer
Type / Description
Standard place settings
Energy efficiency class
Annual energy consumption
Energy consumption of the standard cleaning cycle
Power consumption of off-mode
Power consumption of left-on mode
Annual water consumption
Drying efficiency class
Standard cleaning cycle
Program duration of the standard cleaning cycle
Noise level
Mounting
Power consumption
Rated voltage / frequency
A + + + (highest efficiency) to D (lowest efficiency)
Energy consumption based on 280 standard cleaning cycles using cold water fill and the
consumption of the low power modes. Actual energy consumption will depend on how the
appliance is used.
Water consumption based on 280 standard cleaning cycles. Actual water consumption will depend
on how the appliance is used.
A (highest efficiency) to G (lowest efficiency)
This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient
program in terms of its combined energy and water consumption for that type of tableware.
NOTE：
1
2
3
4
5
1
2
3
4
5
ECO 45℃
52 dB(A) re 1 pW
Free standing
220V/50Hz
Water pressure (flow pressure) 0.04-1.0MPa=0.4-10 bar
Could be built-in YES
Product fiche
18

No.20, Gangqian Road, Beijiao,Shunde, Foshan, Guangdong, 5
28311 P.R.China
Foshan Shunde Midea Washing Appliances Mfg. Co., Ltd
