THANK YOU LETTER 01
02
16
12
11
30
32
35
39
40
08
10
41
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
QUICK START GUIDE
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
APP SETUP AND OPERATION
CLEANING AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS,COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
42
DECLARATION OF CONFORMITY
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
CONTENTS
EN

Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS
02
The following safety guidelines are intended to
prevent unforeseen risks or damage from unsafe
or incorrect operation of the appliance. Please
check the packaging and appliance on arrival to
make sure everything is intact to ensure safe
operation. If you find any damage, please contact
the retailer or dealer.
Please note modifications or alterations to the
appliance are not allowed for your safety concern.
Unintended use may cause hazards and loss of
warranty claims.
●
●
Danger
This symbol indicates that there are dangers
to the life and health of persons due to
extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger
to life and health of persons due to voltage.
Warning
The signal word indicates a hazard with a
medium level of risk which, if not avoided,
may result in death or serious injury.
EN

Read these operating instructions carefully and
attentively before using/commissioning the unit and
keep them in the immediate vicinity of the installation
site or unit for later use!
03
Caution
The signal word indicates a hazard with a
low degree of risk which, if not avoided,
may result in minor or moderate injury.
Attention
The signal word indicates important
information (e.g. damage to property),
but not danger.
Observe instructions
This symbol indicates that a service
technician should only operate and maintain
this appliance in accordance with the
operating instructions.
EN

04
DANGER: Risk of Fire/Flammable materials
●●
●
●
●
●
●
●
●
When using your dishwasher, follow the precautions
listed below:
Installation and repair can only be carried out by a
qualified technician.
This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential
type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be done by children
without supervision. (For EN60335-1)
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. (For IEC60335-1)
Packaging material could be dangerous for children!
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is for indoor household use only.
EN

Earthing Instructions
05
●
●
●
●
●
●
●
●
●
●
●
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the
appliance. Use a soft cloth moisten with mild soap,
and then use a dry cloth to wipe it again.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate outlet
that is installed and earthed in accordance with all
local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
Do not modify the plug provided with the appliance
if it does not fit the outlet.
Have a proper outlet installed by a qualified
electrician.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
EN

06
●
●
●
●
●
●
●
●
●
●
●
●
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their points
facing down or placed in a horizontal position.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is
open.
Check that there are no detergent residues after
completion of the wash cycle.
Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
For unmarked plastic items not so marked, check the
manufacturer's recommendations.
Use only detergent and rinse agents recommended
for use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
The door should not be left open, since this could
increase the risk of tripping.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not
be reused.
EN

Disposal
07
●
●
●
●
●
●
●
●
●
To save energy, in stand by mode, the appliance will
switch of automatically after 15 minutes without any
user interaction.
The maximum number of place settings to be
washed is 10.
The maximum permissible inlet water pressure is
1MPa.
The minimum permissible inlet water pressure is
0.04MPa.
For disposing of package and the appliance please
go to a recycling center.
Therefore cut off the power supply cable and make
the door closing device unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for
the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this
product, please contact your local city office and
your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.
EN

08
SPECIFICATIONS
845 mmHeight (H)
Width (W)
Depth (D1)
Depth (D2)
448 mm
600 mm (with the door closed)
1175 mm (with the door opened 90°)
W
D1
H
D2
EN

09
Product information sheet (EN60436)
(a) for the eco program.
(b) changes to these items shall not be considered relevant for the purposes of paragraph
4 of Article 4 of Regulation (EU) 2017/1369.
(c) if the product database automatically generates the definitive content of this cell the
supplier shall not enter these data.
Additional information:
Weblink to the supplier’s website, where the information in point 6 of Annex II to
Commission Regulation (EU) 2019/2022 ( ) ( ) is found:
Minimum duration of the guarantee offered by the supplier ( ):
C ( )
2
85
45
60
1,065
9
Supplier's address ( ):
Model identifier: MFD45S200W.2-ES MFD45S200X.2-ES
General product parameters:
EEI ( )
Cleaning performance index ( )
Energy consumption in kWh
[per cycle], based on the eco
program using cold
water fill. Actual energy
consumption will depend on
how the appliance is used.
Program duration ( ) (h:min)
Airborne acoustical noise
emissions ( ) (dB(A) re 1 pW)
Off-mode (W)
Delay start (W) (if applicable)
Water consumption in litres
[per cycle], based on the eco
program. Actual water con-
sumption will depend on how
the appliance is used and on
the hardness of the water.
Type
Height
Width
Depth
Energy efficiency class ( )
Drying performance index ( )
Free standing
Airborne acoustical noise
emission class ( )
Standby mode (W)
Networked standby (W)
(if applicable)
Dimensions in cm
E ( )
1,125
0,755
49
55,9
10
3:55
1,00
0,49
(d) Commission Regulation (EU) 2019/2022 of 1 October 2019 laying down eco design
requirements for household dishwashers pursuant to Directive 2009/125/EC of the
European Parliament and of the Council amending Commission Regulation (EC)
No 1275/2008 and repealing Commission Regulation (EU) No 1016/2010
(see page 267 of this Official Journal).
Rated capacity ( ) (ps)
a
a
a
a
a a
b
a
a
b
c
c
1b
Value
Parameter Parameter Value
24 months
Frigicoll.es / Midea.es
Supplier's name or trade mark:
1,00
EN
Midea

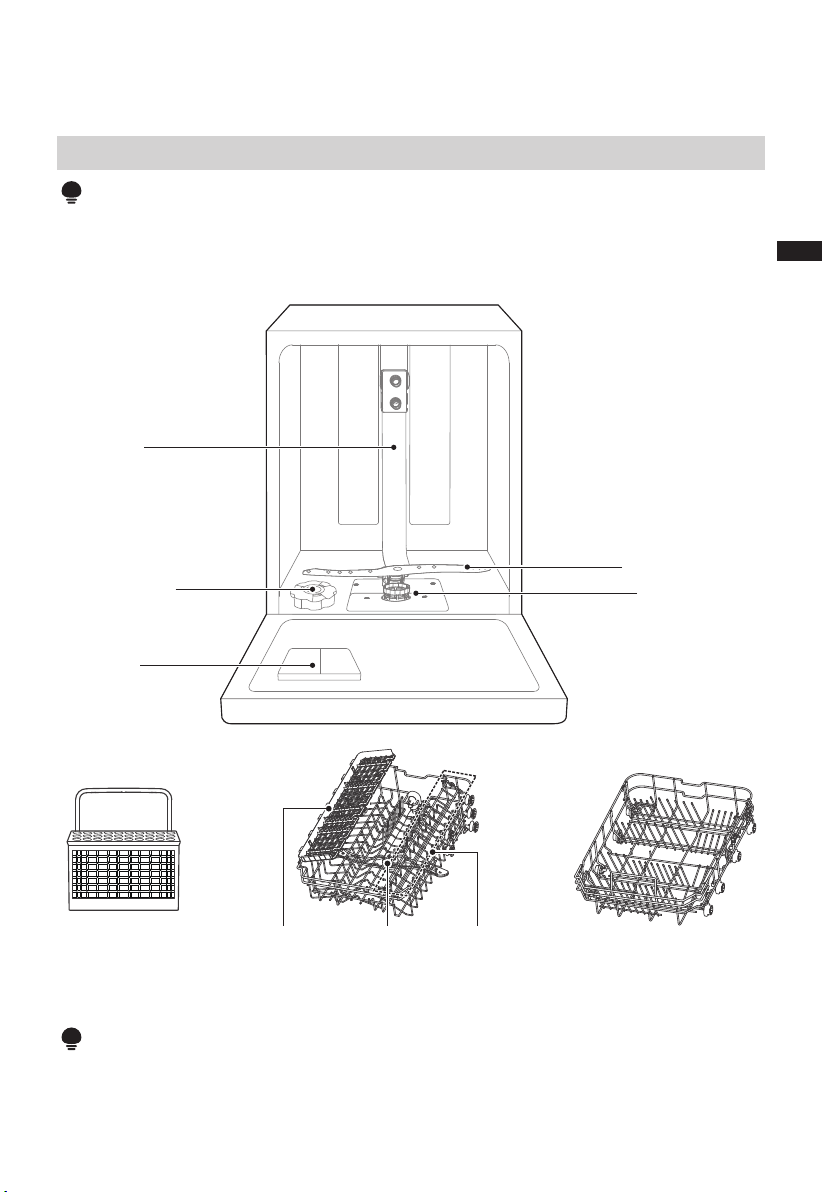

Inner pipe
Salt container
Dispenser
Lower spray arm
Filter assembly
Cutlery basket Upper basket Lower basket
Cutlery rack Upper spray
arm
Cup rack
10
Product
PRODUCTOVERVIEW
IMPORTRANT
To get the best performance from your dishwasher, read all operating
instructions before using it for the first time.
NOTE
Pictures are only for reference, different models may be different.
EN

QUICK START GUIDE
Please read the corresponding content in the instruction manual
for detailed operating method.
11
1.Install the dishwasher
3. Load the baskets.
Inside Outside
5. Select a suitable program
and start the dishwasher.
4. Fill the dispenser with
detergent and rinse aid.
2. Remove larger residue
from dishes.
Avoid pre-rinsing.
EN

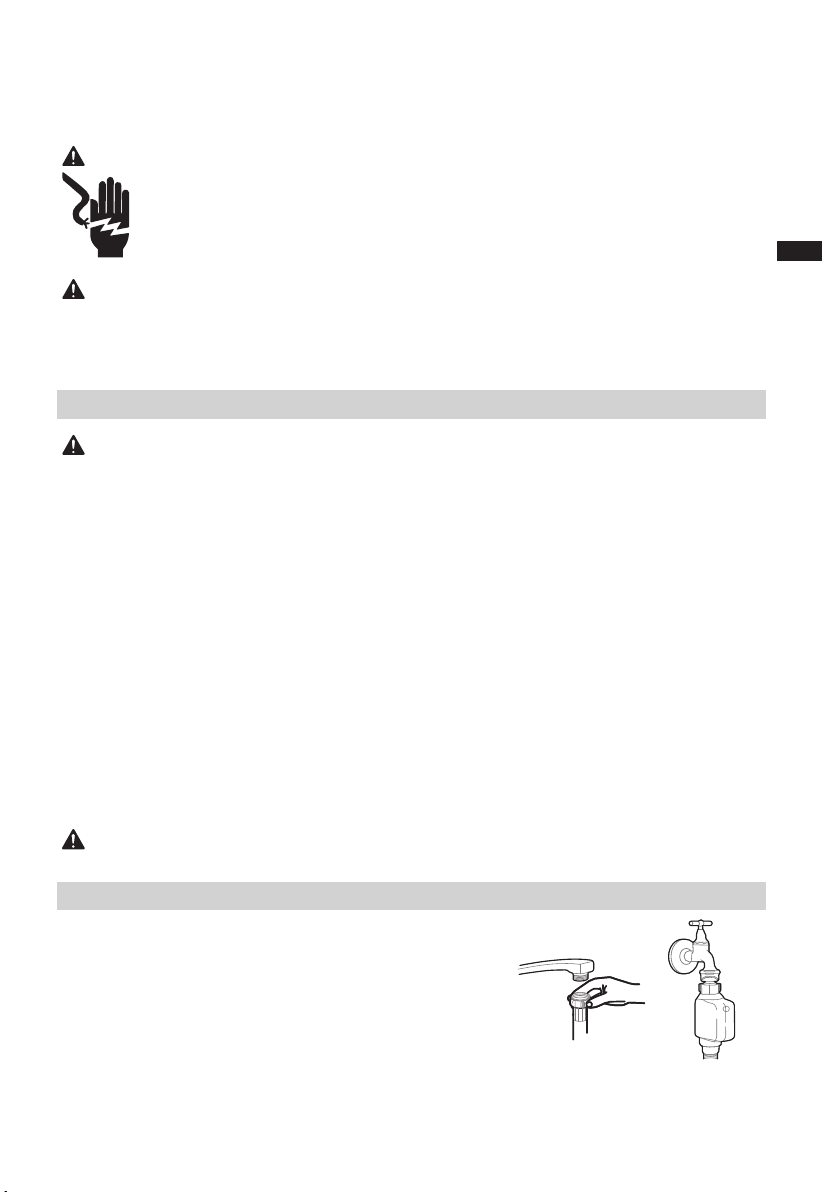

About Power Connection
Water Supply And Drain
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing
connection from the power cord.
The installation of the pipes and electrical equipments should
be done by professionals.
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dishwasher
to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or
circuit breaker recommended and provide separate circuit serving only this appliance.
Cold water connection
Connect the cold water supply hose to a threaded
3/4(inch) connector and make sure that it is fastened
tightly in place.
If the water pipes are new or have not been used for
an extended period of time, let the water run to make
sure that the water is clear. This precaution is needed
to avoid the risk of the water inlet to be blocked and
damage the appliance.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly.
If the electrical socket to which the appliance must be connected is not appropriate
for the plug, replace the socket, rather than using a adaptors or the like as they could
cause overheating and burns.
Ensure that proper earthing exists before use
ordinary supply hose
safety supply hose
WARNING
WARNING
Attention
12
PRODUCTINSTALLATION
EN

13
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into
the sink, making sure to avoid bending or crimping it. The height of drain pipe must be
less than 1000 mm. The free end of the hose must not be immersed in water to avoid
the back flow of it.
Electrical Shock Hazard
A hose that attaches to a tap can burst if it is installed on the same water line as the
dishwasher. If your sink has one, it is recommended that the hose be disconnected
and the hole plugged.
About the safety supply hose
The safety supply hose consists of the double walls. The system guarantees its
intervention by blocking the flow of water in case of the supply hose breaking
and when the air space between the supply hose itself and the outer corrugated
hose is full of water.
How to connect the safety supply hose-
1. Pull the safety supply hoses out from storage compartment located at
rear of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn the water fully on before starting the dishwasher.
How to disconnect the safety supply hose
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.
Connection Of Drain Hoses
Please securely fix the drain hose in either position A or position B
WARNING
B
A
MAX 1000 mm
Counter
Drain hose
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
40 mm
Drain Pipe
EN

Free Standing Installation
Fitting between existing carbinets
The height of the dishwasher, 845 mm, has been
designed in order to allow the machine to be fitted
between existing cabinets of the same height in
modern fitted kitchens. The feet can be adjusted so
that correct height is reached.
The laminated top of the machine does not require
any particular care since it is heatproof, scratchproof
and stainproof.
14
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher
could be reduced.ance.
Positioning The Appliance
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is
equipped with water supply and drain hoses that can be positioned either to the
right or the left sides to facilitate proper installation.
Syphon connection
The waste connection must be at a height less than 1000 mm (maximum) from the
bottom of the dishwasher.
Levelling the appliance
Once the appliance is positioned for levelling, the height of
the dishwasher may be altered via adjustment of the screwing
level of the feet.
In any case, the appliance should not be inclined more than 2°
How to drain excess water from hoses
If the connection to the drain pipe is positioned higher than 1000 mm, excess water
may remain in the drain hose. It will be necessary to drain excess water from the hose
into a bowl or suitable container that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
EN

Underneath existing work top
(When fitting beneath a work top)
In most modern fitted kitchens there is only one single
work top under which cabinets and electrical appliances
are fitted. In this case remove the work top of the
dishwasher by unscrewing the screws under the rear edge
of the top (a).
After removing the work top, the screws must be screwed again under the rear edge
of the top (b).
Attention
aa
bb
15
EN

Control Panel
OPERATIONINSTRUCTIONS
16
10
1 2 2 3 8 9 5 5 6 74
Description
●
No.1 Press this button to turn on your dishwasher,the
screen lights up.
●Press these buttons to select the appropriate
washing program, the corresponding program
indicator will be lit.
Power
No.2 Program
●Press these buttons to set the delayed hours for
washing. You can delay the start of washing up to
24 hours. One press on this button delays the start
of washing by one hour.
No.5 Delay
●When you have about or less than half of full place
settings dishware to wash, you can choose this
function to save energy and water. (It can not be
used with Rapid and Soak.)
Half load
No.3
●
No.6 Wi-Fi
Press the button for more than 3 seconds. After a
shout bleeping and the icon starts to blink slowly,
it's in the network linking status to APP.
Slowly flashing shows DW is waiting for connection.
Quickly flashing shows DW is connecting.
Quickly flashing solid shows DW is connected to
your wireless router.
●This option allows you to lock the buttons on the
control panel, except the Power button, so children
cannot accidently start the dishwasher by pressing
the buttons on the panel.
To lock or unlock the buttons on the control panel,
press and hold the program “ ” button +
Half-load button for 3 seconds simultaneously.
No.4 Child lock
EN

17
Description
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs. Consumption values and program duration are only indicative except
for the ECO program.
Programmes
( )indicates that the program uses rinse aid in the last rinse.
Hygienecare+
●
●
Glass ●
90 min
Rapid
●
●
Universal
No.8
Program
No.9
Screen
●
●
●
This is standard program, it is suitable to clean
normally soiled tableware and it is the most efficient
program in terms of its combined energy and water
consumption for that type of tableware.
Use to sanitize your dishes and glassware. The
highest water temperature is 72°C.
For normally soiled loads, such as pots, plates,
glasses and lightly soiled pans.
For lightly soiled crockery and glass.
For normally soiled loads that need quick wash.
Salt
Soak ●To rinse dishes that you plan to wash later that day.
Whisper
●Lower noise and normally energy consumption, used
for washing in evening.
A shorter wash for lightly soiled loads that do not
need drying.
If the “ ” indicator is lit, it means the dishwasher is
low on dishwasher salt and needs to be refilled.
●
Rinse Aid If the “ ” indicator is lit, it means the dishwasher is
low on dishwasher rinse aid and needs to be refilled.
●
Water Faucet If the “ ” indicator is lit, it means the water faucet
closed.
IntensiveCare+
●
●
●
To show the reminding time, delay time, error code
etc.
For the heaviest soiled crockery, and normally soiled
pots, pans, dishes etc. With dried-on food.
This program provides an effective cleaning of the
dishwasher itself.
MachineCare+
●To dry dishes more completely. ( It can only be used
with Universal, ECO, Glass, 90 min)
No.10
Cloud
wash
ECO
No.7 To start the selected washing program or pause it
when the dishwasher is working.
Start/Pause
Extra Drying
EN
