Midea MF100W75 User manual

WASHING MACHINE
Front Loading
Read This Manual
MODEL:
MF100W75
USER MANUAL
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
Use all instructions and explanations of

1
CONTENTS
Safety Instructions
Safety Instructions ..................................................
Installation
Product Description ................................................
Installation ...........................................................
Operations
Quick Start .............................................................
Before Each Washing ..............................................
Detergent Dispenser ...............................................
Control Panel .........................................................
Option....................................................................
Other Functions ......................................................
Programmes............................................................
Washing Programmes Table .....................................
Maintenances
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
2
8
9
12
13
14
15
16
17
19
20
21
24
25

2
• This appliance is not intended for use by
persons(includingchildren) with reduced
physical,sensory or mental capabilities or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to
be used and that old hose-sets should not be reused.
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household
and similar applications such as:
− staff kitchen areas in shops, offices and other
working environments;
− farm houses;
− by clients in hotels, motels and other residential type
environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in
launderettes.
Safety Instructions
SAFETY INSTRUCTIONS

3
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
The electric shock!
Safety Instructions
SAFETY INSTRUCTIONS
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
！
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
Warning!
！

4
• Before any maintenance the device, unplug the
appliance from the mains.
• Always unplug the machine and turn off the water
supply after use. The max. inlet water pressure, in
pascals. The min. inlet water pressure, in pascals.
• Plug must be accessible after installation.
• Pull out its plug and cut off water supply after the
operation.
• Take care that power voltage and frequency shall be
identical to those of washing machine.
• Glass door may be very hot during the operation. Keep
kids and pets far away from the machine during the
operation very wet rooms as well as in the rooms with
explosive or caustic gas.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can
be connected to the cold water supply. The product
with double inlet valves should be correctly connected
to the hot water and cold water supply.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make
sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.
SAFETY INSTRUCTIONS

5
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
• This washing machine is for indoor use only.
Installing the product!
• Do not use any socket with rated current less than that
of appliance.Never pull out power plug with wet hand.
Risk to children!
• Children of less than 3 years should be supervised to
ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Kids should be supervised that they do not play with the
appliance.
SAFETY INSTRUCTIONS
Caution!

6
• It isn't intended to be built-in using.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
5.A precaution indicates that the hands shall not be
inserted into running water-extracting tub.
SAFETY INSTRUCTIONS

7
Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
6.A precaution indicates that the appliance shall not
be installed at a humid place.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
• It is forbidden to wash carpets.
SAFETY INSTRUCTIONS

8
Accessories
Product Description
Transport
plughole
Supply hose
cold water
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual
INSTALLATION
Acoustic
sponge

9
Installation
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as coal or gas.
as

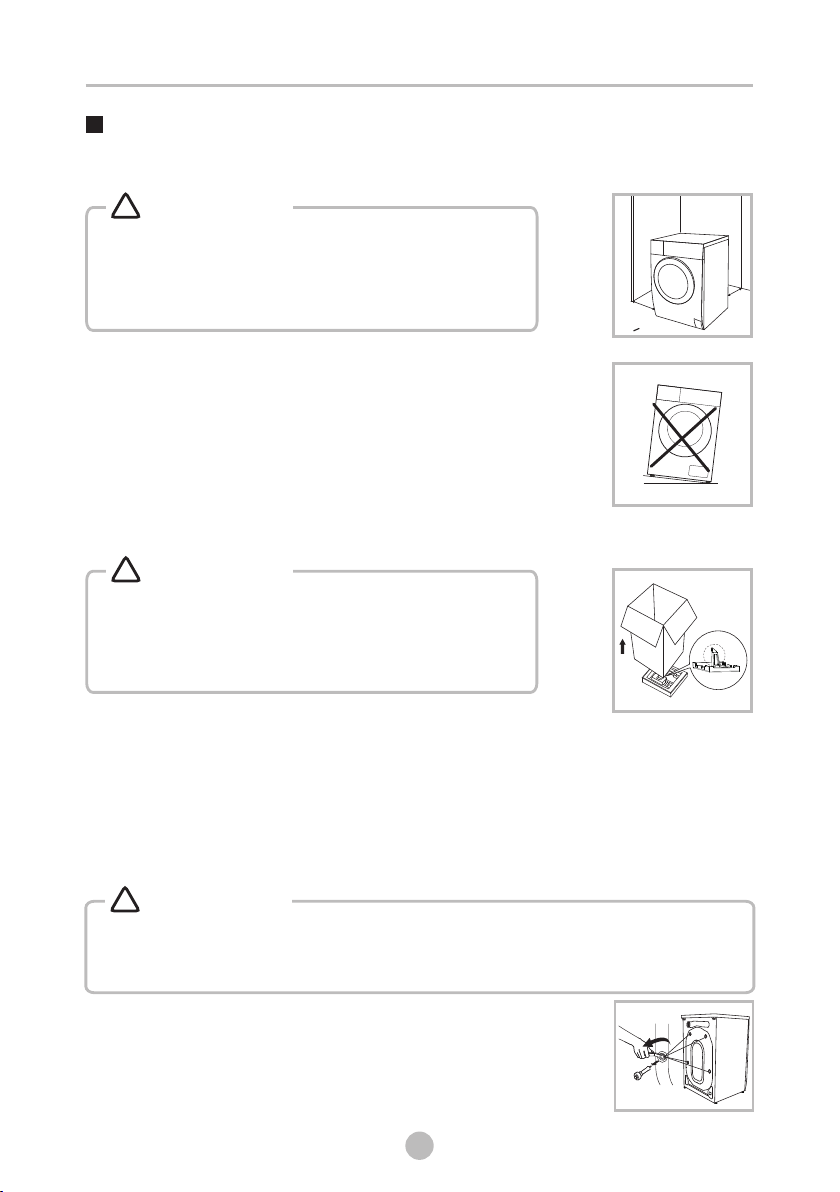

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
•
• product
you
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the , so make sure
keep them in a safe place.
Warning!
！
INSTALLATION
w
w
W> 20mm
Installation area

9
10
1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.

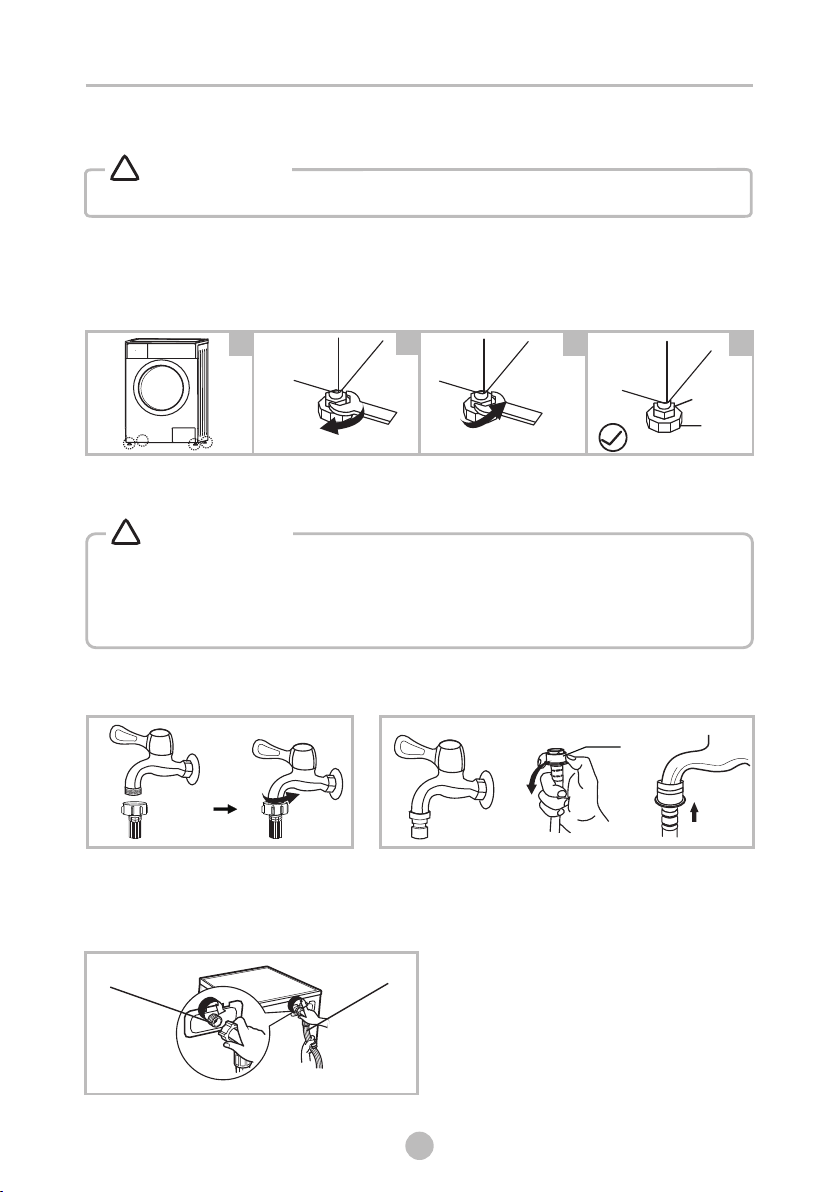

2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
• For the model equips hot valve,connect it to hot water tap with hot water supply
hose. Energy consumption will decrease automatically for some program.
234 1
Raise Lower
Lock nut
foot
Warning!
！
Warning!
！
INSTALLATION
Tap with threads and inlet hose Special tap for washing machine
1.Connection between screw tap and inlet hose.
slide bushing
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.

10
11

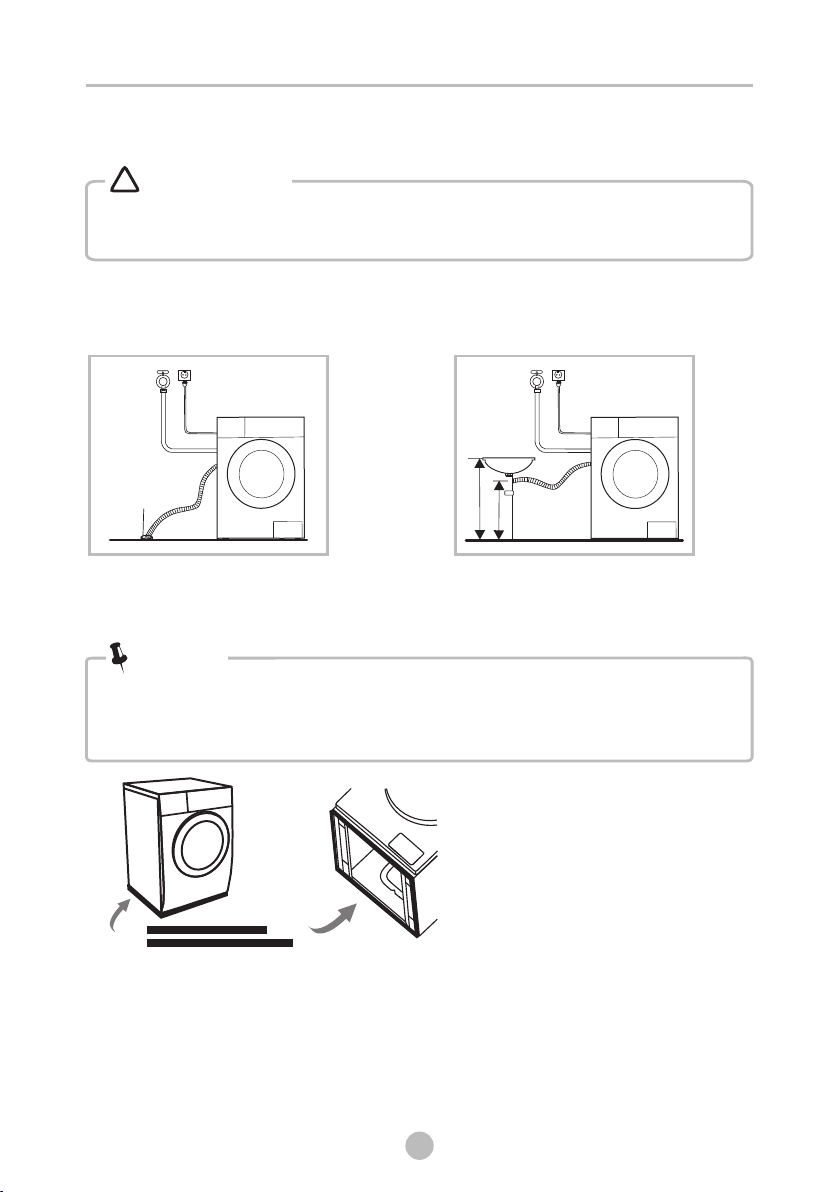

Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Water
trough
Min.60cm
100cm
Max.
Warning!
！Warning! ！
INSTALLATION
• Please make sure to assemble the acoustic sponges, which can effectively
reduce the noise caused by the machine while working, in order to provide
you with a more peaceful and quiet living environment.
Note!
Acoustic Sponge
2x
2x
1. Get the machine laid on the floor, using some soft material like foam or clothes
between the machine and floor for a protection;
2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x
shorter sponges to the shorter bottom edges.

10
12

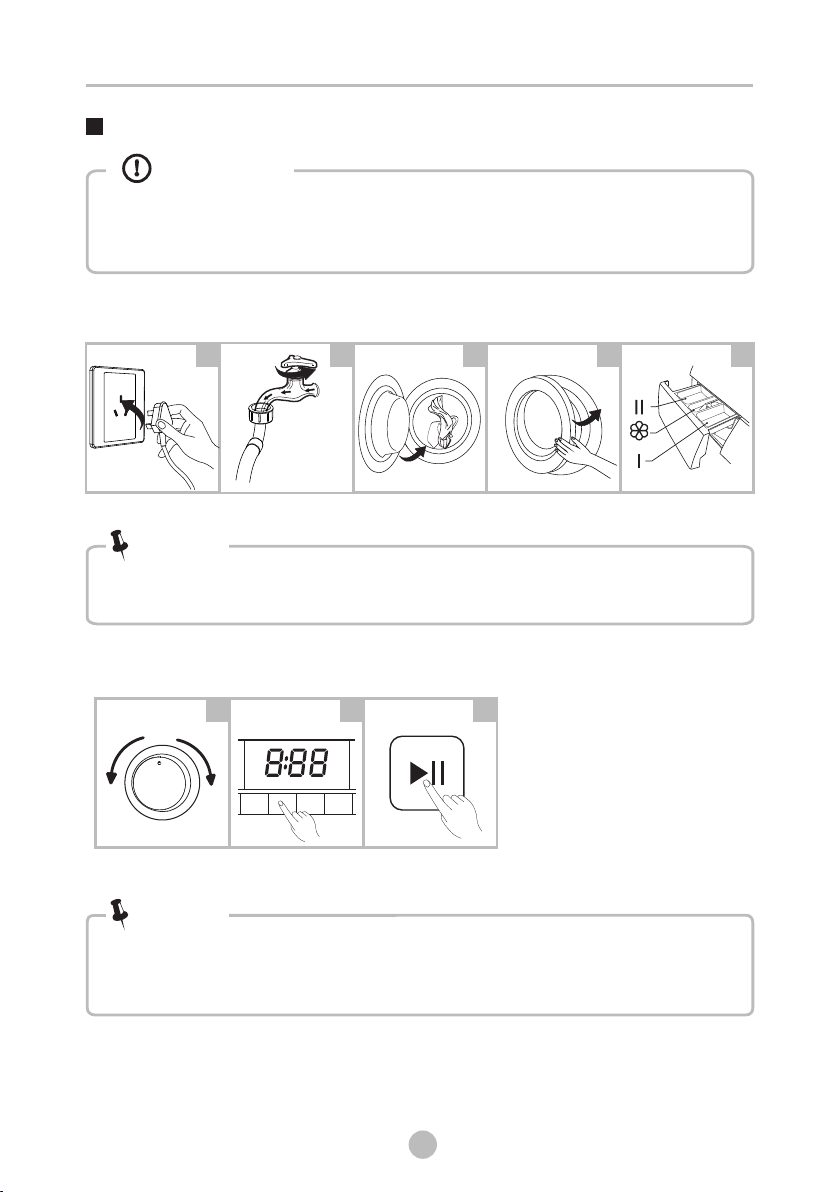

Before washing, please make sure it’s installed properly.
Before washing at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
1. Before Washing
Buzzer beep or “End” on display.
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
3. After Washing
• Detergent only need to be added in "case I “after selecting pre-washing for
machines with this function.
1 2 3 4 5
2. Washing
Select Programme Select function or
default
Start up
1 2 3
Note!
Caution!
OPERATIONS
Main
wash
Prewash
Softener
• 1.
2.The function button line chart is for reference only, please refer to real product
as standard.
If default is selected, step 3 can be skipped.
Note!

10
13
Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)°C.If used under 0°C,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0°Cor less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
OPERATIONS

Caution!
• Detergent only need to be added in "case I “after selecting pre-washing
for product with this function.
10
14
OPERATIONS
Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
II
I
Pull out the dispenser
Programme
Cotton Cold
Cotton 20℃
Cotton 40℃
Cotton 60℃
Jeans
Delicate
ECO 40-60
Rinse & Spin
Means must ○ Means optional
Programme
Spin only
Hygiene 90℃
Mix 60℃
Mix 40℃
Mix 20℃
Rapid 45’
Quick 15’
• As for the agglomerated or ropy detergent or additive, before they are
poured the detergent box, it is suggested to use some water for
dilution to prevent inlet of detergent box from being blocked and
overflowing while filling water.
•
into
the
Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
Note!

10
15
OPERATIONS
Control Panel
Off
Product is switched Power.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
Note!
The chart is for reference only, Please refer to real product as standard.•
1
5
2
3
D
A
C
D
B
Door Lock Pre Wash
Extra Rinse
Display
Wash Time Delay Time
Speed Error
End
1
1
1
4
A
CB

Delay

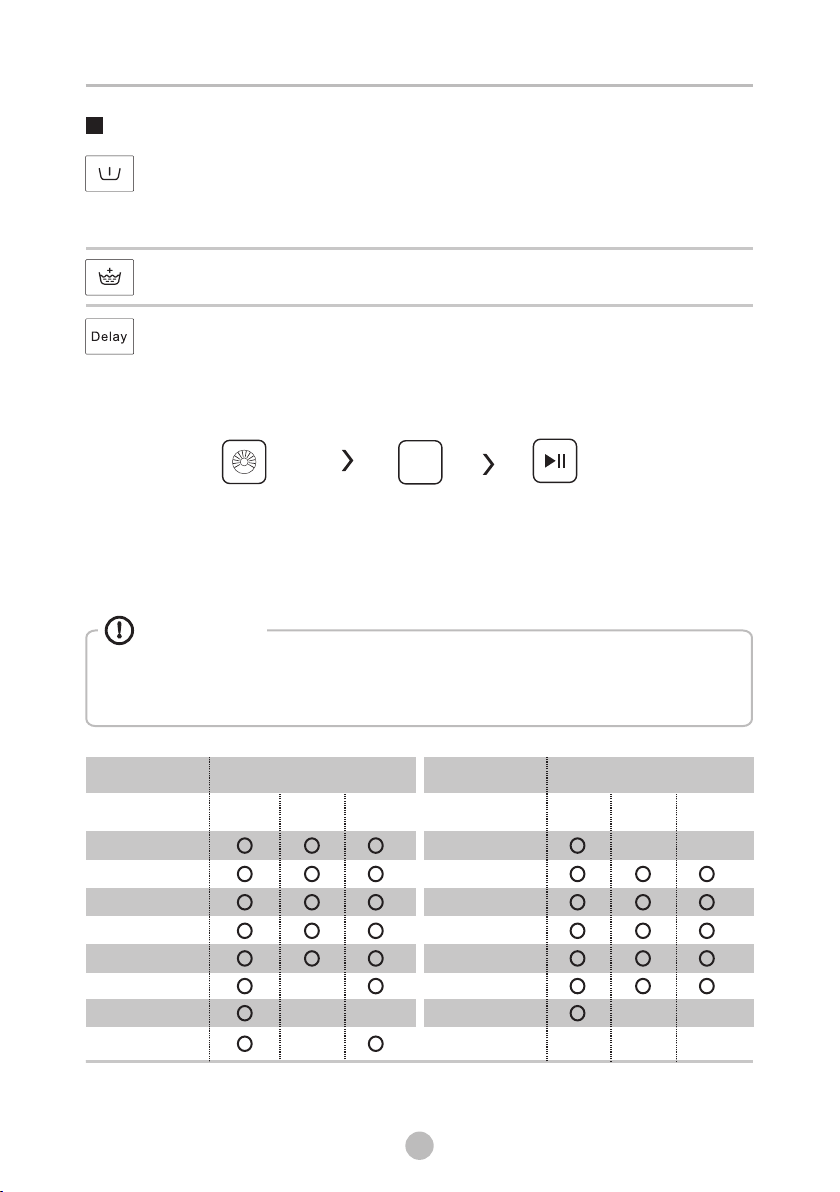

Set the Delay function:
1. Select a programme
2.Press the Delay button to choose the time(the delaying time is 0-24 H.)
3.Press [Start/Pause] to commence the delay operation
Choose the Programme StartSetting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before
starting the programme. If the programme already started, should select
[Off] to reset the programme.
Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for
washing the dust rises to surface of the clothes;You need to put detergent into
the Case (I) when select it.
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Option
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme and when the power is
restarted, press the [Start/Pause]button the program will continue.
Delay
Programme Option Programme Option
Pre
Wash
Cotton Cold
Cotton 20℃
Cotton 40℃
Cotton 60℃
Jeans
Delicate
ECO 40-60
Rinse & Spin
Spin only
Hygiene 90℃
Mix 60℃
Mix 40℃
Mix 20℃
Rapid 45’
Quick 15’
Delay
○ Means optional
10
16
OPERATIONS
Extra
Rinse Pre Wash Extra Rinse

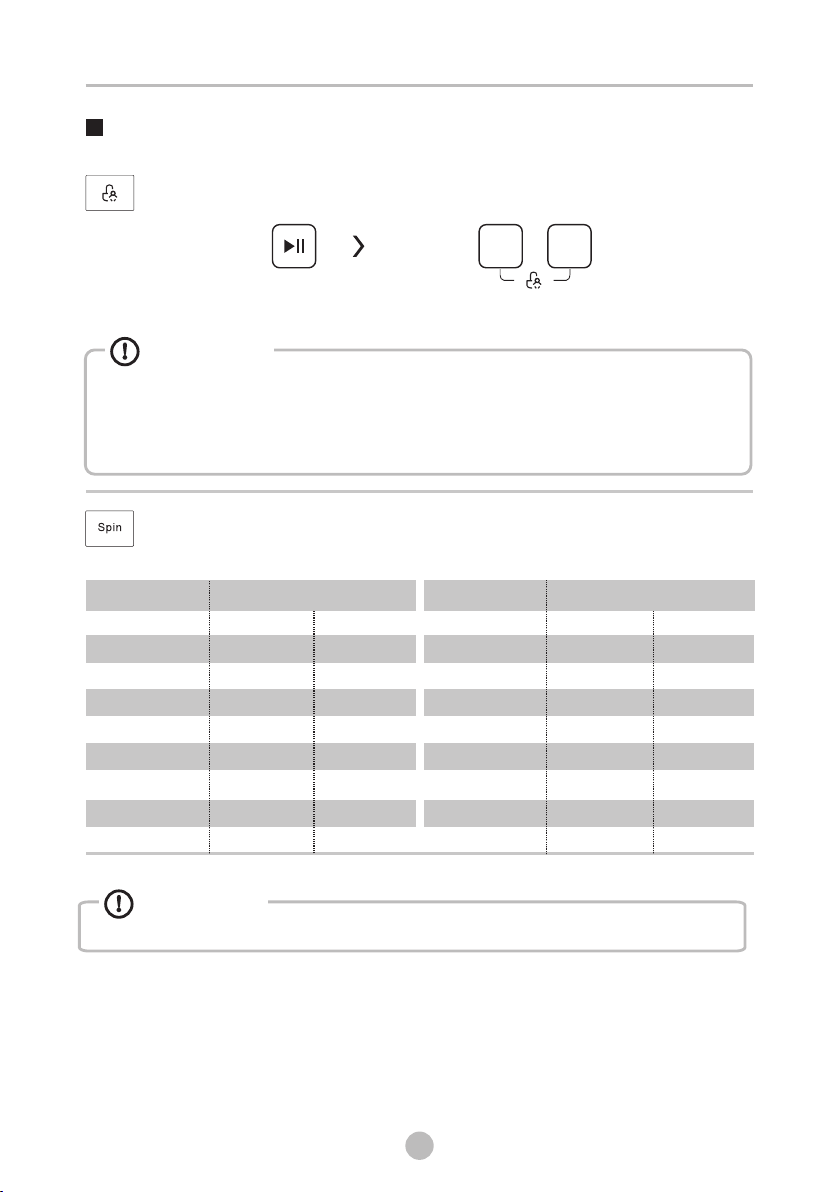

Child Lock
To avoid mis operation by children.
Start Press [Extra Rinse] and [Pre Wash]
3 sec. till buzzer beep.
Cut off the power supply , the kid’s protection is to be released.
• Press the two button 3sec. also to be released the function.
• The “Child Lock” will lock all buttons except [ Off ].
•
• The child lock will remain effective when the power is resumed for some models.
Caution!
Other functions
10
17
OPERATIONS
Extra
Rinse
Pre
Wash
Spin
Press the button to change the spin speed.
1000: 0-400-600-800-1000 1200: 400-600-800-1000-1200
Programme Default Speed(rpm)
Cotton Cold
Cotton 20℃
Cotton 40℃
Cotton 60℃
Jeans
Delicate
ECO 40-60
Rinse & Spin
Programme Default Speed(rpm)
Spin only
Hygiene 90℃
Mix 60℃
Mix 40℃
Mix 20℃
Rapid 45’
Quick 15’
1000
800
800
1000
800
800
800
800
800
• When the lights of spin speed are off means the spin speed is 0.
Caution!
1000
800
800
800
800
1000
800
800
1200
800
1000
1200
1000
1000
1000
1000
1000
1200
1000
1000
1000
1000
1000
1000
800

OPERATIONS
10
18
Press the [Delay]&[Spin] button for 3sec.
the buzzer is mute.

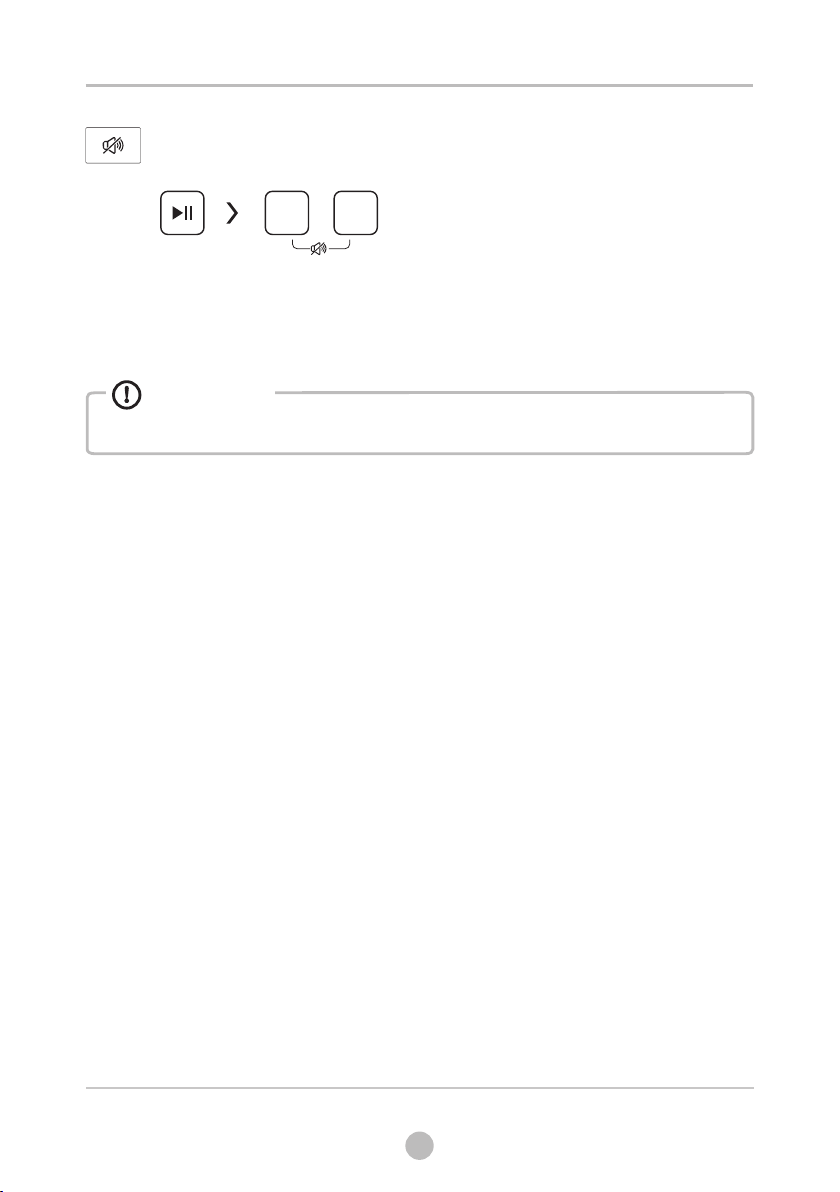

Mute the buzzer
Delay Spin
To act the buzzer function, press the two buttons again for 3 seconds. The setting
until the next reset. will be kept
Start
• MuAfter ting the buzzer function, the sounds will not be activated any more.
Caution!

Programmes are available according to the laundry type.
10
19
OPERATIONS
Programmes
Programmes
Quick 15’
Mix
Cotton
Hard-wearing textiles, heat-resistant textiles made of cotton or
linen.
Washing machine can kill some bacterium, and achieve hygiene
effect.
This programme is suitable for washing not very dirty clothes,
save more energy and washing.
Mixed load consisting of textiles made of cotton and synthetics.
Specially for jeans.
Extra short programme approx, suitable for lightly soiled
washing as a small amounts of laundry.
Extra spin with selectable spin speed.
Extra rinse with spin.
Spin Only
Rinse&Spin
Hygiene 90℃
Rapid 45’
Jeans
Default 40℃,not selectable,suitabale for laundry washing at
about 40℃-60℃.
ECO 40-60
Delicate For delicate, washable textiles, e.g. made of silk, satin, synthetic
fibres or blended fabrics.
• Reference to your product to select the programmes.
Note!
