Gauntlet: Dark Legacy 3
Setup
NOTICE: Information in this manual may change without notice. Midway Games West Inc. reserves
the right to make improvements in equipment function, design, or components as progress in engi-
neering or manufacturing methods may warrant.

4Midway Games West Inc.
Chapter 1 Setup
Safety Notices
The following safety instructions apply to all operators and service personnel. Specific warnings and cau-
tions appear throughout this manual. Read this page before preparing your game for play.
EPILEPSY WARNING
A very small portion of the population has a conditionwhich may cause them to experience epileptic seizures or have momentary
loss of consciousness when viewing certain kinds of flashing lights or patterns that are present in our daily environment. These
persons may experience seizures while watching some kinds of television pictures or playing certain video games. People who
have not had any previous seizures may nonetheless have an undetected epileptic condition.
If you or anyone in your family has experienced symptoms linked to an epileptic condition (e.g., seizures or loss of awareness),
immediately consult your physician before using any video games.
Parents should observe their children while they play video games. If you or your child experience the following symptoms: diz-
ziness, altered vision, eye or muscle twitching, involuntary movements, loss of awareness, disorientation, or convulsions,
DISCONTINUE USE IMMEDIATELY and consult your physician.
CAUTION: The hard disk drive must be packed in an anti-static bag and in an approved shipping
container (P/N 08-8068) in order to be sent in for repair or replacement. Do not stack or drop hard disk
drives during installation or removal.
CAUTION. Transport machine securely, as it contains glass and fragile electronic devices. Avoid
rough handling and never move cabinet while power is on.
CAUTION. Verify switch on the power supply is set for 110VAC or 220VAC according to local line
voltage. Verify fluorescent lamp is correct for local voltage.
WARNING. Avoid electrical shocks. Do not plug in line cord until machine has been inspected and
properly grounded. Use only a fixed-location grounded 3-wire outlet. Do not use a "cheater" plug or
cut off ground pin on line cord
WARNING. This video game machine has no isolation transformer. There is no isolation between the
internal cabinet AC system and the external AC line.
WARNING. To avoid electrical shock, turn off power switch and disconnect from AC power source
before removing or repairing any component. After servicing, ensure all ground wires are secure
before restoring power.
NOTICE. Ensure proper mating of all connectors. If a connector does not slip on easily, do not force.
Reversed connectors may damage your machine and void the warranty. Connectors are keyed to fit
specific pins on each board.
WARNING. To avoid electrical shock, all replacement fuses must match the type, voltage rating, and
current rating of the original fuse.
WARNING. A dropped fluorescent tube or CRT can break and explode, shattering glass eight feet or
more from the point of impact. Handle all glass parts carefully.

Gauntlet: Dark Legacy 5
Chapter 1 Setup
Product specifications
MAINTENANCE
Viewing Glass
You need not switch off AC power to clean the glass. Apply a mild glass cleaner to a clean cloth or
sponge, then use this to wipe the viewing glass. Do not apply cleaner directly onto glass. Liquid could drip
down into video game machine circuits or onto detectors and cause erratic operation.
Cabinet
Use plastic-safe non-abrasive cleaners to avoid damage. Apply cleaner to clean cloth or sponge, then use
this to wipe the controls or cabinet. Do not apply cleaner directly on controls or cabinet.
Operating Requirements
Electrical Power
Domestic 120VAC @ 60Hz 3.0 Amps
Foreign 230VAC @ 50Hz 2.0 Amps
Japan 100VAC @ 50Hz 3.0 Amps
Temperature
32ºF to 100ºF
(0ºC to 38ºC)
Humidity
Not to exceed 95% rela-
tive
Cabinet Statistics
Shipping Dimensions
Main Cabinet Control Section
Width 58 in (147 cm) 49 in (124 cm)
Depth 36 in (91 cm) 30 in (76 cm)
Height 79 in (201 cm) 45 in (114 cm)
Shipping Weight
Main Cab Cntrl Section
580 lbs 140 lbs
264 kg 64 kg
Design Type
Dedicated video game
machine with 49-way
optodetector joysticks
Equipment Characteristics
Video Display Monitor
Medium resolution RGB
39 in (96.5 cm) CRT
Audio System
Digital Stereo
2 4.5 in (8 cm) full range
speakers
Currency Acceptors
Standard coin door
2 coin mechanisms
1 coin counter
Game Characteristics
Player Variables
1 to 4 players per game
High score recognition
Operator Variables
Coinage, game options,
difficulty, volume, demo
mode, audits, statistics
Diagnostics
Automatic power-up test
Manual multi-level Menu
System

6Midway Games West Inc.
Chapter 1 Setup
INSTALLATION AND INSPECTION
1. Remove all components and packaging from shipping containers and set aside.
2. Inspect main cabinet and control section exteriors for damage.
3. Main cabinet is mounted on four swivel casters. Roll cabinet to intended location, maintaining clear-
ance from walls, drapes, other games or obstructions.
4. Lower each leg leveler until cabinet is stable and level. Adjust levelers to raise wheels up off floor and
distribute weight equally on each corner.
5. Move control section near main cabinet, leaving space to attach wiring harness. Mate each control
cable with its cabinet cable. Press firmly to seat connectors.
6. Lift and move control section against main cabinet, guiding harness into main cabinet.
7. Install and adjust each leg leveler until control section is stable and level. Adjust levelers until bottoms
of both pieces are flush and parallel with each other. Inspect for binding or pinched wires.
8. Locate coin door keys on one of the joysticks. Unlock and open coin door.
9. Locate access panel and monitor panel keys on rear fan grill. Unlock and open cash box door. Remove
spare parts stored in cash box.
10. Unlock and open front door. Let it rest on support chains. Inspect cabinet interior for signs of damage.
Ensure all major assemblies are mounted securely.

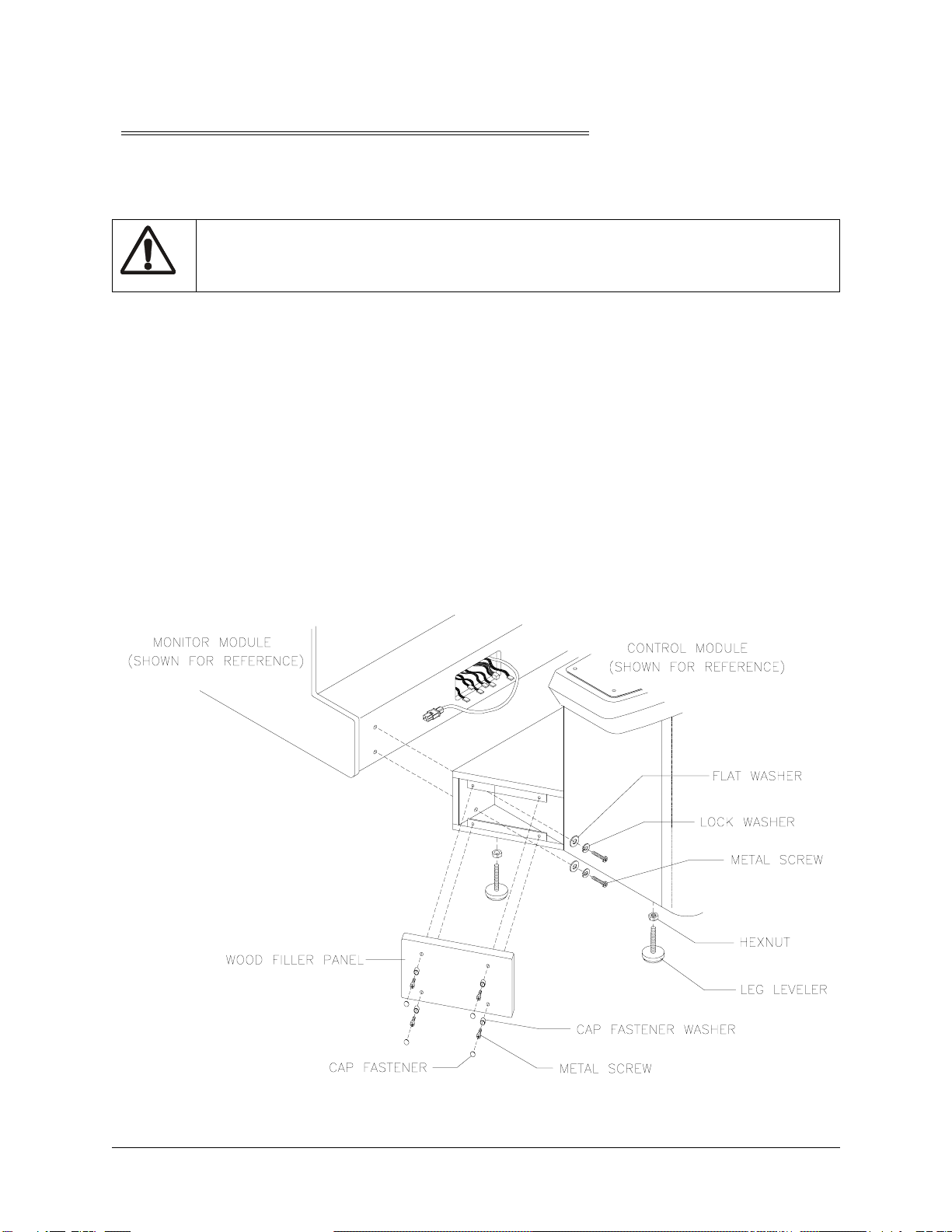

ATTACHMENT OF CONTROL SECTION TO MAIN CABINET
CAUTION. Cabinet is top heavy. Do not push against plastic parts during movement

Gauntlet: Dark Legacy 7
Chapter 1 Setup
11. Refer to Cabinet Wiring Diagram (Wiring Chapter), and ensure all cable connectors are correctly
secured. Do not force connectors, which are keyed to fit in only one location. Bent pins and reversed
connections may damage your game and void the warranty.
12. Place one lockwasher and one flatwasher onto each bolt in spare parts bag. Align control section holes
with main cabinet holes. Install one bolt with its washers through control section and into each
threaded cabinet hole. Tighten all bolts securely.
13. Place one cover cap washer onto each screw in spare parts bag.
14. Locate wood filler panel inside control section. Reach inside coin door to retrieve.
15. Place wood filler panel over bolt access opening in control section. Align wood filler panel holes with
control section holes. Install one screw with its washer through wood filler panel and into each control
section hole. Repeat installation for remaining wood filler panel, then tighten screws firmly. Snap dec-
orative cover caps over screws.
16. Locate line cord in spare parts. Match holes on IEC plug with prongs in receptacle and push firmly to
seat line cord. Route cord away from cabinet wheels and heavy foot-traffic areas.
LINE CORD INTO POWER SUPPLY
17. Plug game into a grounded (3-terminal) AC wall outlet. Switch AC power on at ON/OFF switch on
center left rear of cabinet. Gauntlet: Dark Legacy powers up and begins self-diagnostics. If no errors
are found, Attract Mode begins.
