Panda Vending MF1500 User manual

第0页
MF1500 Mini Toy Crane Instruction
Content

第1页
Content -------------------------------------------------------1
Forewords --------------------------------------------
---2
Security Warning------------------------------------------3-5
Accessories list -----------------------------------------6
Install Condition---------------------------------------------7
Summary
-------------------------------------------8-9
How to play ---------------------------------------------10
Crown block summary---------------------------------------11
Introduction of light eyes----------------------------------12
Counter introduction --------------------------------------13
Mainboard introduction ------------------------------------14-18
Winning probability algorithm------------------------------------19-21
Failure Description ---------------------------------22-23
Imprint and others --------------------------------24-25

第2页
Preface
Thanks for your purchasing our product”JiWaWa”（Hereinafter
referred to as” The machine”）product，Before using this product,please
read this instruction be carefully。When you start using this product,We
belive that you have carefully read this instruction 。We have carefully
witten all content for this instruction，any printing errors or omissions or
translation errors hope the majority of users understanding.When the
software need to upgrade,which relates to the content will have some
change,We wouldn’t notice intentionally,please understand.
About some part of the picture that is in development stages of design for
this instruction,maybe slightly defferent,But does not affect users.

第3页
Security warning (for the sake of safe use, be sure to read)
In this instruction manual shows the following:
● Safty way for handling, installation, move, run, set up, maintenance of the
machine
● To make full use of the machine's functionality provides detailed game set,
play.
● To ensure safe use of the method as well as the players who visited around
the machine。
● About This simple troubleshooting and repair of the machine method.
● About this machine operation or maintenance questions, please contact
our dealer or customer service center.
To our Inspect customers
When the machine is handling, installation, move, run, set up, maintenance,
waste, make sure to read about the project in advance, to observe precautions to
make instructions.
The degree of risk rating
In this machine as well as our manul refers security-related matters, loss of
materials, according to the degree of risk, classification as follows :
Warning :when unable to avoid the dangerous situation may lead
to the possibility of death or serious injury.
Note: when you fail to avoid this danger, it may cause the possibility
of negative minor injuries and make other property .
In addition, the related functions do not involve safety considerations, as follows:
About product features, protection precautions.

第4页
Security Warning（For the purpose of safe use,please must be read）
The definition of the technical staff
This manual for those who write for the object stores is made to ensure the
smooth operation, be sure to be carried out by technical staff.
Technical staff: refers engaged in machine design, manufacture, inspection,
maintenance service person game manufacturers, as well as in the industrial and
high-ranking graduate, has the same electrical, electronics, mechanical engineering
expertise, engage in routine maintenance and management consoles.
Please read the caution first
Caution
● In case an exception occurs, turn off immediately (OFF) power switch, stop
running. After that, be sure to disconnect the power cord from the power outlet.
Running under abnormal state may cause a fire, an accident
● If the power plug is effectively inserted (inserted in the end) power outlet.
Otherwise, poor contact may cause fever, fires, burns.
● Avoid other acts damage the power cord。
● Avoid the power cord, the power cord is exposed to water, as this may cause
electric shock or leakage.
● ：
◆ Away from the hot utensilsi
◆ No Twisted
◆ No too much bending

第5页
◆ No working
◆ No tied
Security warning （For safety you must read )
◆ Don’t pull（When unplugging the power cord, do not pull the power
cord, hand holding the power plug and pull it out）。
● Do not place objects on the power cord so that the power cord is clamped to
avoid the machine, other products, such as walls.
● Avoid other acts damage the power cord
● Avoid the power cord, the power cord is exposed to water, as this may cause
electric shock or leakage.
● Do not touch the power plug with wet hands, as this may cause electric shock.。
● The machine with large power capacity (see specifications), because of the
presence of fire, electric shock, be sure to use the appropriate power supply
specifications of indoor wiring。
● Use the AC power supply voltage requirements 220V ~ 50Hz, allowing the
supply voltage for the 210V-230V ~ 50Hz range, such as beyond the scope of
use, it may cause a fire or electric shock.。
● About consumables, repair parts (including screws), please use the designated
parts.
● Do not modify the machine. Also, do not conduct not covered in this manual
operation. Such as transformation, can be dangerous unexpected happen。

第6页
● When resell the machine, be sure to attach this manual on the machine body.
Note: Ifnon-technical personnel, do not open the base cover. 2, if touching the
internal parts. May result in electric shock or injury. 3, open the door must turn off
the power.
Accessories List
The machine detail accessories as follows：
No. Accessory Name quantity/Units Remark
1 Cabinet 1
2 Adversting Board 1
3 Cabinet Door：888 Key 2
4 Coin Box：999 Key 2
5 Power Line 1
6 Protective tube(10A) 1
7 Instruction 1

第7页
The machine installtion
Install basic condition
●According to the specified instructions and procedures to install the machine。
●Do not place objects on the ventilation holes near the back of the machine,
avoid walls, etc. to make jam. Otherwise, the internal device will tend to high
temperatures, may cause fire, malfunction.
●Keep the power plug securely insert into the AC power outlet,
Otherwise, poor contact will result in heat, fire, burns.
●To ensure the ground connection. If there is no ground connection may result
in leakage.。
●Try using a horizontal regulator mounting machine. Prevent the installation of
instability caused by an accident or injury
●The machine for indoor use machine, do not set up outdoors as well as the
following locations:
▲withstand direct sunlight locations
▲rainy, leaking location
▲humid locations
▲dusty place
▲locations near heating equipment
▲high temperature place
▲Cold place
▲due to temperature can cause condensation location
▲disaster prevention in impeding the safe export location, setting fire
equipment location
▲unstable location, the location of vibration

第8页
Machine brief introduction
JiWaWa machine Features，Use the rocker move the hook to the favorite
toy，Press the button in limited time，The hook will help you automobile
automatic catch the toy，But,Whether can or can not catch the toy depends on
your level and luck。The machine use the coin operated，Do not need people
management，Very popular with many teenagers and childrens.
Claw crane toy machine：1.Very cool popular music，Fashion voice prompt。
2.Cute cartoon design3.Coin device,Convenient Custom chips
4.Fault Code,Convenient repair. 5.With Chronograph funcation,
Convenient audit

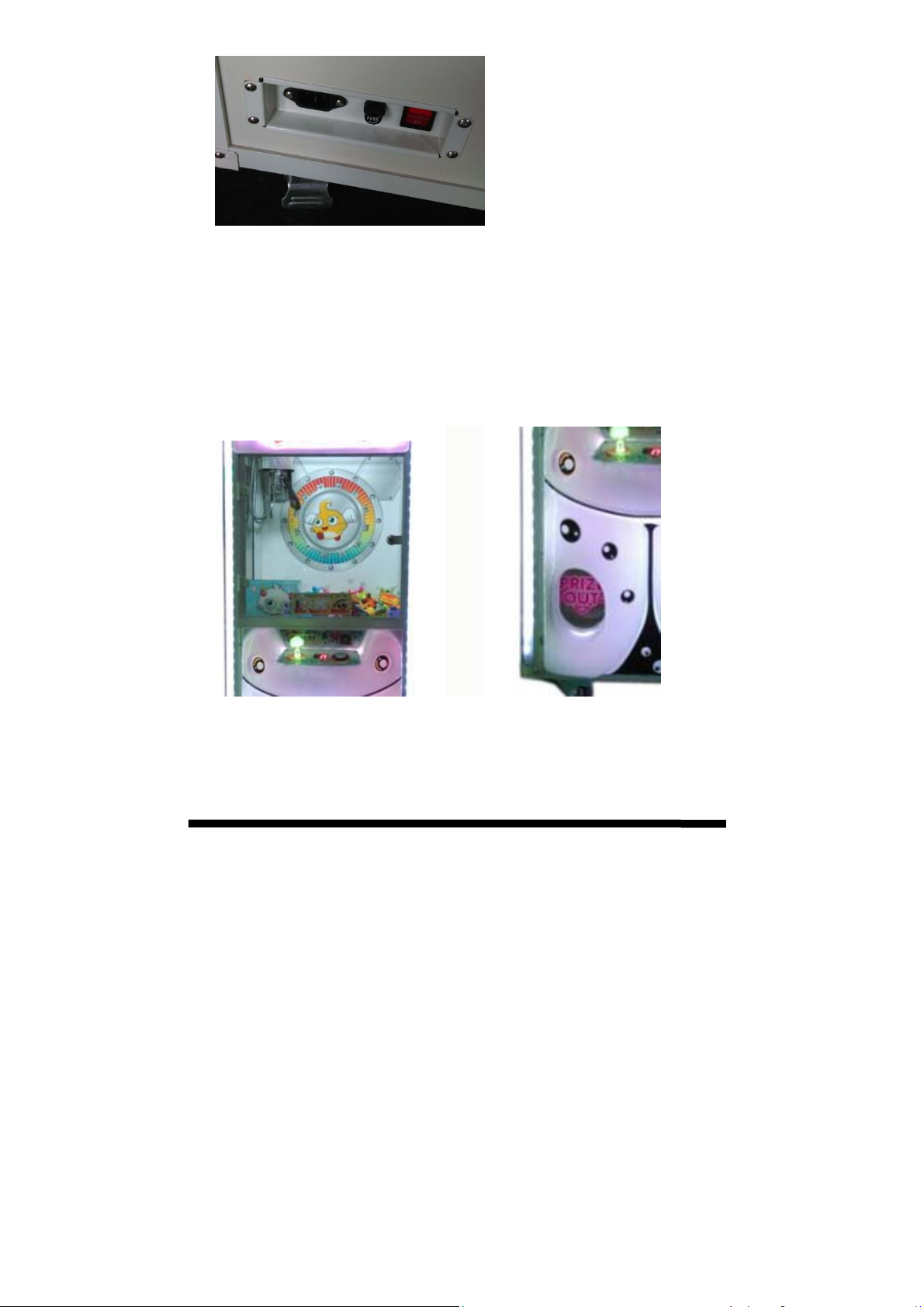

The machine back shows. Below picture

第9页
Description of the machine
Machine Size: H(1800mm)*L(560mm)*T(500mm)
Machine Signboard Size: H(380mm)*L(530mm)
Fuse
（T5A ~250V）
Use same Spec in change
Power button
The button turn off all powe
r
for this machine
When an exception occurs
please turn off the button
at once. When don’t use fo
r
long time. Must keep :OFF”
status
AC Power input
Request for connection
220V/50Hz power

第10 页
How to Play?
Operating instruction
1. Firstly,Plug the power line,open the power switch.As show below.
Signboard
Lock
Lower claw
b
utton
Coin Lock
Coin Slot
Wheel
Fault,pay time
display
Rocker
Claw
Prize slot
Operated step

第11 页
2. Throw game coin then start the game,Players control machine gift.
3. When players throw coin game,if don’t operated the machine,The machine
will event then automatic claw the gift.
4. In limited time,The rocker control crown block four directions move.press
the pew fetch,the claw also can automatic fetch.
5. you can get a gift when the machine successful grab.
About machine crown block
招牌

第12 页

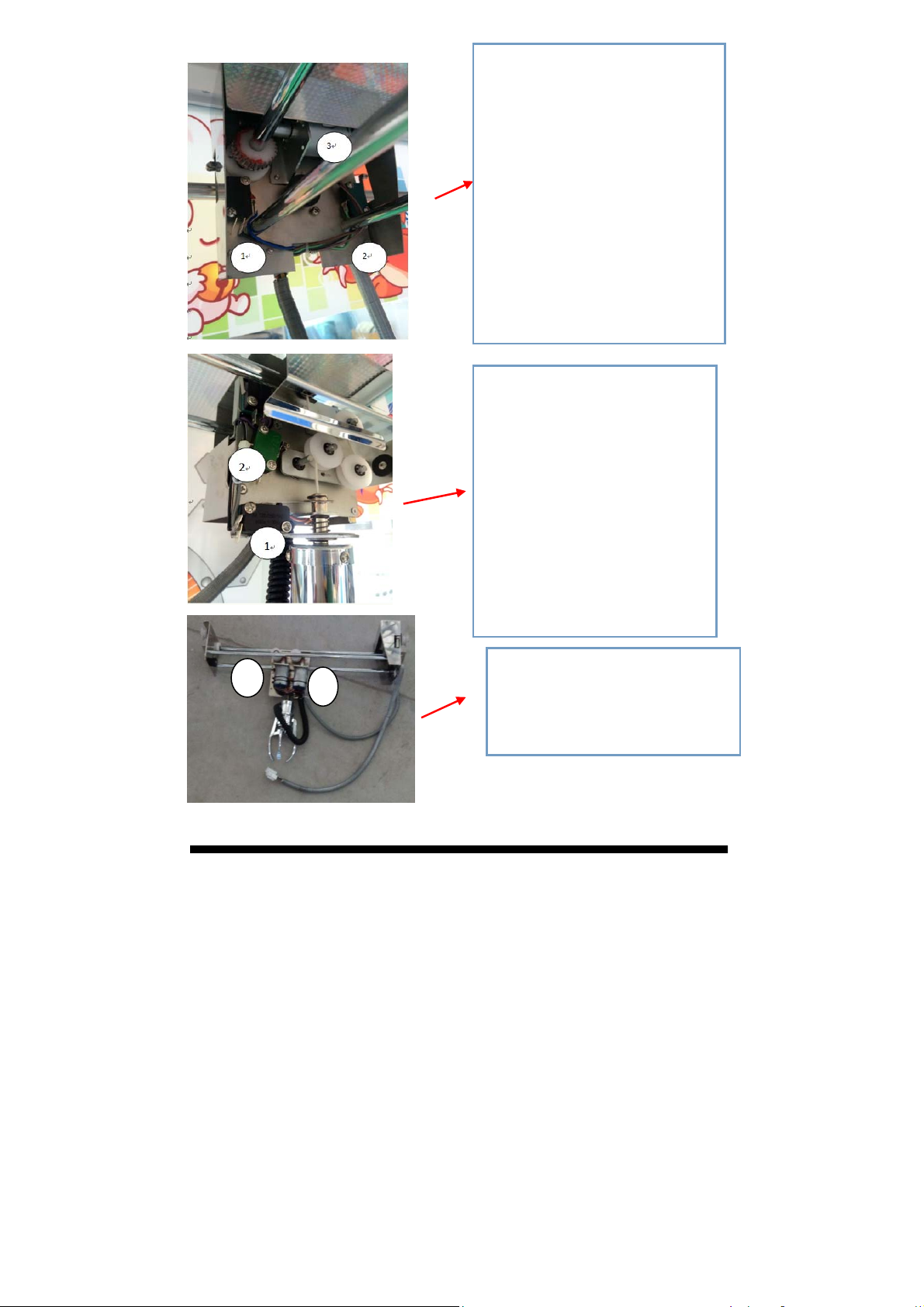

About machine light eye board
Motor drive by claw.with two
final motion control up,down
and stop signal. But the up
final motion is opposite.time
circuit is Closed.
Left pic：① Claw up to down final motion
②claw under the place final motion
③left in place final motion
① Front and rear motor
② Front final motion
③ Rear final motion
When the Crown block moved
to the front,the crown block will
stop wouldn’t move to front by
tap press.Keep rear final motion
stop also is tap press crown
As show：① Claw up and down
motor
②left and right motor
2
1

第13 页
How to adjust fall light eye, please adjust first before your start game.
（1） When start game,press “coin”or “try play”botton ,Look the indicator light
whether put off. If light is lit,maybe the exports have obstacles.please exclude.
（2） Please use cross screwdriver,Adjust the sensitivity knob.Must be put off the
light and clockwise rotation to the bottom(the weakest of sensitivity.
（3） Please use cross screwdriver again,Adjust the sensitivity knob.contrarotae the
light lit.(the strongest of sensitivity),if the light is lit.maybe the lighteye have
fault or black paper haven’t stick fully.
（4） Finish the adjust,please use item test lighteye.whether normal induction.
Voice board：
About machine counter
VR Adjust：
Clockwise→Reduce the emission current and sensitivity
Anticlockwise→Increase the emission current and sensitivity
Indicator light
Adjust voice button

第14 页
Counter and Voltmeter：
Coin Counter
Gift Counter
Claw stress voltmeter
Coin box：about take in
1500pcs coin

第15 页

第16 页

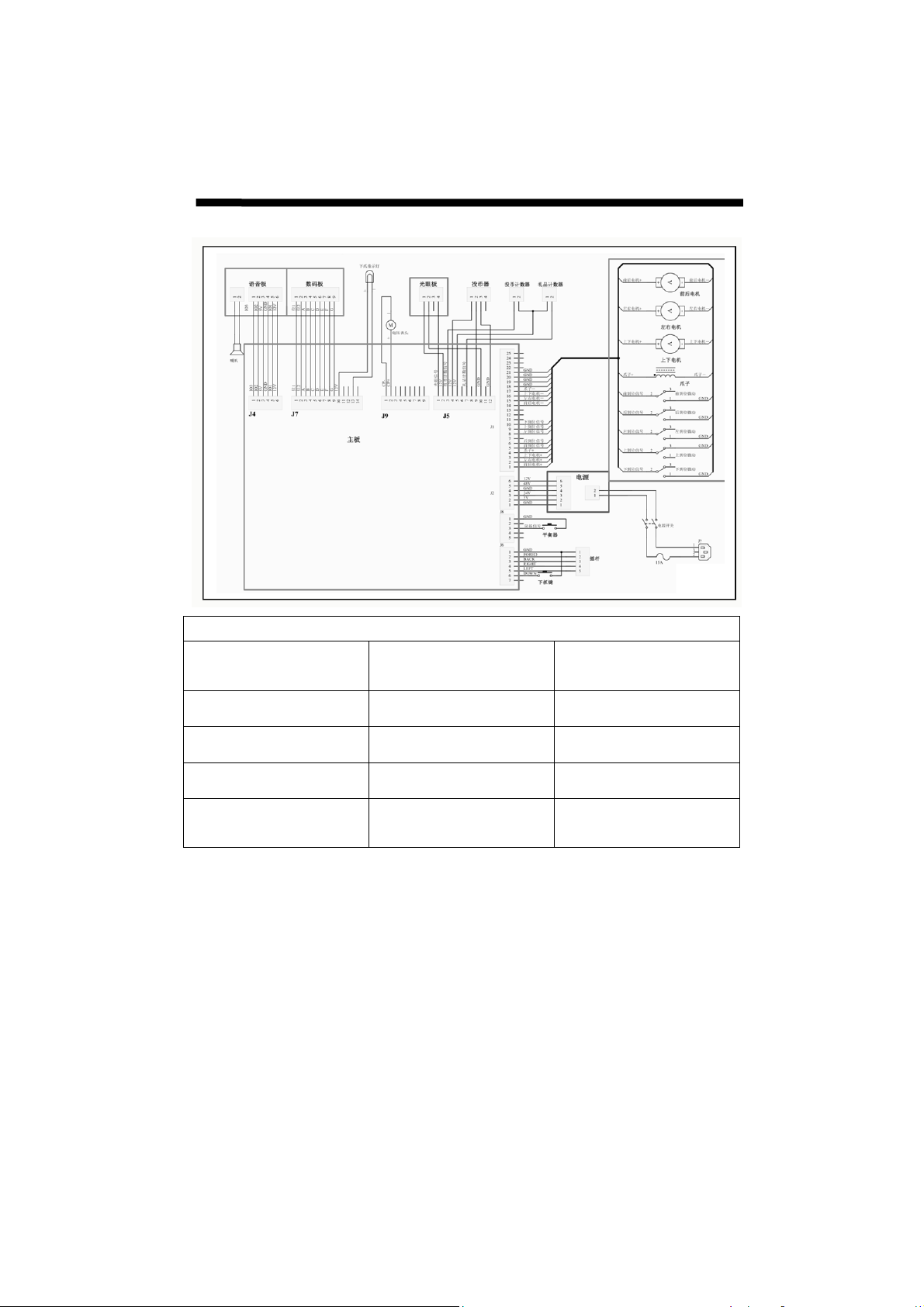

About the machine mainboard
Interface determined
No Code
No
Function
1 J1
Connect the crown
2 J2
Connect the power
3 J4
Connet voice board
4 J5
Connetcoin,code table
5 J6
Connet rocker,Start
button
6 J7 digitzer
7 J8 Connet balancer
8 J9
Connet voltmeter
Character：
1. Many kinds of business model setting.
2. In game, the game time have inverse function.
3. Claw stress can set voltage
4. Crown Clock motor speed can adjust by manual
5. Display can show the coin numbers.
How to enter into function feature
1. In shutdown state,pulled up SW3,8 feet up(off),
2.Finish Setting,Close machine. Pulled down SW3 8 feet (off),Choice the
sell mode by turn on machine again.
a.F/B: adjust front and back motor speed,clockwise
increased and counterclockwise reduce
b.U/D:adjust up and down motor speed,clockwise
increased and counterclockwise reduce.
c:L/R:adjust left and right motor speed.
clockwise increased and counterclockwise reduce.
d:weak force,adjust claw week stress,
clockwise increased and counterclockwise reduce
e:powerful:adjust claw strong stress,
clockwise increased and counterclockwise reduce

第17 页
Before set the sell mode,Must be confirm with induction lighteye,otherwise can
not be set.
About machine mainboard
Machine internal wiring diagram
J1 25feet connect crown clock
1：front and back motor
anode
2：left/right motor anode 3：up/down motor anode
4：Claw anode 5：front place signal 6：back place signal
7：8：left place signal 9：up place signal
10：down place signal 11：12：
13: 14:front and back motor
cathode
15:left/right motor cathode

第18 页
16:up/down motor 17:Claw cathode 18:GND
19: GND 20: GND 21:
22: 23: 24:
25:
About machine mainboard
J2 6feet connect power
1:GND 2:5V 3:24V
4:GND 5：48V 6:12V
J8 5feet connect equalizer
1：GND 2: 3:Rolling signal
4：5：
J6 7feet connect rocker,button
1：GND 2:FORED 3:BACK
4:RIGHT 5:LEFT 6:DOWN
7:down claw button
J5 12feet connect coin device and stopwatch
1：lighteye signal 2：12V 3：coin count signal
4：12V 5:12V 6:
7:gift count signal 8：9：

第19 页
10：GND 11: 12:GND
About machine mainboard
J9 9feet connect voltmeter
1：CP- 2:CP+ 3：
4：5：6：
7：8：9：
J7 14feet connect digitizer
1：place1 2：place2 3：A
4:B 5:C 6:D
7:E 8:F 9:G
10:12V 11: 12:
13: 14:
J4 6feet connect voiceboard
1：IO3 2:IO2 3:5V
4:GND 5:IO1 6:12V
