Xtreme Gameroom Ms Pacman Galaga Pacman User manual

Page 1of 14
Xtreme Gameroom
Ms Pacman Galaga Pacman
60 Classic Arcade Games in 1
Manual

Page 2of 14
Xtreme Gameroom
41083 Sandalwood Cir
Suite L
Murrieta Ca 92562
[phone]
[email protected]
www.xtremegameroom.com

Page 3of 14
Table of Contents
Set Up
Operation
Sound Adjustment
Test Menu
Clear High Scores
Free Play/Coin Play
Game Settings
Dip Switch Settings
Pinout
Maintenance
Parts

Page 4of 14
Game Setup
1. Remove the machine from the box.
2. Remove all packaging material (Do not use a knife this may cause damage to the
machine.)
3. Place the machine in the desired location in your home or business. Do not place in
direct sunlight. This will cause discoloration to graphics and cabinet over time.
4. Adjust the cabinet Leg levelers.
5. Use the key to open the door to remove the power cord.
6. Install power cord into the back of the machine.
7. Turn on the machine. There is a power switch located on the back of the machine.
Sometimes this switch is located next to the power cord.
8. Power machine off when not in use.

Page 5of 14
Operation
Coin Play
1. Insert coins.
2. Use joystick to select the game you want to play.
3. Press player 1 Start for a 1 player game or player 2 start for 2 player game.
Non-Coin Game Play
1. Press a Player 1 or Player 2 Start button.
2. Use joystick to select the game you want to play.
3. Press player 1 Start for a 1 player game or player 2 start for 2 player game.

Page 6of 14
Sound Adjustment
1. Place the machine into Test mode.
2. Press the test button in to change screen “See Fig Below”.
3. Volume Adjustment is the last screen so you will need to press the button
approximately 60 times.
4. Once in the Volume adjustment screen, use the joystick to adjust the volume up/down.
5. Once you are happy with the volume level. Press player 1 start button to save the
settings, Screen should flash “Setup Ok”.

Page 7of 14
Test Mode
Enter test mode to make adjustments to the programing, volume control, or test the
controls. All adjustments are made from the player 1 side of the machine. The player
where the start buttons are located is player 1.
1. Turn off the Machine.
2. Open the Coin door.

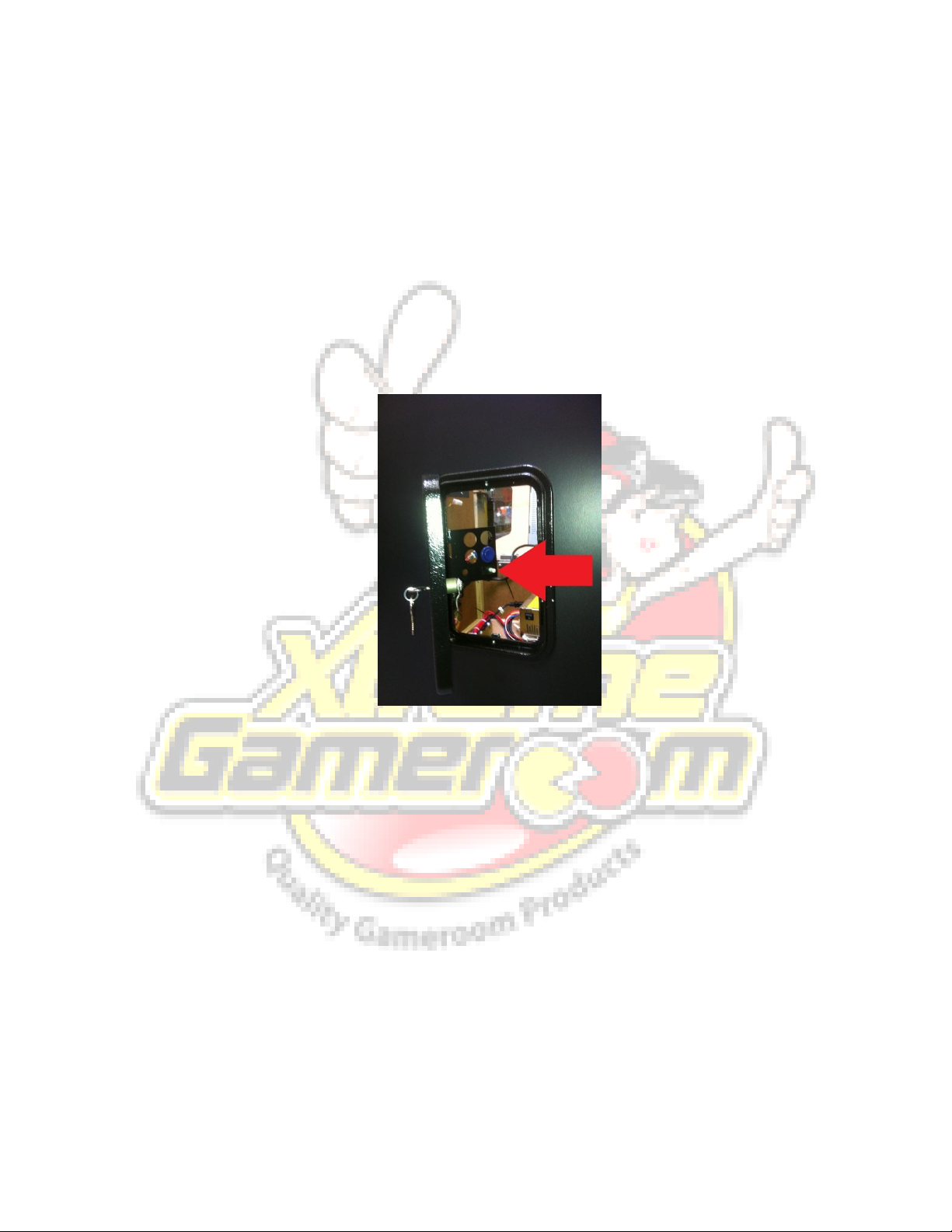

3. Locate the White Test Button “See Fig Below“.
4. Pull the Button and it will stay in the out position.
5. Power up the machine.
6. Once the machine is in test mode you will see a checkered board pattern
screen. “See Fig Below”.
7. Once you are in this screen push the test button all the way in. once you
have done this the screen will change to the Clear High Scores Screen.
8. Press Player 1 Start Button and the button next to the joystick to clear the
high scores.

Page 8of 14
9. Press the test button again and the screen changes to the Main programing
screen “See Fig Below”.
10. To make changes to the settings Move the joystick Right/Left to the desired
settings. Press the button next to the joystick to turn on/off the setting. See
Chart Below for Settings.
Dip SW 1
1
2
3
4
5
6
7
8
Coin 1
1 coin 1 Credit
OFF
OFF
OFF
OFF
1 coin 2 Credit
ON
OFF
OFF
OFF
1 coin 3 Credit
OFF
ON
OFF
OFF
1 coin 4 Credit
ON
ON
OFF
OFF
2 coin 1 Credit
OFF
OFF
ON
OFF
2 coin 2 Credit
ON
OFF
ON
OFF
2 coin 3 Credit
OFF
ON
ON
OFF
2 coin 4 Credit
ON
ON
ON
OFF
3 coin 1 Credit
OFF
OFF
OFF
ON
3 coin 2 Credit
ON
OFF
OFF
ON
3 coin 3 Credit
OFF
ON
OFF
ON
3 coin 4 Credit
ON
ON
OFF
ON
4 coin 1 Credit
OFF
OFF
ON
ON
4 coin 2 Credit
ON
OFF
ON
ON
4 coin 3 Credit
OFF
ON
ON
ON
4 coin 4 Credit
ON
ON
ON
ON

Page 9of 14
Dip SW 1
1
2
3
4
5
6
7
8
Coin 2
1 coin 1 Credit
OFF
OFF
OFF
OFF
1 coin 2 Credit
ON
OFF
OFF
OFF
1 coin 3 Credit
OFF
ON
OFF
OFF
1 coin 4 Credit
ON
ON
OFF
OFF
2 coin 1 Credit
OFF
OFF
ON
OFF
2 coin 2 Credit
ON
OFF
ON
OFF
2 coin 3 Credit
OFF
ON
ON
OFF
2 coin 4 Credit
ON
ON
ON
OFF
3 coin 1 Credit
OFF
OFF
OFF
ON
3 coin 2 Credit
ON
OFF
OFF
ON
3 coin 3 Credit
OFF
ON
OFF
ON
3 coin 4 Credit
ON
ON
OFF
ON
4 coin 1 Credit
OFF
OFF
ON
ON
4 coin 2 Credit
ON
OFF
ON
ON
4 coin 3 Credit
OFF
ON
ON
ON
4 coin 4 Credit
ON
ON
ON
ON
Dip SW 2
1
2
3
4
5
6
7
8
Demo Music
Yes
OFF
No
ON
Demo Game Sound
No
OFF
Yes
ON
Free Play
No
OFF
Yes
ON
Cabinet Type
Up/ 1 control
OFF
OFF
Cocktail
ON
OFF
Up/ 2 Control
OFF
ON
Cocktail
ON
ON
Trackball
Orientation
Normal
OFF
Swap X/Y
ON
Trackball Signals
Normal
OFF
Swap Dir/Clk
ON
11. After making your changes Press Player 1 Start Button to save. Screen will
flash “Setup Ok”.
12. Press Test button to change to the next screen or if you are finished turn
off/on the machine.
13. Each of the 60 games can be customized to your own setting. Just press the
test button to scroll through each Game and make the changes you would
like. Don’t forget to press the Player 1 Start button to save the setting before
change to the next game.

Page 10 of 14
Dip Switches
On the Main Computer there is a bank of dip switches. Settings below
Dip SW3
1
2
3
4
5
6
7
8
Screen
Normal
OFF
Flip
ON
Graphics
Mode
CGA
OFF
VGA
ON
High Score
Saver
Disabled
OFF
Enabled
ON
System
Mode
Normal
OFF
Test Mode
ON

Page 11 of 14
Jamma Pinout
Parts Side
Solder Side
Ground/Common
1
A
Ground/Common
Ground/Common
2
B
Ground/Common
+5 VDC
3
C
+5 VDC
+5 VDC
4
D
+5 VDC
Not Used
5
E
Not Used
+12 VDC
6
F
+12 VDC
KEY
7
H
KEY
Coin Meter 1
8
J
Coin Meter 2
9
K
Speaker +
10
L
Speaker -
11
M
Video Red
12
N
Video Green
Video Blue
13
P
Video Synk
Video Ground
14
R
Service
Test
15
S
Coin 1
16
T
Coin 2
Player 1 Start
17
U
Player 2 Start
Player 1 Up
18
V
Player 2 Up
Player 1 Down
19
W
Player 2 Down
Player 1 Left
20
X
Player 2 Left
Player 1 Right
21
Y
Player 2 Right
Player 1 Button 1
22
Z
Player 2 Button 1
Player 1 Button 2
23
A
Player 2 Button 2
Player 1 Button 3
24
B
Player 2 Button 3
25
C
26
D
Ground/Common
27
E
Ground/Common
Ground/Common
28
F
Ground/Common
Trackball Connector located on main computer
Con 3
Con 4
Pin 1
Ground
Pin 1
Ground
Pin 2
Player 1 X-CLK
Pin 2
Player 2 X-CLK
Pin 3
Player 1 X-DIR
Pin 3
Player 2 X-DIR
Pin 4
Player 1 X-CLK
Pin 4
Player 2 Y-CLK
Pin 5
Player 1 X-DIR
Pin 5
Player 2 Y-DIR
Pin 6
+5 VDC
Pin 6
+5 VDC

Page 12 of 14
Maintenance
1. If you need to open the machine for Maintenance you will need to open the top. To do
so follow the instruction below.
2. Turn off the machine.
3. Open the coin door.
4. Find with your hands the 2 clamps located inside the machine in the upper right and left
side of the machine. “See Fig Below”.
5. Unclamp the 2 clamps and remove the ends of the clamp from the top bracket
6. Before opening the top make sure you have something soft to set the top on. Like a
Pillow. Place the Pillow on the floor under the Glass while you open the top.
7. Be careful not to let the top drop otherwise it will cause damage to the machine.
8. Make sure when you are done to Re-Clamp the top so it does not come open.

Page 13 of 14
For Parts check our web site
www.xtremegameroom.com

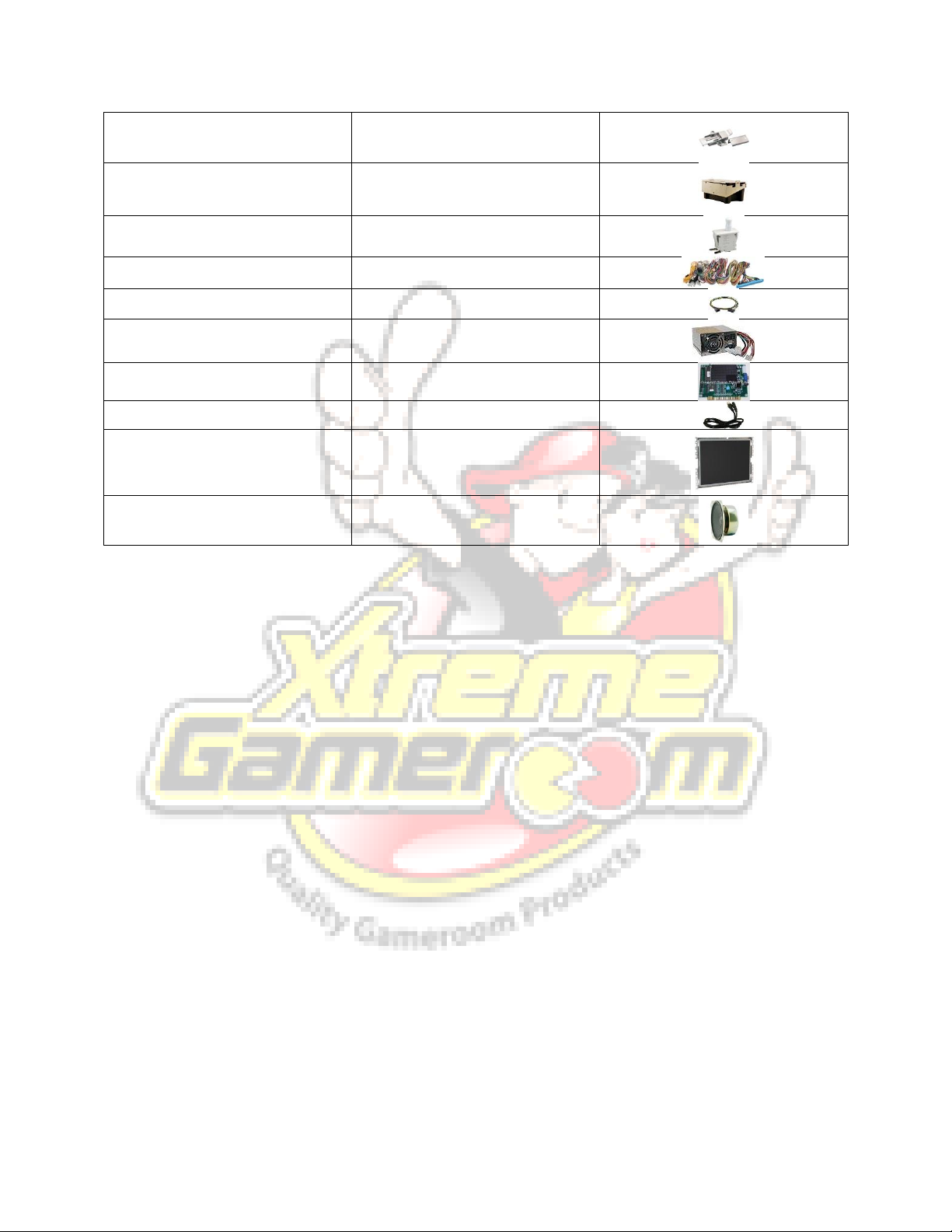

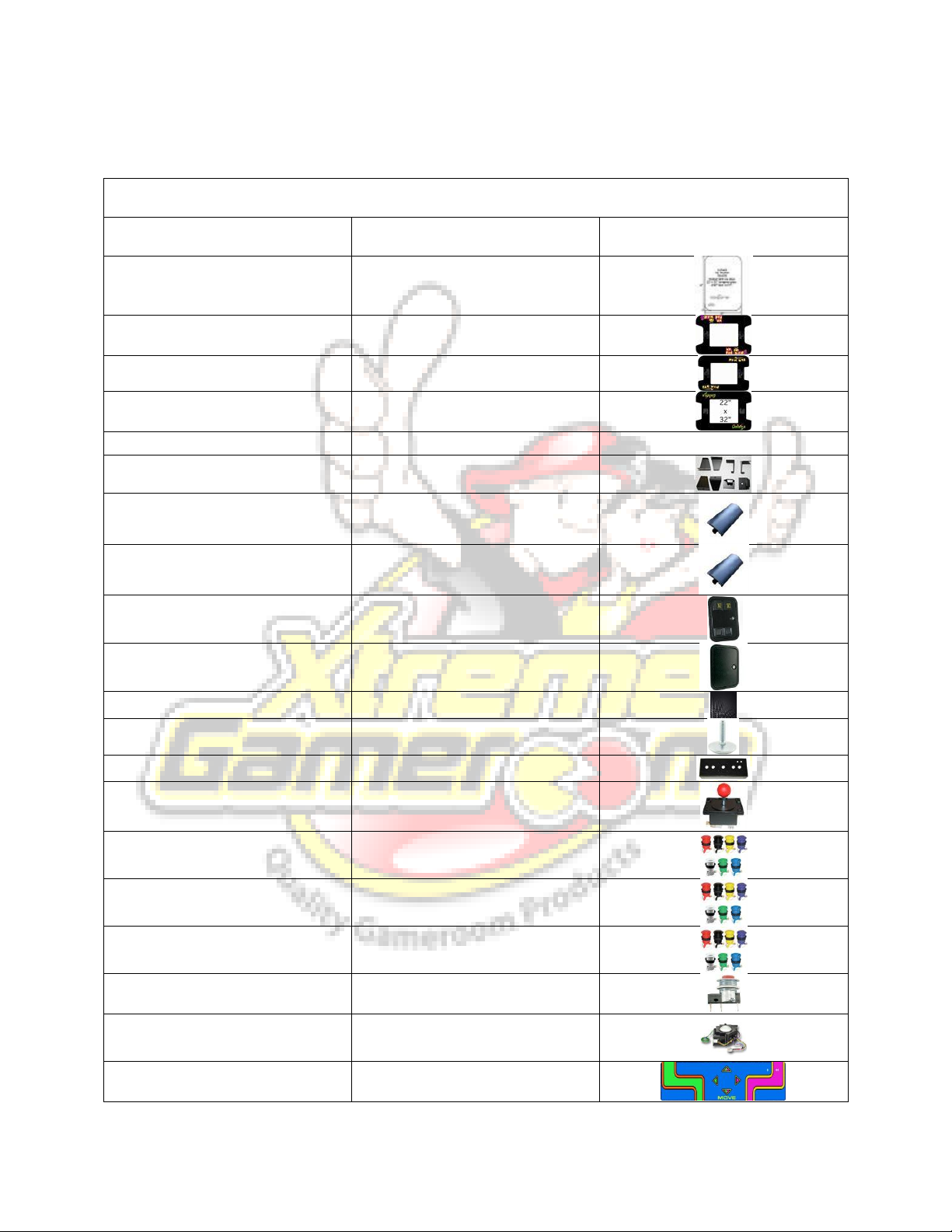

Parts List
Item
Part #
Glass Top
ct-100
Ms Pacman underlay
ct-101
Pacman underlay
ct-102
Galaga underlay
ct-103
Monitor vinyl
ct-104
Class Clips
ct-105
1” T-Molding
ct-106
¾” T-Molding
ct-107
2 Slot Coin Door
ct-108
Home Door
ct-109
Speaker Screen
ct-110
Cabinet Leg Levelers
ct-111
Trackball Control Panel
ct-112
Joystick
ct-113
Red Button
ct-114
Blue Button
ct-115
Yellow Button
ct-116
Start Button
ct-117
2 ¼” Trackball
ct-118
Control Panel Graphic
ct-119

Page 14 of 14
Cabinet Clamps
ct-120
Coin box
ct-121
Test Switch
ct-122
Cabinet Harness
ct-123
Trackball Harness
ct-124
Power Supply
ct-125
Main Computer
ct-126
Power Cord
ct-127
LCD Monitor
ct-128
Speaker
ct-129
