Miele GAS COMBISET CS 1012 User manual

Operating and Installation
Instructions
Gas Combiset
CS 1012
To prevent accidents and
appliance damage,
read these instructions
before
installation or use. M.-Nr. 07 366 180
en - US, CA
®®

2
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
– WHAT TO DO IF YOU SMELL GAS
ßDo not try to light any appliance.
ßDo not touch any electrical switch.
ßDo not use any phone in your building.
ßImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ßIf you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(In Massachusetts a licensed plumber / gas fitter)
– Note to the installer:
Please leave this instruction book with the
consumer for the local electrical / gas inspector’s
use.

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the combiset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before using the combiset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fast-Ignition-System ...............................................12
Turning on and off / Regulating .......................................12
On/Off indicator and Residual heat indicator ............................13
Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Pan size .........................................................14
Suitable pans .....................................................14
Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ignition safety control...............................................15
Safety cut-off .....................................................15
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Burners .........................................................17
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installation dimensions .............................................28
Cutout..........................................................29
Installation of multiple appliances .....................................30
Attach the spring clips and support bars ...............................33
Installing the appliance / appliances...................................35
Removing the appliance ............................................35
Sealing ..........................................................36
Tiled surfaces ....................................................36
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Gas pressure regulator .............................................40
Nominal ratings ...................................................41
Converting to another type of gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Contents
3

WARNING- When using your gas
appliance follow basic
precautions, including the
following:
This gas combiset conforms to all
uniform safety codes and
regulations.
Read all instructions before
installation or use to prevent
injury and appliance damage.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS
Correct usage
~Only use the gas combiset for
residential cooking, and for the
purposes described in this manual.
Other uses are not permitted and can
be dangerous.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Children
~Children should not be left
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
~The appliance is hot during use and
remains so for some time after being
switched off. Keep children away from
the appliance.
~Keep all pots and pans out of the
reach of children. Danger of burning or
scalding.
~Ensure that any packing material, is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
IMPORTANT SAFETY INSTRUCTIONS
4

Technical safety
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
~Before installing the combiset,
check for externally visible damage.
Do not operate a damaged appliance.
A damaged gas combiset is a hazard.
~Before installation, make sure that
the voltage and frequency listed on the
rating label correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
~Be certain your appliance is
properly installed and grounded by a
qualified technician.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
~Install the appliance so that the
power cord and gas piping do not
come into contact with any portion of
the combiset which may become hot
during use.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
~Do not operate the appliance until it
has been properly installed in the
countertop.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical
Service Department.
~Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
~Under no circumstance open the
outer casing of the appliance.
~While the appliance is under
warranty repairs should only be
performed by a Miele authorized
service technician. Otherwise the
warranty is void.
IMPORTANT SAFETY INSTRUCTIONS
5

~Before servicing, turn off the gas
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually “tripping” the
circuit breaker.
~This equipment has not been
designed for maritime use or for use in
mobile installations such as aircraft or
recreational vehicles. However, under
certain circumstances it may be
possible for installation in these
applications. Please contact the
nearest Miele Dealer or the Miele
Technical Service Department with
specific requirements.
~After connecting the appliance test
for leaks according to the installation
instructions.
~If there is any doubt concerning
installation contact Miele’s Technical
Service Department.
Safety
~The appliance is hot during use and
remains so for some time after being
switched off. Be careful not to touch the
appliance if it may still be hot.
~Protect your hands with oven mitts
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
~Be sure drafts do not blow
flammable material toward the flames
or push the flames so that they extend
beyond the edges of the pan.
~Be aware of loose fitting or hanging
garments when operating the combiset,
they may present a fire hazard.
~Do not heat unopened containers.
Built-up pressure may cause the
container to burst and result in injury.
,WARNING - NEVER use this
appliance as a space heater to heat
or warm the room. Doing so may
result in carbon monoxide poisoning
and overheating.
~Install the combiset in a room that
has sufficient ventilation.
~This appliance must not be
operated outdoors.
~Make sure all components of the
gas burner is assembled correctly
before using the combiset.
IMPORTANT SAFETY INSTRUCTIONS
6

~Do not use pans that extend past
the burner grate. Using larger pans
may cause the flames to spread out
and damage the surrounding
countertop or other countertop
appliances.
~For safety and stability, do not use
pans with a bottom diameter smaller
than the burner grate.
~Only certain types of glass, ceramic
or other glazed cookware are suitable
for use on a combiset without breaking
due to the sudden temperature change.
~Do not use containers made of
plastic or aluminum. They may melt at
high temperatures.
~The burner grates supplied with the
appliance must always be used. Never
place a pan on the burner by itself.
~Do not use aluminum foil to line any
part of the combiset.
~For proper lighting and performance
of the burner, keep the igniter clean
and dry.
~Do not heat empty pots or pans,
they may be damaged.
~For safety reasons the flame should
be adjusted to be the same size as the
bottom of the pan or smaller. Do not
use small pans with high flame settings
as the flames can climb the sides of the
pan.
~Ensure that the burner is always
covered with a pan.
~Only use cooking utensils suitable
for combiset use.
~Always position pan handles and
utensils inward so they do not extend
over adjacent work areas, burner or the
edge of the combiset.
~Do not store items on the appliance
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
~Never cover the appliance with a
cloth. A fire may result.
~Do not let cooking grease or other
flammable materials accumulate on the
appliance.
~Do not use a steam cleaner to clean
the appliance. Steam could penetrate
electrical components and cause a
short circuit.
~Spills containing salt or sugar
should be removed immediately.
~Do not leave the combiset
unattended while in use. Boil-overs
cause smoking, and greasy spill-overs
may ignite.
~Do not use water on grease fires.
Smother any fire or flame, or use a dry
chemical or foam-type extinguisher.
~Do not flambé under an exhaust
hood. Flames could be drawn up into
the hood by the suction or the grease
filters may ignite.
~If there is a drawer directly
underneath the appliance without a
wooden base in between, ensure that
no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, they must be
made of a heat-resistant material.
IMPORTANT SAFETY INSTRUCTIONS
7

~Make certain that the power cords of
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
~In the event of damage or defect,
turn off the appliance immediately. Turn
off the gas shut off valve and
disconnect completely from the
electrical supply. Contact the Miele
Technical Service Department.
Do not use the appliance until it has
been repaired.
Ensure power is not supplied to the
appliance while repair work is carried
out.
~Before discarding an old appliance,
disconnect it from the gas and
electrical supply, and cut off the power
cord to prevent it from becoming a
hazard.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
8

aFast burner
bNormal burner
cBurner grate
dBurner indicators
eDisplay
Indicators
lOn/Off indicator
m"Residual Heat" Indicator
Control knobs:
fRear burner
gFront burner
Guide to the combiset
9

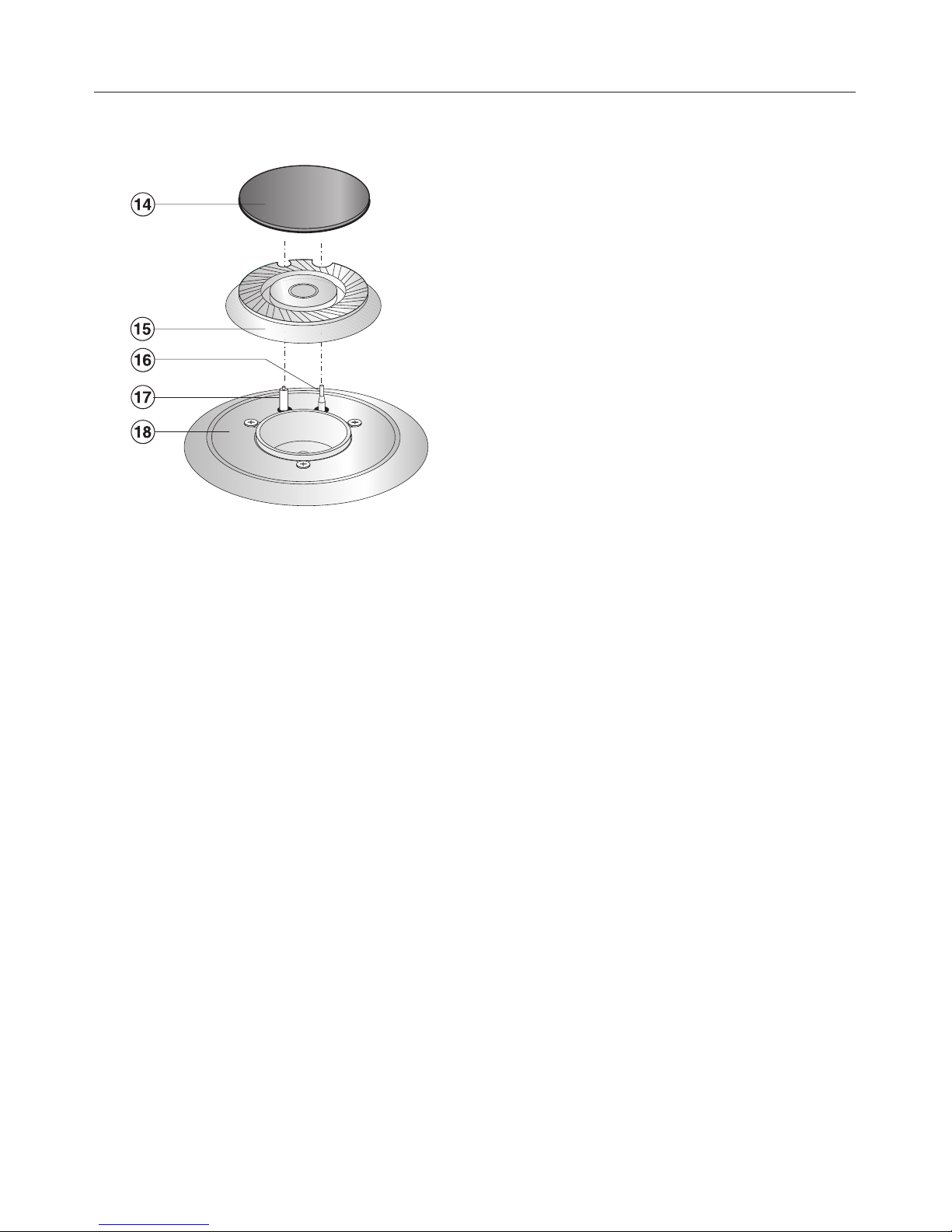

Burner
nBurner cap
oBurner head
pIgnition safety control
(Thermocouple)
qIgnitor
rBurner base
Guide to the combiset
10

Cleaning the combiset
Before using for the first time clean the
appliance as follows:
^Remove any protective foil.
^Wash the removable parts of the gas
burner in a mild solution of warm
water and liquid dish soap.
^Dry and reassemble the parts in the
correct order (see "Cleaning and
care").
^Wipe down the stainless steel
combiset with a suitable cleaner and
dry thoroughly.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated.
The harmless odor will dissipate after a
short time and does not indicate a
faulty connection or appliance defect.
Before using the combiset
11

Fast-Ignition-System
The gas combisets are equipped with a
Fast-Ignition-System which
incorporates the following features:
– The control knob does not need to
be pressed until the flame lights.
– If the flame goes out because of a
draft, for example, the burner is
automatically re-ignited.
If re-ignition is unsuccessful, the gas
supply is automatically interrupted
(see "Ignition safety control").
Turning on and off / Regulating
The control knob is used to turn on the
burner and to regulate the strength of
the flame.
ßCombiset is turned off
&Highest flame
/Lowest flame
The knob must only be turned left to
turn the appliance on and right to
turn it off.
If the knob is :
- turned on without pressing it
down first,
- turned clockwise to turn on, or
- turned counterclockwise to turn
the combiset off,
parts of the combiset might get
damaged.
Use
12

Turning on
^To turn on the burner, press the
control knob down to pass the
resistance, then release the pressure
and turn it counterclockwise to the
largest flame symbol. The ignitor will
"click" and ignite the gas.
If the burner does not ignite or the
flame goes out, turn the control knob to
"ß". Try again after a few seconds.
If the burner still won't ignite after the
second attempt, turn the control knob
to "ß" and see "Frequently asked
questions".
^Adjust the knob to the desired
setting.
Regulating the burners
^The burners can be variably adjusted
between the lowest and highest
flame by turning the control knob.
Since the outer portion of the flame is
much hotter than the center, the flame
should be set so that its tips do not
spread beyond the sides of the pan.
Flame tips which extend beyond the
sides of the pan are hazardous.
Turning off
^Turn the knob clockwise to "ß".
This stops the flow of gas and turns off
the combiset.
On/Off indicator and Residual
heat indicator
When the combiset is turned on, the
On/Off indicator lights up. Once a
pre-set temperature has been reached,
the residual heat indicator will also light
up. The On/Off indicator goes out when
the combiset is turned off. The residual
heat indicator will remain on until the
combiset is cool enough to touch.
Do not touch or place any heat
sensitive objects on the combiset
while the residual heat indicator is
on. Danger of damage or injury.
If the display is flashing, a fault has
occurred. See "Frequently asked
questions".
Use
13

Pan size
– Set the combiset to a high flame
when using a large diameter pan and
low flame when using a small
diameter pan.
– Generally, wide / shallow pans will
heat up quicker and cook more
evenly than narrow / tall ones.
– Using oversized pans may cause the
flames to spread out and damage
the surrounding countertop or other
countertop appliances.
– Do not use small pans with high
flame settings, the flame may climb
the sides of the pan.
– Pots with a smaller diameter than the
burner grates and pots that do not sit
securely (without wobbling) are
hazardous and should not be used.
The burner grates supplied with the
appliance must always be used.
Never place a pan on the burner by
itself.
Suitable pans
Any heat resistant pan can be used on
a gas burner.
Unlike pans used on an electric
combiset, the bases do not need to be
even for good results.
Thick pan bases will give more even
results, hot spots are reduced due to
better heat distribution.
Thin pan bases will conduct the heat
faster but not as evenly as thick pan
bases. Stir the food frequently to
prevent burning.
Whenever possible, keep pots and
pans covered while cooking. This helps
keep in the most possible heat.
Cookware
14

Ignition safety control
This appliance is equipped with an
Ignition Safety Control. This control cuts
the gas supply if the flame goes out
and reignition is unsuccessful.
^To reignite the burner, turn the
control knob to “ß”, then switch the
burner on as usual.
Safety cut-off
If a zone has been on for an unusually
long period of time (approx. 4 hours), it
will automatically shut off.
^To reignite the burner, turn the
control knob to “ß”, then switch the
burner on as usual.
Safety features
15

Never use a steam cleaner to clean
this combiset. Pressurized steam
could cause permanent damage to
the surface and to components.
Do not use any sharp or pointed
objects which could damage the
seal between the frame and the
countertop.
Never use scouring agents, pads,
abrasive cleaning agents, or strong
cleaners, e.g. oven sprays, stain or
rust removers, these could damage
the surface of the appliance.
Keep the ignitor in the burner dry. If
it gets wet it will not spark.
Dry your combiset thoroughly after
cleaning it to prevent lime deposits.
Spills containing salt or sugar should
be cleaned immediately.
Combiset
Let the appliance cool to a safe
temperature before removing the
grates.
^Clean the grates, combiset and
knobs with a sponge and a mild
solution of warm water and liquid
dish soap.
^Soak baked or hardened spills.
Dry the combiset and grates
thoroughly after cleaning.
The stainless steel surfaces can be
cleaned using a non-abrasive stainless
steel cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
These cleaning products are available
from Miele.
Do not use stainless steel cleaner on
or around the printing, it may rub
off. Use only a soft sponge with
some dish liquid and warm water to
clean this area.
Cleaning and care
16

Burners
The burner can be dismantled and
cleaned when cool.
^Remove the burner parts and wash
them in a solution of warm water and
liquid dish soap. Dry them
thoroughly. Make sure that the flame
holes are clean and completely dry.
^Wipe the burner base clean with a
damp cloth and then dry.
^Gently wipe the ignitor and ignition
safety control with a slightly damp
cloth, and then wipe dry.
Make sure that no liquid gets into
the appliance.
Reassembling the burner
^Place the burner head oonto the
burner base r, making sure that the
thermocouple pand the ignitor q
align through the holes in the burner
head. The burner head must fit into
place properly.
^Place the burner cap nevenly onto
the burner head o.
Once the burner cap is in the right
position, it will not move.
Be careful not to mix up the parts.
Cleaning and care
17

,Repairs should only be carries out by an authorized technician in
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage.
The burner does not ignite when the combiset is being used for the first
time or after an extended period of not being used.
Possible fault Solution
There could be air in the gas pipe. You may need to make several
attempts before the burner ignites
successfully.
The On/Off and residual heat indicators are flashing.
Possible fault Solution
There has been a power failure. Turn all the controls clockwise to "ß".
You can now operate the appliance as
normal.
The On/Off indicator is flashing.
Possible fault Solution
The gas supply has been cut-off. – Turn all the controls clockwise to
position "ß". You can now operate the
appliance as normal.
– If the problem persists, disconnect
the appliance from the electrical
supply for a few seconds.
Frequently asked questions
18

The burner does not ignite after several attempts.
Possible fault Solution
Disconnect the appliance from the electrical supply for a few seconds. If the
problem persists, check if:
– The burner is assembled incorrectly.
– The gas valve is closed.
– The burner is wet and soiled.
– The flame slits are dry and
unblocked
– Reassemble the burner as shown in
"Cleaning and Care - Burners".
– Open the gas valve.
– Clean the burners. See "Cleaning
and Care".
– Dry the igniters.
The flame goes out after being lit.
Possible fault Solution
The flames are not touching the ignition safety control. Check if:
– The burner is assembled incorrectly.
– There is no soiling on the ignition
safety control.
– Reassemble the burner as shown in
"Cleaning and Care - Burners".
– See "Cleaning and Care".
The flame appears different than usual.
Possible fault Solution
The burner is assembled incorrectly. Reassemble the burner as shown in
"Cleaning and Care - Burners".
The flame goes out during operation.
Possible fault Solution
The burner is assembled incorrectly. Reassemble the burner as shown in
"Cleaning and Care - Burners".
Frequently asked questions
19

The igniter does not spark.
Possible fault Solution
The circuit breaker has tripped. Re-set the circuit breaker. Contact an
electrician for assistance if in doubt.
Food has deposited itself between the
ignitor and the burner cap.
See "Cleaning and care".
Food has deposited on the ignition
safety control.
See "Cleaning and care".
For safety reasons, after a spill on the combiset you may need to wait approx. 5
minutes before you are able to reignite the burner. Wait 5 minutes and ignite the
burner as usual.
Frequently asked questions
20
