Miele KM 320 User manual

Installation Instructions
Gas Cooktop
KM 320
To prevent accidents and
machine damage,
read these instructions
before installation or use.
UV
M.-Nr. 05 403 561
®®

2
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
–Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
–WHAT TO DO IF YOU SMELL GAS
ßDo not try to light any appliance.
ßDo not touch any electrical switch.
ßDo not use any phone in your building.
ßImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ßIf you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(In Massachusetts a licensed plumber / gas fitter)
–Note to the installer:
Please leave this instruction book with the
consumer for the local electrical / gas inspector’s
use.

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting the cooktop into place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Securing the support brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Gas pressure regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Converting to another type of gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Contents
3

Installation
The minimum distances given in
these Installation instructions are to
combustible surfaces, and must be
observed to ensure safe operation.
Failure to do so increases the risk of
fire.
The cabinetry and venting hood
should be installed first to prevent
damage to the cooktop.
Gas appliances should only be
installed in a well ventilated area.
The countertop must be bonded
with heat resistant (212 °F/100 °C)
adhesive to prevent distortion or
dissolving.
The cooktop should only be

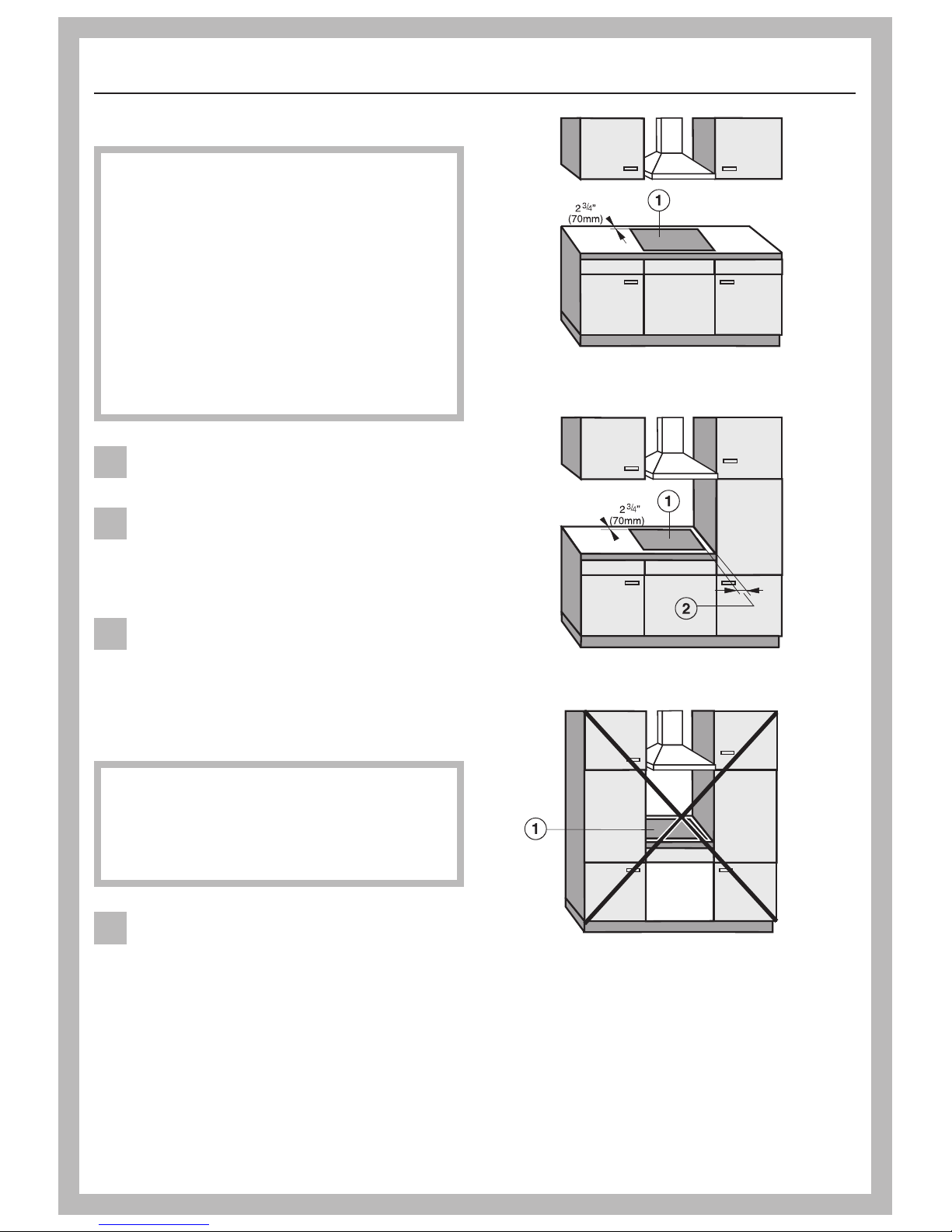

installed as shown in the
illustrations while maintaining the
required safety distances shown. Do
not install the cooktop between two tall
cabinets, this is a fire hazard.
a= indicates cooktop cut-out
b= minimum distance between
cut-out and a tall cabinet:
12" (305 mm)
This appliance has not been
designed for maritime use or for
use in mobile installations such as
recreational vehicles or aircraft.
However, under certain conditions it
may be possible for installation in these
applications. Please contact the Miele
Technical Service Department with
specific requirements.
recommended
not recommended
not allowed
IMPORTANT SAFETY INSTRUCTIONS
4

The cooktop must not be installed
over a dishwasher, washer, dryer,
refrigerator or freezer. Heat radiated by
the cooktop may damage the
appliances.
Deep fat fryers must not be
installed next to gas cooktops. Gas
flames can ignite splattering oil. A
distance of at least 12" (305 mm)
should be maintained between these
two appliances. The minimum distance
between two cooktops must be 4"
(100 mm).
Install the appliance so that the
power cord or gas piping does not
come into contact with any portion of
the cooktop which may become hot
during use.
This appliance must be installed
with its own shut off valve and the
included gas pressure regulator.
Both the valve and the regulator
must be easily accessible to the
consumer after the appliance is
installed.
This appliance must be
disconnected from the gas supply
during any pressure testing of the
system performed in excess of
1/2psi (3.5 kPa). This appliance
must be isolated at test pressures
equal to or less than 1/2psi
(3.5 kPa).
Any pipe connections must be made
using a thread sealant approved for
gas connections. Failure to correctly
install these items could lead to a
gas leak and subsequent explosion.
Safety distances above the
appliance
There must be a safety distance of at
least 30" (760 mm), cbetween the
appliance and any objects above it.
The overhead cabinet depth, d, if
unprotected, must not exceed 13"
(330 mm). The minimum distance of
combustible surfaces located above
and to the sides of the cooktop, e, is
18" (457 mm).
If the cabinet manufacturer
recommends a greater distance, follow
that manufacturers recommendation.
When installing the cooktop under a
venting hood, always observe the
minimum distance recommended by
the hood manufacturer.
Keep this instruction book in a safe
place for reference and pass it on to
any future user.
IMPORTANT SAFETY INSTRUCTIONS
5

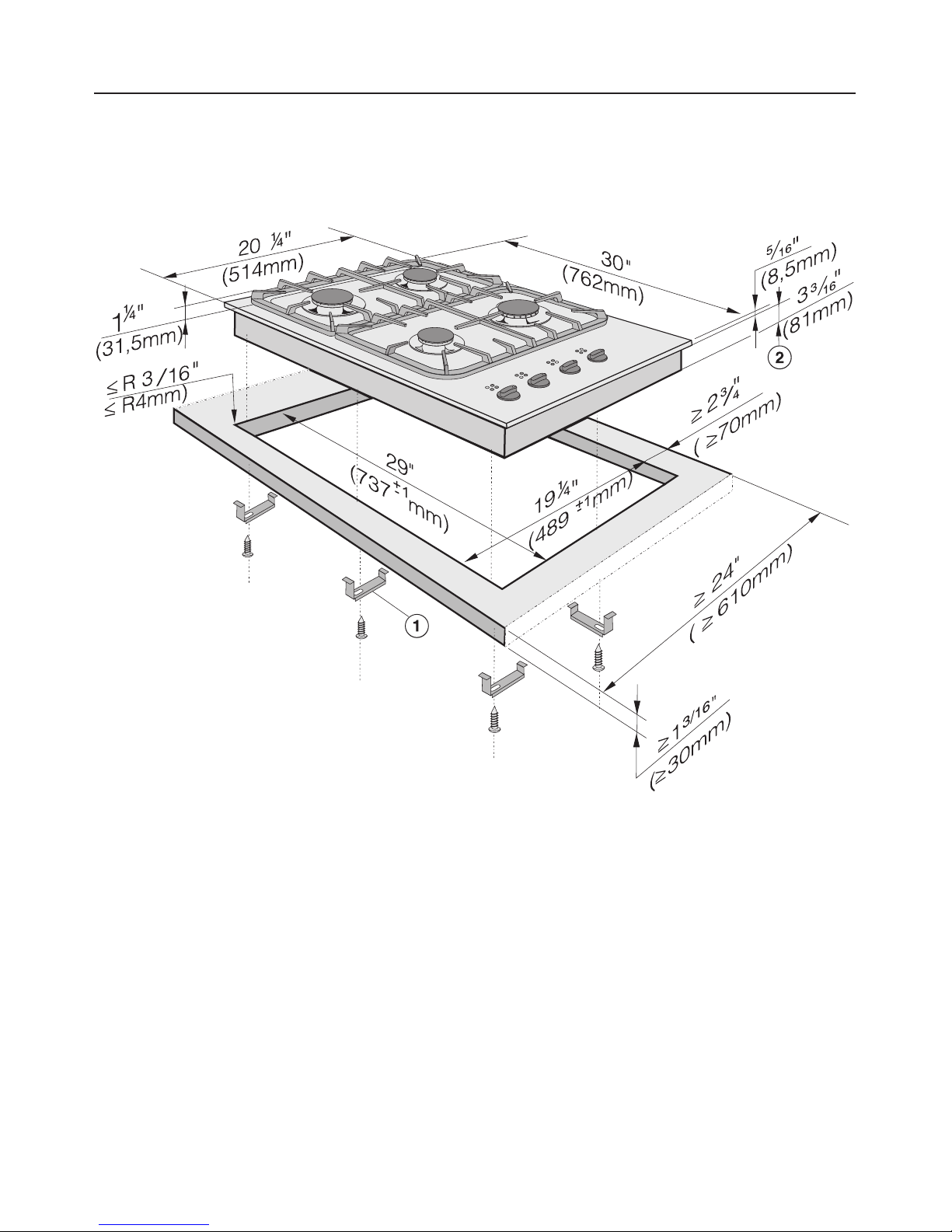

KM 320
aBrackets
bBuilt-in depth
^Rember to maintain the minimum safety distances to combustible surfaces:
- 2 3/4" (70 mm) between the cut-out and the back wall and
- 12" (305 mm) between the cut-out and a side wall or tall unit to the right or left
of the cut-out.
(See "Important Safety instructions").
Appliance dimensions
6

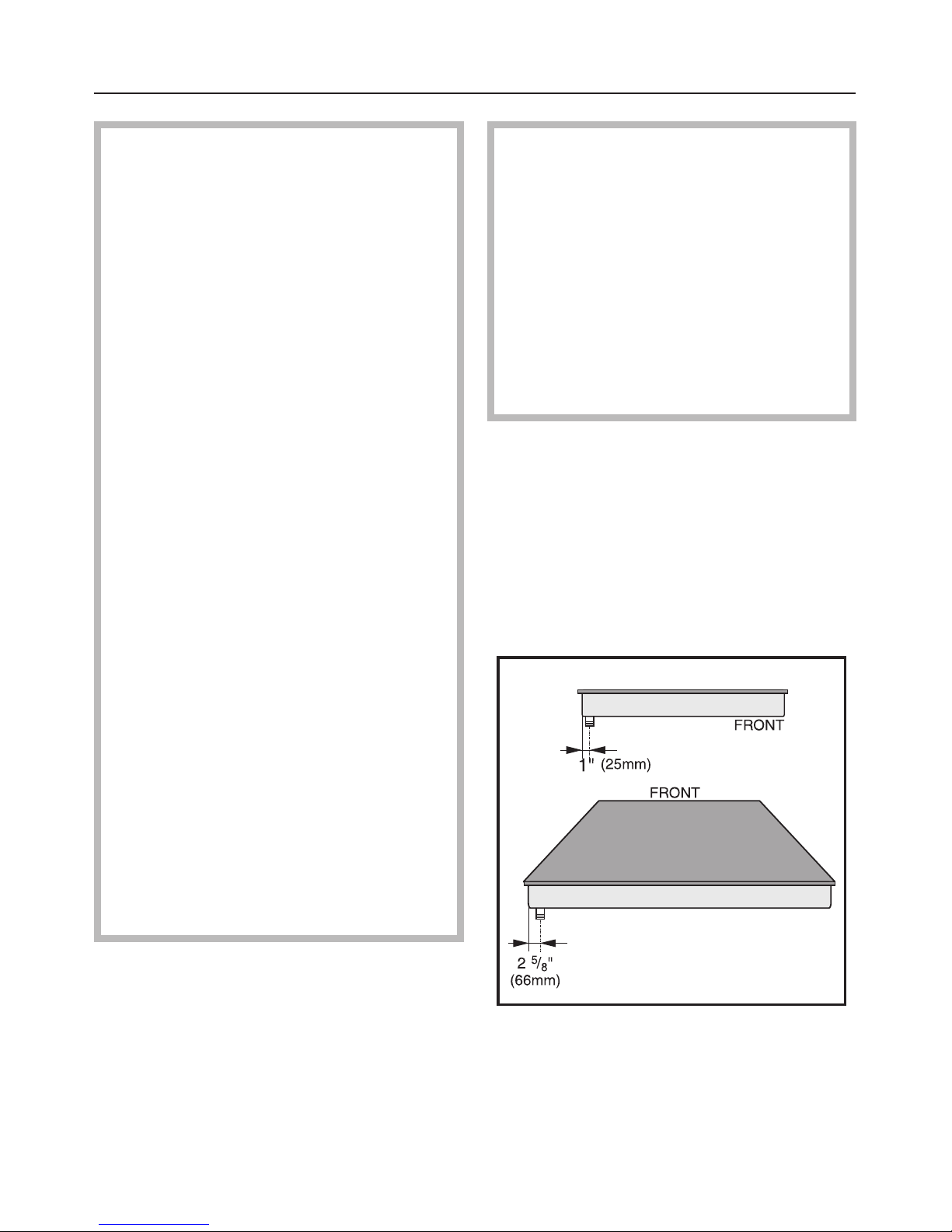

Setting the cooktop into place
^After removing the protective
backing, d, stick the supplied seal,
c, under the edge of the cooktop.
^Screw the gas regulator/adapter
combination onto the nipple
underneath the cooktop. See "Gas
connection - Gas pressure regulator".
The included gas regulator/adapter
combination must be installed
between the cooktop and the gas
shut off valve. If clearance for the
regulator does not exist directly
under the cooktop, it may be moved
closer to the shut off valve.
^Guide the power cord through the
cut-out.
^Set the cooktop in the cut-out and
center it.
Securing the support brackets
^Place the brackets, a, as shown.
Installation
7
c
d

Important
The cooktop must not be
permanently sealed into the
countertop when installed.
The sealing strip under the edge of
the cooktop provides a sufficient
seal for the countertop.
If the cooktop is sealed into position,
the countertop or the appliance may be
damaged if the cooktop needs to be
removed for maintenance or service.
Installation
8

This appliance must be grounded
according to local or national codes.
All electrical work should be
performed by a qualified electrician
in accordance with local codes and
the:
- National Electrical Code
ANSI / NFPA No. 70
for the USA
or
- Canadian Electrical Code Part I
for Canada
(CSA Standard C 22.1).
,WARNING
Disconnect the appliance from the
main power supply before
installation or service. To reduce the
risk of electric shock, make sure the
appliance is properly grounded after
installation.
Power supply
The automatic ignition requires that the
cooktop be connected to a 120 VAC,
60 Hz power supply. The supply line
should be protected by a 15 A breaker.
Actual power consumption (during
ignition only) is 25 W.
This appliance is equipped with a 4 ft.
(1.2 m) long power cord that is ready
for connection to the appropriate outlet.
Please place the power outlet so that it
is accessible after the appliance has
been installed in the countertop.
This appliance is equipped with a
three-prong grounding plug to
prevent shock hazards. It should be
plugged directly into a properly
grounded outlet. Do not cut or
remove the grounding prong from
the plug. If the plug does not fit the
outlet, have a proper outlet installed
by a licensed electrician.
To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of
the house checked by a qualified
electrician.
The manufacturer cannot be held
responsible for damages caused by
the lack, or inadequacy, of an
effective grounding system.
Note to the installer
Please leave these instructions with the
consumer or the appliance.
Electrical connection
9

Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
In Massachusetts a licensed
plumber / gas fitter is required.
This appliance must be installed
with its own shut off valve and the
included gas pressure regulator.
Both the valve and the regulator
must be easily accessible to the
consumer to turn on or shut off the
gas supply after the appliance is
installed.
This appliance and its individual
shut off valve must be disconnected
from the gas supply during any
pressure testing of the system
performed in excess of 1/2psi
(3.5 kPa). The appliance must be
isolated from the gas supply line, by
closing its individual manual shut off
valve, at test pressures equal to or
less than 1/2psi (3.5 kPa).
Any pipe connections must be made
using a thread sealant approved for
gas connections. Failure to correctly
install these items could lead to a
gas leak and subsequent explosion.
The gas connection must be made
in accordance with local codes or, in
the absence of local codes, with:
- the National Fuel Gas Code,
ANSI Z 21.1 / NFPA 54
for the USA
or
- the current Can / CGA B 149.1
and .2 Installation Codes for gas
burning appliances for Canada.
Make sure that the maximum gas
supply pressure, before the gas
pressure regulator, is never more than
1/2psi for both natural gas or LP gas.
The minimum supply pressure to get
the required gas input is:
6" w.c. for natural gas
10" w.c. for LP gas.
Gas connection
10

Gas pressure regulator
A pressure regulator that is convertible
from natural to LP gas (Propane) or vice
versa is included with the appliance.
The included regulator corresponds
with the gas type of the cooktop. Verify
before installing.
The adjusted pressure is:
natural gas - 4" w.c.
LP gas - 10" w.c.
A straight thread adapter, from ½" ISO
7-1 to ½" NPT is connected to your gas
pressure regulator. If an elbow adapter
is necessary for your particular
installation, a customized one can be
obtained free of charge from the Miele
Technical Service Department.
Do not use a standard elbow, it may
cause a gas leak.
As shown in the diagram, the included
regulator and adapter must be used
when connecting the Miele cooktop to
your gas supply. These items has been
customized by Miele to meet all
applicable safety requirements. Make
sure the regulator is easily accessible
for adjustment after the appliance has
been installed.
For convenience, an AGA or CGA
approved flexible stainless steel gas
hose (accordion type) may be used
between the gas connection and the
regulator. This will allow the appliance
to be lifted out of the countertop for
cleaning or servicing. Make sure that
any drawers, cabinet doors, etc., do not
rub on this gas hose.
Do not use any regulator/adapter
unless it has been supplied by
Miele. Doing so may cause a gas
leak.
If there is any doubt concerning
installation contact the Miele Technical
Service Department:
U1-800-999-1360
[email protected]
V1-800-565-6435
[email protected]
After connecting the appliance check
all fittings for gas leaks e.g. with
soapy water.
When installed properly, the flame will
be steady and quiet. It will also have a
sharp, blue inner core that will vary in
length proportional to the burner size.
Flame adjustment will not be necessary.
Gas connection
11

Nominal rating table
NG
(Natural gas)
Nominal rating LP
(Liquid propane gas)
Normal burner BTU/hr kW BTU/hr kW
Max. output 9500 2.78 6000 1.75
Min. output 1400 0.41 1000 0.29
Fast burner
Max. output 11600 3.40 10000 2.93
Min. output 1700 0.50 1600 0.47
All burners
Max. output 42200 12.36 32000 9.38
Gas connection
12

The cooktop should have been ordered
for connection to either natural or LP
gas (propane).
If the cooktop is not configured for the
proper type of gas connection please
contact your Miele Dealer.
If the appliance is to be connected to a
type of gas other than it was originally
configured for, both the regulator and
burners must be converted. A
conversion kit is available as an
optional accessory from the Miele
Technical Service Department.
Converting to another type of gas
13

14

15

M.-Nr. 05 403 561 / 08
en - USA
Alteration rights reserved / 4606
