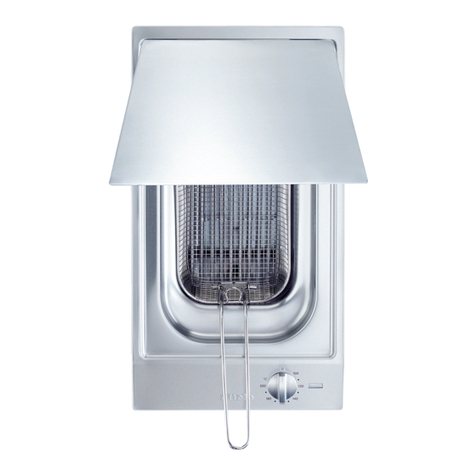

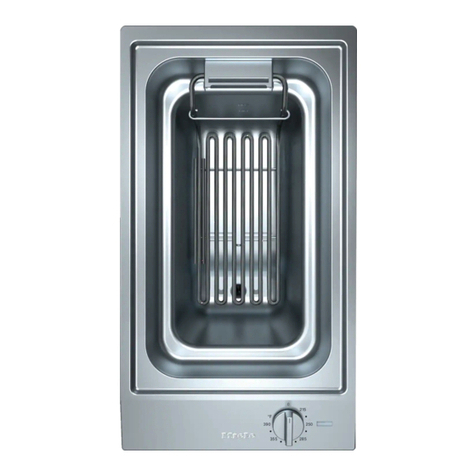

Miele CS 1411 User manual

Operating and installation instructions
Deep fat fryer
To avoid the risk of accidents or damage to the appliance it is essential
to read these instructions before it is installed and used for the first time.
en-GB M.-Nr. 07 180 430

Contents
2
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 13
Guide to the appliance........................................................................................ 14
Deep fat fryer......................................................................................................... 14
Indicators............................................................................................................... 15
Accessories supplied ............................................................................................ 15
Using for the first time ........................................................................................ 16
Cleaning the CombiSet for the first time ............................................................... 16
Switching on the CombiSet for the first time ........................................................ 16
Operation.............................................................................................................. 17
Fryer lid.................................................................................................................. 17
Control knob.......................................................................................................... 17
Switching on.......................................................................................................... 17
Switching off.......................................................................................................... 17
Residual heat indicator.......................................................................................... 18
Before frying.......................................................................................................... 18
Frying..................................................................................................................... 19
Frying tips.............................................................................................................. 22
After frying............................................................................................................. 23
Safety features..................................................................................................... 24
Safety switch-off ................................................................................................... 24
Cleaning and care ............................................................................................... 25
Stainless steel frame/control panel and lid ........................................................... 26
Operating controls................................................................................................. 26
Oil reservoir ........................................................................................................... 26
Frying basket ......................................................................................................... 26
Problem solving guide ........................................................................................ 28
Optional accessories .......................................................................................... 29
Safety instructions for installation..................................................................... 30
Safety distances .................................................................................................. 31
Installation notes ................................................................................................. 34
Building-in dimensions ...................................................................................... 35
Building-in several CombiSets........................................................................... 36

Contents
3
Installation............................................................................................................ 38
Electrical connection .......................................................................................... 42
After sales service, data plate, guarantee ........................................................ 44

Warning and Safety instructions
4
This deep fat fryer complies with all relevant safety requirements.
Inappropriate use can, however, lead to personal injury and dam-
age to property.
To avoid the risk of accidents and damage to the deep fat fryer,
please read these instructions carefully before installation and be-
fore using it for the first time. They contain important notes on in-
stallation, safety, use and maintenance.
Miele cannot be held liable for damage caused by non-compliance
with these instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.

Warning and Safety instructions
5
Correct application
 This deep fat fryer is designed for domestic use and for use in
similar environments.
 This deep fat fryer is not intended for outdoor use.
 This deep fat fryer is intended for domestic use only to cook food.
Any other use is not supported by the manufacturer and could be
dangerous.
 This deep fat fryer can only be used by people with reduced phys-
ical, sensory or mental capabilities or lack of experience and know-
ledge if they are supervised whilst using it. They may only use it un-
supervised if they have been shown how to use it in a safe way and
understand the hazards involved.

Warning and Safety instructions
6
Safety with children
 Children under 8 years of age must be kept away from the deep
fat fryer unless they are constantly supervised.
 Children 8 years and older may only use the deep fat fryer unsu-
pervised if they have been shown how to use it safely and recognise
and understand the consequences of incorrect operation.
 Children must not be allowed to clean the deep fat fryer unsuper-
vised.
 Please supervise children in the vicinity of the deep fat fryer and
do not let them play with it.
 The deep fat fryer gets hot when in use and remains hot for a
while after being switched off. Keep children well away from the ap-
pliance until it has cooled down and there is no danger of burning.
 Ensure that children cannot reach the drain tap where hot liquid
could be drained out.
 Danger of burning.
Do not store anything which might arouse a child's interest in stor-
age areas above or next to the deep fat fryer. Otherwise they could
be tempted into climbing onto the appliance.
 Danger of suffocation. Packaging, e.g. plastic wrappings, must be
kept out of the reach of babies and children. Whilst playing, children
could become entangled in packaging or pull it over their head and
suffocate.

Warning and Safety instructions
7
Technical safety
 Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and re-
pairs must only be carried out by a Miele authorised technician.
 A damaged deep fat fryer can be dangerous. Check it for visible
signs of damage. Do not use a damaged appliance.
 Reliable and safe operation of the deep fat fryer can only be as-
sured if it has been connected to the mains electrical supply.
 The electrical safety of this deep fat fryer can only be guaranteed
when correctly earthed. It is essential that this standard safety re-
quirement is met. If in any doubt please have the electrical installa-
tion tested by a qualified electrician.
 Before connecting the deep fat fryer to the mains supply, ensure
that the connection data on the data plate (voltage and frequency)
match the mains electricity supply.
This data must be checked before connecting the appliance. Consult
a qualified electrician if in any doubt.
 Do not connect the deep fat fryer to the mains electricity supply
by a multi-socket unit or an extension lead. These do not guarantee
the required safety of the appliance (fire hazard).
 For safety reasons, this deep fat fryer may only be used after it
has been built in.
 This deep fat fryer must not be used in a non-stationary location
(e.g. on a ship).
 Never open the casing of the deep fat fryer.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.

Warning and Safety instructions
8
 While the deep fat fryer is under guarantee, repairs should only be
undertaken by a Miele authorised service technician. Otherwise the
guarantee is invalidated.
 Miele can only guarantee the safety of the appliance when genu-
ine original Miele replacement parts are used. Faulty components
must only be replaced by Miele spare parts.
 The deep fat fryer is not intended for use with an external timer
switch or a remote control system.
 If the plug is removed from the connection cable or if the cable is
supplied without a plug, the deep fat fryer must be connected to the
electrical supply by a suitably qualified electrician.
 If the connection cable is damaged, it must be replaced by a suit-
ably qualified electrician with a special connection cable of type H
05 VV-F (pvc insulated). See "Electrical connection".
 During installation, maintenance and repair work, the deep fat
fryer must be completely disconnected from the mains electricity
supply. Depending on country this is done in one of several different
ways:
– disconnect the mains fuse, or
– completely unscrew the screw-out fuse (in countries where this is
applicable), or
– switch off at the wall socket and withdraw the plug from the
socket. Pull by the plug and not by the mains connection cable to
disconnect from the mains electricity supply.
 If the deep fat fryer is installed behind a furniture panel (e.g. a
door), ensure that the door is never closed whilst the deep fat fryer is
in use. Heat and moisture can build up behind a closed furniture
panel and cause subsequent damage to the deep fat fryer, the hous-
ing unit and the floor. Do not close the door until the residual heat in-
dicators have gone out.

Warning and Safety instructions
9
 Danger of electric shock.
Do not use the deep fat fryer if it is faulty. Switch it off immediately,
disconnect it from the mains electricity supply and contact Miele.

Warning and Safety instructions
10
Correct use
 The deep fat fryer gets hot when in use and remains hot for some
time after being switched off. The risk of burning is present until the
residual heat indicators have gone out.
 Do not use the deep fat fryer to heat up the room. Due to the high
temperatures radiated, objects left near the deep fat fryer could
catch fire.
 Overheated fat and oil can ignite and catch fire. Never leave the
deep fat fryer unattended. Do not attempt to extinguish burning oil or
fat with water.
Switch the appliance off and carefully smother the flames with a fire
blanket or with the fryer lid.
 Fire hazard!
Never use naked flames, e.g. an ignited lighter, near the deep fat
fryer.
 Do not cover the deep fat fryer, e.g. with a cloth or protective foil.
The material could catch fire, shatter or melt if the appliance is
switched on by mistake or if residual heat is still present.
The frying basket must only be covered using the cover supplied
with the appliance.
 You could burn yourself on the hot deep fat fryer. Protect your
hands with heat-resistant pot holders or gloves when handling hot
pots and pans. Do not let them get wet or damp, as this causes heat
to transfer through the material more quickly with the risk of scalding
or burning yourself.
 When using an electrical appliance, e.g. a hand-held food blender,
near the deep fat fryer, ensure that the cable of the electrical appli-
ance cannot come into contact with the hot deep fat fryer. The insu-
lation on the cable could become damaged.
 The heater element must be lowered before the deep fat fryer is
switched on.

Warning and Safety instructions
11
 Do not pour hot fat from frying into plastic containers. These will
melt at high temperatures. Only use heat-resistant containers for hot
fat.
 The deep fat fryer must only be used when it has been filled with
oil and without the cover on it.
 Clean or change dirty oil or fat in good time. Oil or fat containing
impurities is liable to catch fire.
 Do not dispose of used cooking oil down the sink. It can damage
pipework and cause blockages in the water pipes.
Dispose of it safely with your household food waste, or ask your
local authority about disposal schemes in your area.
 Handling and cooking food correctly is essential for maintaining
good health. Pｌrease read the tips in "Using the fryer" later on in
this booklet.
 Where several CombiSets are installed side by side:
Hot objects can damage the seal of the cover strip between the ap-
pliances. Do not place hot pans near or on the cover strip.

Warning and Safety instructions
12
Cleaning and care
 Do not use a steam cleaning appliance to clean this deep fat fryer.
The steam could reach electrical components and cause a short cir-
cuit.

Caring for the environment
13
Disposal of the packing mater-
ial
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the manufactur-
ing process and also reduces the
amount of waste in landfill sites.
Disposing of your old appli-
ance
Electrical and electronic appliances of-
ten contain valuable materials. They
also contain specific materials, com-
pounds and components, which were
essential for their correct function and
safety. These could be hazardous to hu-
man health and to the environment if
disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local com-
munity waste collection / recycling
centre for electrical and electronic ap-
pliances, or contact your dealer or
Miele for advice. You are also respons-
ible by law for deleting any personal
data that may be stored on the appli-
ance being disposed of. Please ensure
that your old appliance poses no risk to
children while being stored prior to dis-
posal.

Guide to the appliance
14
Deep fat fryer
a
b
d
e
f
i
h
c
g
aFrying basket
bHandle (folds away, removable)
cHanging facility
dBracket for hanging the frying basket
on
eHeating element (can be raised up)
fDrain tap
gIndicators
hControl knob
iOil reservoir

Guide to the appliance
15
Indicators
jIn-operation indicator
kTemperature indicator light
lResidual heat indicator
Accessories supplied
The accessories supplied with your ap-
pliance as well as a range of optional
ones are available to order from Miele
(see "Optional accessories").
Fryer lid
Cover to protect the oil reservoir after
use.
Frying basket
Fryer lid
Cover to protect the oil reservoir after
use.

Using for the first time
16
Please stick the extra data plate for
the appliance supplied with this doc-
umentation in the space provided in
the "After sales service, data plate,
guarantee" section of this booklet.
Remove any protective wrapping and
stickers.
Cleaning the CombiSet for the
first time
Fill the oil reservoir to the max.
marker with water (approx. 4litres)
and add a little washing-up liquid.
Turn the control knob in a clockwise
direction to 130°C and bring the wa-
ter briefly to the boil.
Switch the deep fat fryer off and drain
the water off into a heat-resistant
container (see "After frying").
Leave the appliance to cool down
and then raise the heating element.
Wipe the oil reservoir and all other
surfaces of the appliance with a
damp cloth and then dry them.
Close the drain tap.
Switching on the CombiSet for
the first time
The metal components have a protect-
ive coating which when heated for the
first time will give off a slight smell and
possibly some vapours.
The smell and any vapours given off do
not indicate a faulty connection or ap-
pliance and they are not hazardous to
health.

Operation
17
Fryer lid
To remove the fryer lid press the
cover on the left or right hand side
with your finger .
Use your other hand to lift the cover
up at the back .
Do not replace the lid until the deep
fat fryer is cold. Danger of burning!
Control knob
Do not turn the control to "0" by
turning it past 200°C.
Switching on
Fire hazard.
Do not leave the deep fat fryer unat-
tended when you are using it!
Do not switch the deep fat fryer on
when it is empty or with the heating
element raised up.
Turn the control clockwise to the re-
quired temperature.
The in-operation indicator and the tem-
perature indicator will light up. The re-
sidual heat indicator will light up after a
certain temperature has been reached.
The temperature indicator light will
switch on and off intermittently in con-
junction with the heating element. It
will only light up when the heating ele-
ment is on.
Switching off
Turn the control anti-clockwise to 0.

Operation
18
Residual heat indicator
If the deep fat fryer is still hot, the resid-
ual heat indicator will light up after it
has been switched off.
The residual heat indicator remains on
until the deep fat fryer is cool enough to
touch.
Danger of burning.
Do not touch the deep fat fryer while
the residual heat indicator is on.
Before frying
Do not use the fryer lid when deep
fat frying.
Only use oil and fat that has a high
flash point. Liquid or solid fat can be
used.
Never mix different types of oil or fat
together.
The oil reservoir must be filled with suf-
ficient oil or fat for frying (at least 3litres
or 3kg, maximum 4litres or 4kg).
Check that the drain tap is closed.
Fill the oil reservoir with oil/fat. Solid
fat should be cut up into small pieces
first.
When re-using fat that has solidified
in the reservoir, make a hole in the fat
as far as the heating element. This al-
lows any water which has collected
under the fat to evaporate.
Turn the control to 100°C and wait
until the fat has melted.
Check the level in the reservoir. This
needs to be between the minimum
and maximum level markers at the
back of the reservoir.

Operation
19
Frying
Set the temperature required (see
chart) and wait until the temperature
indicator goes out for the first time.
The oil has now reached the set tem-
perature.
Carefully lower the frying basket con-
taining the food to be fried into the
hot oil. If the oil froths a lot, lift the
basket out of the oil briefly and then
slowly lower it into the hot oil again.
When the food has cooked, lift the
basket out of the hot oil. Shake the
basket a little to remove any excess
oil, and then hang it on its bracket.
Do not leave food suspended over
the reservoir for too long as steam
from the oil can cause the food to
lose it crispness. Finally, place the
food onto kitchen paper towel to
soak up any excess oil.
Whilst frying food make sure you do
not touch the hot oil. Protect your
hands in particular, e.g. by wearing
heat-resistant oven gloves.

Operation
20
Food, fresh Quantity  [°C]  [min]*
Doughnuts Qty4 170 6–8
Camembert 4 x 1/2 pieces 170 2–3
Raw battered vegetables 400g 170 7–9
Chicken quarters, breaded 2pieces, each
250g
170 8–10
Croquette potatoes 400g 170 pre-fry 2–4
fry 3–5
Apple turnovers Qty 5 170 6–8
Parsley 180 1–2
Chips 400g 170 pre-fry 4–6
fry 2–4
Turkey steaks, unbreaded 2pieces, each
250g
180 3–5
Escalopes 200g 180 5–7
Drop cookies Qty4 170 6–8
Banana fritters Qty 2 170 3–4
Temperature / Frying times in min.
*The frying times given in the chart are only a guide.
