Miele KM 89-2 User manual

Operating instructions for the
KM 89-2 Deep Fryer
]ö
M.-Nr. 03 999 350

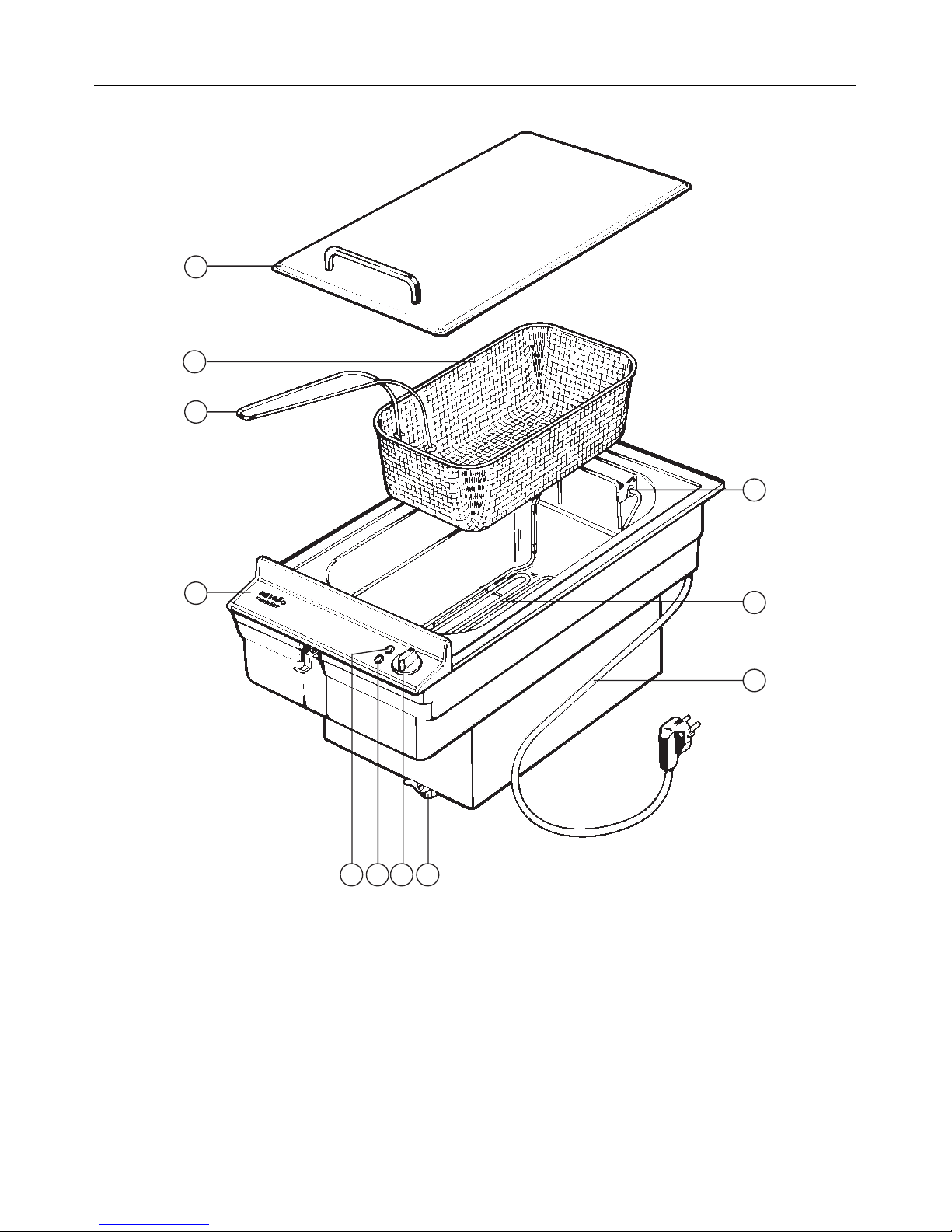

Description of the appliance
1
2
3
4
5
6
7
89
1011
Description of the appliance
2

Description of the appliance
bControl panel
cBasket handle (fold-away, removable)
dFrying basket
eLid
fHeating element hinge with basket
hanging support
gHeating element
hPower cord
iDrain valve
jOn/Off and temperature control
kHeating indicator lamp = (yellow)
lOperation indicator lamp = (white)
Data plate
Because the data plate is no longer
visible once the appliance has been in-
stalled, a 2nd data plate is supplied. It
should be placed into the space pro-
vided on page 13 of these instructions.
Description of the appliance
3

Contents
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Frying
Turning on the Fryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Check the oil level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Correct procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
After frying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Draining the oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Frying chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
After Sales Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

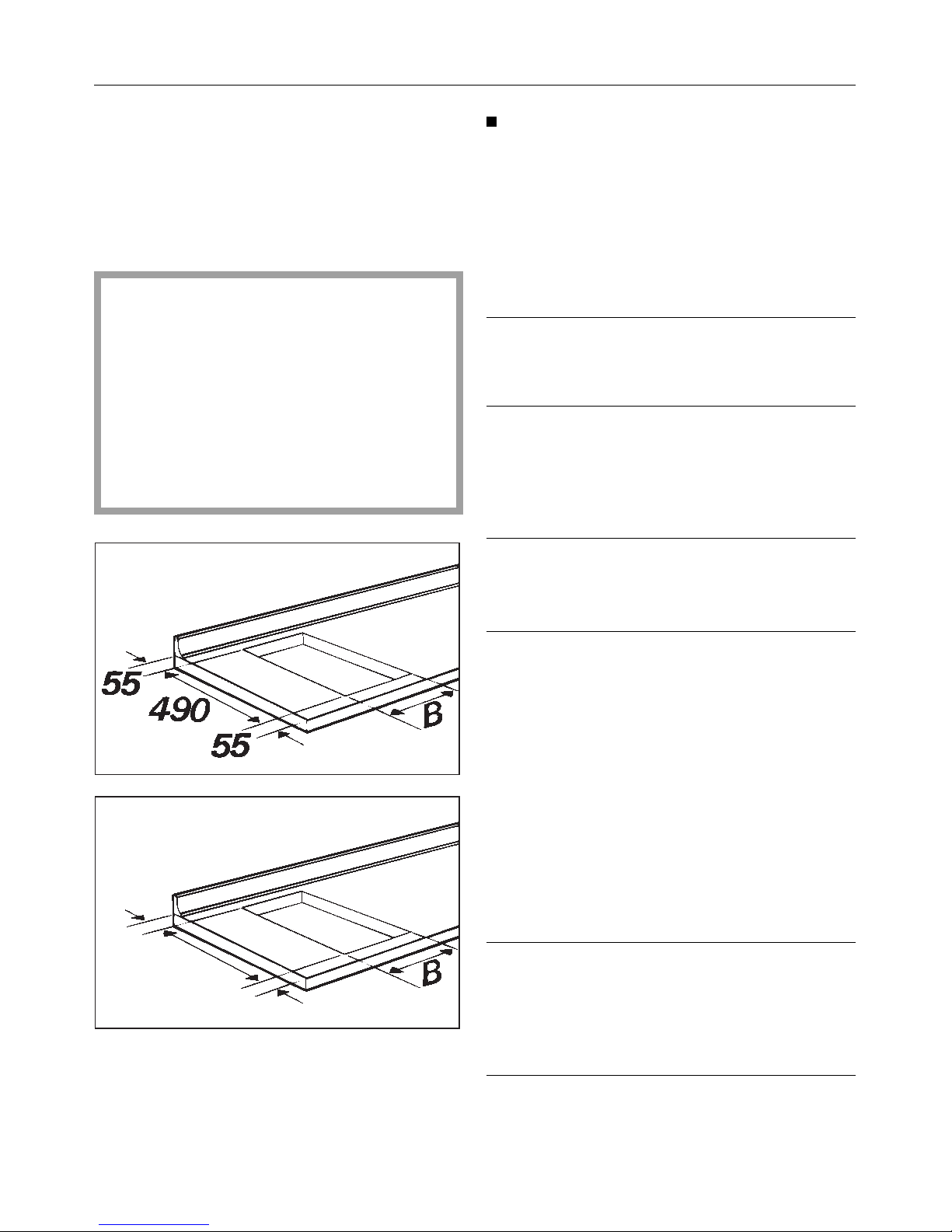

Installation instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contents

Help protect our environment
Disposal of packaging materials
The transport and protective packing is
mostly manufactured from the following
re-usable materials:
. . . Corrugated paper / cardboard -
mostly from recycled materials.
. . . Polyethylene foil (PE) -
partly from secondary raw materials.
Rather than throwing these materials
away, please take them to the nearest
recycling center for specific waste.
Disposal of your old machine
Old machines contain materials which
can be recycled. Please contact your
local recycling center or scrap mer-
chant about potential recycling pro-
grams, before disposing of the ap-
pliance.
Read the notes on page 5 before dis-
posing of the appliance.
Help protect our environment
5

Warning and Safety Instructions
When using your Deep Fryer, follow
basic safety precautions including
the following:
Read all instructions before using
for the first time.
Use the appliance only for its in-
tended purpose.
Be sure your appliance is properly
installed and grounded by a quali-
fied technician or electrician.
Before servicing, disconnect the
power supply by removing the fuse
or tripping the circuit breaker.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective ground-
ing system.
It is imperative that this basic safety re-
quirement is met. If there is any doubt,
have the electrical system of the house
checked by a qualified electrician. The
manufacturer cannot be held respon-
sible for damage caused by the lack or
inadequacy of an effective grounding
system.
Do not connect the appliance to
the main electric supply using an
extension cord. Extension cords do not
guarantee the required safety of the ap-
pliance.
Never use the Fryer to warm or
heat the room.
When using an electrical outlet
near the Fryer, make sure that the
cable does not come into contact with
the heating element of the Fryer.
Do not allow children to operate or
play with or near the Fryer.
Use extreme caution when lifting
the basket or disposing of hot
grease.
Keep all toys stored away from the
Fryer to prevent injury to curious or
playful children.
Please remember that, in use, the
Fryer becomes hot; therefore, en-
sure that children do not touch it.
Do not store items on the Fryer
when not in use.
Do not let cooking grease or other
flammable materials accumulate
on the appliance. Make certain there is
no open flame present when adding oil
to the Fryer.
Allow sufficient time for the ap-
pliance to cool before touching or
exposing surface areas to flammable
materials.
Always cook pork thoroughly to en-
sure that, in the event of trichina,
all bacteria will be killed and the meat
is safe to eat.
Never leave the appliance unat-
tended when cooking with oil or
fat. Very hot oil can cause a fire.
Wear proper apparel – Loose-fitting
or hanging garments should never
be worn while using the appliance.
Warning and Safety Instructions
6

Warning and Safety Instructions
Repairs on electrical appliances
should only be performed by quali-
fied personnel. Do not repair or replace
any part of the appliance unless specifi-
cally recommended in this manual.
Do not use water on grease fires.
Smother any fire or flame or use a
dry chemical or foam-type extinguisher.
Use only dry potholders. Moist or
damp potholders used on hot sur-
faces can result in steam burns. Do not
let the potholder touch the hot heating
elements. Do not use a towel or other
bulky item near the appliance.
Do not store items of interest to
children in cabinets above or be-
hind the Fryer –children climbing on
the Fryer to reach these items could be
seriously injured.
This appliance should only be oper-
ated after being correctly installed.
Always ensure food is sufficiently
cooked or reheated.
Many factors affect overall cooking
time, including the size and amount of
food, its temperature and changes to
the recipe.
Some foods may contain micro organ-
isms which are only destroyed by thor-
ough cooking, therefore it is important
that the food is thoroughly cooked. If in
doubt select a longer cooking or reheat-
ing time.
Do not leave the Fryer unattended
while in use. Over-heated oil can
catch fire. Do not allow an open flame
in the vicinity of the Fryer.
Frying oil can normally be used
6-10 times. Between each use the
oil should be poured through a strainer
lined with a paper towel. Oil containing
impurities may ignite.
Turn on the Fryer only after the lid
is removed and it is filled with oil.
Do not store hot oil in plastic con-
tainers. Plastic melts!
The frying oil is no longer usable
and must be changed when it
becomes dark and thick, smells un-
pleasant and froths, or when it begins
to smoke at a temperature of 340°F
(170°C) or less.
Discard the used and cool oil or
grease in the trash. Do not pour it
down the sink. Oil and grease can
block the drain pipes.
Do not use a steam-cleaner to
clean the Deep Fryer.
The steam could penetrate to electrcal
components and cause a short circuit.
SAVE THESE INSTRUCTIONS AND
REVIEW THEM PERIODICALLY
Text highlighted in boxes is of par-
ticular importance and should be
read in conjunction with the Warn-
ing and Safety instructions.
Warning and Safety Instructions
7

Before using for the first time
Clean the Deep Fryer before using for
the first time.
Fill the oil reservoir with approx.
1 gallon of water and add some dish-
washing liquid.
Turn the control knob clockwise to
265°F (130°C) and bring the water
to a boil. Once it has started to boil,
turn the control knob back to ”0“.
Drain the water using the drain
valve into a heat resistant con-
tainer.
Remember to close the drain valve.
Rinse out the oil reservoir with hot
water.
Raise the heating element and dry
the reservoir with a clean cloth.
To fry, remove the lid and fill the oil
reservoir to the mark with about 3/4 gal-
lon of clean vegetable or frying oil.
The reservoir will hold a maximum
of 1 gallon of oil.
If fat or lard is used: Cut it into small
pieces first.
When re-using solidified fat, poke a few
holes in it as far down as the element.
Melt the fat at a temperature of
212°F (100°C).
When all the fat has melted, set the
Fryer to the desired cooking tem-
perature.
Never turn on the Fryer without oil
or fat in the reservoir, or with the lid
closed.
Before using for the first time
8

Frying
Turning on the Fryer
The control knob should be rotated
clockwise to turn on the Fryer, and
counter clockwise to turn it off. Do
not force the knob or it may break.
Turn the control knob to the desired
temperature.
The white indicator lamp =
illuminates to show that the Fryer is in
operation.
The yellow indicator lamp =
illuminates when the Fryer heating ele-
ments are on.
The yellow indicator lamp goes out
. . . when the selected temperature has
been reached.
When the temperature drops below that
which was selected, the elements and
indicator lamp will turn again.
This process is repeated until the Fryer
is turned off.
Check the oil level
Check the oil level before adding food.
The correct oil level is between the two
marks, located on the back of the reser-
voir.
Correct procedure
Before frying, wipe any moisture off
of the food.
The higher the water content of the
food, the greater the danger of the
oil foaming over.
Set the desired temperature (see
chart on page 10).
When the yellow lamp goes out,
lower the basket containing the food
into the oil.
If the the oil foams excessively, briefly
remove the food from the Fryer.
Never salt food over hot oil.
Frying
9

Frying
After frying
When the food is ready:
remove the basket and shake it
lightly to remove excess oil.
In order to drain the food, the frying
basket can be suspended from the
bracket support of the heating ele-
ment hinge.
Turn the control knob back to ”0“.
The indicator lamp will go out.
Replace the lid after the oil or fat
has cooled.
The frying basket has a handle which
can be folded away when not in use:
Press the sides of the handle
together and fold it into the basket.
The handle can be removed when
cleaning the frying basket.
Draining the oil
Frying oil can normally be used 6-10
times. Between each use, the oil
should be poured through a strainer
lined with a paper towel.
Oil containing impurities may ignite.
There is a drain valve at the base of the
reservoir for draining the oil.
Before draining solid fat, turn the se-
lector to the highest temperature to
liquify the fat. Do not allow the fat to
get too hot.
Be careful not to burn yourself with
the hot oil or fat. Let hot oil cool be-
fore draining.
Place a heat resistant container
under the drain valve.
Open the valve by turning the lever
90°to the right.
To close the valve, turn the lever as
far as possible to the left.
Frying
10

Frying
Frying chart
Food Temperature
°C / °F
Time
in mins
Fish Fillets (Battered)
Scampi (Breaded)
80/180
80/180
6 - 7
4
Chicken Drumsticks
Scotch Eggs
75/170
80/180
16 - 18
6 - 7
Stuffed Mushrooms
Camembert (Breaded)
80/180
75/170
3
5
Potato Croquettes
Chips
Crisps
80/180
80/180
80/180
4
4 - 5
3
Choux Pastry Puffs
Apple Fritters
90/190
90/190
4-5
6
Doughnuts 80/180 5
Please Note: The times shown should serve as a guide - the actual cooking time
will depend on the size and quantity of food being cooked.
Frying
11

Cleaning and Care
The lid / oil reservoir /
frying basket
These can all be cleaned using hot
water with a mild dishwashing liquid.
The lid and basket can be cleaned in a
dishwasher.
Do not use abrasive cleaning
agents, scouring powder, scrapers,
hard brushes or anything abrasive
to clean the Fryer.
See the ”Operation“section for how
to drain the oil before cleaning the oil
reservoir.
To clean the oil reservoir, the heating
element can be swung up and sus-
pended from the bracket on the ele-
ment hinge.
To clean, use a quality stainless steel
cleaner.
Control panel / Control knobs
Do not use any scouring agents or
pads on the knobs or control panel.
Clean the control knob and the control
panel with hot water and dishwashing
liquid.
After cleaning, dry with a soft cloth.
Cleaning and Care
12

After Sales Service
In the event of problems you cannot
correct yourself, please contact:
Your Miele Dealer
or
The Miele Service Department
The address of the nearest Service De-
partment is given on the back page.
When contacting the Service Depart-
ment, please have the Model and Ser-
ial No. of the appliance available. Both
can be found on the data plate.
Space for supplied data plate.
After Sales Service
13

Electrical connection
Electrical connections should be
made by a qualified electrician in
accordance with all local and na-
tional ordinances.
Note to the installer:
Please leave these instructions with
the consumer.
Power supply:
Please check the dataplate for
240 VAC; 60 Hz or
208 VAC; 60 Hz
Caution:
Disconnect the appliance from the
main power supply before servic-
ing. To reduce the risk of electric
shock, make sure that the ap-
pliance is properly grounded after
installation.
WARNING:
THIS APPLIANCE MUST BE
GROUNDED
For CDN only
The appliances are provided with 3 ter-
minal leads: 1 black wire, 1 red wire
and 1 green wire which have to be con-
nected to a separate overcurrent pro-
tection device (fusebox).
All hot wires (black and red) have to be
fused individually before connecting
them to the main power supply leads.
Use 15 Amp fuses for appliances
rated 240 VAC.
Connect black terminal wire to L1
(black) and red terminal wire to L 2
(red) . The green terminal wire (ground)
has to be connected directly to the
equivalent colored power supply lead.
All connections must be done in a
proper way.
ALSO SEE THE WIRING DIAGRAM
PROVIDED WITH THE APPLIANCE.
For USA only
The appliance is provided with 3 termi-
nal leads, 1 black wire (L 1), 1 red wire
(L 2) and 1 green wire (GND) which
must be connected to a dedicated line,
inside of an approved junction box.
Connect the black wire to L 1, the red
wire to L 2 and the green wire to GND.
ALSO SEE THE WIRING DIAGRAM
PROVIDED WITH THE APPLIANCE.
Electrical connection
14

Electrical connections
FOR CANADA ONLY
WARNING: THIS APPLIANCE MUST BE GROUNDED
Miele Fuse Box
Cap
Fuse Holder
Electrical connection
15

Appliance dimensions
(Large numbers denote mm)
11 3/8"
2"
19 5/16"
20 1/16"
8 11/16"
10 7/16"
Appliance dimensions
16

Installation instructions
This appliance is classified as ”Y“class
for heat protection. There may be a wall
at the rear and a wall or tall cabinet at
one side. On the other side, however,
no cabinet or wall must stand higher
than the appliance.
There must be a minimum distance
of 9-7/8" (250 mm) between the ap-
pliance and adjacent cabinetry, be-
cause of the heat radiated from the
elements.
Make certain that the drain tap is ac-
cessible once the appliance is in-
stalled so that the oil can be safely
drained.
Prepare the countertop cut-out as il-
lustrated.
Dimension ”B“will vary depending
on how many combisets are in-
stalled. The following chart gives
Dimension ”B“for a variety of 2 zone
(ie KM 89-2) and 4 zone (ie KM 93-2)
combinations.
Depth
in
mm
Width *
(= Dimen-
sion B)
in mm
2 zone Combiset
1 Combiset
2 Combisets
3 Combisets
4 Combisets
5 Combisets
490
490
490
490
490
265
558
851
1144
1437
4 zone Combiset
1 Combiset
2 Combisets
3 Combisets
490
490
490
560
1143
1728
Combination
One 2 zone
+ one 4 zone
Two 2 zone
+ one 4 zone
Three 2 zone
+ one 4 zone
One 2 zone
+ two 4 zone
Two 2 zone
+ two 4 zone
490
490
490
490
490
851
1143
1437
1436
1729
Extractor (e.g. DA 8-2)
For building in between two appliances:
- Dimension Bincreases by 90 mm.
For building in at the end of a combination:
- Dimension Bincreases by 98 mm.
* Width includes provision for V 98 spacer bar.
23/16˝
19
5
/ 16
˝
2
3
/
16
˝
Installation instructions
17

Installation instructions
Place the provided seal funder the
edge of the Deep Fryer.
bAppliance
cTensioning screw
dClamp
eCountertop
fSeal
Turn the tensioning screws c
counter clockwise until a resistance
is felt, then turn the clamps dto the
left.
Place the appliance into position,
turn the clamps and tighten the ten-
sioning screw until the clamps press
into the countertop e, as shown.
Connect the appliance to the electri-
cal supply.
When installing several Combiset units,
a stainless steel spacer bar must be
placed between the units. It is supplied
with its own installation instructions.
Depth
in
inch
Width *
(= Dimen-
sion B)
in inch
2 zone Combiset
1 Combiset
2 Combisets
3 Combisets
4 Combisets
5 Combisets
19-5/16"
19-5/16"
19-5/16"
19-5/16"
19-5/16"
10-7/16"
22"
33-1/2"
45-1/32"
56-9/16"
4 zone Combiset
1 Combiset
2 Combisets
3 Combisets
19-5/16"
19-5/16"
19-5/16"
22"
45"
68"
Combination
One 2 zone
+ one 4 zone
Two 2 zone
+ one 4 zone
Three 2 zone
+ one 4 zone
One 2 zone
+ two 4 zone
Two 2 zone
+ two 4 zone
19-5/16"
19-5/16"
19-5/16"
19-5/16"
19-5/16"
33-1/2"
45"
56-9/16"
56-1/2"
68-1/16"
Extractor (e.g. DA 8-2)
For building in between two appliances:
- Dimension Bincreases by 3 9/16".
For building in at the end of a combination:
- Dimension Bincreases by 3 7/8".
* Width includes provision for V 98 spacer bar.
loosen tighten
Installation instructions
18

Installation instructions
To reduce the risk of fire or burns caused by reaching over heated surface units,
locating cabinet storage space above these units should be avoided.
If cabinet storage or a range hood is provided, distance A must be at least 30"
(75 cm). A range hood has to extend at least 5" (12,5 cm) beyond the front of the
cabinets.
Installation instructions
19

Alteration rights reserved / 22/ 000 CDN, USA -4098
This paper consists of celluloe which has been bleached without the use of chlorine.
