Miele DA 3160 EXT User manual

Operating and installation instructions
Cooker hoods
DA 3160
DA 3180
DA 3190
DA 3160 EXT
DA 3190 EXT
To avoid the risk of accidents
or damage to this appliance
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 06 681 580
en-GB

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

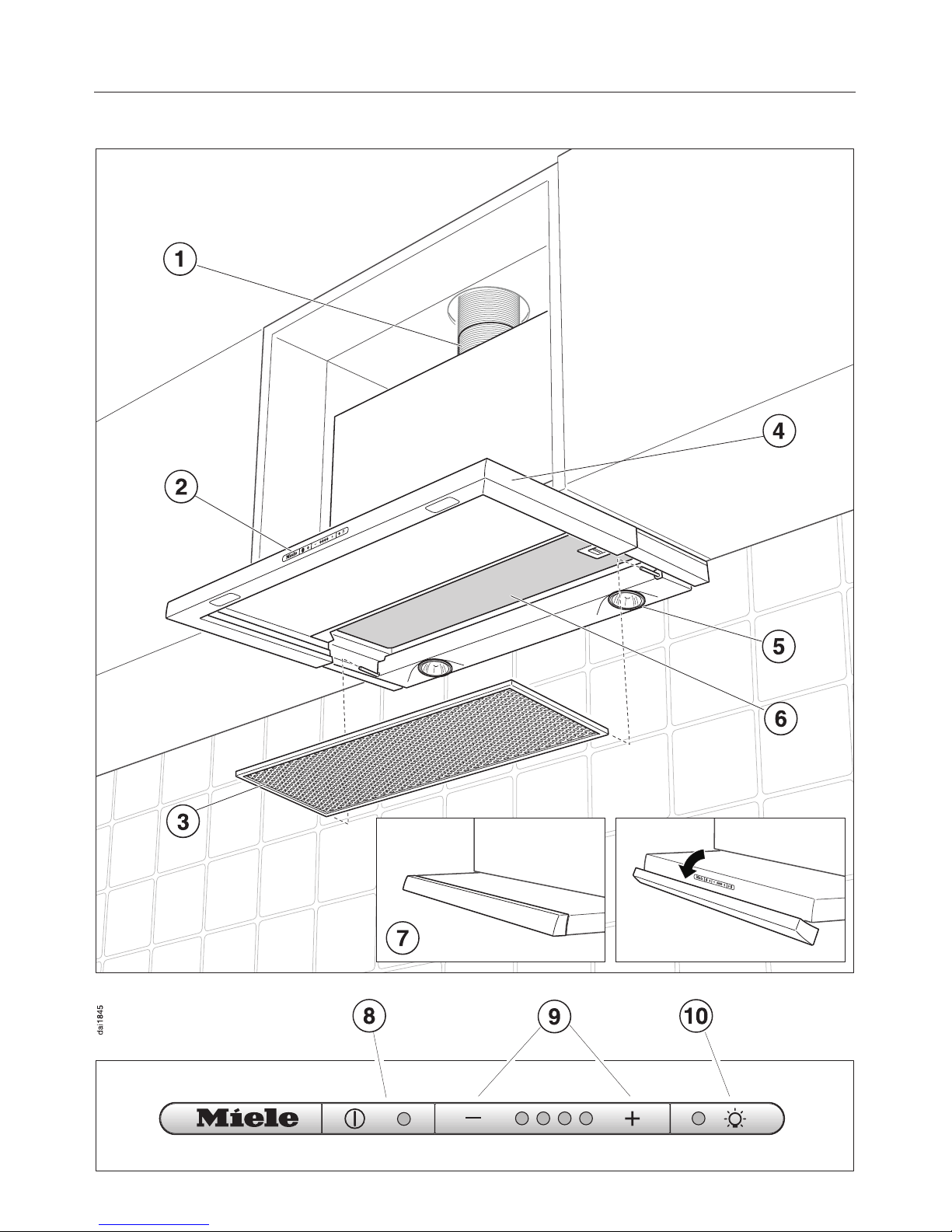

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Housing .........................................................15

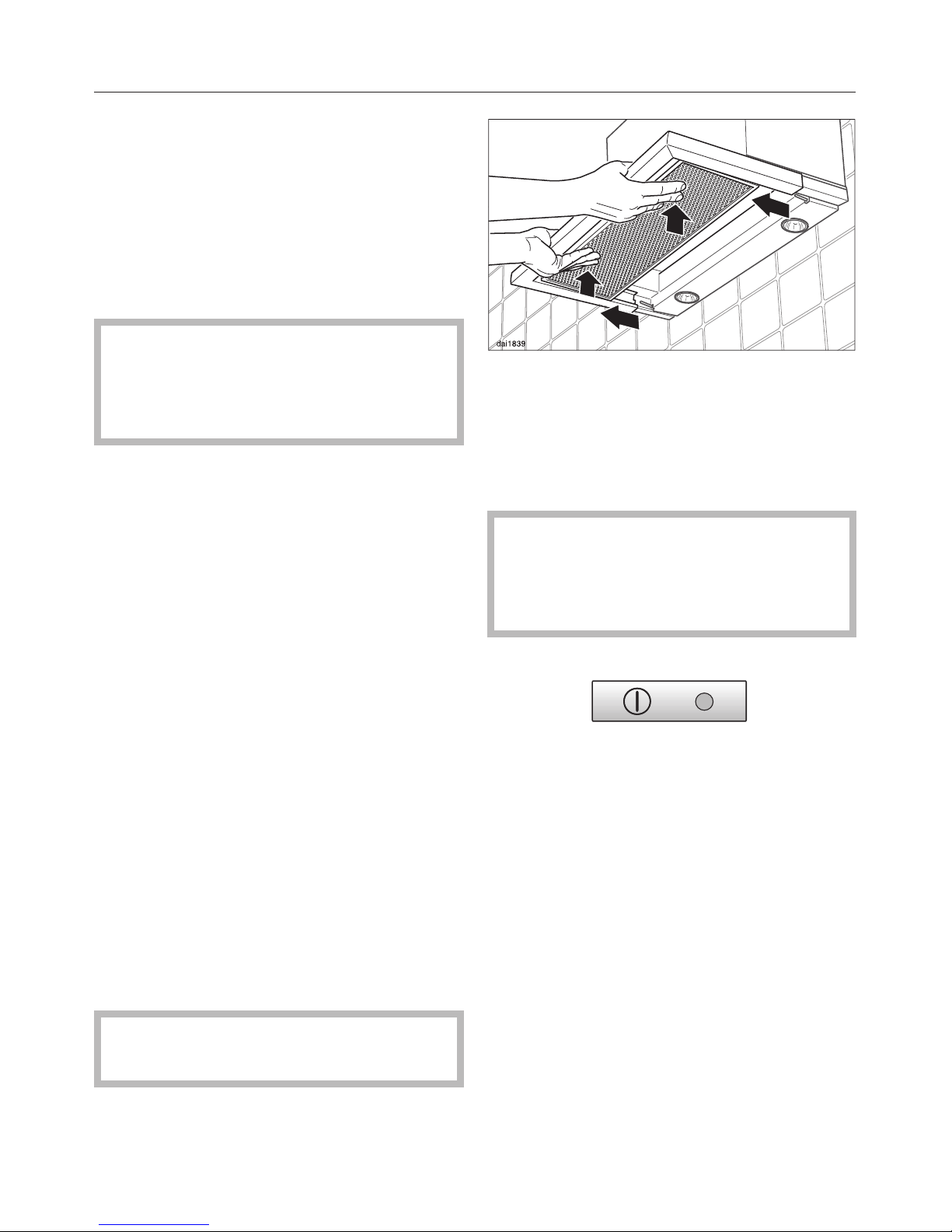

Grease filter ......................................................16
Fitting and replacing the charcoal filter .................................18
Changing a halogen lamp ...........................................19

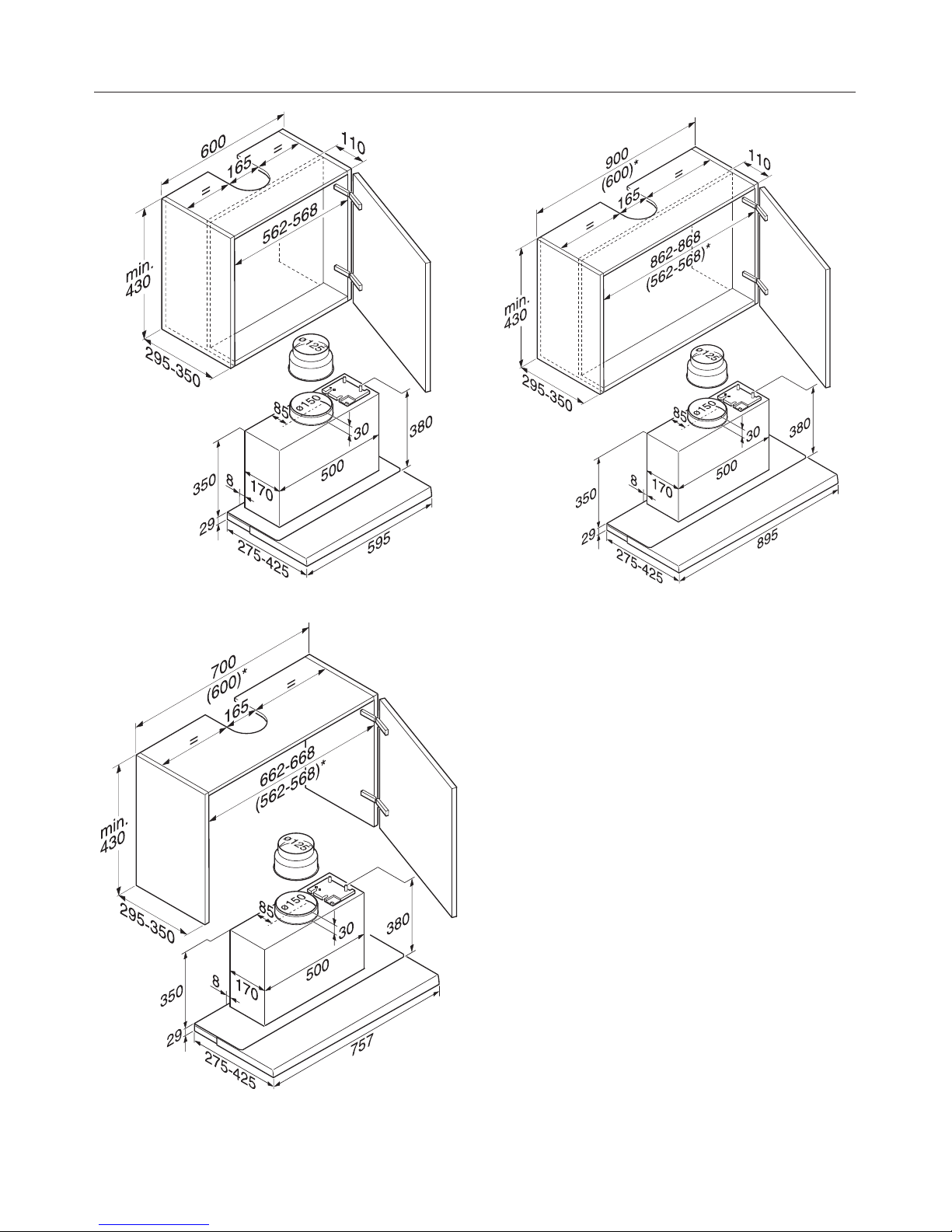

Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation accessories .............................................22
Positioning the appliance in the wall housing unit.........................25
Set up for extraction mode ..........................................29
Set up for recirculation mode ........................................30
Electrical connection ...............................................30
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Condensate trap ..................................................32
Silencer .........................................................32
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation with DSM 400 control module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Connection to a window contact switch ..............................34
Potential free connection .........................................34
Connection to a light switch .......................................35
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Contents
2

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Dispose of or recycle all packaging
materials safely as soon as possible.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This appliance is intended for
domestic use only.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions.
~This appliance is not a toy! To avoid
the risk of injury, keep children well
away and do not allow them to play with
it or to use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the cooker
hood only when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~Please be aware that on cooker
hoods with halogen lighting, the lamps
will get very hot during use and remain
hot for some time after switching off. To
safeguard against burning, keep
children well away from the lamps at all
times.
Technical safety
~Before installation, check the cooker
hood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. A damaged
appliance is dangerous.
Warning and Safety instructions
4

~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
– it is switched off at the isolator, or
– the screw-out fuse is removed (in
countries where this is applicable), or
–the mains fuse is disconnected, or
–it is switched off at the wall socket
and the plug withdrawn, or
–the fuse from the fused spur
connection unit is withdrawn.
Warning and Safety instructions
5

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For appliances with an external fan
motor fitted (...EXT models) the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
~This appliance may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the cooker hood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
6

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the cooker
hood and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the cooker hood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
"Corgi" installer, must be sought.
One of the following technical
measures may be necessary to ensure
safe operation.
–If the only way of ensuring adequate
ventilation is via an open window, a
window contact switch should be
fitted to ensure that the cooker hood
can only operate when the window is
opened sufficiently. A window
contact switch kit is available from
good builders' merchants.
Take care when ventilating the room
through an open window that
ventilation is not impaired by a
closed blind or curtain.
– The cooker hood can be set up to
automatically switch on an air intake
fan or open a motorised inlet flap
when it is switched on.
– The cooker hood can be set up to
automatically switch off a heating
appliance which also depends on
the air from the room when it is
switched on.
The Miele DSM 400 control module
offers the possibility of combining other
components with the cooker hood (see
"Operation with Control module DSM
400").
It is available to purchase as an
optional extra.
If in any doubt, the advice of a
competent builder or, for gas, a
"Corgi" installer, must be sought.
If the hood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
7

Correct use
~Never use an open flame beneath
the cooker hood. To avoid the danger
of fire, do not flambé or grill over an
open flame.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
~When using the cooker hood over a
gas hob, ensure that any burners in use
are always covered by a pan. Switch
the cooking zone off when a pan is
removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
~Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
~Do not use the cooker hood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~Do not use a steam-cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Correct installation
~Refer to the cooker or hob
manufacturer's instructions as to
whether a cooker hood may be
operated above the cooker/hob.
~The minimum safety distances
between the top of the cooker or hob
and the bottom of the cooker hood
given in the "Appliance dimensions"
section of this booklet must be
maintained, unless the hob
manufacturer states that a greater
safety distance is required.
If more than one cooking appliance is
fitted beneath the cooker hood, and
they have different minimum safety
distances to the cooker hood, select
the greater distance.
Warning and Safety instructions
8

~Follow the cooker or hob
manufacturer's instructions on the use
of flammable materials over the
cooker/hob when installing a wood or
laminate lightshield onto the cooker
hood.
~Safety regulations prohibit the fitting
of a cooker hood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Guide to the appliance
10

aExhaust socket ø 150 mm
bControl panel
cGrease filter
dPull-out deflector plate
eHob lighting
fCharcoal filter
(extra accessory available to order
for recirculation mode)
gDrop-down lightshield to conceal
control panel
The front of the deflector plate can
be fitted with a lightshield to match
your kitchen furniture (max. weight
1300 g.).
The DA 3160 and DA 3190 can be
fitted with a DFB 61 or DFB 91
lightshield, available as an optional
accessory.
hOn/Off touch control for the fan
iControls to select fan power level
jLighting touch control
Guide to the appliance
11

The cooker hood works with
. . . air extraction:
The air is drawn in, cleaned by the
grease filter and then directed outside.
If the on-site ventilation system does
not have a non-return flap, then the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
. . . air recirculation:
(air recirculation conversion kit
required)
The air is drawn in and cleaned first by
the grease filter and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen.
Charcoal filters are available to order
through your Dealer or the Miele Spare
Parts Department or via the internet on
www.miele-shop.com. (See back cover
for contact details and "Technical Data"
for model number).
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filter is in place; see
"Cleaning and care".
...anexternal motor:
(EXT models only)
The EXT models are designed to be
connected to an external motor located
outside the room.
The external motor is connected to the
cooker hood by means of a control
cable, and is operated by the controls
on the cooker hood.
Description of the functions
12

The cooker hood is operated by pulling
out and pushing in the deflector plate.
To switch the fan on
^Pull out the deflector plate.
The fan will begin to operate at setting II.
The On/Off indicator lamp and the 2nd
–/+power level indicator lamp will
light up.
If the cooker hood has been
connected to a window contact
switch via the Miele DSM 400 control
module, then the fan cannot be
switched on if the window is shut.
The indicator lamp will flash.
To select a power level
^Use the –/+controls to select the
power level required.
The indicator lamps show which power
level has been chosen.
Depending on the intensity of the
cooking vapours, levels I to III (green
indicator lamps) are usually sufficient
for normal cooking.
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting (yellow indicator
lamp) for a short period.
Pull the deflector plate right out to
achieve optimum extraction and to
prevent unnecessary noise levels.
To switch the fan off
^Push the deflector plate back in. The
next time the deflector plate is pulled
out, the cooker hood will operate at
power level II again.
or
^Press the On/Off touch control for the
fan
All the indicator lamps will go out.
To switch the lighting on
^Pull out the deflector plate.
or
^Press the touch control for the
lighting again.
When the lighting is switched on, the
indicator lamp lights up.
To switch the lighting off
^Push the deflector plate back in.
or
^Press the touch control for the
lighting.
The indicator lamp will go out.
Operation
13

Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the hob lighting must be switched off
and the deflector plate pushed in.
^Press the –and +touch controls at
the same time for approx. 10
seconds until the first power level
indicator lamp lights up in the
display.
^Then press, one after the other,
–the hob lighting touch control,
–then the –touch control, and
–the hob lighting touch control again.
The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off of the Intensive setting is not
activated.
^Press the +touch control to activate
automatic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –touch control to
deactivate the automatic switch-off
function.
^Press the On/Off touch control to
confirm.
Safety cut-out
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off control will
switch the fan back on again.
Operation
14

Before any cleaning or maintenance
work is carried out, disconnect the
cooker hood from the mains supply.
Ensure that:
– it is switched off at the wall socket
and the plug is withdrawn, or
– the fuse is withdrawn from the
fused spur connection unit, or
– the mains fuse is disconnected ,or
– the screw-out fuse is removed
(in countries where this is
applicable).
A microfibre “E-Cloth” is available from
the Miele UK Spare Parts Department,
which is suitable for cleaning surfaces
such as stainless steel, glass, plastic
and chrome without the use of
chemicals. It can be washed 300 times.
Housing
General notes
Warning: The surfaces and controls
are susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using warm water with a
little washing-up liquid applied with a
well wrung-out soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
with a proprietary non-abrasive cleaning
agent designed specifically for use on
stainless steel.
To help prevent re-soiling, a proprietary
conditioning agent for stainless steel
(available from the Miele UK Spare Parts
Department or via the internet on
www.miele-shop.com) can also be used.
Follow the manufacturer’s instructions,
and apply sparingly with an even
pressure in the direction of the "grain".
Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long. Remove
soiling straight away.
Observe the General notes on cleaning
earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Cleaning and care
15

Important for DFB aluminium
lightshields
(optional accessory)
Aluminium is affected by the way that
light falls on it, by the surrounding
environment and by the angle you
observe it from.
Aluminium surfaces may suffer
discolouration or damage if soiling is
left on them for too long. Remove
any soiling straight away.
Observe the General notes on cleaning
earlier in this section.
Do not use:
– stainless steel cleaners,
– cleaning agents containing
descaling agents,
– dishwasher detergent,
– oven sprays.
Grease filter
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapours (grease, dust, etc)
preventing soiling of the cooker hood.
To avoid a build-up of fat, it should be
cleaned every 3-4 weeks on average,
but sooner if necessary.
An oversaturated filter is a fire
hazard.
^Grip the front of the deflector plate
together with the grease filter, and
pull outwards as shown.
^Then pull the filter downwards to
remove.
To avoid damaging the filter or the
hob below, make sure you hold the
filter securely at all times when
handling it.
^Press the On/Off touch control to
switch the fan off.
Cleaning and care
16

Cleaning the grease filters by hand
^Clean the filters with a soft nylon
brush in a mild solution of hot water
and a little washing-up liquid.
Do not use "neat" washing up liquid.
Do not use:
–cleaning agents containing
descaling agents,
–powder cleaners, cream cleaners or
abrasive all-purpose cleaning
agents,
–oven sprays.
Cleaning the grease filters in the
dishwasher
Place the filters with the short side
upright in the lower basket, and wash
on a 65°C programme using a mild
dishwasher detergent, ensuring the
spray arm is not obstructed.
Depending on the cleaning agent
used, cleaning the grease filter in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filter in any way.
^After cleaning, leave the filter to dry
for a while on an absorbent surface
before putting it back in place.
^When removing the filter for cleaning,
also clean off any residues of oil or
fat from the now accessible housing
to prevent the risk of these catching
fire.
^When putting it back, make sure that
the red plastic guides are at the
front and facing upwards.
^Replace the grease filter in the front
of the deflector plate, press it
upwards and push it in together with
the deflector plate. It will slide onto
the fixing pins at the back. Finally,
push the grease filter back a little
more.
Cleaning and care
17

Fitting and replacing the
charcoal filter
If the cooker hood is connected for
recirculation, a charcoal filter (optional
accessory) must be inserted in addition
to the grease filter.
This is designed to absorb cooking
smells.
It is fitted in the canopy above the
grease filter.
Replacement charcoal filters can be
obtained from your dealer or the
Miele Spare Parts department or via
the internet on www.miele-shop.com.
See back cover for contact details,
and "Technical data" for type and
reference number.
Follow the instructions supplied with the
charcoal filter when fitting it.
Replace the charcoal filter at least
every six months or more frequently if
necessary.
Used charcoal filters can be disposed
of with the normal household waste.
Cleaning and care
18

Changing a halogen lamp
^Pull out the deflector plate, and
remove the grease filter as described
earlier.
^Switch off the fan and the lighting.
Exercise caution when changing
halogen lamps. They get very hot
during use, and remain hot for some
time after being switched off. Do not
touch the surface directly when
changing a lamp, as grease
particles from your fingers will
adhere to the surface and damage
it. Please follow the manufacturer’s
instructions.
^Remove the charcoal filter if the
cooker hood is being used in
recirculation mode.
Before any cleaning or maintenance
work, disconnect the cooker hood
from the mains supply. Ensure that
– it is switched off at the wall socket
and the plug is withdrawn, or
– the fuse is withdrawn from the
fused spur connection unit, or
– the mains fuse is withdrawn,or
– the screw-out fuse is removed
(in countries where this is
applicable).
^Push down the lighting unit slightly
via the opening in the safety panel.
^The halogen lamp is now accessible
to be unscrewed anti-clockwise.
Replace with a halogen lamp of the
same specification:
PHILIPS GZ 10, 230 V, 50 W, 50°.
^Screw the new lamp into the socket,
and push it upwards.
^Replace the grease filter and, if being
used in recirculation mode, the
charcoal filter.
Cleaning and care
19

DA 3160
DA 3180*
DA 3190*
– The front section of the wall housing
unit must be fitted with a shelf to the
depth of the partition wall.
–The partition wall in the wall unit must
be removable.
* Installation is also possible in a
600 mm wide unit.
Appliance dimensions
20
