Miele DA 2250 EXT User manual

Operating and Installation instructions
Rangehood
DA 2250, DA 2250 EXT
DA 2270, DA 2270 EXT
DA 2210
To avoid the risk of accidents
or damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 202 270
en - AU, NZ

Caring for the environment..........................................3
Warning and Safety instructions .....................................4

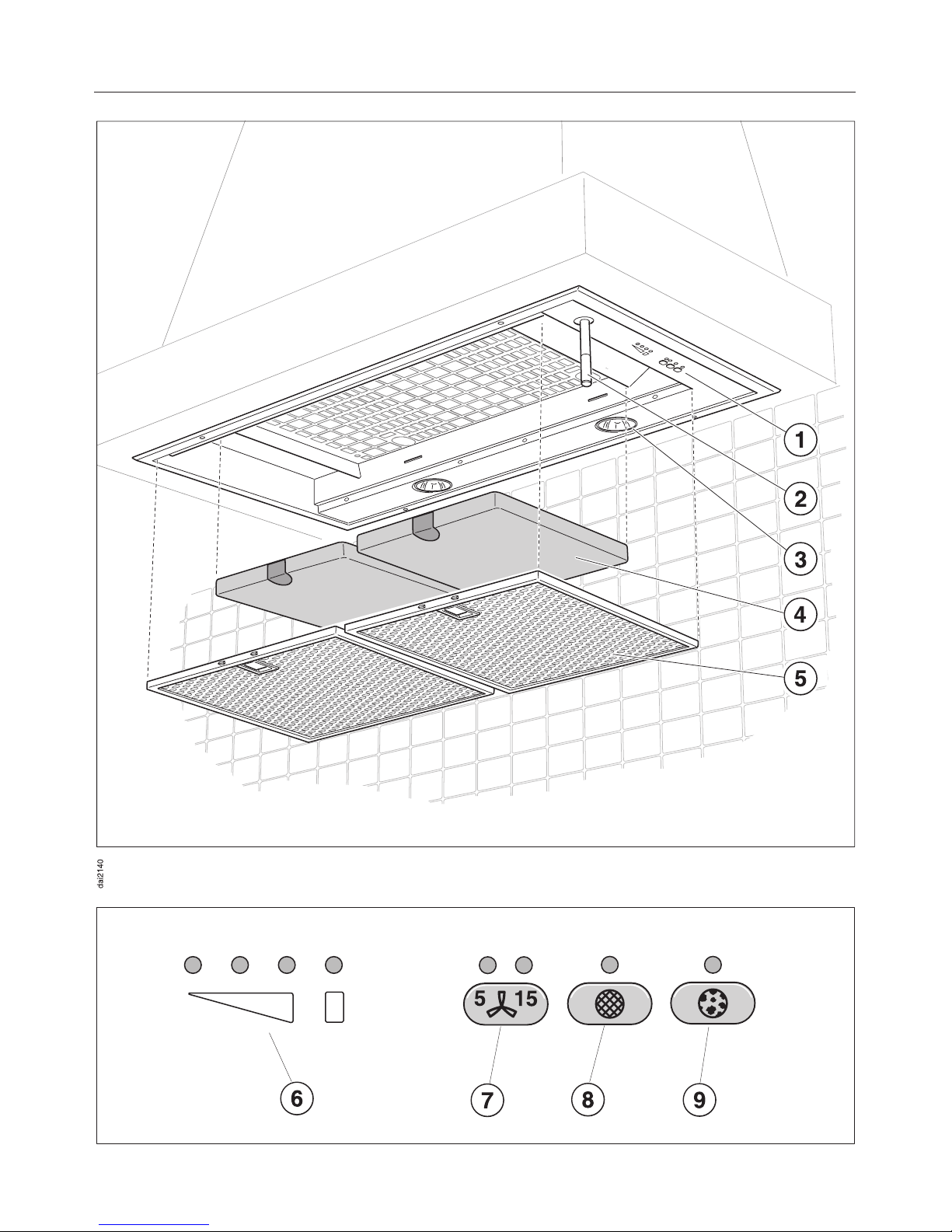

Guide to the appliance ............................................10
Modes of operation ...............................................12
Operation .......................................................13

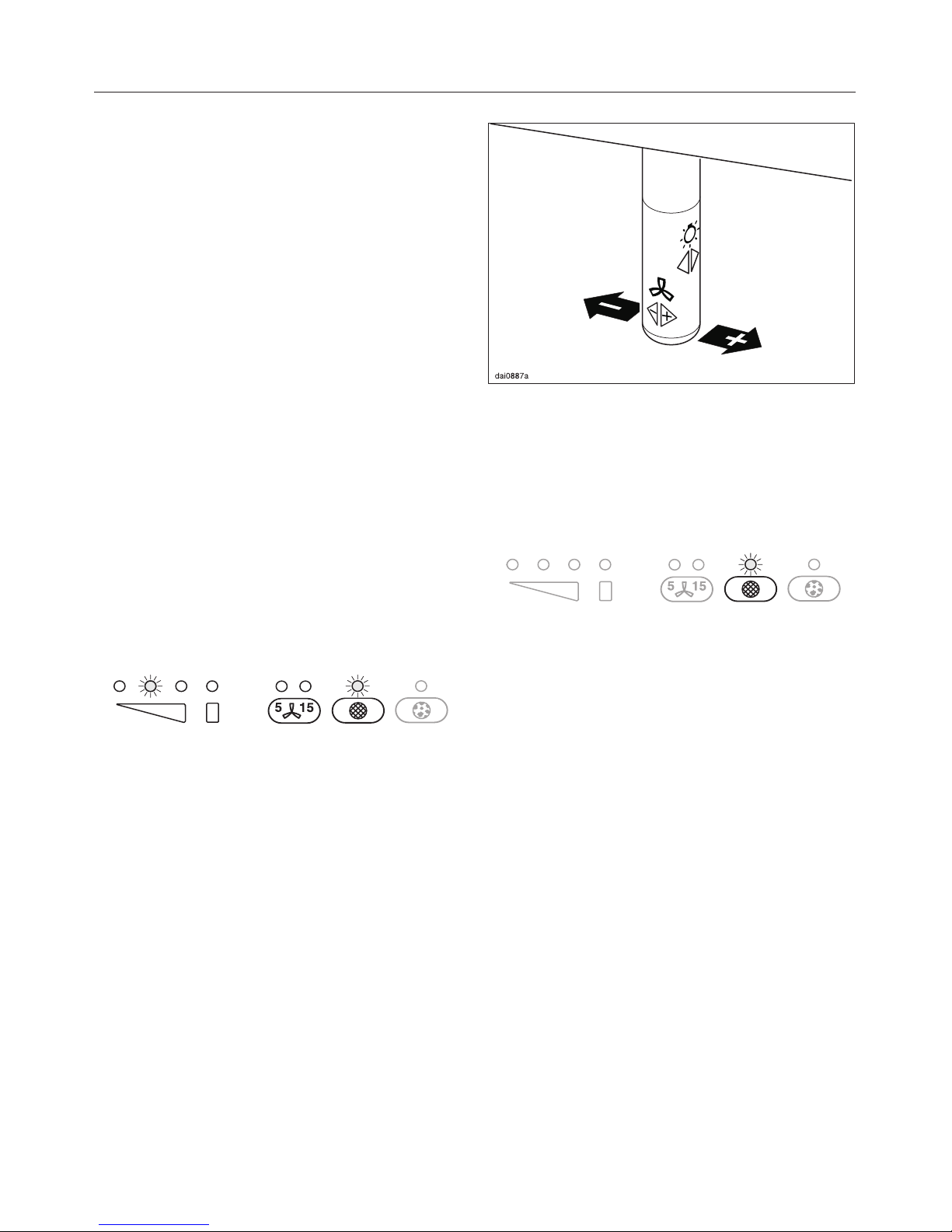

Joystick .........................................................13
To switch the fan on .............................................13
To select a power level ...........................................13
To switch the fan off .............................................13
Automatic switch-off of the Intensive setting ..........................14

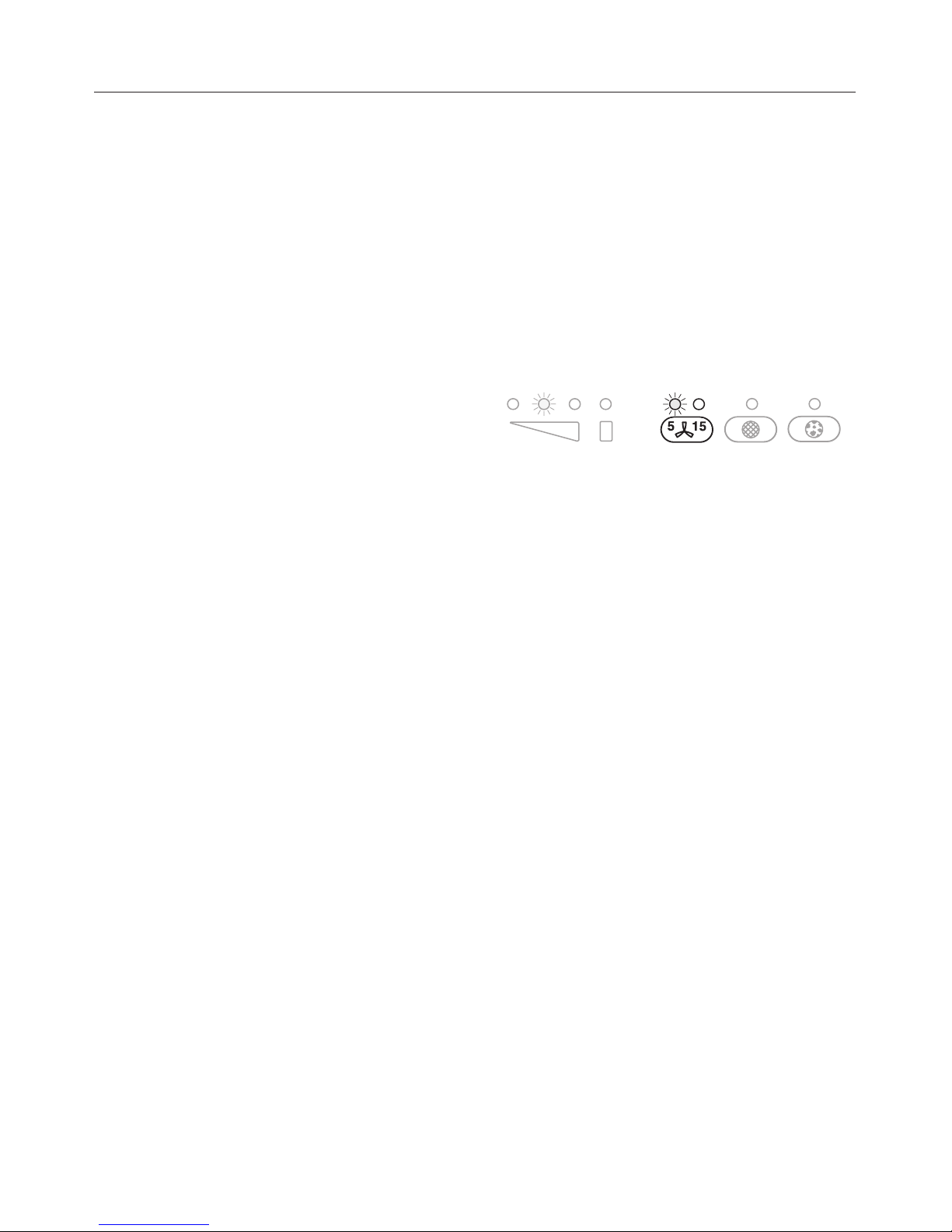

Run-on option ....................................................14
To switch the cooktop lighting on ...................................15
To dim the cooktop lighting .......................................15
To switch the cooktop lighting off ...................................15
Filter operating hours counter ........................................16
Cleaning and care ................................................20
Housing .........................................................20
Grease filters .....................................................20
Fitting and replacing the charcoal filters ................................22
Changing a halogen lamp ...........................................24
After sales service ................................................25
Appliance dimensions.............................................26
Safety distance between cooktop and rangehood......................27
Installation ......................................................28
Connection for air extraction .......................................33
Condensate trap ..................................................34
Silencer .........................................................35
Electrical connection..............................................36
Operation with Control module DSM 400 .............................37
Potential free connection .........................................37
Connection to a light switch .......................................37
Technical data ...................................................38
Contents
2

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on the
safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This rangehood is designed for
domestic use and for use in similar
environments by guests in hotel or motel
rooms, bed & breakfasts and other
typical living quarters. This does not
include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~It must only be used to extract
vapours and remove odours from
cooking.
~This appliance is not suitable for
outdoor use.
Any other usage is at the owner's risk.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions. This appliance is not a toy!
To avoid the risk of injury, keep children
well away and do not allow them to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
rangehood only when its operation has
been clearly explained to them and
they are able to use it safely. They must
be aware of the potential dangers
caused by incorrect operation.
~Please be aware that on
rangehoods with halogen lighting, the
lamps will get very hot during use and
remain hot for some time after switching
off. To safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
4

Technical safety
~Before installation, check the
rangehood for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance is
dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond to the on-site
electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly and, where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
– it is switched off at the mains fuse,
– the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the wall socket
and the plug is withdrawn from the
socket, or it is switched off at the
isolator.
If the appliance is connected via a
plug: Do not pull the mains
connection cable but the mains plug
to disconnect your appliance from
the mains electricity supply.
Warning and Safety instructions
5

~Do not connect the appliance to the
mains electricity supply via a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For appliances with an external fan
motor fitted (...EXT models), the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
~This rangehood must not be
installed and operated in mobile
installations (e.g. on a ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the warranty.
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the rangehood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas cooktops or ovens which draw air
in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
6

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the extractor can only
be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder must be
sought.
If the rangehood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
7

Correct use
~Never use an open flame beneath
the rangehood. To avoid the danger of
fire, do not flambé or grill over an open
flame.
When switched on, the rangehood
could draw flames into the filter. Fat
particles drawn into the rangehood
present a fire hazard.
~When using the rangehood over a
gas cooktop, ensure that any burners in
use are always covered by a pan.
Switch the cooking zone off when a pan
is removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The rangehood can become damaged
when exposed to excessive heat.
~Always switch the rangehood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc., do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the rangehood on fire.
~Do not use the rangehood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The rangehood can get very hot
during cooking due to heat rising from
the cooktop.
Do not touch the housing or the grease
filters until the rangehood has cooled
down.
~Do not use a steam cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Warning and Safety instructions
8

Correct installation
~Refer to the rangehood or cooktop
manufacturer's instructions as to
whether a rangehood may be operated
above the cooktop.
~The minimum safety distances
between the top of the cooktop and the
bottom of the rangehood given in the
"Appliance dimensions" section of this
booklet must be maintained, unless the
cooktop manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is
fitted beneath the rangehood, and they
have different minimum safety
distances to the rangehood, select the
greater distance.
~Safety regulations prohibit the fitting
of a rangehood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from Miele or
from builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this rangehood. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the warranty, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Guide to the appliance
10

aControl panel
bJoystick
This is used to operate the fan settings
and the lighting.
cCooktop lighting
dCharcoal filters
Special accessory for recirculation
mode
DA 2250, DA 2270: 2 filters
DA 2210: 4 filters
eGrease filters
fFan setting indicator lamps
gTouch control for the run-on
option
To activate the run-on option. The fan
can be set to continue running, and to
switch off automatically after either 5 or
15 minutes.
hTouch control for the grease filter
The indicator lamp for the grease filters
lights up when the grease filters need
to be cleaned.
The touch control is used to reset the
operating hours counter every time the
grease filters are cleaned (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.

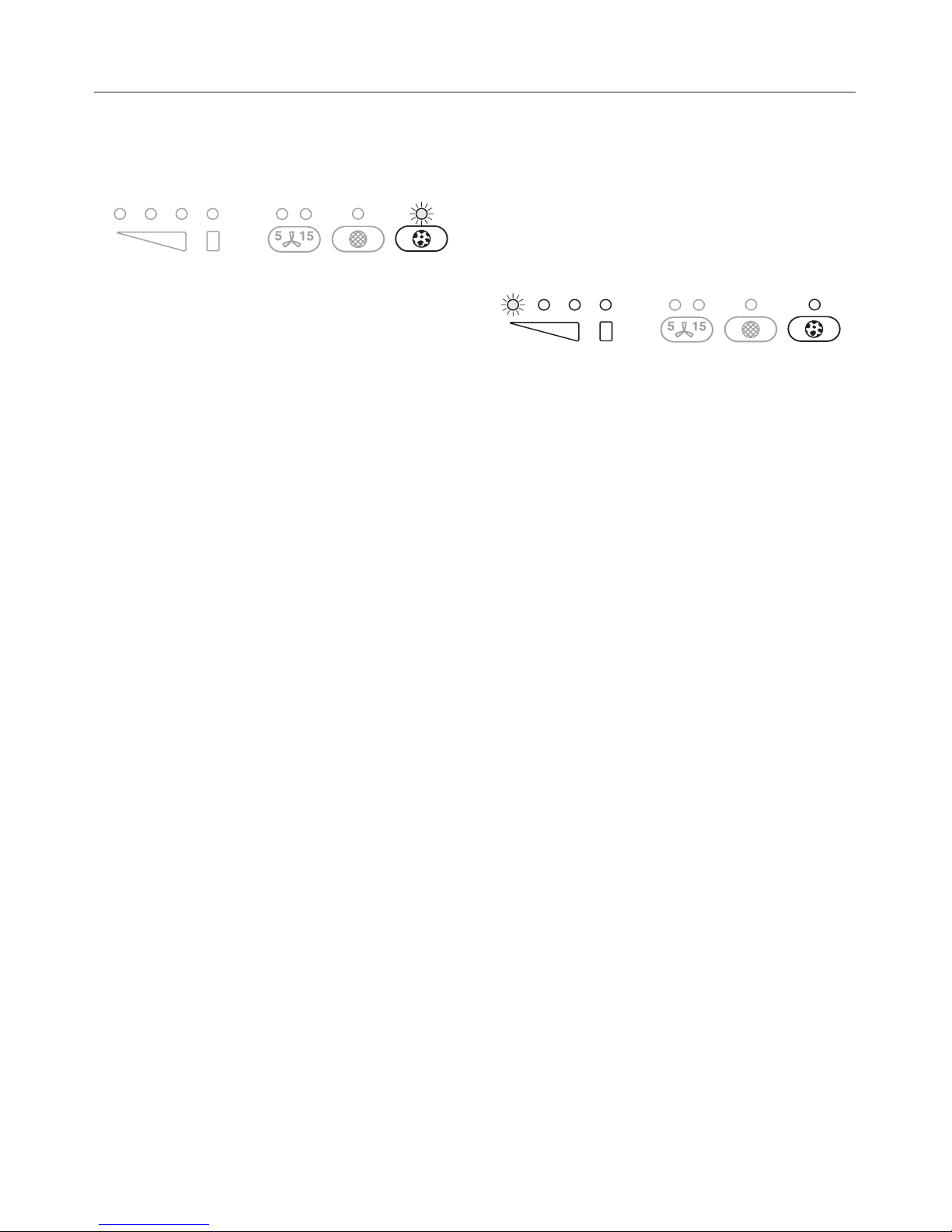

iTouch control for the charcoal
filter
The indicator lamp for the charcoal filter
lights up when the charcoal filters used
in recirculation mode needs to be
replaced. For this to happen, the
operating hours counter needs to be
activated before the appliance is used
for the first time.
The touch control is used to reset the
operating hours counter every time the
charcoal filters are replaced (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.
For information about using the
appliance, see "Operation".
Guide to the appliance
11

The rangehood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
If the on-site ventilation system does
not have a non-return flap, then the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
The DA 2210 has two motors and
requires two non-return flaps to be
fitted.
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the rangehood
is switched off.
When the rangehood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
Please note, the performance of
this rangehood hinges greatly on
the installed ducting to vent the
vapours. Poor choice of ducting
results in poor rangehood
performance. For ducting
recommendations, please refer to
the relevant section in these
operating instructions or contact a
specialised installer.
. . . air recirculation:
(requires a conversion kit and charcoal
filters: see "Technical Data")
The air is drawn in and cleaned first by
the grease filters and then by the
charcoal filters (2 on the DA 2250, DA
2270 and 4 on the DA 2210). The
cleaned air is then recirculated back
into the kitchen.
Before using the rangehood in
recirculation mode, ensure that the
charcoal filters are in place. See
"Cleaning and care".
...anexternal motor:
(EXT models only)
EXT models are designed to be
connected to an external motor located
outside the room.
The external motor is connected to
the rangehood by means of a
control cable, and is operated by
the controls on the rangehood.
Modes of operation
12

Joystick
This is used to operate the fan settings
and the lighting.
To switch the fan on
^Press the joystick once to the right.
The fan will come on at power level lI.
The second fan power level indicator
lamp will light up.
To select a power level
^Press the joystick repeatedly to the
right to select a higher power level,
and to the left to select a lower power
level.
The relevant power level indicator lamp
will light up.
Depending on the intensity of the
cooking vapours, levels "I" to "III" are
usually sufficient for normal cooking.
Intensive setting
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, you may wish
to select the Intensive Setting "IV".
To switch the fan off
^Press the joystick repeatedly to the
left until the fan switches off and the
power level indicator lamps have all
gone out.
or
^Press and hold the joystick to the left.
The power level indicator lamps will
go out.
Operation
13

Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the cooktop lighting must be
switched off.
^Press the run-on option control for
approximately 10 seconds. The first
power level indicator lamp will light
up.
^Press the joystick
–once to the rear or to the front. The
second indicator lamp will light up,
– then press the joystick once to left.
The third indicator lamp will light up,
– then press the joystick once to the
left or to the front.
The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off for the Intensive setting is not
activated.
^To activate automatic switch-off,
press the joystick once to the right.
The indicator lamps for power levels
"I" and "IV" will light up constantly.
^To deactivate automatic switch-off,
press the joystick once to the left.
^Press the control for the run-on
option to confirm the selection and
to come out of programming mode.
Run-on option
It is advisable to run the fan for a few
minutes after cooking has finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
^After cooking has finished, press the
run-on option control whilst the fan is
still running.
– Press once = The fan will switch off
after 5 minutes (left-hand indicator
lamp).
– Press twice = The fan will switch off
after 15 minutes (right-hand indicator
lamp).
^To switch off the run-on option, press
the run-on option control again. The
appliance will then not switch off
automatically.
Operation
14

To switch the cooktop lighting on
The cooktop lighting can be switched
on and off independently of the fan.
^Press the joystick once to the rear or
to the front to switch it on.
To dim the cooktop lighting
The brightness of the lighting can be
adjusted.
^With the lighting switched on, press
and hold the joystick to the rear or
the front.
The brightness will gradually dim until
you release the joystick.
^Pressing and holding it again will
gradually increase the brightness
until you release it.
^If you keep the joystick pressed in,
the light will continually change
between bright and dim.
To switch the cooktop lighting off
^Press the joystick again once to the
rear or to the front to switch it off.
Safety cut-out
Should the rangehood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the joystick once to the right
will switch the fan back on again.
Operation
15

Filter operating hours counter
The number of hours the appliance has
been in operation is stored in memory.
The operating hours counter tells you
when the grease filters or charcoal
filters need to be cleaned or replaced.

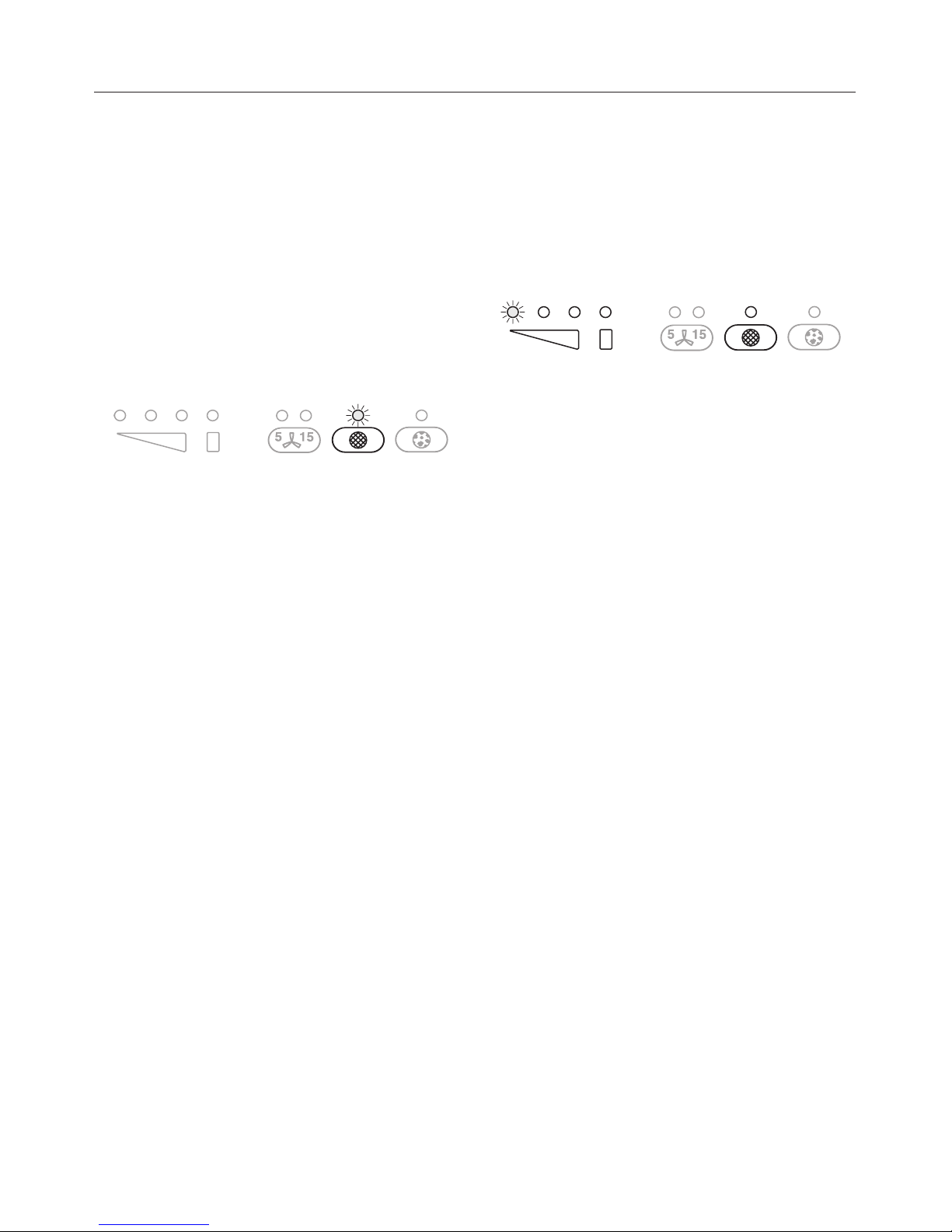

Resetting the grease filter operating
hours counter
After 30 hours of operation (or another
time if the operating hours counter has
been altered), the grease filter indicator
lamp will light up. The grease filters
must then be cleaned.
Afterwards, the grease filter operating
hours counter must be reset.
^To do this, press and hold the grease
filter control for approximately
3 seconds while the fan is switched
on.
The indicator lamp for the grease filter
control will go out.
Reading the grease filter operating
hours counter
To check the percentage of time set
already used:
^Switch the fan on with the joystick.
^Press and hold the grease filter
control.
One or several of the power level
indicator lamps will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
16

Altering the grease filter operating
hours counter
The operating hours counter for the
grease filter is set at the factory for 30
hours. This can be lengthened or
shortened to suit the type of cooking
you do. You can choose 20, 30, 40 or
50 hours.
–Select a short time if you roast or fry
a lot.
–If you use very little fat for cooking,
select a longer time.
–If you only cook occasionally, we
recommend that you still select a
short time because grease which has
built up gradually over a long period
of time will harden on the filter and
make cleaning more difficult.
^Switch the fan off with the joystick.
^Press the run-on option control and
the grease filter control at the same
time.
The indicator lamp for the grease filter
touch control and one of the power
level indicator lamps will flash.
The power level indicator lamps show
the time which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the joystick to select the time
required.
Press to the left for a shorter
operating time, or to the right for a
longer time.
^Confirm the selection by pressing the
grease filter control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the "old" data.
Operation
17

Activating and altering the charcoal
filter operating hours counter
(in recirculation mode)
The charcoal filters must be fitted for
the rangehood to be used in
recirculation mode.
On delivery, the operating hours counter
for the charcoal filter is deactivated.
For recirculation mode, the operating
hours counter needs to be set to suit
the type of cooking you do:
^Switch the fan off with the joystick.
^Press the run-on option control and
the charcoal filter control at the same
time.
The indicator lamp for the charcoal filter
control and one of the power level
indicator lamps will flash.
The power level indicator lamps show
the time which has been set:
1st lamp from the left = 120 hours
2nd lamp from the left = 180 hours
3rd lamp from the left = 240 hours
4th lamp from the left = unlimited
^Use the joystick to select the time
required.
Press to the left for a shorter
operating time, or to the right for a
longer time.
^Confirm the selection by pressing the
charcoal filter control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the "old" data.
Operation
18

Resetting the charcoal filter
operating hours counter
The indicator lamp for the charcoal filter
control will light up after the rangehood
has operated for the number of hours
set. The charcoal filters must be
replaced with new ones.
Afterwards, the charcoal filter operating
hours counter must be reset.
^Press and hold the charcoal filter
control for about 3 seconds while the
fan is switched on.
The indicator lamp for the charcoal filter
control will go out.
Reading the charcoal filter operating
hours counter
To check the percentage of time set
already used:
^Switch the fan on with the joystick.
^Press and hold the charcoal filter
control.
One or several of the power level
indicator lamps will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
19

,Before any cleaning or
maintenance work is carried out,
disconnect the rangehood from the
mains supply. Ensure that:
– it is switched off at the isolator, or
– it is switched off at the wall
socket and the plug removed, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed
(in countries where this is
applicable).
A range of Miele branded cleaning and
conditioning agents are available to
order through your Miele Chartered
Agent, from Miele or via the internet at
www.miele-shop.com.
Housing
The surfaces and controls are
susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using the Original Miele
all purpose microfibre cloth, or with
warm water and a small amount of
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents.
These will damage the surface
material.
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
rangehood.
To avoid a build-up of grease, the
grease filters should be cleaned
regularly (at least every 3-4 weeks), but
always clean immediately if the grease
filter indicator lamp comes on.
,An oversaturated filter is a fire
hazard.
Cleaning and care
20
