Warning and Safety instructions
3
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both
personal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety
instructions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
 This cooker hood is intended for use in domestic households and
similar working and residential environments.
 The cooker hood is not intended for outdoor use.
 It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
 Where a recirculation cooker hood is fitted above a gas hob,
please ensure that there is an adequate supply of fresh air into the
room in which it is installed. Please seek the advice of a qualified gas
fitter (e.g. GasSafe in the UK) for more information if necessary.

Warning and Safety instructions
4
 The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
 Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
 Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
 Children must not be allowed to clean or maintain the cooker
hood unsupervised.
 Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
 The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
 Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.

Warning and Safety instructions
5
Technical safety
 Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
 A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
 The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
 Reliable and safe operation of this cooker hood can only be
assured if it has been connected to the mains electricity supply.
 The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
 Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.

Warning and Safety instructions
6
 For safety reasons, this appliance may only be used after it has
been built in.
 The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
 Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
 The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
 Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
 If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
 During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.

Warning and Safety instructions
7

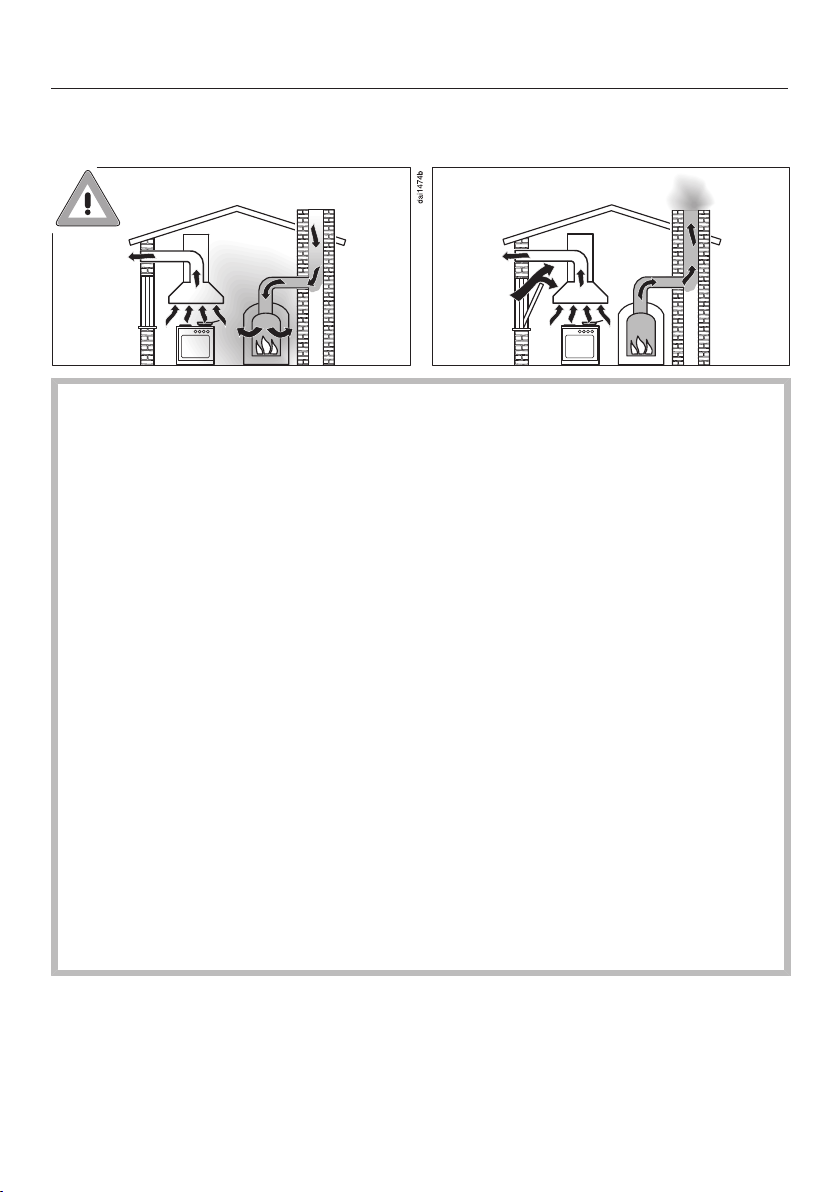

Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas hobs and ovens.

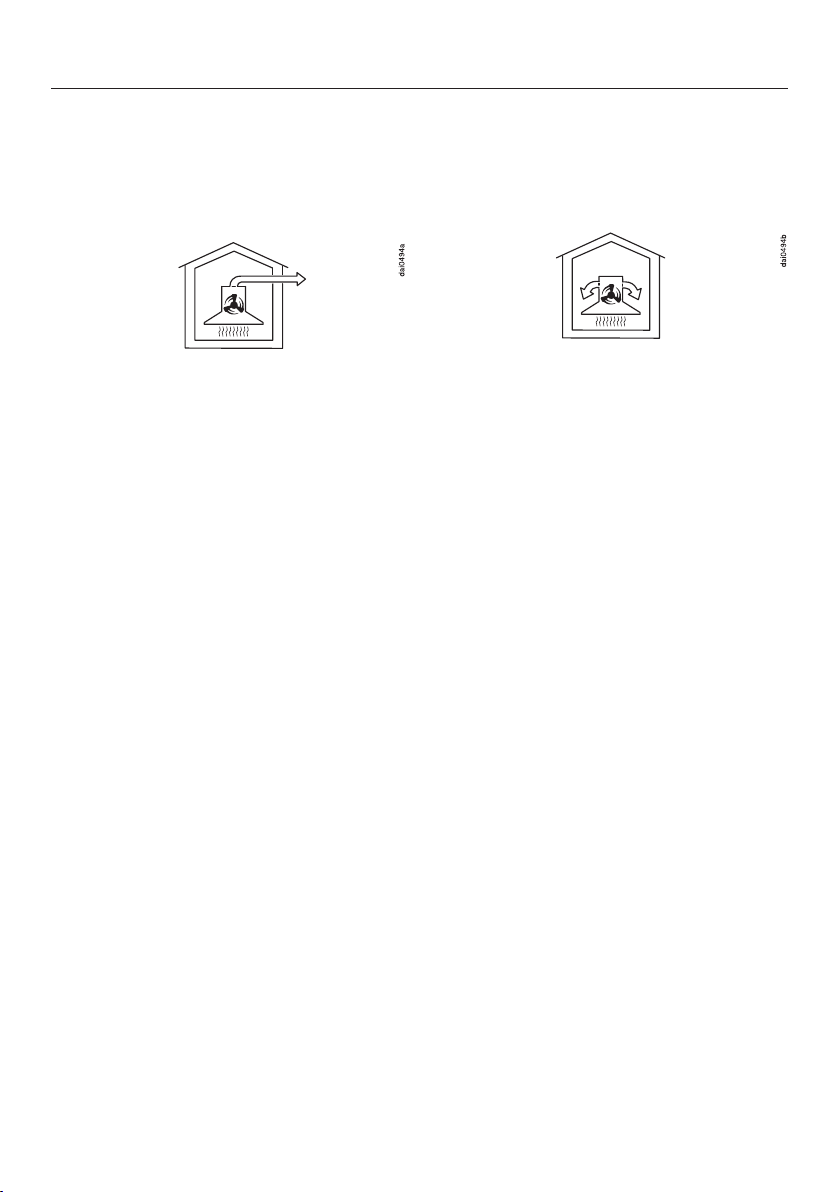

The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
– Extraction mode
– Recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, negative pressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!

Warning and Safety instructions
8
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, ask a competent building regulations
inspector or qualified gas fitter (if appropriate).
If the cooker hood is being operated in recirculation mode,
whereby the air is redirected into the room in which it is installed,
the above restrictions do not apply.

Warning and Safety instructions
9
Correct use
 Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
 The cooker hood can become damaged when exposed to
excessive heat.
– When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
– Select a pan which is suitable for the size of the burner.
– Regulate the flame so that it does not burn up the sides of the
pan.
– Avoid overheating the pan (e.g. when cooking with a wok).
 Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
 Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.

Warning and Safety instructions
10
 Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
 The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Correct installation
 Refer to the cooker or hob manufacturer's instructions as to
whether a cooker hood may be operated above the cooker/hob.
 Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
 An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the cooker or hob
and the bottom of the cooker hood given in the “Installation” section
of this booklet must be maintained, unless the hob manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker
hood, and they have different minimum safety distances to the
cooker hood, select the greater distance.
 The distances given in “Installation” must be observed when
fitting the cooker hood.
 Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
 Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
 The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.

Warning and Safety instructions
11
 If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
 There is a risk of fire if the cooker hood is not cleaned as
described in these operating instructions.
 Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories
 Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.

Caring for the environment
12
Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances, or contact your dealer or
Miele for advice. You are also
responsible for deleting any personal
data that may be stored on the
appliance being disposed of. Please
ensure that your old appliance poses no
risk to children while being stored prior
to disposal.

Modes of operation
13
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Non-return flap
A non-return flap fitted in the vent
system ensures that when the cooker
hood is not in operation the duct is
closed and no exchange of room air
and outside air can take place.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
If the on-site ventilation system does
not have a non-return flap, one is
supplied with the cooker hood. It must
be fitted in the exhaust socket on the
motor unit.
Recirculation mode
Recirculation mode cooker hoods
require a conversion kit and charcoal
filters (see “Technical Data”)
The air is drawn in and cleaned first by
the grease filters and then by the
charcoal filters. The cleaned air is then
recirculated back into the kitchen.

Guide to the appliance
14

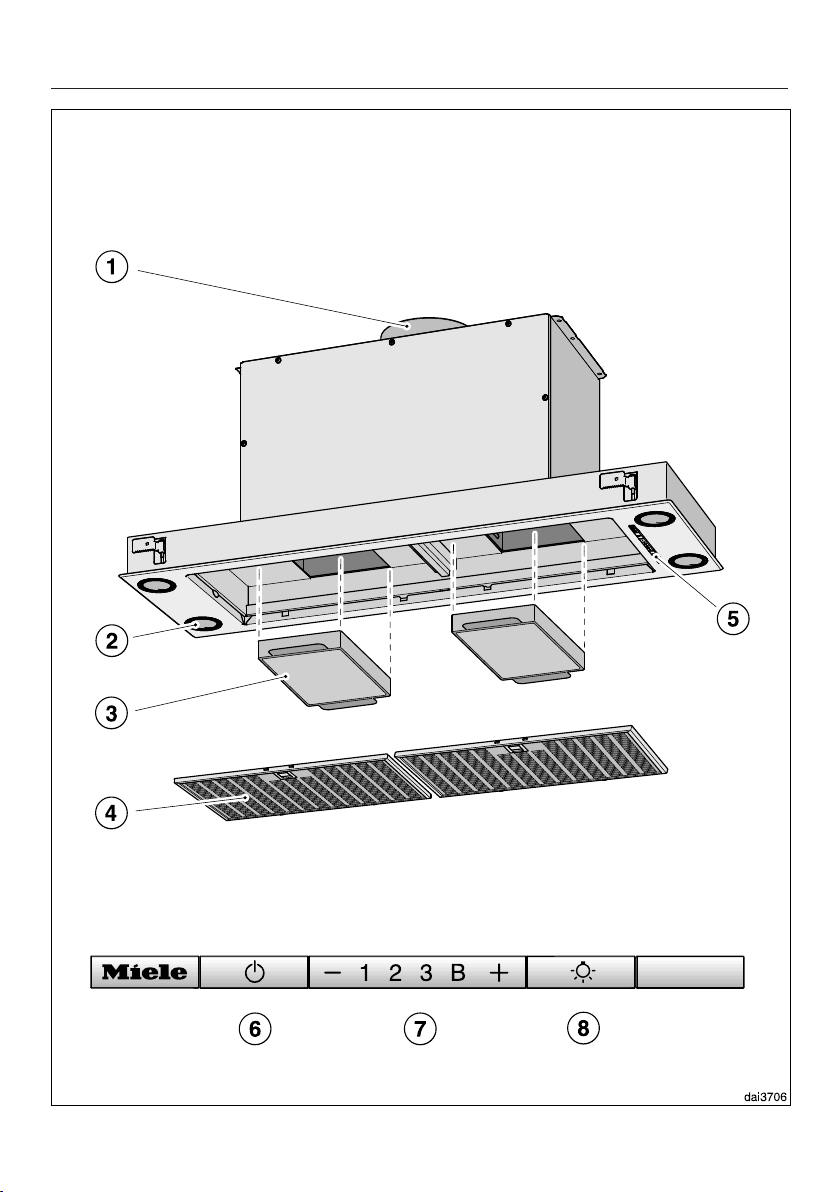

Guide to the appliance
15
aExhaust connection
Extraction ducting can be directed through the back of the cooker hood or
upwards to the ceiling.
bHob lighting
cCharcoal filters (x 2)
Accessories required for recirculation mode
dGrease filters (DA 2360: 1 filter; DA 2390: 2 filters)
eControls
fOn/Off control for the fan
gControls for setting the fan power level
hOn/Off control for the hob lighting

Operation
16
Switching the fan on
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Press the On/Off control .
The fan will switch on at setting 2 and
the  symbol and 2 will light up in the
power setting display.
Selecting the power level
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Select the power level you want by
pressing the  or  control.
Reducing power down from the
Booster setting
If power management is activated
(default setting), the fan automatically
switches back to level 3 after 5minutes.
Run-on time
It is advisable to run the fan for a few
minutes after cooking has finished.
This helps to remove any lingering
vapours and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
Switching the fan off
Press the On/Off control to switch
the fan off.
The  symbol will go out.
Switching the hob lighting on/
off
The hob lighting can be switched on
and off independently of the fan.
To do so press the lighting control.
The  symbol will light up when the
hob lighting is switched on.
Power management
The cooker hood is fitted with a power
management system. Power
management helps to save energy. It
ensures that the fan power level is
reduced automatically and that the
lighting is switched off.
– If the Booster setting has been
selected, the fan will automatically
switch to level 3 after 5minutes.
– From fan power levels 3, 2 or 1, the
power will be reduced by one level
after 2hours and then in 30-minute
stages until the fan finally switches
off.
– The hob lighting will switch off
automatically after 12hours.

Operation
17
Switching Power management on/off
You can deactivate Power
management.
This can result in increased electricity
consumption.
To set this option, both the fan and
the hob lighting must be switched off.
Press the “” and “” controls at the
same time for approx. 10 seconds,
until the 1 lights up.
Then press in turn,
– the lighting control ,
– the “” button and then
– the lighting control  again.
If Power management is switched on,
the 1 and B indicators will light up
constantly.
If it is switched off, 1 and B will flash.
Press “” to switch Power
management off.
The 1 and B indicators will flash.
To switch it on, press “”.
The 1 and B indicators will light up
constantly.
Confirm your choice with the On/Off
control .
All the indicator lamps will go out.
If you do not confirm within 4minutes,
the cooker hood will revert to the old
setting.
Safety switch-off
If Power management has been
deactivated, the cooker hood will
switch itself off automatically after
12hours if it has been left on (fan and
hob lighting).
To switch it on again press the On/
Off control or the lighting
control.

Energy saving tips
18
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the cooker
hood cannot operate efficiently and
this causes increased operating noise
levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and
therefore benefit from reduced
energy consumption.
– Check the power level selected on
the cooker hood. A lower power level
is generally sufficient for the majority
of cooking. Only use the Booster
setting when necessary.
– When a large volume of cooking
vapours is being produced, switch to
a high power level in good time. This
is more efficient than operating the
cooker hood for longer to try to
capture cooking vapours which have
already been distributed throughout
the kitchen.
– Make sure that you switch the cooker
hood off after use.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.

Cleaning and care
19
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply (see “Warning
and Safety instructions”).
Housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride or
solvent.
Do not use any abrasive cleaning
agents, e.g. powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents.
Moisture in the cooker hood can
cause damage.
Make sure that water does not get
into the cooker hood.
All external surfaces and control
elements can be cleaned using hot
water with a small amount of
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Important information for appliances
with stainless steel surfaces
This information does not apply to the
control buttons.
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for the control
elements
If soiling is not removed promptly, it
could cause the control elements to
alter or discolour.
Remove any soiling immediately.
The surface of the control elements
can become damaged if they are
cleaned using stainless steel
cleaning agents.
Do not use stainless steel cleaning
agents on the control elements.

Cleaning and care
20
Grease filters
Fire hazard
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood
and in the kitchen.
Cleaning interval
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease
filters should therefore be cleaned every
3 to 4 weeks.
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter securely
at all times when handling it.
To take out a grease filter, release the
locking clip on the filter, lower the
filter approx. 45°, unhook it at the
back and remove it.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use “neat” washing up
liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
– cleaning agents containing descaling
agents
– powder cleaners, cream cleaners
– aggressive multi-purpose cleaning
agents or spray cleaners for grease
– oven sprays
