Miele DA 211 User manual

Operating and Installation
Instructions
Ventilation System
DA 211
DA 218
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
UV
M.-Nr. 05 802 950

2

IMPORTANT SAFETY INSTRUCTIONS
Guide to the appliance
Functional description
Operation
Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Dimming the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Checking the filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reprogramming the timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and Care
Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

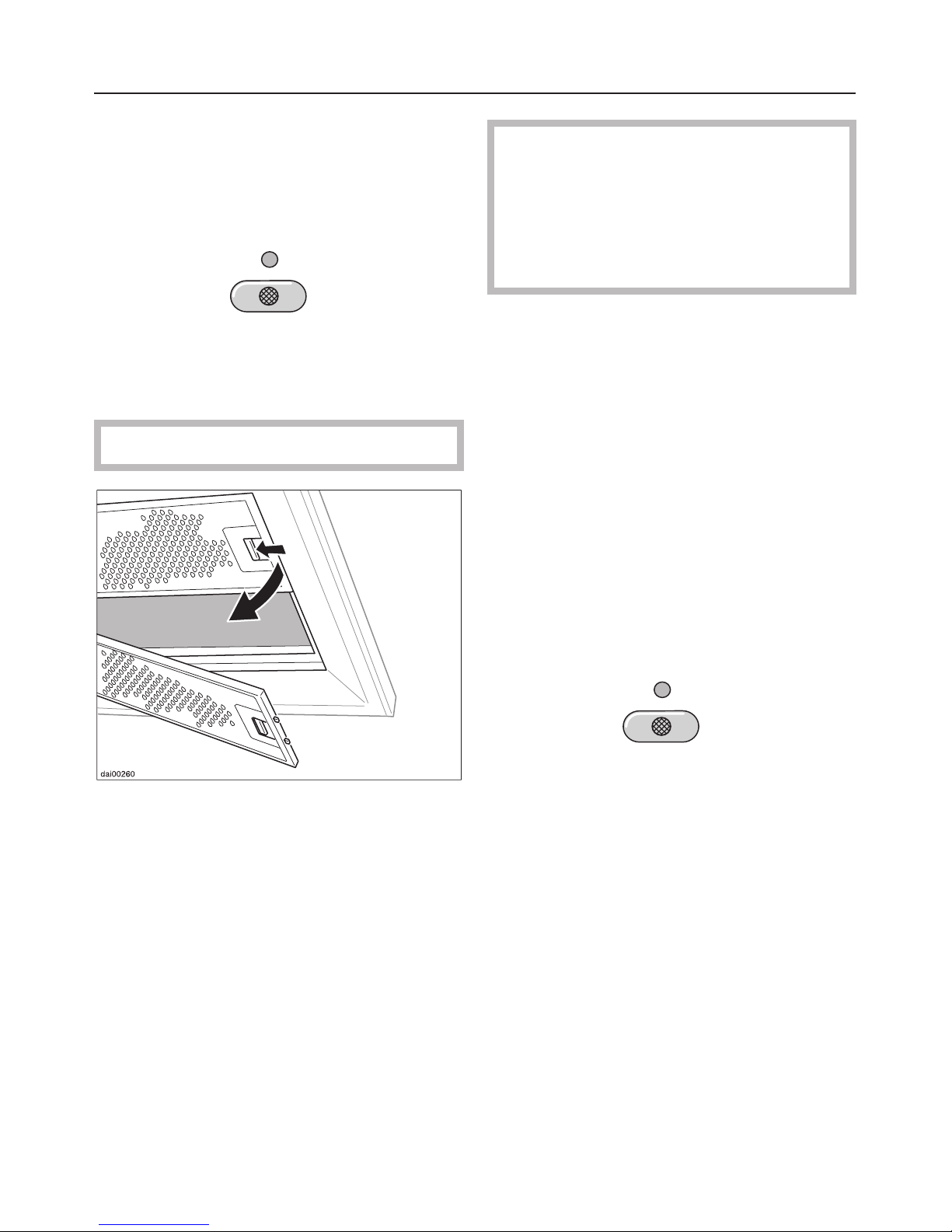

Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Active charcoal filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

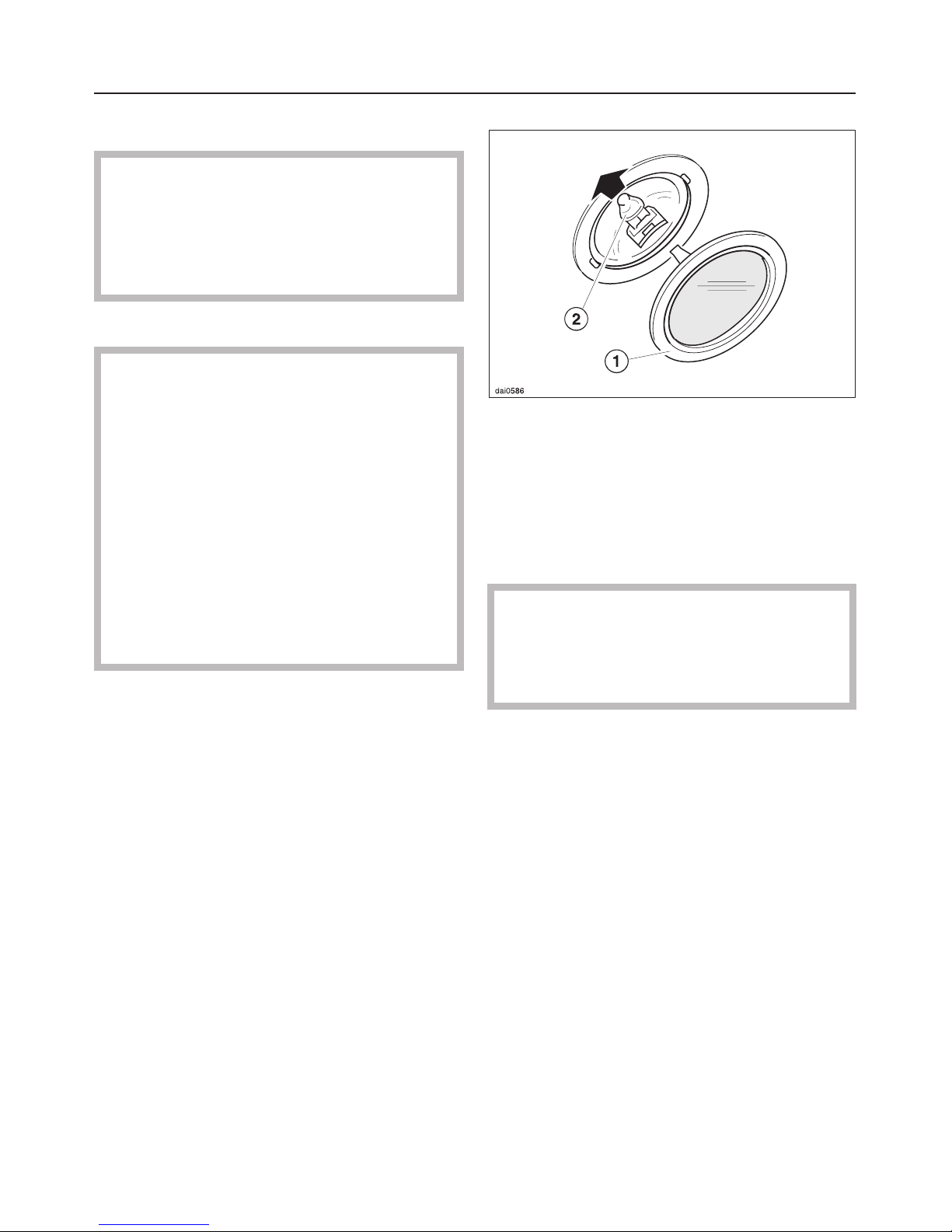

Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
After Sales Service
Installation instructions
Caring for the environment
Installation accessories
Plywood backing
Electrical data
Appliance dimensions
Installation
Retaining plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Attaching the canopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Inserting the non-return flap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Air extraction exhaust connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Recirculation connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Attaching the chimney extension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Air extraction
Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Contents
3

Read these Operating Instructions carefully before installing or
using the Ventilation System.
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
READ AND SAVE THESE
INSTRUCTIONS
,CAUTION
Use only for general ventilation.
Do not use to exhaust hazardous or
explosive materials and vapors.
This appliance is designed to vent
cooking smoke and odors only.
Be certain your appliance is
properly installed and grounded by
a qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
cannot be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
Before connecting the appliance to
the power supply make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent machine
damage. If in doubt consult a qualified
electrician.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
IMPORTANT SAFETY INSTRUCTIONS
4

This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the nearest Miele dealer or the
Technical Service Department with
specific requirements.
Before servicing or cleaning the
unit, switch power off at the service
panel and lock the service
disconnecting means to prevent power
from being switched on accidentally. If
the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
Before discarding an old
appliance, unplug it from the
power supply and remove the power
cord and any doors to prevent hazards.
Use
Do not allow children to play with
or operate the appliance or its
controls. Supervise its use by the
elderly or infirm.
Be careful when preparing a
flambé beneath the hood.
Flames may be drawn up into the hood
by the suction and the grease filters
may catch fire.
Do not use the hood without the
grease filters in place.
Clean the grease filters regularly.
Dirty filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. Steam could
penetrate the electrical components
and cause a short circuit.
Always turn on the hood when
using the cooktop to prevent
damage from condensation.
IMPORTANT SAFETY INSTRUCTIONS
5

,WARNING - TO REDUCE
THE RISK OF A COOKTOP
GREASE FIRE:
Never leave surface units
unattended at high settings.
Boilovers cause smoking and greasy
spillovers may ignite. Heat oils slowly
on low or medium settings.
Always turn the hood on when
cooking at high heat or when
cooking flaming foods.
Clean ventilation fans frequently.
Grease should not be allowed to
accumulate on the fan or filter.
Use the proper pan size. Always
use cookware appropriate for the
size of the surface element.
,WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
COOKTOP GREASE FIRE, OBSERVE
THE FOLLOWING:
SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal
tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING
PAN - You may be burned.
DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion may result.
Use a fire extinguisher
ONLY if:
– You have a Class ABC extinguisher,
and know how to operate it.
– The fire is small and contained in the
area where it started.
–The fire department has been called.
–You can fight the fire with your back
to an exit.
IMPORTANT SAFETY INSTRUCTIONS
6

Installation
,WARNING
To reduce the risk of fire only
use metal ductwork.
When installing the hood, follow the
recommended minimum safety
distances between a Miele cooktop and
the hood:
–22" (55 cm) above electric cooktops,
–26" (65 cm) above gas cooktops,
–26" (65 cm) above an open grill.
If local building codes require a greater
safety distance, follow their
requirement.
For non-Miele cooking appliances
maintain the safety distances
recommended by the appliance
manufacturer.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Do not install this hood over
cooktops burning solid fuel.
Any fittings, sealant, or materials
used to install the ductwork must
be made of approved non-flammable
materials.
Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
Ducted fans must always be
vented outdoors.
Make sure that the airflow in the
room is sufficient for combustion
and exhausting of all non-electric
heating appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
backdrafts may occur. Follow the
heating manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA), or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
IMPORTANT SAFETY INSTRUCTIONS
7

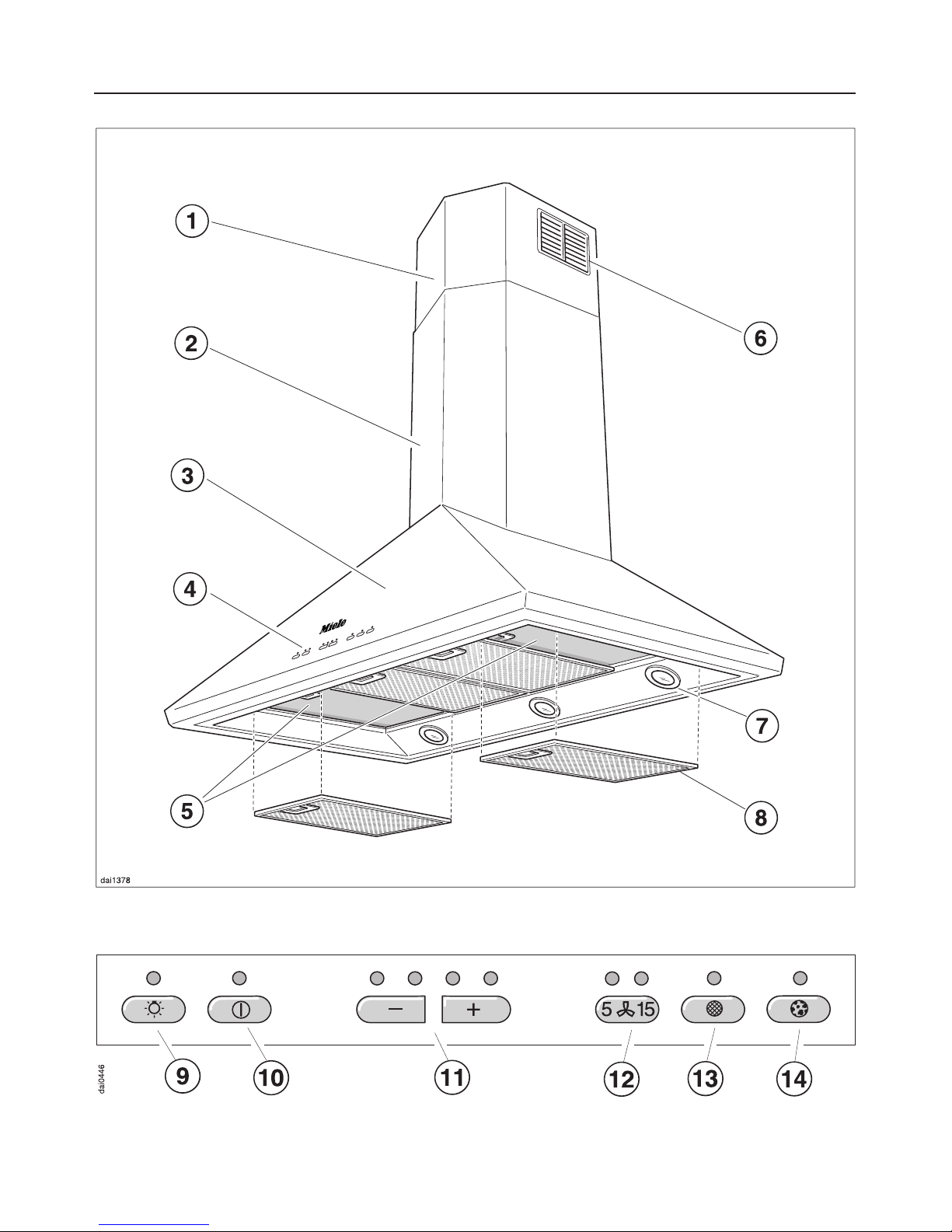

Guide to the appliance
8

aChimney extension
bChimney
cCanopy
dControl panel
eActive charcoal filter
fRecirculation vent
gOverhead lighting
hGrease filters
iLight button
jOn/Off button
kFan power level buttons
Four fan speed selection
lDelayed Shut Down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.
mGrease filter button
The indicator above the grease filter
button lights when the grease filters
need to be cleaned. This button is also
used:
–to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and Care").
–to show how long the grease filters
have been in use (see "Operation /
Filter timers").
–to change the number of hours
counted by the grease filter timer
(see "Operation / Reprogramming the
filter timers").
nCharcoal filter button
(used in recirculation mode only)
The indicator above the charcoal filter
button lights when the charcoal filters
need to be replaced.
This button is also used:
–to reset the charcoal filter timer after
changing the filters (see "Cleaning
and care").
–to show how long the charcoal filters
have been in use (see "Operation /
Filter timers")
–to change the number of hours
counted by the charcoal filter timer
(see "Operation / Reprogramming the
timers").
Guide to the appliance
9

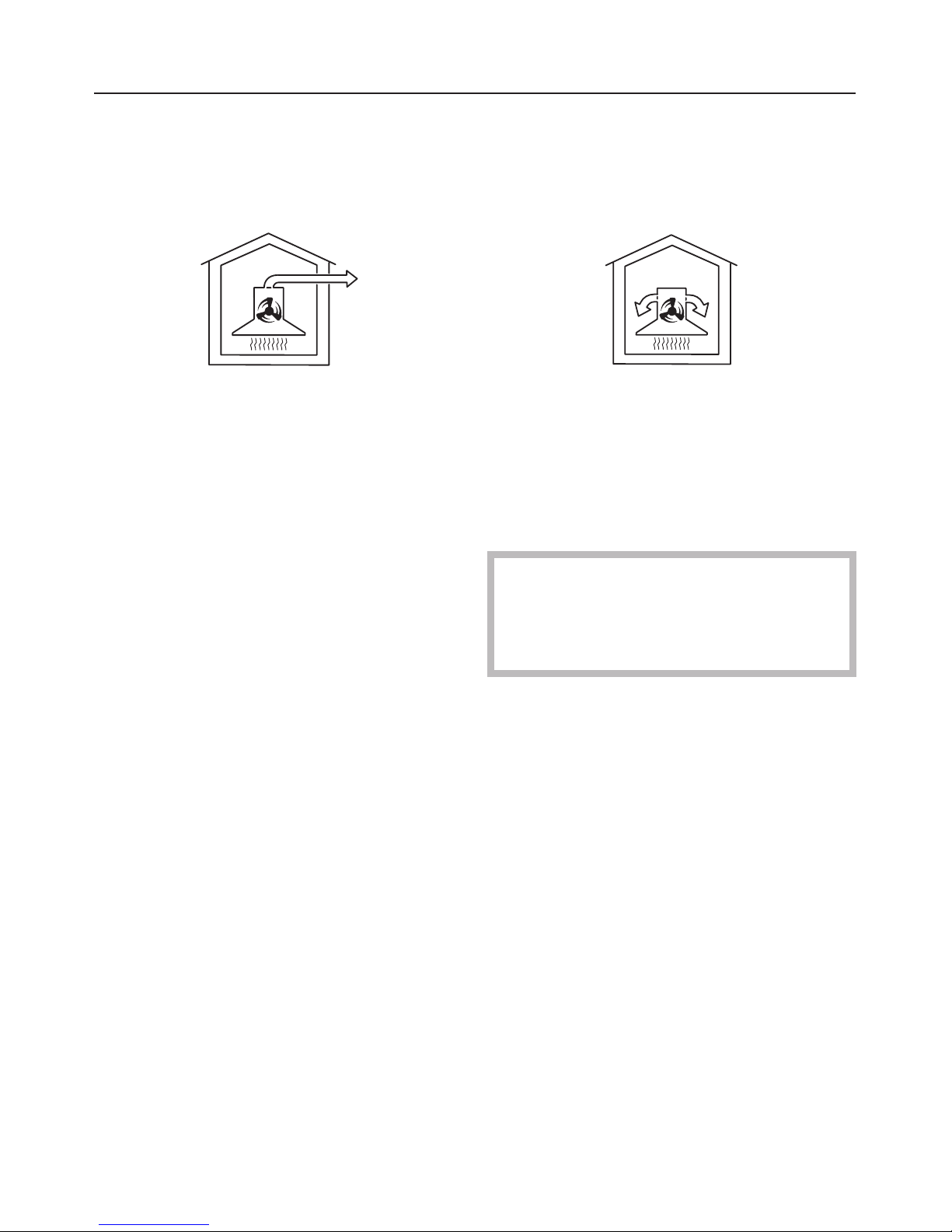

The hood offers two modes of
operation:
Air extraction
The air is drawn in and cleaned by the
grease filters and directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
Recirculation mode
Air is drawn through the grease filters
and an active charcoal filter. The
filtered air is then recirculated back into
the kitchen through a vent at the top of
the hood’s chimney.
Before using the hood in
recirculation mode, ensure that the
active charcoal filters are in place,
see "Cleaning and care".
Functional description
10

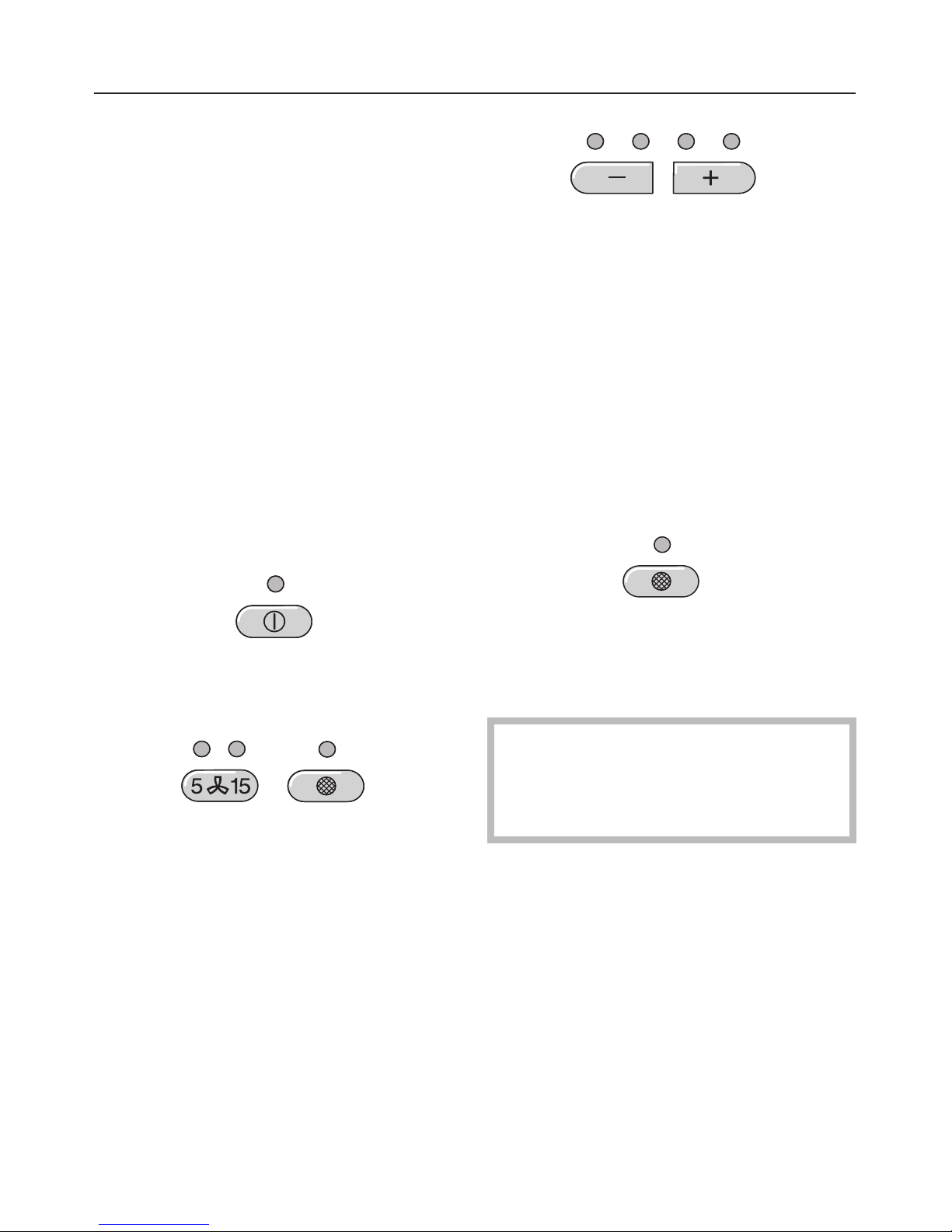

Turning on the fan
^Press the On/Off button.
The fan runs at power level "2".
The On/Off indicator lights.
Selecting the power level
^Use the _controls to select the
desired power level.
&=increases the fan speed
$=decreases the fan speed
Level "1" to "3" (green indicators) are
usually sufficient for normal cooking.
Intensive setting
Level "4" (yellow indicator) should be
used for a short period when frying or
cooking food with a strong aroma.
Fan performance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
There will also be a slight decrease in
airflow for hoods operated in
recirculation mode due to the active
charcoal filter.
Operation
11

Delayed Shut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be
selected to allow the hood to continue
running for either 5 or 15 minutes.
^Press the Delayed Shut Down button
while the fan is still running.
Press once = 5 minute delay
(left indicator lights)
Press twice = 15 minute delay
(right indicator lights)
To cancel the Delayed Shut Down
feature press the button again.
Turning off the fan
^Press the On/Off button to turn the
fan off.
The indicator goes out.
Automatic Safety Shut Off
The fan will turn off automatically 10
hours after the last button was activated.
The lighting however will remain on.
^Press the On/Off button to turn the
fan back on again.
Turning the lighting on/off
The overhead lighting can be turned
on and off independently of the fan.
^Press the light button briefly to turn
on the lighting.
The light button indicator illuminates.
^Press the light button briefly again to
turn off the lighting.
The light button indicator will go out.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^While the lighting is turned on, press
the light button.
The lighting will dim until the button is
released.
^If the button is pressed again, the
lighting will brighten until the button is
released.
If the button is pressed continuously,
the light will cycle between bright and
dark.
^Press the light button again to turn off
the lighting.
Operation
12

Filter timers
Grease filters
A timer monitors the hours of fan
operation. The indicator for the grease
filter will light after 30 hours of
operation. The grease filters must then
be cleaned.
After the grease filters have been
cleaned and put in place, the grease
filter timer must be reset.
^To do this, press the grease filter
button for about 3 seconds.
The indicator will go out.
Charcoal filters
The timer for the charcoal filter is not
preset. Please program this timer, see
"Operation/Reprogramming the
charcoal filter timer".
The charcoal filter indicator will light
once the selected time has elapsed.
The charcoal filters must then be
replaced and the charcoal filter timer
must be reset.
^To do this, press the charcoal filter
button for about 3 seconds.
The indicator will go out.
Checking the filter timers
To check the percentage of time
already used:
^Press the On/Off button to turn the
fan on.
^Press the grease or charcoal filter
button.
The number of flashing _indicators
show the percentage of programmed
hours that have been used.
1 indicator = less than 25 %
2 indicators = less than 50 %
3 indicators = less than 75 %
4 indicators = less than 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
13

Reprogramming the timers
The grease filter timer is preset to 30
hours. This time can be lengthened or
shortened to 20, 30, 40 or 50 hours.
–A time of 20 hours should be
programmed in kitchens with
frequent pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally. Otherwise grease
which has accumulated over a long
period of time will harden on the
filters making cleaning more difficult.
Reprogramming the grease filter
timer
^Press the On/Off button to turn off the
fan.
^Press the Delayed Shut Down and
grease filter buttons at the same time.
The indicator for the grease filter and
one of the _indicators will flash.
The lit indicator shows the programmed
time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the $or &button to select the
desired time.
^Store the selection by pressing the
grease filter button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
14

Reprogramming the charcoal filter
timer
The active charcoal filter can only be
used in recirculation mode and can not
be used to exhaust fumes.
The charcoal filter timer is not preset.
Before using the hood in recirculation
mode, the charcoal filter timer must be
programmed.
^Turn off the fan using the On/Off
button.
^Press the Delayed Shut Down and
Charcoal Filter buttons at the same
time.
The indicator for the charcoal filter and
one of the _indicators will flash.
The lit indicator shows the programmed
time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the $or &button to select the
desired time.
^Store the selection by pressing the
charcoal filter button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
15

Before cleaning or servicing the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it from the outlet or
manually "tripping" the circuit
breaker.
Cleaning the casing
,Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
^All external surfaces and controls can
be cleaned with warm water and
liquid dish soap applied with a soft
sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Avoid:
–cleaning agents containing soda,
acids or chlorides,
–abrasive cleaning agents e.g.
powder or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
These will damage the surface.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Stainless steel colored controls
These controls may become
discolored or damaged if not
cleaned regularly.
Do not use a stainless steel cleaner
on these controls.
Cleaning and Care
16

Grease filters
The reusable metal grease filters
remove solid particles from the vented
kitchen air (grease, dust, etc).
The grease filters should be cleaned
every 3 - 4 weeks or whenever the
grease filter indicator lights.
A dirty filter is a fire hazard.
^To remove the grease filters press the
locking clips in towards the middle of
the filter. Holding carefully, lower and
remove the filter.
^Clean the filters
-by hand: use a scrub brush in
warm water with a mild detergent.
-in a dishwasher: place the filters in
the lower basket, making sure that
the spray arm is not blocked.
Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Performance of the filter will not be
affected by this discoloration.
^After cleaning, the filters can be
placed on a towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter
casing to prevent the risk of fire.
When putting the grease filters back
make sure that the locking clips are
visible facing down towards the
cooking surface.
If a filter is incorrectly installed, insert a
small screwdriver into the slit along its
edge to disengage it from the casing.
^After returning the grease filters,
press the grease filter button for
3 seconds to reset the timer.
The indicator light will go out.
^If the grease filters are cleaned
before the timer has reached its
maximum, the grease filter button
should be pressed for 6 seconds to
reset the counter to zero.
Cleaning and Care
17

Active charcoal filters
In recirculation mode two active
charcoal filters must be used in
addition to the grease filters. The
charcoal filters are designed to absorb
cooking odors.
Replacement active charcoal filters
can be ordered from the
Miele Technical Service Department.
USA 1-800-999-1360
CDN 1-800-565-6435
Please quote part # 03 284 681.
^Remove the grease filters to access
the charcoal filters.
Follow the instructions supplied with the
active charcoal filters.
Replace the active charcoal filters when
the charcoal filter indicator lights.
Replace the filters at least every 6
months or when they no longer absorb
odors efficiently.
^After replacing the charcoal filters,
press and hold the charcoal filter
button for about 3 seconds to reset
the charcoal filter timer.
The indicator light will go out.
^If the charcoal filters are replaced
before the timer has reached its
maximum, the charcoal filter button
should be pressed for 6 seconds to
reset the counter to zero.
Cleaning and Care
18

Changing the light bulb
Before changing the light bulbs,
disconnect the hood from the power
supply by either removing the fuse,
unplugging it, or manually "tripping"
the circuit breaker.
When in use halogen bulbs become
extremely hot, and they can burn
your hands. Do not attempt to
change the bulbs until they have
had sufficient time to cool.
Do not touch the bulb surface.
Fingerprints or body oils deposited
on the bulb will decrease the life of
the bulb.
Follow the bulb manufacturer’s
instructions.
^To change the halogen bulb first
remove the lamp cover, a.
^Pull the bulb, b, out of its socket and
replace with a new one.
^Return the lamp cover, a.
Never use the lighting without the
lamp cover, a, in place. The glass is
specially made to filter harmful light
rays.
Cleaning and Care
19

In the event of a fault which you cannot
correct yourself please contact the
Miele Technical Service Department :
U1-800-999-1360
[email protected]
V1-800-565-6435
[email protected]
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance.
These are shown on the data plate
which is visible when the grease filter is
removed.
After Sales Service
20
