Miele DA 5321 W User manual

Operating and Installation
Instructions
Ventilation System
DA 5321 W
DA 5381 W
DA 5391 W
To prevent accidents
and machine damage,
read these instructions
before
installation or use. M.-Nr. 07 100 651
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS
Functional description
Guide to the appliance
Operation
Turning on the fan .................................................10
Selecting the power level............................................10
Delayed Shut Down ................................................12
Turning off the fan .................................................12
Turning the lighting on/off ...........................................13
Dimming the lighting ...............................................13
Filter timers ......................................................14
Checking the filter timers ............................................14
Reprogramming the timers ..........................................15
Cleaning and Care
Cleaning the casing................................................16

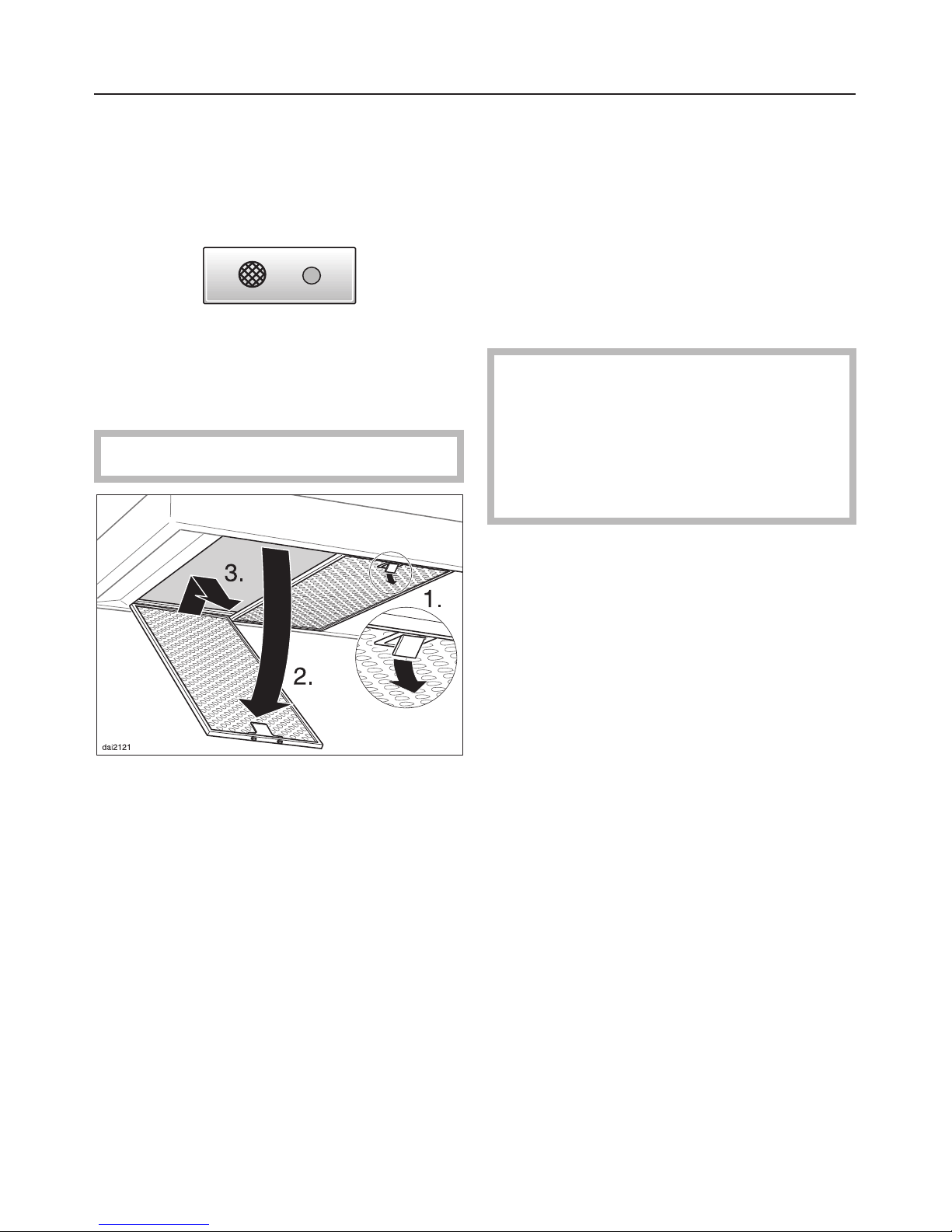

Grease filters .....................................................17

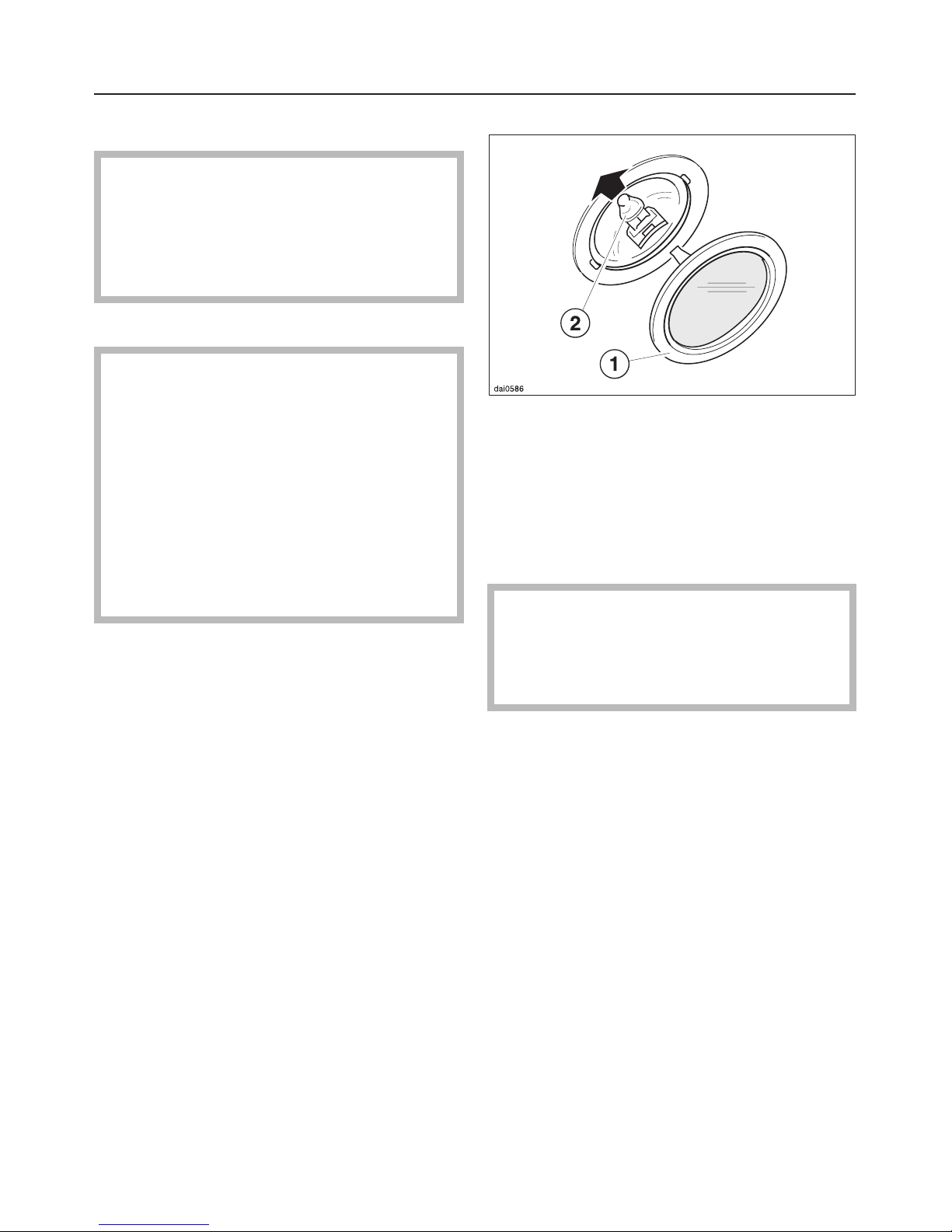

Changing the light bulb .............................................18
After Sales Service
Installation instructions
Caring for the environment
Installation accessories
Appliance dimensions
Installation
Installation instructions .............................................28
Dismantling ......................................................28
Plywood backing
Air extraction
Electrical connection
Contents
2

Read these Operating Instructions carefully before installing or
using the Ventilation System.
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use
of the appliance can lead to
personal injury and material
damage.
READ AND SAVE THESE
INSTRUCTIONS
,CAUTION
For General Ventilation Use Only.
Do not use to exhaust hazardous or
explosive materials and vapors.
~This appliance is designed to vent
cooking smoke and odors only.
~Be certain your appliance is
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
cannot be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
~Before connecting the appliance to
the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent machine
damage. If in doubt consult a qualified
electrician.
~Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
IMPORTANT SAFETY INSTRUCTIONS
3

~This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the nearest Miele dealer or the
Technical Service Department with
specific requirements.
~Before servicing or cleaning the unit,
switch power off at the service panel
and lock the service disconnecting
means to prevent power from being
switched on accidentally. If the service
disconnecting means cannot be
locked, securely fasten a prominent
warning, such as a tag, to the service
panel.
~Before discarding an old appliance,
unplug it from the power supply and
remove the power cord and any doors
to prevent hazards.
Use
~Do not allow children to play with or
operate the appliance or its controls.
Supervise its use by the elderly or
infirm.
~Do not flambé or grill with an open
flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
~Never operate gas burners without
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
~Do not use the hood without the
grease filters in place.
~Clean the grease filters regularly.
Dirty filters are a fire hazard.
~Do not use a steam cleaner to clean
the hood. Steam could penetrate the
electrical components and cause a
short circuit.
~Always turn on the hood when using
the cooktop to prevent damage from
condensation.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING - TO REDUCE
THE RISK OF A COOKTOP
GREASE FIRE:
~Never leave surface units
unattended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
~Always turn the hood on when
cooking at a high heat.
~Clean ventilation fans frequently.
Grease should not be allowed to
accumulate on the fan or filter.
~Use the proper pan size. Always use
cookware appropriate for the size of the
surface element.
,WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
COOKTOP GREASE FIRE, OBSERVE
THE FOLLOWING:
~SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
~NEVER PICK UP A FLAMING PAN
-You may be burned.
~DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion may result.
~Use a fire extinguisher
ONLY if:
– You have a Class ABC extinguisher
and know how to operate it.
– The fire is small and contained in the
area where it started.
–The fire department has been called.
–You can fight the fire with your back
to an exit.
IMPORTANT SAFETY INSTRUCTIONS
5

Installation
~,WARNING
To reduce the risk of fire only use
metal ductwork.
~Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood:
–22" (550 mm) above electric
cooktops,
–30" (762 mm) above gas cooktops,
– 26" (650 mm) above an open electric
grill or an open electric boiler/fryer.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
~Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
~Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
~Do not install this hood over
cooktops burning solid fuel.
~Any fittings, sealant, or materials
used to install the ductwork must be
made of approved non-flammable
materials.
~Never connect an exhaust hood to
an active chimney, dryer vent, vent flue,
or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
~Ducted fans must always be vented
outdoors.
~Make sure that the airflow in the
room is sufficient for combustion and
exhausting of all non-electric heating
appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
backdrafts may occur. Follow the
heating manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA) or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
IMPORTANT SAFETY INSTRUCTIONS
6

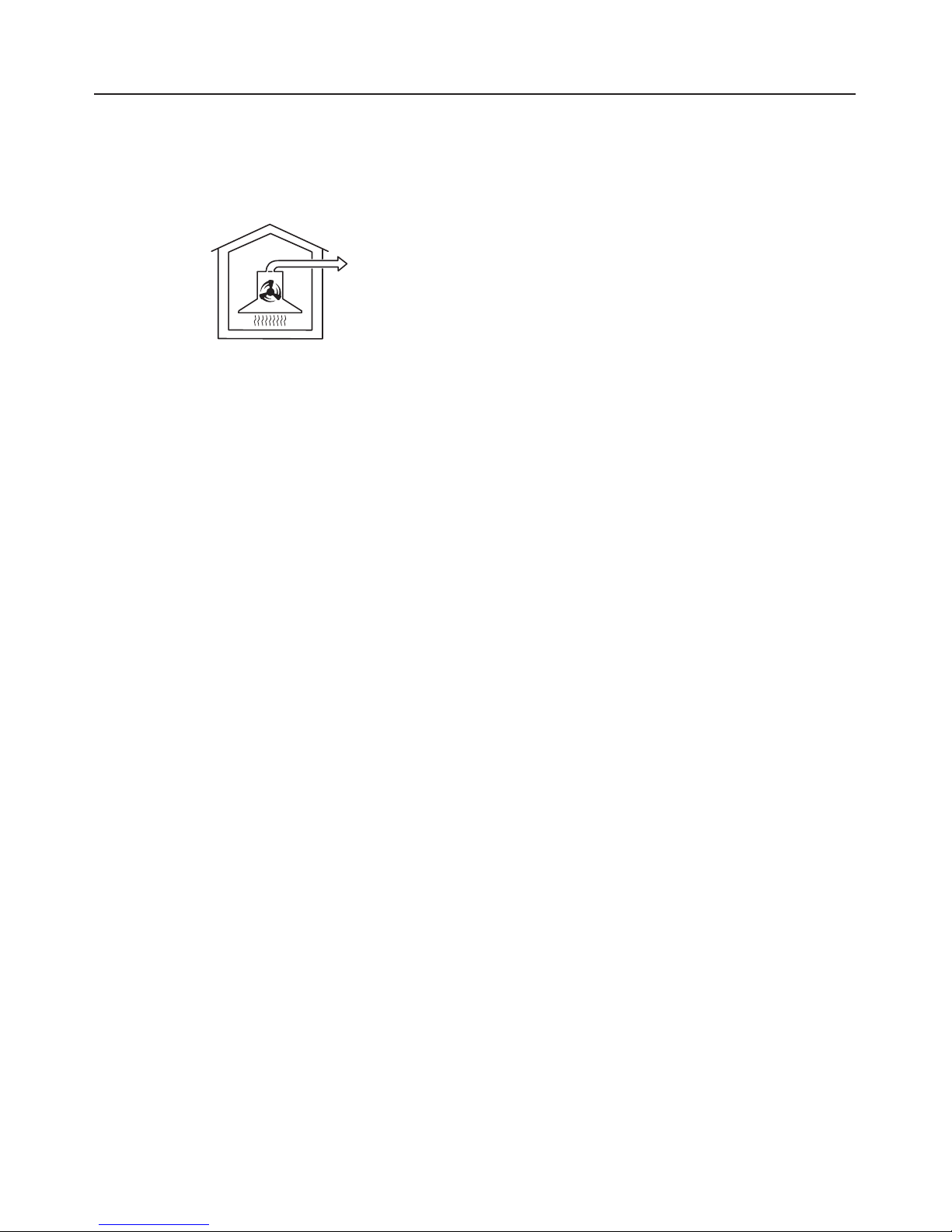

The ventilation hood works by air
extraction. The air is drawn in and
cleaned by the grease filter and
directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
Functional description
7

Guide to the appliance
8

aChimney extension
bChimney
cCanopy
dGrease filter
eControl panel
fOverhead lighting
gLight button
This button turns the light on and off
and also dims the light.
The lighting can be used independently
from the fan.
hOn/Off button
iFan power selection
Four fan speed selection
jDelayed shut down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.
kGrease filter button
The indicator next to the grease filter
button lights when the grease filters
need to be cleaned. This button is also
used:
–to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and Care").
–to show how long the grease filters
have been in use (see "Operation/
Filter timers").
–to change the number of hours
counted by the grease filter timer
(see "Operation/Reprogramming the
timers").
Guide to the appliance
9

Turning on the fan
^Press the On/Off button.
Selecting the power level
^Use the "–/+" controls to select the
desired power level.
+ = increases the fan speed
- = decreases the fan speed
Level "1" to "3" (green indicators) are
usually sufficient for normal cooking.
Intensive setting
Level "4" (yellow indicator) should only
be used for short periods of time when
frying or cooking food with a strong
aroma.
Automatically switching back the
Intensive power level
The intensive level "4" can be
programmed to automatically switch
back to level "3" after 10 minutes.
^Turn the fan and the lights off.
^Press and hold the "Delay Shut down"
button for 10 secs. The first indicator
of the fan power levels lights.
^Press the following buttons one after
another,
– light,
–the "-" button, and
–the light button again.
Operation
10

If the power level indicators flash the
automatic switch back is not activated.
^To activate the automatic switch
press the "+" button.
The power level indicators light.
^To deactivate the automatic switch
press the "–" button.
^To save the setting press the Delay
Shut down button.
If the procedure is not saved within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Fan performance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
Operation
11

Delayed Shut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be
selected to allow the hood to continue
running for either 5 or 15 minutes.
^Press the Delayed Shut Down button
while the fan is still running.
Press once = 5 minute delay
(left indicator lights)
Press twice = 15 minute delay
(right indicator lights)
To cancel the Delayed Shut Down
feature press the button again.
Turning off the fan
^Press the On/Off button to turn the
fan off.
The indicator will go out.
Automatic Safety Shut Off
The fan will turn off automatically
10 hours after the last button was
activated. The lighting however will
remain on.
^Press the On/Off button to turn the
fan back on again.
Operation
12

Turning the lighting on/off
The overhead lighting can be turned on
and off independently from the fan.
^Press the light button briefly to turn
on the lighting.
The light button indicator illuminates.
^Press the light button briefly again to
turn off the lighting.
The light button indicator will go out.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^While the lighting is turned on, press
the light button.
The lighting will dim until the button is
released.
^If the button is pressed again, the
lighting will brighten until the button is
released.
If the button is pressed continuously,
the light will cycle between bright and
dark.
^Press the light button again to turn off
the lighting.
Operation
13

Filter timers
A timer monitors the hours of fan
operation. The indicator for the grease
filter will light after 30 hours of
operation. The grease filters must then
be cleaned.
After the grease filters have been
cleaned and put in place, the grease
filter timer must be reset.
^To do this, press the grease filter
button for about 3 seconds.
The indicator will go out.
Checking the filter timers
To check the percentage of time
already used:
^Press the On/Off button to turn the
fan on.
^Press and hold the grease button.
The number of flashing "–/+" indicators
show the percentage of programmed
hours that have been used.
1 indicator = less than 25 %
2 indicators = less than 50 %
3 indicators = less than 75 %
4 indicators = less than 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
14

Reprogramming the timers
The grease filter timer is preset to 30
hours. This time can be lengthened or
shortened to 20, 30, 40, or 50 hours.
–A time of 20 hours should be
programmed in kitchens with
frequent pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally to prevent grease
which has accumulated over a long
period of time from hardening on the
filters making cleaning more difficult.
^Press the On/Off button to turn off the
fan.
^Press the Delayed Shut Down and
grease filter buttons at the same time.
The indicator for the grease filter and
one of the "–/+" indicators will flash.
The lit indicator shows the programmed
time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the "–/+" button to select the
desired time.
^Save the selection by pressing the
grease filter button.
If the procedure is not saved within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
15

Before cleaning or servicing the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it from the outlet, or
manually "tripping" the circuit
breaker.
Cleaning the casing
Warning: Never use abrasive
cleaners, scouring pads, steel wool
or caustic (oven) cleaners on the
hood. They will damage the surface.
^All external surfaces and controls can
be cleaned with warm water and
liquid dish soap applied with a soft
sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate the electronics and cause
damage.
^Glass surfaces can be cleaned using
a glass cleaner.
Avoid:
–cleaning agents containing soda,
acids or chlorides,
–abrasive cleaning agents
e.g. powder or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
These will damage the surface.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can be applied.
Controls
These controls may become dis-
colored or damaged if not cleaned
regularly.
Do not use a stainless steel cleaner
on these controls.
Cleaning and Care
16

Grease filters
The reusable metal grease filters
remove solid particles from the vented
kitchen air (grease, dust, etc).
The grease filters should be cleaned
every3-4weeks or when the grease
filter indicator lights.
A dirty filter is a fire hazard.
^To remove the grease filters pull the
locking clips, 1, forward. Lower the
filter 45°, 2, unhook it at the rear, 3,
and take it out. Support the grease
filter so that it does not fall onto the
cooktop.
Cleaning the grease filter
^By hand: use a scrub brush with a
solution of warm water and mild
detergent.
Do not use the pure detergent,
aggressive all purpose cleaners,
oven sprays, abrasive cleaning
agents or limescale removers. They
could destroy the filter.
^In a dishwasher: place the filter
vertically in the lower basket, making
sure that the spray arm is not
blocked.
Use a hot temperature program,
e.g. "Heavy Soil" or "Pots and pans".
Use the recommended amount of
dishwasher detergent. Overuse could
destroy the filter.
Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Performance of the filter will not be
affected by this discoloration.
^After cleaning, the filters can be
placed on a towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter
casing to prevent the risk of fire.
When putting the grease filters back
make sure that the locking clips are
visibly facing the cooking surface.
If the filters are incorrectly installed,
insert a small screwdriver into the slit
along its edge to disengage it from the
casing.
^After returning the grease filters,
press and hold the grease filter
button for 3 seconds to reset the
timer. The indicator light will go out.
^If the grease filters are cleaned
before the grease filter timer has
reached its maximum, press the
grease filter button for 6 seconds to
reset the counter to zero.
Cleaning and Care
17

Changing the light bulb
Before changing the light bulbs,
disconnect the hood from the power
supply by either removing the fuse,
unplugging it, or manually "tripping"
the circuit breaker.
When in use halogen bulbs become
extremely hot, use caution. Do not
attempt to change the bulbs until
they have had sufficient time to cool.
Do not touch the bulb surface.
Fingerprints or body oils deposited
on the bulb will decrease its life.
Follow the bulb manufacturer’s
instructions.
^To change the halogen bulb first
remove the lamp cover, a.
^Pull the bulb, b, out of its socket and
replace with a new one.
^Now return the lamp cover, a.
Never use the lighting without the
lamp cover, a, in place. The glass
is specially made to filter harmful
light rays.
Cleaning and Care
18

Repairs
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department.
^When contacting the Technical
Service Department, please quote
the model and serial number of your
appliance.
These are shown on the data plate
which is visible when the grease filters
are removed.
MieleCare
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5 years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
http://store.miele.com
After Sales Service
19

20
