Miele PW 5065 User manual

Operating manual
Washer
PW 5065
To prevent accidents
and machine damage
read these instructions
before
installation or use.
UV
M.-Nr. 06 787 080

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Canceling a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adding/removing laundry during a wash program . . . . . . . . . . . . . . . . . . . . . . . . 15
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Program sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting a spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Delay Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning the washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning the inlet hose filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Opening the door during a power failure or when the drain is blocked . . . . . . . . 35
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Removing the shipping struts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Installing the shipping struts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Leveling the washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Installation on a base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Water connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Help to protect the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Settings J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Suds cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Menu Settings - Supervisor level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Contents
2

Read the operating instructions
before using this machine for the
first time. They contain important
information about the safety, use and
maintenance of the machine. Doing
so will prevent injury and damage to
the dryer.
Save these instructions and pass
them on to any future user.
WARNING - To reduce the risk
of fire, electric shock or injury:
Technical Safety
Check the packaging, the washer
and accessories for any signs of
damage. Do not use a damaged
appliance.
Before connecting the machine,
ensure that the connection data on
the data plate (circuit protection,
voltage and frequency) match the
mains electrical supply. If in doubt
contact an electrician.
The appliance must be grounded.
It is imperative that this basic
safety requirement be met.
Do not connect the appliance to
the mains electrical supply with an
extension cord. Extension cords do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
The machine is built in accordance
with current safety requirements.
Incorrectly repaired machines may
pose a considerable risk to the user
which is not covered by the
manufacturer. Repairs should only be
performed by a Miele approved
technician.
Ensure power is not supplied to the
appliance while maintenance or
repair work is being performed. The
machine is only completely isolated
from the electrical supply when it is
turned off at the main switch and the
plug is pulled or by tripping the circuit
breaker.
Connect the washer, to the water
mains. Do not use old hoses.
Inspect the intake hoses regularly for
damage. They should be replaced as
needed to prevent water damage.
Faulty components must only be
replaced with genuine Miele spare
parts to maintain safety standards.
If the power cord is damaged it
must only be replaced by a Miele
Service technician with a genuine Miele
power cord.
IMPORTANT SAFETY INSTRUCTIONS
3

Use
Only use the washing machine to
wash items which are specified by
the manufacturer to be machine
washable on the fabric care label. Any
other applications may cause
undesirable results. The manufacturer
cannot be held responsible for damage
caused by improper use of the
appliance.
This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
Do not install this machine in rooms
where temperatures below freezing
may occur. Frozen hoses may burst
under pressure. The reliability of the
electronic control unit may be impaired
at temperatures below freezing.
Do not wash articles that have
been previously cleaned, washed
soaked or spotted with gasoline,
organic substances dry-cleaning
solvents, or any other flammable
substances. These articles give off
vapors that could ignite or explode. Do
not add these items to the washload.
Before using the machine for the
first time, check that the shipping
struts at the rear of the machine have
been removed (see "Installation"). If the
shipping struts are still in place during
spinning, damage may result to both
the machine and adjacent furniture or
appliances.
Turn off the water supply if the
machine is to be left for any length
of time (e.g. vacation).
Overflow hazard!
Check that the drain can
accommodate the water flow before
operating the washer.
Make certain the drain hose is secured
in the drain, otherwise the force of the
expelled water could cause the drain
hose to come out of the drain.
Be sure that foreign objects (e.g.
nails, pins, coins, paper clips) do
not find their way into the machine.
These items may damage the
machine, which may also cause
damage to the laundry.
IMPORTANT SAFETY INSTRUCTIONS
4

If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If the washer
needs to be descaled, use a descaling
agent with corrosion protection. These
special descaling agents can be
purchased from the Miele Service
department. Use as directed.
Never use solvent based cleaning
agents in this machine, this may
result in damage and create toxic
fumes. They will present a fire and
explosion hazard.
Items which have been pre-treated
in solvent based cleaning agents
must be thoroughly rinsed in clean
water before being washed in the
machine.
Only use dyes specified by the
manufacturer as being suitable for
use in a washing machine. Use as
directed by the manufacturer.
Dye removers may contain sulphur
compounds which cause damage
such as corrosion. Do not use dye
removers in this machine.
The drum door glass will be hot
when washing at very high
temperatures. Do not touch the glass.
Danger of burns!
The stainless steel casing must not
come in contact with liquid
cleaning or disinfection agents
containing chlorine. They may cause
corrosion. Do not store open
containers of this agent next to the
machine.
Children
Close supervision is necessary
when the appliance is used near
children. Do not allow children to play
on or in the appliance.
Using accessories
Accessories must only be installed
once approved by Miele. Installing
unapproved parts may void the
warranty and product liability.
IMPORTANT SAFETY INSTRUCTIONS
5

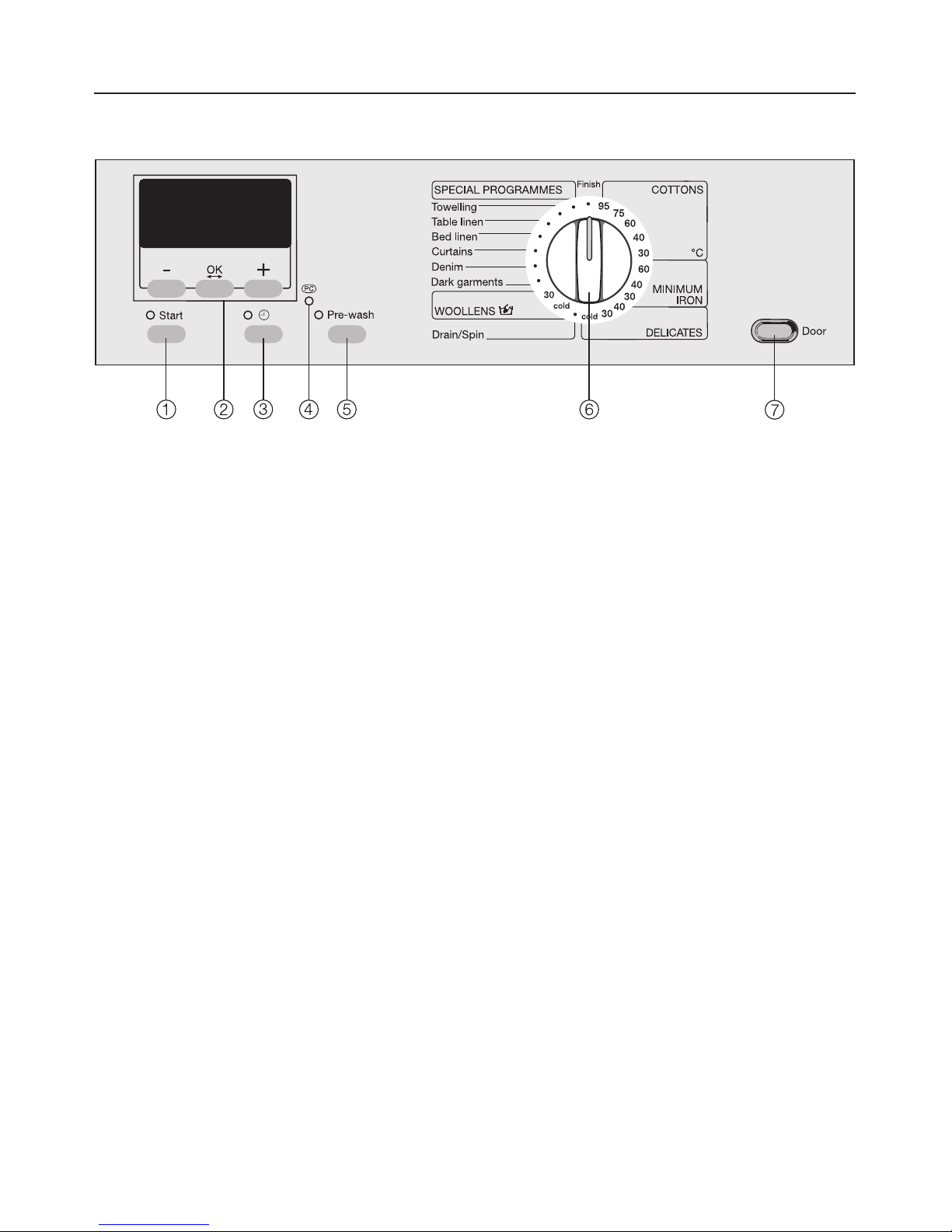

Control panel
a"Start" button, with indicator
starts the selected wash program.
bDisplay with –, "OK" and + buttons
allows more info to be seen on the
following screens.
cmDelay Start button, with indicator
dPC Indicator/Optical interface
allows a service technician to check
and update the wash programs
ePre-wash button, with indicator
fProgram selector
to select a wash program.
The program selector can be turned
clockwise or counterclockwise.
g"Door" button
to open the drum door.
Guide to the washer
6

Display
– / + buttons
To change the component highlighted
in the display.
–decreases the value or moves the
marker up
+increases the value or moves the
marker down.
"OK" button
To confirm the selected value and to
select the next component.
When selecting a program:
–the special programs,
–the final spin speed,
–the temperature of some programs,
and
–the delay start
are shown in the display.
The display also shows the running
time of the wash program and the
current time of day.
Additionally the menu "Settings J" can
be accessed by the display.
Temperature conversions
Celsius Fahrenheit
95°C 203°F
75°C 167°F
60°C 140°F
40°C 104°F
30°C 86°F
Guide to the washer
7

The appliance must be correctly
installed and connected before the
first use. Please see the "Installation
instructions".
For safety reasons, it is not possible
to run a spin cycle before the first
use.
The Welcome screen shows when the
machine is turned on for the first time.
M
PROFESSIONAL
Welcome
The welcome screen will not show
anymore, once the total wash time of
the machine exceeds one hour.
Reminder of the shipping struts
The shipping struts must be
removed before using the machine
for the first time to avoid damage.
^Confirm that the shipping struts have
been removed by pressing OK.
Setting time of day
12:00
Set the time of day
^Set the hours with the +/– buttons
and confirm with OK.
^Repeat to set the minutes and
confirm.
The display shows the main menu.
First wash
The washer is ready for the first use.
A program must be run without
laundry and detergent to flush out any
residual water from the factory testing
process, as well as to activate the spin
cycle.
^Turn the program selector to "Cottons
60°C" (140°F).
^Open the water mains.
^Press the "Start" button.
Once the program ends the washer can
be used for laundry.
Before using for the first time
8

1. Sort the laundry
^Empty all pockets.
,Foreign objects left in pockets
(e.g. nails, coins, paper clips, etc.)
can cause damage to clothes and
the machine.
^Pre-treat stains.
Tough stains (blood, egg, coffee, tea
etc.) or badly soiled areas (collars and
cuffs) should be penetrated with a stain
remover or a paste made from powder
detergent and warm water. Dab stains
with a damp light colored cloth. Do not
rub!
,Do not use chemical solvents in
the machine.
^Sort the laundry.
General tips
–Dark fabrics often bleed the first few
times they are washed. They should
be washed separately several times
before being included in a mixed
load.
–Remove any lead weights or strips
from curtains before washing.
–Loose underwires should be
removed or sewn in place before
washing.
–Woolens and knitted garments
should be turned inside out.
– Close zippers and hooks and eyes
before washing.
– Comforter covers and pillowcases
should be fastened in order to
prevent small items from getting
trapped inside of them.
Do not machine wash items if it is not
recommended on the fabric care label.
Using the washer
9

2. Load the laundry
^Open the drum door using the "Door"
button.
The drum light switches on.
^Load the laundry loosely into the
drum.
For best results, wash mixed loads of
small and large items. This will improve
washing effectiveness and help
distribute the load evenly.
Note: Overloading the washer will
affect wash results and cause wrinkling.
^Close the drum door.
To prevent damage to the door seal
and clothing, make sure that there is
nothing caught between the drum
door and the seal.
Using the washer
10

3. Select a program
^Select a program and the desired
temperature with the program
selector.
The display shows the selected wash
program.
Cottons
The display switches to the program
selection.
60°C 1400 rpm
Duration: 0:47 h
^To change the highlighted spin
speed use the +/– buttons. Confirm
with "OK".
The temperature can also be changed
in some programs.
^Hold down the "OK" button until the
temperature is highlighted.
^Adjust the temperature with the +/-
buttons.
When selecting "Special programs" the
display shows the list.
CQuick wash
EShirts
Starch H
^Select the desired program with the
buttons +/– and confirm with OK.
The display switches to the program
selection.
Shirts
40°C 600 rpm
Duration: 0:37 h
^To change the highlighted
temperature use the +/– buttons.
Confirm with "OK". The display then
switches to the spin speed.
Pre-wash
^Select a Pre-wash for heavily soiled
laundry.
If the additional function "Pre-wash"
cannot be selected, it is not available
for this wash program.
Delay Start
^Select a delayed start if desired. See
"Delay Start".
Using the washer
11

4. Adding detergent
Use detergent according to the laundry
soiling and water hardness.
Too little detergent may cause:
–ineffective cleaning of laundry;
fabrics may become gray and stiff
over time.
–grease stains on the laundry.
–hard water deposits on the heating
element.
Too much detergent may cause:
– oversudsing with minimal drum
movement; poor wash, rinse and
spin results.
– higher environmental burden.
See "Detergent" for more information.
^Pull out the detergent dispenser
drawer and add detergent.
j= Detergent for the main wash
i= Only add detergent (1/4of the
total recommended amount of
detergent) to this compartment
for the pre-wash.
§= Fabric softener or liquid starch.
^Close the detergent dispenser
drawer.
Using the washer
12

5. Starting a program
Coin mechanism
If the machine is coin operated, please
regard the displayed request to pay.
If the door is opened after a program
has started or if the program is
canceled the credit is lost.
"Start" flashes when a program can be
started.
^Press the "Start" button.
The "Start" button indicator lights.
The drum light turns off after the
program starts.
The display shows the likely program
duration unless delay start was
selected. It will count down in minutes.
The first 10 minutes the washer
calculates the water absorbency of the
laundry. The overall program time may
be shortened or lengthened.
Additionally the sequence cycle is
displayed. The washer shows the
current program step.
6. At the end of a program
The anti-crease program starts when
the laundry is not immediately removed
from the washer after the program
ends. "Anti-crease" and "End" will flash
alternately in the display.
^Press the "Door" button to open the
drum door.
^Remove the laundry.
^Check the folds of the door seal for
any small articles which may have
been trapped.
Check the drum for any missed
pieces of laundry. Items
inadvertently left in the washer may
get damaged (e.g. shrink or
discolor) during the next wash cycle.
^Turn the program selector to "Finish".
^Close the drum door.
Using the washer
13

The program will be locked
3 minutes after the program has
started when the washer is operated
with a coin mechanism. Canceling
or changing a program is no longer
possible.
Canceling a program
A program can be canceled any time
after a program has started.
^Turn the program selector to "End".
The washer drains the wash water away
and the program is canceled.
^Press the "Door" button.
^Remove the laundry.
or
^Close the door and start a new
program.
Changing a program
To change a program
A program change is not possible after
a program has started.
To select a different program, the
started program must be canceled.
Adjusting the temperature
Some programs allow you to change
the temperatures up to 5 minutes after
the start.
^Press OK.
The temperature is highlighted.
^To change the highlighted
temperature use the +/– buttons.
Confirm with "OK".
Adjusting the spin speed
^Press OK until the spin speed is
highlighted. Adjust the spin speed
with the +/– buttons. Adjustment is
possible until the start of the final
spin.
Selection of the "Pre-wash" is not
possible after the program has started.
Using the washer
14

Adding/removing laundry
during a wash program
You can interrupt some programs to
add or remove a piece of laundry.
^Press the "Door" button to open the
door.
^Add or remove the piece of laundry.
^Close the drum door.
The program will continue
automatically.
Note
Once the program has started the
washer cannot make adjustments to the
load size.
After adding or removing laundry, the
washer will default to the water and
electrical consumption of a full load.
The program running time may be
lengthened.
The drum door cannot be opened if:
–the water temperature is greater than
130°F (55°C).
–the water level is too high.
–the program has reached the "Final
Spin".
–the program is locked because the
washer is operated with a coin
mechanism.
Using the washer
15

COTTONS 95° to 30°C (203°F to 86°F) ABCD
Items Items of cottons, linens or mixed fabrics.
Tips –Use COTTONS 95°C to sanitize laundry or for heavily soiled
items.
–Wash dark colored fabrics with detergent for colors or a
liquid detergent.
Detergent Universal or color detergent
Load size 14.3 lb (6.5 kg)
MINIMUM IRON 60°C to 30°C (140°F to 86°F) GHJ
Items Synthetics, mixed fabrics or wrinkle free cottons.
Detergent Universal or color detergent
Load size 7.7 lb (3.5 kg)
DELICATES 40°C to cold (104°C to cold) MN
Items Delicates made from synthetics, mixed fabrics or silk
Tip Wash items containing wool in the woolens program
Detergent Detergent for delicates
Load size 5.5 lb (2.5 kg)
Towelling 60°C to 40°C (140°F to 104°F)
Tip Use color detergent for dark colored laundry
Detergent Universal detergent
Load size 12 lb (5.5 kg)
Table linen 75°C to 60°C (167°F to 140°C)
Items Table cloths and napkins made of cottons, linens or mixed
fabrics.
Tip Use the "Pre-wash" program for tough stains. Use a Pre-wash
detergent with enzymes.
Detergent Universal detergent
Load size 14.3 lb (6.5 kg)
Program guide
16

Bed linen 60°C to 40°C (140°F to 104°F)
Items Bed linens made of cottons or mixed fabrics.
Tip Use color detergent for color items
Detergent Universal or color detergent
Load size 14.3 lb (6.5 kg)
Curtains 40°C to cold (104°C to cold)
Items Curtains which are machine washable according to the
manufacturer.
Tip For curtains which tend to wrinkle select "Without spin".
Detergent Universal and color detergent in powder form.
Load size 6.6 lb (3.0 kg)
Denim 40°C to cold (104°C to cold)
Tips –Before washing denim items turn them inside out to prevent
wear and fading.
–Denim items bleed after the first few washes. Wash dark and
light colored items separately.
Detergent Liquid color detergent
Load size 7.7 lb (3.5 kg)
Dark garments 40°C to cold (104°C to cold)
Items Dark items made of cottons or mixed fabrics.
Tip Wash items inside out.
Detergent Liquid color detergent
Load size 6.6 lb (3.0 kg)
WOOLENS 30°C to cold (86°F to cold)
Items Items made from washable wool and mixed woolens.
Detergent Detergent for wool
Load size 5.5 lb (2.5 kg)
Drain/Spin
Tip Drain only: Select "Without spin".
When spinning be sure to select an appropriate speed for the
fabric type.
Load size 14.3 lb (6.5 kg)
Program guide
17

Special programs
Quick wash 40°C (104°F) AB
Items Small load of lightly soiled items, which can be washed in
"COTTONS"
Detergent Universal or color detergent
Load size 7.7 lb (3.5 kg)
Shirts 60°C to 40°C (140°F to 104°F)
Items Shirts and dress shirts.
Tip Pre-treat collars and cuffs if they are more soiled than usual.
Detergent Universal or color detergent
Load size 5.5 lb (2.5 kg)
Starch
Tip The laundry (table cloths, napkins, etc.) should be washed but
not treated with fabric softener.
Starch Liquid starch or powder starch
Load size 14.3 lb (6.5 kg)
Pillows 95°C to 40°C (203°F to 104°F)
Items Washable pillows with a filling of feathers, down or synthetics.
Tips Follow the information on the fabric care label.
Detergent Use liquid detergent.
Load size 1 queen or 2 twin size pillows
Outerwear 40°C to cold (104°C to cold)
Items Outdoor clothing made of micro fiber.
Tips –Close all zippers.
–Do not use fabric softener.
Detergent Use liquid detergent.
Load size 6.6 lb (3.0 kg)
Program guide
18

Proofing 40°C to 30°C (104°F to 86°F)
Items To treat micro fiber, ski clothing, fine dense cotton or table cloths
to make them water repellent and soil resistant.
Tip –The item should be washed and spun or dried.
–To get an optimum result heat-treat the items in a clothes dryer
or by ironing them.
Water
repellent –Only use a water repellent that is "Suitable for membrane textiles". They are based on fluorochemicals.
Do not use agents containing paraffin.
–Place the liquid detergent insert in compartment jand fill with
water repellent.
Load size 6.6 lb (3.0 kg)
Extra Rinse
Items For items only to be rinsed and spun.
Load size 14.3 lb (6.5 kg)
Program guide
19

Additional special programs can be accessed in the menu "Settings -
Supervisor level". Contact Miele technical service to access these programs.
Intensive Wash 60°C to 40°C (140°F to 104°F)
Items Heavily soiled cottons, linen or mixed fabrics
Detergent Universal or color detergent
Load size 14.3 lb (6.5 kg)
Flour 95°C to 40°C (203°F to 104°F)
Items Jackets, hats, rags made of cotton or mixed fabrics
Tips –An additional pre-rinse is added to the program automatically.
–Use a Pre-wash detergent with enzymes.
–Use the "Flour +" program for heavy soiling.
Detergent Universal detergent
Load size 14.3 lb (6.5 kg)
Grease and fat 95°C to 40°C (203°F to 104°F)
Items Jackets, hats, rags made of cotton or mixed fabrics
Tips –Use a Pre-wash detergent with enzymes.
–Use "Grease and fat +" for heavy soiling.
Detergent Universal detergent
Load size 14.3 lb (6.5 kg)
Towels short 40°C (104°F)
Items Lightly soiled cotton terry laundry
Tip Use color detergent for dark colored laundry.
Detergent Universal detergent
Load size 12 lb (5.5 kg)
Program guide
20
