Front view
aInlet hose for hot water
bInlet hose for tap water (cold)
cPower cord
d-gDrain hose (with detachable
swivel elbow)
hDetergent dispenser drawer
iControl panel
jLoading door
kAccess to drain filter, drain pump,
and emergency door release
nFour height-adjustable feet
Installation and connection
42

Rear view
aProtruding lid to grip when moving
the washer
bPower cord
cInlet hose for tap water (cold)
dInlet hose for hot water
eDrain hose
fTransport clip for inlet and drain
hoses
gSafety cap for transit bars
hTransport clip for inlet and drain
hoses and for storing transit bars
when not in use.
Installation and connection
43

Installation surface
A concrete floor is the most suitable
installation surface for a washing
machine, being far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted
surface.
Please note:
^The machine must be level and
securely positioned.
^To avoid vibrations during spinning,
the machine should not be installed
on soft floor coverings.
If installing on a wooden joist floor:
^We recommend a plywood base (at
least 59x52x3 cm). The base should
span several joists and be bolted to
the joists and not only to the
floorboards. Check for the presence
of pipes and cables first.
If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.
,If the machine is installed on a
raised plinth, it has to be secured
against slippage during spin using
retaining clips (available from the
Miele Spare Parts Dept). Otherwise
there is the danger of the machine
moving about and falling off the
plinth.
Transporting the washing machine to
its installation site
To manoeuvre the machine out of its
packing case to its installation site hold
it by the edge of the lid where it
protrudes to the rear of the washing
machine as well as by the front feet.
,Ensure that the machine feet and
the floor are dry to prevent the
machine from slipping during the
spin cycle.
Removing the transit bars

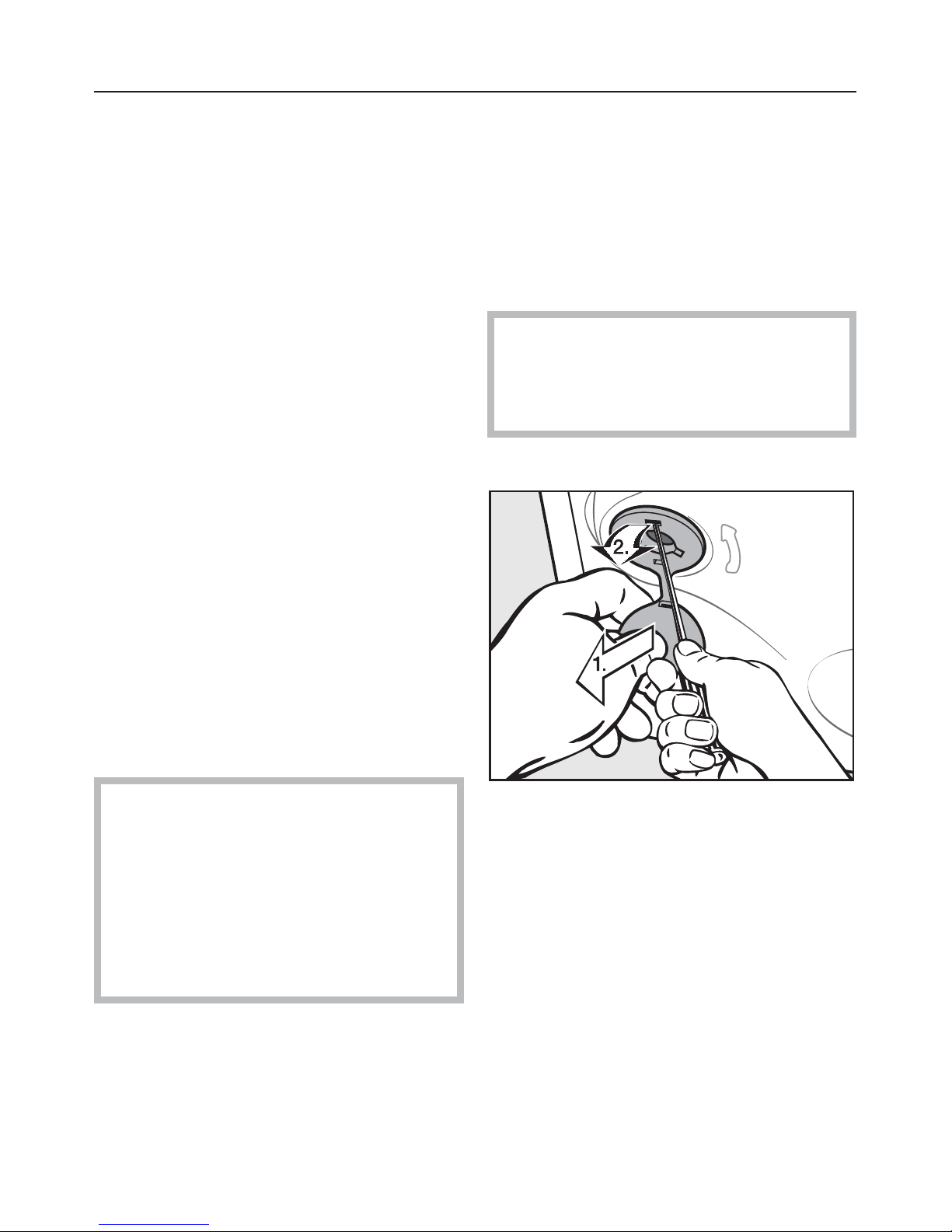

^To remove the left and right covers
1. Pull on the attached stopper,
2. then use a screwdriver to release the
catch at the top.
Installation and connection
44

^Using the spanner supplied, turn the
left-hand transit bar 90°, then
^withdraw the transit bar.
^Turn the right-hand transit bar 90°,
then
^withdraw the transit bar.
Installation and connection
45

,To avoid the risk of injury the
holes for the transit bars must be
covered after the transit bars have
been removed.
^Plug the holes with the plastic caps
as illustrated.
^Secure the transit bars to the back of
the washing machine. Make sure that
the top catch is located above the
holder.
,The machine must not be moved
without the transit bars in place.
Store them as shown or keep them
in a safe place for future use. They
must be re-fitted if the machine is to
be moved again (e.g. when moving
house).
Re-fitting the transit bars
Re-fitting is carried out by reversing the
procedure.
Installation and connection
46

Levelling the machine
To ensure safe and proper operation,
the washer must stand perfectly level
on all four feet.
Improper footing may increase water
and power consumption, and may
cause the washer to wander across the
floor.

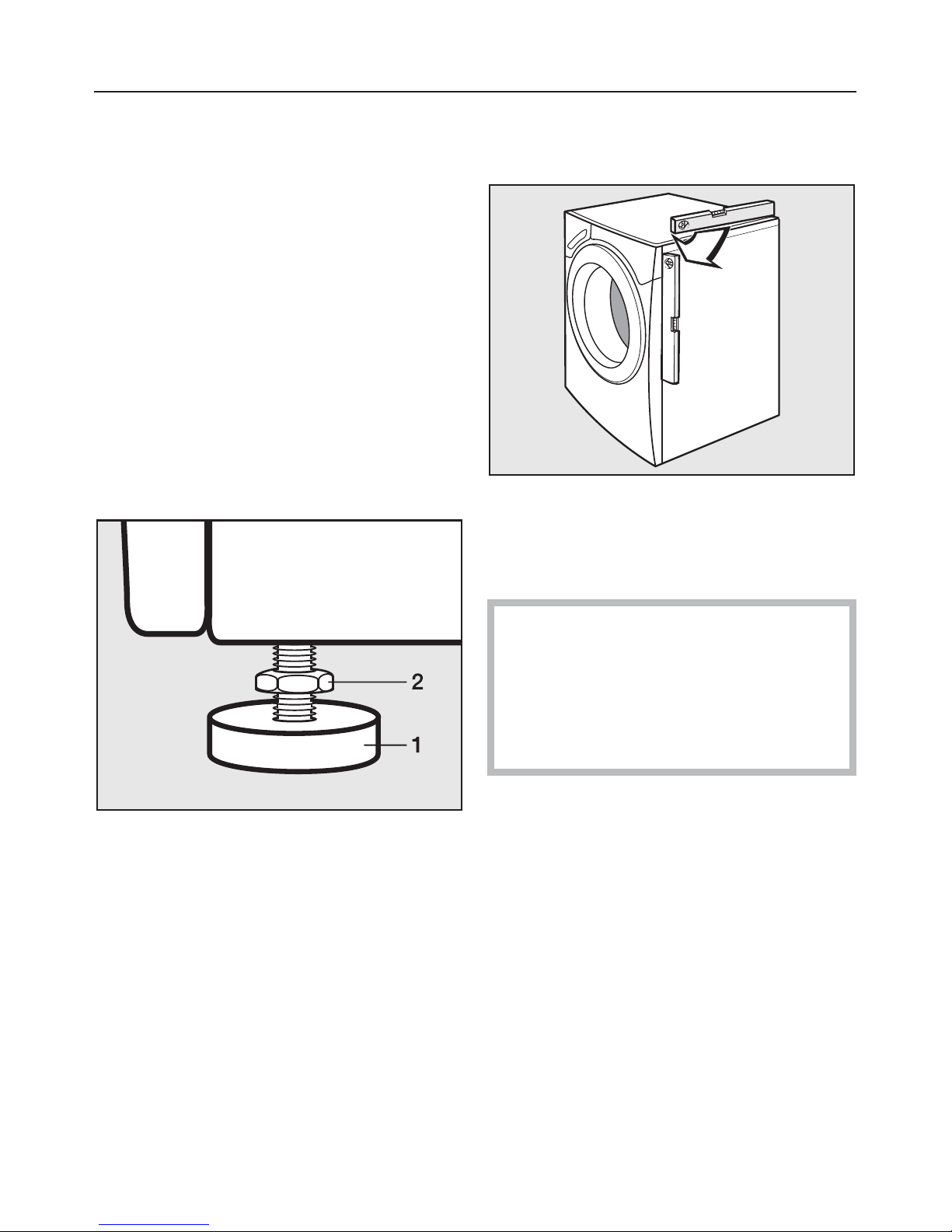

Screw out and adjust the feet
Use the four adjustable feet to level the
washer. The washer is delivered with all
four feet in the shortest (screwed in)
position.
^Use the combination wrench
provided to turn the counternut 2
counterclockwise. Then turn the
counter nut 2together with the foot 1
to unscrew.
^Use a level to check that the washer
is standing square.
^Hold the foot 1securely with a pipe
wrench. Now use the combination
wrench to screw the counternut 2
firmly back up against the housing.
,All four counternuts must be
tightened firmly up against the
housing. Be sure to also check this
on the feet that did not require
levelling. Otherwise, the washer may
wander about.
Installation and connection
47

Installing under a countertop
,The washer lid must NOT be
removed.
Provided the workspace is high
enough, the washer can be pushed
under a countertop with the lid in place.
Washer-dryer stack
The washer can be stacked with a
Miele tumble dryer. A stacking kit will
"WTV 414", be required and can be
obtained through your Miele dealer or
Miele Customer Service.
Please note:
aSafety clearance to wall:
at least 2 cm
bHeight:
Stacking kit with pull-out shelf:
approx. 172 cm
cDepth of the washer-dryer stack:
approx. 65 cm
Stacked units may not be installed
on pedestals.
Installation and connection
48

The Miele water protection
system
The Miele water protection system
protects the washer from water
damage.
The system consists of three main
components:
1) the inlet hose
2) the washer electronics and housing
3) the drain hose
1) The inlet hose
– Hose burst protection
The inlet hose can withstand
pressure of more than 7000 kPa.
2) The electronics and housing
– Sump
Any leaking water is collected in a
sump in the base of the washer. A
float then switches off the inlet
valves, preventing any additional
water inflow, and any water in the
suds container is pumped away.
–Overflow protection
This feature helps prevent the
washer from taking in too much
water. If the water exceeds a certain
level, the drain pump starts and
pumps away the water.
3) The drain hose
The drain hose is equipped with a
ventilation system that prevents the
washer from being emptied
accidentally.
Connecting to the water
supply
The washer is designed to comply with
applicable CSA standards, for
connection to a tap water line. It does
not require a non-return valve.
The flow pressure must be between
100 kPa and 1000 kPa. If the pressure
is above 1000 kPa, a
pressure-reducing valve MUST be
installed.
Two stopcocks with3/4" thread are
required for connecting to the water
supply. If these are not available, you
will need to have a qualified plumber fit
the washer to the water supply.
,The screw fittings are under
pressure from the water line. To
check that the connections are
watertight, slowly open the taps.
Correct the placement of the washer
and union as needed.
Maintenance and care
If the hose ever needs to be replaced,
use only a genuine Miele hose - it is
tested to withstand pressure of at least
7000 kPa.
In order to protect the water inlet
valve, the two dirt filter screens (one
in the open end of the inlet hose, the
other in the inlet point in the washer)
should not be removed.
Optional extension hose
Longer hoses 2.5 or 4.0 m in length are
available from your Miele dealer or
Miele Customer Service.
Installation and connection
49

This washer uses hot and cold
household water.
The washer must always be
connected to a tap water line (cold
water, inlet hose with blue tag).
Tap water line (cold water)
The tap water connection is established
using the inlet hose with the blue
marking.
If the washer is connected to this line
only, the appliance will need to be
re-programmed to cold water fill only.
Please contact your Miele dealer or
Miele Customer Service for
reprogramming instructions.
The second unused inlet hose, with the
red tag, will be attached to the rear of
the washer after re-programming.
Hot water connection
The hot water connection is established
using the inlet hose with the red
marking.
Tips for the hot water connection
–The hot water temperature at the
stopcock must not exceed 60°C, and
the ideal temperature is 55°C.
–If the hot water inlet is closed, the
washer will automatically switch over
to tap water mode after a period of
time. This safety feature is not
intended for long-term use. The
washer will continue to wash in hot
water mode, which can lead to a
poor wash result.
Installation and connection
50

Drainage system
The appliance drains through a pump
with a 1m delivery head. For the water
to drain freely, the hose must be free of
kinks. The swivel elbow at the end of
the hose can be turned in either
direction, or removed as needed with a
sharp twist and pull.
If required, the hose can be extended
to a length of 5m. The necessary parts
can be ordered through your Miele
dealer or Miele Customer Service.
For delivery heads over 1m (up to a
max. of 1.8 m), contact your Miele
Customer Service for a replacement
pump and with a part # 1053992.
Drain hose connection:
1. Hang directly into a washbasin or
sink:
Please note:
– Secure the hose over the edge so
that it will not slip.
– Make sure that the water can drain
away freely without hindrance.
Otherwise, the water could overflow
or be sucked back up into the
washing machine.
2. Connect securely to a plastic drain
pipe with a rubber sleeve (not-return
valve not required).
3. Connect securely to a floor gully.
4. Attach to a washbasin with a plastic
fitting.
Installation and connection
51

Electrical connection
GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of a malfunction or
breakdown, grounding will reduce
the risk of electric shock by
providing a path of least resistance
for electric current. This appliance is
equipped with a cord having an
equipment-grounding conductor
and a grounding plug. The plug
must be plugged into an appropriate
outlet that is properly installed and
grounded in accordance with all
local codes an ordinances.
WARNING - Improper connection of
the equipment-grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician or
service representative if you are in
doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided
with the appliance; if it wil not fit the
outlet, have a proper outlet installed
by a qualified electrician.
ELECTRICAL INSTRUCTIONS
This installation should be performed
by an experienced and qualified
technician, in accordance with local
codes and regulations
The washing machine is supplied with a
5'3" long, 4 wire cord, ending in a
NEMA 14-30 P plug, ready for
connection to a 120/208-240 V, 30 A,
60 Hz, AC power supply.
"EASY INSTALLATION KIT"
If a dedicated 4 wire, 120/208-240 V,
30 Amp line is not available for this
appliance, an optional "Easy Installation
Kit" will allow you to connect to a 240 V,
30 Amp line.
This dual receptacle, wall mounted
connection box can ONLY be used for
connecting the W 1753 Miele clothes
washer and the T 7634 or T 7644 C
clothes dryer to an existing 30 Amp
(NEMA 14-30 R) outlet.
Miele recommends to wall mount the
easy installation kit adjacent to existing
electric outlets.
For more information on the "Easy
Installation Kit", or if you have questions
concerning the electrical connection,
please contact:
1-800-565-6435
service|miele.ca
Installation and connection
52

Height 850 mm
Width 595 mm
Depth 634 mm
Depth with door open 1074 mm
Height for building under 850 mm
Width for building under 600 mm
Weight 99 kg
Voltage see data plate
Connected load (watts) see data plate
Fuse rating see data plate
Consumption data see section on "Consumption data"
Min. water flow pressure 100 kPa (1 bar)
Max. water flow pressure 1000 kPa (10 bar)
Inlet hose length 1.60 m
Drain hose length 1.50 m
Length of power cord 1.60 m
Max. drain pump height 1.00 m
Max. drain pump length 5.00 m
LED (light emitting diodes) Class 1
Test certifications granted see data plate
Technical data
53

Programmable functions
for changing
default settings
You can use the programmable functions to adjust the electronics to suit
changing requirements. Programmable functions can be changed at any time.

To access programmable functions
Use the Start/Stop button and the
program selector to access the
programmable functions. This
second function for the button and
selector is not indicated on the panel.
Before you begin, check that:
–The washer is switched off.
–The door is properly closed.
APress and hold the Start/Stop button
during steps Bto C.
BPress the _button in.
CAs soon as the display shows...
Language !...
. . . you can release the
Start/Stopbutton.
You now have access to the
programmable functions.
To select a programmable function
CTurn the program selector until the
desired programmable function
appears in the display.
ETo change a displayed
programmable function, press the
Start/Stop button.
To change a programmable function
Turn the program selector to see the
various options available for a
programmable function.
The currently set option is marked with
a check L.
FTurn the program selector until the
desired option appears.
GTo activate the option, press the
Start/Stop button.
To exit a programmable function
HTurn the program selector until Back
Aappears in the display.
IPress the Start/Stopbutton.
Language !
The display can be set to appear in
one of several different languages.
The flag !after the word Language is a
cue for the user, in case the menu item
appears in an unfamiliar language.
The selected language will be stored in
the memory.
Programmable functions
55

Water plus
Use the Water plus programmable
function to set the options for the
Sensitive button.
You can choose one of three options:
Water +
(Factory setting)
The water level is increased in the
washing and rinsing segments.
Extra rinse
An additional rinse cycle is inserted.
Water + and Extra rinse
The water level is increased for
washing and and additional rinse cycle
is added.
Gentle wash
Activating the Gentle wash feature
reduces the drum action. It is suitable
for gently washing mildly soiled
items.
This option can be activated within the
programs for Normal and Wrinkle Free.
The factory setting for Gentle wash is
Off.
Suds cooldown
With this feature, additional water
flows into the washer at the end of
the main wash, to cool down the
suds.
The cooldown feature kicks in with the
90°C and 75°C programs.
Cooldown should be activated if:
– the drain hose is hooked over a
basin or sink - this will help prevent
scalding.
– the drain pipes in the building do not
comply with DIN 1986.
The factory setting for the Cooldown
option is Off.
Programmable functions
56

Pin code
You can use a pin code to lock the
electronics. This feature protects your
washer against unauthorized use.
Once the pin code is activated, you will
need to enter it whenever you wish to
operate the washer.
Pin code ...
^Press the Start/Stopbutton.
To activate the pin code
Activate
^Press the Start/Stopbutton.
You will now be prompted to enter the
pin code.
Enter the code
The code is 125 and cannot be
changed.
O__ __
^Turn the program knob until the first
digit appears.
^Press the Start/Stopbutton to confirm
the first digit.
^Repeat this process until all three
digits have been entered.
125
^Press the Start/Stopbutton.
The following appears in the display for
confirmation:
Code activated
Once the washer has switched off, it
cannot be used again unless the code
is entered.
To operate the washer with the pin
code
When the appliance is switched on, you
will be prompted to enter the pin code.
^Enter the code as explained above,
and confirm.
The washer is now unlocked for use.
To de-activate the pin code
Switch on the programming functions
as described.
CAs soon as the display shows...
O__ __
. . . you can release the
Start/Stopbutton.
^Now enter the pin code and press
the Start/Stopbutton.
^Select the pin code and confirm
de-activate.
Programmable functions
57

Temperature unit
You can choose whether
temperatures will be displayed in
°C/Celsius or in
°F/Fahrenheit.
The factory setting is °C/Celsius.
Buzzer
When the buzzer feature is activated,
a signal will be heard when the
program ends or when Rinse hold is
reached.
You can select one of two buzzer
volumes:
Normal
(Factory setting)
The buzzer sounds at normal volume
whenever a program ends or when
Rinse hold is reached.
Loud
The buzzer sounds at maximum volume
whenever a program ends or when
Rinse hold is reached.
Keypad tone
There will be a beep whenever a
button is pressed.
The factory setting for the keypad tone
is Off.
Brightness
There are 10 different settings for the
display brightness.
The bar diagram indicates which level
is selected.
The factory setting for brightness is 5.
The brightness changes as soon as you
choose a different setting.
Contrast
There are 10 different settings for the
display contrast.
The bar diagram indicates which level
is selected.
The factory setting for contrast is 5.
The contrast changes as soon as you
select the preferred level.
Programmable functions
58

Standby display
To save energy, the display goes out
and the Start/Stop button will start
flashing slowly.
The display will always go out:
–if no program is selected within 10
minutes of switching on the machine.
–10 minutes after the end of a
program.
Press any button to bring the display
back on.
You can also set the display to fade out
or remain visible while a program is
running.
On
The standby function is activated. The
display will fade out 10 minutes after
the program has started.
Not in current Progr.
(Factory setting)
The standby function is not activated.
The display remains visible while a
program is running.
Memory
Whenever a program starts, the
washing machine stores the most
recently selected settings (program,
temperature, spin speed/RPM and
any extra options).
The next time the machine is switched
on, the washer displays this stored
information.
The factory setting for the memory
function is Off.
Anti-crease
The crease-free setting is designed
to help prevent wrinkles from forming
if the laundry is not immediately
removed at the end of a program.
The washer drum will continue to rotate
at intervals for up to 30 minutes after
program completion.
You can open the washer at any time to
remove the laundry.
On
(Factory setting)
The anti-crease feature is activated.
Off
The anti-crease feature is off.
Programmable functions
59

Alteration rights reserved / 1016
To obtain the most updated version of this guide, please visit the website of Miele.
M.-Nr. 10 210 870 / 02








 !""!#"
$%&
'()*
)!'!+%,-.
####-*/%$



