aFor switching the
appliance on/off
bOptical interface
(only for service technicians)
cFor selecting the upper, middle or
lower wine conditioning zone
dFor switching the DynaCool
function on/off (constant humidity)
eOn/Off sensor for the display lighting
fFor setting the temperature
(Xfor colder)
gFor confirming a selection (OK
sensor)
hFor setting the temperature
(Yfor warmer)
iFor selecting/deselecting
the settings mode
jFor switching off the
temperature/door alarm
kDisplay with temperature and
symbols (Symbols are only visible in
settings mode. For an explanation of
the symbols, see the table on the
following page)
Description of the appliance
4

Symbols in settings mode:
Symbol Meaning Function
0System lock Prevents the appliance from being
inadvertently switched off and settings
from being changed.
)Audible tones Switches on/off the sensor tones and the
door alarm.
<Miele|Home
(available in selected
countries)
Lights up if a Miele@home
communication module is connected and
signed on.
rDemo mode (only visible
if Demo mode is
activated)
Switches off the Demo mode.
sDisplay brightness Sets the display brightness.
Active charcoal filters Lights up when the active charcoal filters
need to be changed.
tMains connection (only
visible if the appliance is
switched off or in the
case of a power cut
Confirms that the appliance is connected
to the electricity supply; Flashes if there is
a power cut.
;Alarm (only visible if the
temperature or door
alarm has been
activated)
Shows the temperature or door alarm has
been activated.
Description of the appliance
5

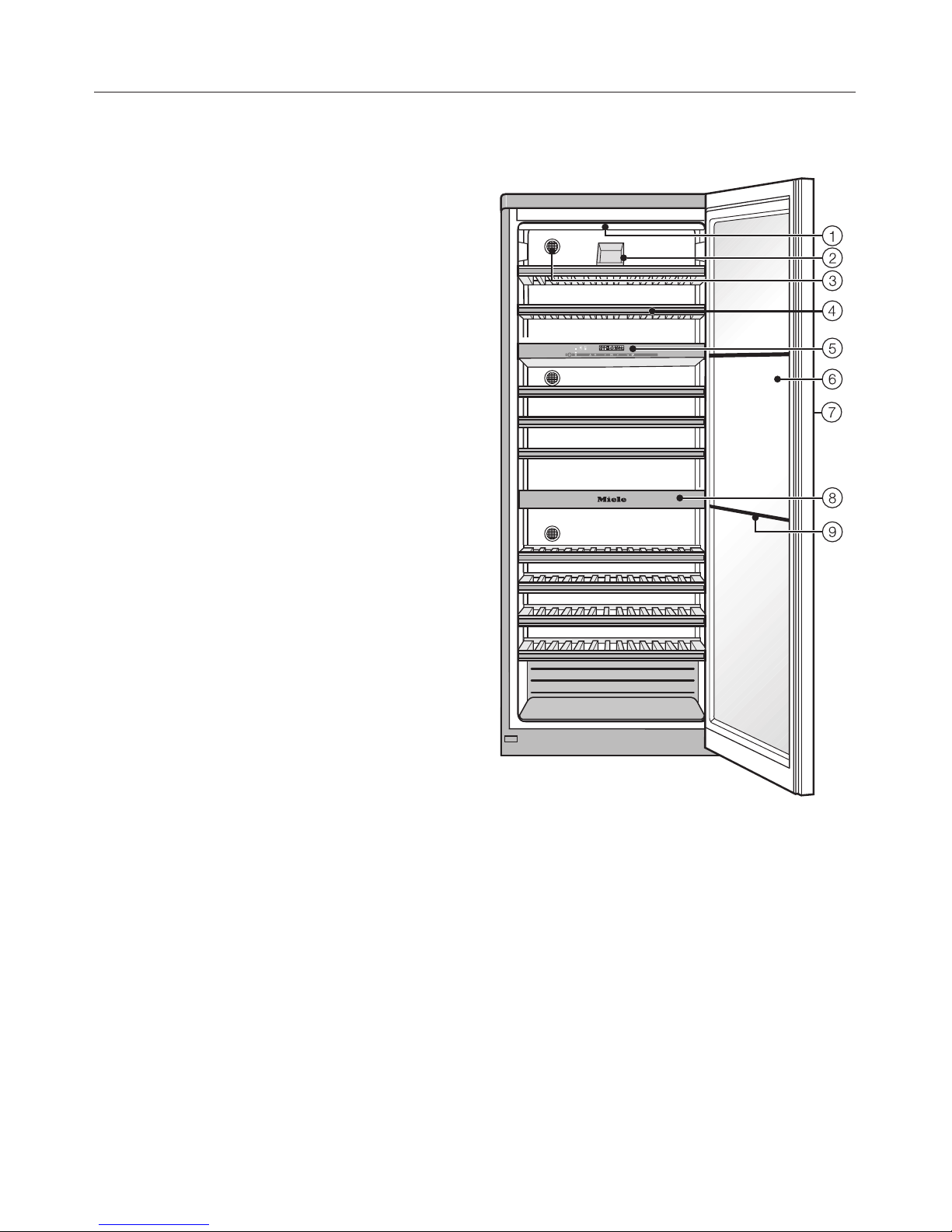

aLighting panel
(in all 3 wine conditioning zones)
bBottle presenter
cActive charcoal filter
(in all 3 wine conditioning zones)
dFlexible wooden shelf with noteboard
eTouch controls for upper, middle and
lower wine conditioning zones/
Isolator plate for thermal separation of
zones
fGlass door made from
UV-resistant safety glass
gIntegrated handle
hIsolator plate for the thermal separation
of the zones
iIsolator strip for the thermal
separation of the zones
Description of the appliance
6

Accessories supplied
Active charcoal filters
The active charcoal filters provide a
high quality of air by effectively filtering
the air entering and leaving the
appliance.
Chalk
Use the chalk supplied to write on the
magnetic strips (noteboards) on the
wooden shelves. This enables a good
overview of the wines you are storing.
Optional accessories
Active charcoal filters
(For description, see "Accessories
supplied")
Original Miele care product for
stainless steel
–Each time the Original Miele Care
product for stainless steel is used, it
forms a protective film against dirt
and water. It gently removes water
streaks, fingerprints and other stains,
leaving an even, luminous surface.
Original Miele all purpose microfibre
cloth
The Original Miele all purpose
microfibre cloth removes fingerprints
and light soiling from stainless steel
and other surfaces.
Optional accessories can be
purchased from Miele (see back
cover for contact details) or via the
internet.
Accessories
7

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposing of your old
appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
The plug must be rendered useless
and the cable cut off directly behind the
appliance to prevent misuse. Take care
not to damage the pipework at the back
of it before or during transportation to
an authorised collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
8

This appliance complies with all relevant local and national safety
requirements. Improper use of the appliance can, however,
present a risk of both personal injury and material damage.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installation and
before using it for the first time. They contain important notes on
the installation, safety, operation and care of the appliance.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
,Risk of injury!
In locations above 1500 m, the glass door may shatter due to
changes in the air pressure.
Sharp shards of glass can cause serious injuries.
Correct application
~This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
This appliance is not suitable for outdoor use.
~This appliance is intended for the cool storage of wine.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
9

~This appliance is not suitable for storing and refrigerating
medications, blood plasma, laboratory preparations or similar
substances or products. Incorrect use of the appliance may result in
damage to or spoiling of the wine being stored. Furthermore, the
appliance must not be operated in areas where explosions may
occur.
Miele cannot be held liable for damage resulting from improper or
incorrect use of the appliance.
~This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person
responsible for their safety, and are able to recognise the dangers of
misuse.
Safety with children
~Young children must not be allowed to use this appliance.
~Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
~Cleaning work may only be carried out by older children under
the supervision of an adult.
~Children should be supervised to ensure that they do not play
with the appliance. Keep small children away from the appliance at
all times to avoid the risk of injury.
Warning and Safety instructions
10

~Danger of suffocation! Children may be able to wrap themselves
in packing material or pull it over their heads with the risk of
suffocation. Keep children away from any packing material.
Technical safety
~The refrigerant circuit has been checked for leaks. This appliance
complies with all current local and national safety requirements.
~This appliance contains the coolant Isobutane (R600a), a natural
gas which is environmentally friendly. Although it is flammable, it
does not damage the ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around
the system. This is unavoidable, and does not have any adverse
effect on the performance of the appliance.
Care must be taken during the transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid any flames or anything which creates a spark,
–switch off at the mains and unplug the appliance,
–ventilate the room where the appliance is located for several
minutes, and
–contact Miele for advice.
Warning and Safety instructions
11

~The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every8gofcoolant at least 1 m3of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
~Before connecting the appliance to the mains supply, make sure
that the rating on the data plate corresponds to the voltage and
frequency of the household supply. This data must correspond in
order to avoid risk of damage to the appliance. Consult a qualified
electrician if in any doubt.
~The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
~If the connection cable is faulty, it must only be replaced by a
Miele approved service technician to protect the user from danger.
~Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).
~If moisture gets into electrical components, it could cause a short
circuit.
Therefore, do not operate this appliance in areas which are exposed
to moisture.
Warning and Safety instructions
12

~This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
~A damaged appliance is dangerous. Check your appliance for
any visible damage. Never install or attempt to use a damaged
appliance.
~During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
–the mains fuse has been disconnected, or
– the screw-out fuse is removed (in countries where this is
applicable), or
– it is switched off at the wall socket and the plug is withdrawn from
the socket, or it is switched off at the isolator.
~Repairs and other work by unqualified persons could be
dangerous. Installation work and repairs to electrical appliances
must only be carried out by a Miele approved service technician.
~The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
~Faulty components must only be replaced by genuine Miele
Original spare parts. The manufacturer can only guarantee the
safety of the appliance when Miele replacement parts are used.
Warning and Safety instructions
13

Correct use
~The appliance is designed for use within certain climate ranges
(ambient temperatures), and should not be used outside this range.
The climate range of the appliance is stated on the data plate inside
the appliance. Installing the appliance in a room with too low an
ambient temperature, e.g. a garage, can lead to the appliance
switching off for longer periods so that it cannot maintain the
required temperature.
~To ensure proper air flow in and out of the appliance, the air vents
in the appliance or in the built in structure must not be covered or
blocked in any way.
It would also increase the electricity consumption and could cause
damage to the appliance.
~Make sure that any oil, or foods containing oil, do not come into
contact with plastic components as this could cause stress cracks.
~Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Flammable gases can
ignite if they come into contact with electrical components.
Danger of fire and explosion!
~Do not operate any electrical equipment (e.g. an electric
ice-cream maker) inside the appliance. Danger of sparking and
explosion!
~If storing alcohol with a high percentage proof, make sure it is
tightly closed and stored upright. Danger of explosion!
~Use only Miele Original spare parts. If spare parts or accessories
from other manufacturers are used, the warranty will be invalidated,
and Miele cannot accept liability.
~Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.
Warning and Safety instructions
14

~Do not damage the refrigerant circuit.
Cleaning and care
~Do not use any oils or grease on the door seal, as these will
cause the seal to deteriorate and become porous with time.
~Do not use a steam-cleaning appliance to clean this appliance.
Pressurised steam could reach the electrical components and
cause a short circuit.
~Do not use sharp edged objects to
– remove frost and ice,
– separate frozen foods and remove ice trays.
They will damage the evaporator, causing irreversible damage to
the appliance.
~Never place electric heaters or candles in the appliance to
defrost it. These can damage the plastic parts.
~Do not use defrosting sprays or de-icers, as they might contain
substances which could damage the plastic parts or which could
cause a build-up of gases and pose a danger to health.
Warning and Safety instructions
15

Disposal of your old appliance
~Before disposing of an old appliance, first make the door lock
unusable.
This way you will prevent children from accidentally locking
themselves in and endangering their lives.
~Be careful not to damage any part of the pipework whilst awaiting
disposal, e.g. by
–puncturing the refrigerant channels in the condenser,
–bending any pipework, or
– scratching the surface coating.
Splashes of refrigerant can harm the eyes.
Warning and Safety instructions
16

Normal energy consumption Increased energy
consumption
Installation/
Maintenance
In a ventilated room. In an enclosed, unventilated
room.
Protected from direct sunlight. In direct sunlight.
Not situated near a heat
source (radiator, oven).
Situated near a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx. 20 °C.
Where the room temperature
is high.
Where the cross-section of the
air inlet and outlet is not
covered and kept free of dust.
Where the cross-section of the
air inlet and outlet is covered
and not cleaned at regular
intervals.
The compressor and the
metal grille (heat condenser)
on the rear wall of the
appliance must be dusted at
least once a year.
Dust deposits on the
compressor and metal grille
(heat condenser) increase
energy consumption.
Temperature
settings
10 to 12 °C The lower or higher the
temperature setting in the
wine conditioner, the higher
the energy consumption.
Use Arrange the wooden shelves
in the same configuration as
when the wine conditioner
was delivered.
Only open the doors when
necessary and for as short a
time as possible.
Sort the wine bottles in an
organised way.
Frequent opening of the doors
for long periods will cause a
loss of coldness. The
appliance will try to cool down
and the running time of the
compressor will increase.
Do not overfill the appliance to
allow air to circulate.
How to save energy
17

Before using for the first time
Protective foil
The stainless steel surfaces have a
layer of protective foil to prevent
scratching during transportation.
^Remove the protective foil only after
the appliance has been installed in
its intended location. Start by peeling
back the protective foil from one of
the top corners.
Cleaning and care
^Immediately after removing the
protective foil, apply the Original
Miele Care product for stainless
steel.
Important! Each time the Original
Miele Care product for stainless
steel is used, it forms a protective
film against dirt and water.
^Clean the inside of the appliance and
the accessories with lukewarm water,
and then dry with a soft cloth.
Operation

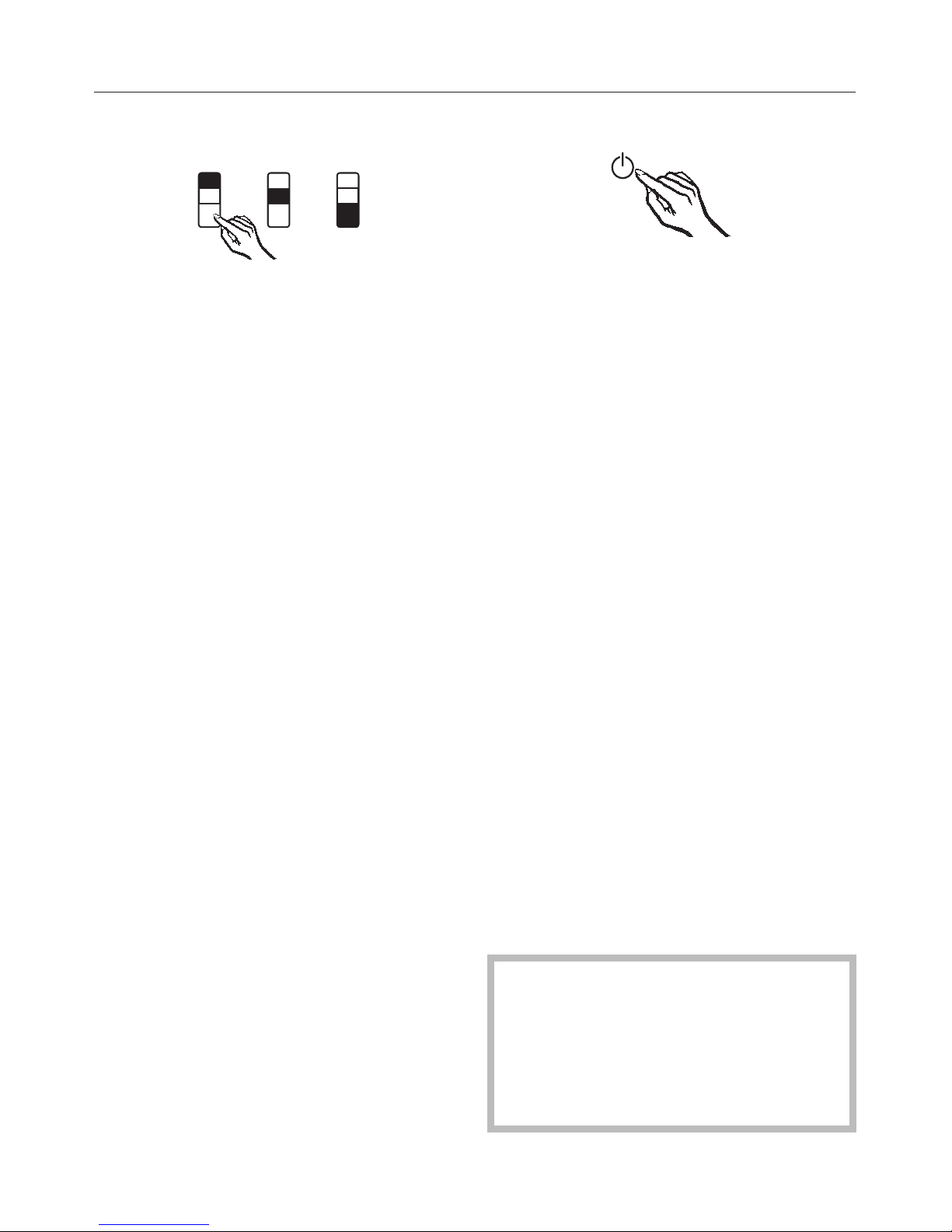

A light touch of the finger on the
sensors is all that is required to operate
this appliance.
A keypad tone will sound each time a
sensor is touched. The keypad tone
can be switched off (see "Selecting
further settings - Audible tones").
Switching the appliance on
As soon as the appliance is connected
to the electricity supply, the mains
connection symbol tappears in the
display.
^Touch the On/Off button.
The mains connection symbol tgoes
out when the appliance starts cooling.
The sensors in the control panel for the
3 temperature zones appear: the
upper, middle and lower wine
conditioning zones. The selected wine
conditioning zone is highlighted in
yellow and the temperature for this
zone appears in the display.
As soon as the selected temperature is
reached for this zone, the respective
sensor lights up constantly. The alarm
symbol ;goes out once the selected
temperatures in all zones have been
reached.
The interior lighting comes on when the
door is open.
Switching on and off
18

Individual settings can be selected for
each wine conditioning zone.
^Touch the sensor for the particular
zone of the appliance where you
would like to select the settings.
The selected sensor is highlighted in
yellow. You can now
–set the temperature,
–switch on the DynaCool function.
Please refer to the relevant section for
more information.
If you select another wine conditioning
zone, the settings for the previously
selected zone will remain intact.
Switching off
^Touch the On/Off button.
If the appliance does not switch off,
the system lock is activated!
The sensor lights in the control panel
for the 3 temperature zones will go out.
The temperature display will go out and
the mains connection symbol twill
appear.
The interior lighting goes out and
refrigeration is switched off.
Switching off for longer
periods of time
If you do not want to use the appliance
for an extended period of time,
^switch the appliance off,
^switch off at the wall and withdraw
the plug from the socket, or
disconnect the mains fuse or remove
the screw-out fuse in countries where
this is applicable,
^clean the appliance,
^leave the door ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
19

Certain settings on the appliance can
only be selected in the settings mode.
The door alarm is automatically
disabled when the appliance is in
settings mode.
System lock 0
With the system lock you can secure
the appliance against:
–unwanted switching off,
–unwanted change of temperature,
–unwanted selection of DynaCool,
–unwanted switching on of the interior
lighting.
Switching the system lock on and off
^Touch the settings sensor.
All selectable symbols will appear in
the display and the 0symbol will flash.
^Touch the OK sensor to confirm your
selection.
The last selected setting flashes in the
display and the 0symbol lights up.
^By touching the Xor Ysensor, you
can now select whether the system
lock is switched on or off:
0: The system lock is switched off
1: The system lock is switched on
^Touch the OK sensor to confirm your
selection.
The selected setting is adopted and the
0symbol will flash.
^Press the settings sensor to leave the
settings mode.
If no sensor is touched, the appliance
will automatically leave the settings
mode after approx. 1 minute.
If the system lock is activated, the 0
symbol will be illuminated in the
display.
Selecting further settings
20
