Milagrow WindowBot8.0 User manual

WINDOW CLEANING ROBOT
Window 8.0Bot

CONTENTS
1. Safety Criteria
2. Product Composition
2.1 Package contents
2.2 Technical parameters
3. Product Manual
3.1 Precautions before use
3.2 Install the cleaning cloth

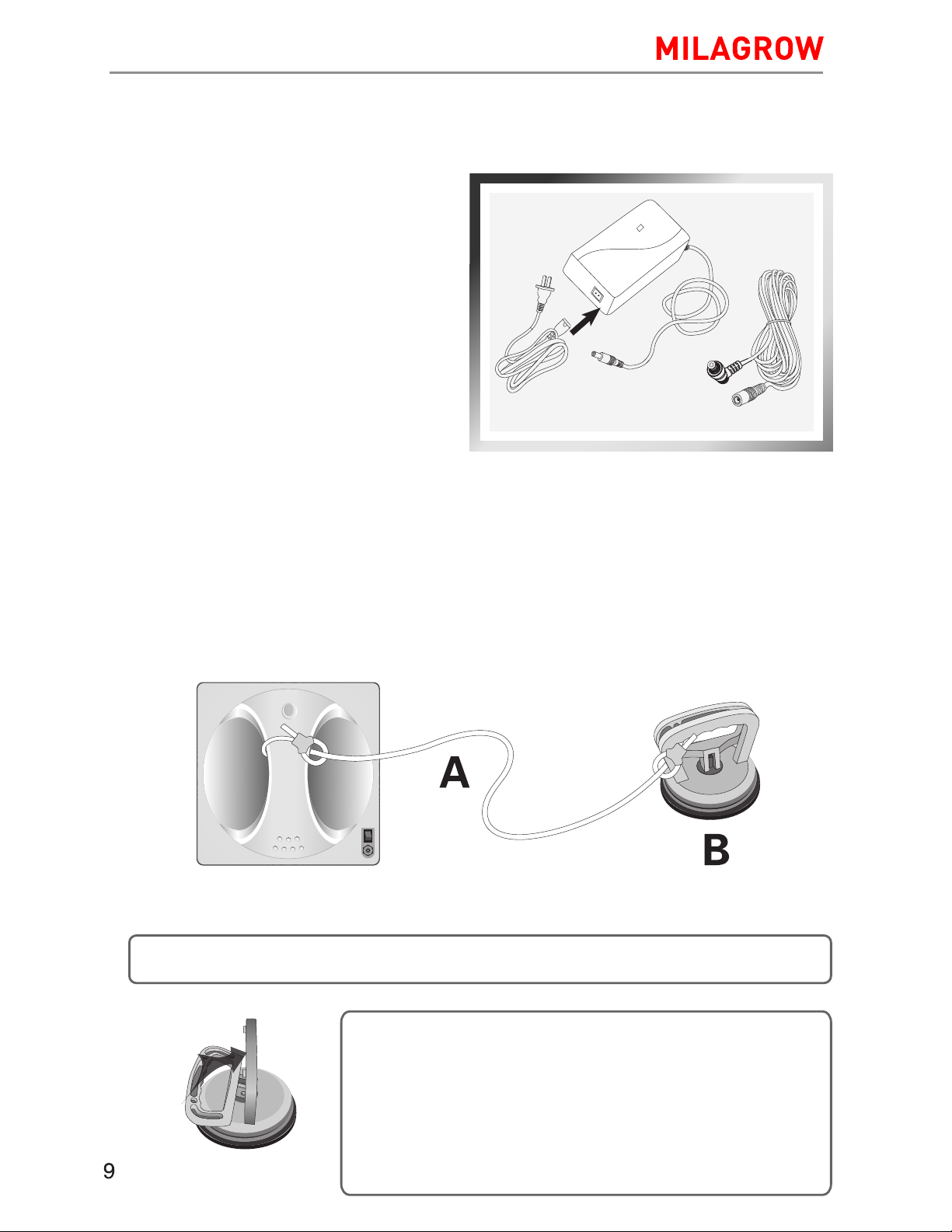

3.3 Connect the adapter
3.4 Assemble the safety rope assembly
3.5 Product work
3.7 End the work
3.6 Product pause
4. Maintenance
4.1 Cleaning cloth
4.2 Bottom components
5. Status Indicator
7. Fault Description
8. Warranty Card
2
5
5
5
6
7
7
8
9
9
10
12
13
14
14
14
16
17
18
20

1.Safety Criteria
Please read this manual carefully before using the product.
Save the manual.
When using the product, please maintain consistent vigilance and keep
the following precautions:
1.This product is strictly forbidden to use under the
following conditions:
1.1 Products can not be used by children under 12 years old and the
person physically or mentally impaired. Please do not allow children
close to the working robot or as robot be a toy to play.
1.2 Do not use this product on glass that has broken marks, ad paper, or
bumps to avoid the risk of broken glass, dropped product, and so on.
1.3 Do not use this product on non-planar glass such as curved surface
and beveled surfaces.
1.4 Do not use this product on framed glass with a glass frame thickness
of less than 5 mm.
1.5 Prohibit the use of large areas of wet or oily glass to avoid slipping
products caused by the risk of falling.
1.6 After cleaning, you can use detergent to clean the cleaning cloth.
After cleaning, please dry it in time.
1.7 Do not place this product in water or other liquids to reduce the risk
of electrical shock. Do not store this product where it may fall or be
pulled into the tub or sink.
1.8 Do not use the product in a situation where the product is not
completely adsorbed or has been significantly damaged.
1.9 Do not touch the plug or the product with wet hands.
1.10 Do not place the machine on household appliances, damp or have a
fire source to charge, so as to avoid unnecessary losses.
1.11 Even if the product has been seriously damaged, the products can be
banned. The battery may cause an explosion.
1.12 Strictly prohibit the use of this product without fixing safety rope
assemblies.
1.13 Do not use the product with a damaged power cord or an electrical
Window 8.0Bot

outlet. Do not use the product when it is not working properly due to
dropping, damaging or water ingress. To avoid injury, the product sho-
uld be repaired by the manufacturer or its after-sales service department.
1.14 The cleaning cloth can be applied to the wet glass surface, Non-
reflux of water droplets on glass. When the flow of water on the glass is
left, it is strictly prohibited to use this product.
2.The following conditions should be noted when
using this product:
2.1 Products just can use for outside when the temperature at 0-40
degrees, no heavy wind, no rain and dry air. When using the product
through the safety rope and safety buckle must be properly connected.
2.2 Always keep the product powered on while the product is in
operation. Products built-in security backup battery is only used to
maintain the product and then a sudden power failure, in a limited period
of time to maintain adsorption on the glass does not fall, not as a normal
work power supply, so as not to bring the risk.
2.3 Use only in a domestic environment. Do not use in commercial or
industrial areas.
2.4 Please use the product as indicated in the instructions, use only the
accessories recommended or sold by the manufacturer; use only the
original rechargeable battery and adapter made by the manufacturer, and
ensure that the voltage of the power supply is in line with the voltage
marked on the adapter.
2.5 Please use the power line carefully to avoid the damage. It is
forbidden to use the power line to drag, pull the product or use the power
line as a handle; it is forbidden to close the glass window with the power
line or put the goods on the power line in the process of use, and the
power line should be far away from the heat source.
2.6 If the soft wires of the power cord are damaged, they must be
replaced by the manufacturer, his or her maintenance department or
similar professionals in order to avoid danger.
2.7 The plug must be unplugged from the socket before maintaining or
cleaning the product, but not from the socket by pulling the power cord.
1.Safety Criteria Window 8.0Bot

2.8 Battery charging can not be carried out in an overheated or
undercooled environment to avoid affecting battery life. If you don't use
it for a long time, please charge the battery every 1-2 months for 2 hours.
2.9 The battery must be replaced by the professional staff of the
manufacturer, its maintenance department or similar department. Before
the product is scrapped, the battery must be removed and discarded
according to local laws, regulations and environmental regulations.
2.10 If you need to scrap the product, please cut off the power supply
and remove the battery from the product.Please comply with local laws
and regulations and environmental regulations to handle used batteries.
Please use the product in accordance with the
instructions of this manual. The company is not
responsible for any loss or injury caused by
improper use.
1.Safety Criteria
Window 8.0Bot

2. Product Composition
Safety Rope
Components Remote Control Clean Cloth
2.2 Technical Parameters
Operating Voltage (V) Rated power (W)
Remote control
Rated input voltage (V)
Adapter Type: WT-2403750
Input: AC110-240V 50/60Hz Output: DC24V 3.75A
2.1 Package Contents
Host Adapter Component Instruction
Manual
Window 8.0Bot

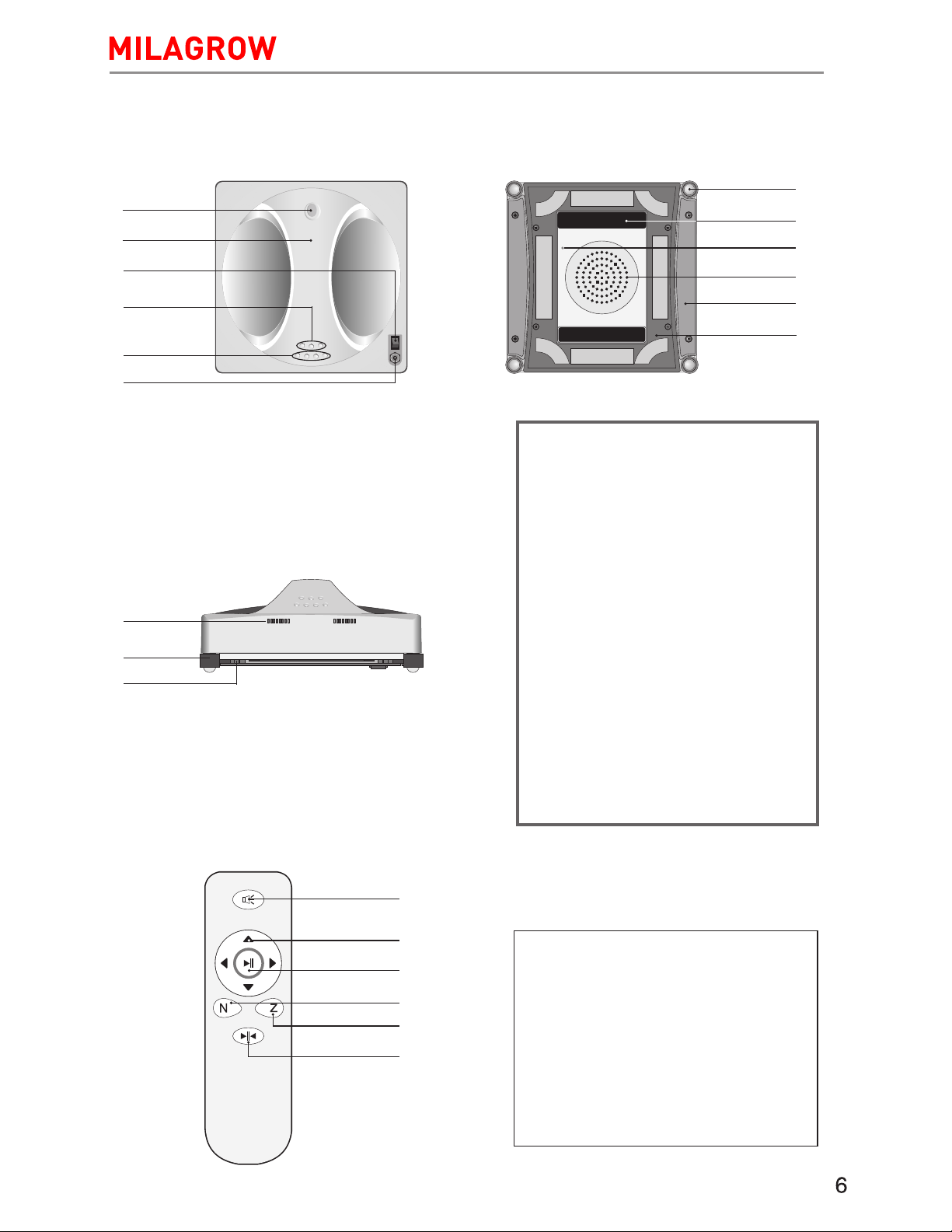

2.3 Part name
7
8
9
10
11
12
13
14
15
1. Pause /Start button
2. Handle
3. Power switch
4. Status indicator
5. Battery indicator
6. Power jack
7. Air outlet
8. Guide wheel
9. Floating wiping chassis
10. Anti-drop sensor
11. Drive wheel
12. Suction sensor
13. Air inlet
14. Cleaning cloth paste area 1
15. Cleaning cloth paste area 2
Host
1. Alternate key
2. Arrow key(forward/reverse/
left rotation/right rotation)
3.One-button start
4.N mode button
5.Z mode button
6.Calibration key
6
5
4
3
2
1
6
5
4
3
2
1
2. Product Composition
Window 8.0Bot

3. Product Manual
3.1 Precautions before use
It is strictly forbidden to use
this product on framed glass
with a thickness of the border
(height difference from the
glass surface to the bezel) of
Use this product in a framed
or frameless ratio of ≥
If there is too much dust on
the surface of the glass, wipe
out a clean area of product
size before using the product
for product adsorption.
less than 5 mm.
60 * 60 cm
Window 8.0Bot

Before use, spray a small amount of water on the cleaning cloth and
place it on the surface of the glass.Do not pour water on the glass
surface or on the product.
Place two small cloth evenly on
the left and right sides of the
machine.
Place the square cloth evenly on
the middle of the machine.
3. Product Manual
When the product is working on a horizontal glass surface, the
remote control should be used to control the operation of the product.
If you use this product on windows that are not completely vertical,
the product may not function properly. Make sure that you are in the
side care area and, if necessary, assist the product.
This product can not be used
in the inverted case.
3.2 Install the cleaning cloth
Window 8.0Bot

Disassemble the power line end
of the product and the power
line of the adapter, connect both
ends of the extension line to the
power line end of the product's
power supply line and the
adapter power line, and tighten
up the power line at the end of
the power supply line and the
adapter.
Note: Sucker direction for use
1. The suction cup is pressed to the top of the
glass when the suction handle is separated.
2. Handle closure.
3. Pull the handle to confirm the solid
adsorption.
A. Safety Rope B. Sucker
3. Product Manual
3.3 Connect the adapter
3.4 Assemble the safety rope assembly
When using this product to wipe the glass, use a safety rope assembly
to secure the product and improve the safety of the product.
Window 8.0Bot

3. Product Manual
20cm
Glass
Rail

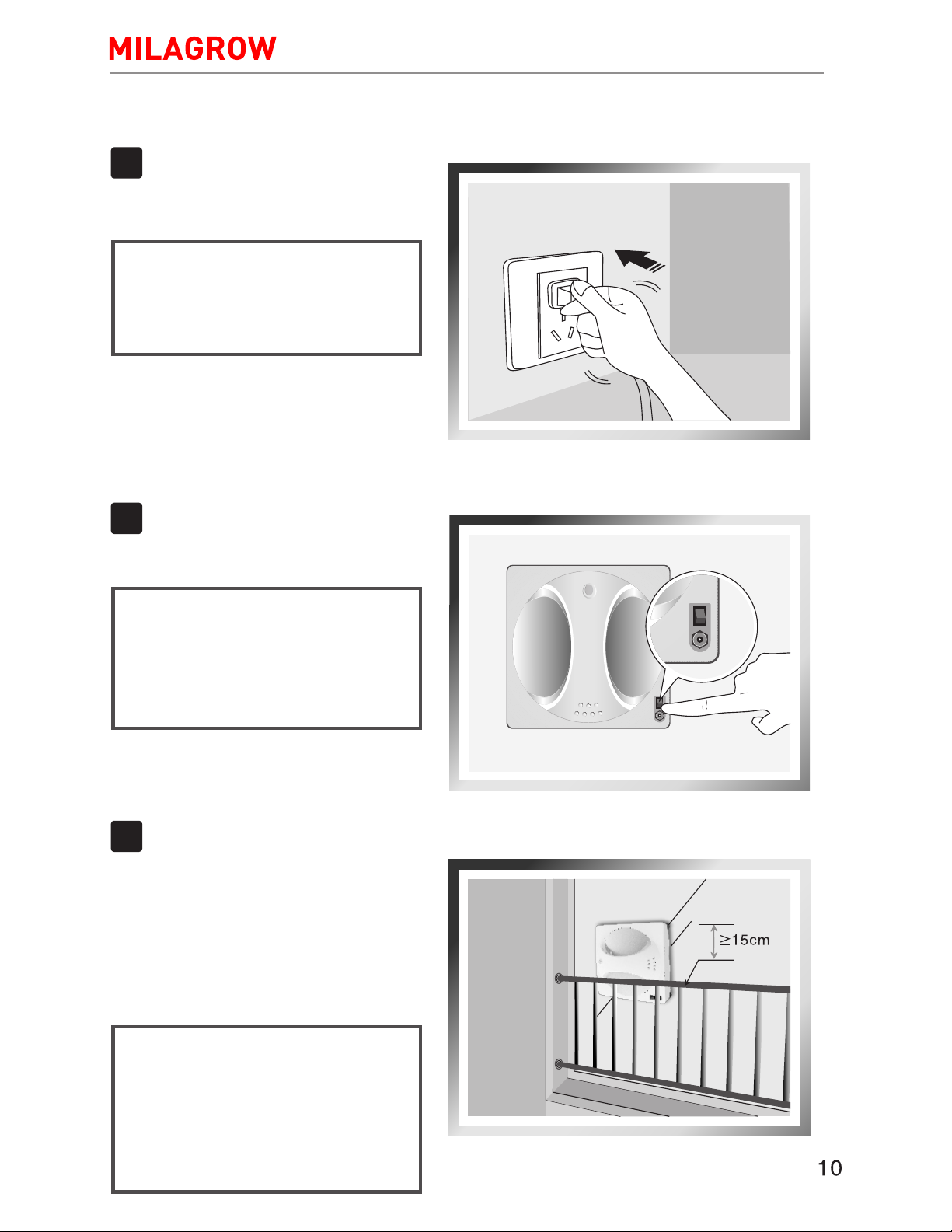

3.5 Product work
1.
1 Connect the power supply
and make sure fasten the
safety rope
Do not disconnect the power
supply while the product is
running. Otherwise, the
product will fall risk.
2 Turn the power switch on
When turn on, do not let the
hair or other small objects
near the fan, so as not to
affect product clogging the
fan running.
3 Secure placement
Make sure the product is in the
normal operating state, place it
on the glass surface, make sure
the product is completely
adsorbed on the glass, then
release the handle.
If there is an immovable
obstacle (such as a guard rail,
furniture, etc.) in front of the
window, then the window and
obstacle spacing greater than
15cm can use this product.
Window 8.0Bot

3. Product Manual

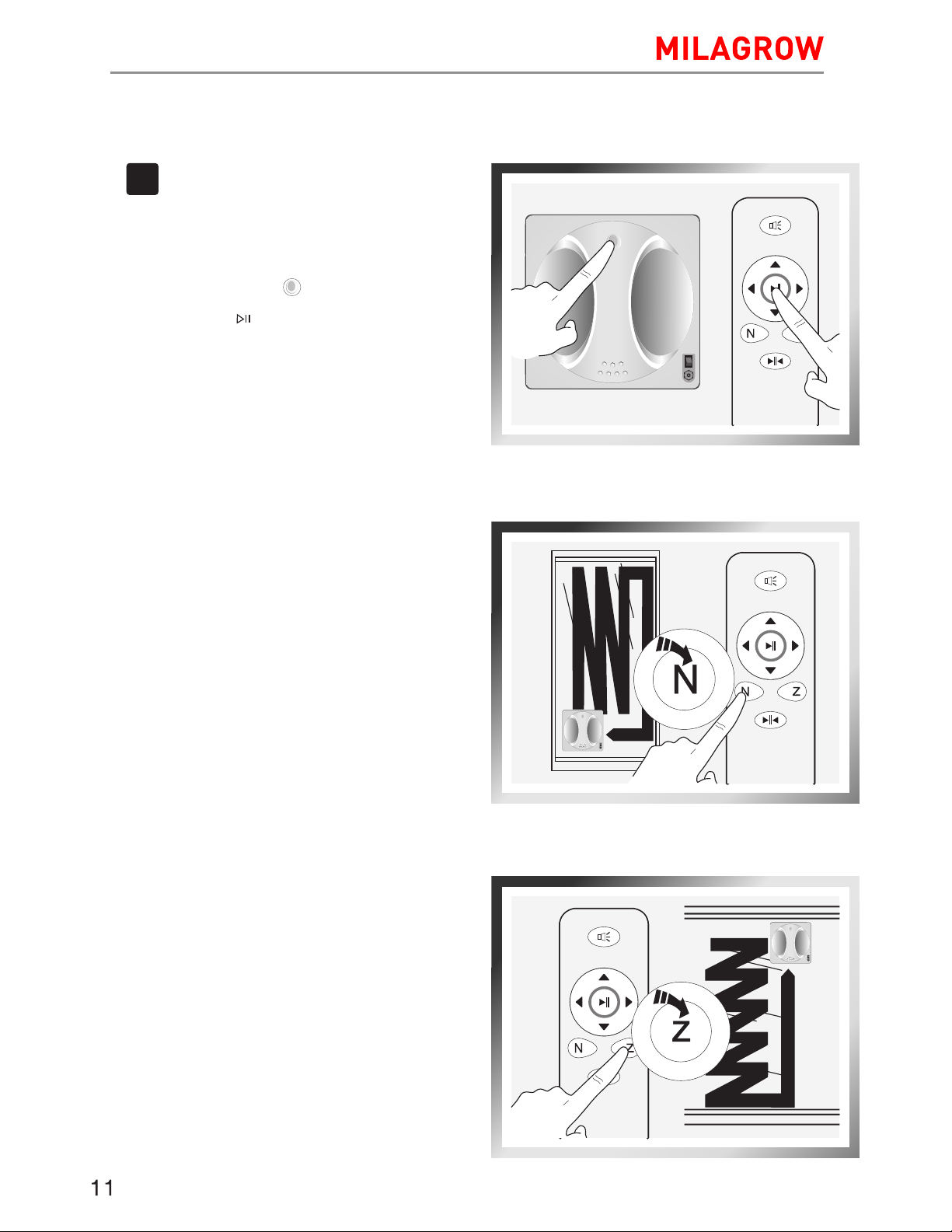

4 Start working
Automatic Mode:
There are two ways to start the work:
Press the button on the host or
the button on the remote control,
all can start the automatic mode.
Operation via remote control mode
key N key: for vertical glass, the
product to "N" route to work.
Start the work by the remote control
mode key Z key: for horizontal
glass, the product to "Z" route to
N Mode:
Z Mode:
work.
Window 8.0Bot

3. Product Manual

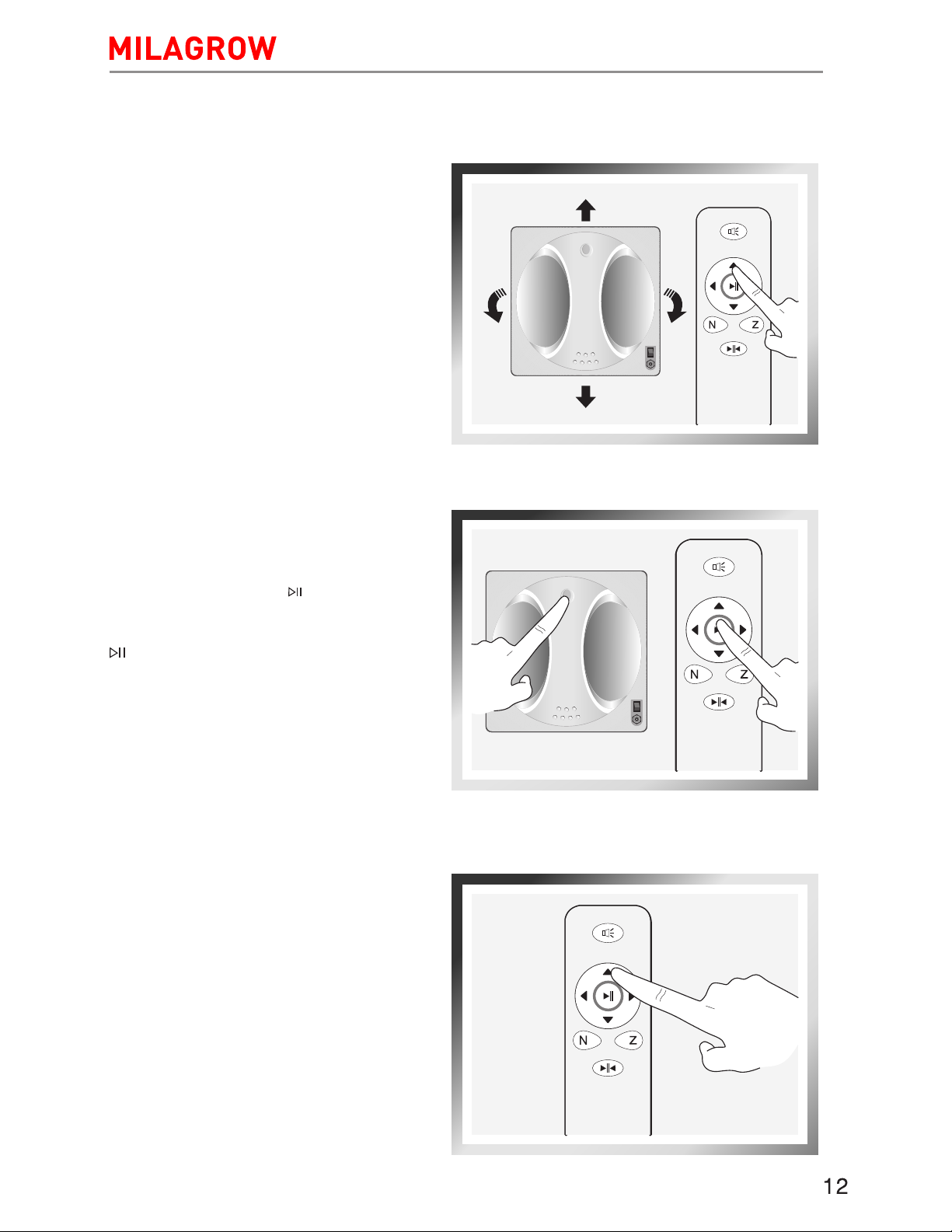

Manual Mode:
Use a remote control to control
the operation of the machine and
the up,down, left and right.
Among:
Up and down keys are forward /
backward. Right and left keys to
adjust the machine direction.
3.6 Product pause
In the process of working, by host
or remote control to pause,
need to restore work, again press
,machine is shipped according
to the original route.
In the case of pause, the direction
of the product can be controlled
by the direction key on the remote
control, and the work route of the
product can be switched.
( machine no longer memorize the
route before it)
Window 8.0Bot

3. Product Manual
3.7 End the work
End glass cleaning, the product will return to the start position, the beep
sounds.
1 Remove the product
Grip the product handle, press
about 5 seconds, the fan stops
working, then remove the host
from window. Use a dry cloth to
gently wipe off the mark on the
glass.
2 Power off
Press will turn off.
3 Disconnect power
Remove the safety clip and
disconnect the power supply.
Window 8.0Bot

4. Maintenance
4 Clean Walking Belt
When cleaning the cloth and bottom components, unplug the
power and turn off the host.
4.1 Cleaning cloth
Remove the cleaning cloth,
soak in water at 20 ℃ for 2
minutes, then with a soft
brush clean .
Do not rub or wring dry,
dry naturally before use.
4.2 Bottom components
Fan: Clean with a dry cloth so
as not to damage the product
suction.
Window 8.0Bot

4. Maintenance
Walking belt: Clean with a dry
cloth so as not to damage the
product suction.
Fall prevention sensor:
Clean with a dry cloth to maintain
its sensitivity.
Window 8.0Bot

5. Status Indicator
1. The indicator lights of the current
running status of the machine are
yellow-green two-color light, blue
light and red light.
Yellow: Charging
Green: Charging completed
Blue: The machine is normal
Red: Machine abnormality
2. The indicator of the current power
of the machine (blue).
1 light is on : The battery electricity
is less than or equal to 25%
2 lights is on: The battery electricity
is less than or equal to 50%
3 lights is on: The battery electricity
is less than or equal to 75%
4 lights is on:The battery electricity
is less than or equal to 100%
Window 8.0Bot

“N” key: The machine from left to right in accordance with the N route
wipe. Automatic wipe complete will back initial position.
“Z” key: The machine from top to bottom in accordance with the Z route
wipe. Automatic wipe complete will back initial position.
Up and down keys are forward / backward.
Right and left keys to adjust the machine direction.
6. Route Plan Window 8.0Bot

7. Fault Description
6 Machine walking is
not straight / jitter Recalibrate the machine.
7
The window cleaner
can't walk in the middle
of the glass, but the
wheel can rotate
Remove the machine and clean the belt
dust with a damp cloth to increase the
friction with the glass surface.
8
Charge the internal lithium battery of the
machine to the power supply, it can be fully
charged in 3 hours, and the lithium battery
has a long-term loss of power and there is a
risk of damage.
Number Appearance Solution
1 Machine Slips
Clean cloth too wet or spray more water on
the glass. Replace other non-wet wipes or
spray the glass on the water to dry it.
2
Green light is on, but
the battery indicator
is not full
Please contact the dealer or after-sales
service center.
3 Lithium battery normal loss, is a normal
phenomenon.
4 Insufficient air pressure, please check if
the cleaning cloth is installed in place.
5
Part of the glass area
leaked
1. Check whether the four-corner borderless
detection sensor rebounds well. If there is
foreign matter, please take out the foreign
object.
2. Please check if the belt is dirty or slippery.
If yes, please clean the belt with a wet cloth.
Green or yellow
light is not on
The red light is off
after about 5 seconds
Troubleshooting Solution:
After the adapter is
powered on, the boot
does not start and the
fan does not work
Window 8.0Bot

7. Fault Description
Product calibration:
The product has been calibrated at the factory, and the user does not need
to calibrate it under normal use. If you have a serious bump and do not use
it for a long time, you may need to calibrate it yourself.The calibration
steps are as follows:
1. After the product is connected to the power supply, turn on the power
switch (or not open), and the charging indicator lights up;
2. The hand-held machine is attached to the surface of the window glass
to keep the machine head up;
3. Long press and hold the remote control calibration button , the machine
will make a drip sound;
4. long press the N button, the machine emits di di sound;
5. Keep the machine head vertical to the left, short press the Z button, the
machine will make di di sound, and the calibration is completed.
19
Window 8.0Bot
