Miles Industries LEGEND 738BXN NG Operating instructions

LEGEND
Installation & Owner’s Manual
4001379-08
©2011, Miles Industries Ltd.
Gravity Vent Gas Insert
738BXN (NG) & 738BXP (LPG)
Manufactured by
MILES INDUSTRIES LTD., British Columbia, Canada
www.valorfireplaces.com
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an after-
market permanently located, manufactured
(mobile) home where not prohibited by local
codes.
Please read this manual BEFORE installing
and operating this appliance.
Massachusetts: The piping and final gas
connection must be performed by a licensed
plumber or gas fitter in the State of Massa-
chusetts.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
INSTALLER
Leave this manual
with the appliance.
CONSUMER
Retain this manual
for future reference.
Ce guide est disponible en français sur demande.

Thank You ...
For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical
appliance that must be installed by a qualified dealer. Each Valor fireplace is fully
tested during the production process for your safety and comfort.
Your unit has been professionally installed by:
Dealer Name _______________________________________
Phone Number ______________________________________
Should you encounter an operational problem, call your dealer immediately.
Do not try to repair the unit as you may cause an injury or damage the fireplace.
The information contained in this installation manual is believed to be correct at
the time of printing. Miles Industries Ltd. reserves the right to change or modify any
information or specifications without notice. Miles Industries Ltd. grants no warranty,
implied or stated, for the installation or maintenance of your heater, and assumes no
responsibility for any consequential damage(s).
Designed and Manufactured by / for
Miles Industries Ltd.
190–2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorfireplaces.com
© Copyright Miles Industries Ltd., 2011
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
2

Safety and Your Fireplace
Safety and Your Fireplace
Please Follow These Important
Child Safety Precautions and
Recommendations,
• Parts of your Valor Fireplace become
extremely hot while in operation.
• The glass viewing window
temperature can
exceed 500 F
at full capacity.
Momentary contact
with a hot glass
surface can cause
a severe burn, even if the fireplace
is operating at reduced heating
capacity.
• The glass window will remain hot
for an extended period of time after
the fireplace has been turned off.
Ensure that children are prevented
from touching the fireplace during the
cool down period.
• Toddlers and Young Children
must be closely supervised at all
times when they are in the same
room as the operating fireplace. They
lack full awareness of danger and
rely on your protection. Toddlers,
in particular, do not have the motor
skills and response reflexes to
withdraw in the event of accidental
contact with a hot surface.
• A physical barrier is strongly
recommended if there are young
children, or at-risk individuals in the
house. Install an approved after-
market safety gate to keep toddlers,
young children and other at-risk
individuals a safe distance from the
fireplace.
• Keep the remote control handset
out of reach of children at all
times. A wall mount storage holster
is provided with your remote control
handset.
• Ensure that the fireplace, including
the pilot light, is completely turned
off when children are present and
close supervision and safety barriers
are not available—see page 23 of
Owner’s Information section.
• If the fireplace is not going to be used
for the summer or any extended
period of time, remove the batteries
from the remote control handset
and receiver. It is recommended that
batteries are replaced annually in any
event—see page 23.
Please Read and Carefully Follow all Safety Warnings and
Operating Instructions Contained in Your Owners Manual
(Replacement Manuals are available by contacting our service department at
1-800-468-2567 or visit www.valorfireplaces.com).
3

= Updated content
◊
Table of Content
◊
Safety and Your Fireplace .............................................................................3
Safety and Warning Information...................................................................5
Specifications ................................................................................................6
Overview.........................................................................................................7
Dimensions ....................................................................................................8
Cavity ..............................................................................................................8
Clearances......................................................................................................9
Venting..........................................................................................................10
Installation Planning....................................................................................11
Existing Fireplace Preparation ...................................................................11
Appliance Preparation.................................................................................12
Supply Gas ...................................................................................................14
Ignition Spark Check ...................................................................................15
Remote Control Preparation.......................................................................16
Ceramic Bricks.............................................................................................17
Ceramic Logs ...............................................................................................17
Window Refitting .........................................................................................19
Operation Check & Aeration Settings Adjustment ...................................19
Remote Control Handset Wall Holder Installation....................................20
Owner’s Information....................................................................................21
Remote Control Operation..........................................................................24
Options .........................................................................................................26
Lighting Instructions ...................................................................................27
Warranty .......................................................................................................28
Spare Parts...................................................................................................29
◊
◊
4

Safety and Warning Information
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition.
YOUNG CHILDREN should be CAREFULLY
SUPERVISED when they are in the same room as
the appliance. Toddlers, young children and others
may be susceptible to ACCIDENTAL CONTACT
BURNS. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access
to a fireplace or stove, INSTALL AN ADJUSTABLE
SAFETY GATE to keep toddlers, young children and
other at risk individuals out of the room and away from
hot surfaces.
DO NOT place furniture or any other combustible
household objects within 36” of the fireplace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualified service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and away from furniture
and draperies. Clothing or flammable material SHOULD
NOT BE PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas fireplace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air flow.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualified
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the fireplace
manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualified service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen or guard removed for servicing
MUST BE REPLACED before operating this appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the fireplace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM-HEATING AP-
PLIANCE. It must not be used for any other purposes
such as drying clothes, etc.
State of California. Proposition 65 Warning. Fuels
used in gas, wood-burning or oil fired appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.
5
OWNER’S INFO

XX
Safety and Warning Information
Ratings
Model NG LPG
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 24,000 24,000
Input Minimum (Btu/h) 6,500 13,000
Manifold Pressure (in
w.c.)
3.95 9.5
Minimum Supply
Pressure (in w.c.)
5.0 11.0
Maximum Supply
Pressure (in w.c.)
10.5 14.0
Main Burner Injector
Marking
82-650 92-260
Pilot Injector Marking 35 27
Min. Rate By-Pass Screw 125 125
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88-2009 / CSA
2.33-2009 American National Standard / CSA Standard
for Vented Gas Fireplace Heaters for use in Canada
and USA, and to CGA 2.17-91 High Altitude Standard
in Canada. This appliance is for gravity vent insert
installations.
This appliance complies with CSA P4.1-09 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualified
licensed or trained personnel should install this
appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA
70 or the Canadian Electrical Code, CSA C22.1.
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confirm.
For installations at elevations above 4,500 feet (1,370
m) in Canada, please consult provincial and/or local
authorities having jurisdiction.
Supply Gas
Heater engine 738BXN is used with natural gas.
Heater engine 738BXP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section above.
The supply connection is 3/8” NPT female and located
on the left hand side of the control valve. The gas line
entry point is on the left hand side on the fireplace.
Conversion Kits
The 738BX Legend G3 is supplied as natural gas or
propane gas and is field convertible between fuels. See
instructions packaged with the conversion kit for further
information.
Electrical
The 738 does not require an electrical power source to
operate as a heater.
Operating your fireplace for the first time
When operating your new fireplace for the first time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the flames to be the full height of the firebox, or
even slightly higher, for the first few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the flames will be at their normal height.
6
OWNER’S INFO

Overview
This appliance, as supplied, may ONLY be installed in an existing
unaltered, functioning solid-fuel burning fireplace with a working flue and
constructed of non-combustible material.
This appliance is APPROVED for installation into combustible type
construction only when using the 770ZCK Zero Clearance Kit (see
separate instructions packaged with the kit for details).
738BX fireplace
Chimney Terminal Cap
Flashing
Approved 3” flex
chimney liner
running full length
Existing unaltered,
functioning solid-
fuel burning
fireplace & chimney
Outer trim
(optional, sold
separately)
Inner Front
(required, sold
separately)
Fret
(optional, sold
separately)
WARNING
HOT HEARTH / FLOOR!
HOT HEARTH / FLOOR!
The
The
hearth or floor in front of the fire-
hearth or floor in front of the fire-
place may become very hot when
place may become very hot when
the fireplace heats. Do not use the
the fireplace heats. Do not use the
hearth as a seat or shelf. Solid wood
hearth as a seat or shelf. Solid wood
flooring in front of the fireplace (if
flooring in front of the fireplace (if
allowed) may shrink during the heat-
allowed) may shrink during the heat-
ing season due to heat.
ing season due to heat.
WARNING
Some materials or items, although
Some materials or items, although
safe, may discolor, shrink, warp,
safe, may discolor, shrink, warp,
crack, peel, and so on because of
crack, peel, and so on because of
the heat produced by the fireplace.
the heat produced by the fireplace.
Avoid placing candles, paintings,
Avoid placing candles, paintings,
photos, and other items sensitive to
photos, and other items sensitive to
heat around the fireplace.
heat around the fireplace.
7
INSTALLATION

28-5/8”(727 mm)
19-1/2”(495 mm)
12”(305 mm)
or 12-5/8”(321 mm)
Varies with
outer trim options
7-7/8”(200 mm)
or 8-1/2”(216 mm)
Varies with
outer trim options
20”
(508 mm)
Gas inlet Gas connection
Optional Outer Trim or
Surround sold separately
X
Y
Dimensions
Cavity
Check that masonry step does not interfere with install dimensions or
vent pipe.
If mantel is combustible, see section Clearances for allowable
clearances.
Minimum width of fireplace opening at front: 28” (711 mm)
X = 12” (305 mm) or 12-5/8” (321 mm)—varies with outer trim options
Y = 20” (508 mm)
8
INSTALLATION

9” (229 mm)
A
B
Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance
Combustible Mantel Clearances
*Measure taken from the underside of the mantel to finished
hearth or surface that the unit is sitting on.
Finishing Materials
Combustible materials: Material such as wood,
compressed paper, plant fibers, plastics or any material
capable of igniting and burning, whether flame-proofed
or not, plastered or un-plastered.
Non-combustible materials: Material such as steel,
iron brick, tile, concrete or materials that bear the UL
mark for zero (0) fire rating.
Sidewall Clearances
Minimum distance from side of appliance (liner box) to
combustible wall: 9” (229 mm).
Mantel
Projection A
1”
(25 mm)
4”
(101 mm)
8”
(203 mm)
14”
(355 mm)
Mantel
Height B*
28”
(711 mm)
32”
(813 mm)
35”
(889 mm)
38”
(965 mm)
WARNING
Some materials or items, although safe, may discolor, shrink, warp, crack, peel,
Some materials or items, although safe, may discolor, shrink, warp, crack, peel,
and so on because of the heat produced by the fireplace. Avoid placing candles,
and so on because of the heat produced by the fireplace. Avoid placing candles,
paintings, photos, and other items sensitive to heat around the fireplace.
paintings, photos, and other items sensitive to heat around the fireplace.
WARNING
HOT GLASS!
HOT GLASS!
The use of a screen in front of
The use of a screen in front of
the glass is highly recommended particularly in
the glass is highly recommended particularly in
households with children.
households with children.
sidewall
WARNING
HOT HEARTH / FLOOR!
HOT HEARTH / FLOOR!
The hearth or floor in
The hearth or floor in
front of the fireplace may become very hot when
front of the fireplace may become very hot when
the fireplace heats. Do not use the hearth as a seat
the fireplace heats. Do not use the hearth as a seat
or shelf. Solid wood flooring in front of the fireplace
or shelf. Solid wood flooring in front of the fireplace
(if allowed) may shrink during the heating season
(if allowed) may shrink during the heating season
due to heat.
due to heat.
9
Clearances INSTALLATION

Approved Termination Required
Max. 36” offset at 10’-0” min. vertical
3”Liner
3” min. Bend
Radius
Min. 10 feet (with offset) Min. 8 feet (without offset)
Minimum Vent Liner Radius
Allowable Vent Configurations
Minimum vent lengths.
For other allowable configurations,
refer to the venting tables in the
National Fuel Gas Code Z223.1 or the
Natural Gas or Propane Installation
Code B149.1.
Terminal Cap
Flashing
1 x 3” flex liner
Vent Location
The vent terminal must be located through the roof. This gravity
vent appliance is designed to opreate when an undistrubed
airflow hits the outside vent terminal from any direction.
Check local codes for allowable vertical vent termination.
Vent Materials
Use a 3” diameter aluminum flex liner approved for gas
venting when installed as an insert (existing chimney). Use a
4” diameter type “B” vent when installed with a 770ZCK Zero
Clearance Kit (see separate instructions packaged with the kit
for details).
Venting Notes
Where possible, avoid joining flex pipe. If joints are required,
use a approved connector and seal joints with RTV high temp
sealant.
Horizontal offsets are permissible to allow for routing around
masonry projections. Avoid bending flex pipe over a 45 degrees
radius where possible.
Typical Vent Installation
10
Venting
INSTALLATION

Installation Planning
Installer—READ THIS FIRST
1. YOU NEED TO KNOW FROM THE
HOMEOWNER what accessories (surround,
door, etc.) will be installed with this fireplace;
2. Unpack the appliance.
3. Check that you have everything.
4. Clean cavity, chimney, ash dumps, clean-outs.
5. Install venting pipe.
6. Attach conversion plate to existing fireplace.
7. Fit appliance into cavity.
8. Connect and test gas supply.
9. Install the remote control system.
10. Install bricks and logs.
11. Refit window.
12. Verify operation and adjust aeration settings.
Existing Fireplace Preparation
A few points must be considered before inserting the
738BX into an existing fireplace cavity. Generally, no
modifications are allowed to the existing fireplace that
will compromise the integrity of the existing fireplace.
Components that are bolted or screwed on such as
dampers or baffles may be removed to accommodate
the installation of the 738BX engine. Cutting away
any sheet metal parts of the existing fireplace
to accommodate the installation of the 738BX is
prohibited. Check with local authorities if in doubt.
Clean Fireplace and Chimney
Have the chimney swept and the fireplace cavity
including ash dumps and clean-outs cleaned before
installing the 738BX heater and vent liners. Any
creosote or soot residue remaining in the fireplace
cavity chimney or clean-out may cause odors or
stains once the 738BX insert is installed. Consult with
chimney sweep for information on how best to clean.
Existing Dampers
Factory-built, zero-clearance fireplaces will require the
damper to be removed in order to install the vent liners.
These dampers are usually bolted into place. Dampers
in masonry fireplaces must be fixed open and may
remain in place.
13. Install the remote control handset wall holder.
14. Instruct the homeowner on the operation and
maintenance of the fireplace.
15. Install the surround trim and front.
16. Install the fret if required.
Tools and supplies required
• Packing knife
• Screwdriver set
• Pliers
• Adjustable Wrench
• Sealant
• Dish soap/water solution
• Gloves
• Eye Protection
Ash Retaining Curbs
Some fireplaces (particularly factory-built) have a
raised curb at the front edge to retain ashes. Check the
dimensions carefully to ensure the 738BX engine will fit
behind any raised curb (some curbs may be removed
separately from the refractory base).
Gas Line Routing
Plan the routing of the gas line before proceeding.
Use the existing hole for the gas line in factory-built
fireplaces. If the fireplace has no access hole, carefully
drill an access hole of 1.5 inch (38 mm) or less through
the lower sides or bottom of the firebox. The access
hole must be plugged with non-combustible insulation
after the gas supply line has been installed. See
Dimensions section for detailed location of gas inlet.
Also, take into consideration whether or not a shut-off
valve will interfere when planning routing of the gas
line.
11
INSTALLATION

Unpacking the appliance
Beware of sharp edges! Wear gloves!
1. Unpack the appliance.
2. Unpack any loose items from around the appliance
and check against the Pack Content list provided in
the documentation package.
3. Remove the window and set aside in a safe place to
avoid damage.
4. Verify that you have all the components required
for the installation, including:
-brick panels & logs;
- surround/doors/fret;
- venting components and accessories.
Appliance Preparation
Existing Fireplace Preparation
Existing Glass Doors and Wire Screens
Existing glass doors must be permanently removed
prior to installing the 738BX insert.
Combustible Mantels
Combustible mantel clearances must conform to those
required for the original solid-fuel fireplace into which
the 738BX is being installed.
Window Removal
The window is held in place by four spring-loaded bolts,
two at the top and two at the bottom.
1. To remove the window, turn each bolt a quarter turn
to disengage the bolt pin.
2. Gently pull the bottom of the window outward and
unhook it from the firebox’s opening frame.
3. Set the window aside in a safe place to avoid
damage.
Attach Warning Conversion Plate to Existing
Fireplace (label supplied loose with 738BX
heater)
Attach the “This fireplace has been converted...”
label to the existing fireplace using screws or other
mechanical means and store any removed parts in
back of the existing fireplace for future use.
12
INSTALLATION

Venting Installation
IMPORTANT: This appliance’s venting system requires room air to be used
in the combustion process.
1. Rough-in one 3” diameter vent liner into the existing chimney
system from the roof. Be careful not to tear or damage the liner
in the process. Leave plenty of liner at the bottom to facilitate the
connection of the liner to the vent slider. It is best to leave the top
termination until later.
2. a) Large cavity opening
Slide the appliance into the cavity.
b) Smaller cavity opening
Release the two screws retaining the vent slider to the front of the
firebox.
Remove the slider from the firebox by sliding it towards the back of
the firebox.
3. Secure the liner to the collar on the vent slider using 4 tapping
screws.
If the vent slider was removed from the firebox, slide the firebox
onto the vent slider in the cavity taking care not to damage the liner.
Make sure that the vent slider is pulled all the way forward.
Secure the vent slider to the front of the firebox with two screws
removed earlier.
4. From the roof, pull the liner and fit the flashing.
5. Fit the terminal cap. Secure with screws.
6. Seal the terminal and flashing from water penetration as required.
1
3
4
5
Appliance Preparation
option 2b
option 2a
6
WARNING
Failure to position the parts in
Failure to position the parts in
accordance with these diagrams or
accordance with these diagrams or
failure to use only parts specifically
failure to use only parts specifically
approved with this appliance
approved with this appliance
may result in property damage or
may result in property damage or
personal injury.
personal injury.
13
INSTALLATION

Supply
pressure
test tapping
Manifold
pressure
test tapping
Supply Gas
The gas supply inlet connection is a 3/8” NPT female
connector and is located on the left hand side of the
control valve.
Use only new black iron or steel pipes or copper tubing
if acceptable—check local codes. Note that in USA,
copper tubing must be internally tinned for protection
against sulfur compounds.
The burner platform and gas train on this appliance
may be removed as a unit for servicing or to install or
remove the optional circulating fan (if installed). Provide
some form of pipe union (depending on type of piping)
as close as possible to appliance valve.
Unions in gas lines should be of ground joint type.
The gas supply line must be sized and installed to
provide a supply of gas sufficient to meet the maximum
demand of the appliance without undue loss of
pressure.
Sealant used must be resistant to the action of all
gas constituents including LP gas. Sealant should be
applied lightly to male threads to ensure excess sealant
does not enter gas lines.
Pressure test the supply line for leaks.
The appliance and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply
piping system by closing its equipment shut-off valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psi
(3.5 kPa).
Failure to either disconnect or isolate the appliance
during pressure testing may resulting regulator or valve
damages and void the warranty. Consult your dealer in
case of damages.
X
Pressure Test Points
The minimum supply pressure is given in the section
Specifications of this manual—page 6.
All piping and connections must be tested for leaks
after installation or servicing. All leaks must be
corrected immediately.
When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-off valve.
• Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a gas
leak.
Never use an open flame to check for leaks.
Correct any leak detected immediately.

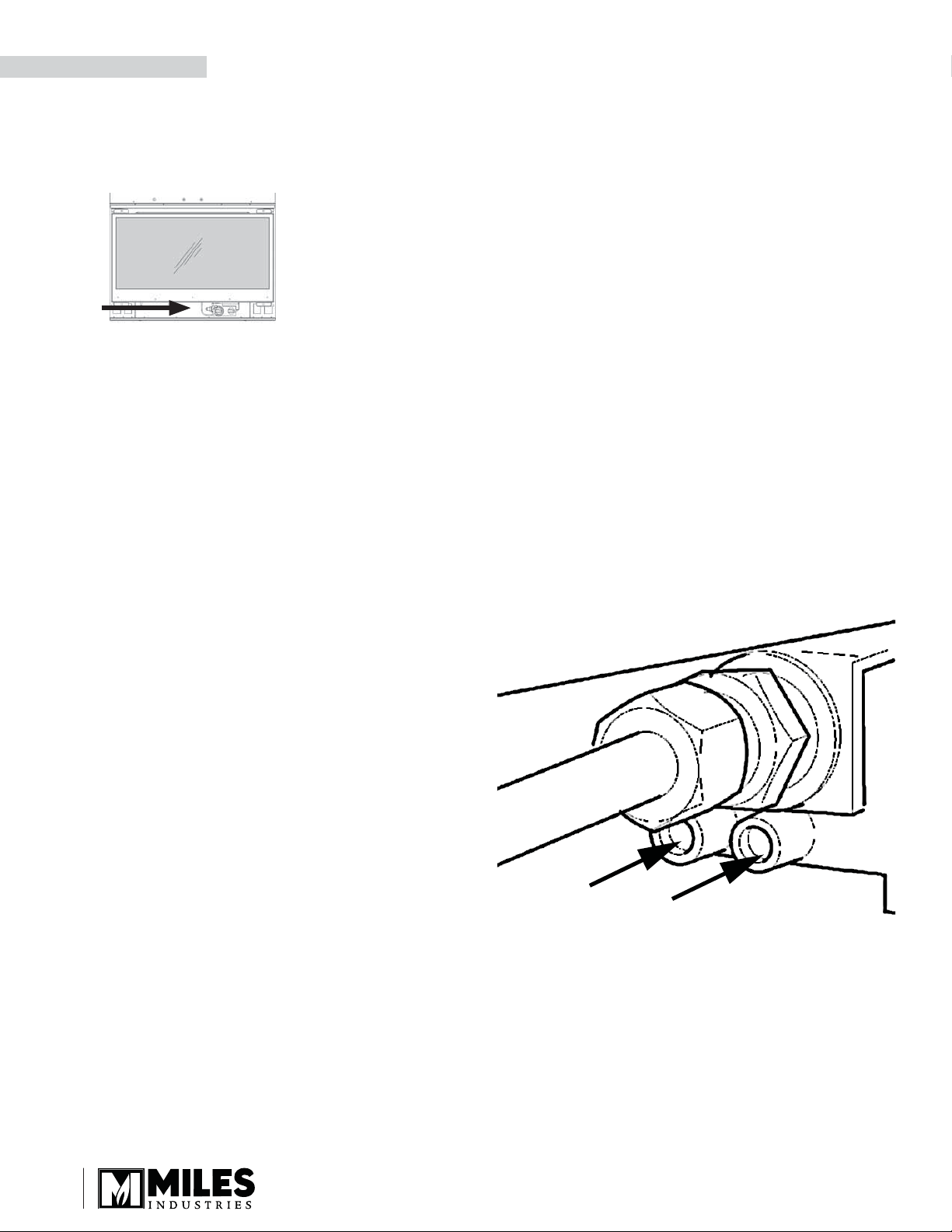

The pressure test tapping locations are shown in the
figure below. An internal regulator within the valve
controls the burner manifold pressure. The correct
pressure range is shown in the table in section
Specifications of this manual on page 6. The pressure
check should be made with the burner alight and at its
highest setting. See Lighting Instructions section for full
operating details on page 27.
Pressure Testing
14
INSTALLATION

Thermostat Knob Gas Control Knob
The pilot burner and electrode unit are at the left end of the burner.
Push in the lighting knob and turn it counter-clockwise through the “IGN” position to “PILOT”. A spark should flash
across from the pilot electrode to the pilot burner shield as shown below.
Ignition Spark Check
15
INSTALLATION

Receiver GV34 Valve
Push-on
Connector
Remote Control Preparation
1. Connect the wiring harness to the receiver box,
by pushing the wire connector on to the receiver
circuit board. The plug will only go on one way so
please ensure that the wires are pointing up and the
slot in the board is in line with the tab on the wiring
harness plug.
2. Connect the wires as shown. Please note that
the “L” connectors are different sizes; the smaller
one fits to the lower connection and the larger one
the top connection on the top left hand side of the
valve. The other two wire connectors can be fitted to
either terminal located to the left of the flame control
button.
3. Remove the remote control receiver lid.
4. Fit four AA 1.5 V alkaline batteries. Refit the lid.
5. Place the remote control receiver on the base of the
fireplace beside the valve.
6. Fit the 9 V alkaline battery to the handset
transmitter.
Remote control operating instructions are on
pages 24–25 of this manual and are supplied with
the remote control kit.
CAUTION
DO NOT PUT BATTERIES IN THE REMOTE
CONTROL RECEIVER until the wires are
connected to the burner control unit as short-
circuit could result in the destruction of the
electrical components.
CAUTION
DO NOT USE a screwdriver or other metallic object
to remove the batteries from the receiver or the
handset! This could cause a short circuit to the
receiver.
Remote control
receiver
GV34 Valve
Receiver
Push-on Connector
16
INSTALLATION

Ceramic Bricks
The following guidelines apply for all brick liners.
1. Inside the firebox, on the top of each side, release
the screw of the side brick anchors (one per side)
just enough to allow them to rotate.
2. Place the rear panel against the back of the firebox,
on the ledge at bottom.
3. Rotate the anchor up and out of the way and slide
the left hand side panel against the firebox side.
Rotate the anchor back down to hold the panel.
Ceramic Logs
Unpack he ceramic logs very carefully to avoid damaging the fragile material. Install the logs as shown below.
Please note that the position of the Logs is critical to insure proper performance of the appliance.
1. Spread the decorative charcoals on each side of
the log tray, covering the sheet metal as shown.
DO NOT PUT ANY DECORATIVE CHARCOAL
PIECES WITHIN THE PILOT
SHIELD AREA.
4. Rotate the anchor up and out of the way and slide
the right hand side panel against the firebox side.
Rotate the anchor back down to hold the panel.
5. Tighten the side brick anchors on each side of the
firebox.
6. Install the port cover fixing it using the two screws
already in the firebox top.
17
INSTALLATION

Both front logs to rest slightly on the
edge of the firebox window frame.
5. Identify the right cross log; it has
a hole under on of its end and it is
the shortest cross log. Place it on
the right pin located on the rear
log. Rest its other end in the crook
of the front right log.
6. Identify the middle cross log. It does not have a
hole underneath. Place its narrow end on the flat
depression in the rear log next to the right cross log
on the rear log. Place its wider end on the front log.
7. Identify the left cross log; it has a hole under its
narrow end. Place its narrow end on the pin located
on the rear log. Rest its wider
end on the the crook in the
front left log at an angle of
approximately 30 degrees
from the center line of the
fireplace to allow for the
flame to come up in front of
the rear log.
2. Place the rear log centering it side to side in the
firebox. Position forward until it sits against the
sheet metal return behind the burner.
3. Place the front left log on top of the burner with its
front edge resting slightly on the window frame.
4. Place the front right log on the top of the burner
with its left end abutted to the front left log and its
front edge resting slightly on the window frame.
Center the front logs side to side in relation to
the firebox.
Ceramic Logs
Rear Log
against
Sheet Metal
Return
18
INSTALLATION

Bottom
of window
(wider frame)
Open
Open
Close
Close
NG
Flashback
shield (for
LPG only)
LPG Air Shutter
Slider Open
Close
LPG
NG Air Shutter
Slider & Cover
Window Refitting
1. To refit the window, hook its top part to the firebox’s
opening frame. Make sure that the wider part of
the window frame is at the bottom.
2. While you hold it, push in and turn the two top
spring-loaded bolts a quarter turn to engage their
pin.
3. Push in the bottom of the window against the firebox
and fasten the two bottom spring-loaded bolts a
quarter turn.
Operation Check
Turn the fireplace flame up and down using the
remote control to confirm that the full range of inputs
is achieved—see the remote control operation
instructions on pages 24–25.
Aeration Settings
Light the fire and allow the unit to warm up for 10–15
minutes to evaluate the flame picture. Burners are
equipped with an adjustable shutter to control primary
aeration. See the figures below. The shutters are
factory-set to an aeration gap which will give optimum
performance for the vast majority of installations.
In a few unusual installations, the flame picture may
be improved by adjusting the aeration. The need for
adjustment should be determined only by operating the
appliance with the ceramic logs and window installed.
Increasing aeration (open) will cause the flames
to appear more transparent and blue showing more
ceramic log glow.
Decreasing aeration (close) will cause the flames to
appear more yellow or orange showing less ceramic
log glow.
Too little aeration may result in black carbon
forming and dropping into the firebox.
Air Shutters
Operation Check & Aeration Settings Adjustment
19
INSTALLATION

Packing Contents:
1 Wall Bracket A
2 Screws B
1 Screw C
2 Wall Anchor D
1 Spacer E
(detach before assembly)
1 Wall Bracket F
Switch Plate
Alternative 1
Alternative 2 Alternative 3
Remote Control Handset Wall Holder Installation
The remote control kit for this fireplace
comes complete with a wall-mounted holder.
This holder is not required in all installations
but is provided as an optional feature for
those customers who wish to mount the
remote handset to the wall.
To install the holder to the wall, find a
convenient location and use the hardware
provided with the kit. See the diagram below
for required hardware and configurations.
Note that the holder can be installed at the
base of a light switch plate.
IMPORTANT. The location of the remote
control handset is important to assure proper
temperature regulation. To obtain a constant
temperature, we recommend that the handset should be between 3 and 15 feet away from the appliance but not
directly above it. We also advise that the handset should be located away from any other heat source and not in
direct sunlight as this may affect the temperature sensor located in the remote handset.
20
INSTALLATION
