Miles Industries Valor Portrait 922ECN/ECP Manual

4000192-11
Portrait
DECoratiVE
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Manufactured by
MILES INDUSTRIES LTD.
British Columbia, Canada
www.valorreplaces.com
Installation & Operating Instructions
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
Models 922ECN/ECP
Decorative Vented Gas Fireplace
With Coal effect fuel
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Massachusetts: The piping and nal
gas connection must be performed by a
licensed plumber or gas tter in the State of
Massachusetts.
Please read this manual BEFORE installing and operating this appliance.
Ce guide d’installation est également offert en français.
©2010, Miles Industries Ltd. All rights reserved.

2
Designed and Manufactured by
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorreplaces.com
© Copyright Miles Industries Ltd., 2010.
2
We recommend that our gas
hearth products be installed
and serviced by professionals
who are certied in the United
States by NFI (National Fireplace
Institute®).
Thank You ...
For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical
appliance that must be installed by a qualied dealer. Each Valor replace is fully
tested during the production process for your safety and comfort.
Your unit has been professionally installed by:
Dealer Name _______________________________________
Phone Number ______________________________________
Should you encounter an operational problem, call your dealer immediately.
Do not try to repair the unit as you may cause an injury or damage the replace.
The information contained in this installation manual is believed to be correct at
the time of printing. Miles Industries Ltd. reserves the right to change or modify any
information or specications without notice. Miles Industries Ltd. grants no warranty,
implied or stated, for the installation or maintenance of your heater, and assumes no
responsibility for any consequential damage(s).
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth

33
Table of Contents
Safety and Warning Information ..............................................................4
Specications ............................................................................................5
Options .......................................................................................................5
Choice of Fronts ........................................................................................6
Location & Clearances ..............................................................................7
Appliance Preparation ..............................................................................8
Gas Supply Installation ...........................................................................10
Firebox Installation (insert application only) ........................................11
Remote Control Installation ....................................................................12
Ceramic Fuel Bed Installation ................................................................13
923ACF Adorn Cast Front Installation ...................................................15
Adorn Safety Guard Fitting .....................................................................15
Operation Checks ....................................................................................16
Owner’s Information ................................................................................17
Lighting Instructions ...............................................................................18
Warranty ...................................................................................................19
Replacement Parts ..................................................................................20
= Updated content
◊
◊
◊

44
Safety and Warning Information
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition. Young
children should be CAREFULLY SUPERVISED when
they are in the same room as the appliance.
DO NOT place furniture or any other combustible
household objects within 36” of the replace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible re
hazard and will void the warranty.
Prior to the rst ring of the replace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualied service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualied service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other ammable
vapors and liquids.
NEVER OBSTRUCT the ow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should
be LOCATED out of trafc areas and away from
furniture and draperies. Clothing or ammable material
SHOULD NOT BE PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air ow.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualied service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
MUST BE REPLACED before operating this appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the replace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
State of California. Proposition 65 Warning. Fuels used in gas, wood-burning or oil red appliances, and the
products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth
defects and other reproductive harm. California Health & Safety Code Sec. 25249.6.
Operating your replace for the rst time. When operating your new replace for the rst time, some vapors may
be released due to the burning of curing compounds used in the manufacture of the appliance. They may cause
a slight odor and could cause the ames to be the full height of the rebox, or even slightly higher, for the rst few
hours of operation. It is also possible that these vapors could set off any smoke detection alarms in the immediate
vicinity. These vapors are quite normal on new appliances. We recommend opening a window to vent the room.
After a few hours use, the vapors will have disappeared and the ames will be at their normal height.

55
Specications
Approvals and Codes
This appliance is certied to ANSI Z21.50a–2008/CSA
2.22a–2008 Vented Gas Fireplaces Standard for use in
Canada and USA.
The appliance complies with CSA P4.1-09 Testing
method for measuring annual replace efciencies.
The installation must conform with local codes or, in
the absence of local codes with the National Fuel Gas
Code, ANSI Z223.1or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualied
licensed or trained personnel should install the
appliance.
Venting
This appliance must be connected to an approved
venting system.
Ratings
*Tested to CGA - 2.17-91 High Altitude Standard in
Canada. In USA, installations may require deration
over 2000’ —Check local codes.
NG LPG
Altitude (Ft) 0-4500 *
Input Max. (Btu/h) 20,500 19,000
Input Min (Btu/h) 12,000 12,500
Manifold pressure (in.w.c.) 3.7 10.5
Min. Supply pressure (in. w.c.) 5 11
Max. Supply pressure (in. w.c.) 10.5 13
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certied without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to conrm.
For installations at elevations above 4,500 feet (1,370
m) in Canada, please consult provincial and/or local
authorities having jurisdiction.
Electrical
The unit does not require an electrical power source.
Supply Gas
Model 922ECN is for use only with natural gas. Model
922ECP is for use only with propane gas. The supply
pressure must be between the limits listed above.
The supply connection is 3/8”NPT male thread. The
supply pipe connection is to a exible connector at the
left hand side of the appliance.
975ZCK Zero Clearance Kit—For installation into
combustible type framing.
976BRK Bedroom Kit—Includes optional thermostat
handset and wiring harness (for use in Canada only).
923ACF—Adorn Cast Front.
Options
539 or 549 Cast Iron Arch Fronts—Also require
#540WDK Wire Dress Guard, supplied separately.
3336 Closure Plate—For insert installations to cover
up to 33” high x 36” wide.

66
21-1/2” 39” 31”
30-1/4”
38”
34”
923 Adorn 539 Windsor Arch with Plate 549 Windsor Arch no Plate
Choice of Fronts
Note : the 539/549 Fronts require a 540 WDK Wire
Dress Guard with the 922 heater.
Cast Iron Tolerances – Due to the nature of Cast Iron,
dimensional consistency may vary from one unit to the
next and some variation in surface nish and atness is
to be expected. We have done our best to control and
make allowance, however some variation is inevitable.
Closure plates may be required for insert applications
where cast fronts do not cover entire openings.
Standard black 33” high x 36” wide closure plate with
black aluminum extrusion edge is available.
For installation instructions with Adorn
cast front, see Adorn cast front installation
section in this manual.
For Windsor Arch cast fronts see
instructions supplied with individual kit.

77
Location & Clearances
This appliance must not be connected to a chimney
ue serving a separate solid-fuel burning appliance.
Note: The State of Massachusetts requires that any
ue damper must be removed or permanently welded
in the open position.
The appliance can be installed in the
following constructions:
Solid-fuel (non-combustible) replaces
As supplied, this appliance can be installed as an insert
in an existing solid fuel type replace with a chimney
and 4” dia. liner.
The replace must be built in accordance with the
national, state, provincial, or territorial building code
recognised by the authority having jurisdiction, or in
the absence of such a code, in accordance with the
National Building Code of Canada or the National Fire
Protection Association code in the USA. The size of the
replace recess must be sufcient to accommodate the
appliance as shown in gure below.
If previously used for burning solid-fuel, the chimney
must be swept before installation of the appliance. Both
chimney and replace must be checked for soundness
Min vent liner Ht 9’-0”
Min Ht before 90 deg elbows
is 9’-0”. Radiused offsets in
liner are permitted
Ceiling
ceiling
See
mantel
table A
36” min.
to combust.
mat’l
BMin. 39-1/2”
Center line
Edge of
protruding
arch
4-3/4”
Mantel depth A 1” & 2” 3”-8”
Clearance from
base of heater B 40” 42-1/2”
before installation of the appliance. The liner must be a
type approved by the enforcing authority and installed
in accordance with the manufacturer’s instructions.
The appliance must be installed on a oor, which is
sufciently at and level to ensure stability. Some
replace constructions have a well in the oor at the
back that may need to be lled in.
Though not mandatory, we recommend that carpet,
soft vinyl or other combustible oor coverings are kept
at least 16” from the front of the appliance since these
types of materials may be affected by the radiant heat
output from this appliance.
The minimum clearances from any combustible
constructions at the front of the appliance are shown
below.
The appliance must be connected to a vent that is a
minimum of 9’-0” in height and must not have any
90 degrees elbows within 9’-0” of the ue outlet of
the unit (see g. below). Radiused offsets in the
ue liner of less than 90 degrees are permitted.

8
NG Air Shutter
Slider & Cover Open
Open
Close
Close
NG
Flashback
shield (for
LPG only)
LPG Air Shutter
Slider Open
Close
LPG
8
• Optional 975ZCK Zero Clearance Kit must be used
when installing the 922 replace into any application
other than as an insert into an approved solid-fuel
burning replace cavity and chimney. Complete
installation instructions are packed with the 975ZCK.
• The 975ZCK is approved for installation directly on
combustible type ooring such as plywood.
Enclosures Constructed Using Combustible Materials (ZC Installations)
Appliance Preparation
Check ignition spark
The pilot burner and electrode unit is at the left end of
the burner.
Push in the lighting knob and turn counter-clockwise
through the “IGN” position to “PILOT”. A spark should
ash across from the pilot electrode to the pilot burner
shield.
Aeration Setting Check
The burner is equipped with an adjustable shutter
to control primary aeration. See gure below. The
shutter is factory set at an aeration gap which will
give optimum performance for the vast majority
of installations. In a few unusual installations,
performance may be improved by adjusting the
aeration. The need for adjustment should be
determined by operating the appliance with the ceramic
fuel effects and window installed. See the Final Checks
section in this manual for adjustment details.
The shutter setting is very critical. A small change can
make a substantial difference to the performance.
Air Shutters
Location & Clearances

99
Appliance Preparation
Install Base Coal Support
Install base coal support (packed loose) to back of
rebox using 3 screws as shown below.
Remove Burner Module (optional)
In some cases, to make gas piping easier, it may
be convenient to remove the burner module from
the rebox—note the location of the gas inlet before
removing the burner module. Remove 2 screws and
pull the burner module partially out of the rebox taking
care not to pull on the wire leads going to vent switch.
With the module partly removed, reach behind the
module with a wrench and loosen the thermocouple
nut at the back of the valve. With the thermocouple
nut loose, pull the vent switch wire leads out of the
brass block at the back of the valve and pull the burner
module the rest of the way out of the rebox. Rough-in
the gas line, valves, or unions and reinstall the burner
module.

1010
Gas Supply Installation

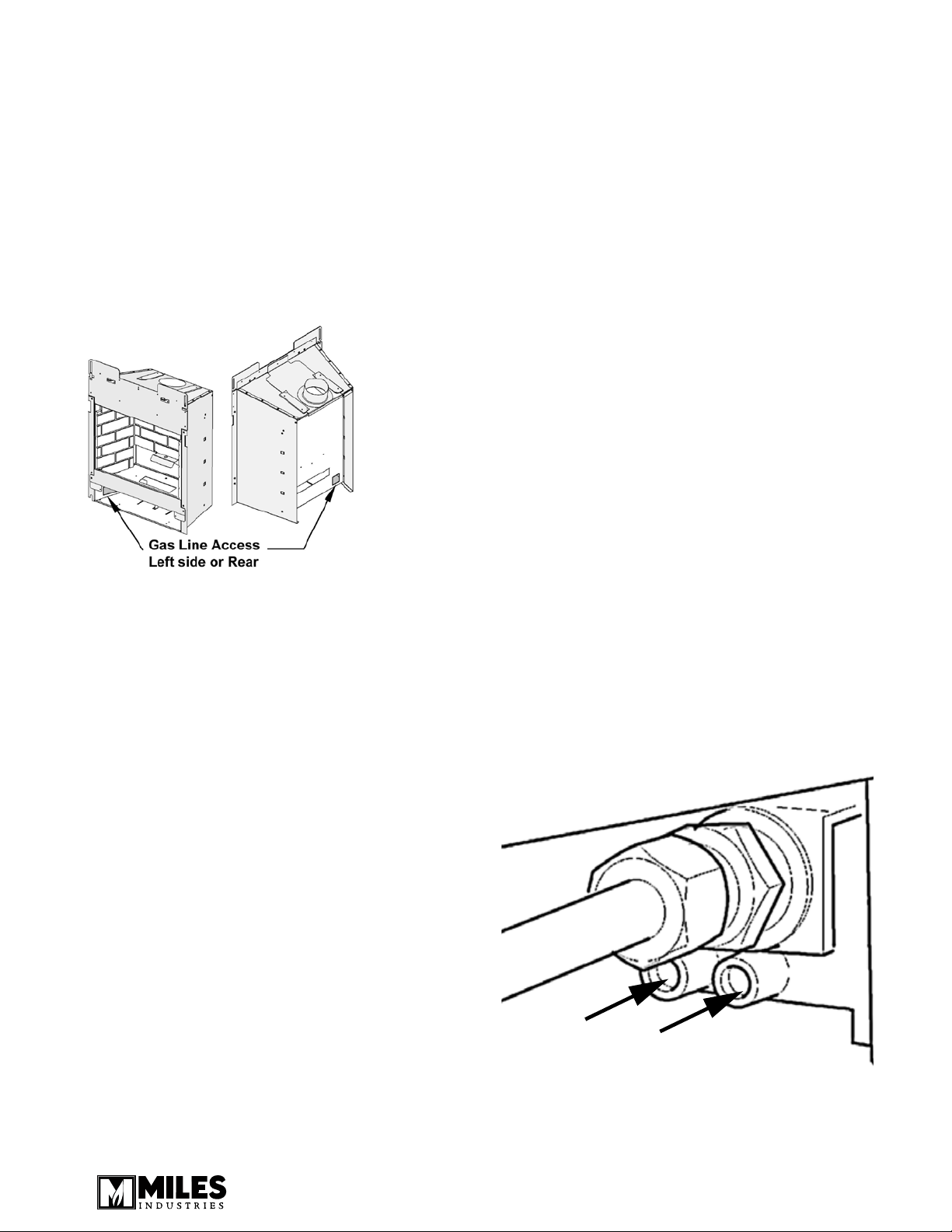

• The appliance is supplied for supply gas connection
at the left hand side of the case. There is also a
gas line access at the rear of the rebox for insert
applications. The zero clearance kit does not have
access at the rear. Supply line connection to the
exible adapter is 3/8”NPT male thread.
Alternatively, the appliance inlet pipe may be
removed and the supply line routed directly to the
control unit. An isolating valve could be tted within
the appliance case.
• Use only new black iron or steel pipes or copper
tubing if acceptable—check local codes. Note that
in USA, copper tubing must be internally tinned for
protection against sulfur compounds.
• Ensure there is a pipe union (or are tting where
permissible) ahead of the burner module for future
servicing. Unions in gas lines should be of ground
joint type.
• The gas supply line must be sized and installed
to provide a supply of gas sufcient to meet the
maximum demand of the appliance without undue
loss of pressure.
• Sealant used must be resistant to the action of all
gas constituents including LP gas. Sealant should
be applied lightly to male threads to ensure excess
sealant does not enter gas lines.
• The supply line should include a manual shut-off
valve to allow the appliance to be disconnected for
servicing.
• Pressure test the supply line for leaks.
• The appliance and its individual shut-off valve
must be disconnected from the gas supply
piping system during any pressure testing of
that system at test pressures in excess of 1/2
psig (3.5kPa).
Supply
pressure
test tapping
Manifold
pressure
test tapping
• The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-
off valve during any pressure testing of the gas
supply piping system at test pressures equal to or
less than 1/2 psig (3.5kPa).
• Failure to either disconnect or isolate the appliance
during pressure testing may result in regulator or
valve damage. Consult your dealer in this case.
• The minimum supply pressure is given in
Specications section of this manual.
• All piping and connections must be tested for leaks
after installation or servicing. All leaks must be
corrected immediately.
• When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-off valve.
• Test for leaks by applying a liquid detergent
or soap solution to all joints. Bubbles forming
indicate a gas leak. Never use an open ame
to check for leaks.
• Correct any leak detected immediately.
• The pressure test tapping locations are shown here.
A built-in regulator controls the burner manifold
pressure. The correct pressure range is shown in
the table in the Specications section of this manual.
The pressure check should be made with the
burner alight and at its highest setting. See Lighting
Instructions section for full operating details.

1111
Firebox Installation (insert application only)
Refer to 975ZCK installation manual for ZC rebox
installation.

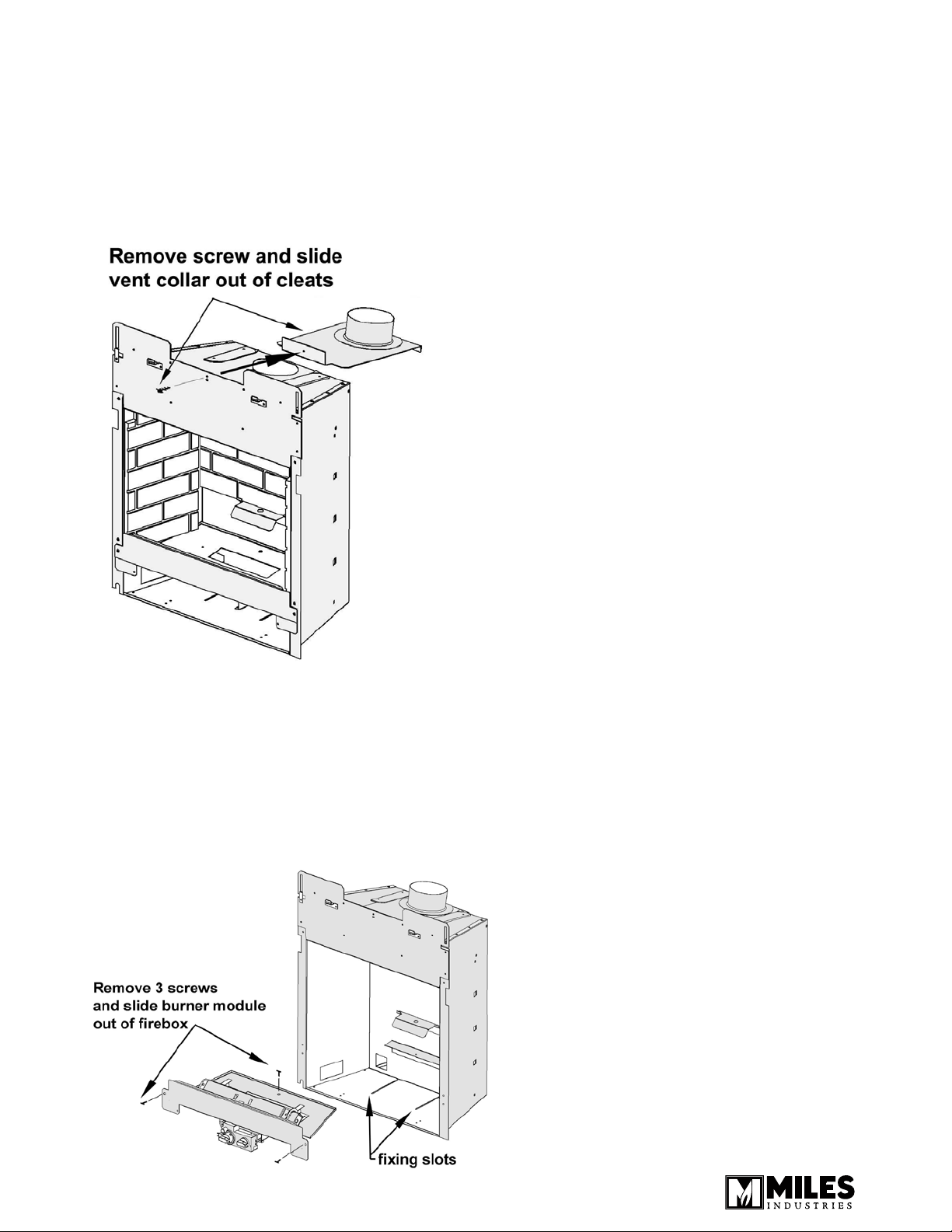

To aid chimney liner connection, it may be necessary
to rst remove the vent collar connector from the top of
the rebox—see gure below.
1. Remove the burner module from the rebox.
2. Insert the convection box into the replace opening
feeding the supply pipe through hole at back or
side of the rebox.
3. Mark the replace oor through the two slots in
the base of the convection box (see gure below)
and remove the convection box. Drill two holes in
the replace oor at the marked positions using a
no.12 masonry drill.
4. Insert a wall plug into each hole.
5. Secure the collar on the vent connector unit to the
4” diameter chimney liner.
6. Slide the rebox into the replace making sure that
the vent connection unit is above the convection
box. Leave the rebox front a few inches clear
of the replace front to allow you to x the vent
connector to the top of the rebox.
7. With the vent connector started in the cleat pull the
vent connector towards the front of the replace.
Fix the front of the vent connector plate to the
rebox front ange using the screw previously
removed.
8. Push the convection box fully home against the
front face of the replace. Make sure that no sags
or dips occur in the liner.
9. Fit a woodscrew through each slot in the
convection box base and tighten.
10. Re-install the burner module and connect the gas
supply line to the module.

1212
Remote Control Installation
Caution! Do not t the batteries into the
remote control receiver until the wires are
connected to the burner control unit, as a
short circuit could result in the destruction
of the electrical components.

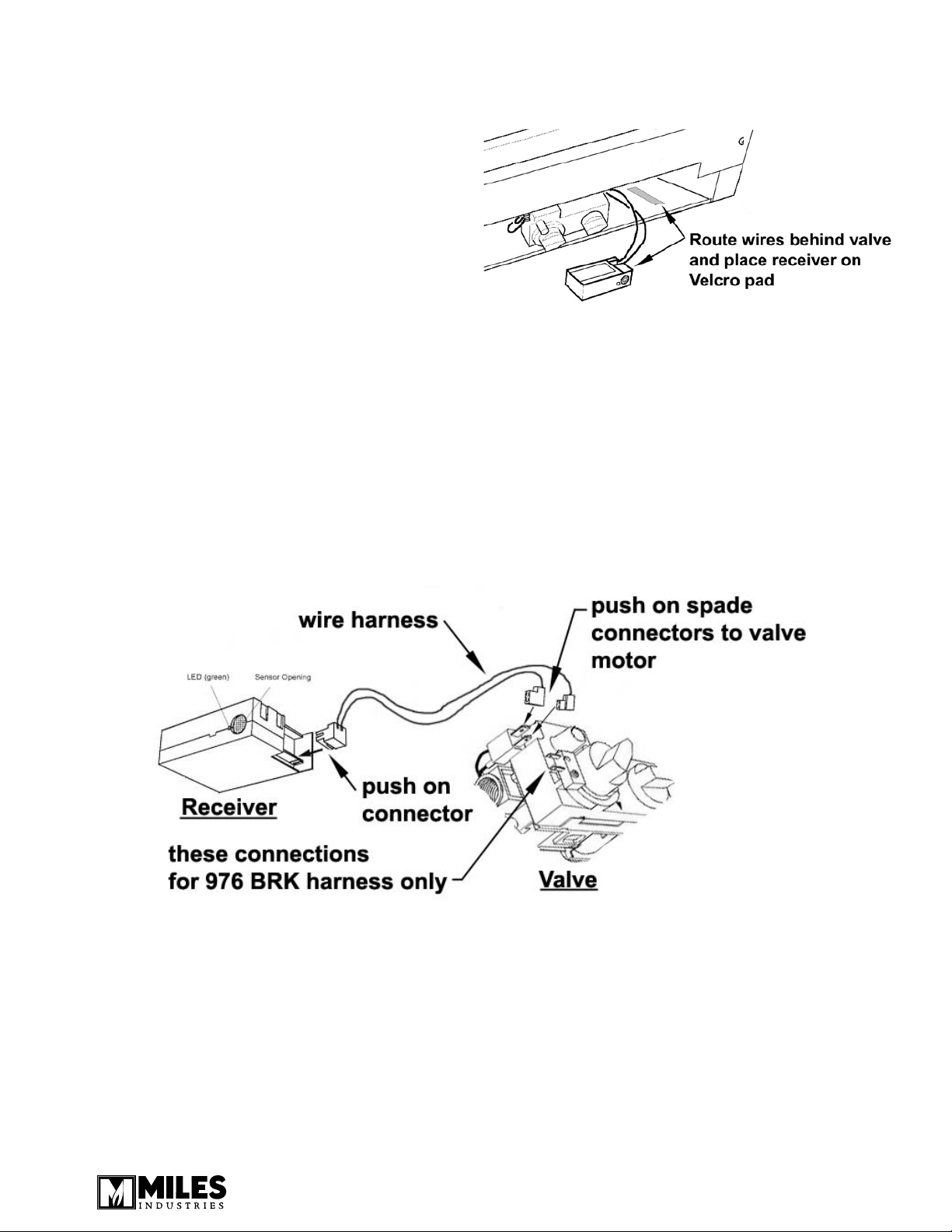

• Connect the wiring harness to the receiver box, by
pushing the wire connector on to the receiver circuit
board. The plug will only go on one way so, please
ensure that the wires are pointing up and slot in the
board is in line with the tab on the wiring harness
plug.
• Connect wires as shown below.
Please note that the “L” connectors are different
sizes, the smaller one ts to the lower connection
on the valve.
• Remove the remote control receiver lid.
• Fit four 1.5V alkaline batteries.
• Place the remote control receiver on the Velcro pad.
• Fit the 9V alkaline battery to the handset
transmitter.

1313
Ceramic Fuel Bed Installation
Ceramic Walls Installation
1. Locate the ceramic rear wall on top of the base coal
support as shown.
2. Insert the right hand sidewall at an approximate
30-degree angle between the rebox side and the
burner. Swing the top of the sidewall to the vertical
position and locate behind the upper bafe—see
gure below.
3. Repeat step 2 with left hand sidewall.

1414
1
2
4 5
3
Ceramic Coals Installation
1. Rest the base coal on the
supports just behind the
burner and let it rest against
the base coal support at the
back of the rebox.
2. Place the left front coal in
position behind the metal lip
at the front of the rebox. The
side projection on this coal
should be near the middle
front of the rebox.
3. Place the right front coal
behind the metal lip at the
front of the rebox. Its left
side should rest over the
projection on the left front
coal.
4. The center right coal
has letter “R” embossed
underneath. Place this coal
behind the front right coal.
5. The center left coal has letter
“L” embossed underneath.
Place this coal behind the
front left coal.
Ceramic Fuel Bed Installation

1515
923ACF Adorn Cast Front Installation
1. Carefully lift the casting. Place it against the
replace front surface so that the retaining strip
at the back of the casting is above the two upper
retaining brackets at the top of the convection box.
2. Lower the casting making sure that the rear
retaining strip locates fully over the retaining
brackets on the convection box—see gure below.

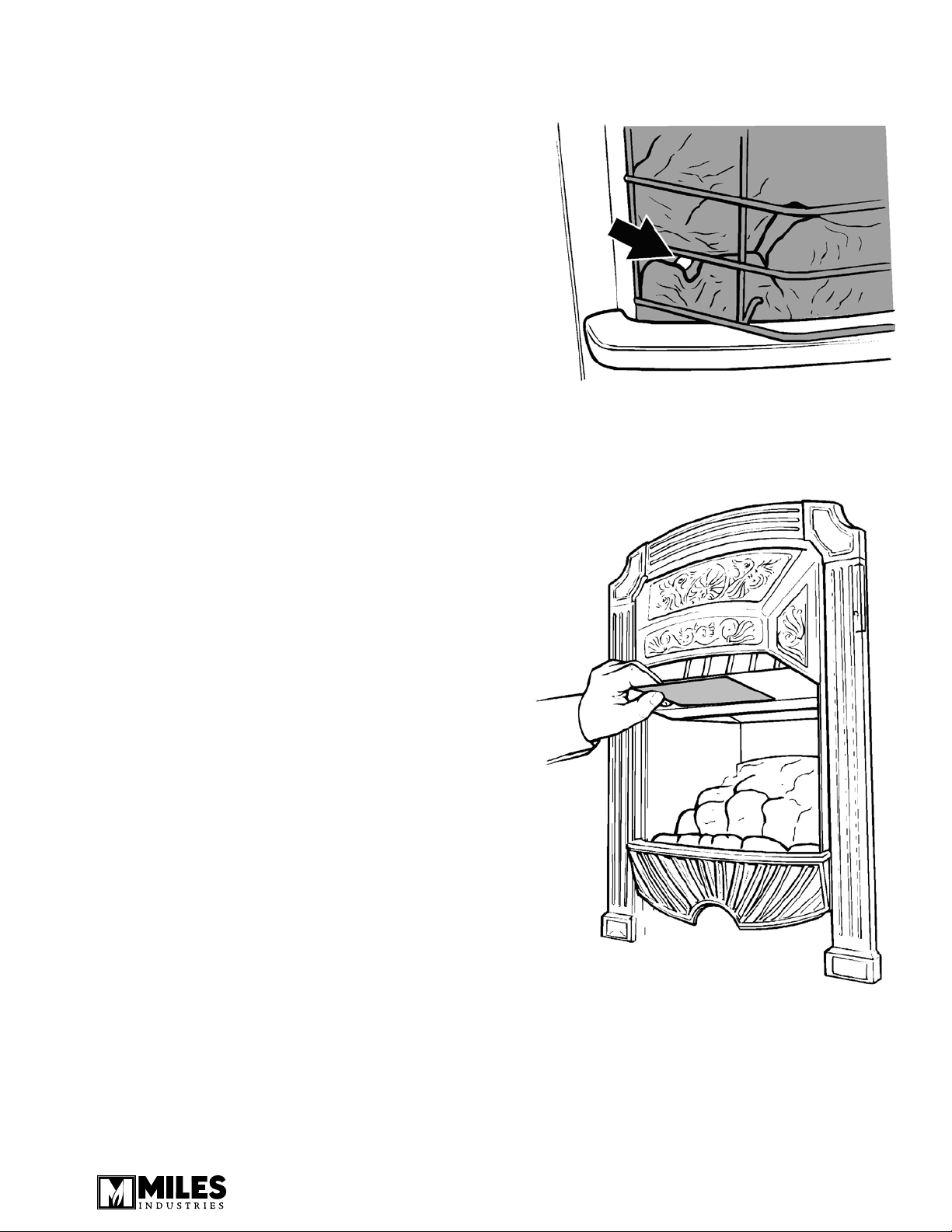

1. Locate the guard bottom wires over the ash lip.
2. Hold the top springs down and swing the guard
back.
3. Release the springs so that they locate behind the
canopy—see gures below.
Adorn Safety Guard Fitting
3. Slide the front casting/surround sideways, if
necessary, to align the bottom xing holes with
those in the convection box. Fix the bottom of the
casting/surround to the convection box with two
screws—see gure below.

1616
Operation Checks
Final Checks
Check ignition, pilot stability, burner ames, and the full
range of movement of the ame adjustment knob. See
owner’s lighting instructions further on in this manual
for full details.
Aeration adjustment
As described in manual, burner aeration is adjustable.
For the vast majority of installations, no adjustment
will be necessary. However, in a very few instances,
performance may be improved by adjusting the
aeration by sliding the shutter page 10. Evaluate
the aeration only after the unit has warmed up –
approximately 15 minutes.
The shutter setting is very sensitive. Small adjustments
can make a substantial difference to the ames
Increasing aeration will cause the ame to appear more
transparent and blue making the ceramic fuel effects
glow more.
Decreasing aeration will cause the ames to appear
more yellow or orange making the fuel effects glow
less. Too little aeration may result in black carbon
forming and dropping into the rebox.
Check venting efciency
A check for correct venting of combustion products
must be made before the installed appliance is left with
the customer. You will need a mirror for this check.
The mirror must be cold and dry for the check so, keep
in a cool place such as a freezer compartment while
the re is warming up.
1. Open the gas valve.
2. Light the appliance and set to high heat. Leave the
appliance on for ve minutes.
3. Make sure that the mirror is cold and dry. Place the
mirror face downwards touching the bottom front of
the black cross member and angled slightly upwards
so that the mirror face can be seen.
4. The mirror face should remain clear for at least 5
seconds.
5. If condensation appears over the mirror face within
5 seconds, the venting is not functioning properly.
Don’t allow the appliance to be used until the
problem is cured.

1717
Owner’s Information
Please read the
safety information
on page 4 of this
manual.
Operating Your
Fire
The operating instructions are also on a chained plate
inside the control access door.
For your safety this appliance is tted with a ame
supervision device which will shut off the gas supply
if, for any reason, the pilot ames go out. This device
incorporates a xed probe, which senses the heat
from the pilot ame. If the probe is cool, the device will
prevent any gas ow unless the burner control knob is
kept pushed in at the PILOT position. See full lighting
instructions on next page.
The Valor Remote Control System
Your Valor Remote Control helps you get the comfort,
convenience and aesthetics you want from your Valor
Gas Fireplace.
Setting the Flame
1. Press either of the large “up” or “down” buttons.
2. To raise the ame, press and hold the “up” button
until you come to the ame level you want. Let go.
3. To lower the ame, press and hold the down button
until you come to the ame you want. Let go.
4. The ame level will remain just as you set it.
When rst turned on, the decorative ames will appear
predominantly blue. After approximately 15 minutes,
the ames will turn yellow.
Cleaning
Turn the re off and allow it to cool before attempting
any cleaning. Note that the re will retain heat for some
time after it has been turned off.
Metal parts
Clean the metal parts with a slightly damp cloth and
then dry. Do not use abrasive cleaners, they could
scratch the surface.
Coals and ceramic rebox walls
Dust etc. can be brushed from the coals using a soft
bristle paintbrush after removing the safety guard. We
suggest that you remove the coals in the reverse order
to that shown in tting instructions. Make sure that no
particles are brushed into the ceramic burner slots.
Thermocouple
probe must be
in flame
Checks
A periodic check of the pilot and burner ames should
be made. Check after the re has been on for at least
30 minutes. The pilot ame must cover the tip of the
thermocouple probe. The main burner ame pattern
will vary from appliance to appliance depending on the
type of installation and climatic conditions—see gures
below.
The appliance area must always be kept clear and
free from combustible materials, gasoline and other
ammable vapors and liquids.
Inspect the vent terminal outdoors regularly to make
sure there are no obstructions from birds nests, insects
or rodents, trees, bushes, etc.
Examine the whole vent system regularly. We
recommend annually.
Servicing
All appliances use four 1.5V AA alkaline batteries for
thermostat control.
The batteries used in the remote control receiver are
accessible by opening the bottom access panel and
removing the lid of the remote control receiver. The
handset has a 9V alkaline battery.
General servicing
If you require any attention to your appliance, contact
your supplier quoting the model number. It will be
helpful if the appliance serial number can also be
quoted. This is on the rating plate, which is on a
chained, plate accessible by opening the bottom
access panel.
Performance of LPG appliances may be
affected by the quality of commercial gas
supplied in your area.
Correct Flame Appearance
Warranty
Card at the
back of this
manual.
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth

1818
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
A. This appliance has a pilot, which must be lighted by hand. When lighting the pilot, follow these
instructions exactly. To save energy, turn the pilot off when not using the appliance.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the control knobs. Never use tools. If the controls will not
push in or turn by hand, don’t try to repair them, call a qualified service technician. Force or
attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control, which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Set the flame adjustment knob as far
clockwise as possible * .
3. Turn the gas control knob clockwise to OFF.
NOTE: The knob cannot be turned from PILOT to
OFF unless it is pushed in partially. Do not force.
4. Wait five (5) minutes to clear out any gas, then
smell for gas, including near the floor. If you
smell gas, STOP! Follow “B” in the safety
information above. If you don’t smell gas, go to
the next step.
5. Find the pilot. It is at the left side of the firebox
viewed through slotted hole in front log.
6. Push in and turn the gas control knob counterclockwise until resistance is felt just before the
“IGN” position.
7. Keep pushed in for a few seconds to allow gas to flow then, keeping knob depressed, turn to
“PILOT” to light pilot. Hold knob in for a further 5 seconds then release. The knob should pop
back out. Pilot should remain lit. If pilot goes out repeat steps 3 through 7.
• If knob does not pop out when released, stop and immediately call your service technician or
gas supplier.
• If pilot lights but will not stay lit after several tries, turn the gas control knob to “OFF” and call
your service technician or gas supplier.
8. When pilot is lit, partially depress the knob and turn to “ON” position (Burner alight).
• Do not leave knob set between “PILOT” and “ON”.
9. Set the flame height to desired setting * .
TO TURN OFF GAS TO APPLIANCE
1. Set the flame adjustment knob as far clockwise as possible *
2. Push in gas control knob slightly and turn clockwise to “OFF”. Do not force.
* The flame height can be increased or decreased by depressing the remote control hand set
button.
Lighting Instructions

1919
Warranty
1. Extended Warranty Coverage
For a period of up to ten (10) years, Miles Industries Ltd., (the “Company”) or its appointed distributor will at its option pay the
initial purchaser for the repair of, or will exchange the following parts or components which are found to be defective in material or
workmanship under normal conditions of use and service:
2. Two-Year Parts Warranty
In addition, for two (2) years from the date of purchase, the Company, at its option, can repair or exchange all parts and components
not listed above but that are found to have a bona de defect in material or workmanship under normal conditions of use.
3. Conditions and Limitations
a) The warranty registration card must be completed by the initial owner and returned to the Company within 90 days of purchase.
b) Installation and maintenance must be performed by an authorized and trained dealer in accordance with the Company’s installation
instructions.
c) This warranty is void where installation of the unit does not conform to all applicable codes including national and local gas
appliance installation codes and building and re codes.
d) The owner must comply with all operating instructions.
e) The Company is not responsible for the labor costs to remove defective parts or re-install repaired or replacement parts.
f) The rst purchaser or user of the unit will be responsible for any shipping charges for replacement parts as well as travel time
incurred by the dealer to perform the warranty work.
g) This warranty applies to non-commercial use and service and is void if it is apparent that there is abuse, misuse, alteration,
improper installation, accident or lack of maintenance to the unit.
h) This warranty does not cover damage to the unit through:
i) Improper installation, operational or environmental conditions.
ii) Inadequate ventilation in the area or competition for air from other household equipment or appliances.
iii) Damage due to chemicals, dampness, condensation, or sulphur in the fuel supply lines which exceeds industry standards.
i) This warranty does not cover glass, log breakage or damage to the unit while in transit.
j) The Company does not allow anyone to extend, alter or modify this warranty and assumes no responsibility for direct, indirect or
consequential damages caused by the unit. State or provincial laws where the rst purchaser or user resides may provide specic
rights to extend this warranty and, if so, the Company’s sole obligation under this warranty is to provide labor and/or materials in
accordance with those laws.
4. Discharge of Liability
After two (2) years from the date of purchase, the Company may, at its option, fully discharge all obligations under this warranty by
paying to the rst purchaser/user the wholesale price of any defective parts.
5. No Other Warranty
All obligations to repair this unit are dened in this warranty. Some states or provinces may specically mandate additional warranties
on the part of manufacturers, but in the absence of such specic legislation, there is no other warranty or obligation expressed or
implied.
Part or Component Defect Covered Maximum Warranty Period
Exterior steel casing Corrosion 10 years
Glass Loss of structural integrity 10 years
Cast iron parts Corrosion 10 years
Firebox and heat exchanger Corrosion (but not discoloration) causing
loss of structural integrity 10 years
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
If you have a problem with this unit, please contact your dealer or
supplier immediately. Under no circumstances should you attempt
to service the unit in any way by yourself. The warranties in
paragraphs 1 and 2 are provided only to the rst purchaser/user of
this unit, are not transferable and are subject to the conditions and
limitations in paragraphs 3, 4 and 5. Please review the conditions
and limitations carefully and strictly follow their requirements.

2020
Replacement Parts
Code Description Part. no.
1 Drafthood retainer (2) 4000166
2 Spigot slide plate assy 4000199
3 Downdraft 4000359
4 Top plate 4000332AH
5 Mounting brkt Adorn x2 4000348
6 Switch plate 4000360
7 Cable clamp 4000361
8 Coal bed support 4000413
9a Burner module NG 4000230
9b Burner module LPG 4000164
10 Remote control unit 030A217
11 Wiring harness 720A556
12 Remote handset 720A555
13 Wall bracket N/A
14 Control box 720A554
15a Burner rail assy NG 3000025
15b Burner rail assy LPG 740K185
16a Air shutter & slider LPG 4000268 /
3000220
16b Air shutter slider NG 4002345
16c Air shutter cover NG 4002346
17a Injector elbow NG 82-580 720A580
17b Injector elbow LPG 92-200 9730013
18 Olive 8mm 420K342
19 Olive nut 220K567
20 Main burner pipe 030A225
21 Spacer angle x2 4000355
22 Ash bed support x2 330A894
23 Module plate 4000297
24 Pilot support bracket 330A904
25a Pilot unit assy NG 4000062
25b Pilot unit assy LPG 4000063
26 Pilot bracket 720A542
27 Electrode 720A543
28 Thermocouple 4000061
29 Extended nut 720A200
30 Pilot pipe 030A226
31 Tubing nut 420K385
32 Pilot injector olive 720A196
33a Pilot injector NG #35 4002511
33b Pilot injector LPG #27 720A195
Code Description Part. no.
34 Flexible pipe assy 4000345
35 Bypass screw LPG 4000300
36 Control valve GV34 4000056
37 Interruptor block 4000202
38 Vent switch assy 4000366
39 Break off olive nut 220K913
40 Straight connector 220K891
41 Valve mount bracket 4000275
42 Tube nut 420K385
43 Brick set 4000362
44 Brick panel left 4000358
45 Brick panel rear 4000356
46 Brick panel right 4000357
47 Coal set 000B245
48 Front right coal 640K618
49 Front left coal 640K617
50 Centre right coal 640K616
51 Centre left coal 640K615
52 Base coal 650K237
53 Dressguard - Adorn 450K023
54 Front casting 4000293AH
55 Hearth trim casting 230K347
56 Crossmember 330A600
57 Top bafe 4000437
58 Floor heatshield 4000298AH
59 Ash pan door assembly 040A481
60 Chrome plated knob 220K993
61 Grommet - foot 620B291
62 M5 screw 100D196
63 Ash pan cover painted 550K037AH
64 Outer body 4000474
65 Vent adapter 4000473
66 Spacer 4000479
67 Heat bafe 4000478
68 Outer top panel 4000477
69 Inner top panel 4000476
70 Concrete board support 4000490
71 Inner body 4000475
72 Base 4000472
