Milltronics Accumass BW100 User manual

Accumass BW100
May 1997
Instruction Manual
PL-531
33455310
Rev 1.5

hank you for purchasing Milltronics’ products.
We are committed to satisfying our customers’ needs with innovative
equipment that is designed for reliability and ease of use.
Our products are distributed in 91 countries through a worldwide network of
offices, representatives and distributors. We continually refine our processes
to provide our customers with first rate sales information, engineering
assistance and after sales service and support.
In 1997, Milltronics established a new business division - Mass Dynamics -
dedicated to sales and development of continuous weighing, acoustic sensing
and motion sensing products. This division will provide specialized support
for these product lines.
For further details on Milltronics' products and service, please contact us at
one of the locations listed below for the office or representative nearest you.
1954 Technology Dr., P.O. Box 4225, Peterborough, Ontario, Canada K9J 7B1
Tel.: [phone] Fax: [phone]
182 Normanby Rd., Box 339, South Melbourne, Australia
Tel.: [phone] Fax: [phone]
August van de Wielelei 97, 2100 Deurne, Antwerp, Belgium
Tel.: [phone] Fax: [phone]
Century House, Bridgwater Road, Worcester, England WR4 9ZQ
Tel.: [phone] Fax: [phone]
Parc de la Sainte Victoire, Bât. 5, 13590 Meyreuil, France
Tel.: [phone] Fax: [phone]
Werftstrasse 47, D-40549, Dusseldorf, Germany
Tel: [phone] Fax: [phone]
1 Hoi Wan Street, Suite 602, Quarry Bay, Hong Kong
Tel.: [phone] Fax: [phone]
Amores No. 1155, Col. Del Valle, 03100 Mexico D.F., Mexico
Tel.: [phone] Fax: [phone]
Nikkelstraat 10, NL-4823 AB Breda, The Netherlands
Tel.: [phone] Fax: [phone]
709 Stadium Drive, Arlington, Texas U.S.A. 76011
Tel.: [phone] Fax: [phone]
A joint venture in Singapore, a sales offices in Brazil
and distributors in 56 countries.
Internet : http://www.milltronics.com
Printed in Canada
T

TABLE OF CONTENTS
About This ...
About This Manual 5
About ACCUMASS BW100 6
Specifications 7
Installation
Dimesions 9
Interconnection System Diagram 10
Terminal Block Layout 11
Load Cell - Single 12
Load Cell - Dual 13
Speed Sensor 14

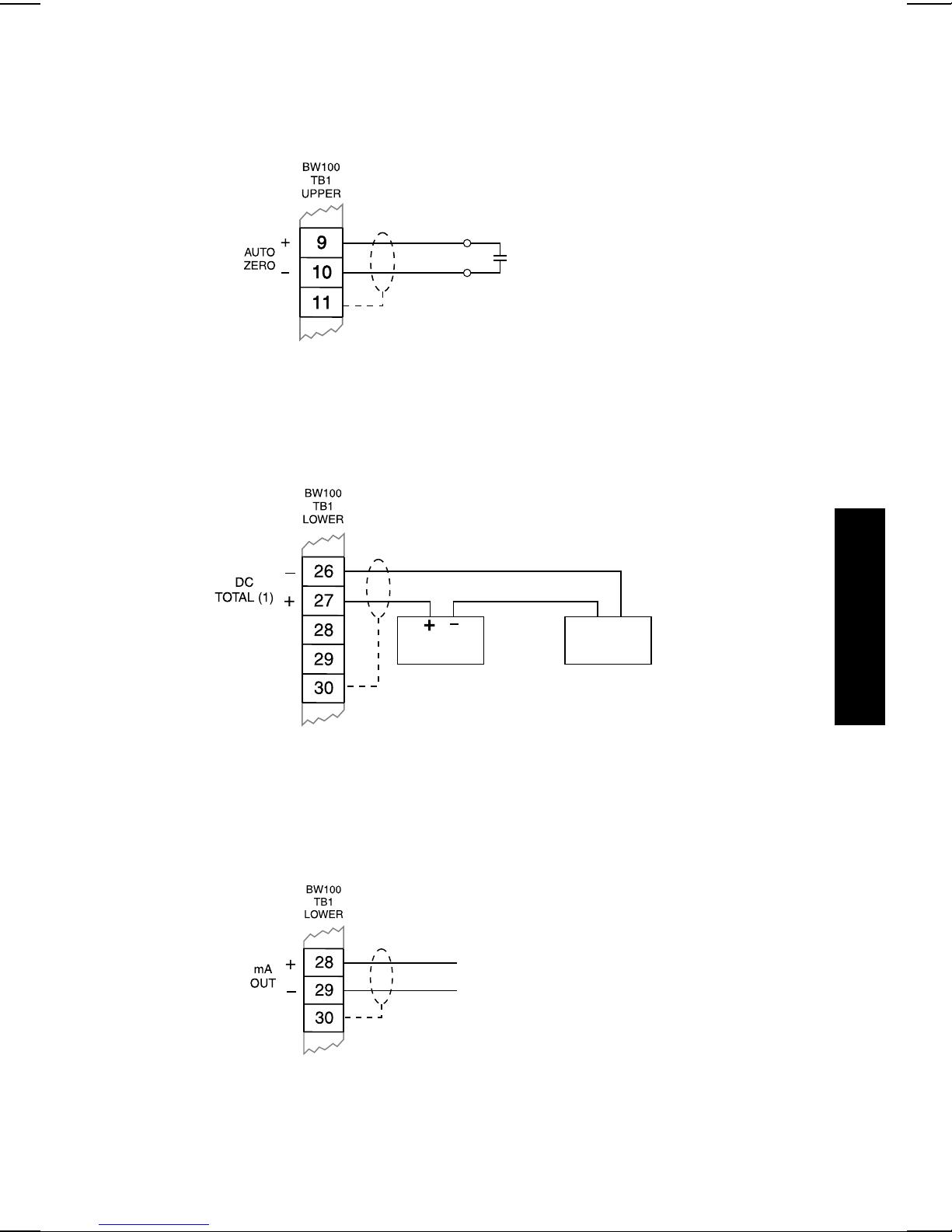

Auto Zero 15
Remote Totalizer 1 15
Analog Output 15
Remote Totalizer 2 16
Relay Output 16

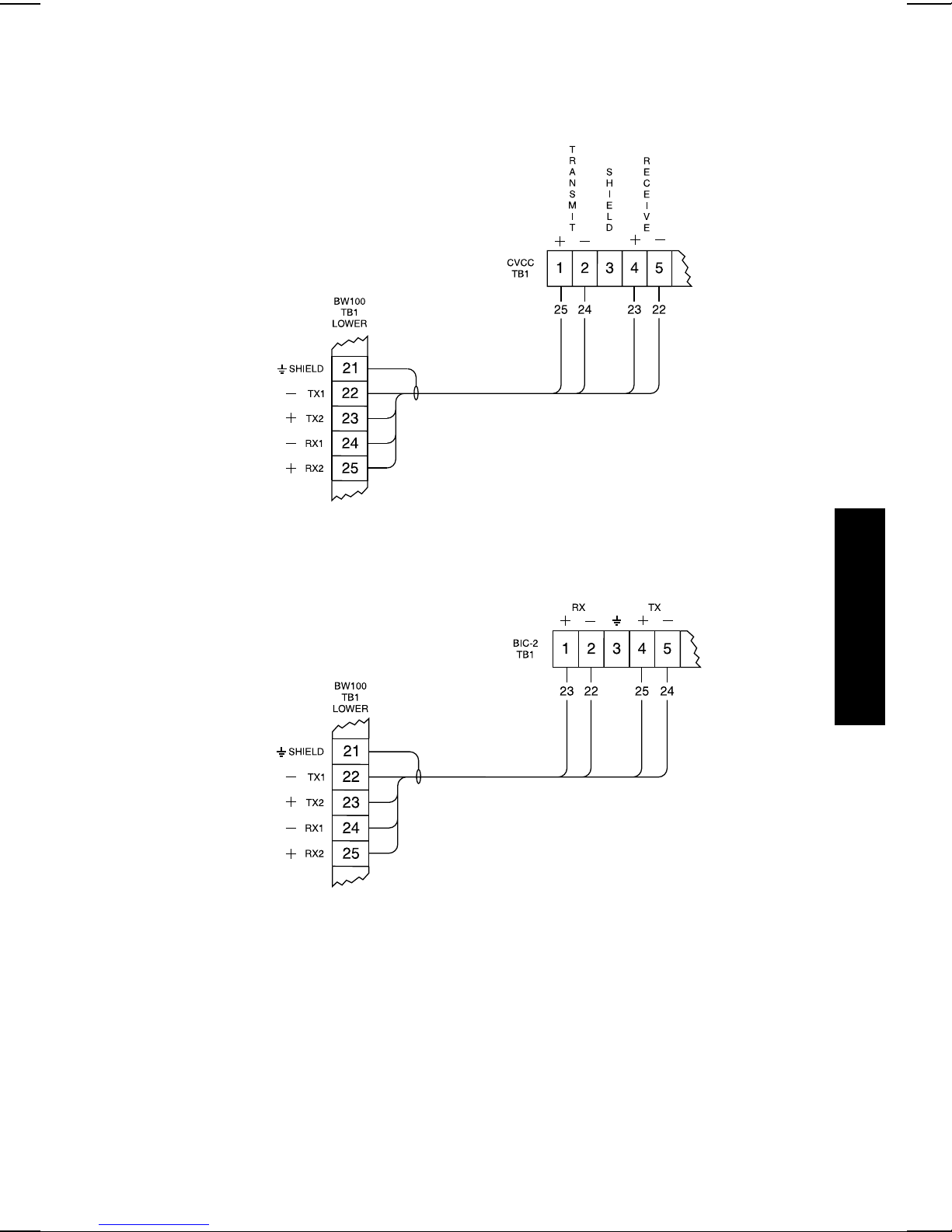

Communication CVCC 17
BIC-2 17

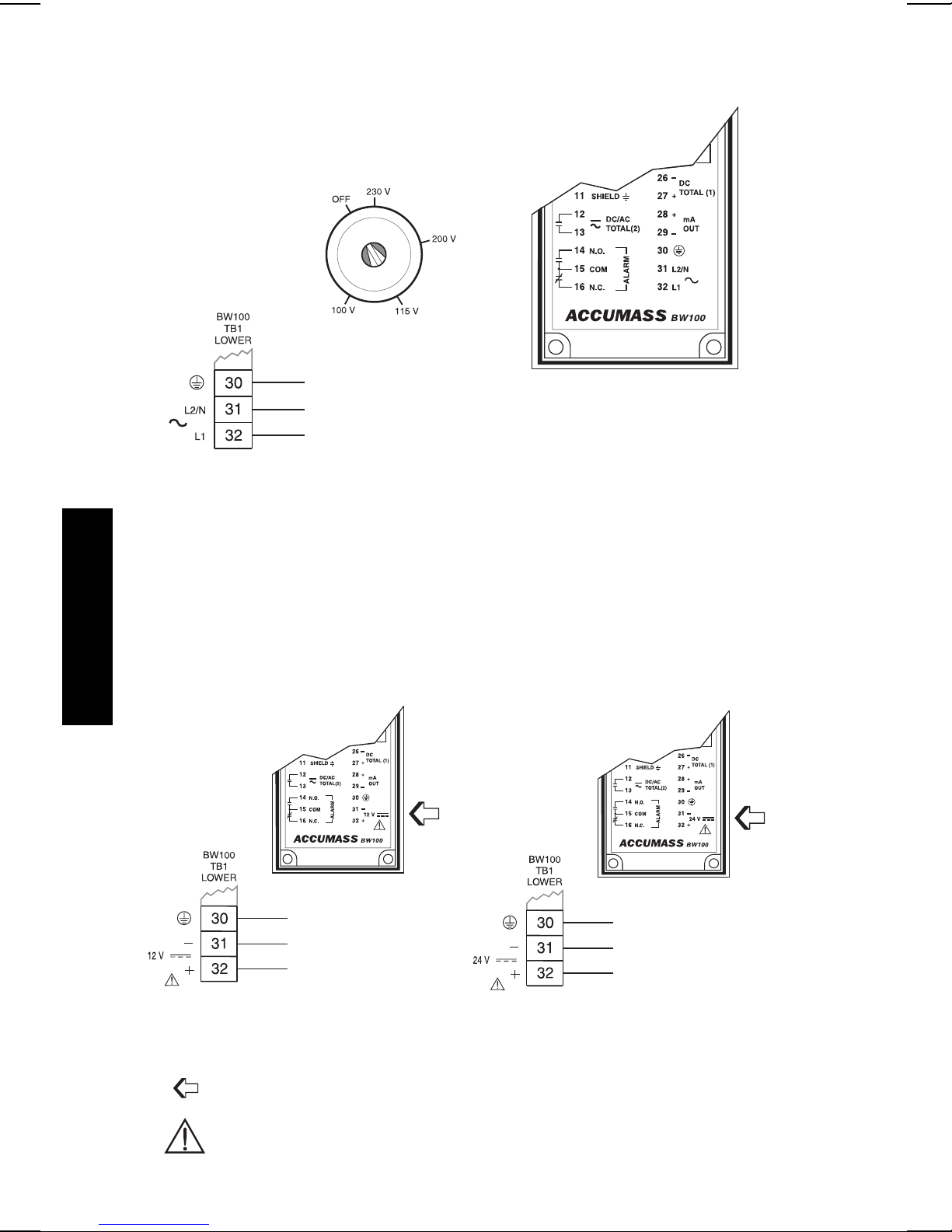

Power Connections 18

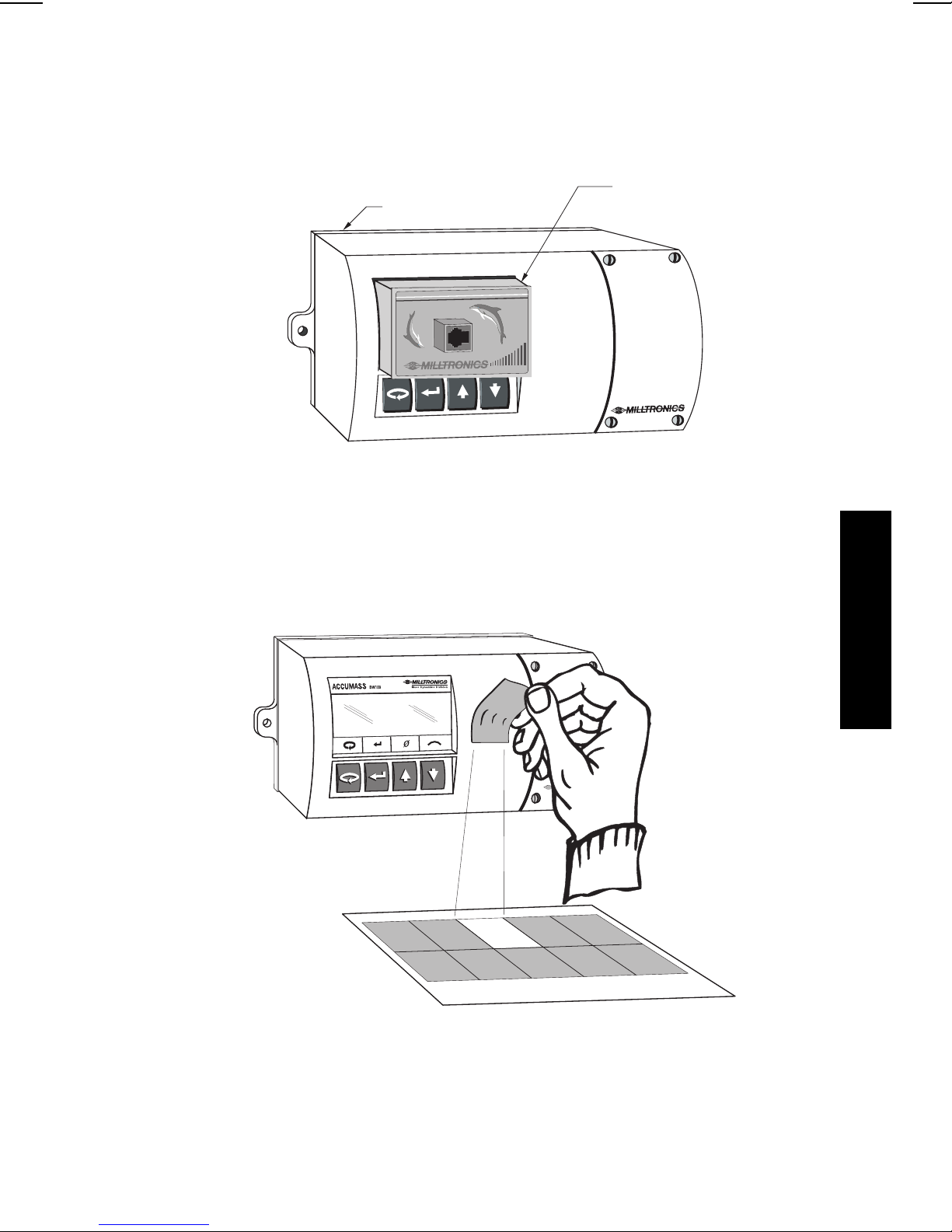

Comverter 19
Units Sticker 19
Start Up
Orientation 21
Program Mode 22
Maneuvering 22
Master Reset 25
Balance 26
Quick Start 28
Start Up 29
Zero Calibration 31
Span Calibration 32
Run Mode 33
PL-531 3

Recalibration
Belt Speed Compensation 35
Material Tests 36
Design Changes 37
Recalibration 38
Routine Zero 38
Initial Zero 39
Direct Zero 40
Routine Span 41
Initial Span 42
Direct Span 43
Factoring 44
Linearization 45
Operation
Load Sensing 49
Speed Sensing 49
Modes of Operation 49
Damping 50
Analog Output 50
Relay Output 51
Totalization 52
Auto Zero 53
Communication 53
Protocol 54
Parameter Description 57
Appendices
Alphabetical Parameter List 77
Troubleshooting 80
Maintenance 82
Software Updates 82
Program Record 83
PL-531 4

ABOUT THIS ...
ABOUT THIS MANUAL
It is essential that this manual be referred to for proper installation and operation of
your BW100 belt scale integrator. As BW100 must be connected to a belt scale, and
optionally a speed sensor, refer to their manuals as well.
Installation gives you step by step direction for the installation and
interconnection of your BW100.
Start Up instructs you how to operate the keypad, read the display, do a
Quick Program, and perform the calibration for a successful entry
into the run mode.
Recalibration emphasizes how to optimize and maintain accurate operation of your
weighing system through material tests and routine recalibrations.
Operation offers an overview of the BW100 features and functions that allow
you to take full advantage of your weighing system.
Parameters lists the parameters available to you, with a description of their
function and use. You are urged to read this section; to familiarize
yourself with the parameters available to you and get your BW100
working to its fullest.
Appendices what manual would be complete without one! Ours has an
alphabetical cross reference of the parameters to their numbers, a
diagnostic help with the list of error messages, a maintenance
reminder, and a record sheet for jotting down parameter values.
ABOUT THIS ....
PL-531 5

ABOUT THE ACCUMASS BW100
The ACCUMASS BW100 is to be used only in
the manner outlined in this instruction manual.
The ACCUMASS BW100 is a microprocessor based integrator designed for use
with Milltronics, or equivalent belt scales. The speed and load signals from the
conveyor and scale, respectively, are processed to derive rate of material flow and
totalization. The primary values of speed and load, and the derived values of rate and
total are available for display on the local LCD, or as output in the form of analog mA,
alarm relay and remote totalization.
BW100 supports Milltronics proprietary bipolar current loop for long distance
communication to PLC or computer via BIC-2, RS -232 or RS -422 converter. It is also
compatible with Milltronics Dolphin interface for remote display, programming and
software upgrading.
ACCUMASS BW100 features:
✓multi-field LCD display
✓two remote totalizer contacts
✓current loop to RS-232 or RS-422
✓Dolphin compatibility
✓programmable relay
✓isolated mA output
✓rate linearization
✓local keypad
✓auto zero
98/03/10
ABOUT THIS ...
PL-531 6

SPECIFICATIONS
Power: » standard: » 100/115/200/230 V ac ±15%, 50/60 Hz, 15 VA
» optional: » 10 - 15 V dc, 15 W
» 18 - 30 V dc, 15 W
Application: » compatible with Mass Dynamics belt scales MSI, MSL,
MMW and MIC, or equivalent
Accuracy: » 0.1% of full scale
Resolution: » 0.02% of full scale
Environmental: » location: » indoor / outdoor
» altitude: » 2000 m max
» ambient temperature: » -20 to 50 °C (-5 to 122 °F)
» relative humidity: » suitable for outdoor (Type 4X /
NEMA 4X / IP 65 enclosure)
» installation category: » II
» pollution degree: » 4
Enclosure: » polypropylene alloy
» Type 4X / NEMA 4X / IP 65
» sealed electronics compartment
» integral junction box with termination block for 0.2 - 4 mm2solid
» or 0.2 - 2.5 mm2stranded (12 - 24 AWG)
Programming: » via local 4 member keypad with silicone boot and/or Dolphin interface
Display: » 38 x 100 mm (1.5 x 4") multi-field liquid crystal display
Memory: » program stored in non-volatile FLASH memory,
upgradable via Dolphin interface
» parameters stored in non-volatile EEPROM
Inputs: » load cell: » 0 - 45 mV dc per load cell
» speed sensor: » pulse train: 0-5 V low, 0-15 V high, 1 to 2000 Hz,
or
» open collector switch,
or
» relay dry contact
» auto zero: » dry contact from external device
Outputs: » analog: » optically isolated 0/4 - 20 mA
» 750 Ωmax loading
» resolution: 0.1% of 20 mA
» load cell: » 10 V dc compensated for strain gauge type,
2 cells max
» speed sensor: » 12 V dc, 50 mA max excitation
97/07/07
SPECIFICATIONS
PL-531 7

» remote totalizer 1:» contact closure 32 - 288 ms duration
» open collector switch rated 30 V dc,
100 mA max
» remote totalizer 2:» contact closure 32 - 288 ms duration
» open collector switch rated 240 V ac/dc,
100 mA max
» relay output: » programmable function
» 1 form ’C’ SPDT relay contact rated 5 A
at 250 V ac, non- inductive
Communications: » proprietary bipolar current loop via BIC-2 or CVCC loop length
(refer to Options) » Dolphin compatible
Cable/Separation:» single load cell: » non-sensing:» Belden 8404, 4 wire shielded,
20 AWG or equivalent, 150 m
(500 ft) max
» sensing: » Belden 9260, 6 wire shielded,
20 AWG or equivalent, 300 m
(1000 ft) max
» dual load cell: » non-sensing: » Belden 9260, 6 wire shielded,
20 AWG or equivalent, 150 m
(500 ft) max
» sensing: » Belden 8418, 8 wire shielded,
20 AWG or equivalent, 300 m
(1000 ft) max
» speed sensor: » Belden 8770, 3 wire shielded, 18 AWG or
equivalent, 300 m (1000 ft)
» auto zero: » Belden 8760, 1 pair, twisted/shielded, 18 AWG,
300 m (1000 ft) max
» bipolar current: » Belden 9552, 2 pair, twisted/shielded, 18 AWG,
(comm. port) 3000 m (10,000 ft) max loop
» remote total » Belden 8760, 1 pair, twisted/shielded, 18 AWG,
t1 (dc) 300 m (1000 ft) max
Options: » Speed Sensor: » Mass Dynamics MD-36 or TASS, or equivalent
» Dolphin: » Milltronics Windows based software interface
and infrared ComVerter link.
» CVCC: » Milltronics bipolar loop to RS-232 or RS-422
passive converter, communications interface
» BIC-2: » Milltronics bipolar loop to RS-232 or RS-422
buffered converter, communications interface,
max 6 BW100 per BIC-2
» Mass Dynamics Incline Compensator, for signal compensation
on variable incline conveyors
Approvals: » CE*, CSA NRTL/C
*EMC performance available upon request
SPECIFICATIONS
PL-531 8

INSTALLATION
Installation shall only be performed by qualified personnel
and in accordance with local governing regulations.
This product is susceptible to electrostatic shock.
Follow proper grounding procedures.

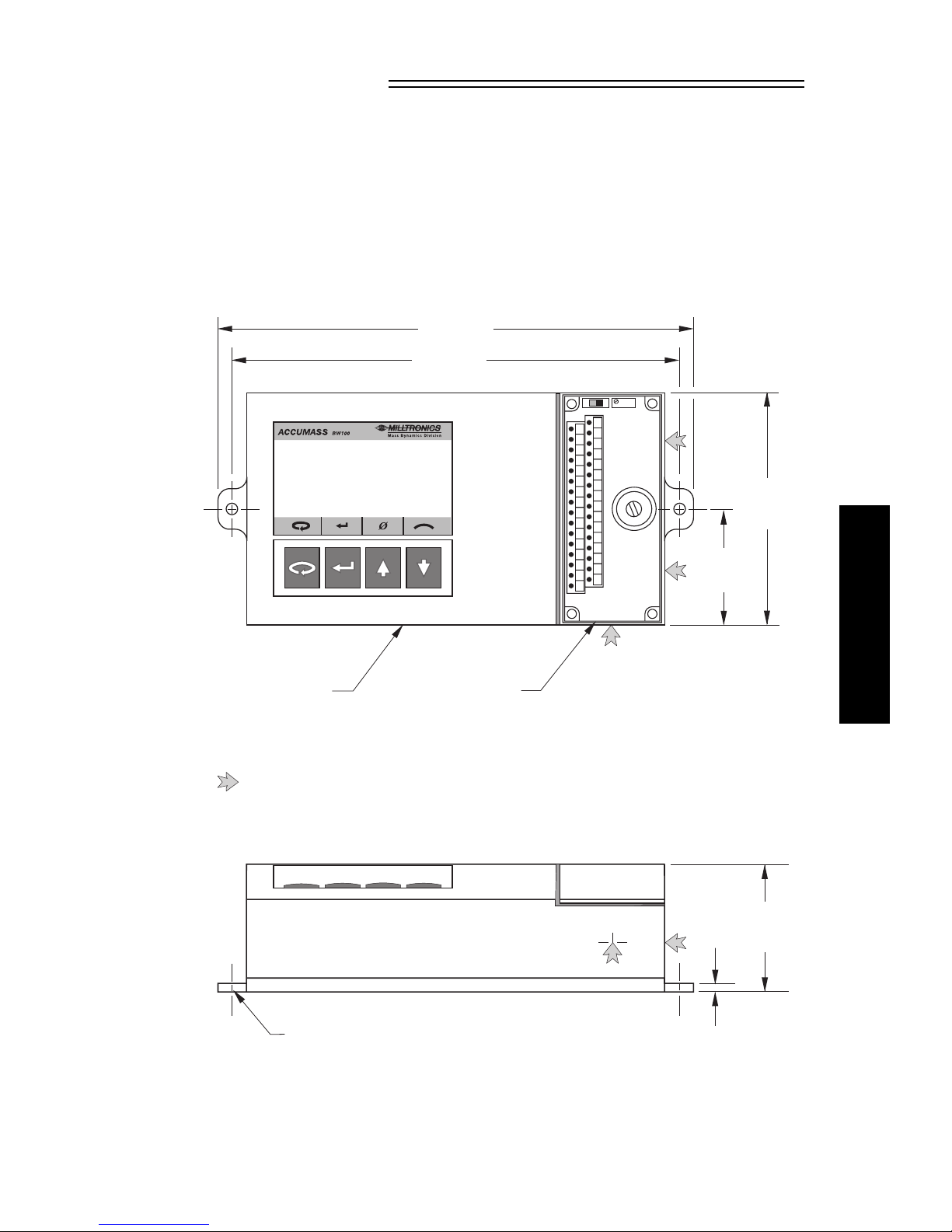

DIMENSIONS
Non metallic enclosure does not provide grounding between connections.
Use grounding type bushings and jumpers.
98\03\09
138 mm
(5.4")
sealed enclosure
270 mm
(10.6")
74 mm
(2.9")
254 mm
(10")
integral junction box
(cover removed)
with terminal block and
voltage selection switch
69 mm
(2.7")
mounting hole
6.4 mm (1/4") Ø 5 mm
(0.2")
Conduit entry area. Recommend drilling the enclosure with a hole saw and
the use of suitable cable glands to maintain ingress rating.
INSTALLATION
PL-531 9

INTERCONNECTION
Wiring may be run via common conduit. However these may not be run in the
same conduit as high voltage contact or power wiring.
SYSTEM DIAGRAM
Typical system capability. Not all components or their
maximum quantity may be required.
ACCUMASS
BW100
Mass Dynamics
belt scale, see
Specifications
customer’s remote
totalizing device
customer
device
customer alarm, or
control device
mA output
relay output
speed sensor, optional,
see Specifications
Milltronics BIC-2
remote totalizer
bipolar current loop
(Milltronics communications)
INSTALLATION
PL-531 10

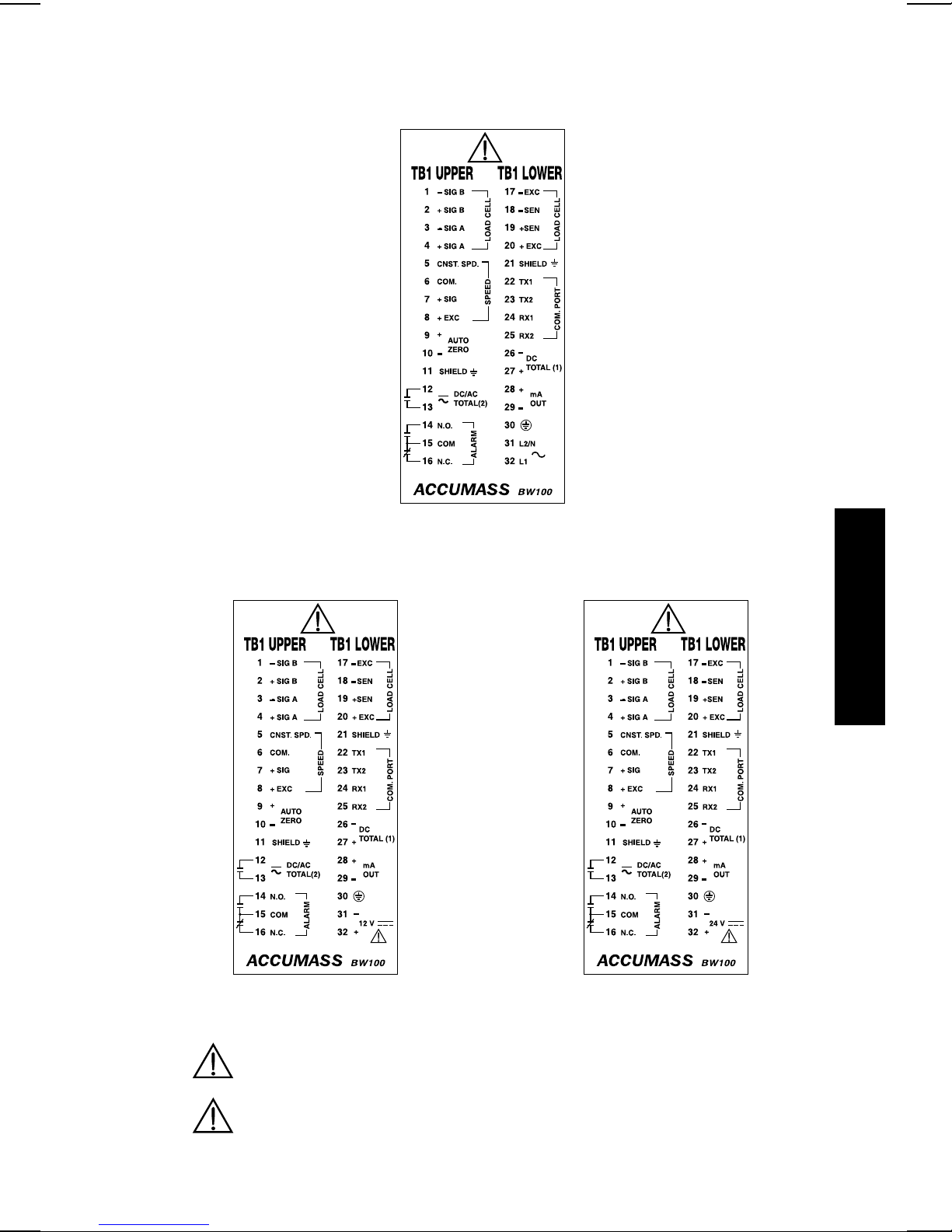

TERMINAL BLOCK LAYOUT
ac supply
dc supply
All field wiring must have insulation suitable for at least 250 V.
dc terminals shall be supplied from an SELV source in accordance
with IEC-1010-1 Annex H.
INSTALLATION
PL-531 11

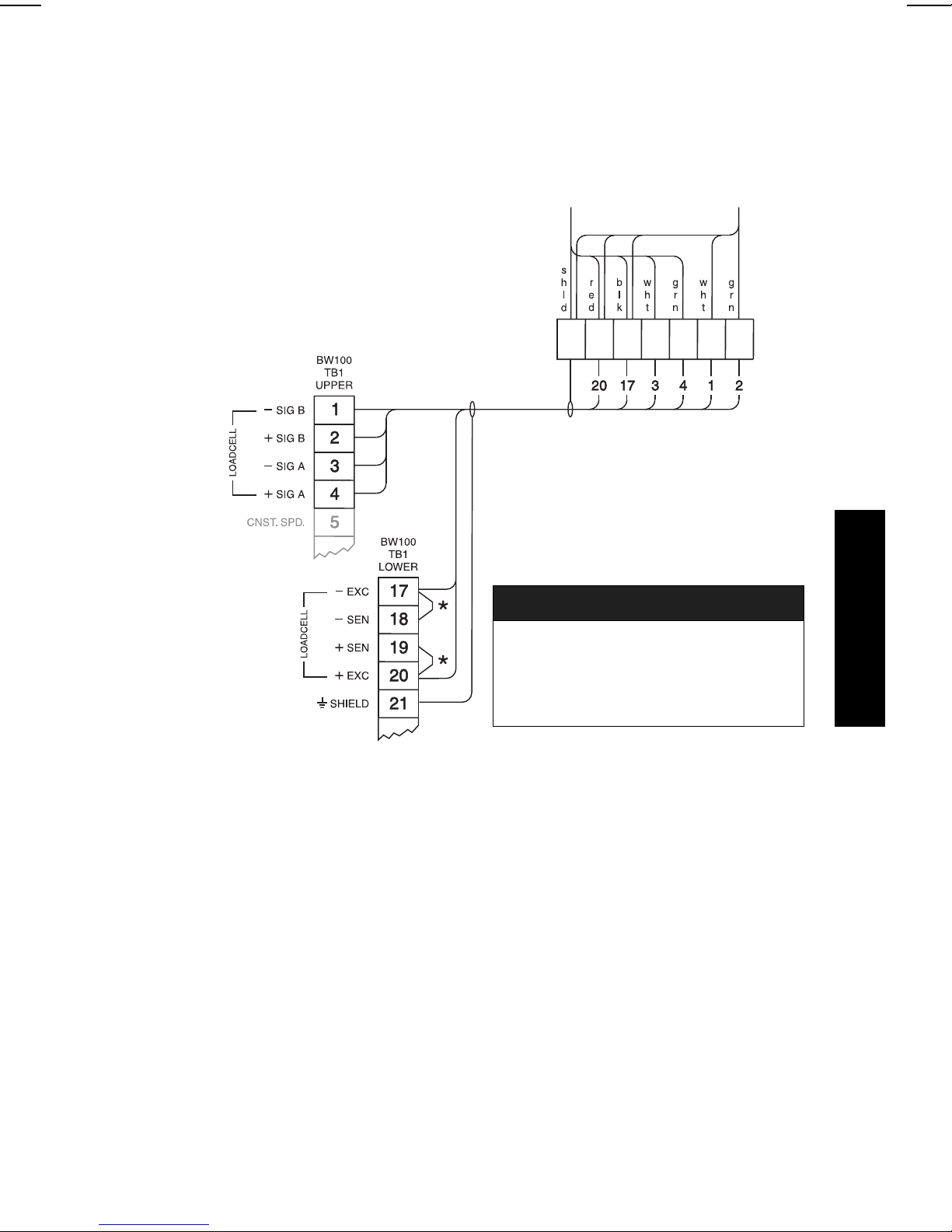

LOAD CELL - SINGLE
* Where separation between the BW100 and belt scale exceeds 150 m (500 ft) :
» remove the jumpers BW100 TB1 – 17/18 and TB1 19/20
» run additional conductors from :
» BW100 TB1 – 18 to scale ‘– EXC’
» BW100 TB1 – 19 to scale ‘+ EXC’
If load cells are supplied with sense wiring::
terminate brown with black = T17
and blue with red = T20
at junction box.
08/24/99
Belt Scale
customer
junction box
INSTALLATION
PL-531 12

LOAD CELL - DUAL
* Where separation between the BW100 and belt scale exceeds 150 m (500 ft) :
» remove the jumpers BW100 TB1 – 17/18 and TB1 19/20
» run additional conductors from :
» BW100 TB1 – 18 to scale ‘– EXC’
» BW100 TB1 – 19 to scale ‘+ EXC’
If load cells are supplied with sense wiring::
terminate brown with black = T17
and blue with red = T20
at junction box.
08/24/99
Belt Scale
‘A’ loadcells ‘B’
customer
junction box
INSTALLATION
PL-531 13

SPEED SENSOR
▼Connect the BW100 TB1 – 7 to the MD - 36A speed sensor terminal:
‘2’ for clockwise speed sensor shaft rotation
‘3’ for counter-clockwise speed sensor shaft rotation.
MD - 36A shaft rotation is viewed from the front cover side
of the MD - 36A enclosure.
▲If a speed sensor is not used, a jumper must be connected across the BW100
TB1 – 5 / 6. If a speed sensor is used, insure that the jumper is removed.
◆Input device in the form of open collector transistor or dry contact across
TB1 – 6 / 7 will also serve as a suitable speed signal.
MD - 36A
speed sensor
OR TASS
speed sensor
INSTALLATION
PL-531 14

AUTO ZERO
REMOTE TOTALIZER 1
ANALOG OUTPUT
supply
maximum 30
V dc, 100 mA
remote
totalizer
to customer instrumentation
isolated mA output, 750 Ωmaximum
load ac models only
mA output on dc models is not isolated
prefeed activated dry contact
INSTALLATION
PL-531 15

REMOTE TOTALIZER 2
RELAY OUTPUT
supply,
maximum 240 V
ac / dc
remote
totalizer
relay shown in
de-energized state,
contacts rated 5 A at
250 V non-inductive
INSTALLATION
PL-531 16

COMMUNICATION
CVCC
BIC-2
Connect shield at one device only, e.g. BW100 TB1 – 21.
Maximum loop length 3000 m (10,000 ft).
INSTALLATION
PL-531 17

POWER CONNECTIONS
AC POWER
The equipment must be protected by a 15 A fuse or a circuit
breaker in the building installation.
A circuit breaker or switch in the building installation, marked
as the disconnect switch, shall be in close proximity to
the equipment and within easy reach of the operator.
DC POWER
12 V dc Model
10 - 15 V dc 18 - 30 V dc
24 V dc Model
97/07/07
dc terminals shall be supplied from an SELV source in accordance
with IEC-1010-1 Annex H.
dc model indicated on lid nameplate.
INSTALLATION
PL-531 18

COMVERTER
Optional Dolphin Interface
Refer to Dolphin instruction manual for interconnection details.
UNITS STICKER
Remove the appropriate ‘units’ sticker from the sheet supplied, and affix
to your BW100 as shown.
98\03\09
ACCUMASS BW100 ComVerter
INSTALLATION
PL-531 19

INSTALLATION
PL-531 20
