Milwaukee MA888 User manual

www.milwaukeeinst.com
1
www.milwaukeeinst.com
MA888
Refractometer for EthyleneRefractometer for Ethylene
Refractometer for EthyleneRefractometer for Ethylene
Refractometer for Ethylene
Glycol MeasurementsGlycol Measurements
Glycol MeasurementsGlycol Measurements
Glycol Measurements
Milwaukee RefractometerMilwaukee Refractometer
Milwaukee RefractometerMilwaukee Refractometer
Milwaukee Refractometer
INSTRUCTION MANUAL

22
22
2
Instruction Manual MA888 Refractometer for Ethylene Glycol Measurements
FUNCTIONAL DESCRIPTION ............................................................................. 3
GENERAL DESCRIPTION .................................................................................... 5
SPECIFICATIONS .............................................................................................. 6
PRINCIPLE OF OPERATION ................................................................................ 6
MEASUREMENT UNITS ....................................................................................... 8
MEASUREMENT GUIDELINES .............................................................................. 8
CALIBRATION PROCEDURE ............................................................................... 9
MEASUREMENT PROCEDURE ........................................................................... 10
CHANGING MEASUREMENT UNIT ................................................................... 11
CHANGING TEMPERATURE UNIT ..................................................................... 12
MAKING A STANDARD SOLUTION ................................................................... 12
ERROR MESSAGES ........................................................................................... 13
BATTERY REPLACEMENT ................................................................................... 14
WARRANTY ..................................................................................................... 15
TABLE OF CONTENTS
Remove the instrument from the packing materials and examine carefully to
ensure no damage has occurred during shipping. If any damage has
occurred, notify your Dealer.
Each instrument is supplied with:
• 9 V battery
• Instruction manual
Note: Save all packing material until you are sure that the instrument
functions correctly. A defective instrument must be returned in its
original packing.

www.milwaukeeinst.com
3
FUNCTIONAL DESCRIPTION
A. BATTERY STATUS ICON (BLINKS WHEN LOW BATTERY CONDITION DETECTED)
B. MEASUREMENT IN PROGRESS TAG
C. SETUP: FACTORY CALIBRATION TAG
D. CAL: CALIBRATION TAG
E. AUTOMATIC TEMPERATURE COMPENSATION
(BLINKS WHEN TEMPERATURE EXCEEDS 10-40 °C / 50-104 °F RANGE)
F. PRIMARY DISPLAY (DISPLAYS MEASUREMENT AND ERROR MESSAGES)
G. TEMPERATURE UNITS
H. SECONDARY DISPLAY (DISPLAYS TEMPERATURE MEASUREMENTS; WHEN BLINKING,
TEMPERATURE HAS EXCEEDED OPERATION RANGE: 0-80 °C / 32-176 °F)
I. RANGE INDICATOR
DISPLAYDISPLAY
DISPLAYDISPLAY
DISPLAY

44
44
4
Instruction Manual MA888 Refractometer for Ethylene Glycol Measurements
I. BATTERY COVER
J. BATTERY COMPARTMENT
BOTTOMBOTTOM
BOTTOMBOTTOM
BOTTOM
A. LIQUID CRYSTAL DISPLAY (LCD)
B. READ KEY (USER MEASUREMENT)
C. ZERO KEY (USER CALIBRATION)
D. RANGE KEY (USER MEASUREMENT UNIT)
E. ON/OFF
F. STAINLESS STEEL SAMPLE WELL AND PRISM
G. SECONDARY DISPLAY
H. PRIMARY DISPLAY
FRONT PANELFRONT PANEL
FRONT PANELFRONT PANEL
FRONT PANEL

www.milwaukeeinst.com
5
GENERAL DESCRIPTION
SIGNIFICANCE OF USE
Thank you for choosing Milwaukee. This instruction manual will provide you the
necessary information for correct use of the meter.
The MA888 is an optical instrument that employs the measurement of the refractive
index to determine the % volume and freezing point of ethylene glycol based coolants or
antifreeze. The digital refractometer eliminates the uncertainty associated with mechanical
refractometers and is easily portable for use in the field to optimize your cooling system.
The MA888 refractometer is an optical device that is simple and quick to use. Samples are
measured after a simple user calibration with distilled or deionized water. Within seconds,
the refractive index and temperature are measured and converted into one of two mea-
surement units; % Volume or Freezing Point. The instrument utilizes internationally recog-
nized references for unit conversion and temperature compensation for ethylene glycol
solutions (e.g. CRC Handbook of Chemistry and Physics, 87th Edition).
The temperature (in °C or °F) is also displayed on the large dual level display along with
helpful message codes.
Key features include:
• Waterproof models offers IP65 waterproof protection
• Automatic Temperature Compensation (ATC)
• Battery operation with Low Power indicator
• Automatically turns off after 3 minutes of non-use.

66
66
6
Instruction Manual MA888 Refractometer for Ethylene Glycol Measurements
PRINCIPLE OF OPERATION
Light Source Yellow LED
Measurement Time Approximately 1.5 seconds
Minimum Sample Volume 100 μL (cover prism totally)
Sample Cell Stainless Steel ring and flint glass prism
Temperature Compensation Automatic between 0 and 40 °C (32 to 104 °F)
Case Material ABS
Enclosure Rating IP 65
Battery Type/Life 1 x 9 volt AA batteries / 5000 readings
Auto-Shut off After 3 minutes of non-use
Dimensions 19.2 x 10.2 x 6.7 cm (7.5 x 4 x 2.6")
Weight 420 g (14.8 oz.).
SPECIFICATIONS
emuloV%tnioPgnizeerF)F°(C°
:egnaR %001ot0)F°85-ot23(C°05-ot0)F°671ot23(C°08ot0
:noituloseR %1.0)F°1.0(C°1.0)F°1
.0(C°1.0
:ycaruccA %2.0±)F°0.1±(°5.0±)F°5.0±(C°3.0±
Ethylene Glycol determinations are made by measuring the refractive index of a solution.
Refractive Index is an optical characteristic of a substance and the number of dissolved
particles in it. Refractive Index is defined as the ratio of the speed of light in empty space
to the speed of light in the substance. A result of this property is that light will “bend”, or
change direction, when it travels through a substance of different refractive index. This is
called refraction.

www.milwaukeeinst.com
7

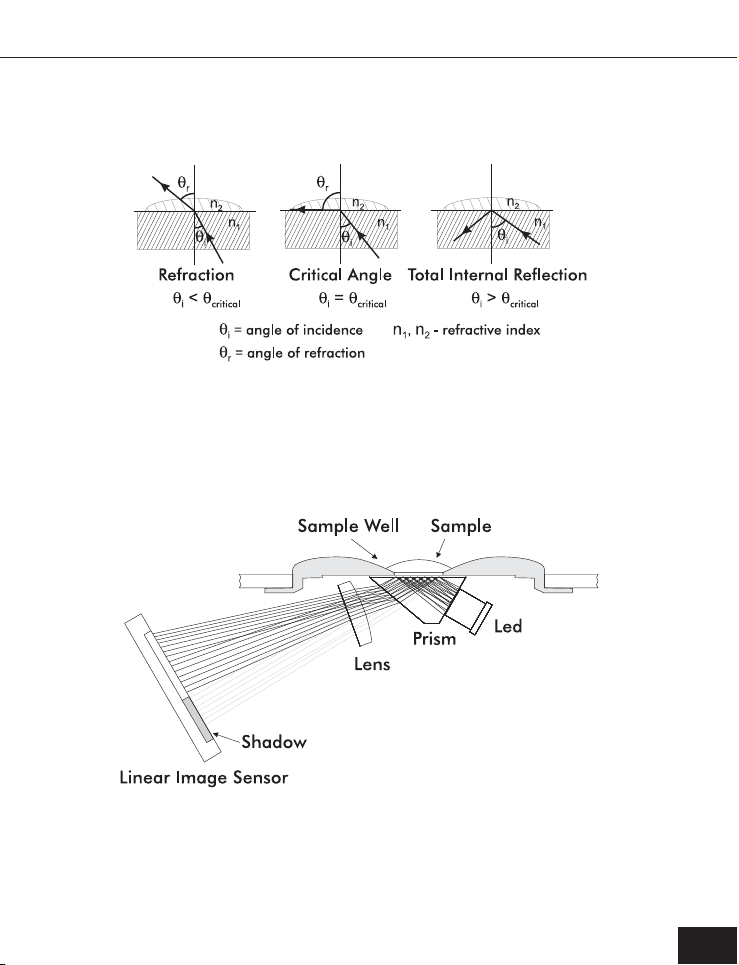

The critical angle can be used to easily calculate the refractive index according to the
equation:
sin (θcritical) = n2/ n1
Where n2is the refractive index of the lower-density medium; n1is the refractive index of
the higher-density medium.
In the MA888 refractometer, light from an LED passes through a prism in contact with the
sample. An image sensor determines the critical angle at which the light is no longer
refracted through the sample. Specialized algorithms then apply temperature
compensation to the measurement and convert the refractive index to: % Volume or
Freezing Point.
When passing from a material with a higher to lower refractive index, there is a critical
angle at which an incoming beam of light can no longer refract, but will instead be
reflected off the interface.

88
88
8
Instruction Manual MA888 Refractometer for Ethylene Glycol Measurements
MEASUREMENT GUIDELINES
• Handle instrument carefully. Do not drop.
• Do not immerse instrument under water.
• Do not spray water to any part of instrument except the “sample well” located over the
prism.
• The instrument is intended to measure ethylene glycol solutions. Do not expose
instrument or prism to solvents that will damage it. This includes most organic solvents
and extremely hot or cold solutions.
• Particulate matter in a sample may scratch the prism. Absorb sample with a soft tissue
and rinse sample well with deionized or distilled water between samples.
• Use plastic pipettes to transfer all solutions. Do not use metallic tools such as needles,
spoons or tweezers as these will scratch the prism.
• Cover sample well with hand if measuring in direct sun.
MEASUREMENT UNITS

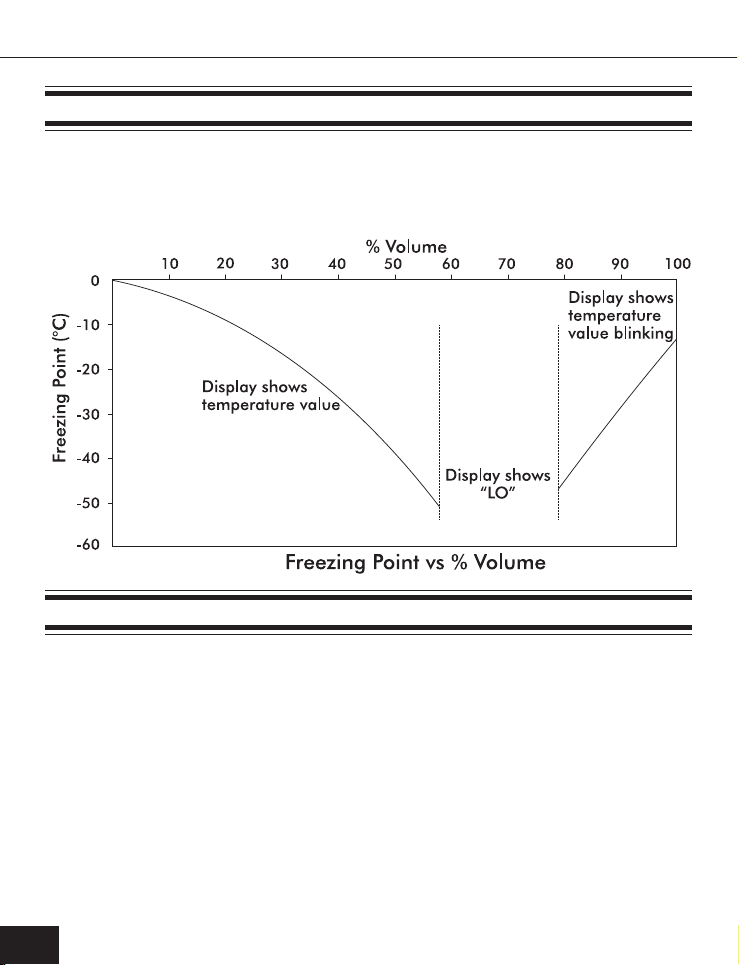

Freezing point is displayed as a temperature from 0.0 to -50.0 °C corresponding to
0-58 % by volume. The display blinks the freezing point when the concentration of
Ethylene glycol is greater than 78 % concentration by volume.
When the display shows “LO”, the freezing point is at a minimum (below -50 °C).

www.milwaukeeinst.com
9
CALIBRATION PROCEDURE
Calibration should be performed daily, before measurements are made, when the
battery has been replaced, between a long series of measurements, or if environmental
changes have occurred since the last calibration.
1. Press the ON/OFF key, then release. Two instrument test screens will be displayed
briefly; all LCD segments followed by the percentage of remaining battery life. The
meter will then briefly display an indication of the measurement unit set. When the
LCD displays dashes, the instrument is ready.
2. Using a plastic pipette, fill the sample well with distilled or deionized water. Make
sure the prism is completely covered.
Note: If the ZERO sample is subject to intense light such as sunlight or another strong
source, cover the sample well with your hand or other shade during the
calibration.
3. Press the ZERO key. If no
error messages appear, your
unit is calibrated.
(For a description of ERROR
MESSAGES see page 13).

1010
1010
10
Instruction Manual MA888 Refractometer for Ethylene Glycol Measurements
MEASUREMENT PROCEDURE
Verify the instrument has been calibrated before taking measurements.

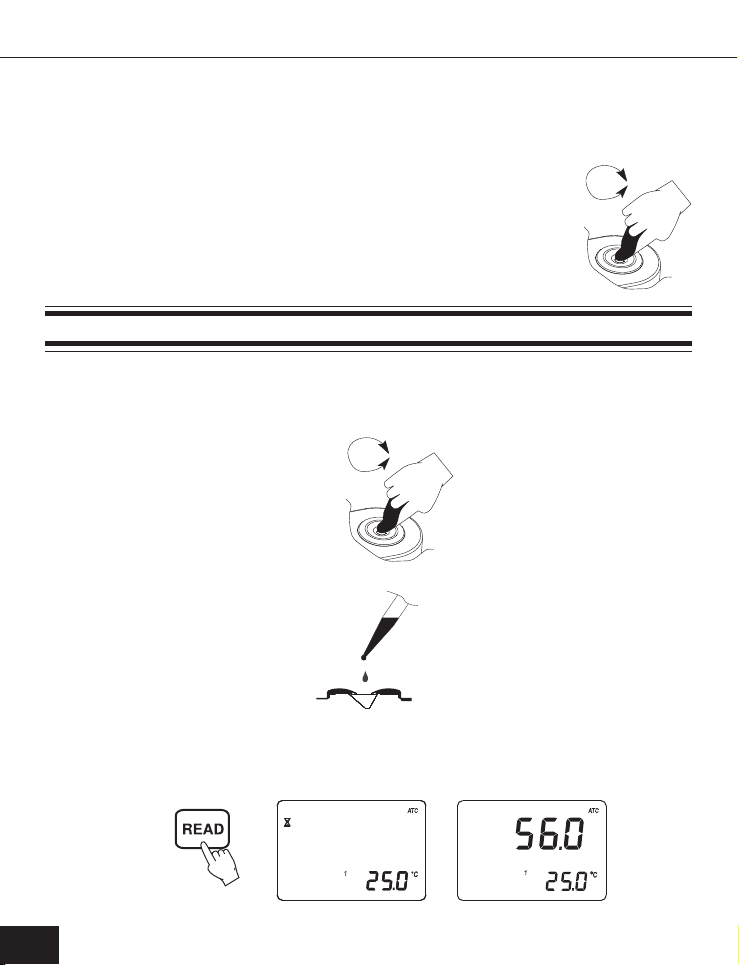

1. Wipe off prism surface located at the bottom of the sample well. Make sure the prism
and sample well are completely dry.
2. Using a plastic pipette, drip sample onto the prism surface. Fill the well completely.
Note: If the temperature of the sample differs significantly from the temperature of the
instrument, wait approximately 1 minute to allow thermal equilibration.
3. Press the READ key. The results are displayed as % Volume or Freezing Point.
Note: The 0.0 screen will remain until a sample is measured or the instrument is turned
off.
4. Gently absorb the ZERO water standard with a soft tissue. Use care not to scratch
the prism surface. Dry the surface completely. The instrument is
ready for sample measurement.
Note: If instrument is turned off the calibration will not be lost.

www.milwaukeeinst.com
11
Note: The last measurement value will be displayed until the next sample is measured
or the instrument is turned off. Temperature will be continuously updated.
Note: The “ATC” tag blinks and automatic temperature compensation is disabled if the
temperature exceeds the 0-40 °C / 32-104 °F range.
4. Remove sample from the sample well by absorbing with a soft tissue.

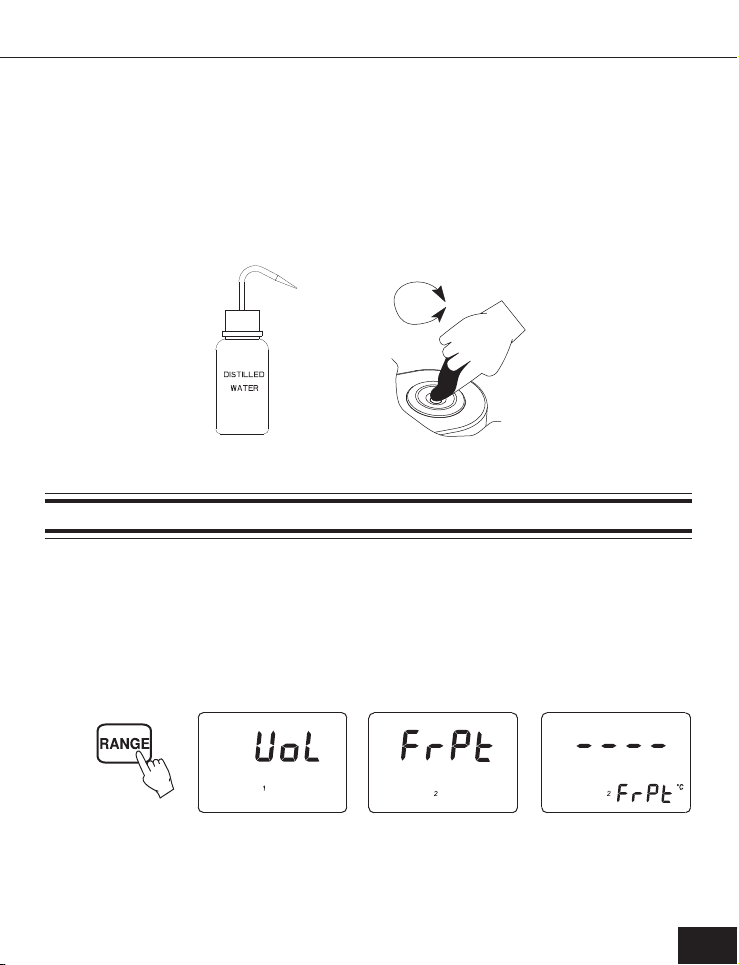

5. Using a plastic pipette, rinse prism and sample well with distilled or deionized water.
Wipe dry. The instrument is ready for the next sample.
Press the RANGE key to select measurement units. The instrument toggles between
the two measurement scales each time the key is pressed and the primary display
indicates “VoL” % Volume or “FrPt” for Freezing Point. When the instrument displays
the screen with 4 dashes, the instrument is ready for measurement. A number on the
display indicates the selected unit: “1” denotes % Volume and “2” denotes Freezing
Point (as indicated on the instrument cover).
Note: The temperature measurement is not displayed in Freezing Point mode.
CHANGING MEASUREMENT UNIT

1212
1212
12
Instruction Manual MA888 Refractometer for Ethylene Glycol Measurements
To make an Ethylene Glycol Solution, follow the procedure below:
• To make an X % ethylene glycol solution volumetrically add X mL of high purity ethylene
glycol (CAS #: 107-21-1; MW 62.068) to a 100 mL Grade A volumetric flask.
• Use distilled or deionized water to bring the flask close to the total volume, mix, allow
the solution to return to room temperature.
• Once the solution has returned to room temperature use distilled or deionized water
to bring the total volume to 100 mL. Mix solution well before use.
MAKING A STANDARD SOLUTION
To change the temperature measurement unit from Celsius to Fahrenheit (or vice versa),
follow this procedure.
1. Press and hold the ON/OFF key continuously for approximately 8 seconds. The
LCD will display the “all segment” screen followed by a screen with the model
number on the primary display and the version number on the secondary display.
Continue pressing the ON/OFF key.
2. While continuing to hold the ON/OFF key, press the ZERO key. The temperature
unit will change from °C to °F or vice versa.
Note: The selected unit will be used in Freezing Point mode.
8 seconds
°C or °F
CHANGING TEMPERATURE UNIT
locylGenelyhtEemuloVlatoTeulaVtnioPgnizeerFdetcepxE
V%01 Lm00.01Lm00.001)F°2.52(C°8.3-
V%04 Lm00.04Lm00.001)F°4
.51-(C°3.62-

www.milwaukeeinst.com
13
ERROR MESSAGES
edoCrorrEnoitpircseD
rrE
elcyC.eruliaflareneG
rorrefI.tnemurtsniotrewop
tcatnoc,stsisrep
.eekuawliM
OL
yramirP yalpsid muminimsdeecxeelpmaS
.egnartnemerusaem
IH
yramirP yalpsid mumixamsdeecxeelpmaS
.egnartnemerusaem
OL
yramirP yalpsid
LAC NOtnemges
gnorW
noitulos otdesu
esU.tnemurtsniorez
.retawdellitsidrodezinoied
sserP oreZ .
IH
yramirP yalpsid
LAC NOtnemges
gnorW
noitulos otdesu
esU.tnemurtsniorez
.retawdellitsidrodezinoied
sserP oreZ .
OLt
yramirP yalpsid
LAC NOtnemges
CTAsdeecxeerutarepmeT
gnirud)C°0(timilwol
.noitarbilac
IHt
yramirP yalpsid
LAC NOtnemges
CTAsdeecxeerutarepmeT
gnirud)C°04(timilhgih
.noitarbilac
riA yltneiciffusniecafrusmsir
P
.derevoc
tLE
rofthgillanretxehcumooT
revoC.tnemerusaem
.dnahhtiwllewelpmas
tLn .detcetedtonsithgilDEL
tcatn
oC eekuawliM .
gniknilbtnemgesyrettaB siefilyrettabfo%5<
.gniniamer
eraseulaverutarepmeT
gniknilb
C°0.0 ro C°0.08
tnemerusa
emerutarepmeT
ot0(egnargnilpmasfotuo
.)C°08
CTA gniknilbtnemges
erutarepmetedistuO
ot0(egnarnoitasnepmoc
.)C
°04
PUTES tnemges
gniknilb
.tsolnoitarbilacyrotcaF
tcatnoC
eekuawliM .

1414
1414
14
Instruction Manual MA888 Refractometer for Ethylene Glycol Measurements
BATTERY REPLACEMENT
To replace the instrument’s battery, follow these steps:
• Turn the instrument OFF by pressing the ON/OFF key.
• Turn instrument upside down and remove the battery cover by turning it counterclockwise.
• Extract the battery from its location.
• Replace with fresh 9V battery making certain to observe polarity.
• Insert the back battery cover and fasten it by turning clockwise to engage.

www.milwaukeeinst.com
15
WARRANTY
This instrument is warranted against defects in materials and manufacturing for a period of
2 years from the date of purchase. Electrodes are warranted for 6 months.
If during this period the repair or replacement of parts is required, where the
damage is not due to negligence or erroneous operation by the user, please return
the instrument, electrode and probe to either distributor or our office and the repair
will be effected free of charge.
Damage due to accidents, misuse, tampering or lack of prescribed maintenance is
not covered by the warranty.
Milwaukee/Martini instruments reserves the right to make improvements
in design, construction and appearance of its products without advance
notice.
For your Safety don’t use or store the instrument in hazardous environments. To avoid
damages or burns, do not perform any measurement in microwave ovens.

THANK YOU FOR CHOOSING
Sales and Technical Service Contacts:
Milwaukee Electronics Kft.
Alsókikötősor 11.
6726, Szeged, Hungary
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Milwaukee Instruments, Inc.
2950 Business Park Drive Rocky Mount, NC
27804 USA
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
www.milwaukeeinst.com
MANMA888 10/09
