TS34-1800A
NH

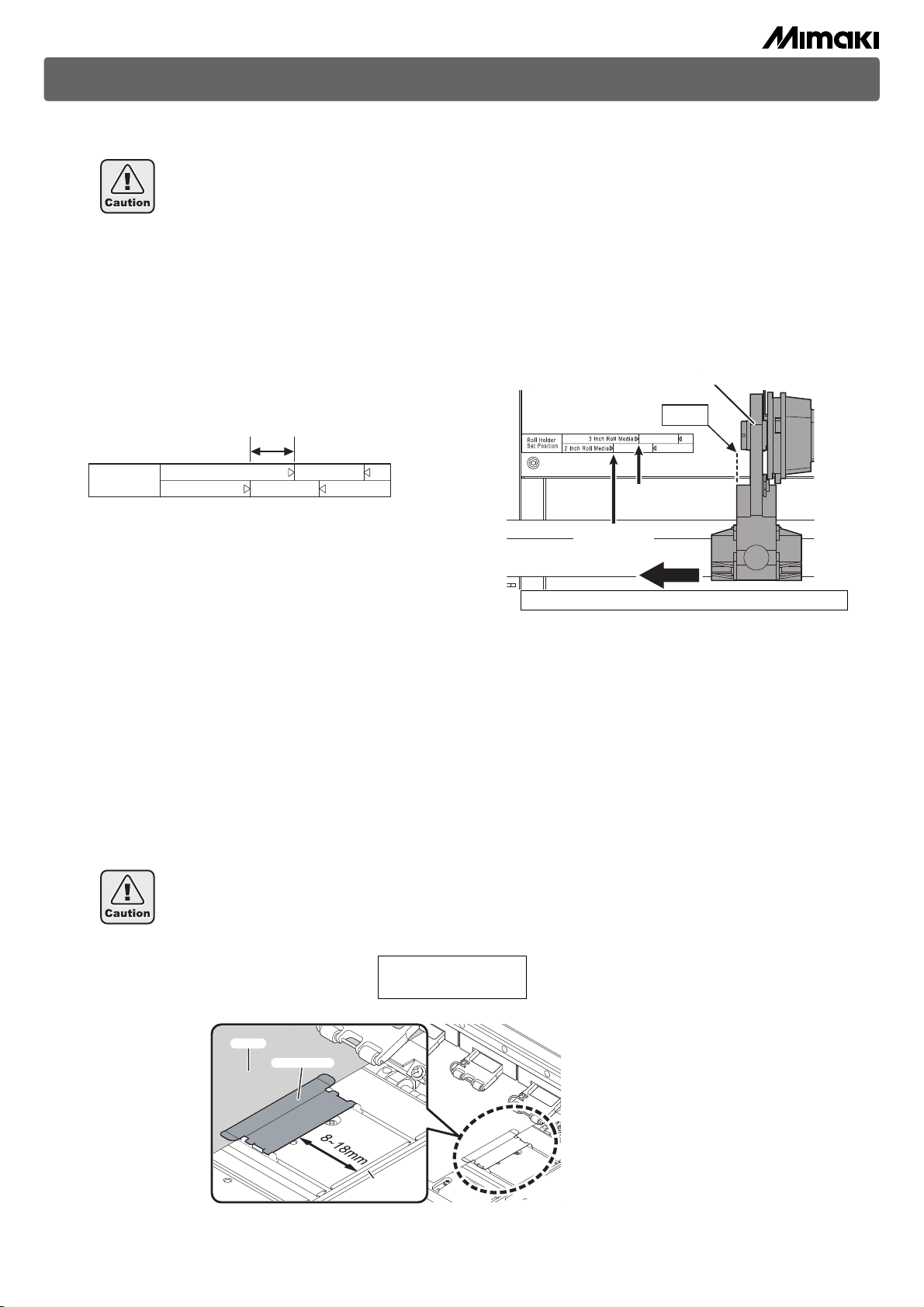

Note for Media Setting
Note for setting roll media or leaf media on “Setting medias” in Operation Manual Chapter 2 is described below.
Read this and fully understand, and then set media correctly.
(1) Set a roll holder on the correct position.
⇒Roll media : Operation Manual P.2-8 Step1 to 3
The fixing position of the roll holder on the left back of this machine (On the right corner of a media from the front of
this machine) is decided according to the size of media core (2 inch or 3 inch).
Set the correct position as follows.
(2) Set media so as not to tilt.
⇒Roll media : Operation Manual P.2-10 Step9,10
Pull a roll media out softly until the media is locked lightly.
On the locked position, pull some places of the media lightly and pull it out evenly.
When pulling the media, do not unlock.
After checking, push the clamp lever down.
(3) Check the position of media press.
⇒Roll media : Operation Manual P.2-11 Step11 Leaf media : Operation Manual P.2-14 Step4
When the media is correctly set, the media press on the right is set as the figure below.
• Wrong setting of media could break the head.
⇒Refer to another sheet “Note for Roll Media Setting Procedure”.
• Do not set media at the position which the media press touches the side plate on the right.
As media may tilt and be lifted, it could break the head.
• If a media is misaligned to the right more than fixed position, a warning is displayed. Set the
media again.
Roll holder
Basis
Setting position of
3inch media core
Setting position of
2inch media core
Roll Holder Side (The back of this machine)
Roll Holder
Set Position
3 Inch Roll Media
2 Inch Roll Media
Set the base position
of roll holder within
this range.
Media
Media Press
S idepla te on
theright
Media press position:
8 to 18 mm from the side plate on the right.
(For the variation of the inside diameter of media roll,
it ranges as above.)
***** ERROR 50 *****
MEDIA SET POSITION
