MIMAKI UJV100-160 Maintenance manual

You can also download the latest manual from official website.
MIMAKI ENGINEERING CO., LTD.
https://mimaki.com/ D203468-17
Original instructions

TABLE OF CONTENTS
2
Introduction ..................................................................................... 3
To Ensure Safe Use ....................................................................... 4
Symbols ................................................................................................ 4
Maintenance
1. Maintenance Precautions ........................................................... 6
2. Maintenance Methods ................................................................ 7
Maintenance Items and Timing............................................................. 7
Ink Maintenance ................................................................................... 8
White Ink Maintenance ......................................................................... 8
Wiper Cleaning ..................................................................................... 9
Cap Rubber Cleaning ......................................................................... 10
NCU Cleaning..................................................................................... 11
Carriage Underside Cleaning ............................................................. 12
Automatic Correction Sensor (DAS) Cleaning.................................... 13
Ink Discharge Channel Cleaning ........................................................ 14
Media Sensor Cleaning ...................................................................... 15
Media Holder Cleaning ....................................................................... 16
Platen Cleaning .................................................................................. 16
Cover (Exterior) Cleaning ................................................................... 17
When this Printer is Left Unused for a Long Time .............................. 17
3. Consumable Item Replacement ............................................... 20
Wiper Replacement ............................................................................ 20
Cap Replacement ............................................................................... 21
Cap Absorber Replacement ............................................................... 22
LED Glass Replacement .................................................................... 24
Pinch Roller Replacement .................................................................. 25
Media Holder Replacement ................................................................ 25
Media Cutter Replacement ................................................................. 28
Waste Ink Tank Replacement............................................................. 29

3
Introduction
Thank you for purchasing the UV-LED curable inkjet printer UJV100-160.
Read the Request for Care and Maintenance ("this document" hereinafter) thoroughly and make sure you
understand its contents to ensure safe and correct use of the product.
Please note that the illustrations contained in this manual are intended to show functions, procedures, or
operations and may sometimes differ slightly from the actual machine.
Unauthorized reproduction of any portion of this document is strictly prohibited.
© 2020 MIMAKI ENGINEERING Co., Ltd.
lDisclaimers
• MIMAKI ENGINEERING REJECTS ALL LIABILITY FOR DAMAGE ARISING DIRECTLY OR
INDIRECTLY FROM THE USE OF THE UJV100-160 ("THIS MACHINE" HEREINAFTER), WHETHER
OR NOT THE PRODUCT IS FAULTY.
• MIMAKI ENGINEERING REJECTS ALL LIABILITY FOR DAMAGE, DIRECT OR INDIRECT, TO
MATERIALS CREATED WHILE USING THIS MACHINE.
• USING THIS MACHINE IN CONJUNCTION WITH DEVICES OTHER THAN THOSE RECOMMENDED
BY MIMAKI ENGINEERING MAY RESULT IN FIRE OR ACCIDENTS. SUCH INCIDENTS ARE NOT
COVERED BY THE PRODUCT WARRANTY. MIMAKI ENGINEERING REJECTS ALL LIABILITY FOR
DAMAGE, DIRECT OR INDIRECT, ARISING FROM SUCH INCIDENTS.
• USE ONLY GENUINE MIMAKI ENGINEERING INK AND MAINTENANCE LIQUID. USE OF OTHER
PRODUCTS MAY RESULT IN FAILURES OR REDUCE PRINT QUALITY. SUCH INCIDENTS ARE
NOT COVERED BY THE PRODUCT WARRANTY. MIMAKI ENGINEERING REJECTS ALL LIABILITY
FOR DAMAGE, DIRECT OR INDIRECT, ARISING FROM SUCH INCIDENTS.
• DO NOT ATTEMPT TO REFILL THE INK BOTTLES WITH UNAUTHORIZED INK. SUCH INCIDENTS
ARE NOT COVERED BY THE PRODUCT WARRANTY. MIMAKI ENGINEERING REJECTS ALL
LIABILITY FOR DAMAGE, DIRECT OR INDIRECT, ARISING FROM SUCH INCIDENTS.
• AVOID USING UV-LED UNITS OR UV POWER SUPPLY UNITS OTHER THAN THOSE SPECIFIED BY
MIMAKI ENGINEERING. USING DEVICES OTHER THAN GENUINE MIMAKI ENGINEERING
DEVICES MAY RESULT IN FAILURE, ELECTRIC SHOCK, OR FIRE. SUCH INCIDENTS ARE NOT
COVERED BY THE PRODUCT WARRANTY. MIMAKI ENGINEERING REJECTS ALL LIABILITY FOR
DAMAGE, DIRECT OR INDIRECT, ARISING FROM SUCH INCIDENTS.

4
To Ensure Safe Use

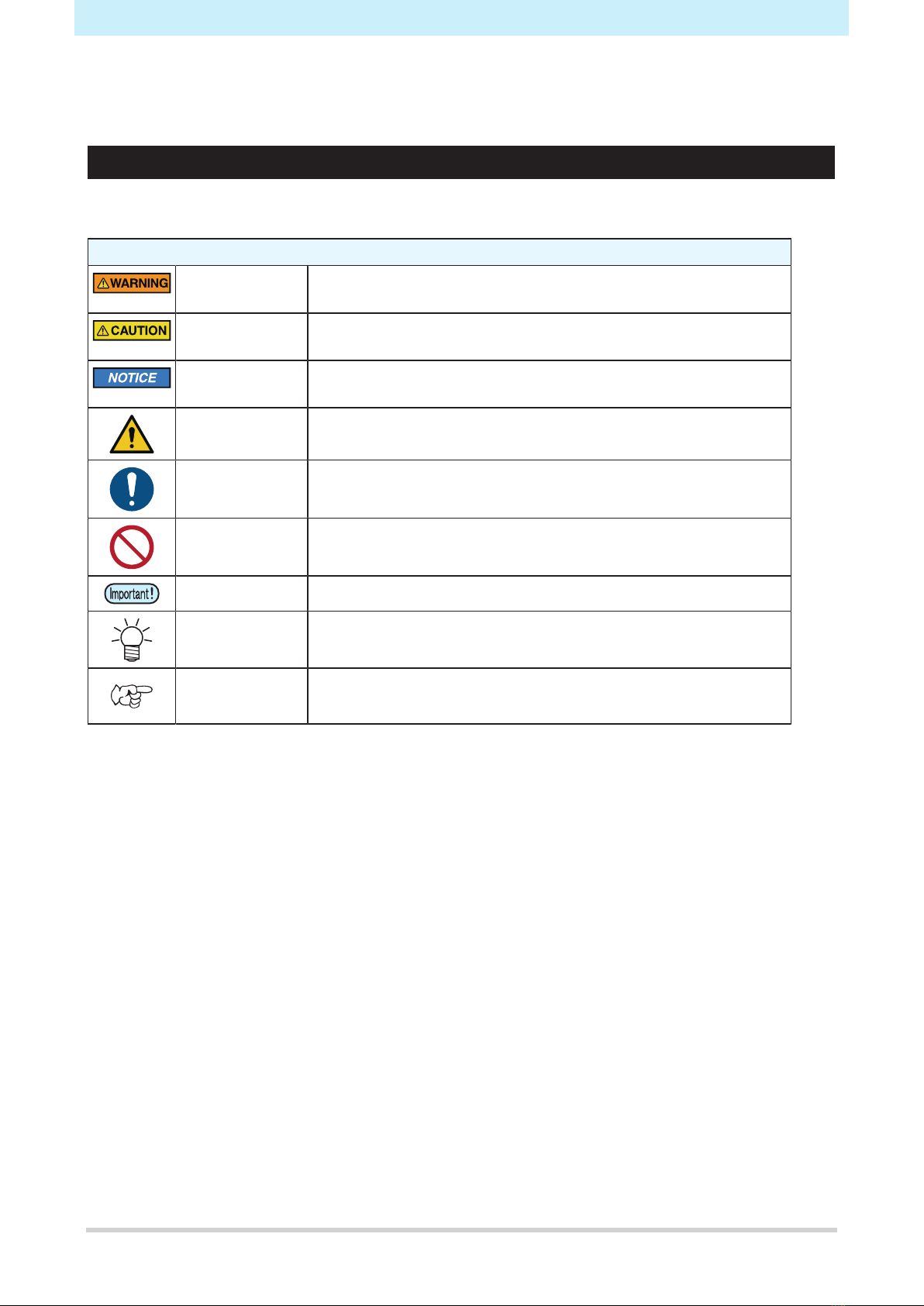

Symbols
In this manual, the symbols indicate and explain precautions. Make sure you fully understand the meaning of
each symbol and use the machine safely and correctly.
Explanation
Warning Indicates a potential hazard that may result in death or serious injury
if handled improperly or if instructions are disregarded.
Caution Indicates a potential hazard that may result in minor or moderate
injury if handled improperly or if instructions are disregarded.
Notice Indicates a potential hazard that may result in property damage if
handled improperly or if instructions are disregarded.
Warning sign Indicates something that requires attention. Warning specifics are
drawn inside the symbol.
Mandatory action
sign
Indicates an action that must be carried out. The specifics of the
mandatory action are drawn inside the symbol.
Prohibition sign Indicates a prohibited action. The specifics of the prohibited action
are drawn inside the symbol.
Important Indicates important information related to use of this machine.
Tip Indicates useful reference information.
Reference
information
Indicates the corresponding page for related information.

To Ensure Safe Use
5
Maintenance
To ensure years of precise performance, maintain the machine periodically based on frequency of use.
Read the maintenance precautions thoroughly before maintaining this product.

1. Maintenance Precautions
6
1. Maintenance Precautions
• This machine includes parts that must be replaced periodically. We therefore recommend taking
out a maintenance contract. Carry out maintenance periodically and replace consumable items
to prevent quality defects and accidents.
• Clean periodically. Debris and dust will accumulate on electrical components when the machine
is used for extended periods. There is a risk of failure, electric shock, or fire due to current
leakage.
• Do not clean by blowing—e.g., avoid using air blowers. Doing so may lead to failure, electric
shock, or fire involving the machine if airborne debris or dust gets inside electrical components.
Wipe using a soft cloth soaked in diluted neutral detergent and thoroughly wrung out. A vacuum
cleaner may also be used for cleaning.
• Be careful to prevent liquids from getting inside the machine. Otherwise there is a risk of failure,
electric shock, or fire.
• The UV-LED unit becomes extremely hot. Be careful not to touch the LED after it has been
turned off until it has sufficiently cooled.
• For heavy soiling, wipe using a soft cloth soaked in diluted neutral detergent and thoroughly
wrung out.
• Pay close attention to ventilation and be sure to wear safety glasses, gloves, and a mask when
handling ink, maintenance liquid, waste ink, or other solutions used with the machine. Leaking
ink may adhere to the skin or get into the eyes or mouth.
• Never touch the print head nozzle surface. Do not allow water or alcohol to come into contact
with the print nozzle surface. This will increase the risk of machine failure or ejection failures
(e.g., nozzle clogging or deflection).
• Do not use cotton swabs to clean around the head or carriage. Fibers from cotton swabs may
adhere to the head nozzle surface and lead to ejection failures (e.g., nozzle clogging or
deflection).
• Do not splash ink or maintenance liquid on the covers. Exposure to splashing ink or
maintenance liquid may damage or deform the cover.
• Do not use benzine, thinner, or any chemical agent containing abrasives. Use of these
chemicals may result in damage to or deformation of parts.
• Do not move the carriage by hand. To move the carriage, use the carriage out function on the
menu.

2. Maintenance Methods
7
2. Maintenance Methods
Maintenance Items and Timing
Timing Item
Periodically Shake the Ink bottle. "Ink Maintenance"(P. 8)
Before starting the
week's work
Perform white ink maintenance. "White Ink Maintenance"(P. 8)
At the end of the work
week
Clean the wiper and wiper bracket. "Wiper Cleaning"(P. 9)
Clean the cap rubber. "Cap Rubber Cleaning"(P. 10)
Clean the NCU. "NCU Cleaning"(P. 11)

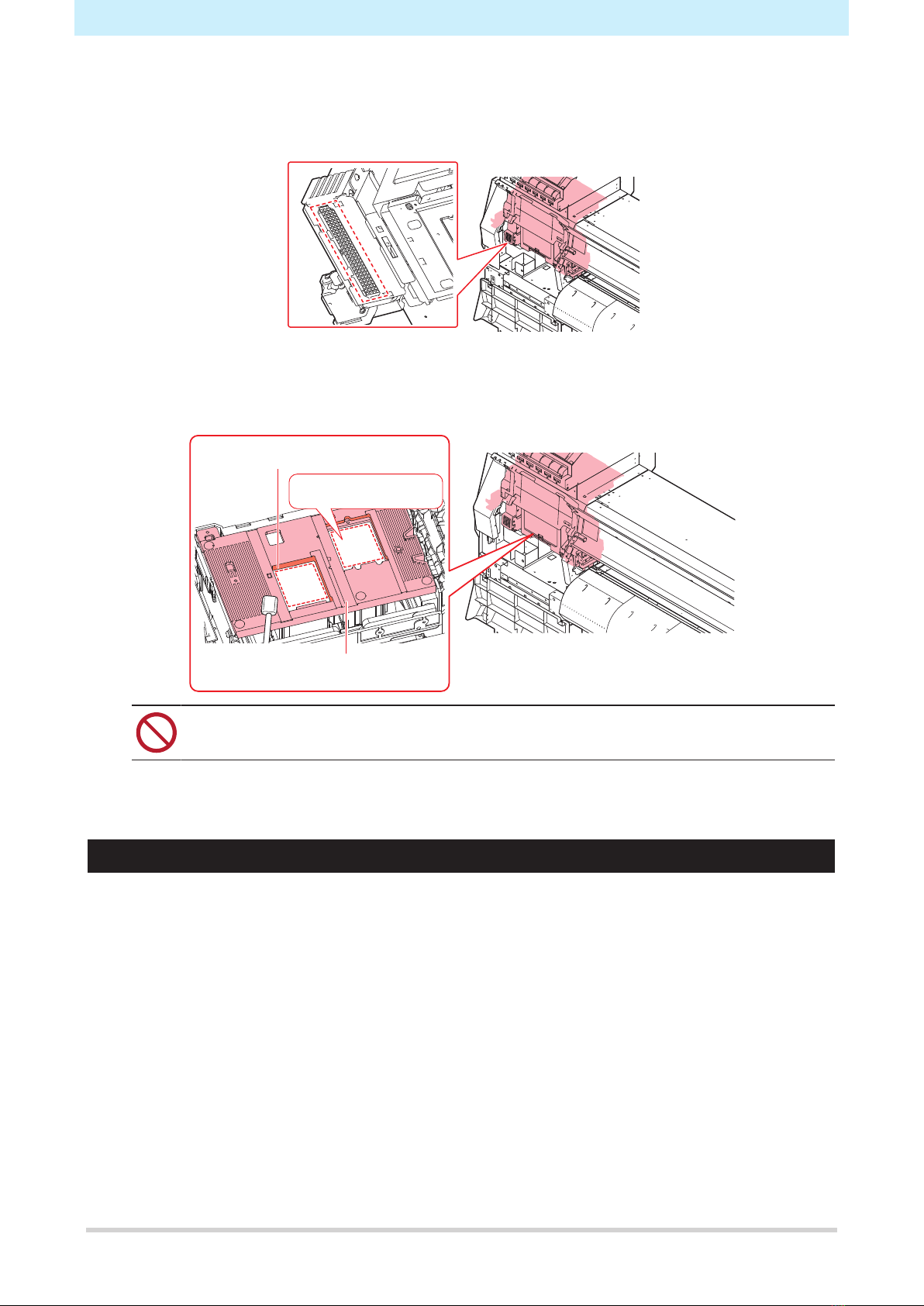

Clean the underside of the carriage. "Carriage Underside Cleaning"(P. 12)
Clean the underside of the UV-LED lamp. Carriage Underside Cleaning
Clean the DAS sensor. "Automatic Correction Sensor (DAS)
Cleaning"(P. 13)
Clean the ink discharge channel. "Ink Discharge Channel Cleaning"(P. 14)
Clean the media sensor. "Media Sensor Cleaning"(P. 15)
Clean the media holder. "Media Holder Cleaning"(P. 16)
Clean the platen. "Platen Cleaning"(P. 16)
Clean the cover (exterior). "Cover (Exterior) Cleaning"(P. 17)
Check the waste ink levels in the waste ink tank. "Replacing the Waste Ink
Tank"(P. 30)
When not used for
more than a week
Clean the wiper and cap and wash the ink discharge channels. After cleaning,
store without turning off the main power supply. "When this Printer is Left
Unused for a Long Time"(P. 17)
Items Required for Maintenance
To order replacement consumable items, contact your local dealer or our service office. For more information
on consumable items, refer to our website (https://mimaki.com/supply/inkjet.html).
• Do not store consumable items in locations where children may enter.

2. Maintenance Methods
8
Ink Maintenance
If ink constituents are sedimented, the ink density may become uneven. We recommend shaking the Ink
bottle periodically to keep printing consistent.
UV ink: once a month.
UV white ink: once a day.
• This machine counts the time elapsed after stirring the white ink. The "Shake White Ink Bottle"
message appears when a preset count is reached. If the message appears, shake the white ink
bottle by following the instructions below:
When the message appears: every 24 hours (or when the power is turned on if the power was
turned off).
lShaking the Ink bottle
1Shake the Ink bottle to the left and right slowly at least 20 times.
• Tighten the ink bottle lid securely, then shake the bottle slowly from left to right to ensure that the
ink moves inside, holding the ink bottle lid with a paper towel.
Repeat
• Shake slowly. If the bottle is shaken too violently, ink may leak out or the air mixed in the
ink may cause nozzle clogging.
• If the ink bottle is partially used, tilt it slowly until the ink bottle is upright.
White Ink Maintenance
White ink constituents are more easily sedimented than other ink colors. If ink constituents are sedimented,
the ink density may become uneven. Perform maintenance once a week as follows before using the
machine.
1Shake the white ink Ink bottle.
• "Ink Maintenance"(P. 8)
2Close the front cover.
• Be sure to close the front cover. Ink stirring starts.
3On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
4Select [White Maintenance], then press the [ENTER] key.
5Remove the media, then press the [ENTER] key.

2. Maintenance Methods
9
6Press the [ENTER] key.
• Discharging/filling/cleaning starts automatically.
• The elapsed time is displayed.

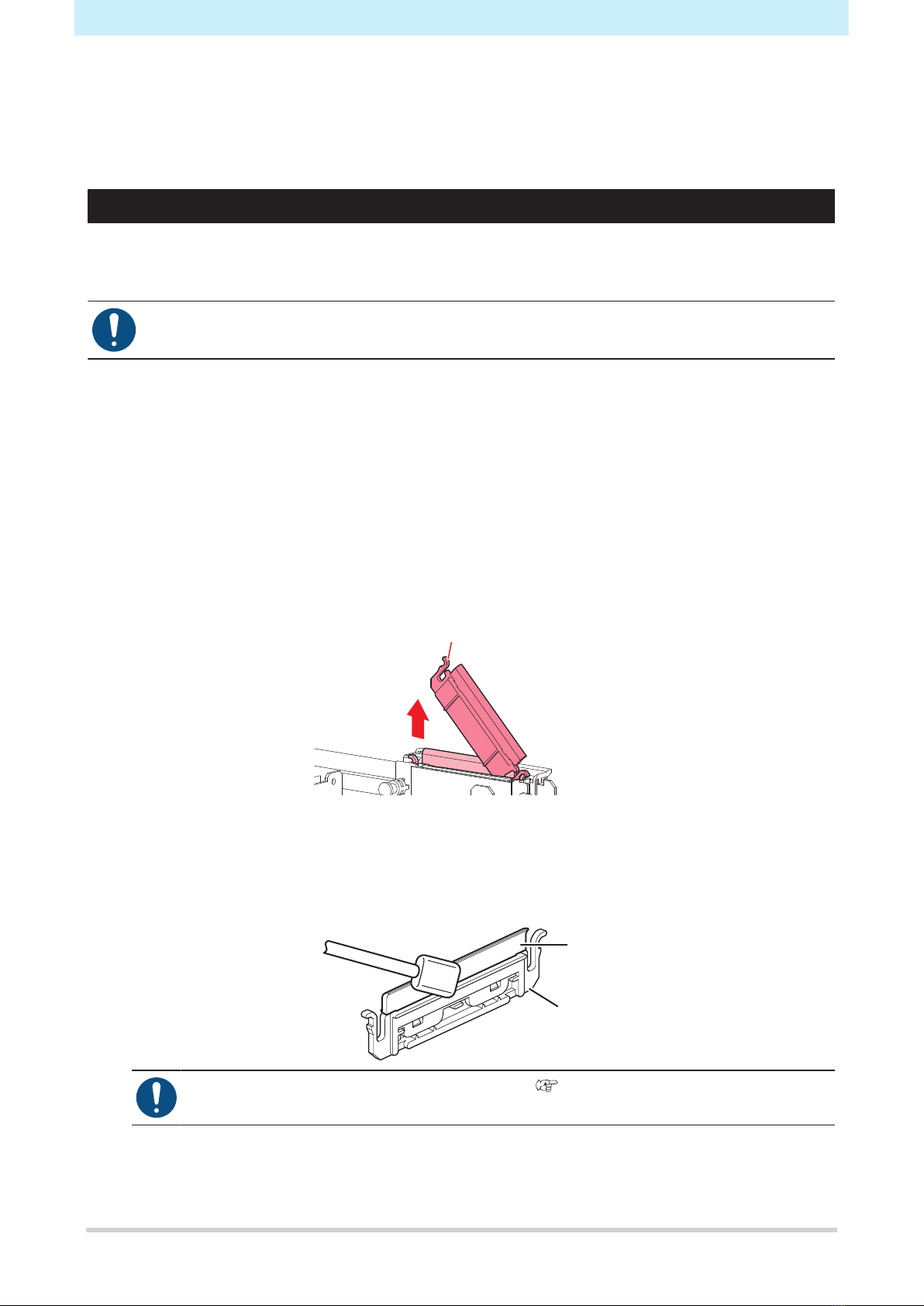

Wiper Cleaning
The wiper wipes off ink adhering to the print head nozzle surface. Continuing to use the dirty wiper may
cause the wiper to which dried ink and dust are attached to rub against the nozzle surface, leading to printing
defects (e.g., nozzle clogging or deflection).
• Be careful to avoid leaving fragments from the cleaning stick behind when cleaning. These
fragments will increase the risk of ejection failures (e.g., nozzle clogging or deflection).
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER] key.
• The carriage moves over the platen.
3Open the front cover.
4Remove the wiper.
• Hold the lug at the rear of the wiper bracket, then pull out the wiper.
Lug
5Clean the wiper and bracket.
• Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe
off the maintenance liquid. Make sure none remains.
Wiper
Bracket
• Replace dirty or warped wipers with new ones. "Wiper Replacement"(P. 20)

2. Maintenance Methods
10

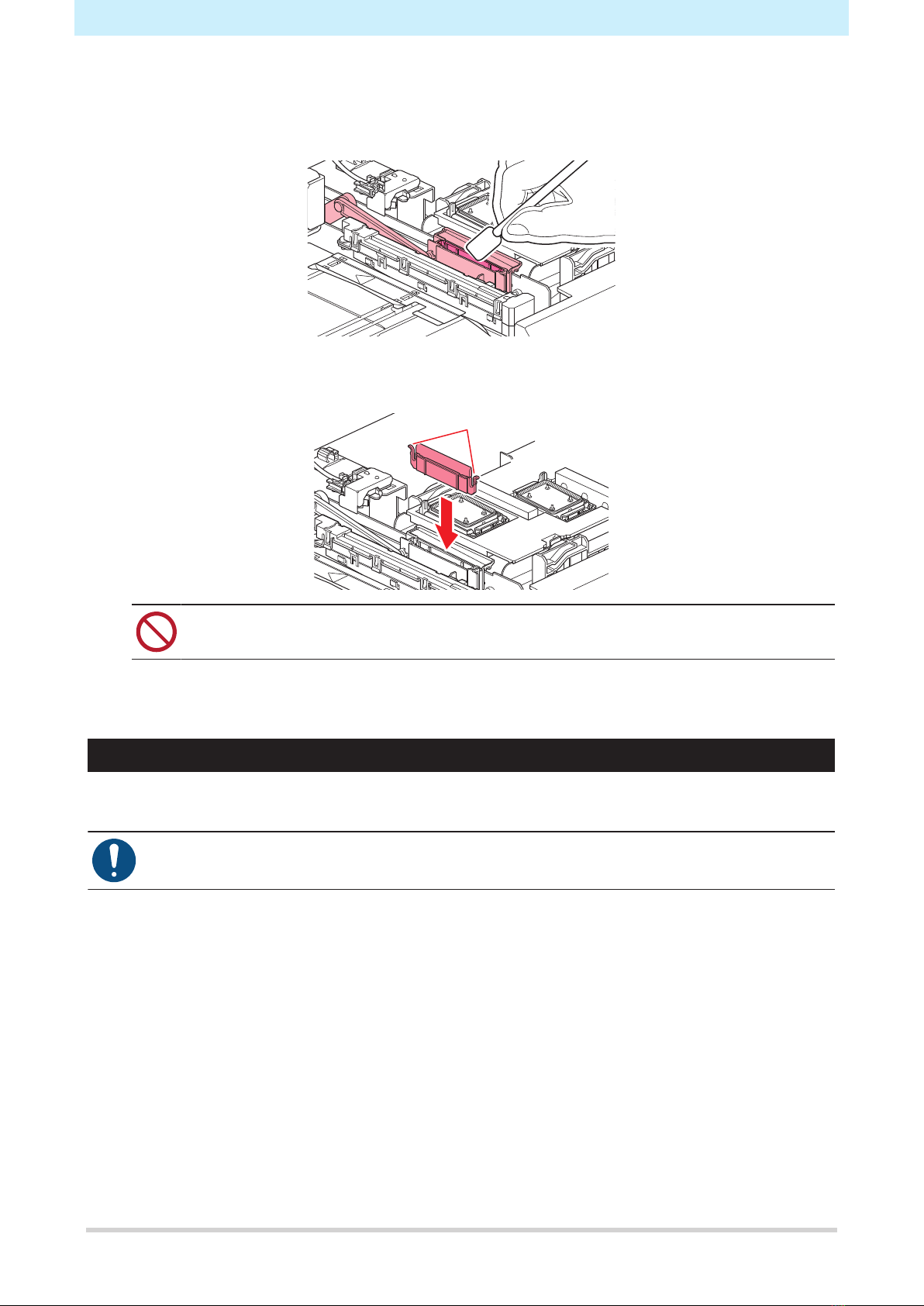

6Clean the wiper slider.
• Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe
off the maintenance liquid. Make sure none remains.
7Mount the wiper at the original position.
Lug
• Do not remove the absorbent material in the absorbent material case. Doing so may result
in leaking ink.
8Once cleaning is complete, close the cover, then press the [ENTER] key.
Cap Rubber Cleaning
The cap prevents the print head nozzle surface from drying out. Continuing to use a dirty cap may affect ink
take-up and lead to print defects (e.g., nozzle clogging, deflection).
• Be careful to avoid leaving fragments from the cleaning stick behind when cleaning. These
fragments will increase the risk of ejection failures (e.g., nozzle clogging or deflection).
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER] key.
• The carriage moves over the platen.
3Open the front cover.

2. Maintenance Methods
11
4Clean the cap rubber.
• Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe
off the maintenance liquid. Make sure none remains.
Cap rubber

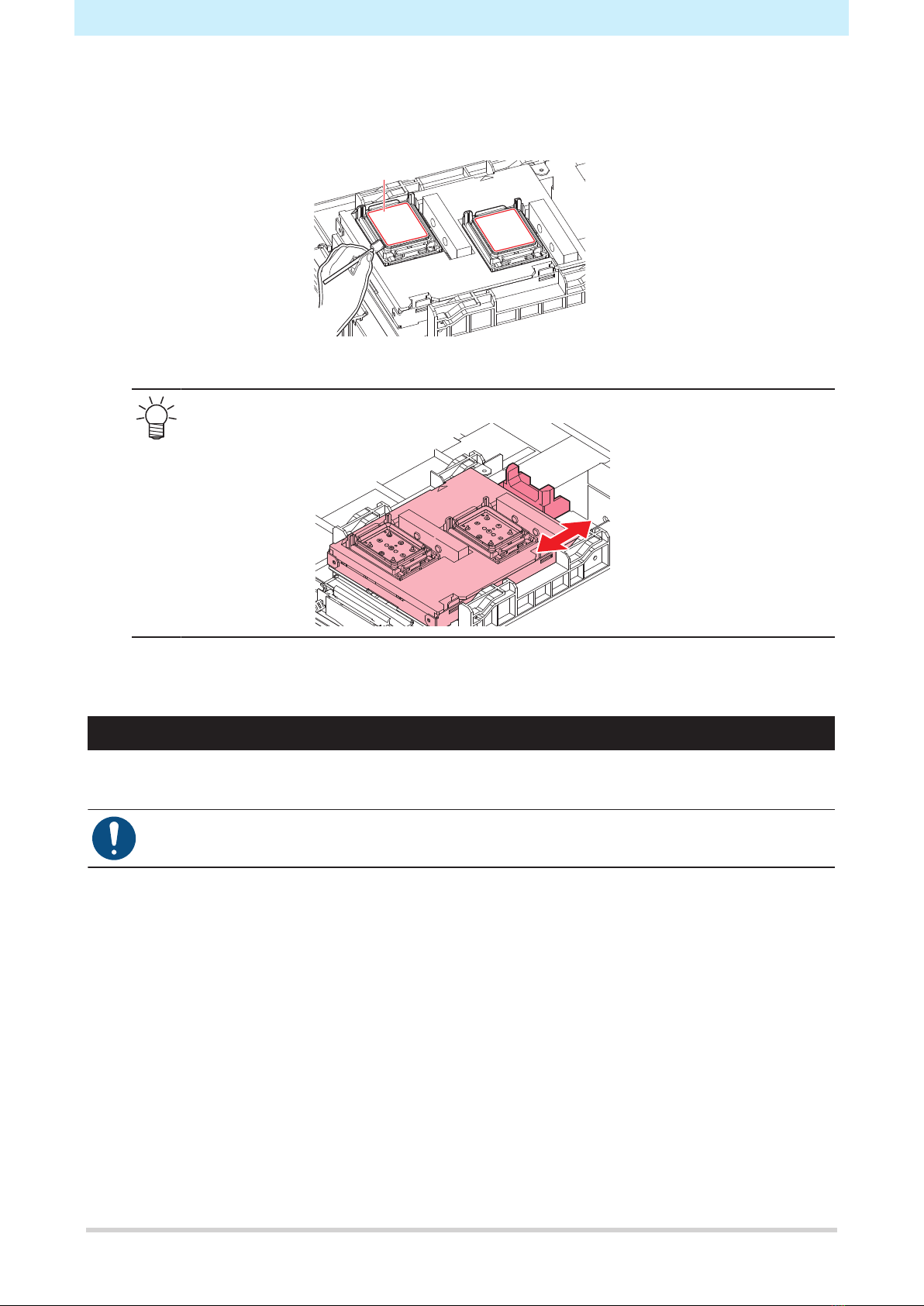

5Check to confirm that the cap slider is not tilted once cleaning is complete.
• If the cap slider is tilted, move the slider block to the left or right to correct the tilt.
6Close the front cover, then press the [ENTER] key.
NCU Cleaning
The NCU uses a sensor to monitor the ink droplets ejected from the print head nozzles. Continuing to use
the dirty NCU may prevent the nozzle check function from operating correctly.
• Be careful to avoid leaving fragments from the cleaning stick behind when cleaning. These
fragments will increase the risk of ejection failures (e.g., nozzle clogging or deflection).
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER] key.
• The carriage moves over the platen.
3Open the front cover.

2. Maintenance Methods
12
4Clean the NCU.
• Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe
off the maintenance liquid. Make sure none remains.
• Insert the cleaning stick as far as the line shown in the illustration.
5Once cleaning is complete, close the cover, then press the [ENTER] key.
Carriage Underside Cleaning
The underside of the carriage becomes coated with ink wiped off by the wiper. Continuing to use the dirty
carriage underside will rub dried ink and attached dust on to the media, resulting in contaminated prints.
The print head uses an extremely delicate mechanism. Take great care when handling it.
• Be careful to avoid leaving fragments from the cleaning stick behind when cleaning. These
fragments will increase the risk of ejection failures (e.g., nozzle clogging or deflection).
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Maint. Space], then press the [ENTER] key.
• The carriage moves to the maintenance space.
3Open the maintenance covers.

2. Maintenance Methods
13
4Clean the UV-LED lamp.
• Wipe off any ink adhering using a cleaning stick moistened with maintenance liquid. Wipe off the
maintenance liquid. Make sure none remains.
5Clean around the print head.
• Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe
off the maintenance liquid. Make sure none remains.
Clean the print head sides (dark red area)
using a cleaning stick.
Never touch the nozzle
surface!
Clean using a cleaning stick or soft cloth.
• Never touch the print head nozzle surface.
6Once cleaning is complete, close the cover, then press the [ENTER] key.
Automatic Correction Sensor (DAS) Cleaning
The DAS sensor is located on the carriage underside. If dust or debris accumulates on the sensor, an error
may occur in the automatic correction function (Automatic correction of drop position).
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Maint. Space], then press the [ENTER] key.
• The carriage moves to the maintenance space.

2. Maintenance Methods
14
3Open the maintenance covers.
4Clean the DAS sensor.
• Wipe clean using cotton swabs or a soft cloth.
• For heavy soiling, wipe using a soft cloth soaked in diluted neutral detergent and
thoroughly wrung out.
5Once cleaning is complete, close the cover, then press the [ENTER] key.
Ink Discharge Channel Cleaning
Clean the ink discharge channel regularly to prevent clogging of the ink discharge channel below the cap.
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Disway Wash], then press the [ENTER] key.
• The carriage moves over the platen.
• “Fill the Liquid. Exit Next [ENT]” appears on the display.
3Open the front cover.

2. Maintenance Methods
15

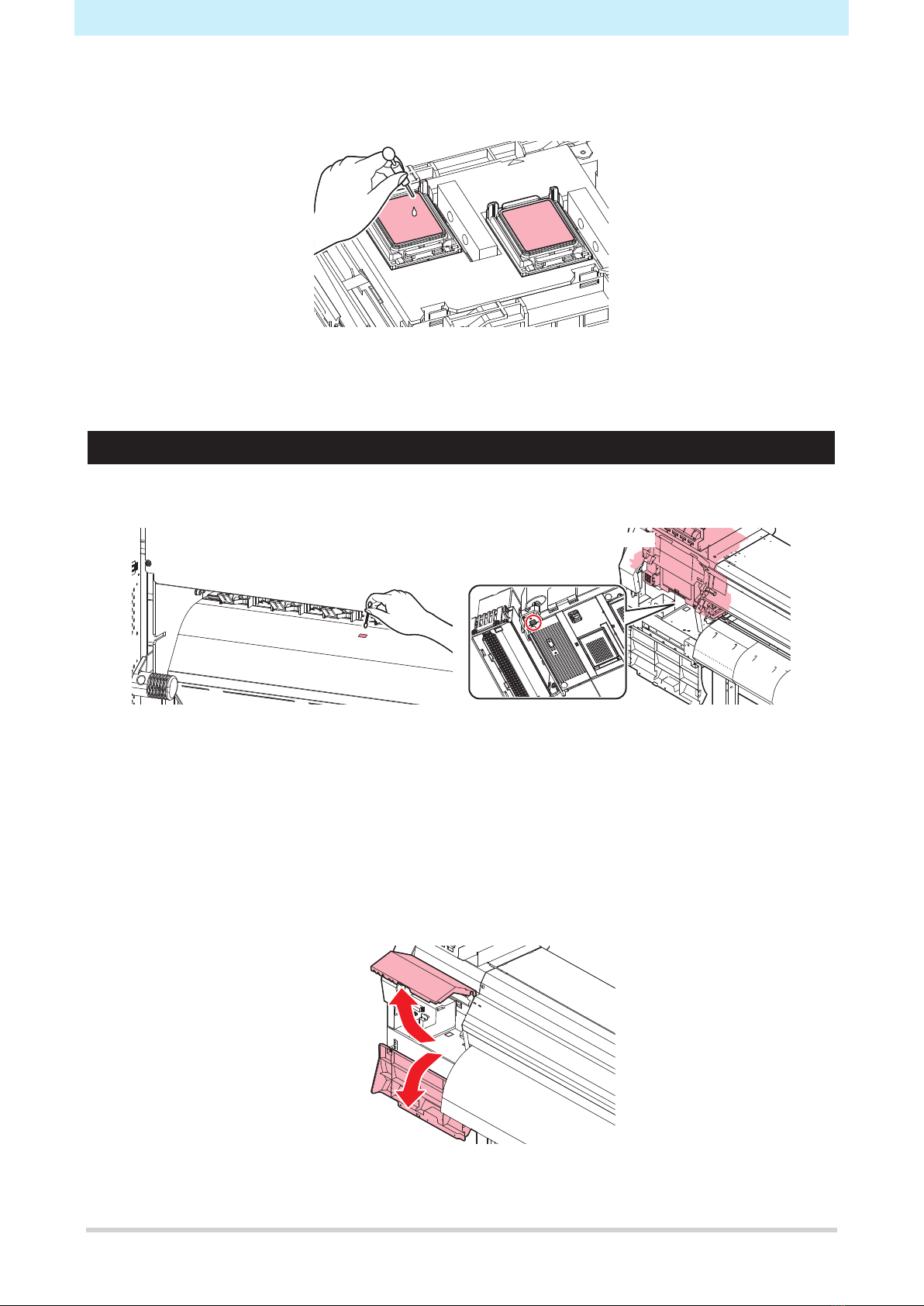

4Fill the cap with maintenance liquid.
• Use a syringe to draw up some maintenance liquid and fill it until it almost overflows from the cap.
5Close the front cover, then press the [ENTER] key.
• Pump tube (ink discharge channel below the cap) washing starts.
Media Sensor Cleaning
Media sensors are located on the rear cover and carriage underside. The media cannot be detected
correctly if dust or debris accumulates on the sensors. Remove any debris using cotton swabs or a soft cloth.
Rear of product Carriage underside
lCleaning the carriage underside sensor
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Maint. Space], then press the [ENTER] key.
• The carriage moves to the maintenance space.
3Open the maintenance covers.
4Clean the media sensor.

2. Maintenance Methods
16
5Once cleaning is complete, close the cover, then press the [ENTER] key.
Media Holder Cleaning
• Turn off the main power supply and unplug the power cable before carrying out maintenance.
• Be careful to prevent liquids from getting inside the machine. Otherwise there is a risk of failure,
electric shock, or fire.
Continuing to use the dirty platen will prevent proper feeding of the media. It will also cause dried ink and
attached dust to rub against the head nozzle surface and lead to ejection failures (e.g., nozzle clogging or
deflection).
Media holder
• For heavy soiling, wipe using a soft cloth soaked in diluted neutral detergent and thoroughly
wrung out.
Platen Cleaning
• Turn off the main power supply and unplug the power cable before carrying out maintenance.
• Be careful to prevent liquids from getting inside the machine. Otherwise there is a risk of failure,
electric shock, or fire.
Continuing to use the dirty platen will prevent proper feeding of the media. It will also cause dried ink and
attached dust to rub against the head nozzle surface and lead to ejection failures (e.g., nozzle clogging or
deflection).
• The grooves in which the media holder slides and the media is cut are susceptible to dust
accumulation. Remove any debris carefully.

2. Maintenance Methods
17
• For heavy soiling, wipe using a soft cloth soaked in diluted neutral detergent and thoroughly
wrung out.
Cover (Exterior) Cleaning
• Be careful to prevent liquids from getting inside the machine. Otherwise there is a risk of failure,
electric shock, or fire.
• For heavy soiling, wipe using a soft cloth soaked in diluted neutral detergent and thoroughly
wrung out.
When this Printer is Left Unused for a Long Time
Clean as follows if the product is not used for one week or longer:
Check beforehand
Is [Near End] or [Ink End] displayed?
• Maintenance liquid and ink is aspirated during the washing operation. Washing is not possible if an
error occurs during this process. Replace with new ink.
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station Maint.] > [Custody Wash], then press the [ENTER] key.
• The carriage moves over the platen.
3Open the front cover.
4Clean the wiper and bracket.
• "Wiper Cleaning"(P. 9)
5Press the [ENTER] key once cleaning is complete.
• "Cap Cleaning Completed (Next) [ENT]" appears on the display.
6Clean the cap rubber.
• "Cap Rubber Cleaning"(P. 10)
7Once cleaning is complete, close the cover, then press the [ENTER] key.
• "Fill the Liquid. Exit Next [ENT]" appears on the display.

2. Maintenance Methods
18

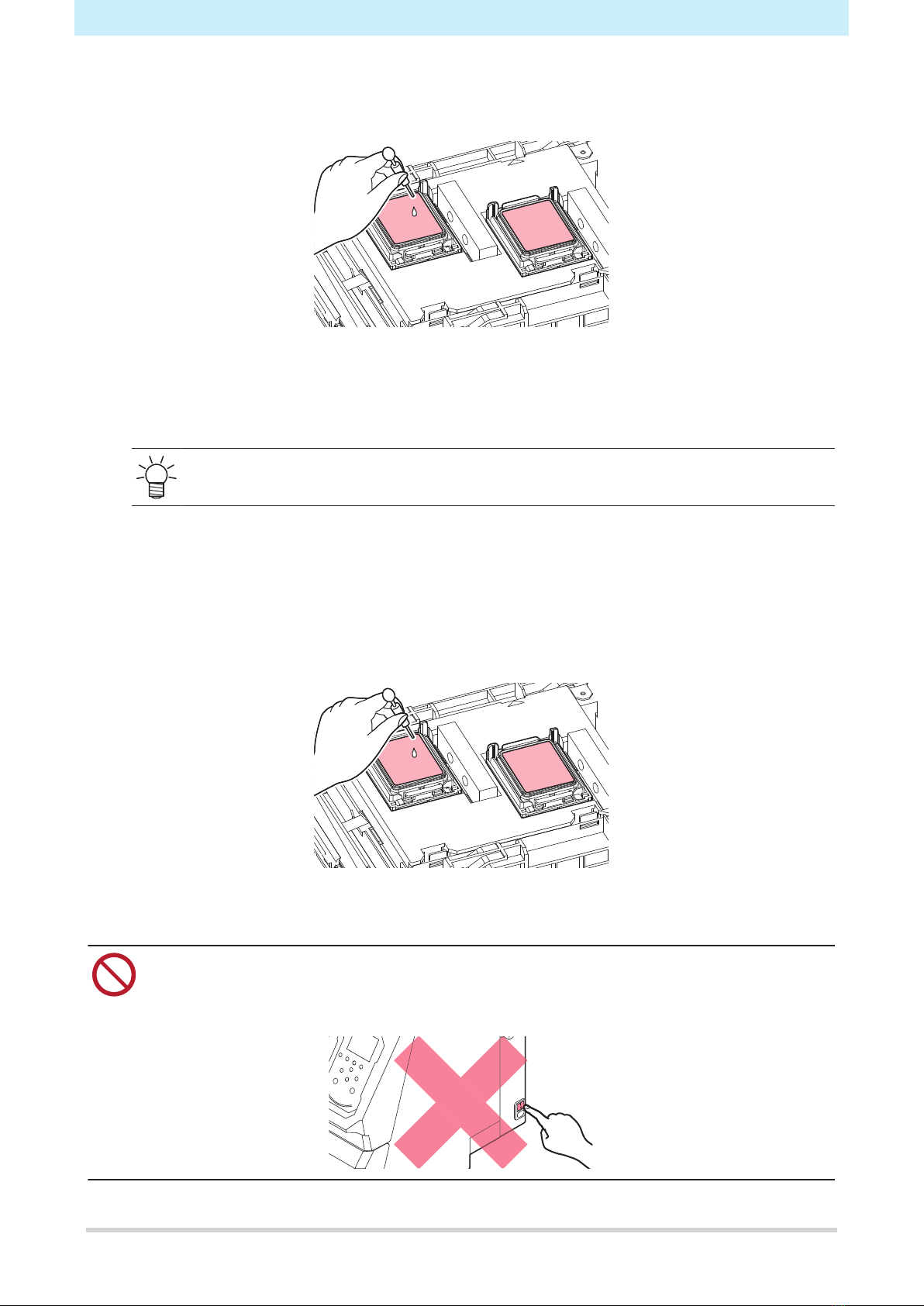

8Fill the cap with maintenance liquid.
• Use a syringe to draw up some maintenance liquid and fill until it almost overflows from the cap.
9Close the front cover, then press the [ENTER] key.
10 Set the exposure time, then press the [ENTER] key.
• Print nozzle washing starts. The elapsed time is displayed on the display.
• The leaving time can be set on firmware version 6.3 or later.
• Cleaning is performed automatically once print nozzle washing has ended.
• "Fill the Liquid. Exit Next [ENT]" appears on the display.
11 Open the front cover.
12 Fill the cap with maintenance liquid.
• Use a syringe to draw up some maintenance liquid and fill until it almost overflows from the cap.
13 Close the front cover, then press the [ENTER] key.
• Pump tube (ink discharge channel below the cap) washing starts.
• Do not turn off the main power supply. Turning off the main power supply will disable the
automatic maintenance function (including nozzle clogging prevention function and ink
discharge channel cleaning function). This will increase the risk of ejection failures (e.g., nozzle
clogging or deflection).

2. Maintenance Methods
19
• Do not leave media loaded on the platen. This may leave irregularities or ripples in the media.
When the machine is not in use, raise the clamp lever to separate the pinch rollers from the grit
rollers.
• Leaving the pinch rollers in the lowered position may cause the pinch rollers to become
deformed and prevent the media from feeding properly.
• Leaving media set in place can cause the media to be pressed down by the pinch rollers,
resulting in pinch roller marks.
• Perform the following if the "Check Waste Ink Tank" message appears on the display.
"Waste Ink Tank Replacement"(P. 29)

3. Consumable Item Replacement
20
3. Consumable Item Replacement
To order replacement consumable items, contact your local dealer or our service office. For more information
on consumable items, refer to our website (https://mimaki.com/supply/inkjet.html).
• Do not store consumable items in locations where children may enter.
• When disposing of consumable items, contact an industrial waste disposal operator or dispose
of the product in accordance with the local laws and regulations.
Wiper Replacement
This product maintains a count of the number of wiping cycles. The "Replace Wiper" message appears when
a preset count is reached. Replace dirty or warped wipers with new ones.
1"Replace Wiper" appears on the display.
2On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
3Select [Station Maint.] > [Replace Wiper], then press the [ENTER] key.
• The carriage moves over the platen.
4Open the front cover.
5Remove the wiper.
• Hold the lug at the rear of the wiper bracket, then pull out the wiper.
Lug
6Clean the wiper slider.
• Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe
off the maintenance liquid. Make sure none remains.
