Mini Gadgets BBSElectricalBox User manual

1 Version 2.1
Bush Baby Stealth Electrical Box
SKU: BBSElectricalBox

2 Version 2.1
THANK YOU FOR PURCHASING THE
BBSELECTRICALBOX
Please read this manual before operating the
camera and keep it handy.
Your purchase should include:
1 x Bush Baby Stealth Electrical Box
1 x Remote Control
1 x MicroUSB Cable
1 x AC Wall Charger
1 x Charging Adapter with Indicator Lights
1 x User Manual
1 x 16GB MicroSD Card
1 x MicroSD Card Reader

3 Version 2.1
GET FAMILIAR WITH YOUR BBS
ELECTRICAL BOX

4 Version 2.1

5 Version 2.1

6 Version 2.1
OPERATING THE CAMERA
Note: If you are not located in the US, or if you
intend to use this product anywhere other than
the US, you will need to purchase a converter in
order to use the AC wall plug in and avoid
damaging the product. Because different
countries use different voltages in their electrical
wiring, you will need a converter that adapts to
the current in your particular country.
IMPORTANT WARRANY INFORMATION: If the
warranty sticker on your device has been
removed or tampered with, your lifetime
warranty will be voided. You may be charged
fees or denied a return should this happen.
NOTICE: Allow the device to charge 12 hours on
the wall adapter.
CHARGING THE BATTERY

7 Version 2.1
1. The battery is located on the inside of
the device.
2. Disconnect the battery connector that is
connecting the battery to the circuit
board (red piece connecting black and
red wires). Be careful not to pull on the
wires as that could damage them.
3. Connect the connector on the battery to
the connector on the charging adapter
(see page 5).
4. Plug the provided USB cable into the
other end of the charging adapter.
5. Plug the other end of the USB cable into
the wall AC adapter and plug it into the
wall.
6. Wait about 12 hours.
a. The larger the battery capacity,
the longer it takes to charge.
HOW TO TURN ON THE CAMERA

8 Version 2.1
1. Point the remote control at the electrical
sticker (remote sensor), and press the
“Power button.” Make sure the door of
the unit is open. (The indicator light on
the back of the unit will turn on).
2. The camera is now in Standby Mode.
HOW TO TURN OFF THE CAMERA
1. Press the “Power Button” on the remote
control. (The indicator light will turn
off.)
2. The camera is now off.
HOW TO RECORD VIDEO
1. When the camera is in Standby Mode
press, the “Video Button” one time (see
page 4). The indicator light will flash
three times.
2. Once the indicator light turns off, the
camera is now recording video.

9 Version 2.1
3. Make sure the door of the electrical box
is open when using the remote.
HOW TO RECORD MOTION DETECTION
1. In Standby mode, press the Motion
Detection button one time (see page 4).
The indicator light will flash three times
and then turn off.
2. The unit is now in motion detection
mode and will begin recording video
once motion is detected. There will be
no LED indicator to indicate when
motion is detected.
MICROSD CARD SLOT
To access the MicroSD Card Slot, you must open
the door of the electrical box.
7. Gently push the MicroSD Card into the
slot. The gold contacts on the card will

10 Version 2.1
be inserted first, and they should face
the main circuit board. You will feel
some spring resistance before the card
clicks in to place.
a. Never force the card into the
Card Slot under any
circumstances. Otherwise, the
unit or the MicroSD card itself
will be damaged.
8. To remove the SD card, gently push the
card in so that it clicks. The internal
spring tension will eject the card.
MicroSD cards 65GB and above will require
special formatting to work. The device will not
function with these cards if they are not
properly formatted beforehand.
Visit www.mgidownloads.com/Software and
download the “guiformat.zip” file. Extract the

11 Version 2.1
files and follow the instructions in the “64GB SD
Card Formatting.pdf” document.
IMPORTANT NOTICE: Ensure that the device is off
before inserting the MicroSD card. Otherwise
potential corruption of the card file(s) may occur.
SETTING THE TIME AND DATE ON THE VIDEO
FILES
You will need to remove the MicroSD card from
your device and connect it to your computer
using the provided SD card reader.
1. Visit http://time.mgidownloads.com
2. Choose “All Bush Baby Stealth”, and your
time zone in the dropdowns and click
download.
3. Right click and “cut” the downloaded
time file.

12 Version 2.1

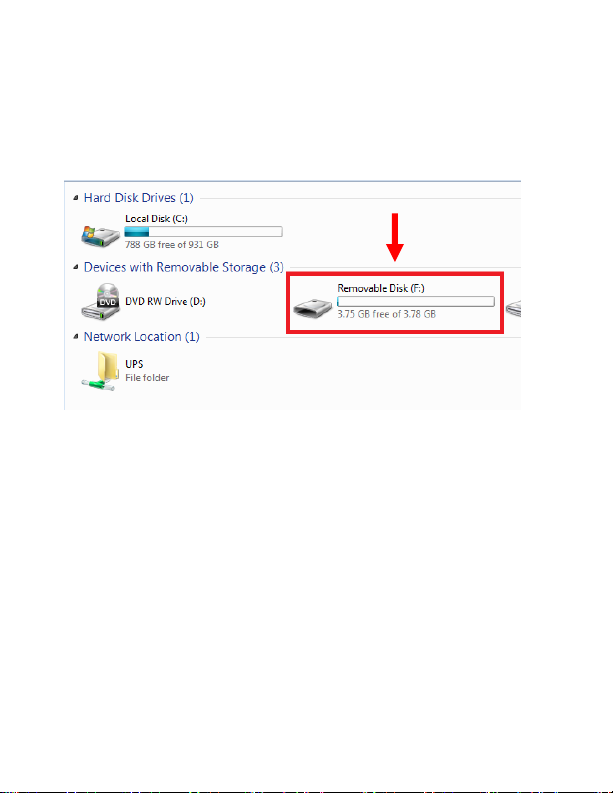

4. Locate “Removable Disk” inside the (My)
Computer folder.
a. Go to Start > Computer >
Removable Disk
5. Open the Removable Disk drive.
6. Right click with your mouse and paste
the downloaded time file.
Alternatively, if you cannot get the above
method to work, do the following:

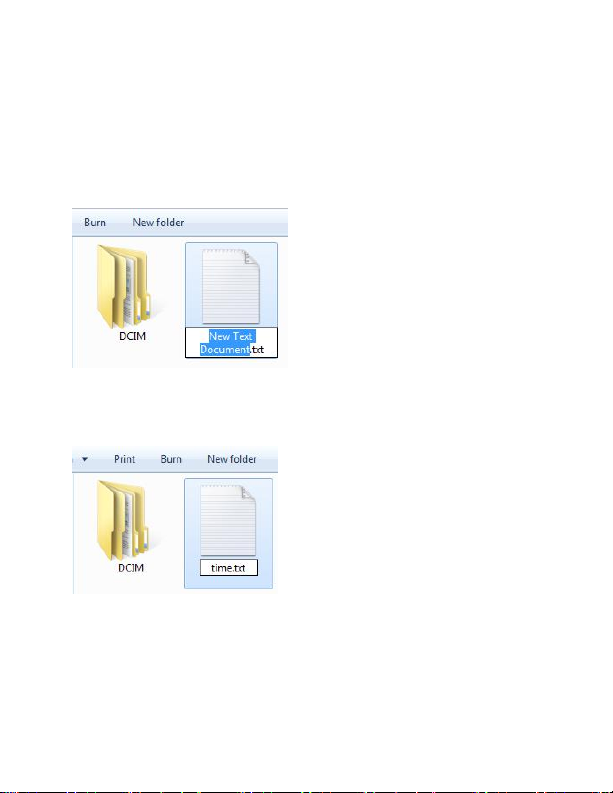

7. Right click anywhere in the blank white
space.
8. Scroll down to “New”.

13 Version 2.1
9. Click “Text Document”.
10. Rename “New Text Document” as
“time”.
The title must be in all lowercase
letters!
Before Step 8
After Step 8

14 Version 2.1
11. Open the text document.
12. Enter the date/time in the following
format:
a. Example:
2016/08/08 15:00:00
13. Save the text document.
14. Safely eject the MicroSD card from your
computer and reinsert it into your
device.
Power on the device and begin a test recording
to confirm date/time setting succeeded.
RETRIEVE THE FILES TO YOUR PC
1. Remove the MicroSD card from your
device and connect it to your computer.

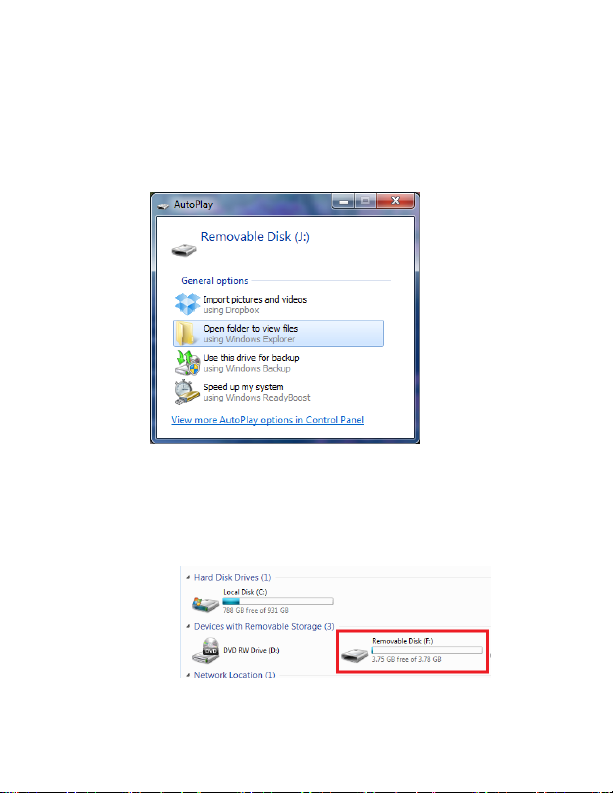

2. Locate “Removable Disk” inside the (My)
Computer folder.
AutoPlay Removable Disk > Open
folder to view files

15 Version 2.1
Or… Go to Start > Computer > Removable Disk

16 Version 2.1
3. Open the Removable Disk drive.
4. Open the [folder name] folder.
5. Double click the file you want to view.
VLC Player is recommended for
watching videos.
COPYING AND DELETING YOUR FILES
The video files created are just like any other file
on your computer, and can be managed in the
exact same manner.
To save a file, you want to select
the file, right click your mouse on
the file name, and then choose
“Copy” from the menu. Next, go
the location you want the save
the file to. Right click your mouse,
and then chose “Paste.” This will
copy the file to your computer.
To delete a file, right click your
mouse on the file name and
choose “Delete” from the menu.

17 Version 2.1
You can quickly select all of the
files by pressing “CTRL+A” on
your keyboard.
If you are using MAC OS X, you
must empty the trashcan after
you delete a file. If this is not
done, the SD card will fill with
hidden files, and the device will
no longer record new files.

18 Version 2.1
TROUBLESHOOTING
THE DEVICE WON’T TURN ON
Charge the device for at least 12 hours
before the first use.
Make sure the charging cable is securely
inserted into the device and into the
power source.
THE DEVICE ISN’T CHARGING
Replace the battery or charging cable.
If you are charging via a wall power
source, you may need to charge via your
PC.
MY COMPUTER DOESN’T RECOGNIZE THE DEVICE
Unplug the SD card from your PC and
reboot the device.

19 Version 2.1
Unplug the SD card from your PC and
reboot your PC.
Try using a different USB slot on your PC.
Replace the MicroSD card reader.
OTHER PROBLEMS
Call our technical support at 770–694–
6923

20 Version 2.1
SPECIFICATIONS
Video Resolution
1920x1080
Video Format
.AVI
Frames per Second
Up to 30 fps
Vision Angle
75°
Motion Detection
6 meters for
straight-line
distance
Photo Resolution
1600 x 1200
Photo Format
.JPG
Battery Life
90 Hours
Memory Type
External MicroSD
Card
Memory Capacity
Up to 128GB
Recording Capacity
1GB ≈ 10 mins
Player Software
VLC recommended
Operating Systems
Windows XP & Up
Mac 10.6 & Up
