MINN KOTA RIPTIDE TERROVA User manual

RIPTIDE TERROVA
BOW-MOUNT TROLLING MOTOR
Installation Instructions

2 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
INTRODUCTION
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Trolling Motors
Produced in XXXX
PRODUCT DESCRIPTION
MODEL XXXXXXX
XXV DC
XX A
SER NO YYDDDC00000
NOTICE: The serial number on your Riptide Terrova is
located inside the mount below the motor rests. EXAMPLE
THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That’s why
we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and
rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage that can
truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you catch more fish.
REGISTRATION
Remember to keep your receipt and immediately register your
trolling motor on our website at minnkotamotors.com/register.
SERIAL NUMBER
Your Minn Kota 11-character serial number is very important. It
helps to determine the specific model and year of manufacture.
When contacting Consumer Service or registering your product,
you will need to know your product’s serial number. A duplicate
copy of your serial number label has been included, which can also
be entered into the One-Boat Network App for future reference.
NOTICE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain
service by: calling Minn Kota at [phone]; returning your motor to the Minn Kota Factory Service Center; sending or taking your
motor to any Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com.
Please include proof of purchase, serial number and purchase date for warranty service with any of the above options.
MOTOR INFORMATION (For Consumer Reference Only)
Model: ___________________________________________________________________________________________________
Serial Number: _____________________________________________________________________________________________
Purchase Date: _____________________________________________________________________________________________
Store Where Purchased: ______________________________________________________________________________________
Made for iPhone®11 and iPhone X
For updated iOS, Humminbird® and Minn Kota® compatibility, visit minnkotamotors.com
Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified
in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation
of this device or its compliance with safety and regulatory standards. iPhone is a trademark of Apple Inc., registered in the U.S. and other
countries. The trademark "iPhone" is used in Japan with a license from Airphone K.K.
Android™ is a trademark of Google LLC. The Android™ robot is reproduced or modified from work created and shared by Google and used
according to terms described in the Creative Commons 3.0 Attribution License.
Made for
Android
Android
™
™

minnkotamotors.com | 3
©2022 Johnson Outdoors Marine Electronics, Inc.
SAFETY CONSIDERATIONS
Please thoroughly read the user manual. Follow all instructions and heed all safety and cautionary notices. Use of this motor is only
permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.
WARNING
You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate
and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the
responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can
respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your Minn
Kota product in an area free from hazards and obstacles.
WARNING
Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from
the power source when it is not in use or is o the water. When connecting the power-supply cables of the motor to the battery, ensure
that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor
make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts
of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking the propeller. Avoid submerging the
complete motor as water may enter the lower unit through control head and shaft. If the motor is used while water is present in the lower
unit considerable damage to the motor can occur. This damage will not be covered by warranty.
WARNING
Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects.
The motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for
floating objects. Persons who lack the ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other
substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of
the motor during use is less than 70dB(A). The overall vibration level does not exceed 2,5 m/sec2.
WARNING
When stowing or deploying the motor, keep fingers clear of all hinge and pivot points and all moving parts. In the event of unexpected
operation, remove power leads from the battery.
WARNING
It is recommended to only use Johnson Outdoors approved accessories with your Minn Kota motor. Using non-approved accessories
including to mount or control your motor may cause damage, unexpected motor operation and injury. Be sure to use the product and
approved accessories, including remotes, safely and in the manner directed to avoid accidental or unexpected motor operation. Keep all
factory installed parts in place including motor and accessory covers, enclosures and guards.

4 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
KNOW YOUR BOAT
KeelKeel
BowBow
HullHull
BowBow
SternStern
SternStern
PortPort
PortPort StarboardStarboard
StarboardStarboard
GunwaleGunwale
GunwaleGunwale
TransomTransom
InboardInboard
OutboardOutboard

minnkotamotors.com | 5
©2022 Johnson Outdoors Marine Electronics, Inc.
INSTALLATION
INSTALLATION PARTS LIST
Item /Assembly Part # Description Qty.
AA
Includes 1-4 2994864 BAG ASSEMBLY - (BOLT, NUT, WASHERS) 1
1 2263462 SCREW-1/4-20 X 2" S/S PPH ADJT 6
2 2261713 WASHER-1/4 FLAT 18-8 SS 6
3 2263103 NUT-1/4-20 NYLOCK SS 6
4 2301720 WASHER-MOUNTING - RUBBER 6
5✖MOTOR ASSEMBLY 1
6 2390802 LANYARD w/CARARBINER IP RMT U2 1
7 411690-1 TROLLING MOTOR REMOTE 1
BB
Includes 8-11 1378170 PROP KIT 2091170 PWR PRP GENII *55LB* 1
CC
Includes 8-11 1378132 PROP IND 233160 WDLS WDG II *80LB* 1
DD
Includes 8-11 1378160 PROP KIT 2341160 112# WW2 *112LB* 1
82092600 PIN-DRIVE 1.06" LG (SS) *55LB* 1
2262658 PIN-DRIVE 1" X 3/16" S/S *80LB* *112LB* 1
92151726 WASHER-5/16 STD (S/S) *55LB* 1
2091701 WASHER-PROP (LARGE) *80LB* *112LB* 1
10 2053101 NUT-PROP,NYLOC (MED) 5/16 SS *55LB* 1
2093101 NUT-PROP,NYLOC,LG, 3/8 SS *80LB* *112LB* 1
11
2091170 PROP-PWR (3 5/8") REAMED *55LB* 1
2331161 PROP-WW2 4" WELDED *80LB* 1
2341161 PROP-WW2 4.5" WELDED *112LB* 1
12 490384-4 CABLE, ETHERNET (M12-M12), 30' 1
13 490380-1 CABLE, ETHERNET PIGTAIL-700 HD 1
14 2992371 STABILIZER, BWMT ES TM ASM *72"* 1
HH 2996400 HEADING SENSOR ASSEMBLY 1
p2327135 MANUAL, RT TERROVA 3 PM 1
p2327137 MANUAL-INSTLL GD RT T3 PM 1
p2377179 INSTR.SHEET, MKA-60 STABILIZER *72"* 1
p2397110 MANUAL, WIRELESS REMOTE 1
p2397115 GUIDE-QCK REFERENCE iP 4.0 1
p2294950 INSTRUCTIONS,OBN & REMOTE PAIR 1
BATTERYMETER
TESTWITHMOTOROFF
TEST
RIPTIDETERROVA
1313
HHHH
1212
22
33
991010 881111
55
1414
77
44
11
66
AAAA
BBBB
CCCC
DDDD
INSTALLING THE RIPTIDE TERROVA
Your new Riptide Terrova comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or
coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket, refer to the
installation instructions provided with the bracket. For compatible quick release mounting brackets and to locate your nearest dealer, visit
minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this manual. Please review the parts list,
mounting considerations and tools needed for installation prior to getting started. For additional product support, please visit minnkotamotors.com.
pNot shown on Parts Diagram.
✖This part is included in an assembly and cannot be ordered individually.

6 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE RIPTIDE TERROVA
It is recommended that the motor be mounted as close to the centerline of the boat as
possible. Make sure the area under the mounting location is clear to drill holes and install
nuts and washers. Make sure the motor rest is positioned far enough beyond the edge of
the boat. The motor must not encounter any obstructions as it is lowered into the water
or raised into the boat when stowed and deployed. Consider a quick release or adapter
bracket with the installation of your motor. To view a list of accessories, please visit
minnkotamotors.com.
INSTALLING THE RIPTIDE TERROVA
a. Place the mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
motor, as removed from the box, should be in the
stowed position.
b. Remove the four sideplate screws using a #3 Phillips
screwdriver. Two of these screws will be located on
each side of the mount.
DeployedDeployed StowedStowed
Sideplate ScrewSideplate Screw
• #3 Phillips Screwdriver
• Drill
• 9/32” Drill Bit
• 7/16” Box/Open End Wrench
• 9/16” Box/Open End Wrench
• Awl or similar Marking Tool
• Flat-blade Screwdriver
• Pliers or Vice Grip
• A second person to help with
the installation
NOTICE: This motor weighs approximately
65lbs. We recommend having a second person help
with the installation.
MOUNTING CONSIDERATIONS
TOOLS AND RESOURCES REQUIRED
INSTALLATION
11b
View accessories
available for your
trolling motor at
minnkotamotors.com.

minnkotamotors.com | 7
©2022 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE RIPTIDE TERROVA
Deck of BoatDeck of Boat
KeelKeel
Power CablesPower Cables
Right SideplateRight Sideplate
Left SideplateLeft Sideplate
Base ExtrusionBase Extrusion
2c
2d
2
WARNING
Make sure the motor is mounted on a level surface and is not
connected to a power source.
4
3
c. Remove the Right Sideplate.
d. Swing the Left Sideplate out and away from the
Base Extrusion.
e. Make sure that the Power Cables from the battery
are disconnected, or that the breaker,
if equipped, is "o."
f. Place the mount as close to the centerline or keel
of the boat as possible. The motor can be installed
on either the Port or Starboard side of the boat
based on personal preference. Check placement
with the motor in the stowed and deployed positions.
Review the mounting considerations at the beginning
of the installation.

8 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE RIPTIDE TERROVA
ITEM(S) NEEDED
#4 x 6
Drilling LocationsDrilling Locations
Drilling LocationsDrilling Locations
1-1/2"1-1/2"
MinimumMinimum
GunwaleGunwale
ShaftShaft
Base ExtrusionBase Extrusion
5
6
g. When the motor is in the deployed position, make
sure that the Shaft is 1-1/2" out past the Gunwale of
the boat. The lower unit, when stowed and deployed
must not encounter any obstructions.
h. Check to be sure that the mount is level. Use the
Rubber Washers (Item #4) provided to create a level
surface if necessary.
i. With an Awl or similar tool, mark all six mounting
holes in the Base Extrusion.
j. Drill through the deck of the boat using a 9/32" Drill
Bit on the marked locations.

minnkotamotors.com | 9
©2022 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE RIPTIDE TERROVA
#1 x 6 #4 x 6 #3 x 6#2 x 6
ScrewScrew
Rubber WasherRubber Washer
Boat DeckBoat Deck
Nylock NutNylock Nut Flat WasherFlat Washer
Right SideplateRight Sideplate
Left SideplateLeft Sideplate
Base ExtrusionBase Extrusion
ITEM(S) NEEDED
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may help
prevent seizing.
7
8m
8n
8
k. Put a 1/4-20 x 3 1/2" (Item #1) Screw into each of
the drilled locations. The Screw should pass through
the Base Extrusion and the boat deck. If the Rubber
Washers (Item #4) are used, they should sit between
the Base Extrusion and boat deck. Make sure to
secure the motor with screws on each side of the
Base Extrusion.
l. Place a Flat Washer (Item #2) and then a Nylock
Nut (Item #3) at the end of each screw and secure
with a 7/16” Box End Wrench. Make sure all
hardware is secure.
m. Replace the Right Sideplate.
n. Swing the Left Sideplate back into its correct
position on the Base Extrusion.

10 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
ADVANCED GPS NAVIGATION
Sideplate ScrewSideplate Screw
9o. Replace the four sideplate screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount.
On motors with a shaft 60” or more, the Advanced GPS Navigation
Cable must exit the Coil Cord leaving three or more open coils
between where the cable exit and the motor base, as assembled by
the factory. Routing the Cable in any other manner will not allow the
motor to stow properly. When identifying features and establishing
connections, make sure to follow the critical cable routing.
Critical Cable Routing
BATTERYMETER
TESTWITHMOTOROFF
TEST
RIPTIDETERROVA
BATTERYMETER
TESTWITHMOTOROFF
TEST
RIPTIDETERROVA
At leastAt least
3 Coils3 Coils
Shafts 60 inches or more Shafts less that 60 inches
MotorMotor
BaseBase
MotorMotor
BaseBase
ShaftShaft
ShaftShaft AdvancedAdvanced
GPSGPS
NavigationNavigation AdvancedAdvanced
GPSGPS
NavigationNavigation
Your Minn Kota trolling motor and Humminbird fish finder communicate with each other to change the way you fish. Advanced GPS
Navigation oers a large array of features including controlling speed, steering, Spot-Lock, and the ability to record and retrace paths on
the water, all at your fingertips. To learn more about the GPS capabilities available with your new motor, please refer to the Advanced GPS
Navigation Owner’s Manual by visiting minnkotamotors.com.
The wireless remote and GPS controller make up the Advanced GPS Navigation system. A wireless remote comes paired to the controller
from the factory. The GPS controller contains a very sensitive compass and is where all GPS satellite and remote signals are received. The
GPS controller is located in the trolling motor Control Head and may be connected to a fish finder from an Accessory Cable that exits the
Control Head. If the Advanced GPS Navigation system will be used with a fish finder, the Ethernet link between the trolling motor and the
fish finder should be connected.
ADVANCED GPS NAVIGATION
ROUTING THE ADVANCED GPS NAVIGATION CABLE

minnkotamotors.com | 11
©2022 Johnson Outdoors Marine Electronics, Inc.
ADVANCED GPS NAVIGATION
Considerations for Connecting and Routing Advanced GPS Navigation
If Advanced GPS Navigation is pre-installed on your trolling motor, one eight-pin Advanced GPS Ethernet Connector will exit the base of the
Control Head and rest just below the Control Head next to the Coil Cord. If the Advanced GPS Navigation on the trolling motor will be used
with a fish finder, an Ethernet Cable will need to be attached to the Advanced GPS Ethernet Connector below the Control Head. Consider
the distance between the trolling motor and the fish finder to determine how to complete the Ethernet connection.
ETHERNET CABLES - Minn Kota provides one 30 ft Ethernet cable (AS EC 30E - 30' Ethernet Cable - 720073-4) with every trolling motor
equipped with Advanced GPS Navigation. The 30 ft Ethernet cable will accommodate a standard Ethernet connection for most installations
to a Humminbird fish finder and is "Apex and Solix Ready". If the distance between the trolling motor and Humminbird fish finder is
relatively small and a shorter cable is preferred, alternate cable lengths are available from humminbird.com. These options include:
• 10 ft - (AS EC 10E - 10' Ethernet Cable - 720073-2)
• 15 ft - (AS EC 15E - 15' Ethernet Cable - 720073-5)
• 20 ft - (AS EC 20E - 20' Ethernet Cable - 720073-3)
Every length of Ethernet cable plugs directly into a Solix or Apex or directly into a Helix Adapter Cable.
HUMMINBIRD HELIX ADAPTER CABLES - Minn Kota provides one Helix Adapter Cable (AS EC QDE - Ethernet Adapter Cable - 720074-1)
with every trolling motor equipped with Advanced GPS Navigation. If the Ethernet connection is being made between the trolling motor and
any Humminbird® Helix fish finder, the Helix Adapter Cable should be used. The Helix Adapter Cable directly connects the Ethernet Cable to
a Helix fish finder.
ETHERNET EXTENSION CABLES - If the 30 ft Ethernet cable provided with your trolling motor with Advanced GPS Navigation is not long
enough to reach the fish finder, an Ethernet Extension cable should be used. The Ethernet Extension cable is available from humminbird.com
and is available in a 30 ft length (AS ECX 30E - 30' Ethernet Extension Cable - 760025-1). The Ethernet Extension Cable will plug directly into
any length of Ethernet cable.
NOTICE: Minn Kota recommends routing the Ethernet
Cable through the Coil Cord when making the Ethernet
connection. The cable will be installed from the Mount to
the Control Head through the Coil Cord. Bypassing the Coil
Cord when routing the Ethernet Cable is not recommended.
CAUTION
Failure to follow the recommended wire routing for installed
features, if equipped, may cause damage to the product and
void your product warranty. Route cables away from pinch
points or other areas that may cause them to bend in sharp
angles. Routing the cables in any way other than directed may
cause damage to the cables by being pinched or severed. Do
not over-tighten cable ties as it may damage the wires.

12 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
ADVANCED GPS NAVIGATION
NOTICE: Your fish finder should be turned o
until this procedure is complete.
a. Place the motor in the deployed position.
b. Locate the Eight Pin Advanced GPS Ethernet
Connector below the Control Head. The Advanced
GPS Ethernet Connector will exit the base of the
Control Head and will rest just below the Control
Head next to the Coil Cord.

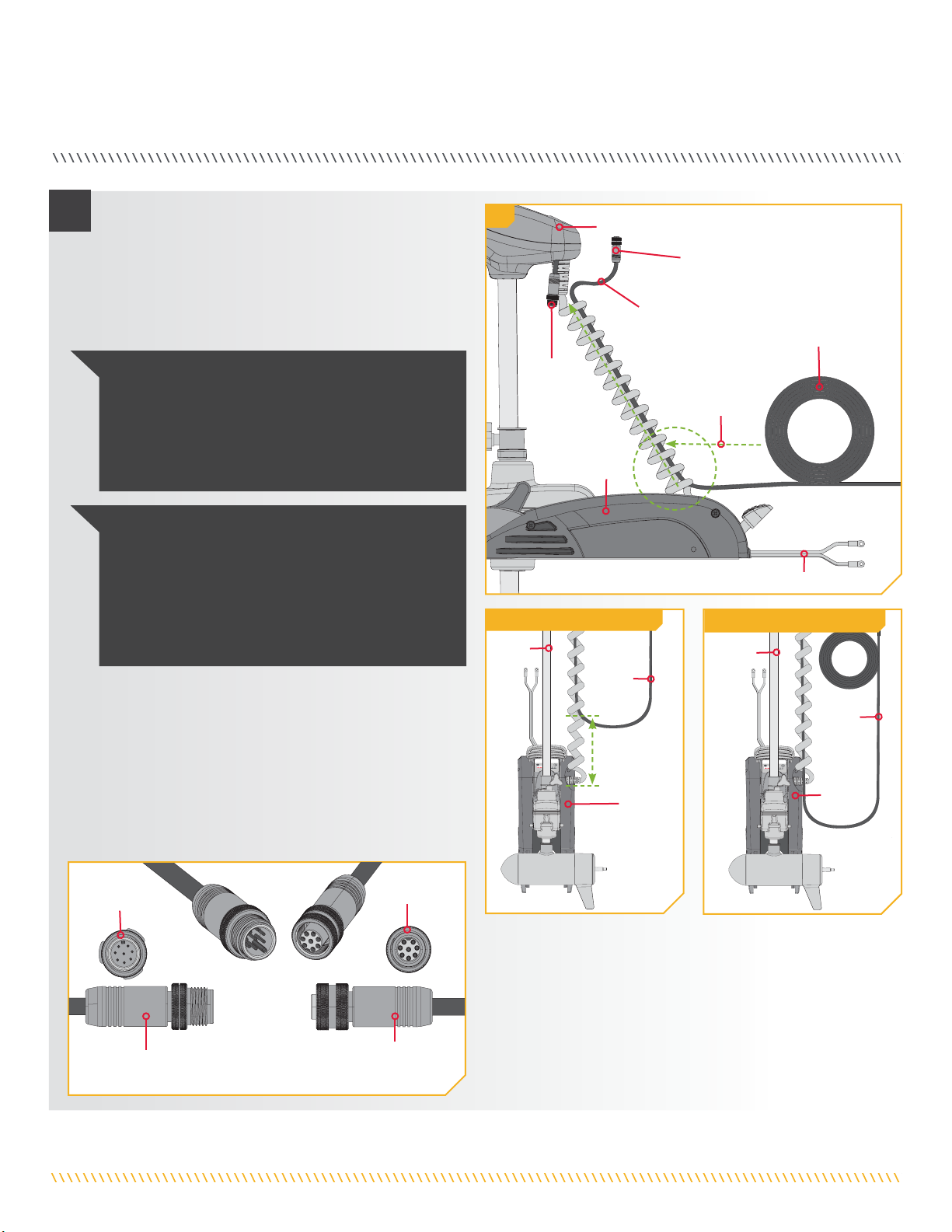

1
AdvancedAdvanced
GPSGPS
EthernetEthernet
ConnectorConnector
MountMount
ControlControl
HeadHead
Coil CordCoil Cord
Power LeadsPower Leads
Helix Adapter CableHelix Adapter Cable
(provided if needed)(provided if needed)
Ethernet CableEthernet Cable
(provided)(provided) DirectlyDirectly
to Solixto Solix
or Apexor Apex
To HelixTo Helix
GPS Ethernet Connection
Advanced GPSAdvanced GPS
EthernetEthernet
ConnectorConnector
Advanced GPSAdvanced GPS
Ethernet ConnectorEthernet Connector
Eight PinEight Pin
ConnectorConnector
CoilCoil
CordCord
ControlControl
HeadHead
PowerPower
LeadsLeads
MountMount

minnkotamotors.com | 13
©2022 Johnson Outdoors Marine Electronics, Inc.
ADVANCED GPS NAVIGATION
2
Advanced GPSAdvanced GPS
EthernetEthernet
ConnectorConnector
Advanced GPSAdvanced GPS
EthernetEthernet
ConnectorConnector
MountMount
NOTICE: The Ethernet Cable has a Receptacle for
the Advanced GPS Ethernet Connector on both ends
and either end may be connected.
2d
ITEM(S) NEEDED
#12 x 1
Eight PinEight Pin
ConnectorConnector
ControlControl
HeadHead
Coil CordCoil Cord
Ethernet CableEthernet Cable
NOTICE: The 30' Ethernet Cable (AS EC 30E -
30' Ethernet Cable - 720073-4) is provided. If an
alternate length is preferred, alternate cable lengths
are available from humminbird.com.
NOTICE: A 30' Ethernet Extension Cable
(AS ECX 30E - 30' Ethernet Extension Cable -
760025-1) is available from humminbird.com and
should be used if the standard 30' Ethernet Cable
provided with your trolling motor is not long enough
to reach the fish finder.
c. Identify the keyed Receptacle on the Ethernet
Cable (Item #12). It will be keyed to fit with the Eight
Pin Advanced GPS Ethernet Connector below the
Control Head.
Eight PinEight Pin
ConnectorConnector
EthernetEthernet
CableCable
ReceptacleReceptacle
Advanced GPS EthernetAdvanced GPS Ethernet
Connector from Trolling MotorConnector from Trolling Motor
d. Leading with either Receptacle, take the cable and
fish is through the center of the Coil Cord starting at
the end of the Coil Cord attached to the Mount and
working up towards the Control Head. Allow enough
slack in the cable to attach the Receptacle to the
Advanced GPS Ethernet Connector.

14 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
ADVANCED GPS NAVIGATION
3Control HeadControl Head
AdvancedAdvanced
GPSGPS
EthernetEthernet
ConnectorConnector
ReceptacleReceptacle
MountMount
Power LeadsPower Leads
Ethernet CableEthernet Cable
CriticalCritical
CableCable
RoutingRouting
Ethernet CableEthernet Cable
NOTICE: Minn Kota recommends routing the Ethernet
Cable through the Coil Cord when making the Ethernet
connection. The cable will be installed from the Mount
to the Control Head through the Coil Cord and parallel
to the Advanced GPS Cable. Bypassing the Coil Cord
when routing the Ethernet Cable is not recommended.
3e
BATTERYMETER
TESTWITHMOTOROFF
TEST
RIPTIDETERROVA
BATTERYMETER
TESTWITHMOTOROFF
TEST
RIPTIDETERROVA
At leastAt least
3 Coils3 Coils
Shafts 60 inches or more Shafts less that 60 inches
MotorMotor
BaseBase
MotorMotor
BaseBase
ShaftShaft
ShaftShaft
EthernetEthernet
CableCable
EthernetEthernet
CableCable
NOTICE: CRITICAL CABLE ROUTING. On motors with a
shaft 60" or more, the Ethernet Cable must exit the Coil
Cord leaving three or more open coils between where
the Cable exits and the motor base, as assembled by the
factory. Routing the Cable in any other manner will not
allow the motor to stow properly. Please see the “Critical
Cable Routing” section of this document.
e. Verify the length of your motor shaft to determine if
Critical Cable Routing applies to your trolling motor.
If the trolling motor shaft is 60 inches or more, adjust
the Ethernet Cable to exit the Coil Cord
three coils before the Motor Base. Review the
“Critical Cable Routing” section of this document
for more details.
f. To install the Ethernet Cable, align the pins on
the Advanced GPS Ethernet Connector with the
Receptacle on the Ethernet Cable. Notice the keyed
connectors. Tighten the Collar from the Ethernet
Cable to secure the connection.
g. The Ethernet Cable will plug directly into a Solix
or Helix Fish Finder or directly into a Helix
Adapter Cable.
Eight PinEight Pin
ConnectorConnector
EthernetEthernet
CableCable
ReceptacleReceptacle
Advanced GPS EthernetAdvanced GPS Ethernet
Connector from Trolling MotorConnector from Trolling Motor

minnkotamotors.com | 15
©2022 Johnson Outdoors Marine Electronics, Inc.
ADVANCED GPS NAVIGATION
4
Eight Pin ConnectorEight Pin Connector
on Solix or Apex Fishon Solix or Apex Fish
FinderFinder
EthernetEthernet
CableCable
ReceptacleReceptacle
h. If installing directly to a Solix or Apex, the connector
will be flat on the back of the fish finder display.
i. Align the Receptacle on the Ethernet Cable with the
Eight Pin Connector on the Apex or Solix fish finder.
Notice the keyed connectors. Tighten the Collar
from the Ethernet Cable to secure the connection.
Once directly installed to the Solix or Apex, the
connection is complete.
EthernetEthernet
CableCable
EthernetEthernet
CableCable
ReceptacleReceptacle
Plug intoPlug into
Helix FishHelix Fish
FinderFinder
NOTICE: Minn Kota provides one Helix Adapter
Cable (AS EC QDE - Ethernet Adapter Cable -
720074-1) with every trolling motor equipped with
Advanced GPS Navigation.
5
5k
5j
ITEM(S) NEEDED
#13 x 1
Helix Adapter CableHelix Adapter Cable
Helix Adapter CableHelix Adapter Cable
Eight PinEight Pin
ConnectorConnector
AdapterAdapter
Cable KeyedCable Keyed
ConnectorConnector
j. If installing directly to a Helix Adapter Cable
(Item #13), align the Receptacle on the Ethernet
Cable with the Eight Pin Connector on the Helix
Adapter Cable provided. Notice the keyed
connectors. Tighten the Collar from the Ethernet
Cable to secure the connection.
k. The Helix Adapter Cable directly connects the
Ethernet Cable to a Helix fish finder. Locate the Helix
Adapter Cable Keyed Connector on the back of the
fish finder. Plug the Helix Adapter Cable into the back
of the Helix fish finder to complete the connection.

16 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE PROP
Installing the Prop
a. While holding the Shipping Spacer with a pliers
or vise grip, remove the Prop Nut, Red Shipping
Washer, Prop Washer and Spacer, being careful
not to lose the Drive Pin. Reuse the Prop Nut, Prop
Washer and Drive Pin to attach the Propeller.
1CAUTION
Disconnect the motor from the battery before
beginning any prop work or maintenance.
NOTICE: The Shipping Spacer and Red Shipping
Washer are for shipping purposes only and must be
discarded. The Red Shipping Washer will rust if used
to attach the Propeller.
PropProp
NutNut
ShippingShipping
SpacerSpacer
(discard)(discard)
RedRed
ShippingShipping
WasherWasher
(discard)(discard)
PropProp
WasherWasher DriveDrive
PinPin
ITEM(S) NEEDED
#8 x 1#10 x 1#9 x 1#11 x 1
2
2b
PropellerPropeller
PropellerPropeller
2c
Prop NutProp Nut
Prop WasherProp Washer
Drive PinDrive Pin ArmatureArmature
ShaftShaft
b. Take the Drive Pin (Item #8) and slide it through the
Hole in the Armature Shaft. Position the Drive Pin
horizontally by grasping the Armature Shaft and
rotating it with the Drive Pin in place.
c. Align the Propeller (Item #11) so it is also horizontal
and parallel with the Drive Pin. Slide the Propeller
onto the Armature Shaft and Drive Pin until it is
seated against the lower unit.
d. Install the Prop Washer (Item #9) and the Prop Nut
(Item #10) onto the end of the Armature Shaft.

minnkotamotors.com | 17
©2022 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE PROP
3
CAUTION
Do not over tighten as this can damage the prop.
PropellerPropeller
Prop NutProp Nut
Prop WasherProp Washer
Drive PinDrive Pin
e. Holding the end of the Armature Shaft with a Flat
Blade Screwdriver, tighten the Prop Nut with a 9/16"
Box End or Open End Wrench.
f. Tighten the Prop Nut 1/4 turn past snug to
25-35 in-lbs.

18 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
BATTERY & WIRING INSTALLATION
BOAT RIGGING & PRODUCT INSTALLATION
For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging your
boat. Altering boat wiring should be completed by a qualified marine technician. The following specifications are for general guidelines only:
CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE
This conductor and circuit breaker sizing table is only valid for the following assumptions:
1. No more than 2 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105° C temp rated insulation.
3. No more than 3% voltage drop allowed at full motor power based on published product power requirements.
NOTICE: Wire Extension Length refers to the distance from the batteries to the trolling motor leads. Consult website for available
thrust options. Maximum Amp Draw values only occur intermittently during select conditions and should not be used as
continuous amp load ratings.
Reference
United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment ABYC E-11: AC and DC Electrical Systems on Boats
CAUTION
These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices
from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than
that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more than
25 feet, we recommend that you contact a qualified marine technician.
CAUTION
An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded
current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating)
of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for
circuit breaker sizing.
Motor Thrust / Model Max
Amp Draw
Circuit Breaker Wire Extension Length
Amp Minimum 5 feet 10 feet 15 feet 20 feet 25 feet
55 lb. 50 50 Amp 12 VDC 8 AWG 4 AWG 2 AWG 2 AWG 1 AWG
80 lb. 56 60 Amp 24 VDC 8 AWG 6 AWG 6 AWG 4 AWG 2 AWG
112 lb. 52 60 Amp 36 VDC 8 AWG 8 AWG 8 AWG 6 AWG 4 AWG

minnkotamotors.com | 19
©2022 Johnson Outdoors Marine Electronics, Inc.
SELECTING THE CORRECT BATTERIES
Using DC or Alternator Chargers
Your Minn Kota trolling motor may be designed with an internal bonding wire to reduce sonar interference. Most alternator charging systems
do not account for this bonding wire, and connect the negative posts of the trolling motor batteries to the negative posts of the crank/
starting battery. These external connections can damage connected electronics and the electrical system of your trolling motor, voiding
your warranty. Review your charger’s manual carefully or consult the manufacturer prior to use to ensure your charger is compatible.
Minn Kota recommends using Minn Kota brand chargers to recharge the batteries connected to your Minn Kota trolling motor, as they
have been engineered to work with motors that include a bonding wire.
ADDITIONAL CONSIDERATIONS
SELECTING THE CORRECT BATTERIES
The motor will operate with any lead-acid, deep-cycle marine 12-volt battery/batteries. For best results, use a deep-cycle, marine
battery with at least a 105 amp-hour rating. Maintain battery at full charge. Proper care will ensure having battery power when you
need it, and will significantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the leading cause
of premature battery failure. Use a multi-stage charger to avoid overcharging. We oer a wide selection of chargers to fit your charging
needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine battery/
batteries for your Minn Kota trolling motor. For more information on battery selection and rigging, please visit minnkotamotors.com.
Minn Kota trolling motors can run on Lithium-Ion batteries. However, they are specifically designed to run on traditional lead-acid
batteries (flooded, AGM or GEL). Lithium-Ion batteries maintain higher voltages for longer periods of time than lead-acid. Therefore,
running a Minn Kota trolling motor at speeds higher than 85% for a prolonged period could cause permanent damage to the motor.
WARNING
Never connect the (+) and the (–) terminals of the same battery together. Take care that no metal object can fall onto the battery and
short the terminals. This would immediately lead to a short and extreme fire danger.
CAUTION
Refer to “Conductor Gauge and Circuit Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for
your motor. For motors requiring a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.
CAUTION
Please read the following information before connecting your motor to your batteries in order to avoid damaging your motor and/or
voiding your warranty.

20 | minnkotamotors.com ©2022 Johnson Outdoors Marine Electronics, Inc.
CONNECTING THE BATTERIES
Additional Accessories Connected to Trolling Motor Batteries
Significant damage to your Minn Kota motor, your boat electronics, and your boat can occur if incorrect connections are made between
your trolling motor batteries and other battery systems. Minn Kota recommends using an exclusive battery system for your trolling
motor. Where possible, accessories should be connected to a separate battery system. Radios and sonar units should not be connected
to any trolling motor battery systems as interference from the trolling motor is unavoidable. If connecting any additional accessories to
any trolling motor battery system, or making connections between the trolling motor batteries and other battery systems on the boat, be
sure to carefully observe the information below.
The negative (-) connection must be connected to the negative terminal of the same battery that the trolling motor negative lead
connects to. In the diagrams below this battery is labeled “Low Side” Battery. Connecting to any other trolling motor battery will input
positive voltage into the “ground” of that accessory, which can cause excess corrosion. Any damage caused by incorrect connections
between battery systems will not be covered under warranty.
Automatic jump start systems and selector switches tie the negatives of the connected batteries together. Connecting these systems
to the “High Side” Battery or “Middle” Battery in the diagrams below and will cause significant damage to your trolling motor and
electronics. The only trolling motor battery that is safe to connect to one of these systems is the “Low Side” Battery.
Automatic Jump Start Systems and Selector Switches
CONNECTING THE BATTERIES
12-Volt Systems
1. Make sure that the motor is switched o (speed selector on “OFF” or “0”).
2. Connect positive ( + ) red lead to positive ( + ) battery terminal.
3. Connect negative ( – ) black lead to negative ( – ) battery terminal.
WARNING
For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper polarity and
follow instructions in your boat owner’s manual.
