MINN KOTA RIPTIDE TERROVA User manual

RIPTIDE TERROVA
BOW-MOUNT TROLLING MOTOR
OWNER'S MANUAL

RIPTIDE TERROVA
The following Motor Wiring Diagram applies to all RiptideTerrova models that do not come factory installed with i-Pilot or i-Pilot
Link. CoPilot may come factory installed, but can also be installed as an after market accessory. A Foot Pedal can be installed as
an after market accessory.
Red M+
Red M+
Red M+
Black M-
Black M-
Black M-
Power Switch
Black B-
Black
Black
Black
White
White
Red B+
Red
Red
Black
Black
24v
36v
12v
Battery 1
Battery 1 Battery 2
Black B-
Red B+
Red B+
Black B- Red B+
Battery 1 Battery 2 Battery 3
Foot Pedal
Spot-Lock Sensor
Speed Adjustment
Sensor
AutoPilot (Red)
Spot-Lock (Blue)
Constant
(Green)
Foot Pedal
Control Board
Foot Pedal
Attachment
Foot Pedal
Attachment
Battery
Gauge
Steering
Housing
Motor
Coil Cord
Accessory
Attachment
Accessory
Attachment
Control Head
CoPilot
CoPilot
Control
Board
NOTE: This is a multi-voltage diagram. Double-check your motor's voltage for proper connections. Over-Current
Protection Devices are not shown in this illustration.
20 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc.

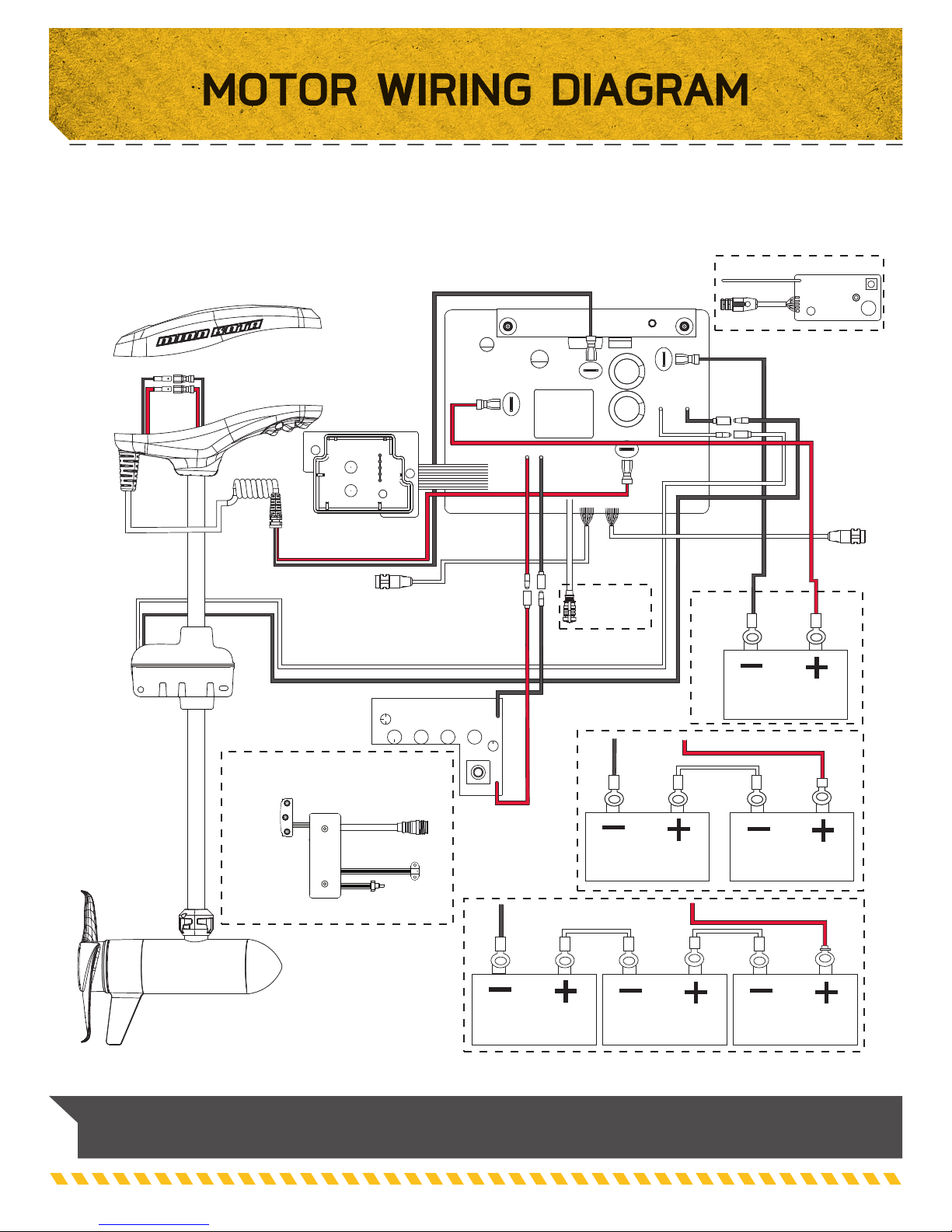

MOTOR WIRING DIAGRAM

RIPTIDE TERROVA WITH i-PILOT OR i-PILOT LINK
The following Motor Wiring Diagram applies to all Riptide Terrova models that come factory installed with either i-Pilot or i-Pilot
Link. A Foot Pedal can be installed as an after market accessory.
Red M+
Red M+
Red M+
Black M-
Black M-
Power Switch
Black B-
Black
Black
Black
White
White
Red B+
Red
Red
Black
Black
24v
36v
12v
Battery 1
Battery 1 Battery 2
Black B-
Red B+
Red B+
Black B- Red B+
Battery 1 Battery 2 Battery 3
Foot Pedal
Spot-Lock Sensor
Speed Adjustment
Sensor
AutoPilot (Red)
Spot-Lock (Blue)
Constant
(Green)
Foot Pedal
Control Board
Foot Pedal
Attachment
Foot Pedal
Attachment
Battery
Gauge
Steering
Housing
Motor
Coil Cord
Accessory
Attachment
Accessory
Attachment
Control Head
i-Pilot Link
Cable*
i-Pilot
Accessory
Attachment
NOTE: This is a multi-voltage diagram. Double-check your motor's voltage for proper connections. Over-Current
Protection Devices are not shown in this illustration.
minnkotamotors.com | 21
©2016 Johnson Outdoors Marine Electronics, Inc.
MOTOR WIRING DIAGRAM

64
60
68
54 214
126
212
216
166
174
186
170
96
80
74
158
146
148
2
230
224
222
232
148
110
104 150
134
192
188
114
182
54
212
214
128
216 174
170
164
94 160
78 72
102
154
2
152
112
116
190
198 138
70
60
64
W
V
202
204 208
206
86
178
84
184
200
39
6
48
10
52
12
210
26
36
34
40
14
16
120
122
42
162
56
66
58
62
142
132 144
118
200
168
172
228
28
J
K
H
GJ
BF
D
CE
CC
BB
DD
212
146 148
T
U
212150 154 152
N
M
Y
X
38
226
108
140
156 106
98
130
92
76
228142 144
S
140
A
2

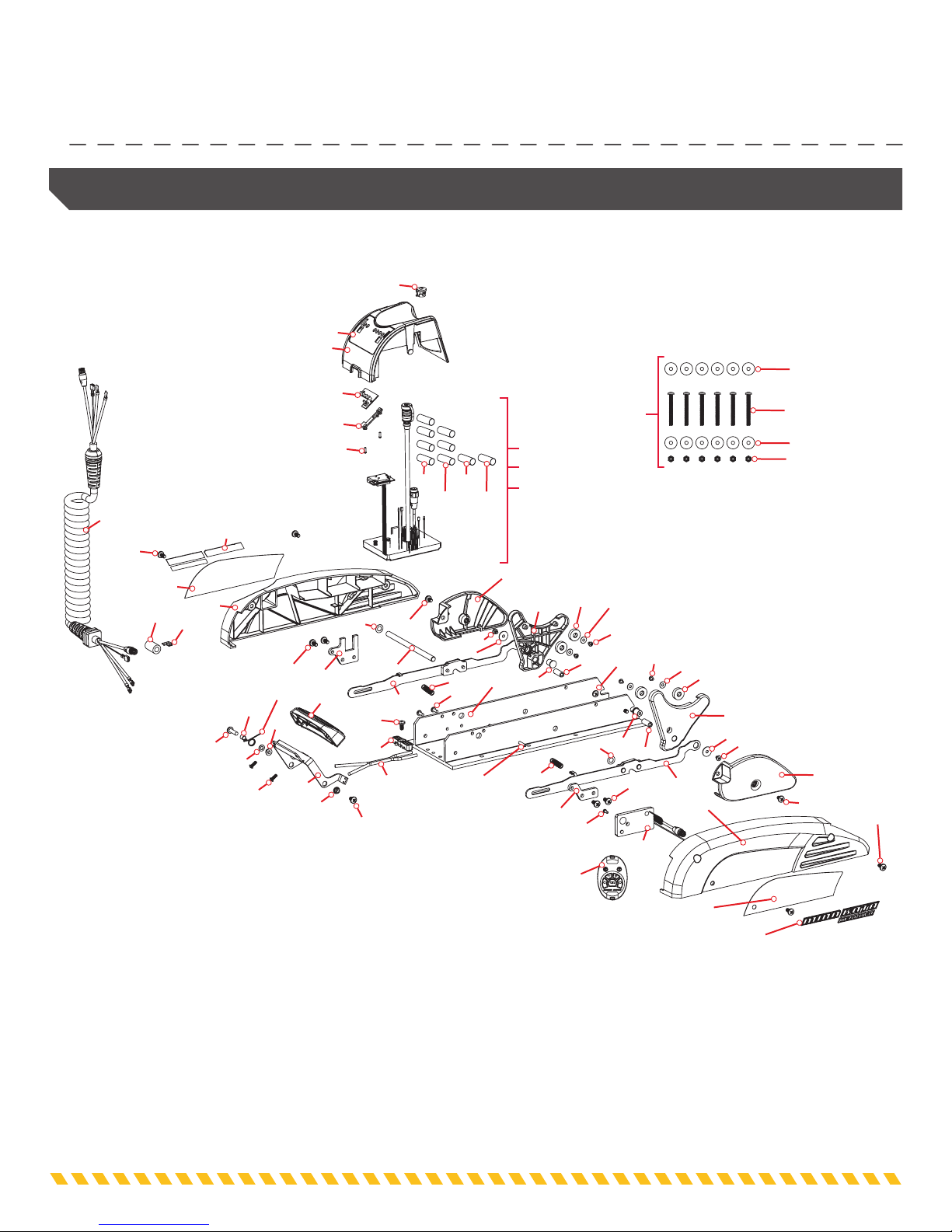

Motor Parts Diagram
12 volt -
3.625"
24 volt -
4"
36 volt -
4.5"
RIPTIDE TERROVA
55/80/112 LBS THRUST - 12/24/36 VOLT - 54”/60”/72" SHAFT
The parts diagram and parts list provides Minn Kota® WEEE compliance disassembly instructions. For more information about
where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state
requirements, please contact your dealer or distributor from which your product was purchased. Tools required, but not limited to:
flat head screwdriver, Phillips screwdriver, socket set, pliers, wire cutters.
minnkotamotors.com | 39
©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
RIPTIDE TERROVA MOTOR

✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
Assembly Part # Description Quantity
A 2779034 MTR/TUBE M 55# 54" RT TRV BT *MOTOR & TUBE* *54* *3.625* 1
B 2777034 MTR/TUBE M 80# 54" TRV BT *MOTOR & TUBE* *54* *4* 1
C 2777083 MTR/TUBE 112# 60" RT TRV BT *MOTOR & TUBE* *60* *4.5* 1
D 2777036 MTR/TUBE M 80# 60" RT TRV BT *MOTOR & TUBE* *60* *4* 1
E 2777084 MTR/TUBE 112# 72" RT TRV BT *MOTOR & TUBE* *72* *4.5* 1
F 2777035 MTR/TUBE M 80# 54" TRV-M BT *MOTOR & TUBE* *54* *4* *EUROPE ONLY* 1
G 2777037 MTR/TUBE 80# 60" RT TRV-M BT *MOTOR & TUBE* *60* *4* *EUROPE ONLY* 1
H 2777343 R HSG,CB,112#,SW, UP TO 60" *TUBE* *4.5* 1
J 2777398 R HSG,CB,80#,SW, UP TO 60" *TUBE* *4* 1
K 2777344 R HSG,CB,112#,SW, 72" TUBE *TUBE* *4.5* 1
M 2774051 tMOTOR KIT, iPLT 1.6 RT TERROVA *I-PILOT RECEIVER* 1
N 2774068 tMOTOR KIT, iPLT 3.0 RT TERROVA *I-PILOT LINK RECEIVER* 1
BB 1378131 PROP IND 2091160 WDLS WDG II *3.625* *55LB THRUST* 1
CC 1378160 PROP KIT 2341160 112# WW2 *4.5* *112LB THRUST* 1
DD 1378132 PROP IND 233160 WD WDG II *4* *80LB THRU* 1
S 2888460 SEAL & O-RING KIT *55LB THRU* *3.625* 1
T 2889460 SEAL & O-RING KIT *80LB THRU* *4* 1
U 2881450 SEAL & O-RING KIT *112LB THRU* *4.5* 1
V2994075 tREMOTE SY, IPILOT 1.6 1
W2994076 tREMOTE ASSY, IPILOT LINK *LINK ONLY* 1
X2770207 tCOVER KIT, iPLT 1.6 RT TERROVA *I-PILOT COVER & DECALS ONLY* 1
Y2770212 tCOVER KIT, iPLT 3.0 RT TERROVA *I-PILOT LINK COVER & DECALS ONLY* 1
Item Part # Description Quantity
2
✖TUBE-COMP,WHT,72",1/4" WALL,T2 1
✖TUBE-COMP,WHT,54",1/4" WALL,T2 1
✖TUBE-COMP,WHT,60",1/4" WALL,T2 1
✖TUBE-COMP,WHT,54",1/4", "M",T2 1
✖TUBE-COMP,WHT,60",1/4", "M",T2 1
p✖SEAL,BUNG LOWER 1
p✖SEAL,BUNG UPPER,FW 1
4 2321505 DEPTH COLR, LI SI 1
6 2321702 WHER-FT .375 NYLON 1
8 2260906 KNOB-SO GRIP,HG/DR,SS 1
10 2292501 CONTROL BOX, SW  1
12 2332102 SCREW-#10-24 X 1-3/4 PPH SS 1
14 2333101 NUT-HEX #10-24 UNC-2B NYL SS 1
40 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
Motor Parts List

✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
Item Part # Description Quantity
p2256300 TIE WRAP-5.5" BCK 2
26 2224705 INSERT-PLUG, WHT, I PILOT*SMALL HOLE* *i-PILOT* 1
2224703 INSERT-PLUG, PD/AP WHITE *NO HOLE* 1
28 ✖DEL-GENERIC, PUSH BTN TOP SW 1
p9950433 TIE WRAP-4" BCK 2
36 2305402 SHRINK TUBE-.374 OD X 2.25" 2
38 2290206 COVER,RL BOX, SW *AUTOPILOT* 1
39 2292501 CONTROL BOX, SW  1
40 2325613 DEL,RL BOX SIDE BT SW 2
42
✖DEL, DOMED IPILOT SW 1
✖DEL, DOMED, iPILOT LINK SW
52 2372100 SCREW-#8-18 X 5/8 THD (SS) 7
54 2092600 PIN-DRIVE 1.06" LG (SS) *80LB THRU* *4* *112LB THRU* *4.5* 1
56 2262658 PIN-DRIVE 1" X 3/16" S/S *55LB THRU* *3.625* 1
58 2151726 WHER-5/16 D (S/S) *55LB THRU* *3.625* 1
60 2091701 WHER-PROP (RGE) *80LB THRU* *4* *112LB THRU* *4.5* 1
62 2198400 ANODES, ZINC, 3.25/3.62" LWR UNT *55LB THRU* *3.625* 1
64 2198401 ANODES, ZINC, 4.0"LWR UNIT *80LB THRU* *4* *112LB THRU* *4.5* 1
66 2091160 PROP-WW2 (3-5/8") REAMED *55LB THRU* *3.625* 1
68 2341160 PROP-WW2 (4.5) w/ADP.RING *112LB THRU* *4.5* 1
70 2331160 PROP-WW2 (4") w/ADP.RING *80LB THRU* *4* 1
72 188-095 BRUSH *4.5* *112LB THRU* 2
74 188-094 BRUSH W/TERMINAL *4* *80LB THRU* 2
76 975-040 SPRING - TORSION *3.625* *55LB THRU* 2
78 975-045 SPRING - TORSION *4.5* *112 LB THRU* 2
80 975-041 SPRING - TORSION *4* *80LB THRU* 2
p✖RIV - .25" *4* *80LB THRU* *4.5* *112LB THRU* 6
84
640-126 LEADWIRE RED 10AWG 71" XLP 1
640-145 LEADWIRE RED 10AWG 75 7/8" GPT 1
640-151 LEADWIRE RED 10 AWG 70.375 GPT 1
640-149 LEADWIRE RED 10AWG 88" GPT 1
640-133 LEADWIRE RED 10AWG 66-1/4 XLP 1
86
640-049 LEADWIRE BLK 10AWG 88.50" GPT 1
640-023 LEADWIRE BLK 10 AWG 69" GPT 1
640-045 LEADWIRE BLK 10 AWG 76.5 GPT 1
640-025 LEADWIRE BLK 10 AWG 66 3/4 XLP 1
640-022 LEADWIRE BLK 10 AWG 72.5 XLP 1
p✖BRUSH HOLDER *4* *80LB THRU* 2
minnkotamotors.com | 41
©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST

✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
Item Part # Description Quantity
p✖BRUSH HOLDER *4.5* *112LB THRU* 2
92 188-036 BRUSH SEMBLY *3.625* *55LB THRU* 2
94 9-738-011 BRUSH PTE *4.5* *112LB THRU* 1
96 9-738-004 BRUSH PTE 4" TERMINAL *4* *80LB THRU* 1
98 738-036 BRUSH PTE WITH HOLDER 3.625 *3.625* *55LB THUR* 1
p2260730 CONNEOR 1/4 MALE TAB QD *4* *80LB THRU* 2
102 2260731 TERMINAL 1/4" MALE TAB-THREE *4.5* *112LB THRU* 2
104 2307312 BEAD-FERRITE *4.5* *112LB THRU* 1
106 725-050 PAPER TUBE - BRUSH RENTION *3.625* *55LB THRU* 1
108 2-100-146 ARM Y 12V 3.62 55#CB/ *55LB THRU* *3.625* 1
110 2-100-214 ARM SY 24V 4" 80# (WW2) *80LB THRU* *4.0* 1
112 2-100-245 ARMATURE Y 4.5"LWR UNIT *112LB THRU* *4.5* 1
114 140-010 BEARING - BALL *55LB THRU* *3.625* *80LB THRU* *4.0* 1
116 140-014 BEARING-BALL 6000 *112LB THRU* *4.5* 1
118 ✖R HSG Y 3.6 SW/CB/W-MG *55LB THRU* *3.625* 1
120 ✖R HSG M 4.0" SW CB MGND *80LB THRU* *4.0* 1
122 ✖R HSG Y 4.5" MAG FW CB *112LB THRU* *4.5* 1
126 2-300-370 BRUSH END HSG Y SW/W 4.0 *80LB THRU* *4.0* 1
128 2-300-156 BRUSH END HSG Y 4.5" SW *112LB THRU* *4.5* 1
130 421-350 HSG BRSH END 3.62 SW CB/WHITE *55LB THRU* *3.625* 1
132 2-400-337A PIN END HSG Y 3.6 TX/W *55LB THRU* *3.625* 1
134 421-376 HSG PLN END 4" SW WHT BS *80LB THRU* *4.0* 1
138 421-241 PIN END HSG 4.5" PNTD SW *112LB THRU* *4.5* 1
140 337-036 GK *55LB THRU* *3.625* 1
142 701-008 O-RING *55LB THRU* *3.625* 2
144 701-081 O-RING *55LB THRU* *3.625* 1
146 701-009 O-RING *80LB THRU* *4.0* 2
148 701-043 O-RING *80LB THRU* *4.0* 2
150 701-009 O-RING *112LB THRU* *4.5* 2
152 701-098 O-RING, 98MM X 2MM *112LB THRU* *4.5* 1
154 701-103 O-RING,103MM X 3.00MM, 70 BUNA *112LB THRU* *4.5* 1
156 830-007 SCREW, # 8-32 *55LB THRU* *3.625* 2
158 830-027 SCREW - SELF-THREAD 10-32X2.25 *80LB THRU* *4.0* 2
160 2053410 SCREW-#8-32 X 1/2 TRI-LOBE HEX *112LB THRU* *4.5* 2
162 830-008 THRU BOLT 10-32 x 9.205 *55LB THRU* *3.625* 2
164 830-094 THRU BOLT 12-24 X10.31 *80LB THRU* *4.0* *112LB THRU* *4.5* 2
Item Part # Description Quantity
42 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST

✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
166 830-094 THRU BOLT 12-24 x 10.31 *80LB THRU* *4.0* 2
168 990-067 WHER - EEL THRU *55LB THRU* *3.625* 1
170 990-051 WHER - EEL THRU *80LB THRU* *4.0* *112LB THRU* *4.5* 1
172 990-070 WHER - NYTRON *55LB THRU* *3.625* 1
174 990-052 WHER - NYTRON *80LB THRU* *4.0* *112LB THRU* *4.5* 1
182 582-013 CLIP, RAINING SHORT *80LB THRU* *4.0* 1
184 582-016 CLIP-RAINING, SONAR *112LB THRU* *4.5* 1
186 973-025 SPACER - BRUSHPTE *80LB THRU* *4.0* 2
188 992-010 WHER - BELLEVILLE *80LB THRU* *4.0* 2
190 992-011 WHER - BELLEVILLE *112LB THRU* *4.5* 2
192 990-045 SPACER - THRU *80LB THRU* *4.0* 1
198 990-011 WHER-SHIM OD 1",ID.630"SS *112LB THRU* *4.5* 1
200 788-040 RAINING RING 1
202 2390800 tNYARD, REMOTE W/ RABINER 1
204 2375901 tADAPTER, USB DC POWER *LINK ONLY* 1
206 2373241 tCABLE, USB REMOTE CHARGER *LINK ONLY* 1
208 490389-1 tCABLE, ETHERNET, 30' * LINK ONLY* 1
210 2996400 HEADING SENSOR SEMBLY 1
212 880-025 SEAL 2
214 725-095 PAPER TUBE, SEAL 1
216 144-017 BEARING, FNGE 1
222 3393450 SCREW-#6-19 X.75 PPH HI-LOW SS 4
224 2372103 SCREW #6 X .375 PTITE SS 1
226 2325617 DEL, COVER, RT, T2 80 *80LB THRU* *COPILOT* 1
228 788-015 RAINING RING *3.625* 1
230 2321521 COLR-FRONT, LI SI, SW 1
232 2321526 COLR-BACK, LI SI, SW 1
minnkotamotors.com | 43
©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST

330
326
316
324
322
310
306
308
284
300
280
274
294
276
282
286
272
278
338
336
368
304
368
272
366
358
346
348 350
356
352
362
318
316
328
270
334
336
338
340
342
332
296
298
292
290
288
310
322
324
354
364
344
360
VV WW XX
SS
CCC
TT
UU
488
GGG
EEE
DDD
44 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
RIPTIDE TERROVA STEERING HOUSING
Steering Housing Parts Diagram

Assembly Part # Desctiption Quantity
SS 2997064 STEERING HSG ASM 12V SW 1
TT 2997065 STEERING HSG ASM 24V SW 1
UU 2997063 STEERING HSG ASM 36V SW 1
VV 2992730 LIFT ASSIST, 55# SW 1
WW 2992731 LIFT ASSIST, 80# SW 1
XX 2992732 LIFT ASSIST, 112# SW 1
CCC 2776562 STEERING HSG TOP SW / GEAR KIT 1
DDD 2777060 STEERING MOTOR KIT, 12V T2 1
EEE 2777061 STEERING MOTOR KIT, 24V T2 1
GGG 2777063 STEERING MOTOR KIT, 36V SW T2 *DUAL MOTOR* 1
Item Part # Desctiption Quantity
270 2326507 EERING HSG,BTTM,SW,WHT 1
272 ✖PIN-ROLL 5/16" X 1/2" 4
274 ✖SHA-GEAR, FIR CLUER 1
276 ✖SHA-GEAR,INTERMED.CLUER 1
278 ✖SHA-GEAR, THIRD CLUER 1
280 2302245 GEAR & PINION,DR. HSG, AGE 2 1
282 2302250 GEAR & PINION,DR. HSG, AGE 3 1
284 2302255 GEAR & PINION,DR. HSG, AGE 4 1
286 2321730 SPACER,GEAR CLUER 1
288
✖MOTOR, EERING 12V FW T2 1
✖MOTOR, EERING 24V FW T2 1
✖MOTOR, EERING 36V FW T2 2
290 2302240 PINION GEAR, DR.HSG, AGE 1 1
292 2322520 E-MOTOR,RG HSG,TOP *12 VOLT* *24 VOLT* 1
2322521 E-MTR, EER HSG, TOP w/HOL *36 VOLT* 1
294 2322525 E-MOTOR,RG HSG,BTM 1
296 2372103 SCREW-X6 X /375 PTITE SS 4
298 2051710 SPLIT LOCK WHER 3MM 4
300 2043412 SCREW-#8-18 X 3/4 TY AB SS PPH 1
302 2320605 LEADWIRE,EERING MOTOR 1
304 2308601 BREATHER FILTER, DR.HOUSING 1
306 2322031 TUBE-OUTPUT, SALTWATER 1
308 2322200 GEAR-OUTPUT 1
310 2327315 BUSHING,ALUMIN. SPACER  2
316 2321704 WHER-THRU, EERING 2
✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
minnkotamotors.com | 45
©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
Steering Housing Parts List

Item Part # Desctiption Quantity
318 2321510 COLR-DRIVE,BOTTOM 1
322 2321720 SHIM,O-RING 2
324 2324608 O-RING,224, R HSG 2
326 2321530 LINER OUTPUT TUBE, LI SI 1
328 2324604 O-RING, E SEAL 1
330 ✖HOUSING-EERING, TOP, SW 1
332 2323408 SCREW-#8-32 X 2.0 SH SS 7
334 2322601 PIN-TCH, SS 1
336 2321702 WHER-FT .375 NYLON 2
338 2263011 E-RING 3/8 DIA. SHA 2
340 2322702 SPRING, TCH PIN SS 2
342 2323410 SCREW-#8-32 X .75 SH SS 1
344 2326546 HOUSING-RIGHT,LI SI, SW 1
346 2326541 HOUSING-LE, LI SI, SW 1
348
2997903 SEMBLY-HUB/SPRING, 55# INCNL 1
2997904 SEMBLY-HUB/SPRING, 80# INCNL 1
2997905 M-HUB/SPRING,112# INCN 1
350 2322300 GUIDE,DR.DOG, LI SI 1
352 2328605 ENGAGEMENT DOG, LI  1
354 2322725 SPRING,COMPRSION,.360" OD SS 1
356 2322610 PIN-AXLE, LI SI 1
358 2323430 SCREW-#10-24 X 1-3/8, PPH 5
360 2333101 NUT-HEX #10-24 UNC-2B NYL SS 5
362 2372103 SCREW-#6 X .375 PTITE SS 4
364 2321955 BRACK, LI SI 2
366 3393450 SCREW-#6-19 X .75 PPH HI-LO 2
368 2327310 BUSHING, PIVOT PIN 2
370 2327314 BUSHING, PRO EERING SW 2
488 ✖LEADWIRE, EERING MOTOR 1
✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
46 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST

622
530
528
610
612
522
544
546
552
614
586
614
574
632
570
542
484
514
524
542
568
570
502
556
504
510
500
538
544
546
482
498 538 548
520
518
516
586
520
532
550
516
518
480
508
572 600
506
502
554
566
548
616
618
620
AA
ZZ
AAA
BBB
606
558
592
588
590
608
584
582
614
512
498
614 496
552
486
630
540
626
624
628
602
minnkotamotors.com | 47
©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
RIPTIDE TERROVA MOUNT
Mount Parts Diagram

Assembly Part # Desctiption Quantity
ZZ 2774066 RL BRD, 24/36V TRV BT w/SHRNK 1
AAA 2774067 RL BRD, 12V TRV BT w/SHRNK *i-PILOT/i-PILOT LINK* 1
BBB 2774069 RL, BRD, 24/36V IP TRV BT, SHRNK *i-PILOT/i-PILOT LINK* 1
AA 2994864 BAG SY-TERROVA/V2,MNTG HDW 1
Item Part # Desctiption Quantity
480 2321908 BE-EXTRUSION, MACH, SW 1
482 2322912 PIN-ROLL .1875 X 1.000 SS 2
484 2332103 SCREW-#8-18 X 1/2 (SS) *COPILOT* 1
486 2374197 PCB Y COPLT REC. TERROVA *COPILOT* 1
p2325501 DEL, OW / DEPLOY, T2 1
496 2322603 PIN-PIVOT, SS 1
498 2333100 NUT-SPEED (SS) 3HP-SS 2
500 2320406 HANDLE, RELEE, SW 1
502 2322604 BUSHING,HANDLE,GOBEIL 2
504 2071716 WHER-FT SS .253 x .470 1
506 2322701 SPRING, TORSION 1
508 2301700 SPACER-RELEE LEVER-BRS 1
510 2073408 SCREW-1/4-20 X 7/8 PPH S/S 1
512 2321941 BRACK, RAIN RELIEF SW 1
514 2321951 BRACK, SIDEPTE SW 1
516 2323412 SCREW-#8-18 X .25 PPH SS TY B 4
518 2321706 WHER-FT #8 .50 OD/.188 SS 4
520 2325117 PAD, RUBBER R, WHITE 4
522
2323910 RAMP-MOTOR, RIGHT 3-5/8" 1
2323931 RAMP-MOTOR, RIGHT 4.5" 1
2323930 RAMP-MOTOR, RIGHT 4" 1
524 2994095 TRANSMITTER ASY,TRRV CPLT *COPILOT* 1
528 2994201 ARM/SUPPORT BLOCK SY,R,SW 1
530 2321922 PTE-SKID, RIGHT 1
532
2323915 RAMP-MOTOR, LE 3 5/8" 1
2323935 RAMP-MOTOR, LE 4" 1
2323936 RAMP-MOTOR, LE 4.5" 1
538 2324706 INSERT-MOTOR RAMP,MAL,SS 2
540 2994203 ARM/SUPPORT BLOCK SY,L,SW 1
✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
48 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
Mount Parts List

Item Part # Desctiption Quantity
542 2322716 SPRING, EXTENSION, T2 2
544 2321700 WHER #10 SS 2
546 2323422 SCREW-#10-24 X .25" PPH SS MCH 2
548 2322921 AND-OFF, ALUM. ANODIZED 2
550 2321927 PTE-SKID, LE 1
552 2323403 SCREW-1/4-20 X.375 MCH SS CRPH 3
554 2320218 COVER, HANDLE COSMIC SW 1
556 2383446 SCREW-#8-16 X .50" PTITE SS 2
558 2320830 LOCKING TAB,PWR/BAT.MER 1
560 2383428 SCREW-#4-24 X 3/8 HI-LO SS 2
562 2320202 P-DU,CONNEOR, MALE 1
p2323406 SCREW-#10-24 X .50 CRPH SS 2
566 2090651 LEADWIRE,10 GA 1
568 2321310 RAIN RELIEF 1
570 2323405 SCREW-1/4-20 X 1/2" MCH SS 3
572 2307312 BEAD-FERRITE 1
574 2991271 COIL CORD Y 54"/60" NON-US2 1
582 2323926 SIDEPTE-LE, RT/ 1
584 2325646 DEL,MTR R,T2/ LE 1
586 2205512 DEL,SIDEPTE,SW ULTERRA,T2 2
588 2326531 HOUSING-CENTER, RT/ 1
590 2325653 DEL,BM/CN/PWR ATUS SW 1
592
2074082 BATTERY MER, 36V, SW 1
2074081 BATTERY MER, 24V, SW 1
2074080 BATTERY MER, 12V, SW 1
p2321721 SHIM, 2 X 4 X .025" 1
600 2320710 TERMINAL-AMP (T-TAB) 1
602 2325401 SHRINK TUBE-3/4 ID X 2" W/ADHS 1
p2321315 HOLDER-CONNEOR,NYLON,BCK 1
606 2332103 SCREW-#6-20 X 3/8 THD*(SS) 2
608 2322901 RAIN RELIEF, HEYCO P/N 1852 1
610 2323921 SIDEPTE-RIGHT, RT/ 1
612 2325645 DEL,MOTOR R,RIPTIDE,RIGHT 1
614 2323405 SCREW-1/4-20 X 1/2" T-L SS 8
616 2263462 SCREW-1/4-20 X 2" S/S PPH ADJT 6
618 2261713 WHER-1/4 FT 18-8 SS 6
620 2263103 NUT-1/4-20 NYLOCK SS 6
✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
minnkotamotors.com | 49
©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST

Item Part # Description Quantity
622 2301720 WHER-MOUNTING - RUBBER 6
624 2305410 SHRINK TUBE-.315 OD X 2.25" *SALTWATER* 3
626 2305415 SHRINK TUBE-.472 ID X 2.25" *SALTWATER* 1
628 2305403 SHRINK TUBE-.500 IDX1.0" ADHSV *SALTWATER* 4
630 2332104 SCREW-1/4-20 X 5/8 S/S 1
632 2323402 SCREW-1/4-20 X .375 T-L, ZP 2
✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tMay only be available with i-Pilot or i-Pilot Link.
50 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
