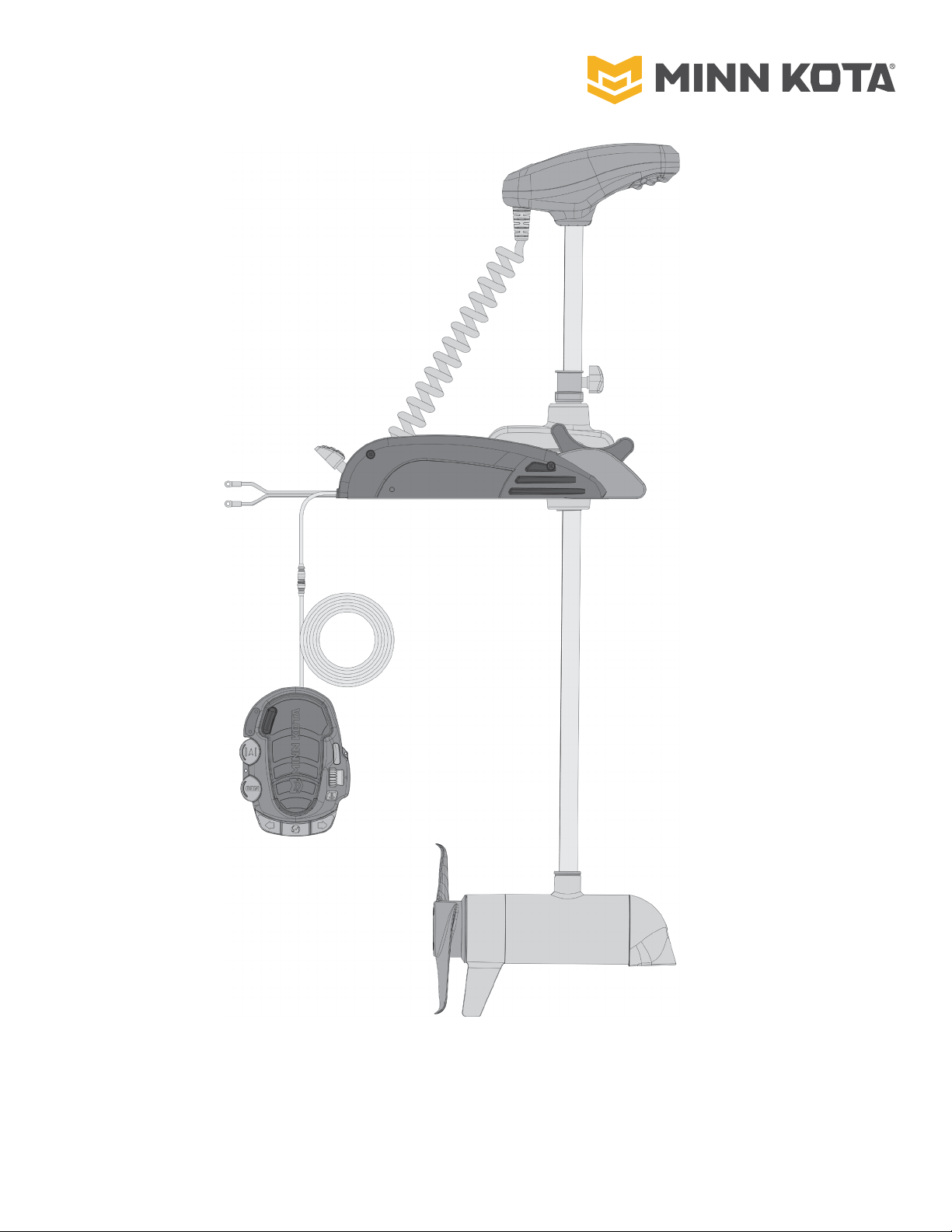

MINN KOTA TERROVA User manual

TERROVA
BOW-MOUNT TROLLING MOTOR
Installation Instructions

2 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
INTRODUCTION
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Trolling Motors
Produced in XXXX
PRODUCT DESCRIPTION
MODEL XXXXXXX
XXV DC
XX A
SER NO YYDDDC00000

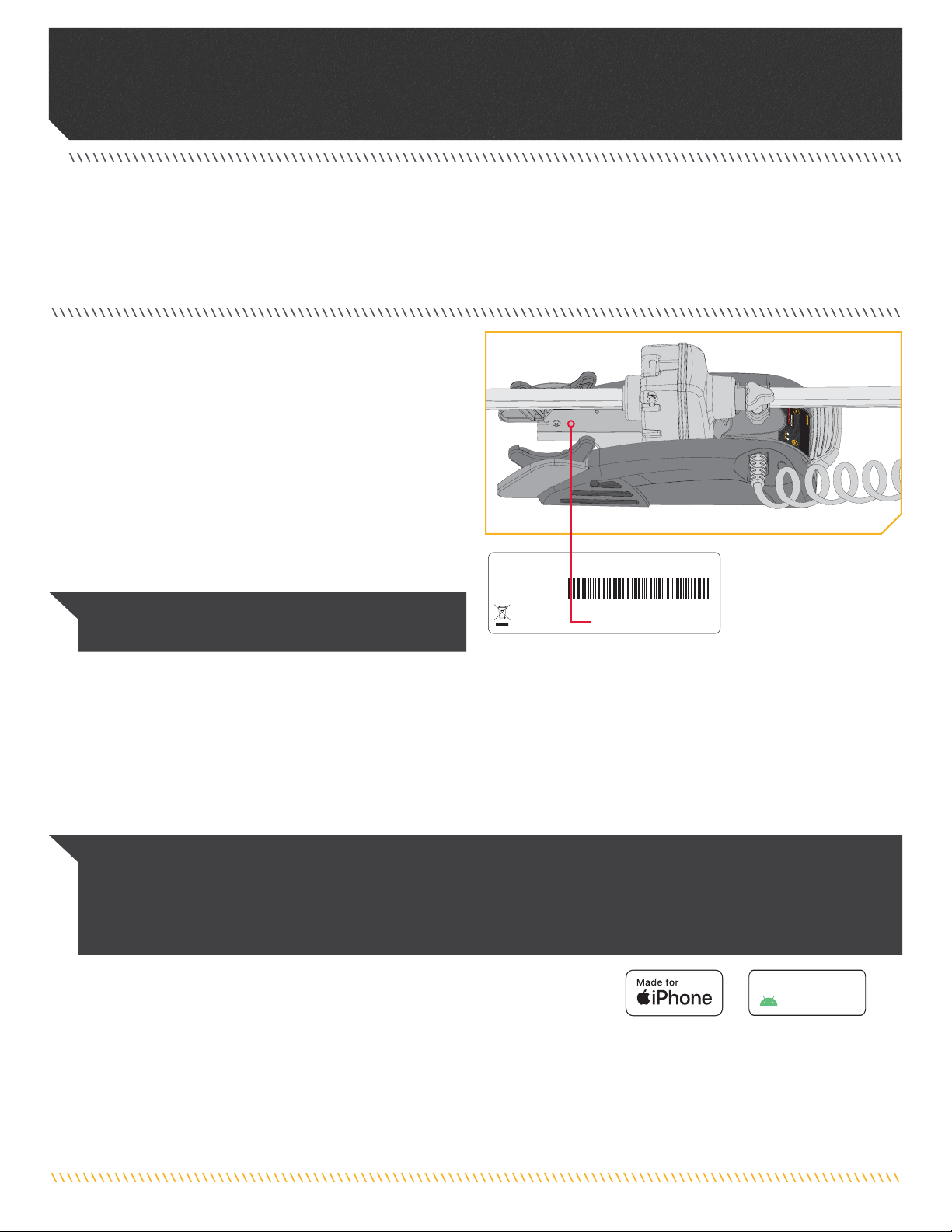

NOTICE: The serial number on your Terrova is located
inside the mount below the motor rests. EXAMPLE
THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That’s why
we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and
rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage that can
truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you catch more fish.
REGISTRATION
Remember to keep your receipt and immediately register your
trolling motor on our website at minnkotamotors.com/register.
SERIAL NUMBER
Your Minn Kota 11-character serial number is very important.
It helps to determine the specific model and year of
manufacture. When contacting Consumer Service or registering
your product, you will need to know your product’s serial
number. A duplicate copy of your serial number label has been
included, which can also be entered into the One-Boat Network
App for future reference.
MOTOR INFORMATION (For Consumer Reference Only)
Model: ___________________________________________________________________________________________________
Serial Number: _____________________________________________________________________________________________
Purchase Date: _____________________________________________________________________________________________
Store Where Purchased: ______________________________________________________________________________________
Made for iPhone® 11 and iPhone X
For updated iOS, Humminbird® and Minn Kota® compatibility, visit minnkotamotors.com
Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified
in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation
of this device or its compliance with safety and regulatory standards. iPhone is a trademark of Apple Inc., registered in the U.S. and other
countries. The trademark "iPhone" is used in Japan with a license from Airphone K.K.
Android™ is a trademark of Google LLC. The Android™ robot is reproduced or modified from work created and shared by Google and used
according to terms described in the Creative Commons 3.0 Attribution License.
Made for
Android
Android
™
™
NOTICE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may
obtain service by: calling Minn Kota at [phone]; returning your motor to the Minn Kota Factory Service Center; sending or
taking your motor to any Minn Kota authorized service center. A list of authorized service centers is available on our website, at
minnkotamotors.com. Please include proof of purchase, serial number and purchase date for warranty service with any of the
above options.

minnkotamotors.com | 3
©2023 Johnson Outdoors Marine Electronics, Inc.
SAFETY CONSIDERATIONS
Please thoroughly read the user manual. Follow all instructions and heed all safety and cautionary notices. Use of this motor is only
permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.
WARNING
You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate
and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the
responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can
respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your Minn
Kota product in an area free from hazards and obstacles.
WARNING
Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from
the power source when it is not in use or is o the water. When connecting the power-supply cables of the motor to the battery, ensure
that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor
make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts
of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking the propeller. Avoid submerging the
complete motor as water may enter the lower unit through control head and shaft. If the motor is used while water is present in the lower
unit considerable damage to the motor can occur. This damage will not be covered by warranty.
WARNING
Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects.
The motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for
floating objects. Persons who lack the ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other
substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of
the motor during use is less than 70dB(A). The overall vibration level does not exceed 2,5 m/sec2.
WARNING
When stowing or deploying the motor, keep fingers clear of all hinge and pivot points and all moving parts. In the event of unexpected
operation, remove power leads from the battery.
WARNING
It is recommended to only use Johnson Outdoors approved accessories with your Minn Kota motor. Using non-approved accessories
including to mount or control your motor may cause damage, unexpected motor operation and injury. Be sure to use the product and
approved accessories, including remotes, safely and in the manner directed to avoid accidental or unexpected motor operation. Keep all
factory installed parts in place including motor and accessory covers, enclosures and guards.

4 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
KNOW YOUR BOAT
KeelKeel
BowBow
HullHull
BowBow
SternStern
SternStern
PortPort
PortPort StarboardStarboard
StarboardStarboard
GunwaleGunwale
GunwaleGunwale
TransomTransom
InboardInboard
OutboardOutboard

minnkotamotors.com | 5
©2023 Johnson Outdoors Marine Electronics, Inc.
INSTALLATION
INSTALLING THE TERROVA
Your new Terrova comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or coupled with a
Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket, refer to the installation instructions
provided with the bracket. For compatible quick release mounting brackets and to locate your nearest dealer, visit minnkotamotors.com. To install
the motor directly to the boat, please follow the instructions provided in this manual. Please review the parts list, mounting considerations and tools
needed for installation prior to getting started. For additional product support, please visit minnkotamotors.com.
pNot shown on Parts Diagram.
✖This part is included in an assembly and cannot be ordered individually.

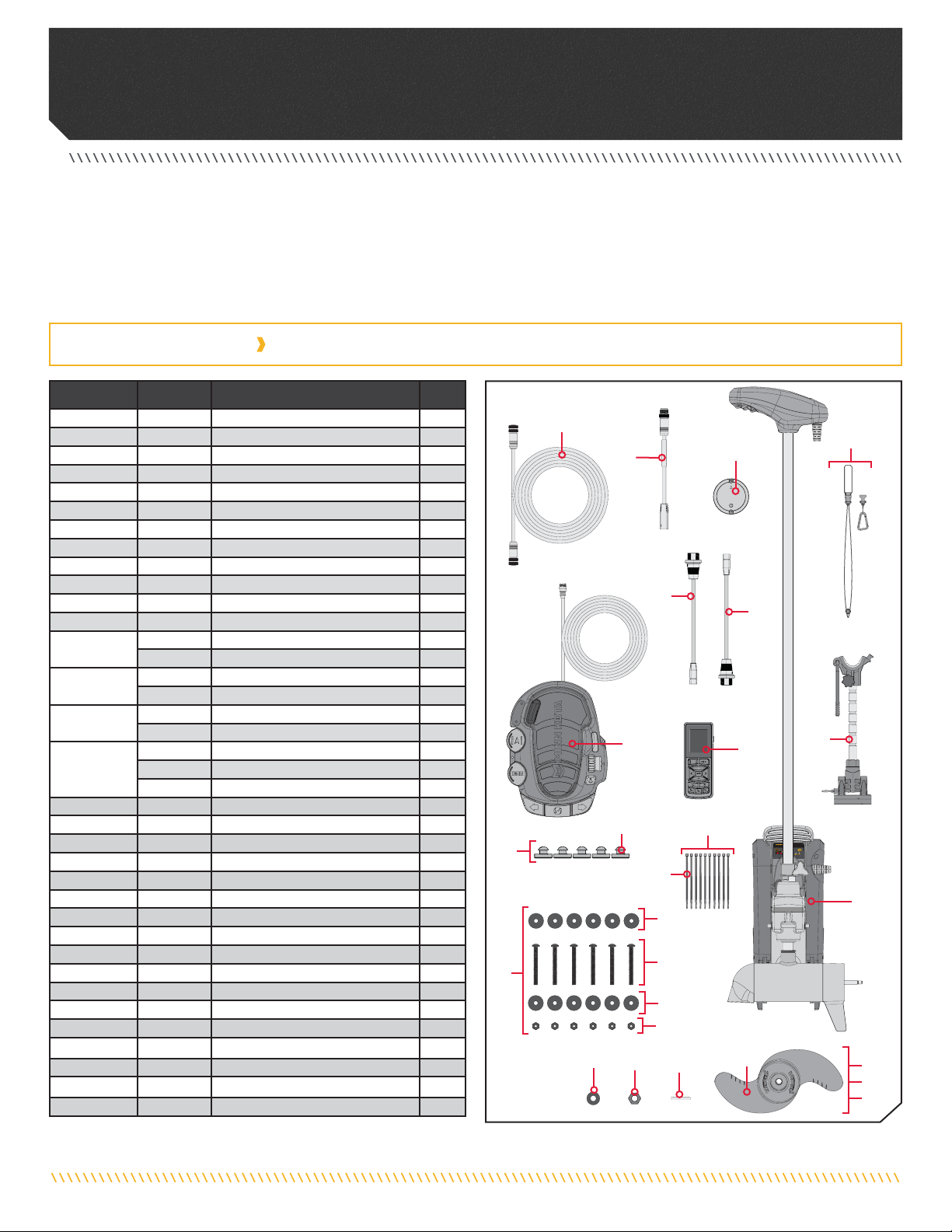

INSTALLATION PARTS LIST
Item / Assembly Part # Description Qty.
AA (Includes 1-4) 2994864 BAG ASSEMBLY - (BOLT, NUT, WASHERS) 1
1 2263462 SCREW-1/4-20 X 2" S/S PPH ADJT 6
2 2261713 WASHER-1/4 FLAT 18-8 SS 6
3 2263103 NUT-1/4-20 NYLOCK SS 6
4 2301720 WASHER-MOUNTING - RUBBER 6
5✖MOTOR ASSEMBLY 1
6 2390802 LANYARD w/CARARBINER IP RMT U2 1
7 411690-1 TROLLING MOTOR REMOTE 1
8 2992371 STABILIZER, BWMT ES TM ASM *72"* 1
BB (Includes 9-12) 1378170 PROP KIT 2091170 PWR PRP GENII *55LB* 1
CC (Includes 9-12) 1378132 PROP IND 2331160 WDLS WDG II *80LB* 1
DD (Includes 9-12) 1378160 PROP KIT 2341160 112# WW2 *112LB* 1
92262658 PIN-DRIVE 1" X 3/16" S/S *55LB* 1
2092600 PIN-DRIVE 1.06" LG (SS) *80LB* *112LB* 1
10 2151726 WASHER-5/16 STD (S/S) *55LB* 1
2091701 WASHER-PROP (LARGE) *80LB* *112LB* 1
11 2053101 NUT-PROP,NYLOC (MED) 5/16 SS *55LB* 1
2093101 NUT-PROP,NYLOC,LG, 3/8 SS *80LB* *112LB* 1
12
2091170 PROP-PWR (3 5/8") REAMED *55LB* 1
2331161 PROP-WW2 4" WELDED *80LB* 1
2341161 PROP-WW2 4.5" WELDED *112LB* 1
EE 2994733 FT PEDAL ASM TRV 3 PM 1
FF (Includes 13) 2994859 BAG, ASY-TERROVA/V2, RUB BUMPERS 1
13 2325110 PAD, FOOT PEDAL 5
14 490384-4 CABLE, ETHERNET (M12-M12), 30' 1
15 490380-1 CABLE, ETHERNET PIGTAIL-700 HD 1
GG (Includes 16) 2996300 TIE WRAP ASM, 60" 1
16 2206300 TIE,WRAP, LOW PROFILE 4" 10
HH 2996400 HEADING SENSOR ASSEMBLY 1
17 2994961 BAG ASM, CABLE,ADPTR, 490537-2 *MKR-MI-1* 1
18 2994960 BAG ASM, CABLE,ADPTR, 490518-1 *MKR-MDI-2* 1
p2327134 MANUAL, TERROVA 3 PM 1
p2327136 MANUAL-INSTLL GUIDE T3 PM 1
p2297165 MANUAL-DISCLAIMER,DWNLOAD INFO 1
p2294950 INSTRUCTIONS,OBN & REMOTE PAIR 1
p2377179 INSTR.SHEET, MKA-60 STBLZR *72"* 1
p2397110 MANUAL, iPILOT 4.0 1
p2397115 GUIDE-QCK REFERENCE iP 4.0 1
1515 HHHH
1414
22
33
1010 1111 991212
EEEE
55
1313
1616
GGGG
88
1717 1818
77
44
FFFF
11
66
AAAA
BBBB
CCCC
DDDD

6 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
• #3 Phillips Screwdriver
• Drill
• 9/32” Drill Bit
• 7/16” Box/Open End Wrench
• 9/16” Box/Open End Wrench
• Pliers or Vice Grip
• A second person to help
with the installation
• Flat-blade Screwdriver
• Awl or similar Marking Tool
It is recommended that the motor be mounted as close to the centerline of the boat as
possible. Make sure the area under the mounting location is clear to drill holes and install
nuts and washers. Make sure the motor rest is positioned far enough beyond the edge of the
boat. The motor must not encounter any obstructions as it is lowered into the water or raised
into the boat when stowed and deployed. Consider a quick release or adapter bracket with
the installation of your motor. To view a list of accessories, please visit minnkotamotors.com.

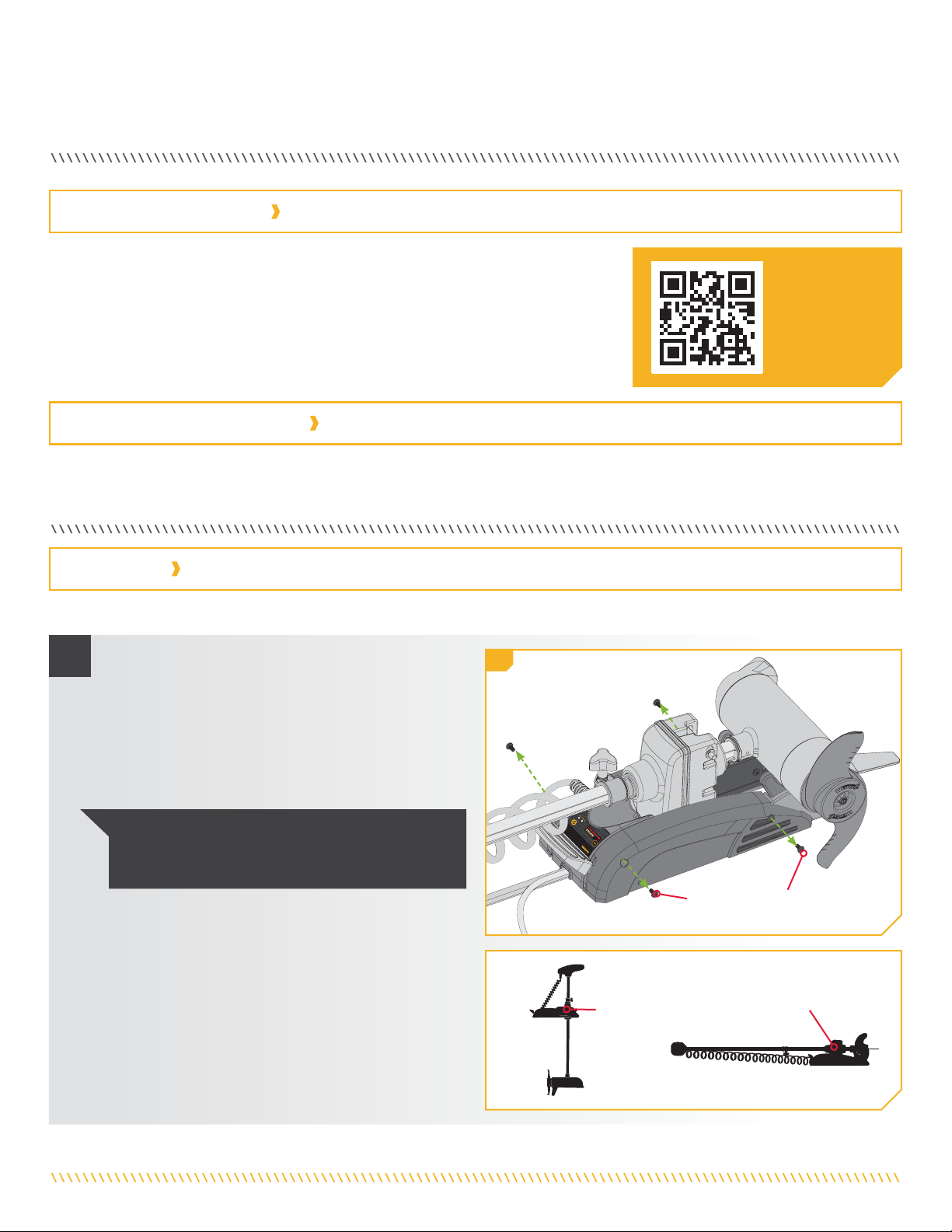

INSTALLING THE TERROVA
a. Place the mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
motor, as removed from the box, should be in the
stowed position.
b. Remove the four sideplate screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount.
NOTICE: This motor weighs approximately 65lbs.
We recommend having a second person help with
the installation.
DeployedDeployed StowedStowed
Sideplate ScrewSideplate Screw
View accessories
available for your
trolling motor at
minnkotamotors.com.
MOUNTING CONSIDERATIONS
TOOLS AND RESOURCES REQUIRED
INSTALLATION
11b

minnkotamotors.com | 7
©2023 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
Deck of BoatDeck of Boat
KeelKeel
Right SideplateRight Sideplate
Power CablesPower Cables
Left SideplateLeft Sideplate
Base ExtrusionBase Extrusion
2c
2d
2
WARNING
Make sure the motor is mounted on a level surface and is not
connected to a power source.
4
3
c. Remove the Right Sideplate.
d. Swing the Left Sideplate out and away from the
Base Extrusion.
e. Make sure that the Power Cables from the battery
are disconnected or that the breaker, if equipped,
is "o."
f. Place the mount as close to the centerline or keel of
the boat as possible. The motor can be installed on
either the Port or Starboard side of the boat based
on personal preference. Check placement with the
motor in the stowed and deployed positions.
Review the mounting considerations at the
beginning of the installation.

8 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
ITEM(S) NEEDED
#4 x 6
Drilling LocationsDrilling Locations
Drilling LocationsDrilling Locations
1-1/2"1-1/2"
MinimumMinimum
GunwaleGunwale
ShaftShaft
Base ExtrusionBase Extrusion
5
6

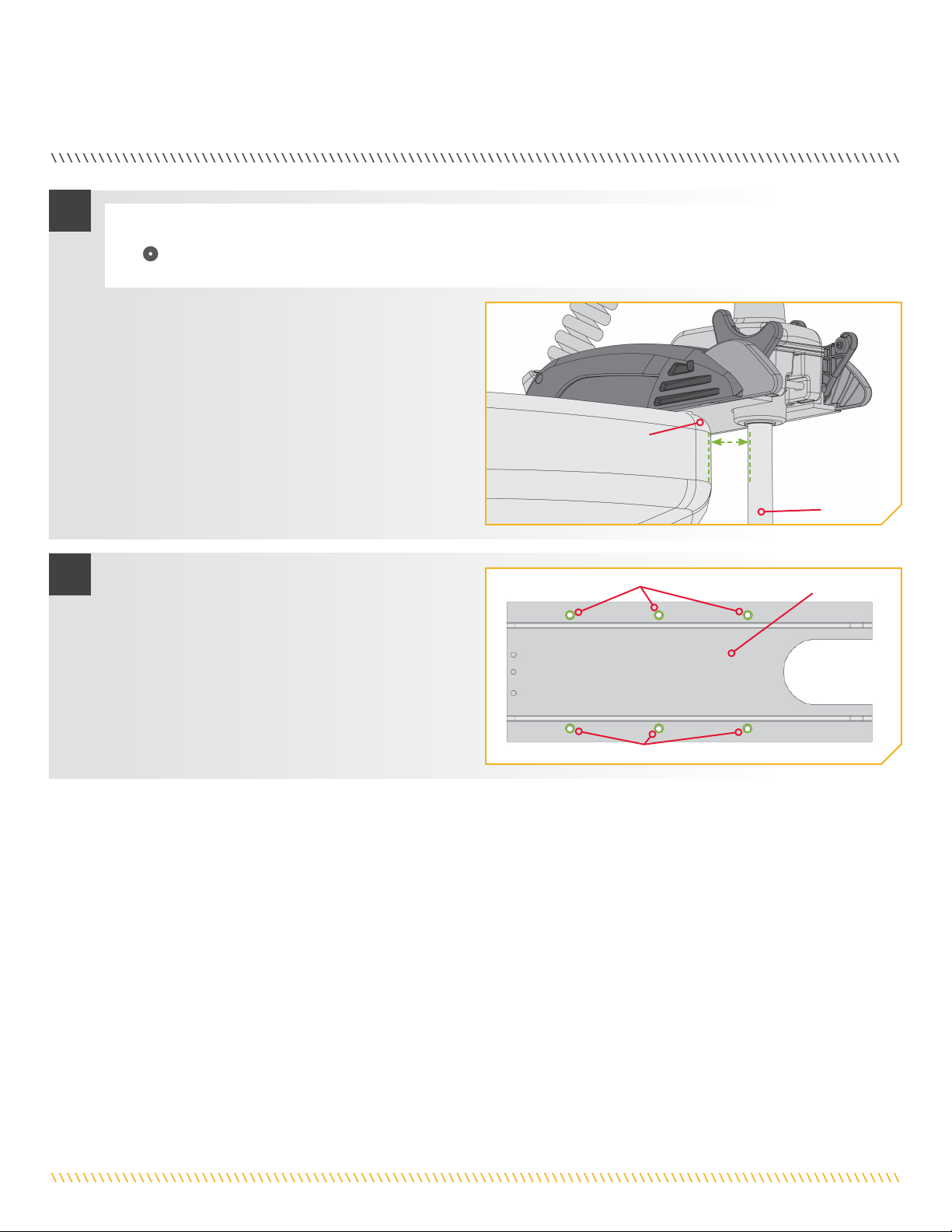

g. When the motor is in the deployed position, make
sure that the Shaft is 1-1/2" out past the Gunwale of
the boat. The lower unit, when stowed and deployed
must not encounter any obstructions.
h. Check to be sure that the mount is level. Use the
Rubber Washers (Item #4) provided to create a level
surface if necessary.
i. With an Awl or similar tool, mark all six mounting
holes in the Base Extrusion.
j. Drill through the deck of the boat using a 9/32" Drill
Bit on the marked locations.

minnkotamotors.com | 9
©2023 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
ITEM(S) NEEDED
#4 x 6#3 x 6
ScrewScrew
RubberRubber
WasherWasher
Boat DeckBoat Deck
Nylock NutNylock Nut Flat WasherFlat Washer
Right SideplateRight Sideplate
Left SideplateLeft Sideplate
Base ExtrusionBase Extrusion
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may help
prevent seizing.
7
8m
88n
#1 x 6
#2 x 6
k. Put a 1/4-20 x 2" (Item #1) Screw into each of the
drilled locations. The Screw should pass through
the Base Extrusion and the boat deck. If the Rubber
Washers (Item #4) are used, they should sit between
the Base Extrusion and boat deck. Make sure to
secure the motor with screws on each side of the
Base Extrusion.
l. Place a Flat Washer (Item #2) and then a Nylock
Nut (Item #3) at the end of each screw and secure
with a 7/16” Box End Wrench. Make sure all
hardware is secure.
m. Replace the Right Sideplate.
n. Swing the Left Sideplate back into its correct
position on the Base Extrusion.

10 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

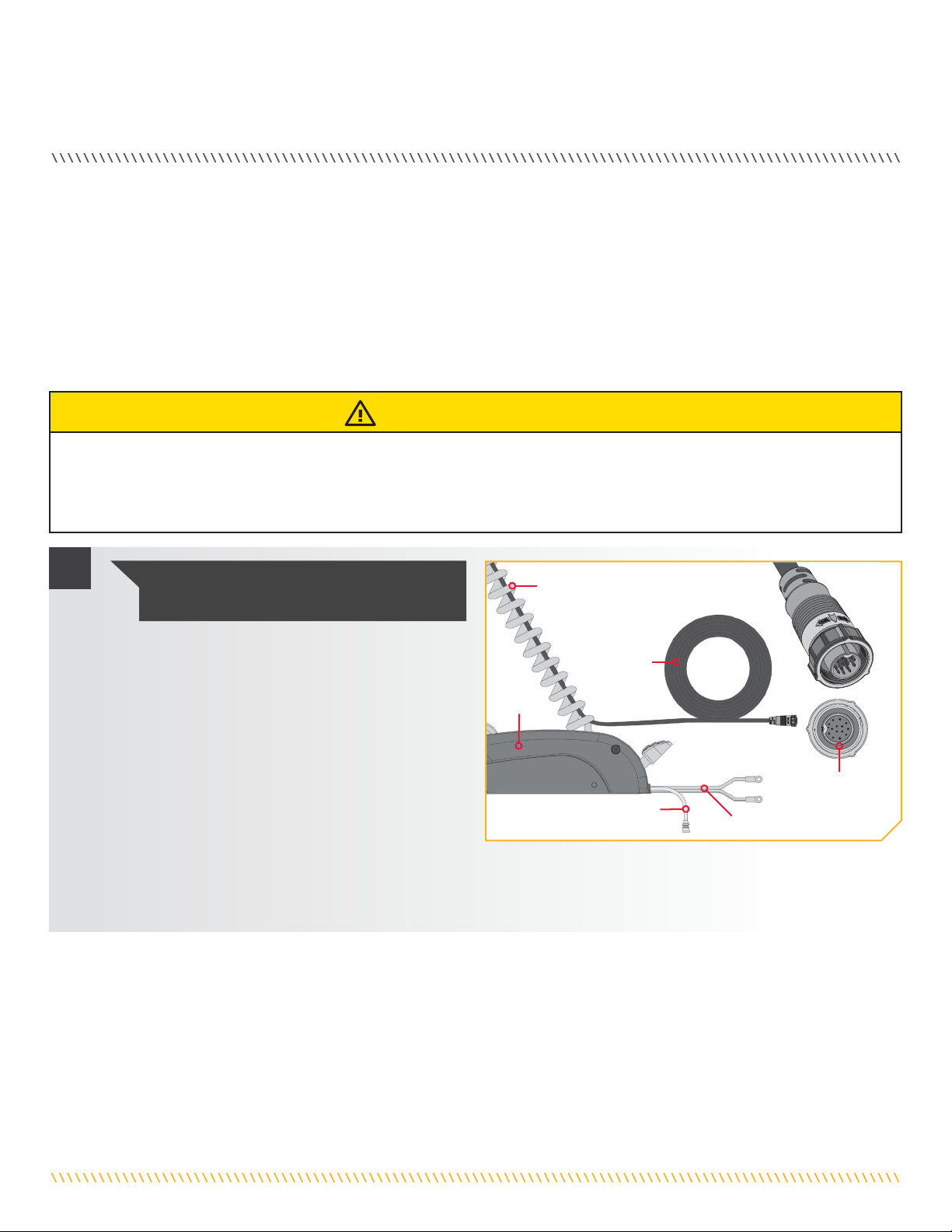

INSTALLING THE FOOT PEDAL
NOTICE: The pads are recommended when using
the Foot Pedal on non-carpeted surfaces.
NOTICE: The connectors are keyed to prevent
reversed installation.
Foot PedalFoot Pedal
BottomBottom
Foot PedalFoot Pedal
Pad PlacementPad Placement
ITEM(S) NEEDED
#13 x 5 #EE x 1
Sideplate ScrewSideplate Screw
9
1
o. Replace the four sideplate screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount.
Power ConnectionPower Connection
from Motorfrom Motor
Foot PedalFoot Pedal
ConnectionConnection
Installing the Foot Pedal
a. Take the Foot Pedal (Item #EE) and turn it over.
Put a Foot Pedal Pad (Item #13) in each of the
pad locations.
b. Locate the 7-pin Foot Pedal Connection on the Foot
Pedal and the Power Connection on the Motor.
Align the pins of the Foot Pedal Connection to the
matching socket end of the Power Connection.
Firmly push the Plug together.

minnkotamotors.com | 11
©2023 Johnson Outdoors Marine Electronics, Inc.

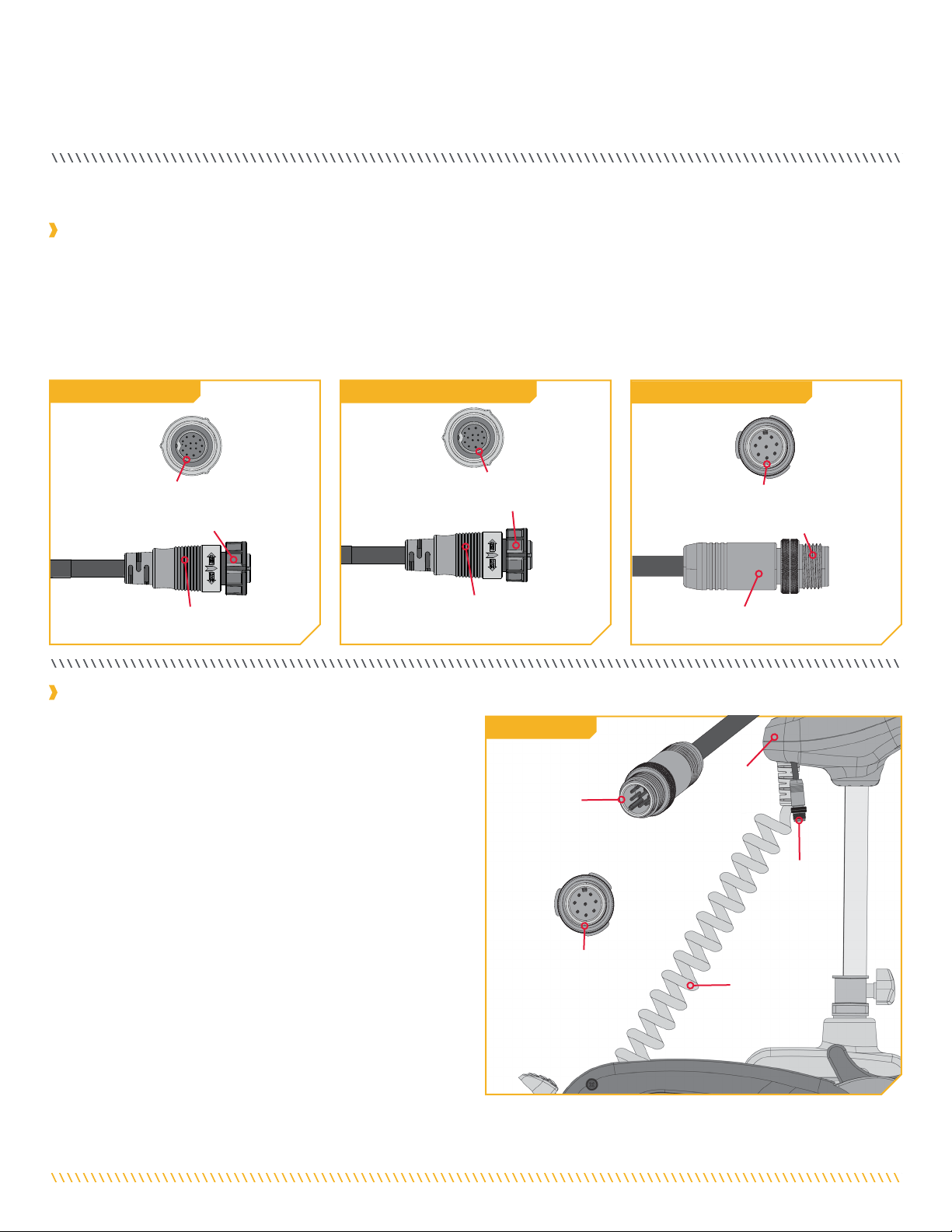

IDENTIFYING TROLLING MOTOR FEATURES AND THEIR ASSOCIATED CABLES
If ONE connector is present below the Control Head, the trolling
motor will be equipped with:
Advanced GPS Navigation - If Advanced GPS Navigation is
pre-installed on your trolling motor, one Eight Pin Advanced
GPS Ethernet Connector will exit the base of the Control Head
and rest just below the Control Head next to the Coil Cord. If
the Advanced GPS Navigation on the trolling motor will be used
with a fish finder, an Ethernet Cable may be attached to the
Advanced GPS Ethernet Connector below the Control Head.
See the "Advanced GPS Navigation" section of this document
for details on how to install the Advanced GPS Ethernet
Connector to a Humminbird. If only one connector is present
below the control Head, the motor is not equipped with sonar.
IDENTIFYING TROLLING MOTOR FEATURES AND THEIR ASSOCIATED CABLES
Ethernet CableEthernet Cable
from Trolling Motorfrom Trolling Motor
Threaded CollarThreaded Collar
Locking CollarLocking Collar
Eight Pin ConnectorEight Pin Connector
The Terrova is pre-installed with Advanced GPS Navigation - including the ability to connect via Ethernet to a Humminbird unit. It may also
be installed with sonar, either Dual Spectrum CHIRP or Built-in MEGA Down Imaging. These features may be installed on their own or in
combination with another feature. All of these features require Accessory Cables to be connected to an output device. The connectors
are present on the trolling motor and have cables that exit below the Control Head or exit the Coil Cord at the base of the Mount. To better
identify Accessory Cables present, refer to the diagrams that detail what the Dual Spectrum CHIRP, Built-in MEGA Down Imaging and
Advanced GPS Navigation connectors look like.
Dual Spectrum CHIRPDual Spectrum CHIRP
from Trolling Motorfrom Trolling Motor
Dual Spectrum CHIRP Advanced GPS Navigation
Fourteen Pin ConnectorFourteen Pin Connector
Feature & Cable Identification
Identifying Connectors
ONE Connector
Locking CollarLocking Collar
Built-in MEGABuilt-in MEGA
Down Imaging fromDown Imaging from
Trolling MotorTrolling Motor
Built-in MEGA Down Imaging
Fourteen Pin ConnectorFourteen Pin Connector
AdvancedAdvanced
GPSGPS
EthernetEthernet
ConnectorConnector
AdvancedAdvanced
GPSGPS
EthernetEthernet
ConnectorConnector
Eight PinEight Pin
ConnectorConnector
ControlControl
HeadHead
Coil CordCoil Cord

12 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
CRITICAL CABLE ROUTING
ControlControl
HeadHead
MountMount
AdvancedAdvanced
GPSGPS
EthernetEthernet
ConnectorConnector
TWO Connectors
On motors with a shaft 60” or more, Accessory Cables (including Dual Spectrum CHIRP, Built-in MEGA Down Imaging and Advanced GPS
Navigation) must exit the Coil Cord leaving three or more open coils between where the cables exit and the motor base, as assembled by
the factory. Routing the Accessory Cables in any other manner will not allow the motor to stow properly. When identifying features and
establishing connections, make sure to follow the critical cable routing.
Dual Spectrum CHIRP
Critical Cable Routing
Built-in MEGA DownBuilt-in MEGA Down
ImagingImaging
or Dual Spectrumor Dual Spectrum
CHIRPCHIRP
Fourteen PinFourteen Pin
ConnectorConnector
Built-in MEGA Down Imaging
If TWO connectors are present below the Control Head, the trolling
motor will be equipped with:
Advanced GPS Navigation & Dual Spectrum CHIRP or Built-in
MEGA Down Imaging - If Advanced GPS Navigation is pre-
installed on your trolling motor, one Eight Pin Advanced GPS
Ethernet Connector will exit the base of the Control Head and
rest just below the Control Head next to the Coil Cord. If the
Advanced GPS Navigation on the trolling motor will be used
with a fish finder, an Ethernet Cable may be attached to the
Advanced GPS Ethernet Connector below the Control Head.
See the “Advanced GPS Navigation” section of this document
for details on how to install the Advanced GPS Ethernet
Connector to a Humminbird.
If Dual Spectrum CHIRP or Built-in MEGA Down Imaging is
pre-installed on your trolling motor, one Sonar Accessory Cable
will exit the base of the Control Head and run down the center
of the Coil Cord. The end of the Cable will have a Fourteen Pin
Connector. Motors with Dual Spectrum CHIRP or Built-in MEGA
Down Imaging will also have a transducer in the Lower Unit. The
appearance of the transducer will vary depending on sonar type.
Eight PinEight Pin
ConnectorConnector
Advanced GPSAdvanced GPS
EthernetEthernet
ConnectorConnector
CoilCoil
CordCord
At leastAt least
3Coils3 Coils At leastAt least
3Coils3 Coils
Shafts 60 inches or more Shafts less than 60 inches
ShaftShaft
MotorMotor
BaseBase MotorMotor
BaseBase MotorMotor
BaseBase
MotorMotor
BaseBase
ShaftShaft ShaftShaft
ShaftShaft
AdvancedAdvanced
GPSGPS
NavigationNavigation
AdvancedAdvanced
GPSGPS
NavigationNavigation
AdvancedAdvanced
GPSGPS
NavigationNavigation
AdvancedAdvanced
GPSGPS
NavigationNavigation
SonarSonar
SonarSonar

minnkotamotors.com | 13
©2023 Johnson Outdoors Marine Electronics, Inc.

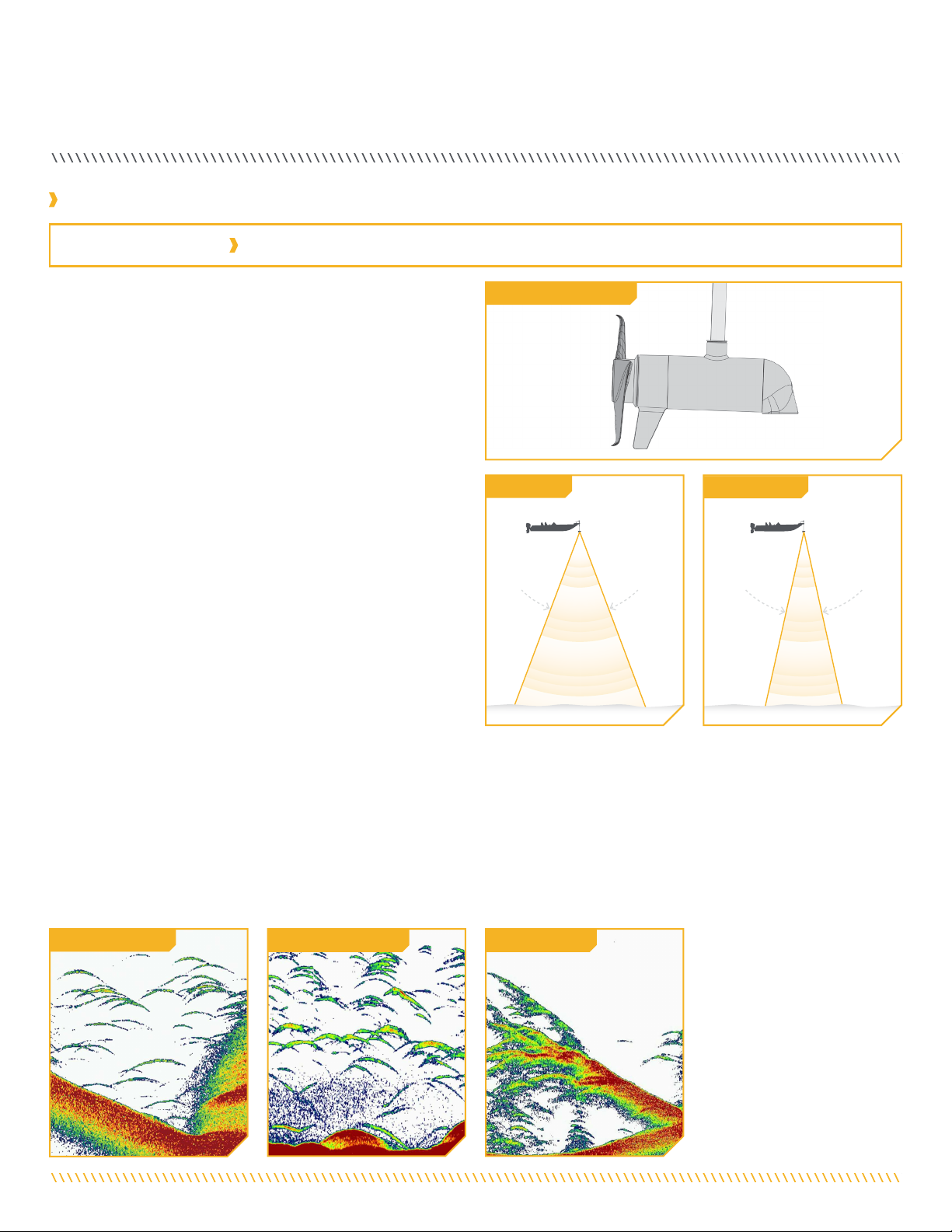

FEATURE & CABLE MANAGEMENT
Feature & Cable Management
Your trolling motor may be pre-installed with a transducer system
featuring Humminbird’s Dual Spectrum CHIRP. CHIRP stands
for “Compressed High Intensity Radar Pulse.” Dual Spectrum
CHIRP is a 2D sonar transducer with a temperature sensor that
is integrated into the lower unit of the trolling motor. Humminbird
also utilizes a proprietary, best-in-class transducer designed
and built to maximize fish detail, as well as coverage area. Dual
Spectrum CHIRP scans the water for fish similar to the way the
seek function on your truck’s radio scans the airwaves for
FM stations. By covering a wide range of frequencies, CHIRP
produces more accurate, more detailed returns of fish, structure,
and the bottom.
Humminbird’s Dual Spectrum CHIRP gives you full spectrum
capability, plus the power to select your own start and end
frequencies by operating in two dierent modes. Wide Mode for
maximum coverage and Narrow Mode for maximum detail. Wide
mode allows you to search deep and wide. Is it used for watching
your lure while vertical jigging, or gaining a more expansive view
in shallow water. Narrow Mode is used to hone in on the small
stu that makes a big dierence. Narrow Mode provides a precise
perspective of the water below, helping you target individual fish,
or identify fish hidden in structure and/or tight to the bottom.
DUAL SPECTRUM CHIRP
Wide Mode
Target Separation
Narrow Mode
Defined Fish Arches Strong Returns
Dual Spectrum CHIRP features:
SUPERIOR TARGET SEPARATION - Separating fish from their habitat is the name of the game. And now, you’ll be able to tell the
dierence more easily between bait and game fish, and nearby structure and vegetation.
CLEARLY DEFINED FISH ARCHES - We’ve got bad news for your arch nemesis. Large game fish will show up on your screen as long, well-
defined arches, for quick identification and accurate lure presentation.
STRONG RETURNS WITHOUT NOISE - Stop seeing things that aren’t there. A high signal-to-noise ratio translates to better defined
targets, less clutter and greater certainty that what you’re looking at on-screen is legit.
Dual Spectrum CHIRP

14 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

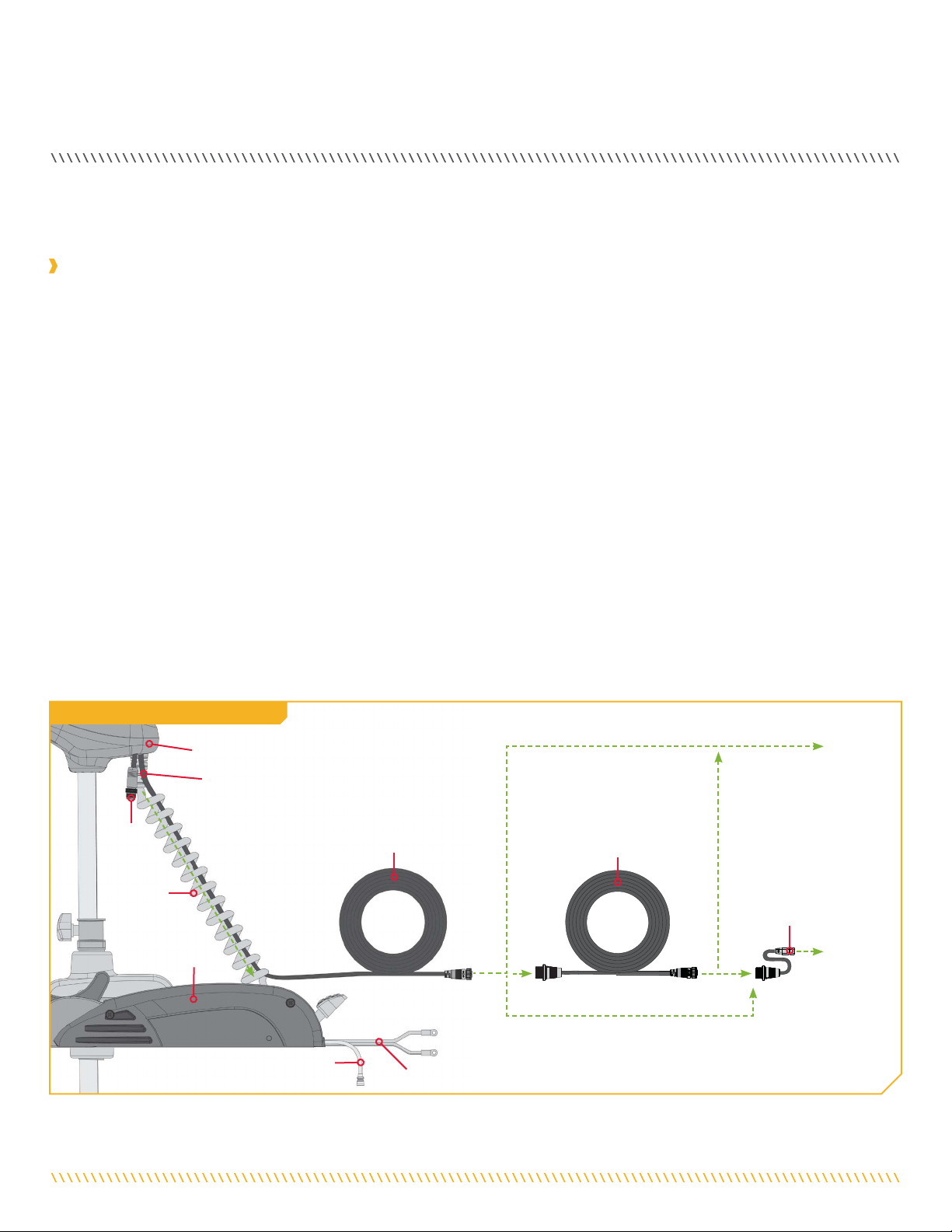

DUAL SPECTRUM CHIRP
Considerations for Connecting and Routing Dual Spectrum CHIRP
If Dual Spectrum CHIRP is pre-installed on your trolling motor, one Dual Spectrum CHIRP accessory cable will exit the base of the Control
Head and run down the center of the Coil Cord. Dual Spectrum CHIRP requires cables to be connected to an output device such as a
Humminbird® fish finder. The Dual Spectrum CHIRP cable that exits the Coil Cord is "Apex and Solix Ready". Connecting the trolling motor
equipped with a Dual Spectrum CHIRP transducer to a compatible fish finder gives you a 2D sonar view of what is happening directly
below your trolling motor. To determine if your fish finder is compatible with Dual Spectrum CHIRP, please visit minnkotamotors.com to
check compatibility. The Dual Spectrum CHIRP cable from the trolling motor may be plugged directly into a Solix or Apex, directly into an
Extension Cable or directly into a Humminbird® Helix Adapter Cable.
EXTENSION CABLES - The Dual Spectrum CHIRP cable from the trolling motor may not be long enough to reach your fish finder. If the
cable length does not reach the desired fish finder installation location, extension cables are available. A 10-foot extension cable
(EC M3 14W10 - 10' transducer extension cable - 720106-1) and a 30-foot extension cable (EC M3 14W30 - 30' transducer extension
cable - 720106-2) are available from humminbird.com. Both the 10-foot and 30-foot extension cables also come "Apex and Solix Ready".
The Extension Cables may plug directly into a Solix or Apex or directly into a Helix Adapter Cable.

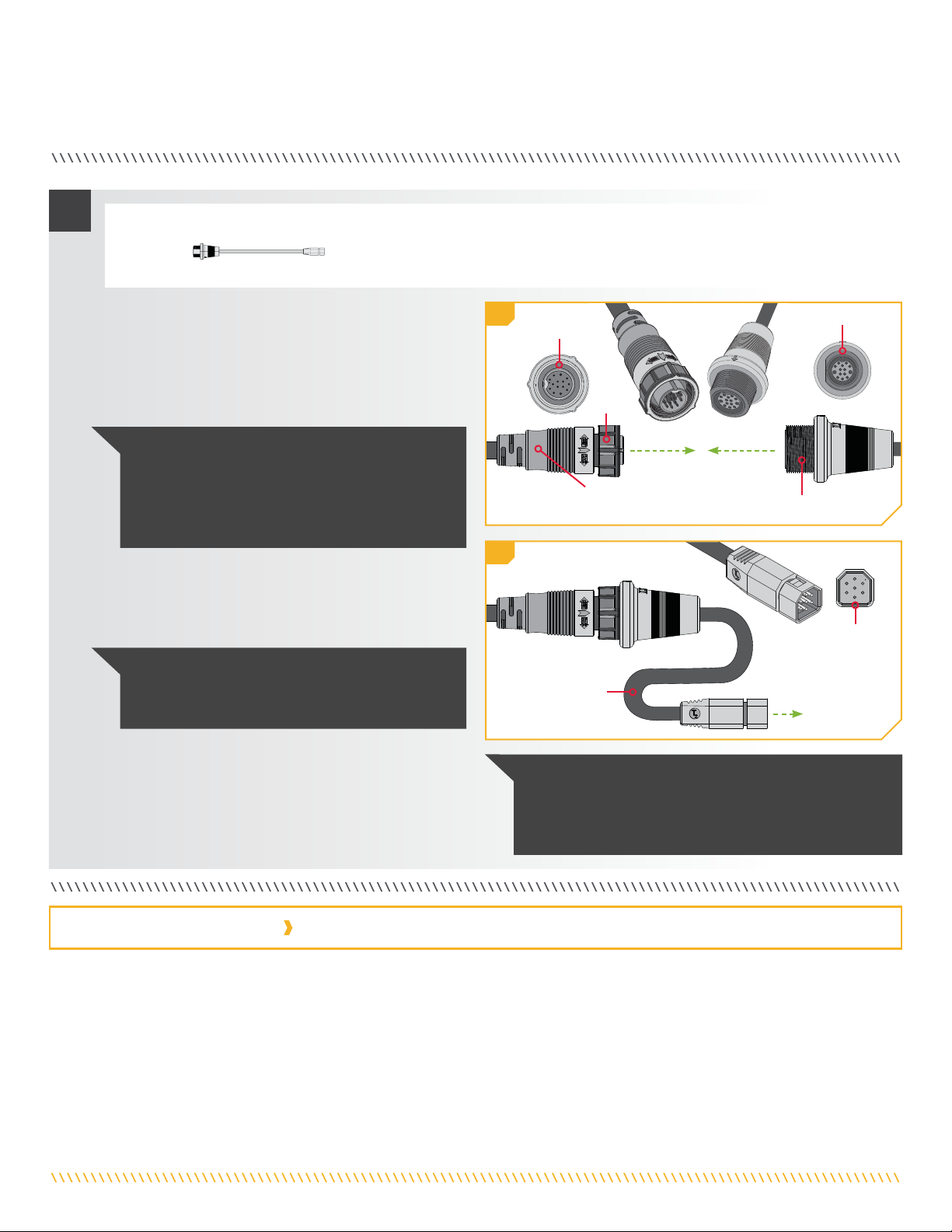

HUMMINBIRD HELIX ADAPTER CABLES - If connecting to a Humminbird® Helix fish finder, an adapter cable accessory is included that
will allow the connection of any compatible Humminbird® Helix fish finder. The 490537-2 MKR-MI-1 is used on Helix 8, 9, 10, 12 and 15
G2N models and newer. The 490518-1 MKR-MDI-2 is used for Helix 7 G3, G4, G3N and G4N models. The Helix adapter cables will plug
directly into the Helix fish finder.
OTHER FISH FINDER ADAPTER CABLES - If connecting to other fish finders on the market, check for compatibility or any required
adapter cables online at minnkotamotors.com.
The integrated design of the Dual Spectrum CHIRP transducer protects it in the lower unit of the trolling motor from underwater hazards
and prevents tangles and damage to the transducer cables. In certain situations, air bubbles may adhere to the surface of the Dual
Spectrum CHIRP transducer and aect the performance. If this happens, simply wipe the surface of the transducer with your finger.
Control HeadControl Head
MountMount
DualDual
SpectrumSpectrum
CHIRPCHIRP
ExtensionExtension
CableCable
(if needed)(if needed)
Helix AdapterHelix Adapter
CableCable
(provided)(provided)
Dual SpectrumDual Spectrum
CHIRPCHIRP
CoilCoil
CordCord
Dual Spectrum CHIRP Connections
Foot PedalFoot Pedal
Power ConnectorPower Connector Power LeadsPower Leads
DirectlyDirectly
to Solixto Solix
or Apexor Apex
To HelixTo Helix
Advanced GPSAdvanced GPS
EthernetEthernet
ConnectorConnector

minnkotamotors.com | 15
©2023 Johnson Outdoors Marine Electronics, Inc.
DUAL SPECTRUM CHIRP
Fourteen PinFourteen Pin
ConnectorConnector
All Dual Spectrum CHIRP Terrova motors are equipped with an internal bonding wire. Incorrect rigging will cause sonar interference and
can damage your trolling motor, electronics, and other boat accessories. To minimize trolling motor interference, ensure that the fish
finder and trolling motor are powered by separate batteries. Please refer to the "Battery & Wiring Installation" and "Motor Wiring Diagram"
sections of this manual for correct rigging instructions.
The Dual Spectrum CHIRP cables are shielded to minimize interference. To protect this shielding, the cables should not be pulled tight
against sharp angles or hard objects. If using cable ties, do not over-tighten. Any excess cable should be bundled in a loose loop of no
less than 4” in diameter. The connection cable should be routed to the fish finder following Minn Kota recommendations on routing the
cables to optimize mobility and maximize functionality. Follow the instructions below for completing all connections and then follow the
instructions for "Securing Accessory Cables" to complete the output cable installation.
NOTICE: Your fish finder should be turned o
until this procedure is complete.

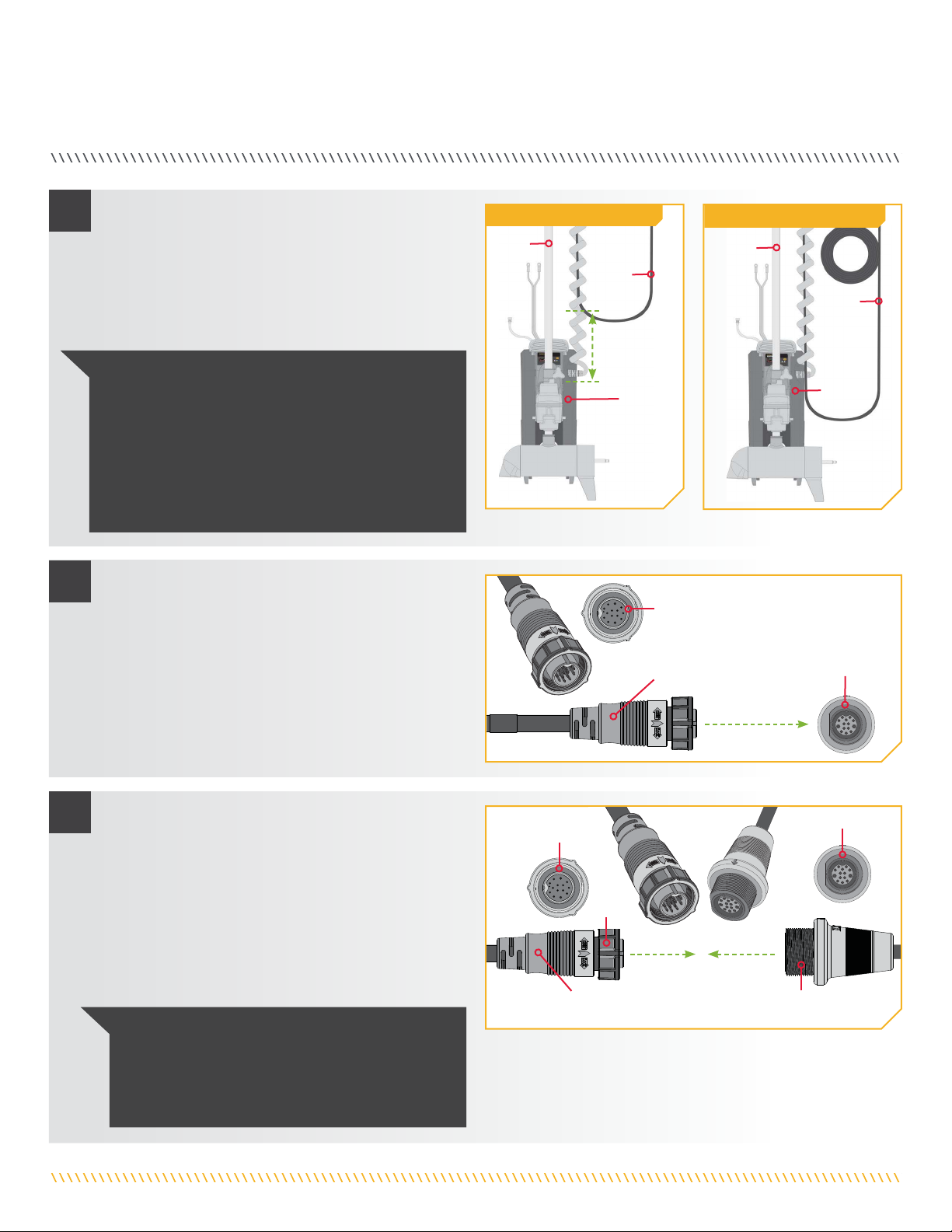

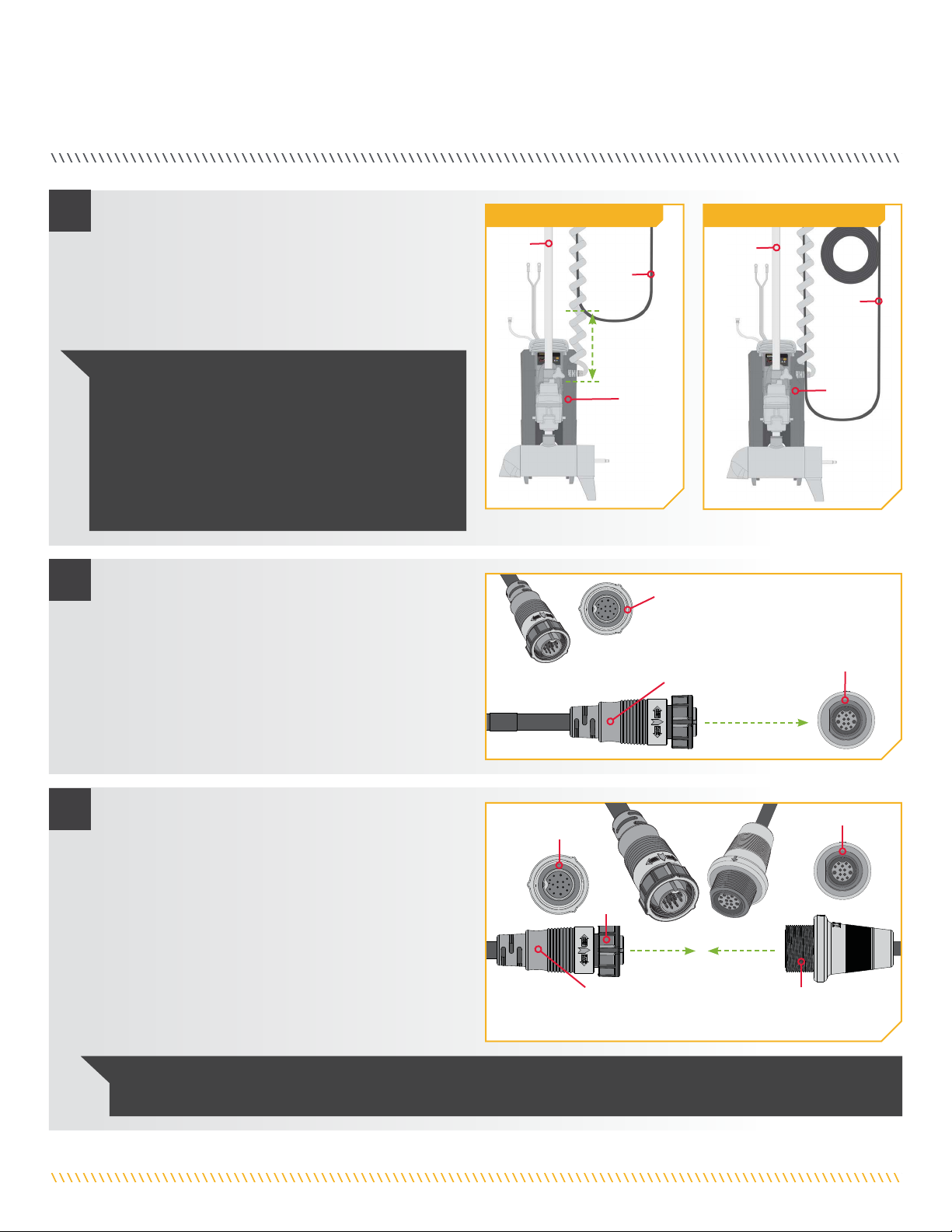

a. Place the motor in the deployed position.
b. Locate the Fourteen Pin Connector on the end of the
Dual Spectrum CHIRP accessory cable. The cable
will exit the base of the Control Head and run down
the center of the Coil Cord.
c. Determine if the Plug on the end of the Dual
Spectrum CHIRP accessory cable will be attached
directly to:
1) a Humminbird®Solix or Apex fish finder,
2) a Dual Spectrum CHIRP Extension Cable,
3) a Helix Adapter Cable or a compatible fish finder
adapter cable.
1
CAUTION
Failure to follow the recommended wire routing for installed features, if equipped, may cause damage to the product and void your
product warranty. Route cables away from pinch points or other areas that may cause them to bend in sharp angles. Routing the cables
in any way other than directed may cause damage to the cables by being pinched or severed. Do not over-tighten the cable ties as it may
damage the wires.
MountMount
DualDual
SpectrumSpectrum
CHIRPCHIRP
CoilCoil
CordCord
Foot PedalFoot Pedal
Power ConnectorPower Connector PowerPower
LeadsLeads

16 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
DUAL SPECTRUM CHIRP
Fourteen PinFourteen Pin
ConnectorConnector
2
3
Dual Spectrum CHIRPDual Spectrum CHIRP
Accessory Cable fromAccessory Cable from
Trolling MotorTrolling Motor
Solix or ApexSolix or Apex
Fish FinderFish Finder
At leastAt least
3Coils3 Coils
Shafts 60 inches or more Shafts less than 60 inches
MotorMotor
BaseBase
MotorMotor
BaseBase
ShaftShaft
ShaftShaft
DualDual
SpectrumSpectrum
CHIRPCHIRP DualDual
SpectrumSpectrum
CHIRPCHIRP
NOTICE: A 10-foot extension cable (EC M3 14W10
- 10' transducer extension cable - 720106-1) and a 30-
foot extension cable (EC M3 14W30 - 30' transducer
extension cable - 720106-2) are available from
humminbird.com.
4
Dual Spectrum CHIRP AccessoryDual Spectrum CHIRP Accessory
Cable from Trolling MotorCable from Trolling Motor Dual Spectrum CHIRPDual Spectrum CHIRP
Extension CableExtension Cable
Fourteen PinFourteen Pin
ConnectorConnector ReceptacleReceptacle
CollarCollar
NOTICE: CRITICAL CABLE ROUTING. On motors with a
shaft 60" or more, accessory cables must exit the Coil
Cord leaving three or more open coils between where
the cables exit and the Motor Base, as assembled by the
factory. Routing the cables in any other manner will not
allow the motor to stow properly. Please see the “Critical
Cable Routing” and “Securing Accessory Cables”
sections of this document for details.
d. Verify the length of your motor shaft to determine if
Critical Cable Routing applies to your trolling motor.
If the trolling motor shaft is 60 inches or more, adjust
the Dual Spectrum CHIRP Cable to exit the Coil
Cord three coils before the Motor Base. Review the
“Critical Cable Routing” section of this document for
more details.
e. If installing directly to a Solix or Apex, the connection
will be flat on the back of the fish finder display.
f. Align the pins on the Accessory Cable with the
receptacle on the fish finder. Notice the keyed
connectors. Tighten the Collar from the accessory
cable to secure the connection. Once directly
installed to the Solix or Apex, the connection
is complete.
g. If installing directly to a Dual Spectrum CHIRP
Extension Cable, align the pins on the accessory
cable with the receptacle on the extension cable.
Notice the keyed connectors. Tighten the Collar
from the accessory cable to secure the connection.
h. If the Dual Spectrum CHIRP extension cable will be
attached directly to a Humminbird®Solix or Apex,
the connection will look exactly like the installation
directly into a Humminbird Solix or Apex fish finder.

minnkotamotors.com | 17
©2023 Johnson Outdoors Marine Electronics, Inc.
DUAL SPECTRUM CHIRP
Built-in MEGA Down Imaging delivers nearly 3X the output of standard Side Imaging®, and takes fishfinding into the megahertz frequency
for the very first time. It uses a razor-thin, high-frequency beam to create picture-like images of structure, vegetation and fish. With
Humminbird MEGA imaging sonar built right into the trolling motor, you now have a crystal clear view of what’s directly beneath the boat,
without having to manage all of the cables that come with external transducers. The Built-in MEGA DI transducer is only available on new
models equipped from the factory and cannot be added to an existing trolling motor.
BUILT-IN MEGA DOWN IMAGING
AdapterAdapter
Cable KeyedCable Keyed
ConnectorConnector
Plug intoPlug into
Helix FishHelix Fish
FinderFinder
NOTICE: The 490537-2 MKR-MI-1 (Item #17) is a
Helix Adapter Cable used on Helix 8, 9, 10, 12 and 15
G2N models and newer. The 490518-1 MKR-MDI-2
(Item #18) is a Helix Adapter Cable used for Helix 7 G3,
G4, G3N and G4N models. Both cables are included.
NOTICE: If connecting to other fish finders
on the market, check for compatibility or any required
adapter cables online at minnkotamotors.com.
NOTICE: If unsure of what features your trolling motor may
be installed with that require connection to an output device,
please review the "Identifying Trolling Motor Features And
Their Associated Cables" section in this document.
5
Dual Spectrum CHIRP AccessoryDual Spectrum CHIRP Accessory
Cable or Extension CableCable or Extension Cable Helix Adapter CableHelix Adapter Cable
Helix AdapterHelix Adapter
CableCable
Fourteen PinFourteen Pin
ConnectorConnector ReceptacleReceptacle
CollarCollar
5i
5j
i. If installing directly to a Helix Adapter Cable, align
the pins on the accessory cable or extension cable
with the receptacle on the Helix Adapter Cable
(Item #17 or 18). Notice the keyed connectors.
Tighten the Collar from the accessory cable or
extension cable to secure the connection.
j. If the Helix Adapter Cable will be attached directly
to a Humminbird® Helix, plug it in the Helix
Adapter Cable Keyed Connection on the back of the
fish finder.
k. If your trolling motor has more than one external
connector for an output device, complete the
connection for that specific output and then follow
the instructions for "Securing Accessory Cables" to
complete the output cable installation.
ITEM(S) NEEDED
#17 or 18 x 1

18 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
BUILT-IN MEGA DOWN IMAGING
Control HeadControl Head
MountMount
Built-inBuilt-in
MEGAMEGA
DownDown
ImagingImaging
ExtensionExtension
CableCable
(if needed)(if needed)
Helix AdapterHelix Adapter
CableCable
(provided)(provided)
Built-in MEGABuilt-in MEGA
Down ImagingDown Imaging
CoilCoil
CordCord
Built-in MEGA Down Imaging Connections
Foot PedalFoot Pedal
Power ConnectorPower Connector Power LeadsPower Leads
DirectlyDirectly
to Solixto Solix
or Apexor Apex
To HelixTo Helix
Advanced GPSAdvanced GPS
EthernetEthernet
ConnectorConnector
EXTENSION CABLES - The Built-in MEGA Down Imaging cable from the trolling motor may not be long enough to reach your fish finder.
If the cable length does not reach the desired fish finder installation location, extension cables are available. A 10-foot extension cable
(EC M3 14W10 - 10' transducer extension cable - 720106-1) and a 30-foot extension cable (EC M3 14W30 - 30' transducer extension
cable - 720106-2) are available from humminbird.com. Both the 10-foot and 30-foot extension cables also come "Apex and Solix Ready".
The Extension Cables may plug directly into a Solix or Apex or directly into a Helix Adapter Cable.
HUMMINBIRD HELIX ADAPTER CABLES - If connecting to a Humminbird® Helix fish finder, an adapter cable accessory is included that
will allow the connection of any compatible Humminbird® Helix fish finder. The 490537-2 MKR-MI-1 is used on Helix 8, 9, 10, 12 and 15
G2N models and newer. The 490518-1 MKR-MDI-2 is used for Helix 7 G3, G4, G3N and G4N models. The Helix adapter cables will plug
directly into the Helix fish finder.
OTHER FISH FINDER ADAPTER CABLES - If connecting to other fish finders on the market, check for compatibility or any required
adapter cables online at minnkotamotors.com.
Considerations for Connecting and Routing Built-in MEGA Down Imaging
If Built-in MEGA Down Imaging is pre-installed on your trolling motor, one Built-in MEGA Down Imaging accessory cable will exit the base
of the Control Head and run down the center of the Coil Cord. Built-in MEGA Down Imaging requires cables to be connected to an output
device such as a Humminbird® fish finder. The Built-in MEGA Down Imaging cable that exits the Coil Cord is "Apex and Solix Ready".
Connecting the trolling motor equipped with a Built-in MEGA Down Imaging transducer to a compatible fish finder gives you a 2D sonar
view of what is happening directly below your trolling motor. To determine if your fish finder is compatible with Built-in MEGA Down
Imaging, please visit minnkotamotors.com to check compatibility. The Built-in MEGA Down Imaging cable from the trolling motor may be
plugged directly into a Solix or Apex, directly into an Extension Cable or directly into a Humminbird® Helix Adapter Cable.

minnkotamotors.com | 19
©2023 Johnson Outdoors Marine Electronics, Inc.
BUILT-IN MEGA DOWN IMAGING
CAUTION
Failure to follow the recommended wire routing for installed features, if equipped, may cause damage to the product and void your
product warranty. Route cables away from pinch points or other areas that may cause them to bend in sharp angles. Routing the cables
in any way other than directed may cause damage to the cables by being pinched or severed. Do not over-tighten the cable ties as it may
damage the wires.
NOTICE: You can only view Down Imaging with a MEGA DI or MEGA SI HELIX G2N, G3N or G4N Series model and a required adapter,
or with any SOLIX or APEX Series model. The built-in transducer cannot supply MEGA Imaging to Humminbird models that do not
already have the capability. If you have a G2/G2N, G3/G3N, G4/G4N HELIX that is not a MEGA SI or MEGA DI model, you will still get
2D Dual Spectrum CHIRP Sonar from the transducer. SOLIX G1 and HELIX G2 and G2N units need to be running the latest software
update to view sonar from motors with Built-In MEGA Imaging. You can get the latest version of software for your fish finder on
humminbird.com. Built-In MEGA Imaging is not supported by HELIX G1 models or other brands of fish finders.
Fourteen PinFourteen Pin
ConnectorConnector
NOTICE: Your fish finder should be turned o
until this procedure is complete.
a. Place the motor in the deployed position.
b. Locate the Fourteen Pin Connector on the end of the
Built-in MEGA Down Imaging accessory cable. The
cable will exit the base of the Control Head and run
down the center of the Coil Cord.
c. Determine if the Plug on the end of the Built-in MEGA
Down Imaging Cable accessory cable will be attached
directly to:
1) a Humminbird®Solix or Apex fish finder,
2) a Built-in MEGA Down Imaging Extension Cable,
3) a Helix Adapter Cable or a compatible fish finder
adapter cable.
1
CoilCoil
CordCord
MountMount Foot PedalFoot Pedal
PowerPower
ConnectorConnector
PowerPower
LeadsLeads
Built-in MEGABuilt-in MEGA
Down ImagingDown Imaging

20 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
BUILT-IN MEGA DOWN IMAGING
Fourteen Pin ConnectorFourteen Pin Connector
3
Built-in MEGA DownBuilt-in MEGA Down
Imaging Accessory CableImaging Accessory Cable
from Trolling Motorfrom Trolling Motor
Solix or ApexSolix or Apex
Fish FinderFish Finder
2
At leastAt least
3Coils3 Coils
Shafts 60 inches or more Shafts less than 60 inches
MotorMotor
BaseBase
MotorMotor
BaseBase
ShaftShaft
ShaftShaft Built-inBuilt-in
MEGAMEGA
DownDown
ImagingImaging Built-inBuilt-in
MEGAMEGA
DownDown
ImagingImaging
NOTICE: CRITICAL CABLE ROUTING. On motors with a
shaft 60" or more, accessory cables must exit the Coil
Cord leaving three or more open coils between where
the cables exit and the motor base, as assembled by the
factory. Routing the cables in any other manner will not
allow the motor to stow properly. Please see the “Critical
Cable Routing” and “Securing Accessory Cables”
sections of this document for details.
d. Verify the length of your motor shaft to determine if
Critical Cable Routing applies to your trolling motor.
If the trolling motor shaft is 60 inches or more,
adjust the Built-in MEGA Down Imaging Cable to
exit the Coil Cord three coils before the Motor Base.
Review the “Critical Cable Routing” section of this
document for more details.
e. If installing directly to a Solix or Apex, the connection
will be flat on the back of the fish finder display.
f. Align the pins on the Accessory Cable with the
receptacle on the fish finder. Notice the keyed
connections. Tighten the Collar from the accessory
cable to secure the connection. Once directly
installed to the Solix or Apex, the connection
is complete.
NOTICE: A 10-foot extension cable (EC M3 14W10 - 10' transducer extension cable - 720106-1) and a 30-foot extension cable
(EC M3 14W30 - 30' transducer extension cable - 720106-2) are available from humminbird.com.
4
Built-in MEGA DownBuilt-in MEGA Down
Imaging Accessory CableImaging Accessory Cable
from Trolling Motorfrom Trolling Motor
Built-in MEGA Down ImagingBuilt-in MEGA Down Imaging
Extension CableExtension Cable
Fourteen PinFourteen Pin
ConnectorConnector ReceptacleReceptacle
CollarCollar
g. If installing directly to a Built-in MEGA Down
Imaging Extension Cable, align the pins on the
accessory cable with the receptacle on the
extension cable. Notice the keyed connectors.
Tighten the Collar from the accessory cable to
secure the connection.
h. If the Built-in MEGA Down Imaging Extension Cable
will be attached directly to a Humminbird®Solix
or Apex, the connection will look exactly like the
installation directly into a Humminbird Solix or Apex
fish finder.
