MINN KOTA RIPTIDE ST User manual

RIPTIDE ST
BOW-MOUNT TROLLING MOTOR
USER MANUAL

Model:_________________________________________________________________________________________________________________________
Serial Number: _______________________________________________________________________________________________________________
Purchase Date: _______________________________________________________________________________________________________________
Store Where Purchased: ____________________________________________________________________________________________________
NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service
by: calling Minn Kota at [phone]; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any
Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of
purchase, serial number and purchase date for warranty service with any of the above options.
Please thoroughly read this user manual. Follow all instructions and heed all safety and cautionary notices below. Use of this motor is only
permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.
ATTENTION: Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from
the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure that they are
not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor make sure that the insulation
of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or motor. Always disconnect
motor from battery(s) before cleaning or checking the propeller. Avoid submerging the complete motor as water may enter the lower unit through
control head and shaft. If the motor is used while water is present in the lower unit considerable damage to the motor can occur. This damage will not
be covered by warranty.
CAUTION: Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The
motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for floating objects.
Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are not permitted to use
this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor during use is less than 70dB(A). The
overall vibration level does not exceed 2,5m/sec2.
THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat.
That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor
is thought out and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the
Minn Kota advantage that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are
never done helping you catch more fish.
REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR TROLLING MOTOR.
A registration card is enclosed or you can complete registration on our website at minnkotamotors.com.
LOCATING YOUR SERIAL NUMBER
Your Minn Kota 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting
Consumer Service or registering your product, you will need to know your product’s serial number. We recommend that you write the serial number
down in the space provided below so that you have it available for future reference.
CE MASTER USER MANUAL (FOR CE/C-TICK CERTIFIED MODELS)
Conforms to 89/336/EEC (EMC) under standards EN 55022A, EN 50082-2 since 1996 LN V9677264
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Trolling Motors
Produced in 2012
Riptide ST
MODEL 1363705
SER NO M365 MK12345
EXAMPLE
2 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
The serial number on your Riptide ST is located
inside the mount, below the motor rests.

minnkotamotors.com | 3
©2015 Johnson Outdoors Marine Electronics, Inc.
TABLE OF CONTENTS
Two-Year Limited Warranty 4
Features 5
Mount Installation 8
Battery & Wiring Installation 7-9
Boat Rigging & Product Installation 7
Conductor Gauge and Circuit Breaker Sizing Table 7
Selecting the Correct Batteries 8
Connecting the Batteries 8-9
Push-to-Test Battery Meter 9
Motor Wiring Diagram 10
Using The Motor 11-13
Stowing & Deploying 11
AutoPilot Controls 12
Adjusting the Depth of the Motor 12
Installing an External Transducer 13
Service & Maintenance 14
Troubleshooting & Repair 15
Environmental Compliance Statement 16
Parts Diagram 17
Parts List 18-19

WARRANTY ON MINN KOTA SALTWATER TROLLING MOTORS
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not
transferable.
MINN KOTA LIMITED TWO-YEAR WARRANTY ON THE ENTIRE PRODUCT
JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota saltwater trolling motor will be materially free from defects in materials
and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by
JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive
remedy of the purchaser for breach of this warranty.
MINN KOTA LIMITED LIFETIME WARRANTY ON COMPOSITE SHAFT
JOME warrants to the original retail purchaser only that the composite shaft of the purchaser’s Minn Kota trolling motor will be materially free from defects in
materials and workmanship appearing within the original purchaser’s lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite
shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the
sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to
install, any new composite shaft provided by JOME.
EXCLUSIONS & LIMITATIONS
This limited warranty does not apply to products that have been used commercially or for rental purposes. This limited warranty does not cover normal wear
and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification, shipping damages, acts
of God, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT
PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY.
The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the purchaser. Prior to using
products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability. Any assistance JOME
provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations
or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses incurred by the purchaser
in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission. JOME’S AGGREGATE
LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S ORIGINAL PURCHASE
PRICE PAID FOR SUCH PRODUCT.
MINN KOTA SERVICE INFORMATION
To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented
to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or
shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service,
or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with
proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service
can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [e-mail].
Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair
or replacement, whichever is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not
in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at
least one hour.
NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED
WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND
BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE,
INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for
loss of use of product, loss of time, inconvenience or other damage.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state
to state.
4 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
TWO-YEAR LIMITED WARRANTY

WARRANTY ON MINN KOTA SALTWATER TROLLING MOTORS
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not
transferable.
MINN KOTA LIMITED TWO-YEAR WARRANTY ON THE ENTIRE PRODUCT
JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota saltwater trolling motor will be materially free from defects in materials
and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by
JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive
remedy of the purchaser for breach of this warranty.
MINN KOTA LIMITED LIFETIME WARRANTY ON COMPOSITE SHAFT
JOME warrants to the original retail purchaser only that the composite shaft of the purchaser’s Minn Kota trolling motor will be materially free from defects in
materials and workmanship appearing within the original purchaser’s lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite
shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the
sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to
install, any new composite shaft provided by JOME.
EXCLUSIONS & LIMITATIONS
This limited warranty does not apply to products that have been used commercially or for rental purposes. This limited warranty does not cover normal wear
and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification, shipping damages, acts
of God, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT
PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY.
The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the purchaser. Prior to using
products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability. Any assistance JOME
provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations
or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses incurred by the purchaser
in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission. JOME’S AGGREGATE
LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S ORIGINAL PURCHASE
PRICE PAID FOR SUCH PRODUCT.
MINN KOTA SERVICE INFORMATION
To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented
to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or
shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service,
or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with
proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service
can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [e-mail].
Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair
or replacement, whichever is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not
in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at
least one hour.
NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED
WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND
BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE,
INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for
loss of use of product, loss of time, inconvenience or other damage.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state
to state.
minnkotamotors.com | 5
©2015 Johnson Outdoors Marine Electronics, Inc.
FEATURES
Adjustable Depth Collar
Lifetime
Warranty Flexible
Composite Shaft
Cool Quiet
Power Motor
Weedless Wedge 2 Propeller
AutoPilot Indicator
(functional on equipped motors only)
System Ready
Indicator
Stow/Deploy Lever
Specifications subject to change without notice.
*This diagram is for reference only and may differ from your actual motor.
Fall Away Ramps
Push-to-Test Battery Meter

6 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
MOUNT INSTALLATION
TOOLS AND RESOURCES REQUIRED:
• #3 Phillips Screw Driver
• Drill
• 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with the installation
1. Remove the four sideplate screws. Remove the right sideplate and swing the left sideplate out and away from the base
extrusion.
2. Place the motor on the bow of the boat in the deployed position.
a. We recommend that the motor be mounted as close to the centerline of the boat as possible.
b. Make sure that the area under the mounting location is clear and unobstructed
for drilling and accessible for you to attach nuts and washers.
c. Make sure the mount is positioned so that the shaft is out beyond the rub rail of the boat by 1-1/2”. The lower unit, as it is
lowered into the water or raised into the boat, must not encounter any obstructions.
CAUTION: Make sure the motor is mounted on a level surface and is not connected to
a power source. Use the rubber washers to create a leve surface if necessary.
3. Once in position, mark four of the six holes (two on each side) provided in the bow mount base for drilling. If possible, use the
four holes that are farthest apart. Drill through the marked holes using the 9/32” drill bit.
4. Mount the plate to the bow using the provided bolts, nuts, and washers.
5. Replace the sideplates and sideplate screws.
Mounting Holes
(3 Per Side)

BOAT RIGGING & PRODUCT INSTALLATION
For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when
rigging your boat. Altering boat wiring should be completed by a qualified marine technician. The following specifications are for
general guidelines only:
CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional
electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are
using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire
extension length is more than 25 feet, we recommend that you contact a qualified marine technician.
An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that
each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type
(voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives
recommended guidelines for circuit breaker sizing.
Reference:
United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment
ABYC E-11: AC and DC Electrical Systems on Boats
CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE
Motor Thrust /
Model Max Amp Draw Circuit Breaker Wire Extension Length *
5 feet 10 feet 15 feet 20 feet 25 feet
30 lb. 30 50 Amp @ 12 VDC 10 AWG 10 AWG 8 AWG 6 AWG 4 AWG
40 lb., 45 lb. 42 10 AWG 8 AWG 6 AWG 4 AWG 4 AWG
50 lb., 55 lb. 50 60 Amp @ 12 VDC 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG
70 lb. 42 50 Amp @ 24 VDC 10 AWG 10 AWG 8 AWG 8 AWG 6 AWG
80 lb. 56 60 Amp @ 24 VDC 8 AWG 8 AWG 8 AWG 6 AWG 6 AWG
101 lb. 46 50 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG
Engine Mount 101 50 60 Amp @ 36 VDC 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG
112 lb. 52 60 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG
Engine Mount 160 116 (2) x 60 Amp @ 24 VDC 2 AWG 2 AWG 2 AWG 2 AWG 2 AWG
E-Drive 40 50 Amp @ 48 VDC 10 AWG 10 AWG 10 AWG 10 AWG 10 AWG
This conductor and circuit breaker sizing table is only valid for the following assumptions:
1. No more than 3 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105° C temp rated insulation.
3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.
*Wire Extension Length refers to the distance from the batteries to the trolling motor leads.
minnkotamotors.com | 7
©2015 Johnson Outdoors Marine Electronics, Inc.
BATTERY WIRING & INSTALLATION

BATTERY WIRING & INSTALLATION
CONNECTING THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR)
24 VOLT SYSTEMS:
1. Make sure that the motor is switched off (speed selector on “0”).
2. Two 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring
diagram, to provide 24 volts.
a. Connect a connector cable to the positive ( + ) terminal of
battery 1 and to the negative ( – ) terminal of battery 2.
b. Connect positive ( + ) red motor lead to
positive ( + ) terminal on battery 2.
c. Connect negative ( – ) black motor lead to
negative ( – ) terminal of battery 1.
4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper
polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.
CAUTION
• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while
the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.
To trolling motor negative
24 Volt Connection
Battery #1 (Low Side)
Neg - Neg -Pos + Pos +
Battery #2 (High Side)
+24 Volts to trolling motor
positive (or circuit breaker)
24 Volt Series Connection
SELECTING THE CORRECT BATTERIES
The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine
battery with at least a 105 ampere hour rating. Maintain battery at full charge. Proper care will ensure having battery power
when you need it, and will significantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the
leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We offer a wide selection of chargers
to fit your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate
deep cycle marine battery/batteries for your Minn Kota trolling motor.
Advice Regarding Batteries:
• Never connect the (+) and the (–) terminals of the same battery together. Take care that no metal object can fall onto the
battery and short the terminals. This would immediately lead to a short and extreme fire danger.
• It is highly recommended that a circuit breaker or fuse be used with this trolling motor. Refer to “Conductor Gauge and Circuit
Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for your motor. For motors requiring
a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.
CONNECTING THE BATTERIES
12 VOLT SYSTEMS:
1. Make sure that the motor is switched off (speed selector on “OFF” or “0”).
2. Connect positive ( + ) red lead to positive ( + ) battery terminal.
3. Connect negative ( – ) black lead to negative ( – ) battery terminal.
4. For safety reasons do not switch the motor on until the propeller is in the water.
CAUTION:
For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the
battery/batteries are being charged.
8 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.

CONNECTING THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR)
24 VOLT SYSTEMS:
1. Make sure that the motor is switched off (speed selector on “0”).
2. Two 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring
diagram, to provide 24 volts.
a. Connect a connector cable to the positive ( + ) terminal of
battery 1 and to the negative ( – ) terminal of battery 2.
b. Connect positive ( + ) red motor lead to
positive ( + ) terminal on battery 2.
c. Connect negative ( – ) black motor lead to
negative ( – ) terminal of battery 1.
4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper
polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.
CAUTION
• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while
the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.
To trolling motor negative
24 Volt Connection
Battery #1 (Low Side)
Neg - Neg -Pos + Pos +
Battery #2 (High Side)
+24 Volts to trolling motor
positive (or circuit breaker)
24 Volt Series Connection
SELECTING THE CORRECT BATTERIES
The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine
battery with at least a 105 ampere hour rating. Maintain battery at full charge. Proper care will ensure having battery power
when you need it, and will significantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the
leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We offer a wide selection of chargers
to fit your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate
deep cycle marine battery/batteries for your Minn Kota trolling motor.
Advice Regarding Batteries:
• Never connect the (+) and the (–) terminals of the same battery together. Take care that no metal object can fall onto the
battery and short the terminals. This would immediately lead to a short and extreme fire danger.
• It is highly recommended that a circuit breaker or fuse be used with this trolling motor. Refer to “Conductor Gauge and Circuit
Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for your motor. For motors requiring
a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.
CONNECTING THE BATTERIES
12 VOLT SYSTEMS:
1. Make sure that the motor is switched off (speed selector on “OFF” or “0”).
2. Connect positive ( + ) red lead to positive ( + ) battery terminal.
3. Connect negative ( – ) black lead to negative ( – ) battery terminal.
4. For safety reasons do not switch the motor on until the propeller is in the water.
CAUTION:
For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the
battery/batteries are being charged.
36 VOLT SYSTEMS:
1. Make sure that the motor is switched off
(speed selector on “0”).
2. Three 12 volt batteries are required.
3. The batteries must be wired in series, only as
directed in wiring diagram, to provide 36 volts.
a. Connect a connector cable to the positive
( + ) terminal of battery 1 and to the
negative ( – ) terminal of battery 2 and
another connector cable from the positive
( + ) terminal of battery 2 to the negative
( – ) terminal of battery of battery 3.
b. Connect positive ( + ) red motor lead to positive ( + ) terminal on battery 3.
c. Connect negative ( – ) black motor lead to negative ( – ) terminal of battery 1.
4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper
polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.
CAUTION
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.
• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while
the battery/batteries are being charged.
To trolling motor negative
24 Volt Connection 36 Volt Connection
Battery #1 (Low Side)
Neg - Neg - Neg -Pos + Pos + Pos +
Battery #2 (Middle) Battery #3 (High Side)
+36 Volts to trolling motor
positive (or circuit breaker)
36 Volt Series Connection
minnkotamotors.com | 9
©2015 Johnson Outdoors Marine Electronics, Inc.
BATTERY WIRING & INSTALLATION
PUSH-TO-TEST BATTERY METER
This motor is equipped with a “push-to-test” battery meter. The LED provides an accurate
display of the remaining charge in the battery. It is only accurate when the motor is off.
The meter reads as:
• One light indicates recharge.
• Two lights indicate low charge.
• Three lights indicate good charge.
• Four lights indicate full charge.

10 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
MOTOR WIRING DIAGRAM
NOTE: This is a universal, multi-voltage diagram. Double check your motor's voltage for proper connections. Over-Current
Protection Devices not shown in this illustration.
B+
M+
B-
M-
12v
24v
36v
BATTERY GAUGE STEERING MOTOR
COMPASS
RED
BROWN
BLACK
BLACK M-
RED M+
SENSOR
BOARD
AUTOPILOT ON EQUIPPED MOTORS ONLY
COIL CORD
UNIVERSAL SONAR 2 EXTENSION WIRE*
ACCESSORY PLUG
BROWN*
RED M+
BLACK M-
MOTOR
FUSE*
UNIVERSAL
SONAR 2 WIRE*
* UNIVERSAL SONAR2 MOTORS ONLY
BATTERY 1 BATTERY 2 BATTERY 3
BATTERY 1 BATTERY 2
BATTERY 1
BLACK B-
RED B+
WHITE
BLACK
ACCESSORY PLUG
AUTOPILOT INDICATOR, RED
SYSTEM READY, INDICATOR, GREEN
REED SWITCH
FOOT PEDAL
CONTROL BOARD
AUTOPILOT INDICATOR, RED
MOMENTARY/CONSTANT
INDICATOR, GREEN
SPEED ADJUSTMENT
KNOB
CONTROL BOARD

minnkotamotors.com | 11
©2015 Johnson Outdoors Marine Electronics, Inc.
USING & ADJUSTING THE MOTOR
STOWING AND DEPLOYING THE MOTOR
WARNING:
When raising or lowering the motor, keep fingers clear of all hinge and pivot points and all moving parts.
GENERAL
System Ready (green LED): The motor is equipped with a system ready indicator. Indicator light will be on when motor is
deployed and power is applied to the motor. When the motor is properly stowed the indicator light will go off indicating all power
has been turned off to the motor. If this indicator light does not come on when deployed, check that motor is connected to battery
properly and motor is completely deployed. If indicator light does not go off when stowed, be sure that stow/deploy lever is fully
latched and locked into the stowed position.
TO DEPLOY THE MOTOR
Push in and rotate the stow/deploy lever down. Gently slide the motor out from the ramps. Lower the motor to the desired depth,
making sure that it clicks into a secure, verticle position. The System Ready indicator light (green) will be lit, indicating motor is
ready for operation.
TO STOW THE MOTOR
Push and hold the stow/deploy lever down. Gently tilt and pull the composite shaft or control head until the motor engages the
motor ramps. Motor should rest on the motor ramps and lock into place. The stow/deploy lever should latch automatically into the
stowed position. The system ready indicator light (green) MUST go off for the motor to be stowed properly.
TRANSPORTATION
In conditions where the stowed motor is subject to high levels of shock or vibration, ensure the motor is securely stowed. Move
the depth collar snug against the steering motor and tighten.
STOW/DEPLOY LEVER OPERATION:
1. Push in
2. Push down
Fall Away Ramps
System Ready
Indicator
Stow/Deploy
Lever
1
2
Depth Collar Steering Housing

USING & ADJUSTING THE MOTOR
AUTOPILOT™ CONTROLS
(ON AUTOPILOT EQUIPPED MOTORS ONLY)
The Minn Kota AutoPilot™uses a magnetic compass and a microprocessor chip to keep the trolling motor pointed in the direction
you want to go. Each time the wind or water current moves the boat off course, the AutoPilot senses the change and steers itself
back to the original heading. The AutoPilot direction is set every time a steering change is made. To change direction, steer until
the control head points to the desired course. The AutoPilot will pull the bow of the boat around and correct automatically until
the boat is moving in the direction you chose.
1. This unit has an automatic steering shutdown for safety. In conditions where an obstruction prevents the trolling motor from
turning, or in extremely windy conditions, the automatic steering may stop. Any steering input will reset the system to normal.
2. When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will continue
to run until the motor is stowed properly. Once the motor is stowed properly, AutoPilot will turn off and the System Ready
indicator will go off.
3. This unit uses a magnetic compass to detect direction of travel. The compass can be adversely affected by magnets or large,
ferrous metal objects near (within 12” of) the trolling motor control head.
4. After steering to a new direction, there is a short delay before the direction is locked in to allow the compass to stabilize.
5. Obstructions on the propeller may cause excessive vibration of the motor head. This vibration can cause the compass to
wander and erratic steering to occur. Clear the obstruction to return the motor to normal operation.
6. When broad speed changes are made, the motor heading may change slightly. This is normal.
ADJUSTING THE DEPTH OF THE MOTOR
When setting the depth be sure the top of the motor is submerged
at least 12” to avoid churning or agitation of surface water. The
propeller must be completely submerged.
1. With the motor deployed, firmly grasp the composite shaft above
the mount.
2. Loosen the adjustable depth collar until the shaft slides freely.
3. Raise or lower the motor to the desired depth.
4. Turn the motor control head to the desired position.
5. Tighten adjustable depth collar to secure the motor in place.
Adjustable Depth Collar
Motor Mount
Composite Shaft
12” Minimum Depth
Motor Mount
Composite Shaft
12” Minimum Depth
Adjustable Depth Collar
12 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.

AUTOPILOT™ CONTROLS
(ON AUTOPILOT EQUIPPED MOTORS ONLY)
The Minn Kota AutoPilot™uses a magnetic compass and a microprocessor chip to keep the trolling motor pointed in the direction
you want to go. Each time the wind or water current moves the boat off course, the AutoPilot senses the change and steers itself
back to the original heading. The AutoPilot direction is set every time a steering change is made. To change direction, steer until
the control head points to the desired course. The AutoPilot will pull the bow of the boat around and correct automatically until
the boat is moving in the direction you chose.
1. This unit has an automatic steering shutdown for safety. In conditions where an obstruction prevents the trolling motor from
turning, or in extremely windy conditions, the automatic steering may stop. Any steering input will reset the system to normal.
2. When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will continue
to run until the motor is stowed properly. Once the motor is stowed properly, AutoPilot will turn off and the System Ready
indicator will go off.
3. This unit uses a magnetic compass to detect direction of travel. The compass can be adversely affected by magnets or large,
ferrous metal objects near (within 12” of) the trolling motor control head.
4. After steering to a new direction, there is a short delay before the direction is locked in to allow the compass to stabilize.
5. Obstructions on the propeller may cause excessive vibration of the motor head. This vibration can cause the compass to
wander and erratic steering to occur. Clear the obstruction to return the motor to normal operation.
6. When broad speed changes are made, the motor heading may change slightly. This is normal.
INSTALLING AN EXTERNAL TRANSDUCER
An external sonar transducer can be installed onto the motor as shown.
1. Transducer cables should be routed through the coil cable as
depicted in the illustration to the right.
2. Leave enough slack for proper stow and deploy.
3. Mount transducer according to transducer instructions.
Note: An external transducer is not included with your trolling motor.
Your trolling motor may be pre-installed with a Universal Sonar 2
transducer system. In this case, the transducer is integrated into the
motor unit.
For compatibility and more information on Universal Sonar 2, please
visit minnkotamotors.com/us2.
ACCESSORY RECOMMENDATIONS:
• Minn Kota Transducer Mounting Kit (MKR-15)
Leave slack
Leave slack
Tie wrap cable
Tie wrap cable
Transducer
Transducer
cable
Leave slack
Leave slack
Tie wrap cable
Tie wrap cable
Transducer
Transducer
cable
minnkotamotors.com | 13
©2015 Johnson Outdoors Marine Electronics, Inc.
USING & ADJUSTING THE MOTOR

Propeller
Drive Pin
Anode/Nut
Washer
PROPELLER REPLACEMENT
TOOLS AND RESOURCES REQUIRED:
• Box End Wrench
- 1/2” for motors with 70 lbs thrust or lower.
- 9/16” for motors with 80 lbs thrust or higher.
• Screwdriver (optional)
CAUTION:
Disconnect the motor from the battery before
beginning any prop work or maintenance.
NOTE: The propeller on your motor may differ from
the one pictured.
1. Disconnect motor from battery prior to changing the propeller.
2. Hold the propeller and loosen the anode/nut with a wrench.
3. Remove anode/nut and washer. If the drive pin is sheared/broken, you will need to hold the shaft steady with a screwdriver
blade pressed into the slot on the end of the shaft.
4. Turn the old prop to horizontal (as illustrated) and pull it straight off. If drive pin falls out, push it back in.
5. Align new propeller with drive pin.
6. Install prop washer and anode/nut.
7. Tighten anode/ nut 1/4 turn past snug. [25-35 inch lbs.] Be careful, over tightening can damage prop.
GENERAL MAINTENANCE
1. After use, the entire motor should be rinsed with freshwater, then wiped down with a cloth dampened with an aqueous based
silicone spray.
2. The propeller must be inspected and cleaned of weeds and fishing line after every use.
Fishing line and weeds can get behind the prop, damage the seals and allow water to enter the motor.
3. Verify the prop nut is secure each time the motor is used.
4. To prevent accidental damage during transportation or storage, disconnect the battery whenever the motor is off of the water.
For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.
5. For maximum battery life, recharge the battery(s) as soon as possible after use. For maximum motor performance, restore
battery to full charge prior to use.
6. Keep battery terminals clean with fine sandpaper or emery cloth.
7. The propeller is designed to provide optimum operation with very high efficiency. To maintain this top performance, the
leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fine
sandpaper.
14 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
SERVICE & MAINTENANCE

GENERAL MAINTENANCE
1. After use, the entire motor should be rinsed with freshwater, then wiped down with a cloth dampened with an aqueous based
silicone spray.
2. The propeller must be inspected and cleaned of weeds and fishing line after every use.
Fishing line and weeds can get behind the prop, damage the seals and allow water to enter the motor.
3. Verify the prop nut is secure each time the motor is used.
4. To prevent accidental damage during transportation or storage, disconnect the battery whenever the motor is off of the water.
For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.
5. For maximum battery life, recharge the battery(s) as soon as possible after use. For maximum motor performance, restore
battery to full charge prior to use.
6. Keep battery terminals clean with fine sandpaper or emery cloth.
7. The propeller is designed to provide optimum operation with very high efficiency. To maintain this top performance, the
leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fine
sandpaper.
1. Motor fails to run or lacks power:
• Check battery connections for proper polarity.
• Make sure terminals are clean and corrosion free. Use fine sandpaper or emery cloth to clean terminals.
• Check battery water level. Add water if needed.
2. Motor loses power after a short running time:
• Check battery charge. If low, restore to full charge.
3. You experience prop vibration during normal operation:
• Remove and rotate the prop 180°. See removal instructions in the Propeller Replacement Section.
4. Experiencing interference with your fishfinder:
• You may, in some applications, experience interference in your depth finder display. We recommend that you use a seperate
deep cycle marine battery for your trolling motor and that you power the depth finder from the starting/cranking battery. If
problems still persist, call our service department at 1-800-227-6433.
NOTE: For any other malfunctions, visit an Authorized Service Center. You can search for an Authorized Service Center in your
area by visiting our Authorized Service page, found online at minnkotamotors.com, or by calling our customer service number at
800-227-6433.
TROUBLESHOOTING THE MOTOR
FOR FURTHER TROUBLESHOOTING AND REPAIR
We offer several options to help you troubleshoot and/or repair your product. Please read through the options listed below.
FREQUENTLY ASKED QUESTIONS
We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on
“Frequently Asked Questions” to find an answer to your question.
CALL US (FOR U.S. AND CANADA)
Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433.
If you are calling to order parts, please have the 11-character serial number from your product, specific part numbers, and credit
card information available. This will help expedite your call and allow us to provide you with the best consumer service possible.
You can reference the parts list located in your manual to identify the specific part numbers.
EMAIL US
You can email our consumer service department with questions regarding your Minn Kota products. To email your question, visit
minnkotamotors.com and click on “Support”.
AUTHORIZED SERVICE CENTERS
Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your
products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.
minnkotamotors.com | 15
©2015 Johnson Outdoors Marine Electronics, Inc.
TROUBLESHOOTING & REPAIR

ENVIRONMENTAL COMPLIANCE STATEMENT:
It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable
environmental regulations, and a good neighbor in the communities where we make or sell our products.
WEEE DIRECTIVE:
EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers,
and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer
electronics to take responsibility for the management of waste from their products to achieve environmentally responsible
disposal during the product life cycle.
WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required
for EEE designed and intended as fixed or temporary installation in transportation vehicles such as
automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered
outside of the scope of the Directive, and EEE for those applications can be considered excluded from the
WEEE Directive requirement.
This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other
household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson
Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply
in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirement do
vary within European Union member states. For more information about where you should dispose of your waste equipment for
recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from
which your product was purchased.
DISPOSAL:
Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE
directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local
town council.
Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and
dispose of them at the proper place of collection of your local town council.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm.
16 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
COMPLIANCE STATEMENTS

minnkotamotors.com | 17
©2015 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM
Part #2324945 Rev B 2/15ECN 35978
This page provides Minn Kota® WEEE compliance disassembly instructions.
For more information about where you should dispose of your waste equipment
for recycling and recovery and/or your European Union member state require-
ments, please contact your dealer or distributor from which your product was
purchased.
Tools required, but not limited to: flat head screw driver,
Phillips screw driver, socket set, pliers, wire cutters.

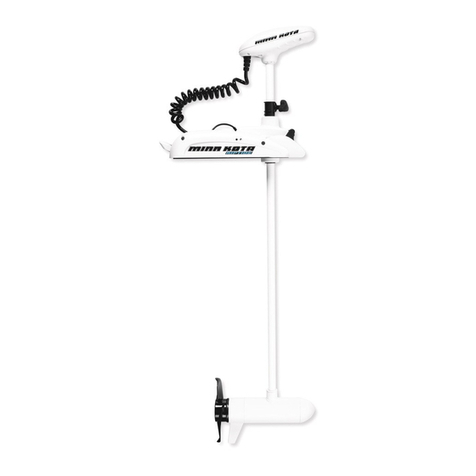

RIPTIDE ST 112
112 LBS THRUST - 36 VOLT - 60”/72” SHAFT
210
215 220
AutoPilot
Equipped
Motors Only
225
230
235
245
250
251
270
260
255
265
275
321 315
315
200
325
415
420
410
425
430
330
345
335
250
370
380
385
390
395
405
400
435
440
445
430
425
420
450
410
465
485
480
495
490475
500
470
640
635
645
685
630
660
665
670
680
675
650
655
625
620
530
525
535 540
550
555
575
605
570
565
560
600
580
690
725
715
700
695 710
735
730
636
595
757
465 540
590
585
580
755
540
775 780
760
765
770
30
70
10
5
125
20
115
120
85
65
50
110
90
80
60
35
71
100
95
15
25
40
41
1010
1000
1020
1015
1
136
135
526
527
745
571
740
741
510
545
850
CoPilot
Equipped
Motors Only

18 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
PARTS LIST
RIPTIDE ST 112
112 LBS THRUST - 36 VOLT - 60”/72” SHAFT
ITEM QTY PART
NUMBER DESCRIPTION
1 1 2777091 36V MOTOR 60” SW W/TUBE
12777093 36V MOTOR 72” SW W/TUBE
5 1 2-100-245 ARMATURE SEMBLY
10 1140-014 BEARING
15 1788-040 RAINING RING
20 CENTER HSG. W/TUBE [INCLUDED IN #200]
25 12-300-151 BRUSH END HOUSING SEMBLY
30 1421-241 PIN END HOUSING SEMBLY SW
35 1144-017 FNGE BEARING
40 2880-025 SEAL
41 1725-095 PAPER TUBE - SEAL BORE
50 2188-095 BRUSH
60 19-738-011 BRUSH PTE SEMBLY
65 2975-045 BRUSH SPRING
n2881450 SEAL & ORING KIT [INCLUD 40, 70-80]
70 1701-098 O-RING, PIN END
71 1701-046 O-RING, BRUSH END
80 2701-009 O-RING, THRU-BOLT
85 22053410 SCREW, 10-32 X 1/2”
90 2830-094 THRU-BOLT 12-24
95 2990-051 WHER, EEL
100 2990-052 WHER, NYTRON
110 12777312 FERRITE BEAD W/SHRINK
115 2992-011 WHER, BELLEVILLE
120 1990-011 WHER, SHIM
125 1582-016 CLIP, RAINING, SONAR
135 1640-044 LEADWIRE, BCK 60”
136 1640-144 LEADWIRE, RED 60”
200 12777345 TUBE, COMP. 60” SW [INCLUD 20]
12777346 TUBE, COMP. 72” SW [INCLUD 20]
210 22325666 DEL, COVER
215 12325690 DEL, RL BOX COVER, RT AUTOPILOT
220 12320201 COVER, RL BOX
225 12324032 RL BOARD, COMPS, AUTPILLOT ONLY
230 32302960 GROMM, COMPS, AUTOPILOT ONLY
235 22305415 WIRE INSUTOR
245 32372100 SCREW, 8-18 X .625
250 32052510 BLE CMP
255 12322501 CONTROL BOX
260 12332102 SCREW, 10-24
265 42372100 SCREW, 8-18 X .625
270 12333101 NUT, 10-24
275 12224702 PLUG, RL BOX
305 12771500 DEPTH COLR SEMBLY
315 12260906 KNOB [INCLUDED IN #305]
320 12321706 WHER [INCLUDED IN #305]
321 12323102 NUT [INCLUDED IN #305, NOT SHOWN]
325 12997028 EERING HSG. Y. [INCLUD 330-500]
330 12326502 EERING HOUSING TOP
335 12324604 O-RING, E SEAL
ITEM QTY PART
NUMBER DESCRIPTION
345 42302605 ROLL PIN 5/16
350 12308601 BREATHER, FILTER
360 12302240 PINION GEAR
365 12300265 P, MOTOR, PTIC
n2777024 DUAL EERING MOTOR SEMBLY, 36V
370 12777025 MOTOR, EERING, 36V
380 12302255 GEAR, CLUER 3RD AGE
385 12302250 GEAR, CLUER 2ND AGE
390 12302245 GEAR, CLUER 1 AGE
395 12302610 SHA, GEAR 1 AGE
400 12302620 SHA, GEAR 3RD AGE
405 12302615 SHA, GEAR 2ND AGE
410 22321704 WHER, THRU
415 22321515 LINER, OUTPUT TUBE
420 22324608 O-RING, 224
425 22321720 SHIM, O-RING
430 22327315 BUSHING, ALUMINUM SPACER
435 12322200 GEAR, OUTPUT
440 22327314 BUSHING, PRO EERING SW
445 12322031 TUBE, OUTPUT MACHINED
450 12321510 COLR, DRIVE, BOTTOM
455 12326507 EERING HOUSING, BOTTOM
460 12320605 LEADWIRE, EERING
465 12322601 PIN, TCH, SS
470 12322603 PIN, PIVOT, SS
475 22327310 BUSHING, PIVOT PIN
480 22321702 WHER, FT .375
485 22263011 E-RING .375
490 22322702 SPRING, TCH PIN
495 12323410 SCREW, 8-32 X .75
500 72323408 SCREW, 8-32 X 2
510 12090651 LEAWIRE, 10 GA
515 42305403 SHRINK TUBE, .5 ID X 1.0 ADHIVE
520 32305410 SHRINK TUBE, .315 OD X 2.25”
521 12305415 SHRINK TUBE, .472 OD X 2.25”
525 12991271 COIL CORD, 60”
530 12320202 P, DU, COIL CORD, NON-AP ONLY
535 12325643 DEL, SIDEPTE, LE
540 42323405 SCREW, 1/4-20
545 12321916 SIDEPTE, LE
550 22323403 SCREW, 1/4-20 X .375 SS
555 12321927 SKID, LE
560 22323422 SCREW, 10-24 X .375
565 22321700 WHER, #10 SS
570 22322921 AND-OFF, ALUMINUM ANODIZED
571 22323405 SCREW 1/4-20 X 1/2” MCH SS
575 12323907 RAMP, 4.5” LE
580 42325117 PAD, RUBBER R
585 42321706 WHER, #8
590 42323412 SCREW, 8-18 X .25

minnkotamotors.com | 19
©2015 Johnson Outdoors Marine Electronics, Inc.
PARTS LIST
RIPTIDE ST 112
112 LBS THRUST - 36 VOLT - 60”/72” SHAFT
nTHIS ITEM IS PART OF AN SEMBLY.
*THIS ITEM IS PART OF A KIT AND ONLY LIED FOR VIEWING PURPOS.
ITEM QTY PART
NUMBER DESCRIPTION
595 22324706 INSERT, RAMP
600 12994203 ARM, RELEE, LE
605 22322710 SPRING, EXTENSION
n12770251 COVER, SPEED CONTROL WITH DEL
620 12325651 DEL, SPEED CONTROL
625 12320211 COVER, SPEED CONTROL
630 12322901 RAIN RELIEF
n2884050 SWITCH-REED REPAIR KIT
635 12324023 CONTROL BOARD, I-PILOT/LINK
12324017 CONTROL BOARD
636 12320208 DU PLUG
640 12320203 P, DU, CONTROL BOARD
645 22323406 SCREW, 10-24 X
650 12321315 HOLDER, CONNEOR
655 22332103 SCREW, 6-20 X .375
660 12074082 BATTERY MER, 36V
665 42323402 SCREW, 1/4-20 X .375
670 12321941 BRACK, RAIN RELIEF
675 12321310 RAIN RELIEF, WIRE
680 12323405 SCREW, 1/4-20 X .5
685 22333100 SPEED NUT, .375
690 12320216 HANDLE, RELEE COVER
695 12301700 BUSHING,
700 12322701 SPRING, RELEE HANDLE
710 12320401 HANDLE, RELEE SW
715 22322712 SPRING, RELEE HANDLE
720 22322604 BUSHING, HANDLE
725 22332104 SCREW, 1/4-20 X .625
ITEM QTY PART
NUMBER DESCRIPTION
730 22323000 E-CLIP, 3/16, SS
735 12322607 PIN, FOLLOWER, HANDLE
740 12321906 BE EXTRUSION, MACHINED
741 12321721 SHIM, 2 X 4 X .025”
745 22322912 SPRING PIN,
750 12321951 BRACK, SIDEPTE
755 12323902 RAMP, 4.5” RIGHT
757 12994201 ARM, RELEE, RIGHT
760 12321922 SKID, RIGHT
765 32301310 SCREW, 8-18 X .5
770 12370221 COVER, ACCS, SW
772 12374097 COPILOT RECIEVER BOARD
775 12321911 SIDEPTE, RIGHT, SW
780 12325642 DEL, SIDEPTE, RIGHT
850 12994095 REMOTE SEMBLY
851 12372502 E, COVER, TRANSMITTER
860 12375112 KEYPAD, TRANSMITTER
865 1TRANSMITTER BOARD
870 1BATTERY, TRANSMITTER
875 12372505 E, BOTTOM, TRANSMITTER
880 42373440 SCREW, 4-24
n1378160 PROPELLER KIT WW2 [1000-1020]
n2994876 PROPELLER BAG SY [1010-1020]
1000 12341160 PROPELLER WW2
1010 12262658 DRIVE PIN, RGE
1015 12091701 WHER, PROP, RGE
1020 12198401 NUT, ANODE, NYLOCK, PROP, RGE
n2994864 MOUNTING HARDWARE BAG SY

A Johnson Outdoors Company
Minn Kota Consumer & Technical Service
Johnson Outdoors Marine Electronics, Inc.
PO Box 8129
Mankato, MN 56001
121 Power Drive
Mankato, MN 56001
Phone [phone]
Fax [phone]
minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
All rights reserved.
For a complete listing of Minn Kota accessories, visit minnkotamotors.com
• 60-Amp Circuit Breaker
• Mounting Brackets
• Stabilizer Kits
• Extension Handles
• Battery Connectors
• Battery Boxes
• Quick Connect Plugs
RECOMMENDED ACCESSORIES
ON-BOARD & PORTABLE BATTERY CHARGERS
Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery
over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the
fastest charge that protect and extend battery life.
TALON SHALLOW WATER ANCHOR
Talon deploys faster, holds stronger and runs quieter than any other shallow water anchor. Available in depths up to 12’ and bold color
options, it boasts an arsenal of features and innovations that no other anchor can touch:
MINN KOTA ACCESSORIES
We offer a wide variety of trolling motor accessories, including:
MK210DMK345PC MK110P
Follow us:
• Vertical, Multi-Stage Deployment
• User-Selectable Anchoring Modes
• 2x Anchoring Force
• Fast Deploy
• Auto Up/Down
• Triple Debris Shields*
• Built-In Wave Absorption
• Noise Dissipation
• Versatile Adjustments
*available on 10’ and 12’ models only
Part #2327108 Rev B 2/15 ECN 35978
