1. INTRODUCTION
This user manual (UM) is intended to describe design and operation of small-sized gas
sensor MIPEX-02 (hereinafter MIPEX-02 or sensor). UM contains basic technical data,
recommendations and other information necessary for proper operation, maintenance and storage
of sensor.
Sensor is intended for automatic continuous measurement of carbon dioxide or
hydrocarbons concentration in hazardous areas atmosphere. Sensor can be used as a part of gas-
analyzing equipment of groups I and II according to IEC 60079-0, IEC 60079-11 in the explosion-
hazardous zones of classes 0, 1, 2 according to IEC 60079-10-1, and Class I, Division 1, Group A,
B, C, D according to UL Std. 913, CAN/CSA Std. C22.2 No.157-92.
Optosense LLC reserves the right to make changes to this manual, excluding
intrinsically safe sensor parameters.
1.1. List of abbreviations
ADC –Analog-to-Digital Converter.
LEL –Lower Explosive Limit.
LED –Light Emitting Diode.
CGM –Control Gas Mixture.
NDIR –Non-Dispersive Infra-Red.
UART –Universal Asynchronous Receiver/Transmitter.
CRC –Cyclic Redundancy Check.
IP –Ingress Protection.
ASCII –American Standard Code for Information Interchange.
Hex –hexadecimal.
1.2. List of terms
Target gas is a gas, which sensor is intended to detect and measure its concentration.
Calibration gas refers to CGM containing that gas, used for sensor calibration.
Any command stated in this UM as <X>, where X stands for a command text consisted of
any number of characters, must be read and/or sent without the symbols “<” and “>”.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 5 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
2. DESCRIPTION
Sensor has several modifications for specific needs. They differ by housing types,
photodiode and LED, calibration gases, interface types, measuring ranges etc. (see Appendix A).
Sensor is a smart integrated system and includes mirror optical system, photodiode and
LED, signal amplifiers, microcontroller, current driver of the infrared LED, UART interface signal
generator and supply forming voltage unit. Sensor microcontroller performs storage of unique
sensor calibration constants, processing of measurement results and concentration of measured
gas, and information exchange.
Sensor operating principle is based on NDIR technology, i.e. on selective infrared radiation
absorption by gas molecules.
Infrared radiation from LED permeates through a measuring diffusion-type gas cell and
arrives on signal and reference photodetectors, one of which detects radiation only in the
wavelength range of infrared radiation absorbed by gases, while the other one detects radiation
only in the wavelength range of 3.5…3.7 μm for hydrocarbons and 4.0…4.25 μm for carbon
dioxide. Gas flowing through the cell absorbs the radiation of the operating wavelength (s) and
does not affect the radiation of the reference wavelength (ref). Amplitude of the photodetector
operating and reference signals, Usand Uref, varies with the target gas concentration in accordance
with the following equation:


 󰇛󰇟󰇛󰇜 󰇛󰇜󰇠   󰇜
where:
󰇛󰇜 –absorption coefficient at the predetermined wavelength;
L–optical length of the cell;
–measured gas concentration;
Us, Uref –photodetector signals amplitude.
Differential dual wavelength method allows eliminating of water vapor, optical elements
contamination and other non-selective hindrances influence.
Target gases available for MIPEX-02 are listed in Table 1.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 6 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
Table 1. Target gases for MIPEX-02 sensors
Target gas
Analytical tasks
description
Optical elements
code (see
Appendix A)
Spectral
characteristic
maximum
Notes
CH4
Analyzing a gas mixture
containing methane as
the main component.
1
3.31 m
For optical elements
sensitivity to other
hydrocarbons, see
Fig. 7.
C3H8
Analyzing a gas mixture
containing heavy hydro-
carbons. The presence
of methane is negligible.
2
3.4 m
For optical elements
sensitivity to other
hydrocarbons, see
Fig. 8.
CO2
Analyzing the atmos-
phere (including of in-
dustrial facilities) con-
taining carbon dioxide.
3
4.2 m
Sensor is selective to
other gases.
CH4/CH4+C2H6
The atmosphere of ob-
jects of group I (mine) in
accordance with IEC
60079-29-1.
4
3.27 m
For optical elements
sensitivity to other
hydrocarbons, see
Fig. 9.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 7 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
3. TECHNICAL SPECIFICATIONS
Table 2. General specifications (for available options see Appendix A)
Gas sampling method
Diffusion
Operating principle
Non-Dispersive Infra-Red (NDIR)
Target gas1
CH4
CH4/CH4+С2Н6
C3H8
CO2
Operating,
storage and
transportation
conditions:
Relative humidity, %
up to 98
Atmospheric pressure, kPa
80…120
Temperature2, °C
-55...+60
Temperature range, °C
-10…+40
-40…+60
-20…+50
Overall dimensions, mm
󰀨20.2×16.6 (without pins; housing types “1” and “3”)3
󰀨22×16.6 (without pins; housing type “2”)
Pins length, mm
4.6
5.75
Warm-up time, sec
≤ 120
Weight, g
16.6 (housing type “1”)
15.5 (housing type “2”)
5.5 (housing type “3”)
Housing material
Stainless steel (housing types “1” and “2”)
Plastic Lexan™ (housing type “3”)
Life time expectancy4(not less than), years
10
Shelf life time (not less than), years
8
IP rating
20 (without dust filter)
54 (if a dust filter provided by Optosense LLC is
applied)
1
See Appendix A for details.
2
Term “operating temperature” refers to ambient temperature, at which sensor operates and its
intrinsic safety is ensured, but sensor readings variability stated in Table 3 is provided only in specified
temperature range (see Table 5 and Table 6).
3
For information on housing types, see Appendix A.
4
To provide metrological properties during sensor lifetime, zeroing and span calibration should be
performed periodically, at least once in 30 months (see Appendix D.1).

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 8 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
Table 3. Measurement specifications
Measurement range, % vol.
0…1.5
0…2.5
0…5
0…100
Basic variability (+20…+25 ⁰C)5
±0.1% vol. or ± 5% of indication (whichever is greater)
for CH4
±0.05% vol. or ± 5% of indication (whichever is greater)
for C3H8and CO2
Response time (T90) without dust filter, sec
5 (for hydrocarbon sensors, housing type “2”)
10 (for CO2sensors, housing type “2”)
15 (for hydrocarbon sensors, housing types “1” and “3”)
30 (for CO2sensors, housing types “1” and “3”)
Response time (T90) when dust filter
provided by Optosense LLC is installed
(see Appendix E), sec
10 (for hydrocarbon sensors, housing type “2”)
20 (for CO2sensors, housing type “2”)
30 (for hydrocarbon sensors, housing types “1” and “3”)
60 (for CO2sensors, housing types “1” and “3”)
Table 4. Electrical specifications, marking and standards compliance
Operating supply voltage, VDC (min…max)
+3.0…+5.0
Communication interface
UART
Power consumption, mW
< 5
Degree of personal protection against
electrical shock caused by sensor
meets the requirement of class III ГОСТ 12.2.007.0
Marking and standards compliance
Ex ia I Ma U/Ex ia IIC Ga U acc. to ГОСТ РМЭК
60079-0, ГОСТ РМЭК 60079-11, ТР ТС 012/2011
Ex ia I Ma/Ex ia IIC Ga acc. to IEC 60079-0, IEC
60079-11. -55 ≤ Ta ≤ +60 °C
IM 1/II 1 G Ex ia I Ma/Ex ia IIC Ga acc. to EN 60079-0,
EN 60079-11. -55 ≤ Ta ≤ +60 °C
5
For variability in the whole operating temperature range for any sensor modification, see Table 6.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 9 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
4. INTRINSIC SAFETY
Sensor’s intrinsic safety is provided by:
limiting parameters of its electrical circuits to intrinsically safe values in accordance with
IEC/EN 60079-11;
providing the required electrical clearances and creepage paths in accordance with
IEC/EN 60079-11;
insulation between intrinsically safe circuit and sensor housing, which withstands test
voltage of 500 V in accordance with EN 60079-11.
Combined intrinsically safe sensor circuits parameters:
IECEx/ATEX: Ui= 5.0 V, Ii= 450 mA, Pi= 0.25 W, Ci= 38.8 µF, Li= 0 mH.
CAN/CSA: Vmax = 5.0 V, Imax = 450 mA, Pmax = 0.25 W, Ci= 38.8 µF, Li= 0 mH.
It is allowed to connect sensor only to intrinsically safe circuits with the rated direct current
output voltage (U0) within the range of +3.0…+5.0 V, with the output power (P0) range of
0.02…0.25 W in accordance with IEC 60079-0, IEC 60079-11, IEC 60079-14 and whose
parameters conform MIPEX-02 intrinsic safety values pointed above. Current provided by power
supply unit must be 25 mA ≤ I0≤ 450 mA.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 10 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
5. HANDLING PRECAUTIONS
Do not use damaged sensor. It must be repaired only by personnel authorized by
manufacturer.
Keep sensor out of contact with aggressive substances e.g. acidic environments, which
can react with metals, as well as solvents, which may affect polymeric materials.
Diffusion holes of sensor should be protected against ingress of dust and sprayed
materials.
Sensor is not intended to measure target gas concentration contained in fluids.
Maximum allowable pressure for housing types “1” and “2”: on the central part of sensor
reflecting cover or on sensor side surface –2 MPa, on sensor upper edge –100 MPa.
Maximum allowable pressure for housing type “3”: on the central part of sensor reflecting
cover or to sensor side surface –20 kPa, on sensor upper edge –2 MPa.
Sensor updates information about concentration every 1.28 ± 0.065 seconds. Sending
any command more often than one time per second (1 Hz) may reduce sensor accuracy.
Sensor housing type “3” may accumulate an electrostatic charge. Thus, there is risk of
electrostatic discharge. Clean only using a damp cloth.
Correct measurement is provided when ambient temperature changes not faster than
0.6 °C/min.
Covering diffusion holes of sensor increases its response time (T90).
When operating sensor, observe conditions stated in Table 2 and Table 4.
Inspection and maintenance should be carried out by suitably trained personnel in
accordance with the applicable code of practice (e.g. EN 60079-17).
Persons, who have studied this UM, must be briefed on safety precautions when
operating electrical equipment intended for use in explosive areas in due course.
When dealing with cylinder containing gas mixture under pressure, it is necessary to
follow the safety regulations. Dumping of CGM into the work area is not allowed.
There is no risk of pollution and negative impact on human health. Sensor does not
contain any harmful substances that may be released during its normal operation.
It is strictly prohibited to remove label from sensor or to damage marking information in
any way.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 11 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
6. INSTALLATION AND SERVICE
Sensor housing type “3” may accumulate an electrostatic charge. Thus, there
is risk of electrostatic discharge. Clean only using a damp cloth. Note this
during installation and use of sensor in the end-user equipment.
Sensor modifications in housing types “1” and “2” have been tested and were
found to have maximum capacitance of ungrounded metal frame equal 17.4
pF.
Sensor must be mounted using sockets only, as soldering the pins may
damage sensor.
It is not allowed to use excessive pressure on sensor housing. Maximum
allowable pressure for housing types “1” and “2”: on the central part of sensor
reflecting cover or on sensor side surface –2 MPa, on sensor upper edge –
100 MPa. Maximum allowable pressure for housing type “3”: on the central
part of sensor reflecting cover or on sensor side surface –20 kPa, on sensor
upper edge –2 MPa.
Span calibration is necessary during sensor’s initial installation into gas
analyzers and during preparation for the equipment checking. Manual zeroing
must be performed after prolonged storage without power supply, after
transportation as well as after dust filter is applied (see Appendix D.1).
It is required to perform span calibration at least once in 30 months.
6.1. Preparation
If sensor has been kept in transport containers at temperatures below zero centigrade,
leave it at +10…+35 °C for not less than one hour.
Remove the packaging. Check presence of the certification markings; make sure there
are no mechanical injuries on sensor surfaces.
6.2. Mounting
Use intrinsically safe circuit connections represented in Appendix B.
It is recommended to use the following sockets or similar for sensor mounting:
Cambion 450-3729-01-06-00;
Harwin H3183-05;
Harwin H3182-05 for MIPEX-02-X-X-X.1 A modifications.
Sensor pinout is shown in Appendix A, Table 7.
End user instrument design has to provide that sensor is free of excessive pressure on its
housing, ingress of dust, dirt and condensed moisture, as these factors may affect the accuracy of
measurement. It is recommended to use dust filter (available as an option; see Appendix E). Filter
has to be checked regularly and replaced when fouling is significant.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 12 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
6.3. Electrical conditions
During first 0.1 seconds after power up, sensor consumes up to 25 mA, and
then during one second average current consumption is about 10 mA (see Fig.
1). After that sensor switches to the normal current consumption mode.
During operation, MIPEX-02 has pulsed current consumption. Pulse repetition
period is 10 ±20% ms (depends on ambient temperature).
During operation, maximum surge current is 10 mA (see Fig. 2). Average
current consumption is not more than 1 mA (for power consumption of sensor
connected via barrier see Fig. 4 and Fig. 5).
Average current consumption may increase up to 10 mA over about 60 ms
when UART is active. Pulse repetition period is increased by the time of data
processing on UART (see Fig. 3).
Use intrinsically safe circuit connections represented in Appendix B.
Sensor power supply has to follow requirements of IEC 60079-0 and IEC 60079-11, with
rated output range of intrinsically safe DC voltage (U0) of +3.0…+5.0 V, with rated power range
(P0) of 0.02…0.25 W. Current provided by power supply unit must be 25 mA < I0≤ 450 mA.
End-user equipment UART transceiver should meet the requirements of standards
IEC 60079-0, IEC 60079-11.
Sensor UART transceiver communication properties are:
High logic level for transmitting line TxD is in range of +2.4…+2.7 V;
High logic level for receiving line RxD is in range of +2.4…+3.4 V;
Low logic level is in range of 0…+0.8 V;
Maximum output current of UART is not more than 25 mA.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 13 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.

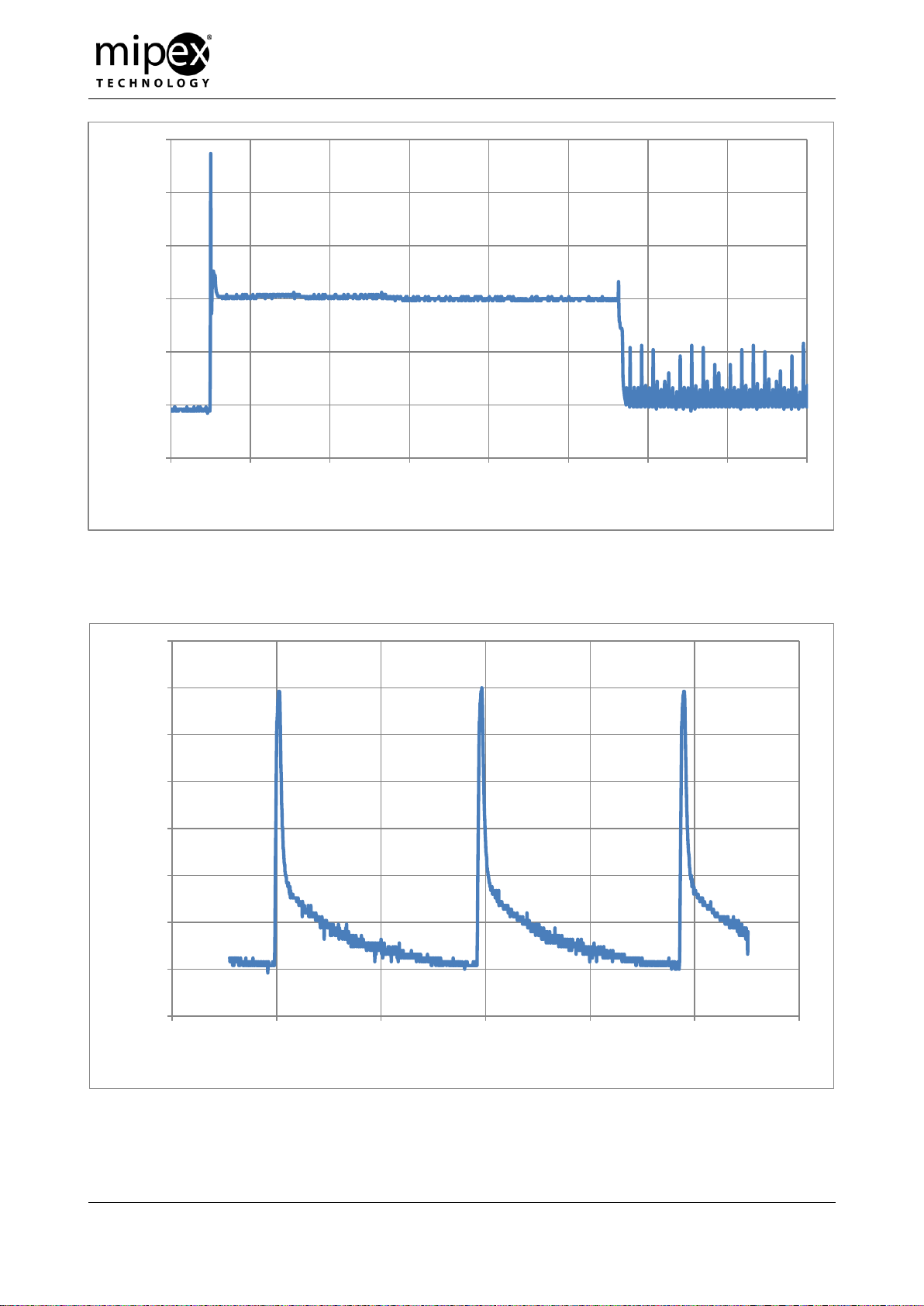

Fig. 1. Typical sensor voltage drop after power up (input voltage 3.3 VDC, load resistance
R = 100 Ohm)
Fig. 2. Typical sensor voltage drop (input voltage 3.3 VDC, resistance 100 Ohm)
-0.5
0
0.5
1
1.5
2
2.5
-0.1 0.1 0.3 0.5 0.7 0.9 1.1 1.3 1.5
Voltage, V
Time, s
-0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
-0.015 -0.01 -0.005 0 0.005 0.01 0.015
Voltage, V
Time, s

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 14 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
Fig. 3. Typical sensor voltage drop when UART is active (<@> command)
Fig. 4. Typical barrier voltage drop waveform (3.3 V input)
-0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
-0.02 -0.01 0 0.01 0.02 0.03
Voltage, V
Time, s

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 15 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
Fig. 5. Typical current consumption waveform (3.3 V input, R = 30 Ohm, C = 20 µF)

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 16 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
6.4. Getting started
During first 40 seconds after the power is up sensor does not return the
measured concentration value (the value is displayed as “-1”, hex:
“8001”, see Table 13).
When the measurement range is exceeded, concentration value is displayed
as “32767” (hex: “7FFF”).
Sensor updates information about concentration every 1.28 ± 0.065 seconds.
Sending any command more often than one time per second (1 Hz) may
reduce sensor accuracy.
Switching on/off sensor is performed automatically upon feeding/disconnecting power supply.
After sensor is installed into end-user equipment check its status by sending <DATAE2>
command via UART interface:
for <DATAE2> command description see Appendix C.2.1;
for status bytes description and recommendations see Table 12.
Sensor span calibration and zeroing should be performed next. Methods of sensor span
calibration and zeroing are given in Appendix D.1.
6.5. Connecting multiple sensors to single UART line
It is possible to connect to single UART line up to 256 sensors assigning them net addresses
in range 00…FF. Sensor has net address 00 by default. To view and change its net address use
the following commands: <!**>, <NETON>, <NETOFF>, <%AABB>. For commands description
see Appendix C.2.5.
If sensor is used in combination with other devices on single UART line, any command text
must contain sensor’s address prefix as “#AA”, where AA stands for sensor’s net address in
hexadecimal format in range 00…FF. Thus, command text must be sent as <#AAX>, where X
stands for command text containing any number of characters in accordance with sensor
communication protocol (see Appendix C). Connection diagram of multiple sensors to single UART
line is shown on Fig. 6.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 17 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
Fig. 6. Connection diagram of multiple sensors to single UART line
Resistors are calculated as follows:
1. Determine the quantity of sensors Nthat should be connected to single UART line.
2. Determine forward voltage Ufof Schottky diodes (VD_N).
3. Calculate the minimum allowed resistance Rmin by using the following equation:
  

󰇛  󰇜
where:
Uh–maximum high logic level voltage (2.7 V);
Iout –maximum output current of sensor microcontroller (25 mA).

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 18 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
6.6. Low power consumption mode
It is possible to switch sensor to low power consumption mode, which corresponds to
indicator mode. To switch sensor power consumption mode, resetting its power supply is not
necessary. Use the following commands to control power consumption mode (see Appendix
C.2.6):
<LOWPW1> switches on low power consumption mode.
<LOWPW0> switches off low power consumption mode.
<LOWPW?> returns status of low power consumption mode.
While low power consumption mode is active:
Power consumption ≤ 1.8 mW.
Sensor performance decreases by not more than 2 times.
Current pulse repetition period increases to 40 ± 20 % ms.
Sensor’s compliance with metrological characteristics stated in Table 3 is not
guaranteed.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 19 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
7. STORAGE AND TRANSPORTATION
Transportation can be done by all means of transportation in covered vehicles as well as in a
heated pressurized plane compartments in accordance with the rules of cargoes transportation
actual for the respective type of transportation.
Sensor in manufacturer’s package should be kept in supplier and customer’s storages under
storage conditions specified in Table 2. Ambient atmosphere should be free of any harmful
impurities that can cause corrosion.

Optosense LLC
USER MANUAL
Design department
SMALL-SIZE EXPLOSIVE GAS MEASURING
SENSOR MIPEX-02-X-X-X.1 X (RX)
ESAT.413347.005 UM
Revision 3.0
January 19th, 2017
Page 20 of 46
THE SOLE PROPERTY OF OPTOSENSE LLC. ANY REPRODUCTION WITHOUT THE WRITTEN PERMISSION OF OPTOSENSE LLC IS PROHIBITED.
8. WARRANTY
Manufacturer guarantees sensor compliance with specifications and requirements stated in
this UM if customer follows operating, transportation and storage terms.
During warranty period, manufacturer replaces or repairs for free all its products that do not
operate because of production fault.
Warranty period is 24 months since product is shipped to customer. Shipment date is
registered in the ESAT.413347.005 PS manufacturer’s certificate.
Manufacturer is not responsible for sensor fault and discontinues warranty in following cases:
if the rules and conditions of operation, transportation and storage stated in this UM and
in sensor datasheet were violated;
if sensor has marks of unauthorized repair attempts;
if any mechanical damage occurs and/or if any damage is caused by exposure to
extremely high or low temperatures, corrosion, oxidation, ingression of any foreign
objects, materials, liquids, insects;
if sensor was damaged by using connection circuit that does not comply with
requirements stated in this UM;
if damage is caused by force majeure, accident, intentional or careless actions of the
customer or third parties;
if damage (or fault) is caused by installing, editing or damaging sensor firmware and/or
by making changes to the firmware settings using service codes;
if damage (or fault) is caused by the fact of power and signal cables do not meet the
standard or technical regulations and/or by electromagnetic interferences exceeding
permissible according to EN 60079-29-1.
Replacement or repairs of faulty sensor does not extend initial warranty period.
Manufacturer is not responsible for any possible damage directly or indirectly caused by
sensor to people and property in case it is a result of improper usage, storage and transportation
or due to intentional or careless actions of the customer and/or third parties.
Risks and costs of transportation and packaging as well as other contingencies concerning
product return to manufacturer are carried out by the customer.
