MIRA-ART TRAUMSCHWINGER Babyschwinger User manual

- 1-
Your
manual
BABYSCHWINGER &
KINDERSCHWINGER

- 2-
Inhalt
1 Introduction .................................................................................................. 4
2 BABYSCHWINGER/ KINDERSCHWINGER................................................. 6
2.1 BABYSCHWINGER.............................................................................. 6
2.2 KINDERSCHWINGER.......................................................................... 8
3 Prerequisites................................................................................................ 9
4 Individual Parts.......................................................................................... 10
5 Assembling the height adjustment .......................................................... 12
5.1 Prepare the threaded rods ................................................................. 12
5.2 Insertion of threaded rods (1) ............................................................ 12
5.2 Inserting the threaded rods (2) .......................................................... 13
5.3 Attach the rst stainless steel inlays ................................................... 13
5.4 Attach the stainless steel bushings..................................................... 14
5.5 Inserting the steel pin into the wooden wedge ................................... 14
5.6 Placing the wood wedge over the stainless steel inlay....................... 15
5.7 Attaching the second noble steel inlay ............................................... 15
5.8 Attaching the second wooden panel................................................... 16
5.9 Screw on and tighten the round nuts.................................................. 16
5.10 Insertion of the carabineer ................................................................ 17
5.11 Finished height adjustment .............................................................. 17
6 Netting connect with the height adjustment............................................ 18
6.1 Lay netting .......................................................................................... 18
6.2 Insert the rope ends and interconnecting ........................................... 19
7 Netting hang up and span ........................................................................ 21
7.1 Netting hang up with height adjustment ............................................. 21
7.2 Insert vertical strut (conjunction) ........................................................ 21
7.3 Insert side strut .................................................................................. 22
7.4 Attaching the rope bag........................................................................ 23

- 3-
8 Montage Footboard (optional) ................................................................. 23
8.1 Insert vertical strut .............................................................................. 24
8.2 Insert side strut ................................................................................... 24
8.3 Adjusting the foot part ........................................................................ 25
8.4 Mounting of the foot ........................................................................... 26
9 Usage of your BABYSCHWINGER/ KINDERSCHWINGER ..................... 26
9.1 Maintenance ....................................................................................... 27
9.2 Cleansing ........................................................................................... 27
9.3 Washing instructions .......................................................................... 28
9.4 Adjusting the seat height .................................................................... 29
9.5 Adjusting the seat position ................................................................. 30
9.6 Sitting, feel comfortable and getting up .............................................. 30
IMPORTANT! Read carefully!
KEEP FOR FUTURE REFERENCE!

- 4-
1 Introduction
The rst step
in a dreamlike life
Strange in the world of adults, just missing babies in the rst months many familiar
from the mother‘s belly movements. In BABYSCHWINGER Experience familiar:
Swinging movements in which the little ones gently slip into in new dream worlds.
The gentle rhythm of circular or spiral vibrations leads to a feeling inner peace,
and provides a natural way for the breakdown of Stress. If the energy ow harmo-
nized, act the swinging movements holistically relaxing - decrease restlessness,
crying behavior, irritability or sleeping problems.
This manual will give you the installation and explains the usage of a baby swing.
The different sizes of the models are construction equal, so will be the individual
steps of the example of the model L illustrated.

- 5-
Our TRAUMSCHWINGER - hanging chairs are resting and relaxing furniture.
They are not for using as trainers or play area. If you notice damage of the
material (e.g. cracks), the product may not more be used. A cloth at least must
place, when an infant or toddler in the netting placed. Children not allowed
unsupervised use of the furniture. Carefully observe further Notice and safety
instructions in this manual, and keep them for possible questions. Follow
exactly the instructions in order to avoid may cause dangers due to incorrect
installation. The mounting should carry out by an adult. Suspension and height
adjustment are be regularly checked for tightness.
In all one dot suspension needs to use a swivel or similar to avoid shear
stresses may act on the suspension. Our stainless steel hangers with integrated
plain or ball bearing make the use of an additional rotating vortex unnecessary.
Please make sure that all packaging removed and keep this away from your child.
Use only tested by us and recommended accessories and spare parts.
SAFETY NOTICE
WARNING
The child must always supervise!
Always make sure that sufcient space freedom!
The Baby Hammock is no rocking!
It can cause hazards, if the instructions, information, warnings and instructions
not respected in the manual!

- 6-
2 BABYSCHWINGER/ KINDERSCHWINGER
With these models, you should adjust the height of the baby swing so that
your child can swing freely just above the ground. In addition, it´s recommended
interpreted the ground with a damping material (1.5 m wide). Note that hanging
chairs are not a cradles rocking or any toys equipment. Always stow the ropes
in the rope bag, so that they are not reachable for children. Regularly check
attachment, suspension and ropes for wear.
SAFETY NOTICE
Do not allow children in the models unattended and let small children
unsupervised play nearby. If an infant or infant is placed in the netting,
has an at least Cloth be placed. The products may not use, if one part is
broken, torn, or missing. You may not near open res or other sources of
intense heat such electrical heaters, gas ovens, etc. hanging.
2.1 BABYSCHWINGER
While the models M to XXL essentially differ only by the size, has the baby chair swinger a
separate web form. Headers- and foot side of the net pulled up to secure your child against
a falling out.
The BABYSCHWINGER is suitable as a baby crib from the 1st day.
SAFETY NOTICE
Use the optional except MIRA - ART futon,
no additional mattresses or pillows.

- 7-
Then operate it by simply into a
children high chair by changing the
side woods. The necessary position
of the side wood in the second pix
illustrates. As high chair for child-
ren, the baby chair swing is suitable
up to about 5 years.
If the child sit up, kneel or pull itself, May no longer the baby chair be used as infant cot.
1 2

- 8-
2.2 KINDERSCHWINGER
CHILDREN‘S CHAIR is suitable for children from 3 to about 10 years old.
It is optionally available with a separate foot part.

- 9-
Following table shows the model-dependent values for the suspension:
Before you start the assembling of BABYSCHWINGER or TRAUMSCHWINGER,
you must complete the installation of your chosen mounting. Take attention to this
proper execution of the installation according to the instructions for the respective
xing.
SAFETY NOTICE
Check the attachment regularly for tightness and damage! For damages caused
by an improper or loosened xing based, no liability assumed. To avoid damage,
please pay attention for your suspension that your hammock chair not scrubs
along on ceilings or walls..
Net/ Model Suspension
hight (min./max.) Load max. Wall distance-
min.
Babyschwinger
1,8 m / 4,0 m
(als Kindermöbel
1,2 m / 3m)
75 kg 65 cm
Kinderschwinger 1,5 m / 3,0 m 75 kg 65 cm
For your BABY SWING or CHILDREN SWING you need your building conditions
and use wishes adequately secured. You can directly through MIRA - ART the
standard xings for our products receive - we will gladly advise you.
Basically, you have the choice between a ceiling mounting, attachment to a
beam or the use of a stator. Take attention for the respective weight if you are
purchase the attachment for the baby or children swing. With a ceiling mounting,
verify that the suspension of the nature of your ceiling (e.g. concrete) is suitable.
Check with your dealer or hardware store, what kind of attachment you can use
for your structural circumstances.
3 Prerequisites

- 10 -
4 Individual Parts
For an overview of the delivery of BABYSCHWINGER/ KINDERSCHWINGER
you get in the two following pictures and tables.
1) Weaving net in cotton
2) Rope bag universal 2
3) Wooden transverse strut
4) Wooden side strut, 2 piece
2Only deliverable in versions: „Set“ or „Set Plus“

- 11 -
All items shown on this page are only included when you buy a TRAUM-
SCHWINGER in the version „Set“ or „Set plus“. For the others versions this
can be purchased as an accessory item.
NOTE
All´ the parts will cleaned at the end of the production process.
Furthermore, we recommend that you manually clean certain parts to
exclude contamination of cotton ropes. With a dry cotton cloth, clean the
openings in the wooden poles to remove sanding dust residues. With a
moist cloth and a little detergent, clean the following rope metal parts of
the height adjustment: the three stainless steel socket and the non-colored
with a sticker marked sides of the two stainless steel inserts.

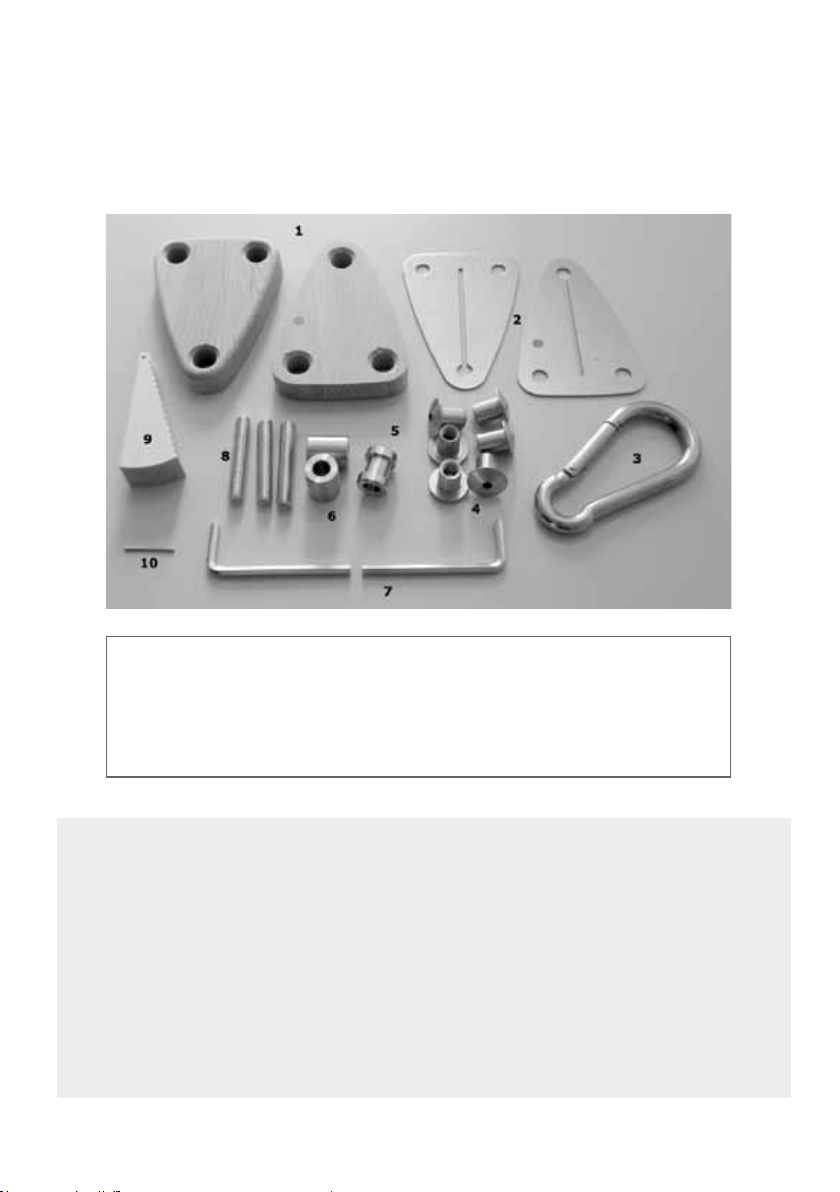

1) Holzwange (x 2)
2) Edelstahl-Einleger (x 2)
3) Karabiner
4) Rundmutter (x 6)
5) Edelstahl-Buchse mit Nut
6) Edelstahl-Buchse (x 2)
7) Innensechskantschlüssel
8) Gewindestange (x 3)
9) Holzkeil, 9mm
10) Stahlstift

- 12 -
5 Assembly of the height adjustment
The rst portion for mounting your TRAUMSCHWINGER (dream swing) forms
of assembling the supplied height adjustment. For this, you need the items from
the box of height adjustment and the swivel. The required tool (an Allen key) is
enclosed. The mounting of the height adjustment can most easily do, if you are
sitting at a table.
5.1 Prepare the threaded rods
Some metal parts are to check the
threaded pre-assembled. For the
assembly you must rst all of them
disassemble. Take the three pre-
threaded rod´s unscrew each one
of the round nuts and remove the
respective stainless-steel socket
down of the threaded rod. The ring
nut, which remains on the threaded
rod, screw tightens. Now you have
three threaded rods, to each of which
a round nut screwed.

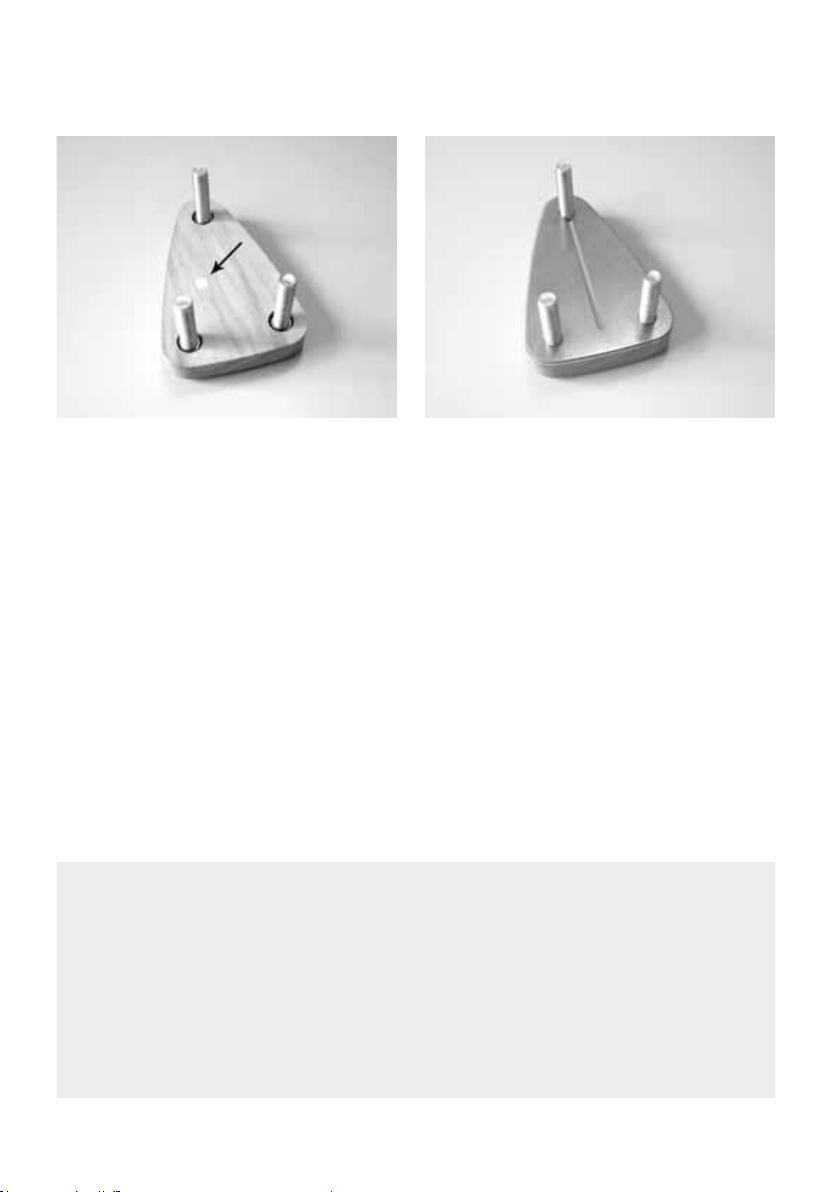

5.2 Insertion of threaded rods (1)
Take now one of the triangular wooden
cheeks, which have one side a colored
sticker marks.
That is the inside of the cheek.
Hold it with one hand, and the side
with the sticker marked facing
downward. With your other hand stuck
through in each of the three holes a
threaded rod with a round nut.

- 13 -
5.2 Inserting the threaded rods (2)
Now place the free hand on the
three round nuts to prevent it from
slipping and rotate with your hand
the wooden cheek. The side with the
colored sticker is facing now to you.
Place the wooden cheek in front of
you, which is lies on the round nuts
now. The threaded rods face upwards.
Take one of the stainless steel inlays.
A colored sticker marks the side of
the stainless steel inlays, which should
attach with the inside of the wood
cheek.
Grasp the stainless steel inlay so,
that gave the side of the sticker facing
downward, lead over the threaded rods
and place it on the wooden panel. With
colored label marked side of the stain-
less steel inlays is now placed on the
with colored sticker marked side of
the wood cheek.
5.3 Attach the rst stainless steel
inlays
SAFETY NOTICE
It´s imperative that with colored stickers marked sides of the wooden panel
and the stainless steel inlays lie on each other. This provides that only the
rounded edge of the stainless steel inlays contacted with the supporting
ropes. Failure to comply these installation instructions may increase wear
of the supporting ropes.

- 14 -
5.4 Attach the stainless steel bus-
hings
5.5 Inserting the steel pin into the
wooden wedge
On the threaded rod, into the top
of the triangular, wooden panel
insert the stainless steel socket with
a groove. On the two threaded rods
at the short side of the triangular wood
cheek insert now the stainless steel
sockets (without groove).
Now take the wooden wedge and the
steel pen into hand. Run the steel pin
through the hole in the extent of the
wood chisel uniformly, that on each
side of about 2 mm protrudes.

- 15 -
5.6 Placing the wood wedge over
the stainless steel inlay
5.7 Attach the second noble steel
inlay

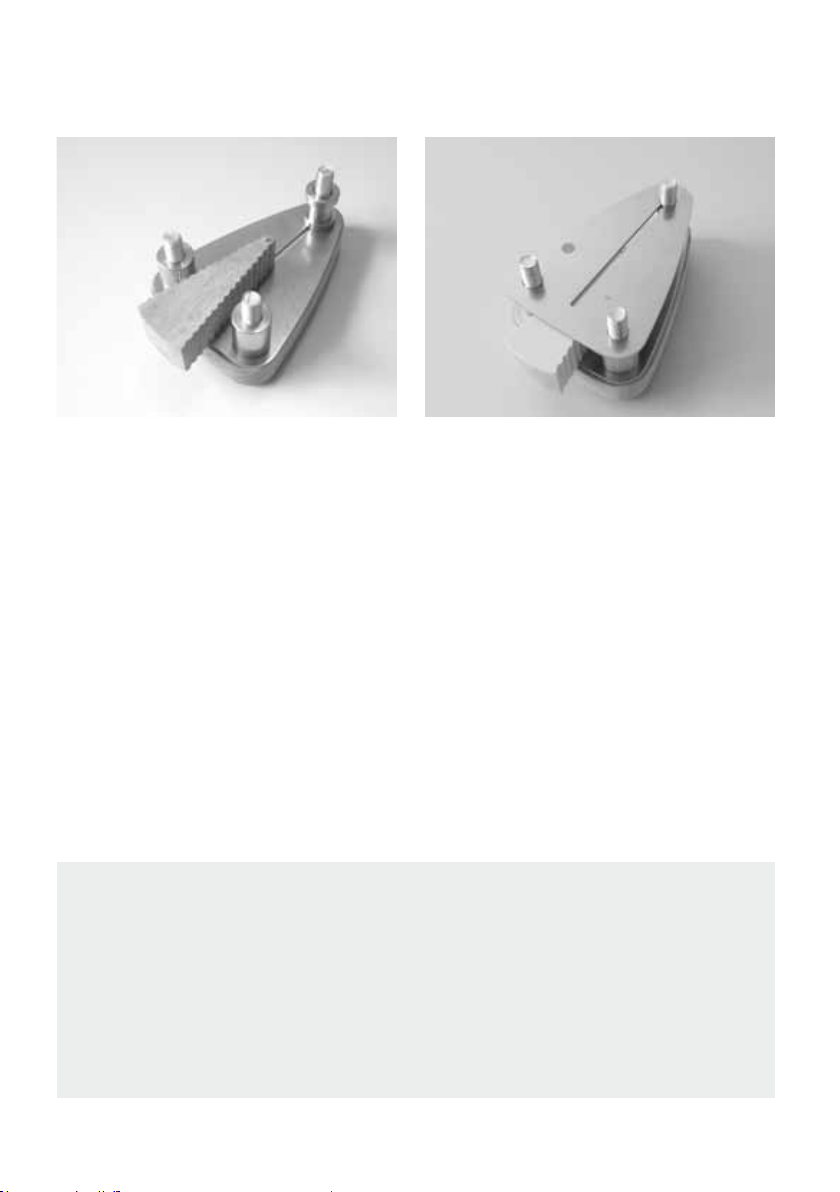

Place now the wooden wedge,
which is inserted already with the
imported steel pin with smooth sides
on the already mounted stainless
steel inlay. Place the wooden wedge
so, that the protruding steel pin in
the slot of the stainless steel inlay
must perform.
Take the second stainless steel
inlay in your hand. Grasp the
stainless steel inlay so, that
with the label marked side facing
upward. Run the stainless steel inlay
on the threaded rods and place it on
the stainless steel bushings. Make
sure that the steel pin in wooden
wedge also performed in this second
slot of the stainless steel inlay. It
must be Ensure!!
SAFETY NOTICE
It´s imperative that with colored stickers marked sides of the wooden panel
and the stainless steel inlays lie on each other. This provides that only the
rounded edge of the stainless steel inlays contacted with the supporting
ropes. Failure to comply these installation instructions may increase wear of
the supporting ropes.

- 16 -
5.8 Attaching the second wooden
panel
5.9 Screw down and tighten the
round nuts
Take the second wooden panel.
With a colored sticker marked side
of the wooden wedge must lie on
the second stainless steel inlay with
a color sticker. Grasp the second
wooden panel so, that the sticker
marked side facing downward. Run
the wooden panel on the threaded
rods and place it over the stainless
steel inlay. With colored sticker
marked side of the second wooden
panel is placed now on the colored
label marked side of the second
stainless steel inlay.

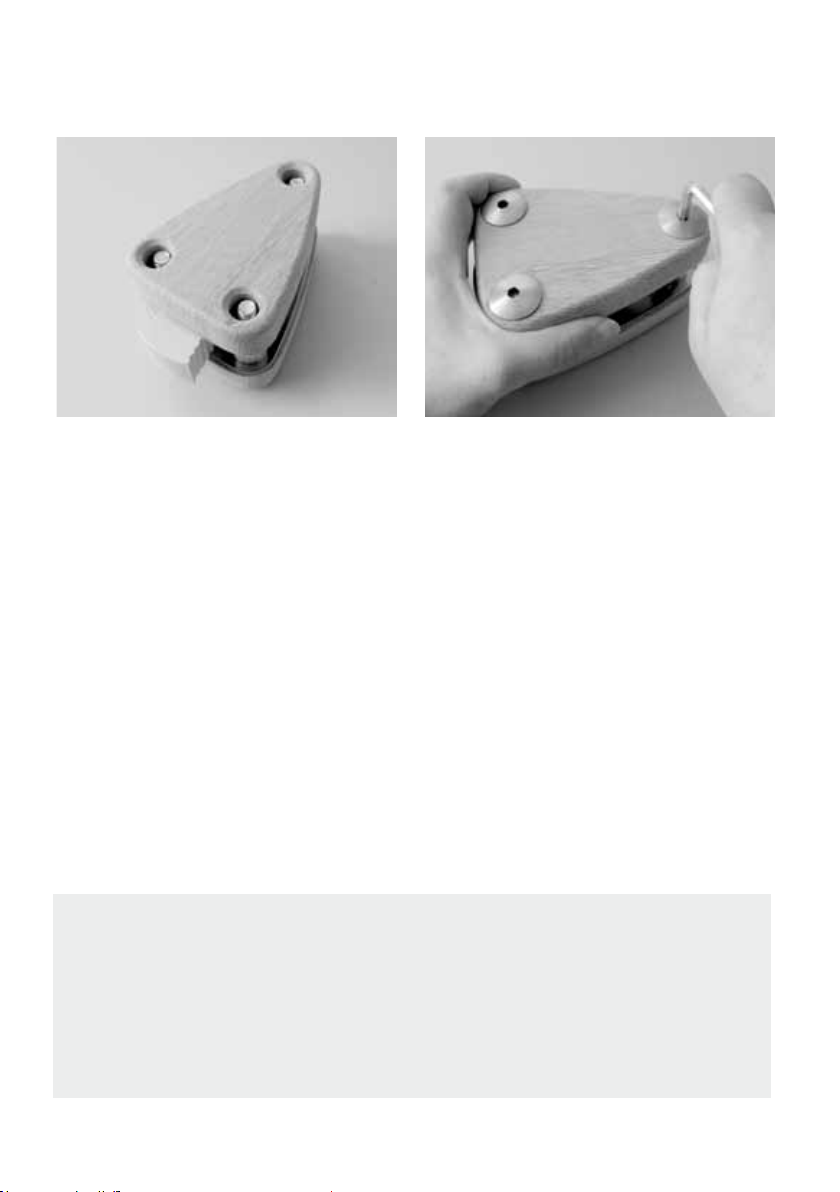

Now screw the three remaining
round nuts with the three threaded
rods, which are placed in the holes of
the second wooden panel. As tool you
can also use the Allen key from the
delivery. Finally drag every six round
nuts tightly. In front of you is now the
fully assembled height adjustment for
your BABYSCHWINGER/ KINDER-
SCHWINGER.
SAFETY NOTICE
During use is a possibility that the round nuts loosen. Regularly check the
tightness of the round nuts and drag them rmly with the supplied Allen key.
In case the round nuts loosen, the space between the metal components
can cause metal abrasion, which possibly can stain cord.

- 17 -
5.10 Insertion of the carabiner 5.11 Finished height adjustment
Take the supplied carabiner and
place it in the stainless steel bush
with the groove (on the upper side of
the height adjustment).
Please use both supplied Allen keys
to make sure that all metal parts are
properly tightened. Please make sure
to check these metal parts every time
when using the BABYSCHWINGER/
KINDERSCHWINGER.

- 18 -
6 Connecting the netting with the height adjustment
Next you connect the netting of your BABYSCHWINGER/ KINDERSCHWINGER
with the height adjustment. Due to the fact that you have to spread the netting in
front of you, we recommend you put a blanket on the oor. The height adjustment
you should place next to you. This will help you with the next steps.
6.1 Spread netting
Take the rolled netting and unroll it. Loosen the by knots fastened cloth bag with
the wooden crossbars as well as the two page woods off the netting. The cloth
bag may be put aside, since you need the timbers only in the next section. The
best way to spread the netting is, when you raise it once completely with your
hands. For this, take one of the two connection knots in each hand and lift the net
completely in to air. That netting will rotate itself into the correct position. You just
need to return it at on the oor in this position.
For the next steps you need to make sure that the netting is aligned rightly on
the ground. This is indicated by the position of the Netting attached labels.
When the label is on the right top side of aligned netting in front of you, then it
lies in the proper position. If the label is not in this position, rotate or apply the
netting accordingly.

- 19 -
6.2 Insert the rope ends and jam them
On delivery, the track ropes can be twisted in themselves and each other, because
of material and manufacturing conditions. Prior to inserting the rope ends in the
height adjustment, you need to make sure that the support ropes are not twisted in
itself and into each other.
SAFETY NOTICE
In case the suspension ropes are inserted into the height adjustment twisted
in itself or into each other, this may increase the wear of the ropes through
damage to the rope surface.
Start at the left side to align the carrying ropes without twisting. Take the left
connecting knots into your left hand and lift this to the extent that the two ropes
are easily clammed to the corners of the netting. Turn the connecting knots in
your hand in a way that the two ropes from the connection knots avoid to over-
lie one another. (See the following two pix).
If the left connection knot is in this position, take the one from the knot
running rope pair between your thumb and forenger of your right Hand
(see next gure).
RIGHT WRONG

- 20 -
Now drag with your left hand the rope
pair trough the right hand, without to
twist the ropes. If you reach the end
of the rope, grab around. Hold the end
of the rope pair with your left hand so
tight, that it does not twist again.
Now take the height adjustment so
in your right hand, the wood wedge
almost half inserted into the height
adjustment. Insert the end of the rope
pair as the left stainless steel bushing
of height adjustment, that two ropes
side by side laying on the stainless
steel bushing.
Lead out the end of the rope pair
between this bush and the wooden
wedge from the height adjustment.
Drag now on this rope pair that it´s
hanging out about 40 cm from the
height adjustment.
Place the height adjustment on the
netting, which is pulled on the left side
rope.
Now take the right connection node in
your right hand and proceed on this
side as well as on the left side. If you
also have led the right pair of ropes
through the height adjustment, press
the wooden wedge into the height
adjustment. This xed the ropes in the
height adjustment.
