Door Lock Instructions New Door Preparation
Insert Latch into Hole and keeping it parallel to the door
Edge mark the Outline
Mortise the Door edge with a Chisel or Router 1/8” deep
or until the latch Face plate is flush with the door when
installed
Insert Latch into hole in door
and Mark where it will hit
the door Jamb when properly
closed.
Drill a 1” hole a Minimum of 1”
deep into the door Jamb at the
position Marked
If the Door is a tight fit to the
Jamb you may need to mark
the strike and mortise the
Jamb so the strike sits flush to
the door
Outline outside edges of strike
Chisel 1/16” deep for strike.
A)
B)
A)
B)
JAMB
Step 4 : Prepare Jamb for Strike
Step 3 : Mortise Door for Latch
Fold Template below on
Fold Line and Mark Door
for Lock Bore Hole at
2-3/4” or 2-3/8” Backset
and lock Edge Hole
Centered on the door
edge.
Note: Most exterior doors
2-3/4” Backset is used
Adjust the Backset to match your door:
A) To Adjust to 2-3/4” Backset pull square latch cam out.
B) To Adjust to 2-3/8” Backset push square latch cam in
Install Latch into door positioned so that wedged shaped side of Bolt engages
the strike first when closing the door
Drill through Door Face with
2-1/8” hole saw. Drill one
side until Guide Bit punches
through then Drill from
through with the Hole saw
from the other side to
Complete the Lock Bore Hole
Drill the 1” Latch Hole from
the door edge fully into the
Lock Bore hole
Common Standard for Lock Height off Floor is 36” above the floor.
Deadbolt should be 5.5” above the entrance Knob or lever
A)
B)
2-3/8" BACKSET
2-3/4" BACKSET
MARK FOR 2-1/8"(54mm)
HOLE IN DOOR FACE
2-1/8"(54mm) HOLE
1"(25mm) HOLE
Step 1 : Mark Door
Step 2 : Drill Holes
2-3/8" BACKSET
2-3/4" BACKSET
MARK FOR 1"(25mm)
HOLE IN DOOR EDGE
IMPORTANT!
PLACE TEMPLATE
ON HIGH EDGE OF
DOOR BEVEL
THEN DRILL 1"(25mm)
IN CENTER DOOR OF EDGE
HOLE
FOLD HERE ON
DOOR EDGE
2 /8"(60mm) BACKSET
3
MARK
FOR
1-3/4"(45mm)
DOOR
DRILL
2-1/8"(54mm)
HOLE
MARK CENTER
OF HOLE ON
DOOR FACE
TEMPLATE
2 /4"(70mm) BACKSET
3
MARK
FOR
1-3/8"(35mm)
DOOR
FOR INSTALLING
ENTRY LOCK AND DEADBOLTS
Customer Service 800-221-3379
Instruction_Lock_15
JSC-FGS-808
Customer Service 800-221-3379
Instruction_Lock_15
Door Lock Installation
Step 1 : Adjust Latch Backset
Step 2 : Install Latch into the door
A
Step 3 : Install Lock body
Step 4 : Install Strike
Install exterior of lock by Inserting Lock Spindle Through Square Latch Cam
and Studs through round holes until lock is Flush with the door.
Install the interior of the lock by inserting it over the spindle and pressing
Flush to the door. Insert screws through holes and tighten down with a
hand-held screwdriver.
Note: It may be necessary to twist lock knob on interior assembly of lock to align
with connector bar.
Note: Check alignment of the lock as you tighten the screws to keep lock centered
over the bore Hole
Install Strike and test from inside.
Adjust Strike position if necessary, for firm Closure.
Entry Lock only –
Ensure Security
Pin Seats Properly
B
JSC-FGS-808
A)
B)
C)
D)
A
Connect
bar
spindle
B
interior
assembly

5.INSTALL EXTERIOR MECHANISM
A. Press cylinder side flush against door
the torque blade is properly positioned in latch crank.
B. Tapped holes in mounting plate of exterior cylinder
should be lined up with latch holes. Key hole should
be in down position.
making certain
6.INSTALL INTERIOR MECHANISM
A. Slide thumb bar and interior
rosette onto torque blade.
B. Insert machine screws through
engaging holes in cylinder and tighten.
holes
1" THROW
TURN
PIECE
Exterior half is fully assembled with exterior torque blade
EXTERIOR TORQUE BLADE
NOTE: The interior torque blade is inserted into the exterior blade.
INTERIOR TORQUE BLADE
A. Install interior cylinder
NOTE: This assembly is placed through latch first.
B. Press interior assembly flush
door making certain the torque blade
is properly positioned in latch hole.
Key hole should be in down position.
against C. Insert(2) two screws through
countersunk holes engaging holes
in exterior cylinder and tighten.
1.MARK DOOR
A. Fold and apply template to high
edge of door bevel and mark center
of door edge as
indicated on
template at
the desired
height from
the floor.
B. Mark center hole
face through guide
on template for
either 2-3/8"
(60mm) or
2-3/4"
(70mm)
backset.
on door
2.DRILL HOLES
A. Drill thru door face as marked
lockset: It is recommended that
holes be drilled from both sides
to prevent spliting. Hole
size is 2"(50.8mm)
for standard
installations.
for B. Drill 1"(25mm)
hole in center
of door edge
thru to
2"(50.8mm)
hole for
latch.
B. Chisel 1/8"
deep or until
latch face is
flush with
door edge.
C. Install deadbolt latch in
up position into
hole as shown
on latch insert
and tighten
screws.
4.INSTALL STRIKE
A. Bore 1" hole
deep for deadbolt.
1"minimum
B. Mortise 1/16" deep for strike
locating from 1" hole in door
insert and tighten screws.
A. Insert latch in hole keeping it
to face of door. Mark outline
and remove latch.
parallel
UP
UP
TORQUE BLADE SHOULD BE
HORIZONTALLY INSERTED
INTO LATCH CRANK
UP
UP
TORQUE
BLADE
2-3/8" BACKSET
2-3/4" BACKSET
2
-3/
8" BACKSET
2
-
3/4"
B
A
CKS
E
T
3.INSTALL LATCH
INSTRUCTIONS FOR INSTALLING
DOUBLE CYLINDER DEADLOCKS
FOR INSTALLING
DEADLOCKS
NOTE:
TEMPLATE MUST
BE PLACED ON
HIGH EDGE OF
DOOR BEVEL
MARK
PROPER
DOOR
THICKNESS
DRILL 1"(25mm)
HOLE IN EDGE OF DOOR
(2" IN DEPTH)
READ INSTRUCTIONS
1-3/4"(45mm)THICK
DOOR
1-3/8" 35mm
THICK
DOOR
2-3/4"(70mm)
2-3/8"(60mm)
FOLD HERE
2 /8"BACKSET
3
DRILL
2"(50.8mm)
HOLE
BACKSET
DISTANCE
MARK
UP
JSC-FGS-D101
Customer Service 800-221-3379
Instruction_Lock_19 Customer Service 800-221-3379 Instruction_Lock_19
FOR USE ON DOORS 1-3/8" TO 1-3/4" (35mm-45mm)
INSTRUCTIONS FOR INSTALLATION OF
SINGLE AND DOUBLE CYLINDER DEADLOCKS
(A)
2-3/8" - or - 2-3/4"
(60 mm) (70 mm)

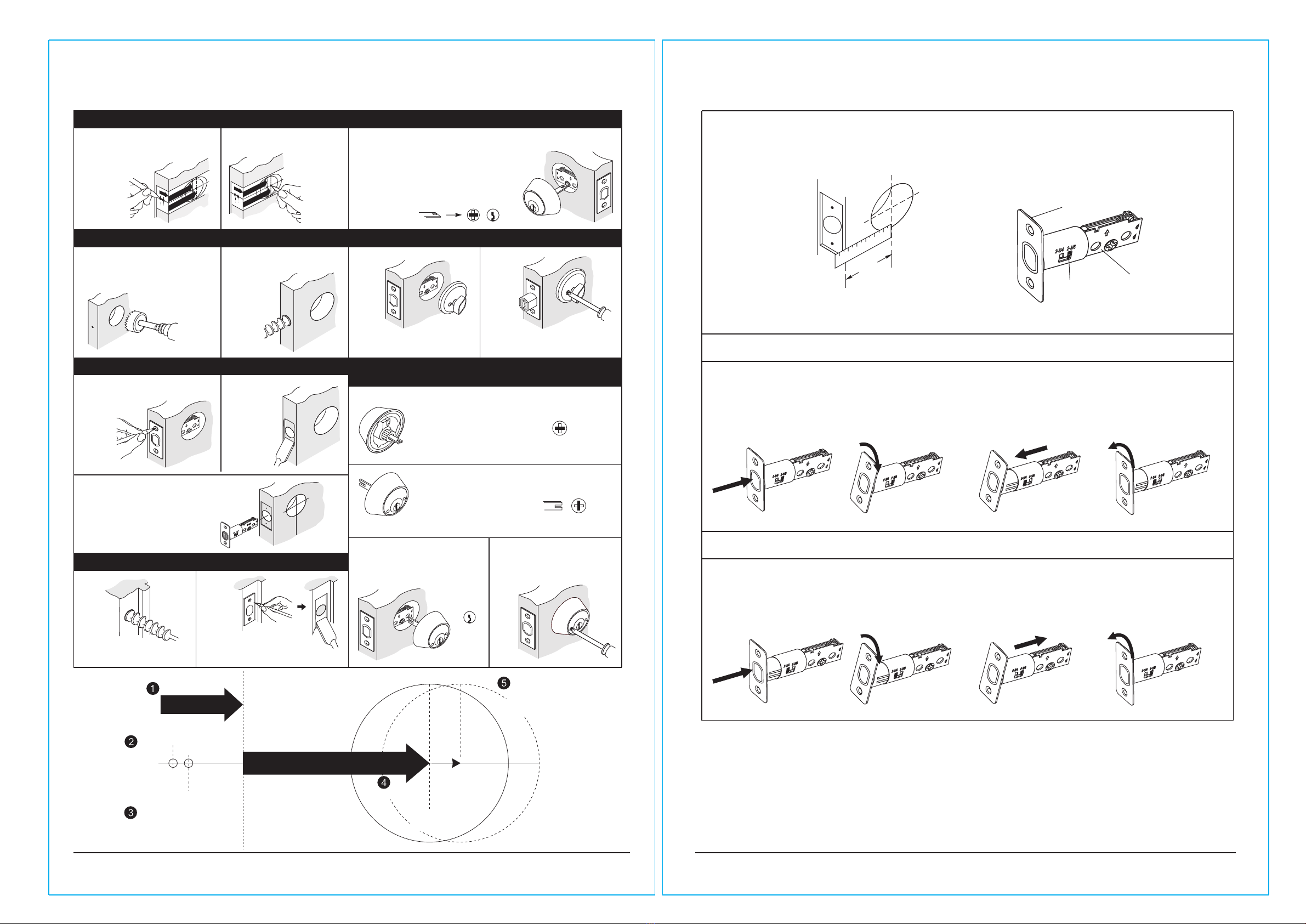

Selecting the Proper Backset
The backset is the distance from the door edge to the center of the hole
UP
Latch Faceplate
Latch Tail
Notch
To adjust the backset from 2-3/8" to 2-3/4" follow these steps.
UP
Retract the latch bolt.
Hold the latch tail and
rotate the faceplate
towards you.
Rotate the latch faceplate
away from you and check
to see if the notch is at
the 2-3/4" mark.
Once the notch is in
the groove, pull the
latch faceplate away
from the latch tail.
UP
UP
UP
To adjust the backset from 2-3/4" to 2-3/8" follow these steps.
Retract the latch bolt.
Hold the latch tail and
rotate the faceplate
towards you.
Rotate the latch faceplate
away from you and check
to see if the notch is at
the 2-3/8" mark.
Once the notch is in
the groove, push the
latch faceplate towards
the latch tail.
UP
UP
UP
UP
