Mitcorp X500 User manual
X500

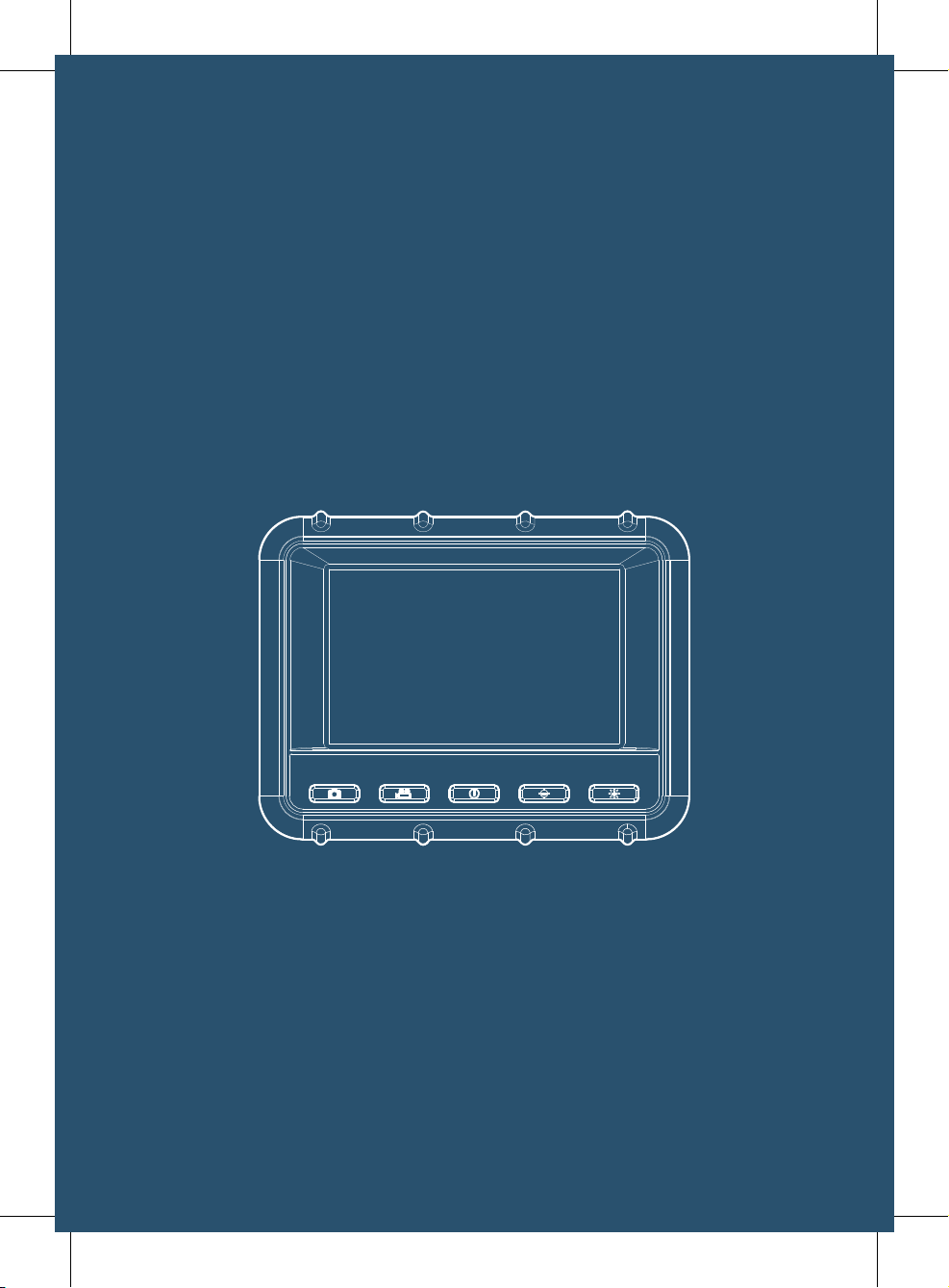

VIDEOSCOPE SYSTEM
User Manual
©2015 Medical Intubation Technology Corporation (Mitcorp).
All rights reserved. Design and specications are subject to change without prior notice. Actual product and accessories
may differ from illustrations. Errors and omissions excepted. Reproduction in any manner without written permission of
Mitcorp is strictly forbidden.
Product Outlook........................................................................................4
Getting Started With Touch Panel...................................................9
Function Keys......................................................................................16
Maintenance.................................................................................17
WEEE Notice & FCC Notice..........................................................18
RoHS Notice & Chemical Compatibility..........................19
Legal and Other Notices & Cautions for Use...........................20
Specifications...................................................................21
Table Of Contents
Power button
Snap

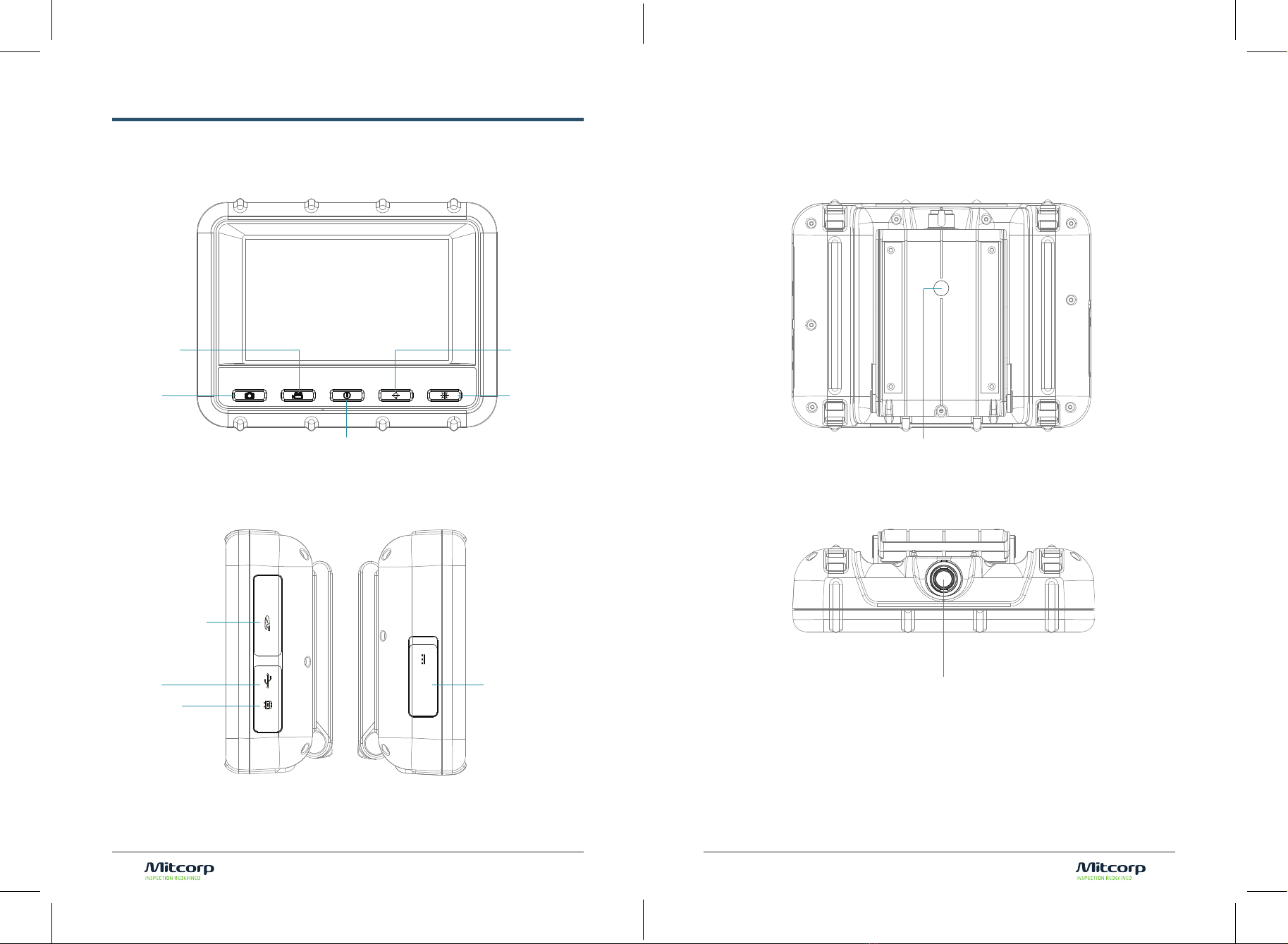

SIDE VIEW
Record
Increase
brightness
Decrease
brightness
SD card slot
USB
AV out
Insert tube connector
Threaded hole for tripod mount
Charging socket
5
4
FRONT VIEW BACK VIEW
TOP VIEW
Product Outlook
X500
7
6
Capture images
• Press to capture desired image.
• Hold to keep freezing the frame.
Adjust brightness
• Press increase brightness
• Press decrease brightness

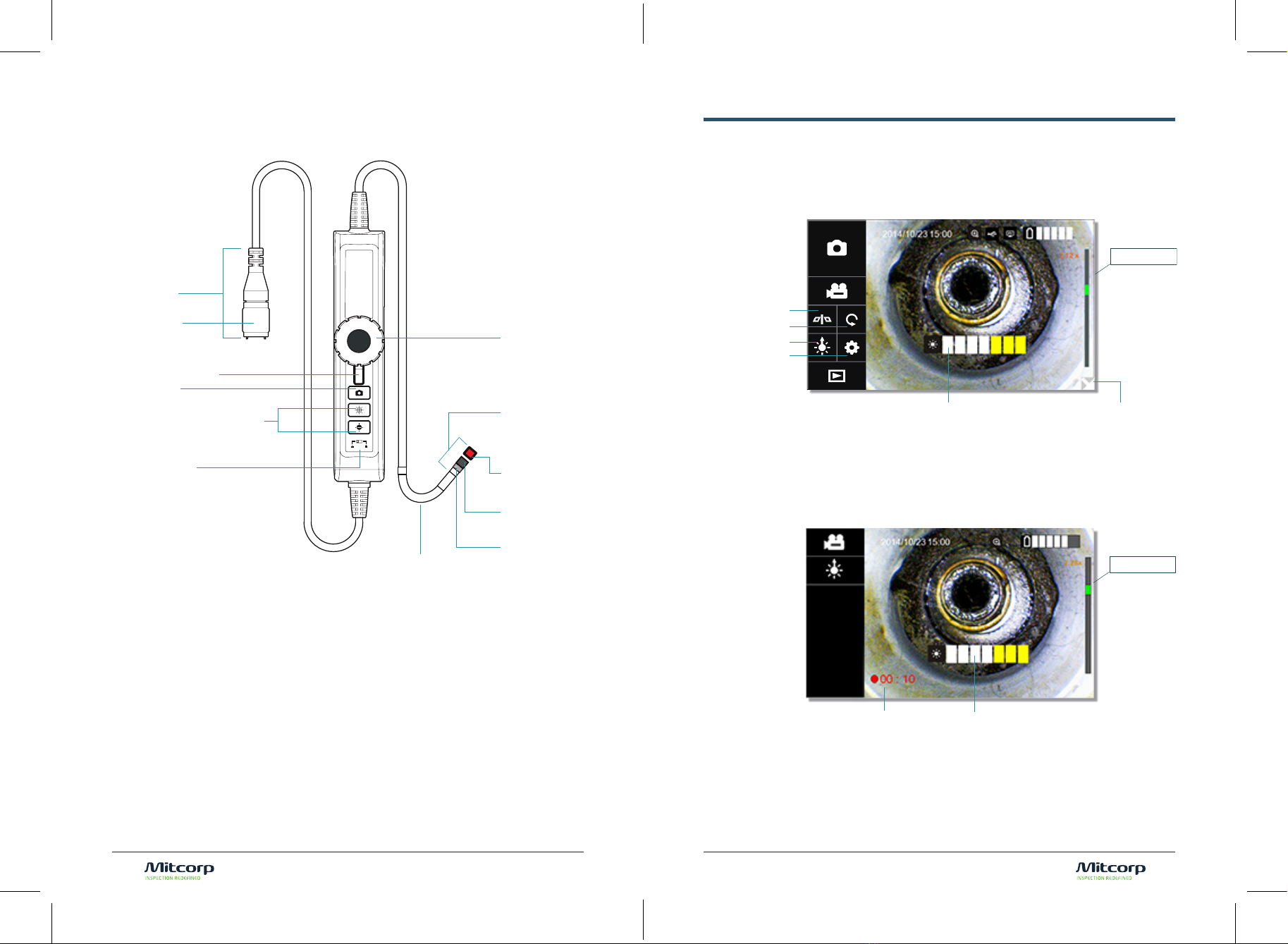

The joystick operations
Joystick
Increase Brightness
Decrease Brightness
Snap/Freeze
360 ARTICULATION TUBE
FRONT VIEW
SIDE VIEW
Generally, use your thumb to control the joystick, and use other fingers to grip the handle.
Frequent operations
9
8
Time stamp
Touch this arrow to
view Full Screen
Battery capacity
Start/stop
recording
Particle free/
anti-reection
Time Brightness
Snapshot
Video Recording
Mirror
Rotation
Particle Free
Menu
Preview
Brightness adjustment
Getting Started With Touch Panel
When system turns on (with insert tube connected ), it’s ready to start the inspection.
Enlargement
Video Recording
Time stamp Battery capacity
Enlargement
Articulation
Control Wheel
Camera Head
Wheel Lock
SEALING NUT
CONNECTOR
Snap
Increase / Decrease
Brightness
Button
Lock Protection Cap
Protective Ring
Fitting Ring
Probe Neck
TWO WAYS ARTICULATION TUBE
FRONT VIEW
11
10
Menu Submenu
CLARITY : To enhance image edge
DISPLAY GRID: To measure the size of sophisticated object, m/ft
switchable

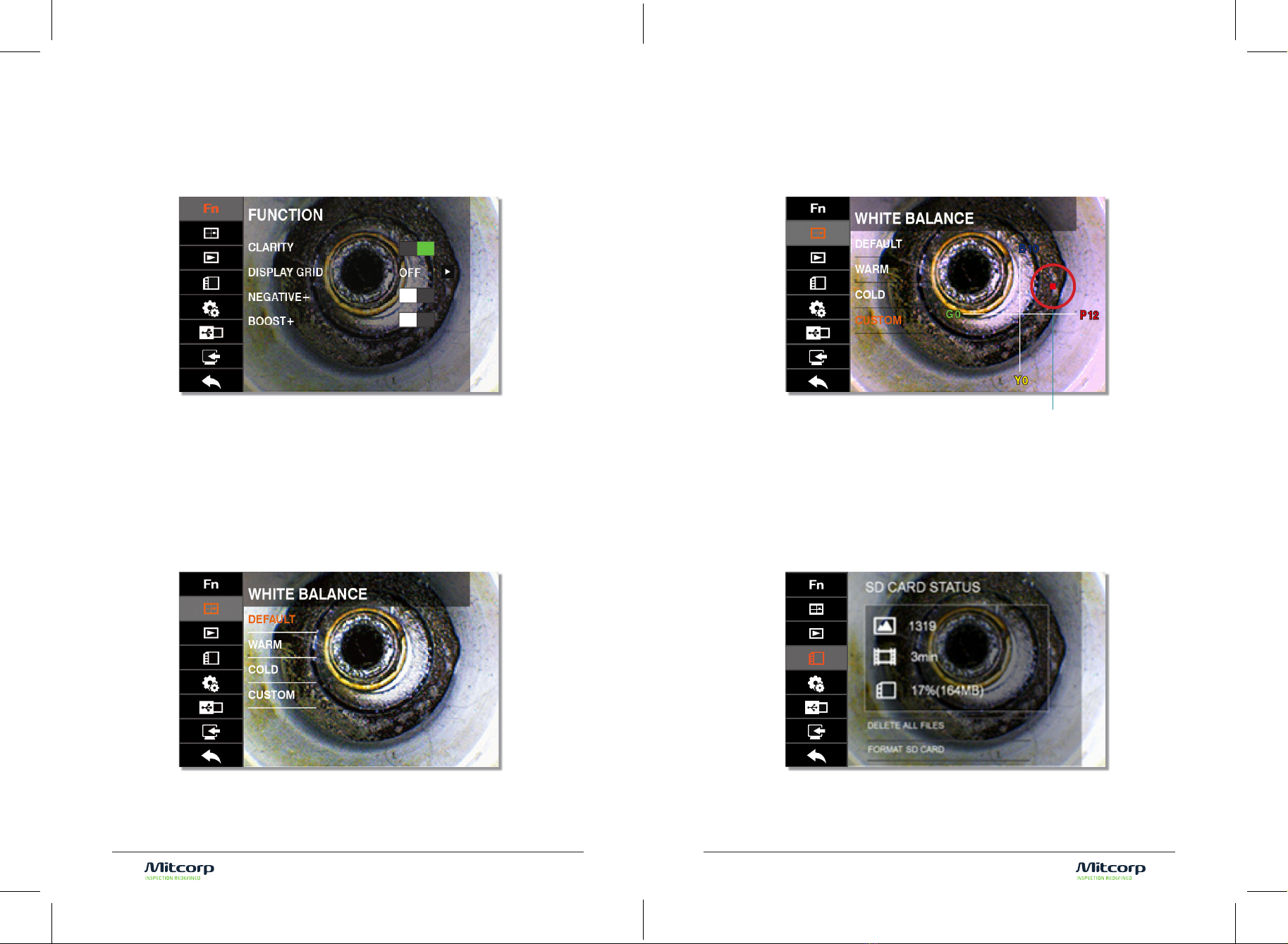

Function Menu
White Balance
Menu Submenu
-DEFAULT
SD Card Status
Menu Submenu
Menu Submenu
Hue adjustment
-CUSTOM
White Balance
LANGUAGE
set up operation language
SYSTEM TIME set up system time
FORMAT
display form at yy/mm/dd, dd/mm/yy, mm/dd/yy
TIMESTAMP set up time stamp
AUTO POWER OFF
set up system off time : OFF/5/10/20/30(minutes)
REPEAT RECORDING set up record restart time : OFF /5/10/20/30(minutes)
Settings Menu
Menu Submenu
13
12
Reader:
Connect PC to read the data stored in the SD card
Camera: Connect PC to
share real-time inspection status
Connect the X500 system to TV ( NTSC or PAL )
USB Menu
AV Output Menu
Menu Submenu
Menu Submenu
15
14
File saved time In chronological order
Image enlargement :
You can move the image to view picture details in green box
Browse photo/Video
-PHOTO
Previous le
Next le
Album display
Delete le
Back
Touch to play video
File saved time In chronological order
-VIDEO
00 :05
You can drag the green dot backward/forward, but
not in red area(last 5 seconds)
Previous le
Next le
Single pic display
Delete le
Back
Video le
To view certain file, check and click; to delete files, check and put them in the trash can
Can’t slide in this area
Video Play
Play/Pause
Album play
Previous le
Next le
Album display
Delete le
Back
17
16
Function Keys

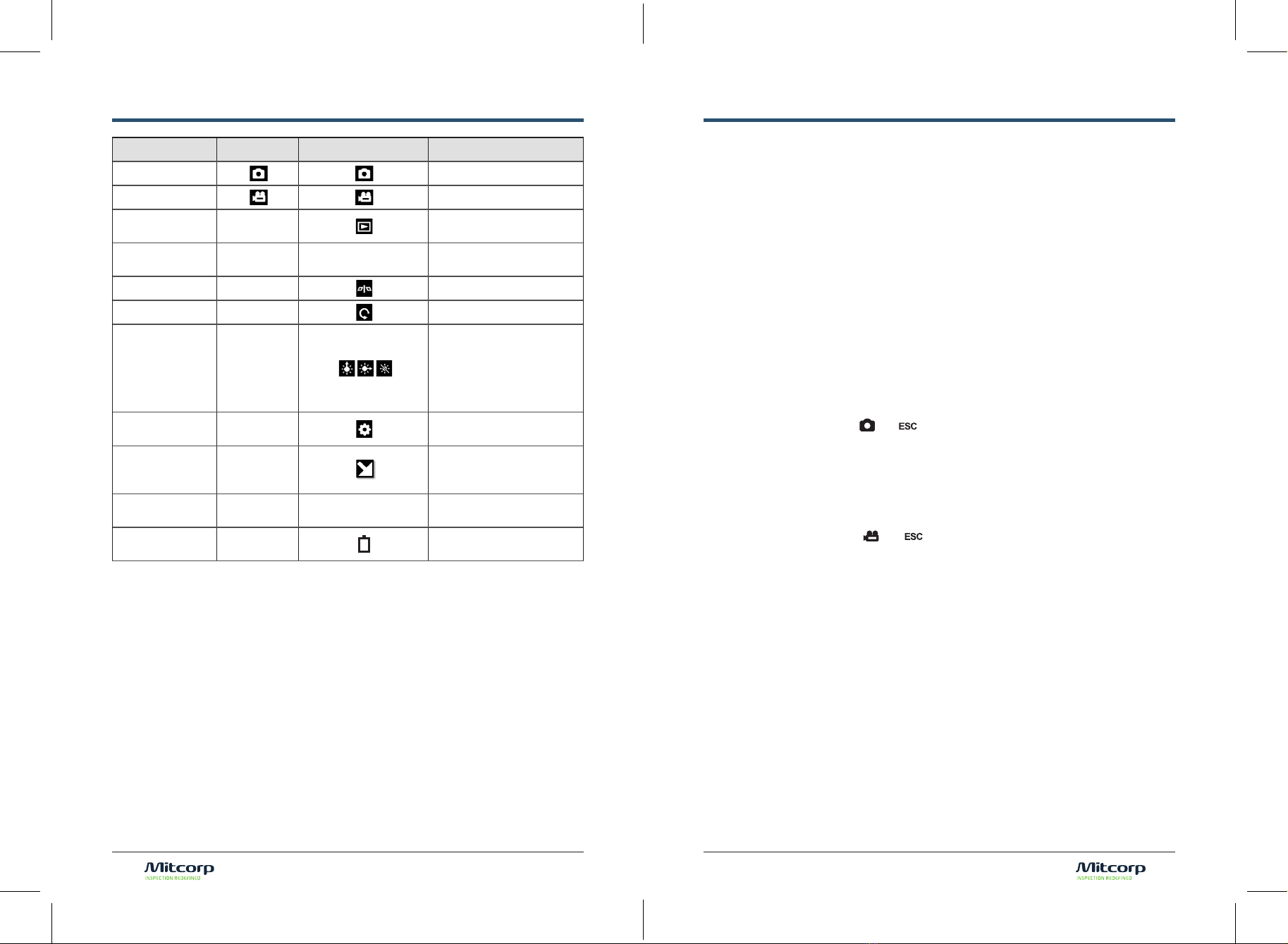

Functions Button Touch Screen icon Note
Snapshot Take picture
Recording Video record
Preview Power button
To enter preview mode and check
photo/video les
Brightness LEFT/RIGHT Slide light bars
Touch screen and slide
the light
bars to adjust
Image Mirror N/A Horizontal ip
Image Rotaion N/A
90° counter clockwise rotation
Particle-Free N/A
1.To eliminate reection or
dust (while work with side
view mirror) When using side
view mirror.
2.You can also turn off the LED
if it’s bright enough
Menu
languages, date/time …
basic operation settings
Full screen operation
N/A
On the bottom right of the screen,
touch to get full screen (won’t
keep in proportion)
Image enlargement N/A Use ngers to enlarge
and reduce images
To enlarge the image (Zoom in)
Battery capacity N/A Touch screen and battery
capacity will show up
Maintenance
CHANGING PROBE
In case of probe is malfunctioned and need to be replaced with a new one, follow below
procedure to calibrate the probe to reach it’s fully performance.
To change the probe:
• Turn off the system.
• Screw loose the sealing nut, remove the malfunctioned probe from system.
• Connect the new probe, make sure the indication point on both connector is
matched, screw tight the sealing nut.
To check the current rmware version:
• Turn off the system
• Press and hold both and simultaneously to enter factory mode.
• Select <information>
• The rmware information will be displayed.
To update rmware:
• Turn off the system.
• Copy the rmware le to a SD card, then put inside the system.
• Press and hold both and simultaneously to power on and the system will
start updating procedure automatically.
• When firmware update is done, the X500 videoscope system will power off
automatically.
UPGRADING FIRMWARE
** Please always have insert tube connected when you update the rmware**
19
18
The F1000 Videoscope System is in conformance with the requirements of the European law
on the Restriction of Hazardous Substances (RoHS) directive. This means that our product is
both lead-free and without the hazardous substances either in the manufacturing process or
in the nal product.
RoHS Notice
All insertion tubes made by Mitcorp had passed following liquid immersion test:
• Water
• Engine oil
• Brake uid oil
• Gasoline
• Diesel Fuel
• Transmission oil
Chemical Compatibility
• The cross-out wheeled bin symbol indicates that according to the European
Directive 2002/96/EC on Waste Electrical and Electronic Equipment, this product
must be collected in a separated way instead of being disposed of as unsorted
municipal waste.
• Contact your local dealer for procedures of recycling this equipment.
WEEE Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may
cause undesired operation
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
FCC Notice
21
20
Specications
- This product is designed for industrial use only. Do not use the system
for human or biological inspection.
- Do not use the product in medical facilities, airplanes or environment
with explosive atmosphere like fuel tank or other dangerous
environment such as a gasoline or alcohol storage tank.
- Do not use any corrosive liquid for cleaning, such as alcohol.
- Do not try to disassemble this product, it might cause damage or electric
shock .
- Please use only recommended components or accessories. Unapproved
accessories and components may cause damages.
Cautions for Use
This Mitcorp product is warranted to be free from defects in material and
workman shop for 1 year from the date of purchase. Mitcorp agrees to repair
or replace the product, at its own option and at no charge. This warranty
shall not apply to any product, which has been subject to connect to a faulty
accessories, alteration, negligence, accident or to any product which has been
installed other than in accordance with these instructions.
Warranty is subject to void under unauthorized attempt to disassemble
the system unit, insert tubes or modification of any kinds, even attempted
only, of the system. Mitcorp will not be responsible for damages caused by
following situations:
• Defaced, modied or removed serial number label or warranty seal
• Modications of components without Mitcorp’s authorization
• Damages caused by natural phenomena or uncontrollable forces,
such as lightning, ooding, re, earthquake…etc.
Legal and Other Notices
Features Description
Dimensions 160mm x 120mm x 55mm
Weight 745g
Display 5" TFT LCD (VGA), 800x480 resolution
Power Rechargeable Li battery
Power consumption DC 5V 3A
Waterproof Can be operated in rain
Video out NTSC & PAL / AV OUT
Storage SD card(SDHC), up to 32G
Video / Photo le format .avi / .jpg, 640 x 480
Working temperature 0°~ 60℃
Storage temperature 0°~ 60℃
LED indicator Green LED :
Power
On
Red LED : Charging System
X500
360 ARTICULATION TUBE
Features Description
Probe head diameter 6.0mm
Tube length 2m / 3m
Articulation angle 110°
Articulations Full ways
LED Front / Side
Button Snapshot / freeze, Brightness control
Water proof Can be used under water (tube only)
Working temperature 0°~ 60℃
Storage temperature 0°~ 60℃
Weight 730g / 800g
22
2 WAYS ARTICULATION TUBE
Features Description
Probe head diameter 6.0mm
Tube length 2m / 3m
Articulation angle 145°/ 135°
Articulations 2 ways
LED Front / Side
Button Snapshot /LED + / LED -
Button lock Lock up button functions
Water proof Can be used under water (tube only)
Working temperature 0°~ 60℃
Storage temperature 0°~ 60℃
Weight 390g / 440g
VER.1
