Mitcorp MX500 User manual

VIDEOSCOPE SYSTEM
MX500

Product Outlook4
TABLE OF CONTENTS
6
8
7
15
9
10
11
12
14
13
16
18
17
Function Menu
Getting Started With Touch Panel
Function Keys
Maintenance
Wite Balance
Settings Menu
USB Menu
AV Output Menu
Album Play
Video Play
SD Card Status
WEEE Notice
FCC Notice
Legal and Other Notices
ROHS Notice
Wite Balance - default
Upgrading Firmware
Chemical Compatibility
19 Specications
20 MX500 Accessories

4

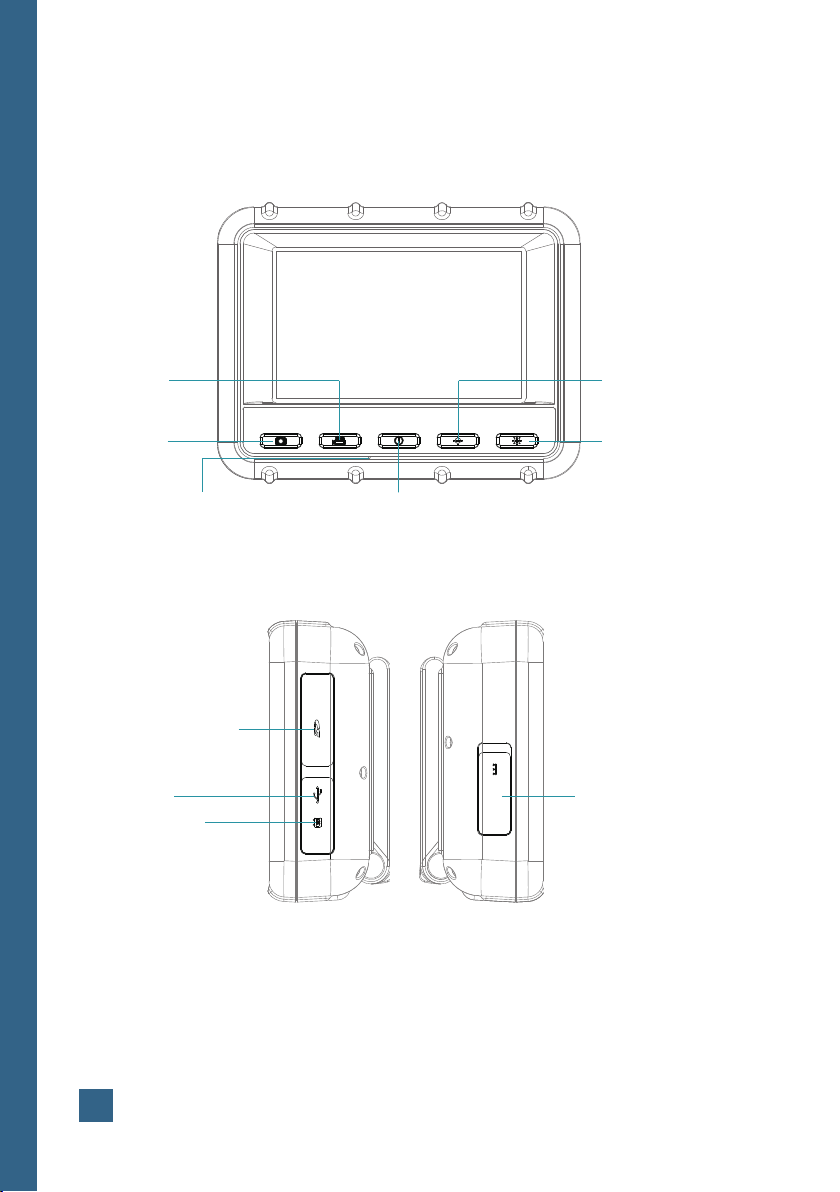

Product Outlook
CHARGING SOCKET
USB
SNAP
SD CARD SLOT
SNAP
RECORD
POWER BUTTON
INCREASE BRIGHTNESS
DECREASE BRIGHTNESS
BUILT - IN MICROPHONE

5
THREADED HOLE FOR TRIPOD MOUNT
INSERT TUBE CONNECTOR
RECHARGEABLE
LI BATTERY
INSIDE
！

6
Time stamp Battery capacity
Snapshot
Video Recording
Mirror
Rotation
Particle Free
Menu

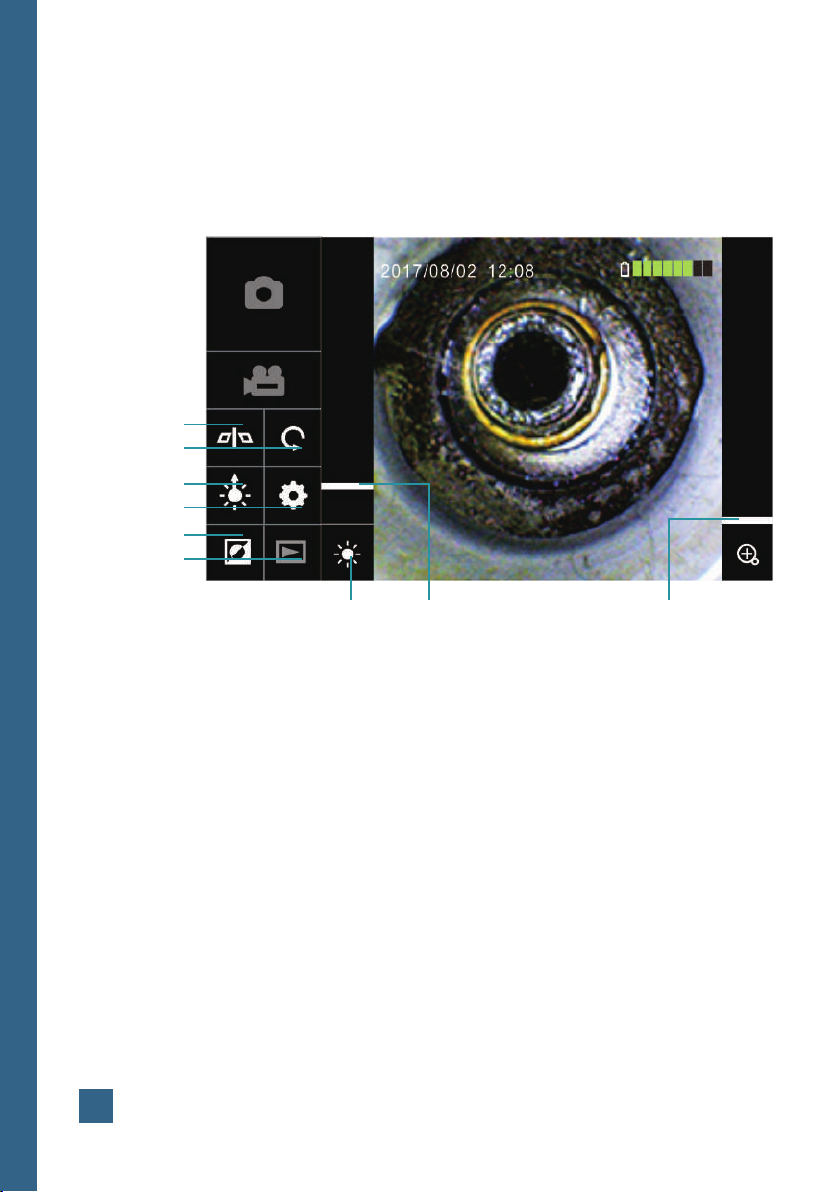

Getting Started With Touch Panel
When system turns on (with insert tube connected ), it’s ready to start the inspection.
Brightness
Preview
Brightness adjustment
Image contrast
Zoom in

7
White Balance
-DEFAULT
Menu Submenu
Menu Submenu

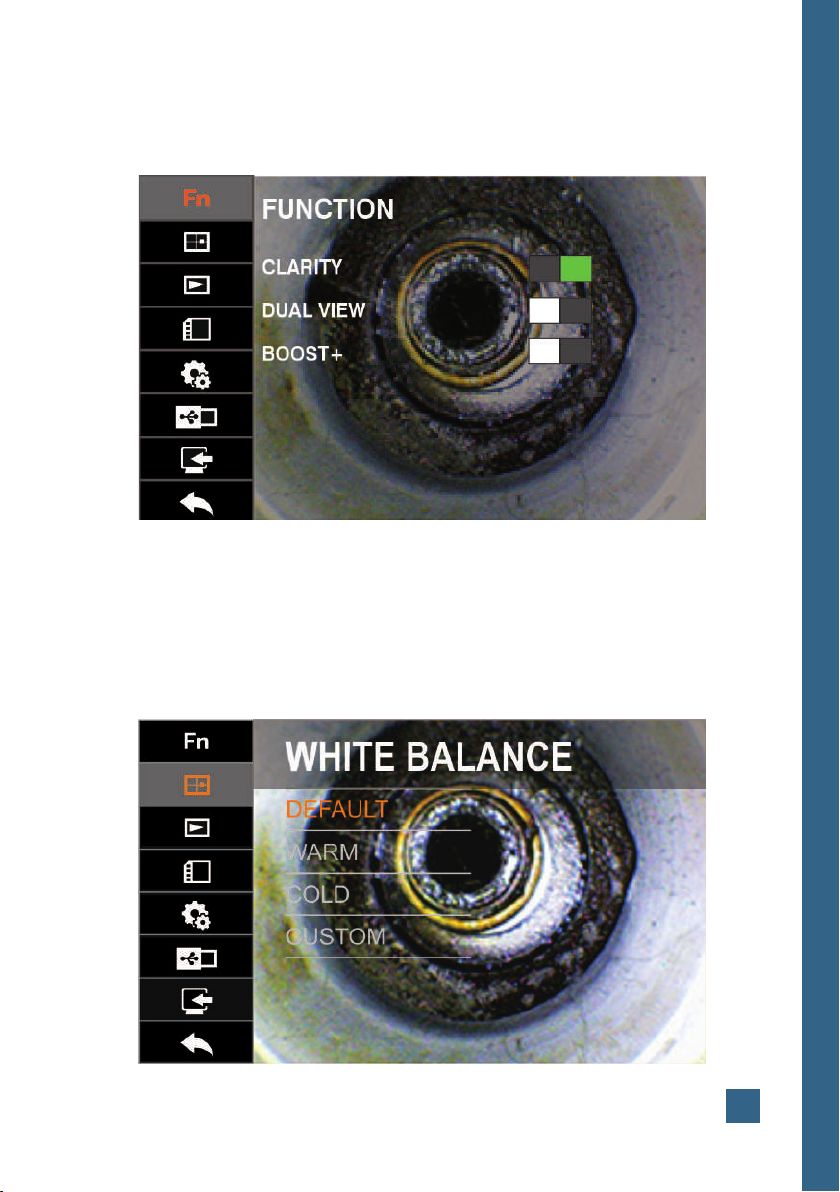

Function Menu
CLARITY : To enhance image edge.
DUAL VIEW : Front view / side view inspection simultaneously (mirror needed).
BOOST+ : Light enhanced Mode.

8

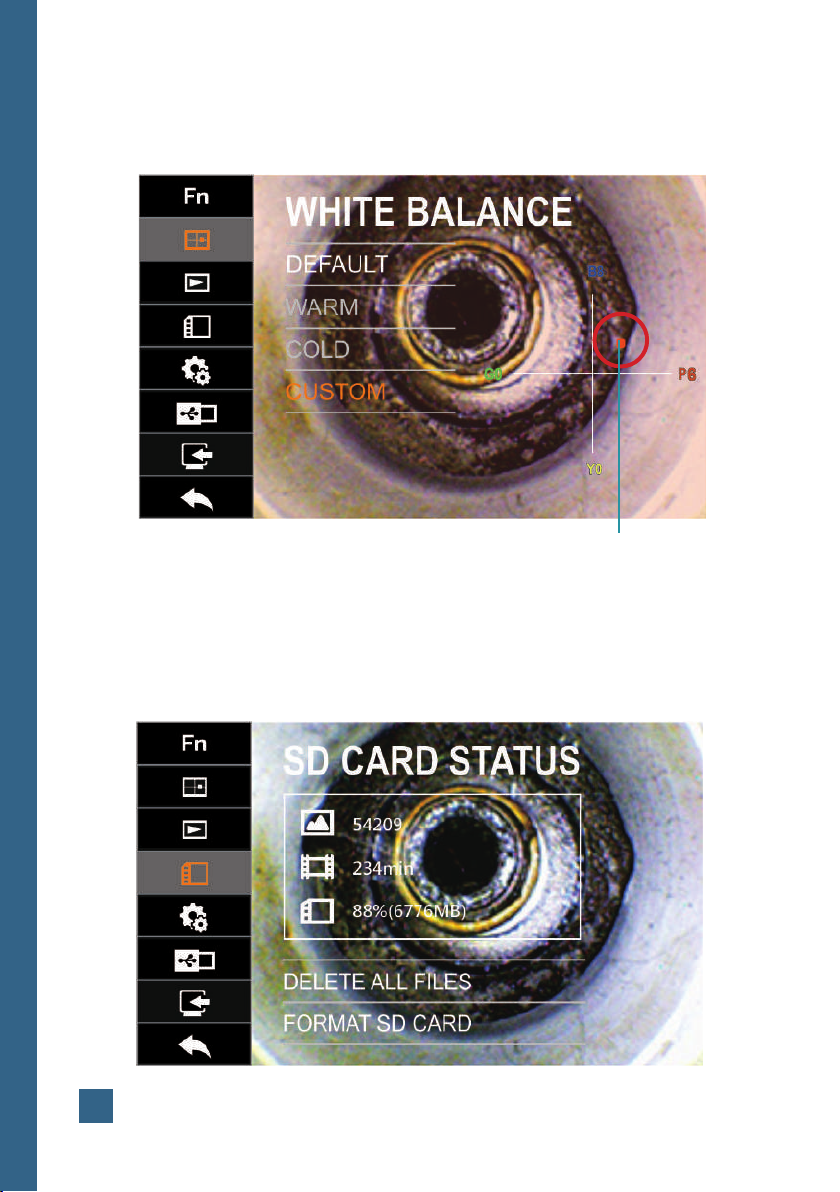

White Balance
Menu Submenu
Hue adjustment
SD Card Status
Menu Submenu

9
LANGUAGE set up operation language
SYSTEM TIME set up system time
FORMAT
display form at YY/MM/DD, DD/MM/YY, MM/DD/YY
TIMESTAMP set up time stamp
WATERMARK on for Mitcorp watermark on pics
AUTO POWER OFF
set up system off time : OFF/5/10/20/30(minutes)
REPEAT RECORDING set up record restart time : OFF /5/10/20/30(minutes)
Settings Menu
Menu Submenu

10
Reader: Connect PC to read the data stored in the SD card
Camera: Connect PC to
share real-time inspection status
USB Menu
Menu Submenu
Connect the MX500 system to TV ( NTSC or PAL )
AV Output Menu
Menu Submenu

11
File saved time In chronological order
Image enlargement :
You can move the image to view picture details in green box
Previous le
Next le
Album display
Delete le
Back
Video Play
Play/Pause
You can drag the green dot backward/forward.

12
Previous le
Next le
Single pic display
Delete le
Back

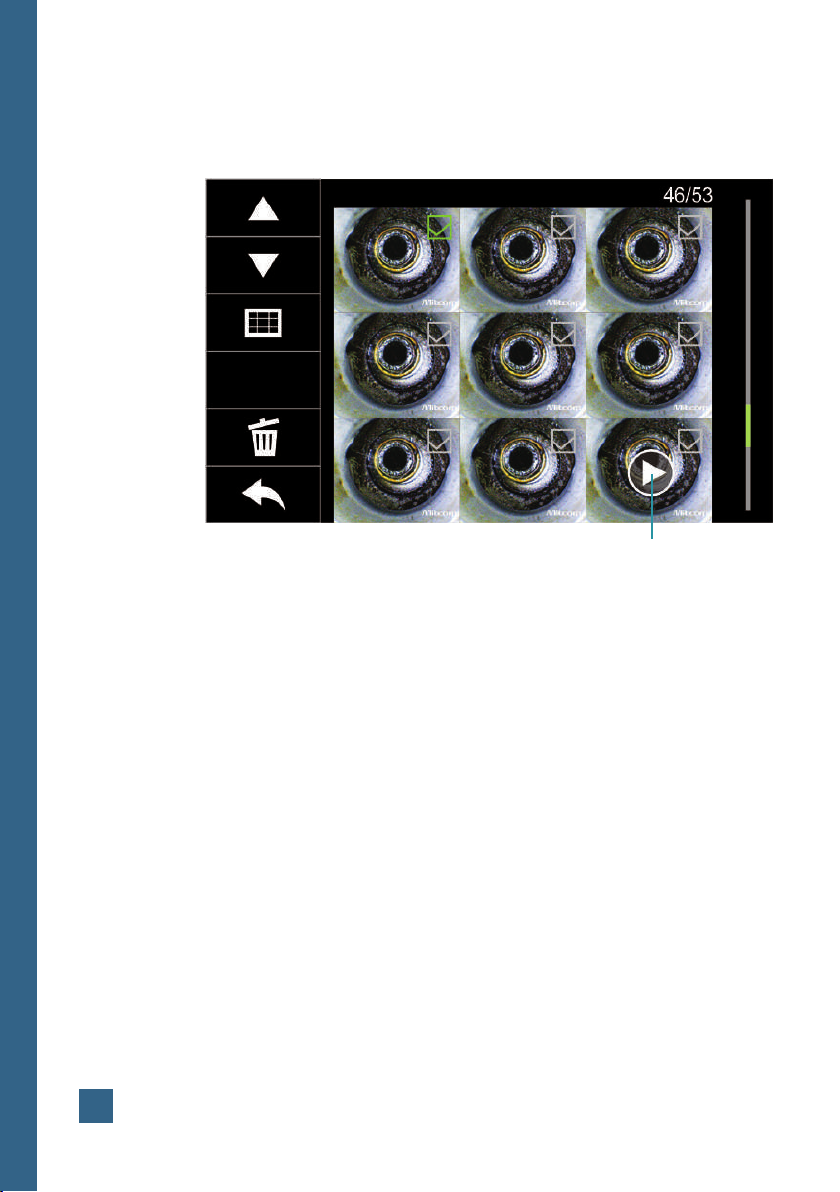

To view certain file, check and click; to delete files, check and put them in the trash can.
Album play
Video le (Click to play)

13
Function Keys
Functions Button Touch Screen icon Note
Snapshot Take picture
Recording Video record
Preview Power button
To enter preview mode and check photo/video
les
Brightness / N/A
Press to increase brightness
Press to decrease brightness
Image Mirror N/A Horizontal ip
Image Rotaion N/A
90°counter clockwise rotation
Particle-Free N/A
1.To eliminate reection or
dust (while work with side view mirror)
2.You can also turn off the LED
if it’s bright enough
Menu
languages, date/time …
basic operation settings
Full screen
operation
N/A N/A Touch the screen twice to enter full screen
(won't keep in proportion)
enlargement N/A
Use ngers to
enlarge and reduce
images
To enlarge the image (Zoom in)
Battery capacity N/A Touch screen and battery capacity will show
up

14
Maintenance
CHANGING PROBE AND CALIBRATION
In case of probe is malfunctioned and need to be replaced with a new one, follow below
procedure to calibrate the probe to reach it’s fully function.
Change the probe:
• Turn off the system.
• Screw loose the sealing nut, remove the malfunctioned probe from system.
• Connect the new probe , insure the indication point on both connector is matched,
screw tight the sealing nut.
Calibration:
• Turn off the system
• Press and hold both and simultaneously to enter factory mode.
• Select <Calibration>, press .
• Follow the screen instrution, restart the MX500 system.
*Calibration needs to be done every time when :
1. change a different probe
2. firmware upgrade.

15
There might be addition and/or modication of functions after initial release. We will release
updated version rmware for system upgrade.
To check the current rmware version:
• Turn off the system
• Press and hold both and simultaneously to enter factory mode.
• Select <SW version>
• The rmware information will be displayed.
To update rmware:
• Turn off the system.
• Copy the rmware le to a SD card, then put inside the system.
• Press and hold both and simultaneously to power on and the system will start
updating procedure automatically.
• When rmware update is done, the MX500 videoscope system will power off
automatically.
UPGRADING FIRMWARE
**Please "always" have insert tube plugged in when you execute calibration or firmware
upgrade.

16
WEEE Notice
• The cross-out wheeled bin symbol indicates that according to the European
Directive 2002/96/EC on Waste Electrical and Electronic Equipment, this product
must be collected in a separated way instead of being disposed of as unsorted
municipal waste.
• Contact your local dealer for procedures of recycling this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that
may cause undesired operation.
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
FCC Notice

17
The X500 Videoscope System is in conformance with the requirements of the European law on
the Restriction of Hazardous Substances (RoHS) directive. This means that our product is both
lead-free and without the hazardous substances either in the manufacturing process or in the
nal product.
RoHS Notice
This Mitcorp product is warranted to be free from defects in material and
workman shop for 1 year from the date of purchase. Mitcorp agrees to repair
or replace the product, at its own option and at no charge. This warranty
shall not apply to any product, which has been subject to connect to a faulty
accessories, alteration, negligence, accident or to any product which has been
installed other than in accordance with these instructions.
Warranty is subject to void under unauthorized attempt to disassemble the
system unit, insert tubes or modication of any kinds, even attempted only, of
the system. Mitcorp will not be responsible for damages caused by following
situations:
• Defaced, modied or removed serial number label or warranty seal
• Modications of components without Mitcorp’s authorization
• Damages caused by natural phenomena or uncontrollable forces, such
as lightning, ooding, re, earthquake…etc.
Legal and Other Notices

18
All insertion tubes made by Mitcorp had passed following liquid immersion test:
• Water
• Engine oil
• Brake uid oil
• Gasoline
• Diesel Fuel
• Transmission oil
Chemical Compatibility
- This product is designed for industrial use only. Do not use the
system for human or biological inspection.
- Do not use the product in medical facilities, airplanes or
environment with explosive atmosphere like fuel tank or other
dangerous environment such as a gasoline or alcohol storage tank.
- Do not use any corrosive liquid for cleaning, such as alcohol.
- Do not try to disassemble this product, it might cause damage or
electric shock .
- Please use only recommended components or accessories.
Unapproved accessories and components may cause damages.
- If the equipment is used in a manner not specified by the
manufacturer , the protection provided by the equipment may be
impaired.
- Never replace the battery by yourself. RISK OF EXPLOSION IF
BATTERY IS REPLACED BY AN INCORRECT TYPE.
Cautions for Use

19
Specications
Features Description
Display 5" LCD ( 640x480 )
Snapshot 400 x 400, .jpg
Recording 400 x 400, .avi
Dimensions 160mm x 120mm x 55mm
Weight 1.3kg ( 2.86lb )
Waterproof IP54
Drop resistence 1m
Battery Rechargeable Li battery, 5V, 3A
Working temperature 0ºC~45ºC (with battery)
0ºC~40ºC (with adaptor)
Storage temperature -10ºC~60ºC
Relative humidity Max 95%, non condensing
Storage SD card, up to 32G
Audio input Built-in microphone
Video output NTSC & PAL
LED indicator Green LED: Power on
Red LED: Charging system
MX500 system

20
MX500 ACCESSORIES
Also include : USB cable, AV cable, clean set, SD card, user manual.
Insulation cap
INSULATION CAP
