TECHNICAL & SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES ......................... 2
2. SAFETY PRECAUTION .......................... 2
3. PART NAMES AND FUNCTIONS .......... 4
4. SPECIFICATION ................................... 11
5. OUTLINES AND DIMENSIONS ............ 15
6. WIRING DIAGRAM ............................... 18
7. REFRIGERANT SYSTEM DIAGRAM ........ 20
8. TROUBLESHOOTING .......................... 21
9. DISASSEMBLY PROCEDURE ............. 30
Indoor unit
[Model names] [Service Ref.]
No. OCH449
REVISED EDITION-A
INDOOR UNIT
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
R410A
Note:
•
This manual describes only
service data of the indoor units.
• RoHS compliant products have
<G> mark on the spec name
plate.
December 2012
PARTS CATALOG (OCB449)
Model name
indication
PCFY-P40VKM-E
PCFY-P63VKM-E
PCFY-P100VKM-E
PCFY-P125VKM-E
PCFY-P40VKM-E
PCFY-P40VKM-ER1
PCFY-P63VKM-E
PCFY-P63VKM-ER1
PCFY-P100VKM-E
PCFY-P100VKM-ER1
PCFY-P125VKM-E
PCFY-P125VKM-ER1
Revision:
• PCFY-P40/63/100/125VKM-ER1
have been added in REVISED
EDITION-A.
• Some descriptions have been
modified.
• Please void OCH449.

2
2SAFETY PRECAUTION
1TECHNICAL CHANGES
PCFY-P40VKM-E PCFY-P40VKM-ER1
PCFY-P63VKM-E PCFY-P63VKM-ER1
PCFY-P100VKM-E PCFY-P100VKM-ER1
PCFY-P125VKM-E PCFY-P125VKM-ER1
• INDOOR CONTROLLER BOARD (I.B.) has been changed. (S/W version up)
Cautions for units utilizing refrigerant R410A
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil etc.
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contains a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Use the specified refrigerant only.
Store the piping indoors, and both ends of the
piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
OCH449A

33
Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.

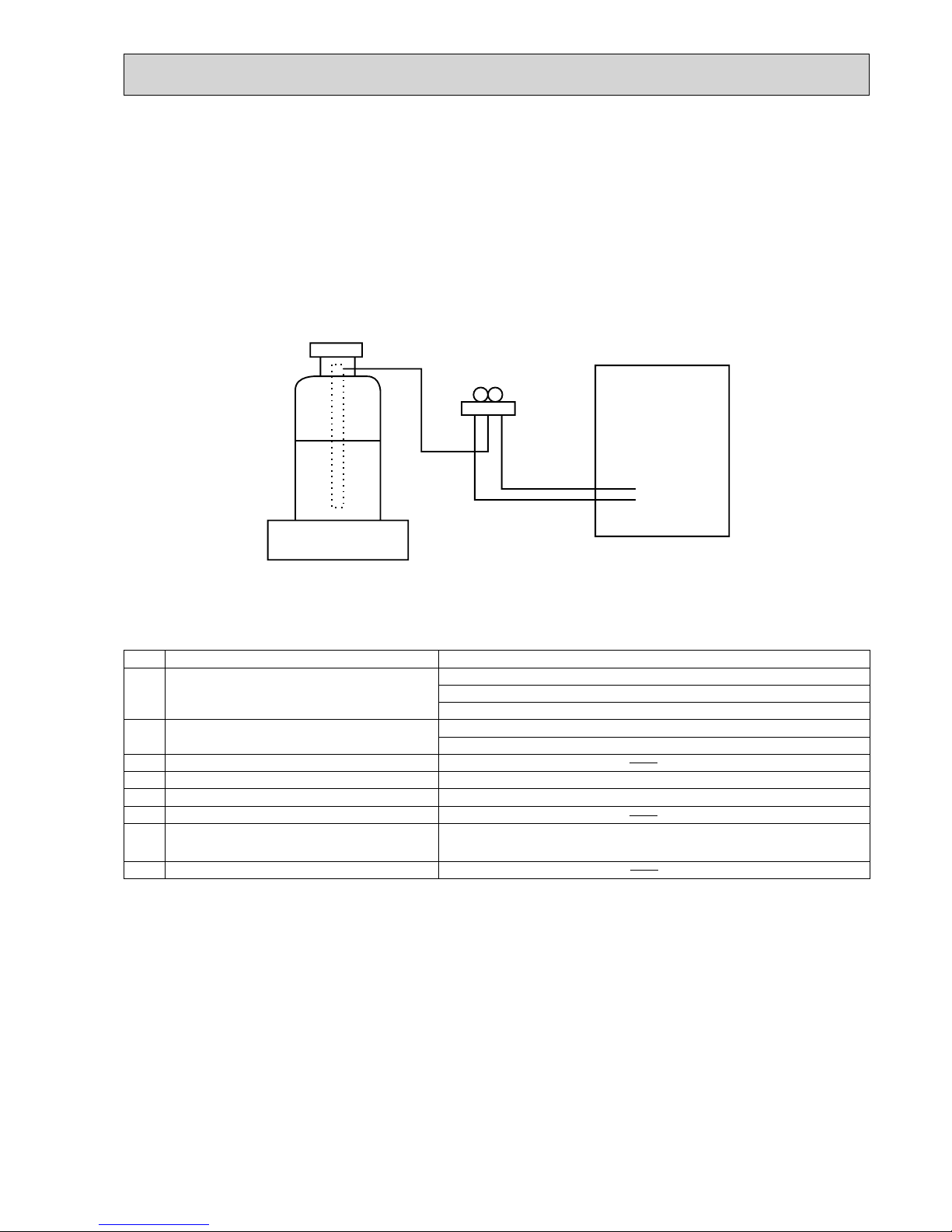

[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon standing vertically. (Refrigerant is charged from liquid phase.)
No. Tool name Specifications
1Gauge manifold
· Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose · Only for R410A
· Use pressure performance of 5.09MPa·G or over.
3Electronic scale
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment
OCH449A

4
3-1. INDOOR UNIT
3PART NAMES AND FUNCTIONS

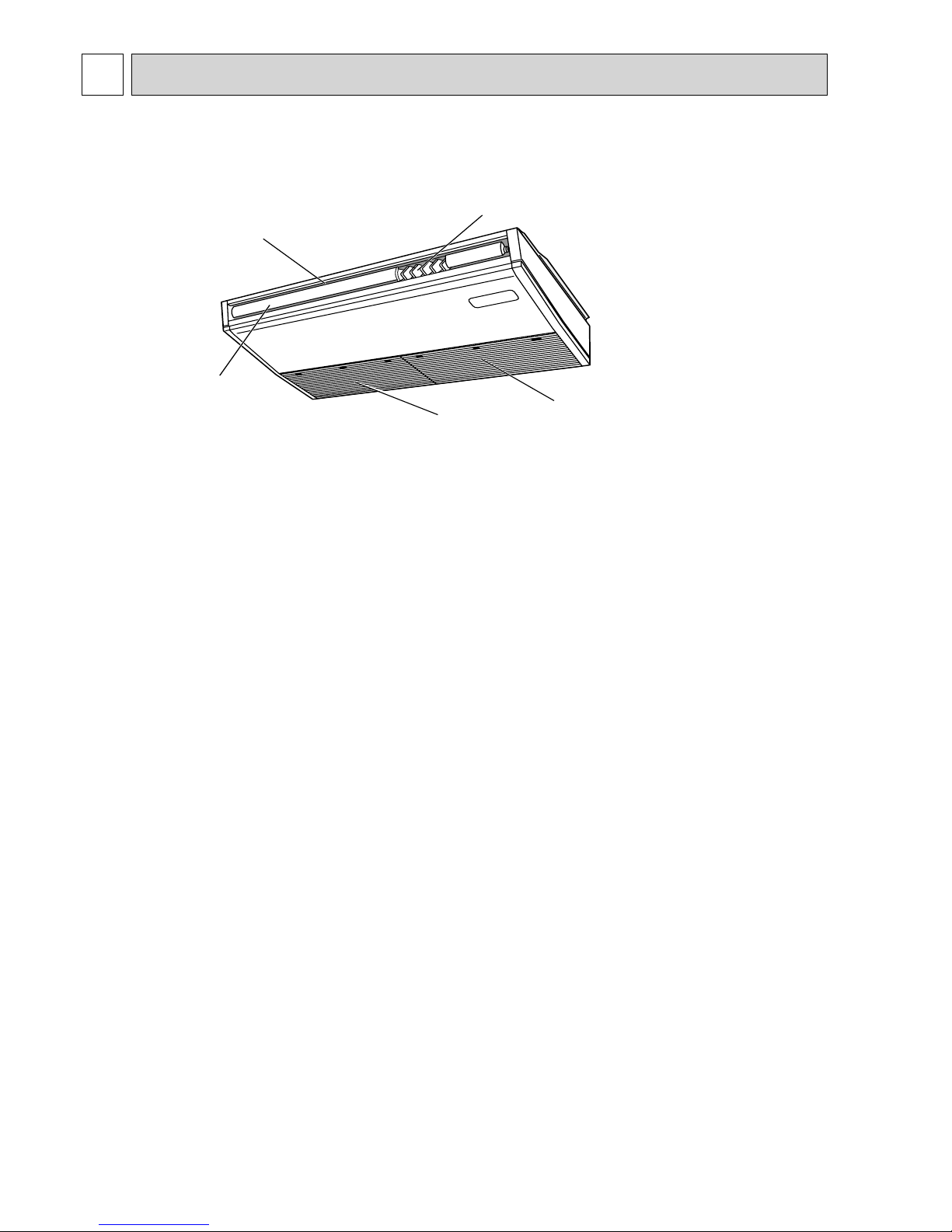

Air outlet
Louver
Vane
Air intake Filter
(Inside of Air intake)
OCH449A

55

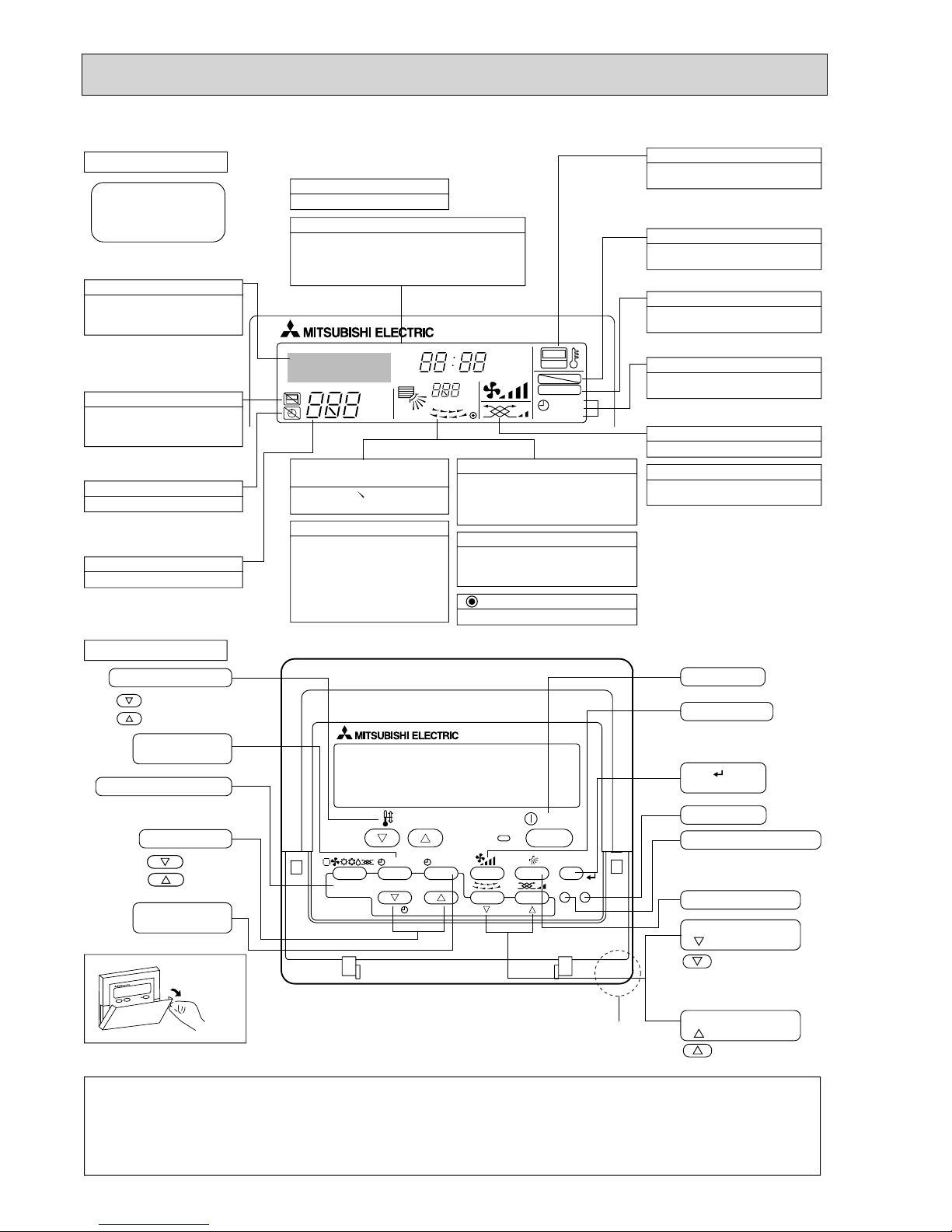

Function buttons
F1 F2 F3 F4
Press to turn ON/OFF the indoor unit.
ON / OFF button
When the backlight is off, pressing any button turns
the backlight on and does not perform its function.
(except for the (ON / OFF) button)
The functions of the function buttons change depending on
the screen. Refer to the button function guide that appears
at the bottom of the LCD for the functions they serve on a
given screen.
When the system is centrally controlled, the button function
guide that corresponds to the locked button will not appear.
Press to save the setting.
SELECT button
Press to return to the previous screen.
RETURN button
Press to bring up the Main menu.
MENU button
Operation settings will appear.
When the backlight is off, pressing any button turns the
backlight on and it will stay lit for a certain period of time
depending on the screen.
Backlit LCD
This lamp lights up in green while the unit is in operation.
It blinks while the remote controller is starting up or when
there is an error.
ON / OFF lamp
Main display : Press to change the operation mode.
Main menu : Press to move the cursor down.
Function button F1
Main display : Press to decrease temperature.
Main menu : Press to move the cursor up.
Function button F2
Main display : Press to increase temperature.
Main menu : Press to go to the previous page.
Function button F3
Main display : Press to change the fan speed.
Main menu : Press to go to the next page.
Function button F4
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
<Main display> <Main menu>
Function guide

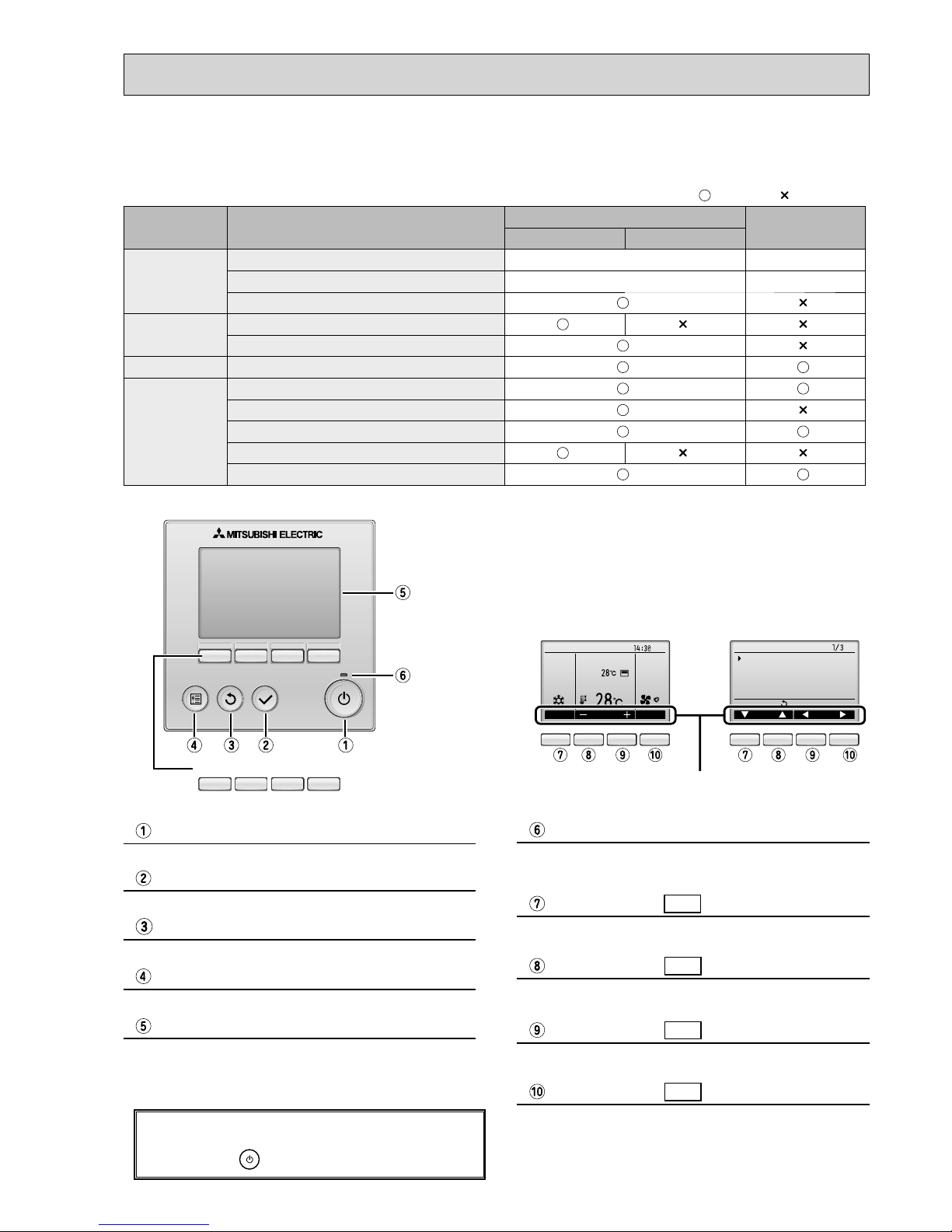

3-2. WIRED REMOTE CONTROLLER <PAR-30MAA/PAR-31MAA>
* The functions which can be used are restricted according to the model.
: Supported : Unsupported
Function PAR-30MAA/PAR-31MAA PAR-21MAA
Slim City multi
Body Product size H × W × D (mm) 120 × 120 × 19 120 × 130 × 19
LCD Full Dot LCD Partial Dot LCD
Backlight
Energy-saving Energy-saving operation schedule
Automatic return to the preset temperature
Restriction Setting the temperature range restriction
Function Operation lock function
Weekly timer
On / Off timer
High Power
Manual vane angle
Wired remote controller function
OCH449A

6
Fri
Mode Temp. Fan
Room
Cool Auto
Set temp.
Fri
Cool
Mode Temp. Fan
AutoSet temp.

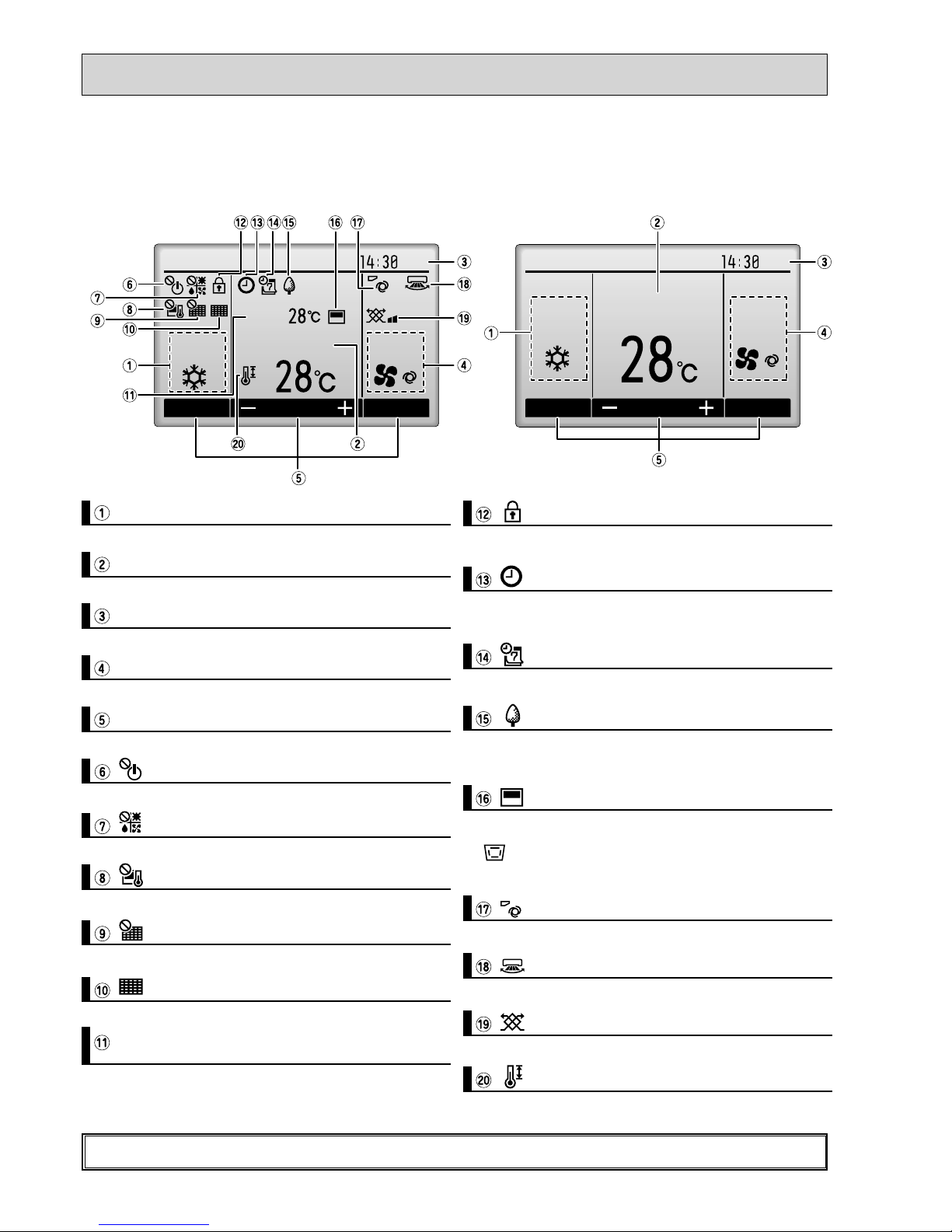

The main display can be displayed in two different modes: "Full" and "Basic".
T
he factory setting is "Full". To switch to the "Basic" mode, change the setting on the Main display setting.
<Full mode> <Basic mode>
* All icons are displayed for explanation.
Most settings (except ON / OFF, mode, fan speed, temperature) can be made from the Menu screen.
Indoor unit operation mode appears here.
Operation mode
Preset temperature appears here.
Preset temperature
Current time appears here.
Clock (See the Installation Manual.)
Fan speed
Fan speed setting appears here.
Functions of the corresponding buttons appear here.
Button function guide
Appears when the ON/OFF operation is centrally controlled.
Appears when the operation mode is centrally controlled.
Appears when the preset temperature is centrally controlled.
Appears when the f lter reset function is centrally controlled.
Indicates when f lter needs maintenance.
Current room temperature appears here.
Room temperature
(See the Installation Manual.)
Appears when the buttons are locked.
Appears when the On/Off timer or Night setback function is
enabled.
Appears when the Weekly timer is enabled.
Appears while the units are operated in the energy-save
mode.
Appears when the built-in thermistor on the remote control-
ler is activated to monitor the room temperature.
appears when the thermistor on the indoor unit is acti-
vated to monitor the room temperature.
Indicates the vane setting.
Indicates the louver setting.
Indicates the ventilation setting.
Appears when the preset temperature range is restricted.
OCH449A

7
Not all functions are available on all models of indoor units.
Filter information
Error information
Energy saving
Auto return
Schedule
Night setback
Main menu Press the MENU button.
Move the cursor to the desired item with the F1 and F2 buttons, and press the SELECT button.
Vane · Louver · Vent. (Lossnay)
High power
Weekly timer
Restriction
Maintenance
Initial setting
On / Off timer
Auto-Off timer
Temp. range
Operation lock
Manual vane angle
Main / Sub
Timer
Main display
Contrast
Display details
Auto mode
Administrator password
Language selection
Service
Service menu
Input maintenance info.
Function setting
Lossnay (City Multi only)
Check
Self check
Maintenance password
Remote controller check
Test run
Clock
Drain pump test run
Auto descending panel
Menu structure
OCH449A

8
Setting and display items Setting details
Vane · Louver · Vent.
(Lossnay)
Use to set the vane angle.
• Select a desired vane setting from f ve different settings.
Use to turn ON / OFF the louver.
• Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
• Select a desired setting from "Off," "Low," and "High."
High power Use to reach the comfortable room temperature quickly.
• Units can be operated in the High-power mode for up to 30 minutes.
Timer On/Off timer Use to set the operation On/Off times.
• Time can be set in 5-minute increments.
* Clock setting is required.
Auto-Off
timer
Use to set the Auto-Off time.
• Time can be set to a value from 30 to 240 in 10-minute increments.
Filter information Use to check the f lter status.
• The f lter sign can be reset.
Error information Use to check error information when an error occurs.
• Error code, error source, refrigerant address, unit model, manufacturing number, contact
information (dealer's phone number) can be displayed.
* The unit model, manufacturing number, and contact information need to be registered in
advance to be displayed.
Weekly timer Use to set the weekly operation On / Off times.
• Up to eight operation patterns can be set for each day.
* Clock setting is required.
* Not valid when the On/Off timer is enabled.
Energy
saving
Auto return Use to get the units to operate at the preset temperature after performing energy-save
operation for a specif ed time period.
• Time can be set to a value from 30 and 120 in 10-minute increments.
* This function will not be valid when the preset temperature ranges are restricted.
Schedule Set the start/stop times to operate the units in the energy-save mode for each day of the
week, and set the energy-saving rate.
• Up to four energy-save operation patterns can be set for each day.
• Time can be set in 5-minute increments.
• Energy-saving rate can be set to a value from 0% or 50 to 90% in 10% increments.
* Clock setting is required.
Night setback Use to make Night setback settings.
• Select "Yes" to enable the setting, and "No" to disable the setting. The temperature range and
the start/stop times can be set.
* Clock setting is required.
Restriction Temp. range Use to restrict the preset temperature range.
• Different temperature ranges can be set for different operation modes.
Operation
lock
Use to lock selected functions.
• The locked functions cannot be operated.
Maintenance Auto
descending
panel
Auto descending panel (Optional parts) Up / Down you can do.
Manual
vane angle
Use to set the vane angle for each vane to a f xed position.
Initial setting Main/Sub When connecting two remote controllers, one of them needs to be designated as a sub
controller.
Clock Use to set the current time.
Main display Use to switch between "Full" and "Basic" modes for the Main display.
• The default setting is "Full."
Contrast Use to adjust screen contrast.
Main menu list
OCH449A

9
Setting and display items Setting details
Initial setting Display
details
Make the settings for the remote controller related items as necessary.
Clock: The factory settings are "Yes" and "24h" format.
Temperature: Set either Celsius (°C) or Fahrenheit (°F).
Room temp. : Set Show or Hide.
Auto mode: Set the Auto mode display or Only Auto display.
Auto mode Whether or not to use the AUTO mode can be selected by using the button.
This setting is valid only when indoor units with the AUTO mode function are connected.
Administrator
password
The administrator password is required to make the settings for the following items.
• Timer setting • Energy-save setting • Weekly timer setting
• Restriction setting • Outdoor unit silent mode setting • Night set back
Language
selection
Use to select the desired language.
Service Test run Select "Test run" from the Service menu to bring up the Test run menu.
• Test run • Drain pump test run
Input
maintenance
Select "Input maintenance Info." from the Service menu to bring up the Maintenance
information screen.
The following settings can be made from the Maintenance Information screen.
• Model name input • Serial No. input • Dealer information input
Function
setting
Make the settings for the indoor unit functions via the remote controller as necessary.
LOSSNAY
setting
(City Multi only)
This setting is required only when the operation of City Multi units is interlocked with
LOSSNAY units.
Check Error history: Display the error history and execute delete error history.
Refrigerant leak check: Refrigerant leaks can be judged.
Smooth maintenance: The indoor and outdoor maintenance data can be displayed.
Request cord: Details of the operation data including each thermistor temperature and error
history can be checked.
Self check Error history of each unit can be checked via the remote controller.
Maintenance
password
Take the following steps to change the maintenance password.
Remote
controller
check
When the remote controller does not work properly, use the remote controller checking
function to troublushoot the problem.
OCH449A

10
°F°C
°F°C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
●
●
Display Section
For purposes of this explanation,
all parts of the display are shown.
During actual operation, only the
relevant items will be lit.
Identifies the current operation
Shows the operating mode, etc.
*Multilanguage display is available.
“Centrally Controlled” indicator
Indicates that operation from the
remote controller has been prohib-
ited by a master controller.
“Timer is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, the time to be
switched off is shown.
“Sensor” indication
Displayed when the remote controller
sensor is used.
“Locked” indicator
Indicates that remote controller but-
tons have been locked.
“Clean The Filter” indicator
To be displayed on when it is time to
clean the filter.
Timer indicators
The indicator comes on if the corre-
sponding timer is set.
Up/Down Air Direction indica-
tor
The indicator shows the direc-
tion of the outcoming airflow.
“One Hour Only” indicator
Room Temperature display
Shows the room temperature. The room
temperature display range is 8 - 39°C.
The display blinks if the temperature
is less than 8°C or 39°C or more.
Louver display
Indicates the action of the swing louver.
Does not appear if the louver is not
running.
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.
Operation Section
Temperature setting buttons
Down
Up
Timer Menu button
(Monitor/Set button)
Mode button (Return button)
Set Time buttons
Back
Ahead
Timer On/Off button
(Set Day button)
Opening the
cover
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Check button (Clear button)
Airflow Up/Down button
Louver button
( Operation button)
To return operation
number
Ventilation button
( Operation button)
To go to next operation
number
Note:
“PLEASE WAIT” message
This message is displayed for approximately 3 minutes when power is supplied to the indoor unit or when the unit is recovering from a power failure.
“NOT AVAILABLE” message
This message is displayed if an invalid button is pressed (to operate a function that the indoor unit does not have).
If a single remote controller is used to operate multiple indoor units simultaneously that are different types, this message will not be displayed as
far as any of the indoor units is equipped with the function.
Built-in temperature sensor
Displayed if the airflow is set to
Low or downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off in one hour,
at which time the airflow direction
also changes.
3-3. WIRED REMOTE CONTROLLER <PAR-21MAA>
OCH449A

1111
*1 Nominal cooling conditions
Note :
Indoor :
Outdoor :
Pipe length :
Level difference :
27°CDB/19°CWB (81°FDB/66°FWB)
35°CDB (95°FDB)
7.5 m (24-9/16 ft)
0m (0 ft)
*2 Nominal cooling conditions
27°CDB/19.5°CWB (81°FDB/67°FWB)
35°CDB (95°FDB)
5m (16-3/8 ft)
0m (0 ft)
*3 Nominal heating conditions Unit converter
20°CDB (68°FDB)
7°CDB/6°CWB (45°FDB/43°FWB)
7.5 m (24-9/16 ft)
0 m (0 ft)
* Nominal conditions *1, *3 are subject to JIS B8615-1.
* Due to continuing improvement, above specification may be subject to change without notice.
kcal/h = kW × 860
Btu/h = kW × 3,412
cfm = m3/min × 35.31
lb = kg/0.4536
*Above specification data is
subject to rounding variation.
Details on foundation work, insulation work, electrical wiring, power source switch, and other items shall be referred to the
Installation Manual.
Model PCFY-P40VKM-E PCFY-P63VKM-E PCFY-P100VKM-E PCFY-P125VKM-E
Power source 1-phase 220-240V 50Hz, 1-phase 220V 60Hz
Cooling capacity *1 kW 4.5 7.1 11.2 14.0
(Nominal)*1 kcal/h 3,900 6,100 9,600 12,000
*1 Btu/h 15,400 24,200 38,200 47,800
*2 kcal/h 4,000 6,300 10,000 12,500
Power input kW 0.040 0.050 0.090 0.110
Current input A 0.28 0.33 0.65 0.76
Heating capacity *3 kW 5.0 8.0 12.5 16.0
(Nominal ) *3 kcal/h 4,300 6,900 10,800 13,800
*3 Btu/h 17,100 27,300 42,700 54,600
Power input kW 0.040 0.050 0.090 0.110
Current input A 0.28 0.33 0.65 0.76
External finish MUNSELL (6.4Y 8.9/0.4)
External dimensions H x W x D mm 230×960×680 230×1280×680 230×1600×680
in. 9-1/16×37-13/16×26-3/4 9-1/16×50-3/8×26-3/4 9-1/16×63×26-3/4
Net weight kg (lb) 24 (53)32 (71)36 (79)38 (84)
Heat exchanger Cross fin (Aluminum fin and copper tube)
FAN Type x quantity Sirocco fan × 2 Sirocco fan × 3 Sirocco fan × 4
External Pa 0
static press. mmH2O0
Motor type DC motor
Motor output kW 0.090 0.095 0.160
Driving mechanism Direct-driven by motor
Airflow rate m3/min 10-11-12-13 14-15-16-18 21-24-26-28 21-24-27-31
(Low-Mid2-Mid1-High)L/s 167-183-200-217 233-250-267-300 350-400-433-467 350-400-450-517
cfm 353-388-424-459 494-530-565-636 742-847-918-989 742-847-953-1095
Noise level (Low-Mid2-Mid1-High)
dB <A> 29-32-34-36 31-33-35-37 36-38-41-43 36-39-42-44
(measured in anechoic room)
Insulation material Polyeter sheet
Air filter PP honeycomb
Protection device Fuse
Refrigerant control device LEV
Connectable outdoor unit R410A CITY MULTI
Diameter of Liquid mm(in.)
refrigerant pipe
ø6.35 (ø1/4) Flare ø9.52 (ø3/8) Flare ø9.52 (ø3/8) Flare ø9.52 (ø3/8) Flare
Gas mm(in.)ø12.7 (ø1/2) Flare ø15.88 (ø5/8) Flare ø19.05 (ø3/4) Flare ø19.05 (ø3/4) Flare
Field drain pipe size mm(in.) O.D. 26mm (1)
Standard
attachment
Document
Accessory Installation Manual, Instruction Book
Optional parts
Remarks
Drain pump kit PAC-SH83DM-E PAC-SH84DM-E
High efficiency filter PAC-SH88KF-E PAC-SH89KF-E PAC-SH90KF-E
Wireless remote controller kit
Installation
PAR-SL94B-E
4SPECIFICATION
4-1. SPECIFICATIONS
OCH449A

12
Parts name
Symbol
TH21
TH22
TH23
FUSE
MF
MV
DP
FS
LEV
TB2
TB5
TB15
Resistance 0°C/15kΩ, 10°C/9.6kΩ, 20°C/6.3kΩ, 25°C/5.4kΩ, 30°C/4.3kΩ, 40°C/3.0kΩ
Resistance 0°C/15kΩ, 10°C/9.6kΩ, 20°C/6.3kΩ, 25°C/5.4kΩ, 30°C/4.3kΩ, 40°C/3.0kΩ
Resistance 0°C/15kΩ, 10°C/9.6kΩ, 20°C/6.3kΩ, 25°C/5.4kΩ, 30°C/4.3kΩ, 40°C/3.0kΩ
250V 6.3A
(L, N, ) Rated to 330V 30A *
(M1, M2, S) Rated to 250V 20A *
(1, 2) Rated to 250V 10A *
Liquid pipe thermistor
Gas pipe thermistor
Vane motor
Drain float switch
Linear expansion valve
PCFY-P63VKM-E
PCFY-P63VKM-ER1
PCFY-P40VKM-E
PCFY-P40VKM-ER1
PCFY-P100VKM-E
PCFY-P125VKM-E
PCFY-P100VKM-ER1
PCFY-P125VKM-ER1
Room temperature
thermistor
Fuse
(Indoor controller board)
Drain-pump
(Option)
Fan motor
Power supply terminal
block
Transmission terminal
block
MA remote controller
terminal block
8-pole OUTPUT 90W 8-pole OUTPUT 95W 8-pole OUTPUT 160W
MSBPC20
DC12V 300Ω/phase
INPUT 12/10.8W 24 /Hr
Open / Short detection DC 5V
DC12V Stepping motor drive
Port dimension ø5.2 (0~2000pulse)
EFM-80YGME
DC12V Stepping motor drive
Port dimension ø3.2 (0~2000pulse)
EFM-40YGME
* Refer to WIRING DIAGRAM for the supplied voltage.
Service Ref.
4-3. SOUND LEVEL
* Measured in anechoic room.
PCFY-P·VKM-E
PCFY-P40VKM-E
PCFY-P40VKM-ER1
Service Ref.
29-32-34-36
PCFY-P63VKM-E
PCFY-P63VKM-ER1 31-33-35-37
PCFY-P100VKM-E
PCFY-P100VKM-ER1 36-38-41-43
PCFY-P125VKM-E
PCFY-P125VKM-ER1 36-39-42-44
Sound level dB (A)
Sound level at anechoic room : Low-Mid2-Mid1-High
1m
Measurement
1m
location
4-2. ELECTRICAL PARTS SPECIFICATIONS
OCH449A

13
PCFY-P40VKM-E
PCFY-P40VKM-ER1
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PCFY-P63VKM-E
PCFY-P63VKM-ER1
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PCFY-P100VKM-E
PCFY-P100VKM-ER1
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PCFY-P125VKM-E
PCFY-P125VKM-ER1
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
High
Low
Middle1
Middle2 High
Low
Middle1
Middle2
High
Low
Middle1
Middle2 High
Low
Middle1
Middle2
Octave band pressure level (dB) 0dB=20μPaOctave band pressure level (dB) 0dB=20μPa Octave band pressure level (dB) 0dB=20μPa
Octave band center frequencies (Hz)
Octave band pressure level (dB) 0dB=20μPa
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
A
pproximate minimum
audible limit on
continuous noise
NC-40
NC-20
NC-30
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
Approximate minimum
audible limit on
continuous noise
NC-40
NC-20
NC-30
Octave band center frequencies (Hz)
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
A
pproximate minimum
audible limit on
continuous noise
NC-40
NC-20
NC-30
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
A
pproximate minimum
audible limit on
continuous noise
NC-40
NC-20
NC-30

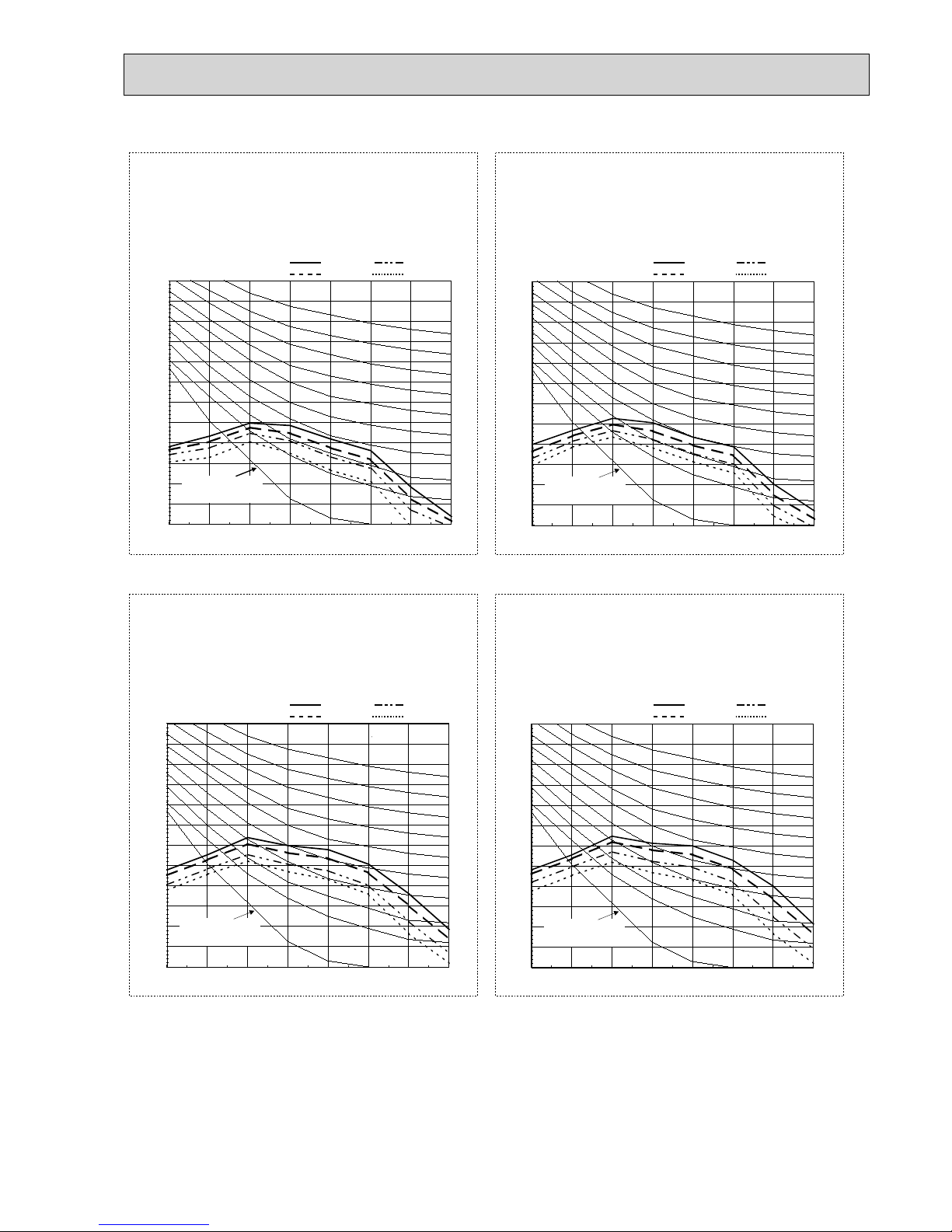

4-4. NC CURVES
OCH449A

14
PCFY-P40VKM-E
PCFY-P40VKM-ER1
PCFY-P63VKM-E
PCFY-P63VKM-ER1
50
0
-50
-100
-150
-200
-250
-300
Static pressure[Pa]
Airflow rate[m³/min]
0 1 2 3 4
50
0
-50
-100
-150
-200
-250
-300
Static pressure[Pa]
Airflow rate[m³/min]
0 1 2 3 4
50
0
-50
-100
-150
-200
-250
-300
Static pressure[Pa]
Airflow rate[m³/min]
0 1 2 3 4
PCFY-P100, 125VKM-E
PCFY-P100, 125VKM-ER1

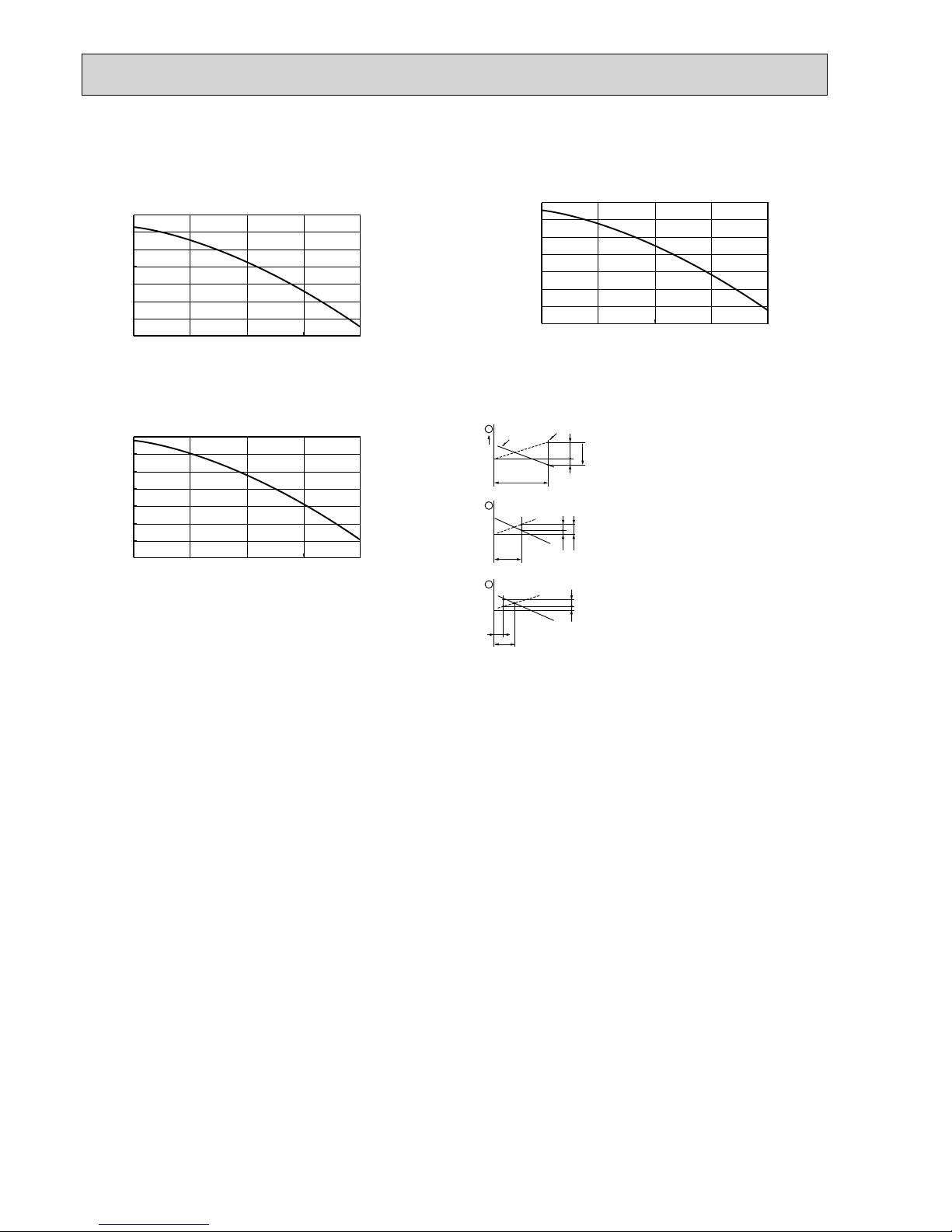

4-5. FRESH AIR INTAKE AMOUNT & STATIC PRESSURE CHARACTERISTICS
Q
0
BA
C
1Curve in the
graphs
Duct characteristics
at site
Q
A
EC
2
Q
Qa
AD
3
Q…Designed amount of fresh air intake
<m3/min>
A…Static pressure loss of fresh air
intake duct system with airflow
amount Q <Pa>
B… Forced static pressure at air conditioner
inlet with airflow amount Q <Pa>
C…Static pressure of booster fan with
airflow amount Q <Pa>
D…Static pressure loss increase amount
of fresh air intake duct system for
airflow amount Q <Pa>
E…Static pressure of indoor unit with
airflow amount Q <Pa>
Qa…Estimated amount of fresh air
intake without D <m3/min>
How to read curves
OCH449A

1515

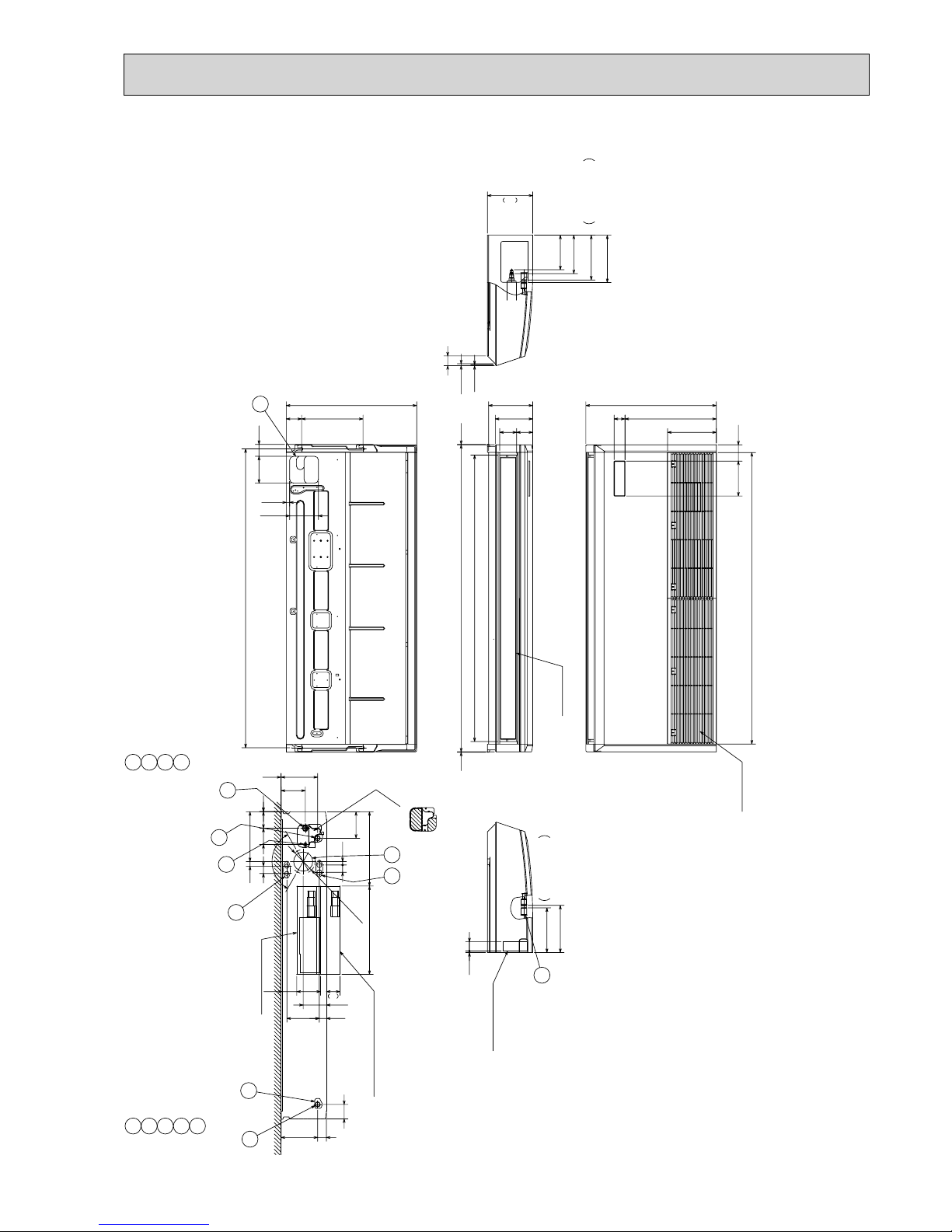

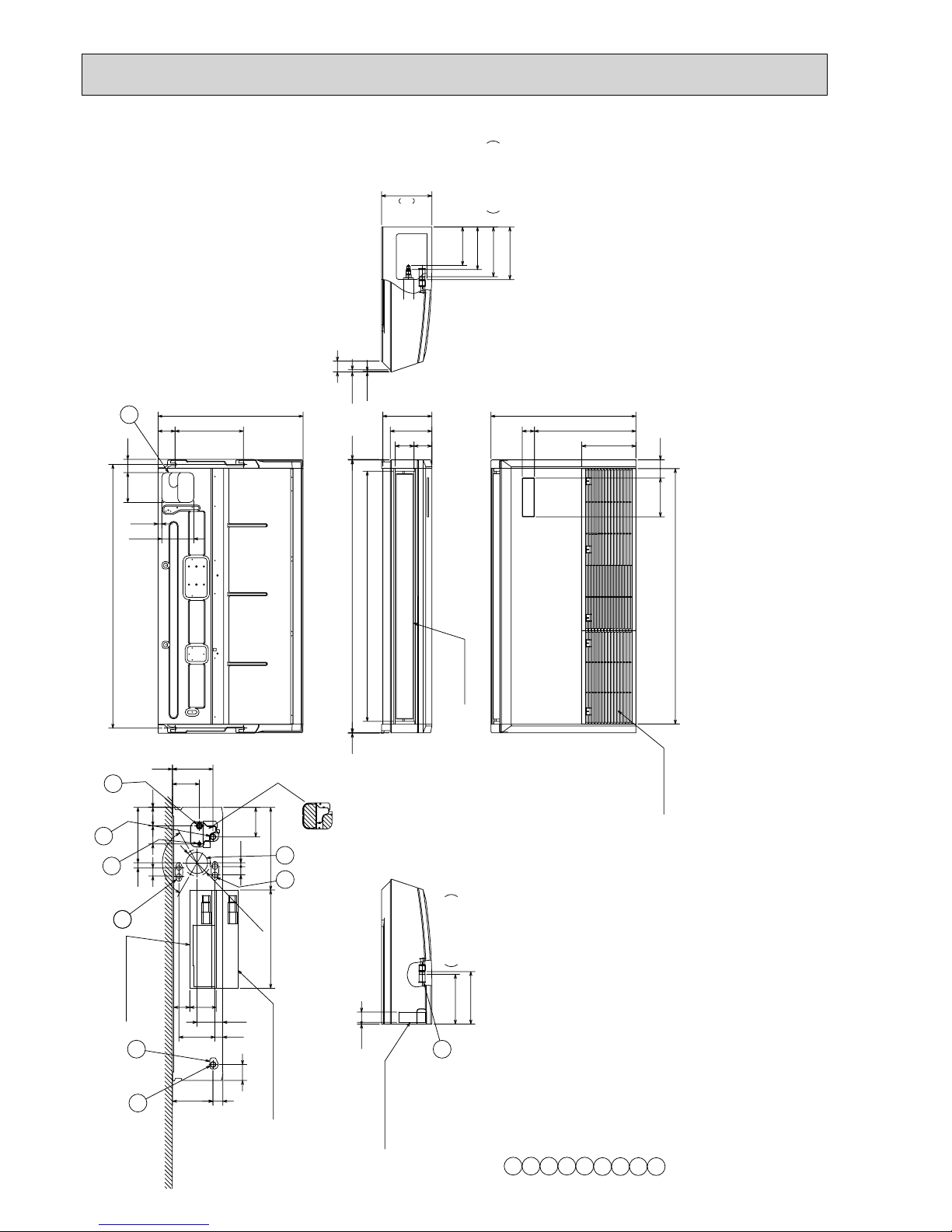

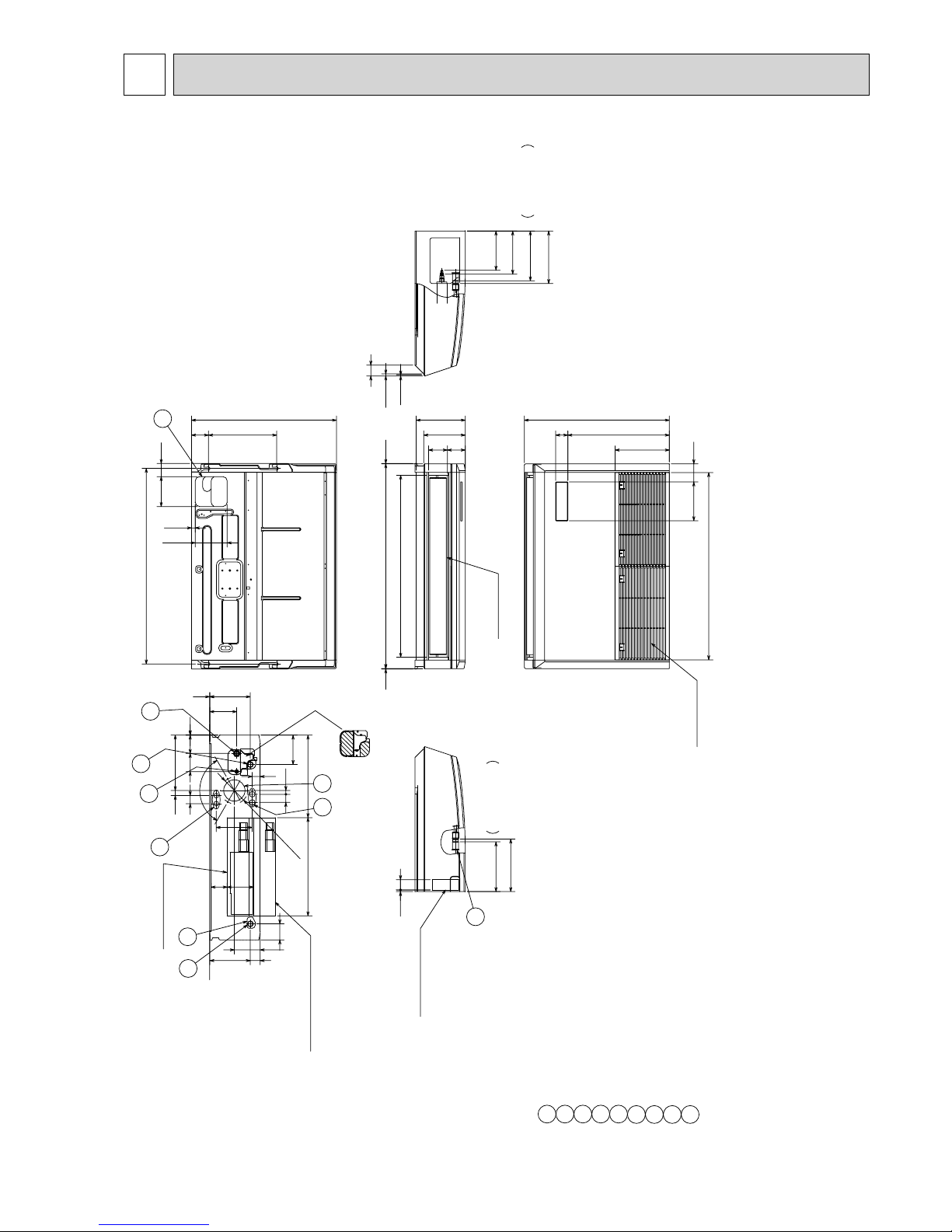

5OUTLINES AND DIMENSIONS
(Drainage)
When drain socket is installed
2
246
When drain socket is installed
233
When electrical box is pulled down
Electrical box
NOTES. 1.Use M10 or W3/8 screw for anchor bolt. 2.Please be sure when installing the drain lift up mechanism(option parts), refrigerant pipe will be only upward.
Electrical box
233
Air outlet
Air intake
9 6 7 8
5 1 2 3 4
Knock out hole for upper drain pipe arrangement Knock out hole for fresh air intake Ø100 Knock out hole for wiring arrangement 2-Ø22 Knock out hole for wiring arrangement 2-Ø26
Drainage pipe connection(26mmI.D.) Drainage pipe connection(for the left arrangement) Knock out hole for left drain-piping arrangement Refrigerant-pipe connection(gas pipe side/flared connection) Refrigerant-pipe connection(liquid pipe side/flared connection)
1
In case of the rear pipe arrangement,make sure to remove the shaded portions from the independent piece. Then put the independent piece back in initial position.(The heat exchanger might be clogged because of dust)
5
10
51
246
(Drainage)
(gas Ø12.7) (liquid Ø6.35)
150
62140
18
917(Suspension bolt pitch)
320
680
80
84 88
195
230
57
254
476
680
182 85
878
8
48
26024
38 85 86 2
126
169
121
190
1838
120°
960 2
2
853
124 76
46 190
75
387461
3
8
Ceiling
514
7
184
203
Ø
125
6
9
37
138
2
[FRONT VIEW]
Accessory···Drain socket (I.D. 26)
PCFY-P40VKM-E
PCFY-P40VKM-ER1
Unit : mm
OCH449A

16
(Drainage)
When drain socket is installed
2
246
When drain socket is installed
233
Air intake
5 4 1 2 3
6
7 8 9
Knock out hole for upper drain pipe arrangement Knock out hole for fresh air intake Ø100 Knock out hole for wiring arrangement 2-Ø22 Knock out hole for wiring arrangement 2-Ø26
Drainage pipe connection(26mmI.D.) Drainage pipe connection(for the left arrangement) Knock out hole for left drain-piping arrangement Refrigerant-pipe connection(gas pipe side/flared connection) Refrigerant-pipe connection(liquid pipe side/flared connection)
NOTES. 1.Use M10 or W3/8 screw for anchor bolt. 2.Please be sure when installing the drain lift up mechanism(option parts), refrigerant pipe will be only upward.
Air outlet
233
Electrical box
When electrical box is pulled down
Electrical box
97
In case of the rear pipe arrangement,make sure to remove the shaded portions from the independent piece. Then put the independent piece back in initial position.(The heat exchanger might be clogged because of dust)
5
10
51
246
180
200
236
150
62140
18
1237(Suspension bolt pitch)
320
680
80
84 88
195
230
57
254
476
680
182 85
1198
848
260
24
38 85 86 2
126
16937
121
138
190 1
18
38
120°
1280 22
1173
124 76
46 190
75
387461
23
8514
Ø
125
6
8
[FRONT VIEW]
Ceiling
(Drainage)
(gas Ø15.88) (liquid Ø9.52)
Accessory···Drain socket (I.D. 26)
PCFY-P63VKM-E
PCFY-P63VKM-ER1
Unit : mm
OCH449A

17
(Drainage)
When drain socket is installed
246
When drain socket is installed
233
Knock out hole for upper drain pipe arrangement Knock out hole for fresh air intake Ø100 Knock out hole for wiring arrangement 2-Ø22 Knock out hole for wiring arrangement 2-Ø26
9 6 7 8
Drainage pipe connection(26mmI.D.) Drainage pipe connection(for the left arrangement) Knock out hole for left drain-piping arrangement Refrigerant-pipe connection(gas pipe side/flared connection) Refrigerant-pipe connection(liquid pipe side/flared connection)
5 1 2 3 4
Ceiling
[FRONT VIEW]
Electrical box
When electrical box is pulled down
2
NOTES. 1.Use M10 or W3/8 screw for anchor bolt. 2.Please be sure when installing the drain lift up mechanism(option parts), refrigerant pipe will be only upward.
In case of the rear pipe arrangement,make sure to remove the shaded portions from the independent piece. Then put the independent piece back in initial position.(The heat exchanger might be clogged because of dust)
5
10
51
246
180
200
(Drainage)
(gas
Ø
15.88)
(liquid
Ø
9.52)
236
150
62140
18
1557
320
680
80
84 88
195
230
233
57
254
476
680
182 85
1518
848
26024
38 85 86 2
126
16937
121
138
190 1
18
38
120°
1600 22
1493
124 76
46 190
75
387
461
71
23
514
7
Ø
125
6
88
9
Electrical box
Air outlet
Air intake
(Suspension bolt pitch)
Accessory···Drain socket (I.D. 26)
PCFY-P100VKM-E
PCFY-P125VKM-E
PCFY-P100VKM-ER1
PCFY-P125VKM-ER1
Unit : mm
OCH449A

18
6WIRING DIAGRAM
CN27
CN32
CN51
CN52
SW2
SW3
SW4
SWE
ZNR01,02
DSA
FUSE
X1
MF
MV
DP
FS
TB2
TB5
TB15
TH22
TH23
LEV
SW1
SW11
SW12
SW14
SWA
SWC
W.B
RU
BZ
LED1
LED2
SW1
SW2
POWER SUPPLY
TRANSMISSION
MA-REMOTE CONTROLLER
PIPE TEMP. DETECTION / LIQUID
(0°C / 15kΩ, 25°C / 5.4kΩ)
PIPE TEMP. DETECTION / GAS
(0°C / 15kΩ, 25°C / 5.4kΩ)
FAN MOTOR
VANE MOTOR
DRAIN PUMP
DRAIN FLOAT SWITCH
TERMINAL
BLOCK
THERMISTOR
LINEAR EXPANSION VALVE
I. B INDOOR CONTROLLER BOARD
CONNECTOR DAMPER
REMOTE SWITCH
CENTRALLY CONTROL
REMOTE INDICATION
CAPACITY CODE
MODE SELECTION
MODEL SELECTION
DRAIN PUMP (TEST MODE)
DRAIN PUMP (OPTIONAL PARTS)
SWITCH
VARISTOR
SURGE ABSORBER
FUSE (T6.3AL250V)
AUX. RELAY
SYMBOL
A. B
OPTIONAL PARTS
ADDRESS BOARD
SWITCH
MODE SELECTION
CEILING HEIGHT SELECTOR
OPTION SELECTOR
PCB FOR WIRELESS REMOTE CONTROLLER
RECEVING UNIT
BUZZER
LED (OPERATION INDICATION : GREEN)
LED (PREPARATION FOR HEATING : ORANGE)
EMERGENCY OPERATION (HEAT / DOWN)
EMERGENCY OPERATION (COOL / UP)
SYMBOLNAME NAME
DCL REACTOR
TH21 ROOM TEMP. DETECTION
(0°C / 15kΩ, 25°C / 5.4kΩ)
THERMISTOR
ADDRESS SETTING 1s DIGIT
ADDRESS SETTING 10ths DIGIT
BRANCH No.
19
Be sure to turn off the source power
and then disconnect fan motor connector.
(Failure to do so will cause trouble in Fan motor)
A.B
(RED)
ADDRESS
CN43
ADDRESS
CN81
(RED)
LED2
ADDRESS
CN42
(RED)
(RED)
ADDRESS
CN82
VANE CN V
(WHT)
SWA
SWC
SW1
MV
SW12 SW11
CN32
(WHT) SW3 SW4
SWE
SW2
SW14
ON
OFF
ON
OFF ON OFF
ONOFF
9
6
8
5
4
3
2
1
12345678910
12345678910 12345612345
See fig: 1
M-NET
CN2M
(BLU)
CND
(BLK)
D.U.M
CNP
(BLU)
FAN
CNMF
(WHT)
INTAKE
CN20
(RED)
CN25
(WHT)
FLOAT SW
CN4F
(WHT)
WIRELESS
CN90
(WHT)
LEV
CN60
(WHT)
WHT
YLW
ORN
BLU
RED BRN
MA REMOCON
CN3A
(BLU)
LIQUID/PIPE
CN44
(WHT)
CN41
(WHT)
CN51
(WHT)
CN52
(GRN)
TH21TH23TH22
CN27
(RED)
LED1
X1
DSA
ZNR02
FUSE
ZNR01
TB5
(SHIELD)
TB2
BLU
BLU
RED
BLU
GRN/YLW
TO OUTDOOR UNIT
BC CONTROLLER
REMOTE CONTROLLER
DC24-30V
TO NEXT
INDOOR UNIT
PULL BOX
FUSE(16A)
BREAKER
(16A)
POWER SUPPLY
~ /N 220-240V 50Hz
220V 60Hz
I.B
DC311 ~ 339V
RECTIFICATION
BZ
LEV
LED2
SW1
CNB
TO MA-REMOTE
CONTROLLER
DC8.7-13V
(OPTIONAL PARTS)
(OPTIONAL PARTS)
TB15
BLU
BLU
SW2 LED1
RU
W.B
Pair No.
J42 J41
14
1
2
1
4
1
8
1515
16
M
13
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
ON
OFF
12345678910
ON
OFF 123456
ON
OFF 123456
P40
MODELS
< 1>
SW2 SW3
P63
P100
P125
ON
OFF 123456
ON
OFF 123456
t° t°
14
14
t°
21
2121 74
113
3~
MF
MS M
1~
U
21
U
135
L
N
M1
M2
S
M
1418
DP
ON
OFF
ON
OFF
DCL
FLOAT SW
CN4F
(WHT)
When attaching
drain pump
(optional parts),
remove the jumper
connector CN4F
and fit the drain
float switch (FS).
When attaching
drain pump
(optional parts)
FS
14
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
10ths
DIGIT 1s DIGIT BRANCH No.
NOTES:
1.At servicing for outdoor unit,always follow the wiring diagram of outdoor unit.
2.In case of using MA-Remote controller, please connect to TB15.
(Remote controller wire is non-polar.)
3.In case of using M-NET, please connect to TB5. (Transmission line is non-polar.)
4.Symbol [S] of TB5 is the shield wire connection.
5.Symbols used in wiring diagram above are, : terminal block, :connecter.
6.The setting of the SW2 dip switches differs in the capacity. for the detail, refer to the fig: 1.
Mark Meaning Function
Power supply for
MA-Remote controller
Main power supply (Indoor unit:220-240V)
Power on → Iamp is lit
LED on indoor board for service
LED1 Main power supply
Power supply for MA-Remote controller
on → Iamp is lit
LED2
12345678910
12345678910
The black square ( ■ )indicates a switch position.
PCFY-P40VKM-E PCFY-P63VKM-E PCFY-P100VKM-E PCFY-P125VKM-E
OCH449A

1919
CN27
CN32
CN51
CN52
SW2
SW3
SW4
SWE
FUSE
X1
MF
MV
DP
FS
TB2
TB5
TB15
TH22
TH23
LEV
SW1
SW11
SW12
SW14
SWA
SWC
W.B
RU
BZ
LED1
LED2
SW1
SW2
POWER SUPPLY
TRANSMISSION
MA-REMOTE CONTROLLER
PIPE TEMP. DETECTION / LIQUID
(0°C / 15kΩ, 25°C / 5.4kΩ)
PIPE TEMP. DETECTION / GAS
(0°C / 15kΩ, 25°C / 5.4kΩ)
FAN MOTOR
VANE MOTOR
DRAIN PUMP
DRAIN FLOAT SWITCH
TERMINAL
BLOCK
THERMISTOR
LINEAR EXPANSION VALVE
I. B
Mark
LED1
Main power supply
Power supply for
MA-Remote controller
Main Power supply (Indoor unit:220-240V)
power on → lamp is lit
Power supply for MA-Remote controller
on → lamp is lit
LED2
Meaning Function
INDOOR CONTROLLER BOARD
CONNECTOR DAMPER
REMOTE SWITCH
CENTRALLY CONTROL
REMOTE INDICATION
CAPACITY CODE
MODE SELECTION
MODEL SELECTION
DRAIN PUMP (TEST MODE)
DRAIN PUMP (OPTIONAL PARTS)
SWITCH
FUSE (T6.3AL250V)
AUX. RELAY
SYMBOL
A. B
OPTIONAL PARTS
ADDRESS BOARD
SWITCH
MODE SELECTION
CEILING HEIGHT SELECTOR
OPTION SELECTOR
PCB FOR WIRELESS REMOTE CONTROLLER
RECEVING UNIT
BUZZER
LED (OPERATION INDICATION : GREEN)
LED (PREPARATION FOR HEATING : ORANGE)
EMERGENCY OPERATION (HEAT / DOWN)
EMERGENCY OPERATION (COOL / UP)
SYMBOLNAME NAME
NOTES:
1. At servicing for outdoor unit, always follow the wiring diagram of outdoor unit.
2. In case of using MA-Remote controller, please connect to TB15.
(Remote controller wire is non-polar.)
3. In case of using M-NET, please connect to TB5. (Transmission line is non-polar.)
4. Symbol [S] of TB5 is the shield wire connection.
5. Symbols used in wiring diagram above are, : terminal block, : connecter.
6. The setting of the SW2 dip switches differs in the capacity. For the detail, refer to fig < 1>.
[LEGEND]
LED on indoor board for service
DCL REACTOR
CN105 IT TERMINAL
TH21 ROOM TEMP. DETECTION
(0°C / 15kΩ, 25°C / 5.4kΩ)
THERMISTOR
ADDRESS SETTING 1s DIGIT
ADDRESS SETTING 10ths DIGIT
BRANCH No.
19
Be sure to turn off the source power
and then disconnect fan motor connector.
(Failure to do so will cause trouble in Fan motor)
A.B
(RED)
ADDRESS
CN43
ADDRESS
CN81
(RED)
LED2
ADDRESS
CN42
(RED)
(RED)
ADDRESS
CN82
VANE CNV
(WHT)
SWA
SWC
SW1
MV
SW12 SW11
CN32
(WHT) SW3 SW4
SWE
SW2
SW14
ON
OFF
ON
OFF ON OFF
ONOFF
9
6
8
5
4
3
2
1
12345678910
12345678910 12345612345
See fig: 1
M-NET
CN2M
(BLU)
CND
(BLK)
D.U.M
CNP
(BLU)
FAN
CNMF
(WHT)
INTAKE
CN20
(RED)
CN25
(WHT)
FLOAT SW
CN4F
(WHT)
WIRELESS
CN90
(WHT)
LEV
CN60
(WHT)
WHT
YLW
ORN
BLU
RED BRN
MA REMOCON
CN3A
(BLU)
LIQUID/PIPE
CN44
(WHT)
CN41
(WHT)
CN51
(WHT)
CN52
(GRN)
TH21TH23TH22
CN27
(RED)
LED1
X1
FUSE
TB5
(SHIELD)
TB2
BLU
BLU
RED
BLU
GRN/YLW
TO OUTDOOR UNIT
BC CONTROLLER
REMOTE CONTROLLER
DC24-30V
TO NEXT
INDOOR UNIT
PULL BOX
FUSE(16A)
BREAKER
(16A)
POWER SUPPLY
~/N 220-240V 50Hz
220V 60Hz
I.B
BZ
LEV
LED2
SW1
CNB
TO MA-REMOTE
CONTROLLER
DC8.7-13V
(OPTIONAL PARTS)
(OPTIONAL PARTS)
TB15
ORN
ORN
SW2 LED1
RU
W.B
Pair No.
J42 J41
14
1
2
1
4
1
8
15
CN105
(RED)
15
15
16
M
13
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
ON
OFF
12345678910
ON
OFF 123456
ON
OFF 123456
P40
MODELS SW2 SW3
P63
P100
P125
ON
OFF 123456
ON
OFF 123456
t° t°
14
14
t°
21
2121 74
113
3~
MF
MS M
1~
21
135
L
N
M1
M2
S
M
1418
DP
ON
OFF
12345678910
ON
OFF
12345678910
DCL
The black square ( ■ )indicates a switch position. < 1>
FLOAT SW
CN4F
(WHT)
When attaching
drain pump
(optional parts),
remove the jumper
connector CN4F
and fit the drain
float switch (FS).
When attaching
drain pump
(optional parts)
FS
14
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
10ths
DIGIT 1s DIGIT BRANCH No.
1
2
PCFY-P40VKM-ER1 PCFY-P63VKM-ER1 PCFY-P100VKM-ER1 PCFY-P125VKM-ER1
OCH449A

20

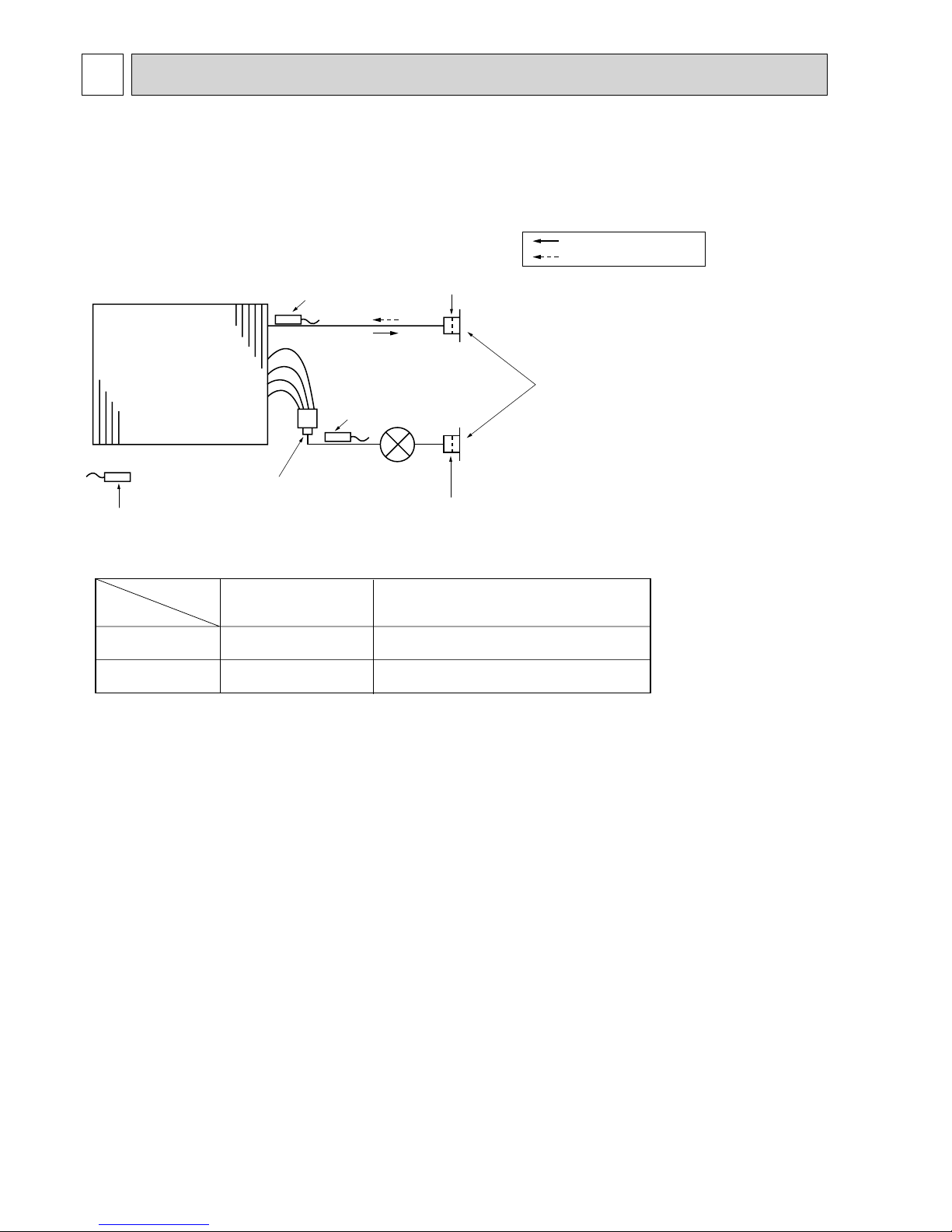

7 REFRIGERANT SYSTEM DIAGRAM
Refrigerant flow in cooling
Refrigerant flow in heating
Strainer (#100 mesh)
Strainer (#100 mesh)
Strainer1 (#50 mesh)
Strainer2 (#100 mesh)
Heat exchanger
Room temparature thermistor TH21
Gas pipe thermistor TH23
Liquid pipe thermistor TH22
Linear expansion valve
Gas pipe
Liquid pipe
Flare connection
Gas pipe
Liquid pipe
PCFY-P40VKM-E
PCFY-P40VKM-ER1
ø12.7 (1/2)
ø6.35 (1/4)
PCFY-P63VKM-E, PCFY-P63VKM-ER1
PCFY-P100VKM-E, PCFY-P100VKM-ER1
PCFY-P125VKM-E, PCFY-P125VKM-ER1
ø15.88 (5/8)
ø9.52 (3/8)
Item
Service Ref.
Unit : mm (inch)
PCFY-P40VKM-E PCFY-P63VKM-E PCFY-P100VKM-E PCFY-P125VKM-E
PCFY-P40VKM-ER1 PCFY-P63VKM-ER1 PCFY-P100VKM-ER1 PCFY-P125VKM-ER1
OCH449A
