Mitsubishi Electric City Multi Series Operating manual

TECHNICAL & SERVICE MANUAL
Indoor unit
[Model Name] [Service Ref.]
PLFY-P08NEMU-E
PLFY-P12NEMU-E
PLFY-P15NEMU-E
PLFY-P18NEMU-E
PLFY-P24NEMU-E
PLFY-P30NEMU-E
PLFY-P36NEMU-E
PLFY-P48NEMU-E
CONTENTS
1. SAFETY PRECAUTION.........................2
2. PARTS NAMES AND FUNCTIONS.......4
3. SPECIFICATIONS.................................11
4. 4-WAY AIRFLOW SYSTEM..................16
5. OUTLINES AND DIMENSIONS............19

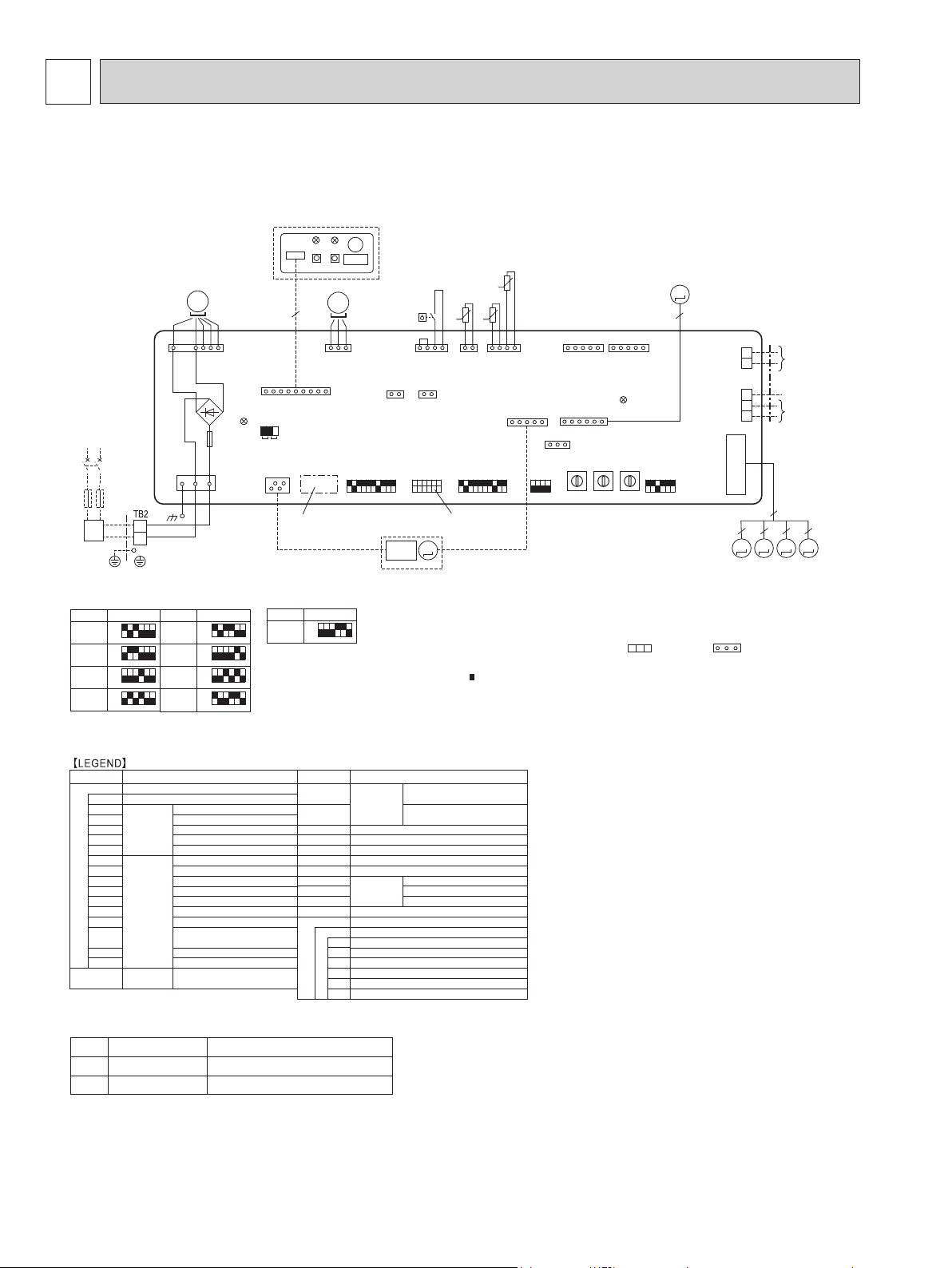

6. WIRING DIAGRAM...............................20
7. REFRIGERANT SYSTEM DIAGRAM
......21
8. MICROPROCESSOR CONTROL.........22
9. TROUBLESHOOTING..........................29
10. DISASSEMBLY PROCEDURE............37
PLFY-P08NEMU-E
PLFY-P12NEMU-E
PLFY-P15NEMU-E
PLFY-P18NEMU-E
PLFY-P24NEMU-E
PLFY-P30NEMU-E
PLFY-P36NEMU-E
PLFY-P48NEMU-E
INDOOR UNIT
Model name
indication for
MAIN UNIT PARTS CATALOG (OCB611)
R410A
INDOOR UNIT FOR VRF SYSTEM
March 2018
No. OCH611
Model name
indication for GRILLE
REVISED EDITION-D
Revision:
• DISASSEMBLY PROCEDURE
has been modified in
REVISED EDITION-D.
• Some descriptions have been
modified.
OCH611 REVISED EDITION-C
is void.

2
1SAFETY PRECAUTION
CAUTIONS RELATED TO NEW REFRIGERANT
Cautions for units utilizing refrigerant R410A
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22, etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil, etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil, etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil, etc.
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contains a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Store the piping indoors, and keep both ends of
the piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Use the specified refrigerant only.
OCH611D

3
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.

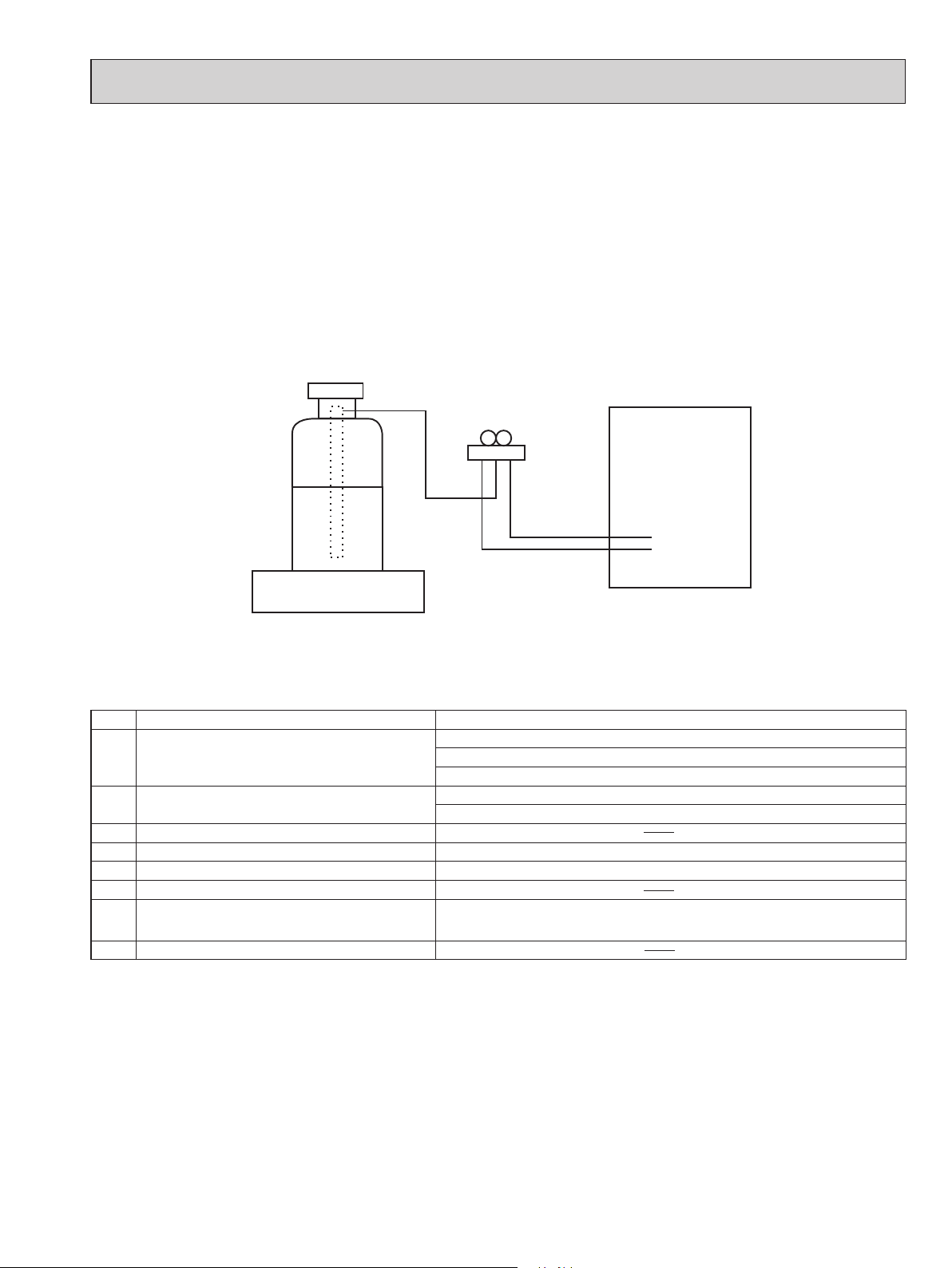

[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is a syphon type.
· Charging should be performed with the cylinder of syphon standing vertically. (Refrigerant is charged from liquid phase.)
Electronic weighing scale
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Tool name Specifications
1Gauge manifold
· Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 768.7 PSIG [5.3M Pa.G] or over.
2Charge hose · Only for R410A
· Use pressure performance of 738.2 PSIG [5.09M Pa.G] or over.
3Electronic weighing scale
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment
OCH611D

4

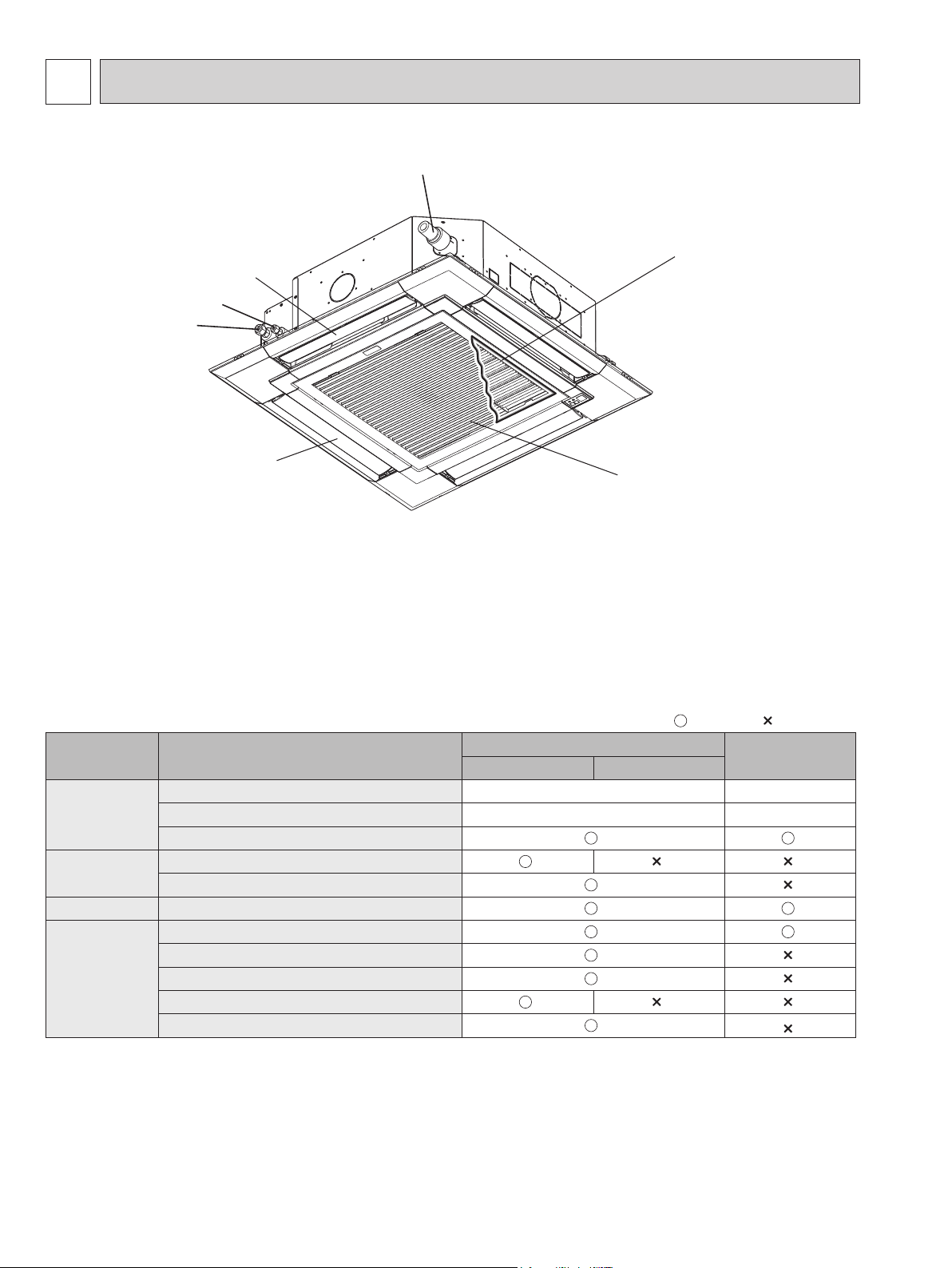

2PARTS NAMES AND FUNCTIONS
Drain pipe
Filter
Vane
Gas pipe
Liquid pipe
Air outlet
Air intake
(Intake grille)
2-1. Indoor Unit
2-2. Wired Remote Controller <PAR-33MAA> <PAC-YT53CRAU>
: Supported : Unsupported
Function PAR-33MAA PAC-YT53CRAU
Slim City multi
Body Product size H × W × D (mm) 120 × 120 × 19 120 × 70 × 14.5
LCD Full Dot LCD Partial Dot LCD
Backlight
Energy-saving Energy-saving operation schedule
Automatic return to the preset temperature
Restriction Setting the temperature range restriction
Function* Operation lock function
Weekly timer
ON/OFF timer
High Power
Manual vane angle
*Some functions may not be available depending on model types.
Wired remote controller function
The functions which can be used are restricted according to each model.
OCH611D

5
2-2-1. Wired Remote Controller <Option>
F1 F4F3F2
Function buttons
F1 F2 F3 F4
Press to turn ON/OFF the indoor unit.
ON/OFF button
When the backlight is off, pressing any button turns
the backlight on and does not perform its function.
(except for the (ON/OFF) button)
The functions of the function buttons change depending on
the screen. Refer to the button function guide that appears
at the bottom of the LCD for the functions they serve on a
given screen.
When the system is centrally controlled, the button function
guide that corresponds to the locked button will not appear.
Press to save the setting.
SELECT button
Press to return to the previous screen.
RETURN button
Press to bring up the Main menu.
MENU button
Operation settings will appear.
When the backlight is off, pressing any button turns the
backlight on and it will stay lit for a certain period of time
depending on the screen.
Backlit LCD
This lamp lights up in green while the unit is in operation.
It blinks while the remote controller is starting up or when
there is an error.
ON/OFF lamp
Main display : Press to change the operation mode.
Main menu : Press to move the cursor down.
Function button F1
Main display : Press to decrease temperature.
Main menu : Press to move the cursor up.
Function button F2
Main display : Press to increase temperature.
Main menu : Press to go to the previous page.
Function button F3
Main display : Press to change the fan speed.
Main menu : Press to go to the next page.
Function button F4
83
83
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
<Main display> <Main menu>
Function guide
OCH611D

6

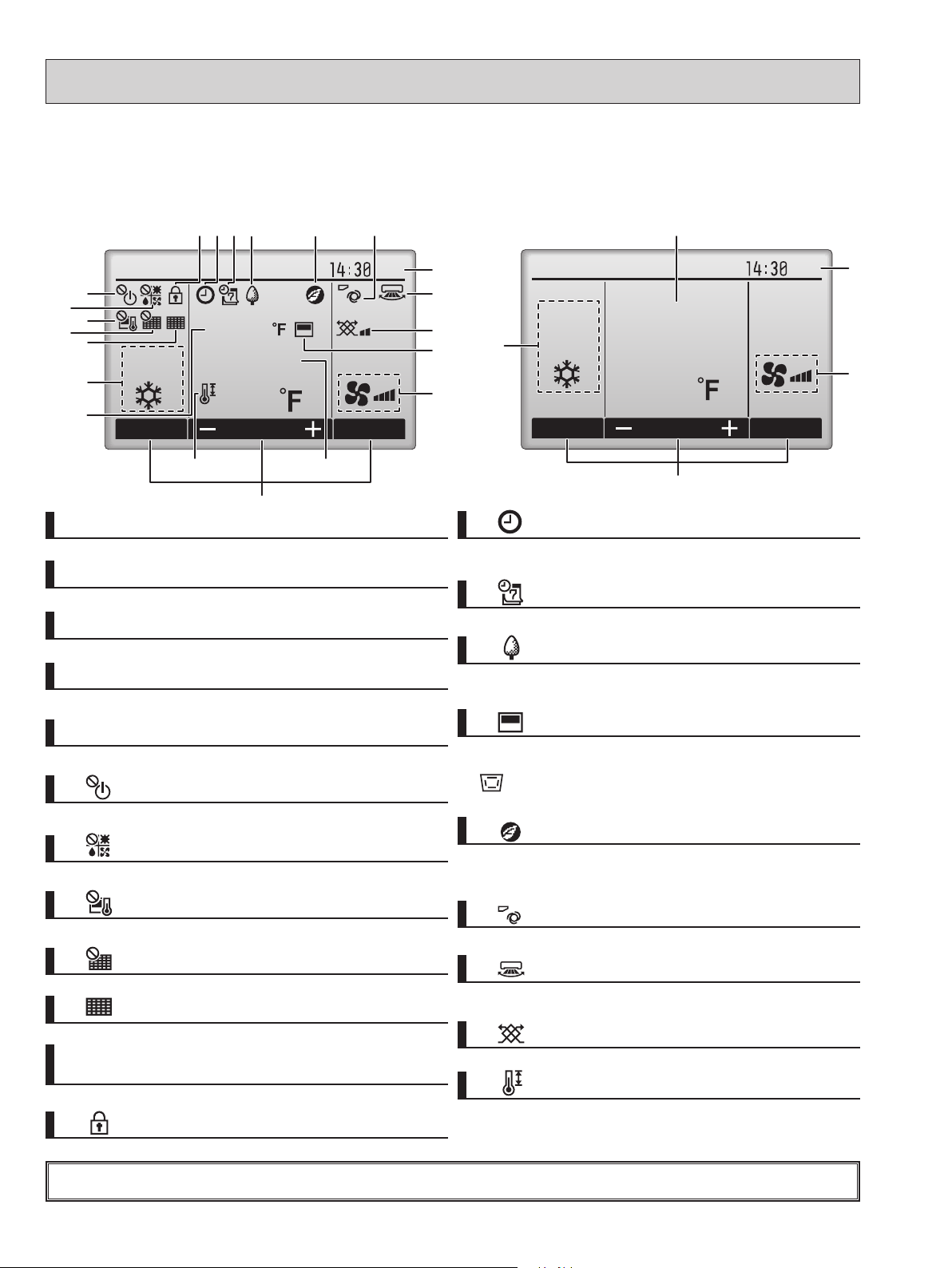

The main display can be displayed in 2 different modes: "Full" and "Basic".
T
he initial setting is "Full". To switch to the "Basic" mode, change the setting on the Main display setting.
<Full mode> <Basic mode>
All icons are displayed for explanation.
Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Menu screen.
Indoor unit operation mode appears here.
1Operation mode
Preset temperature appears here.
2Preset temperature
Current time appears here.
3Clock (See the Installation Manual.)
4Fan speed
Fan speed setting appears here.
Functions of the corresponding buttons appear here.
5Button function guide
Appears when the ON/OFF operation is centrally controlled.
Appears when the operation mode is centrally controlled.
Appears when the preset temperature is centrally controlled.
Appears when the lter reset function is centrally controlled.
Indicates when lter needs maintenance.
Current room temperature appears here.
1Room temperature
(See the Installation Manual.)
Appears when the buttons are locked.
Appears when the On/Off timer or Night setback function is
enabled.
Appears when the Weekly timer is enabled.
Appears while the units are operated in the energy-saving
mode.
Appears when the built-in thermistor on the remote control-
ler is activated to monitor the room temperature.
appears when the thermistor on the indoor unit is acti-
vated to monitor the room temperature.
Appears when the units are operated in the energy-save
mode with 3D i-see Sensor. (This function is not available
on this unit.)
Indicates the louver setting. (This function is not available
on this unit.)
Indicates the ventilation setting.
Appears when the preset temperature range is restricted.
Indicates the vane setting.
6
7
8
9
0
2
3
4
5
6
7
8
9
)
!
Fri
Mode Temp. Fan
Room
Cool Set temp.
83
83
Fri
Cool
Mode Temp. Fan
Set temp.
83
1
1
5
5
2
2
4
4
33
9
7
6
8
0
1
!
2345
6
7 8
9
)
OCH611D

7
Not all functions are available on all models of indoor units.
Energy saving
Auto return
Schedule
Night setback
Main menu Press the MENU button.
Move the cursor to the desired item with the F1 and F2 buttons, and press the SELECT button.
Vane · Louver · Vent. (Lossnay)
High power
Weekly timer
Restriction
Maintenance
Initial setting
ON/OFF timer
Auto-Off timer
Temp. range
Operation lock
Main/Sub
Timer
Main display
Contrast
Display details
Auto mode
Administrator password
Language selection
Service
Input maintenance info.
Function setting
Lossnay (City Multi only)
Check
Self check
Maintenance password
Remote controller check
Test run
Clock
Menu structure
Filter Information
Error Information
Manual vane angle
OCH611D

8
Setting and display items Setting details
Vane · Louver · Vent.
(Lossnay)
Use to set the vane angle.
• Select a desired vane setting from 5 different settings.
Use to turn ON/OFF the louver.
• Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
• Select a desired setting from "Off," "Low," and "High."
High power Use to reach the comfortable room temperature quickly.
• Units can be operated in the High-power mode for up to 30 minutes.
Timer ON/OFF
timer*
Use to set the operation ON/OFF times.
• Time can be set in 5-minute increments.
Auto-Off
timer
Use to set the Auto-Off time.
• Time can be set to a value from 30 to 240 in 10-minute increments.
Weekly timer* Use to set the weekly operation ON/OFF times.
• Up to 8 operation patterns can be set for each day.
(Not valid when the ON/OFF timer is enabled.)
Restriction Temp. range Use to restrict the preset temperature range.
• Different temperature ranges can be set for different operation modes.
Operation
lock
Use to lock selected functions.
• The locked functions cannot be operated.
Energy
saving
Auto return Use to get the units to operate at the preset temperature after performing energy-save
operation for a specied time period.
• Time can be set to a value from 30 and 120 in 10-minute increments.
(This function will not be valid when the preset temperature ranges are restricted.)
Schedule* Set the start/stop times to operate the units in the energy-save mode for each day of the
week, and set the energy-saving rate.
• Up to 4 energy-save operation patterns can be set for each day.
• Time can be set in 5-minute increments.
• Energy-saving rate can be set to a value from 0% or 50 to 90% in 10% increments.
Night setback* Use to make Night setback settings.
• Select "Yes" to enable the setting, and "No" to disable the setting. The temperature range and
the start/stop times can be set.
Filter information Use to check the lter status.
• The lter sign can be reset.
Error information Use to check error information when an error occurs.
• Check code, error source, refrigerant address, unit model, manufacturing number, contact
information (dealer's phone number) can be displayed.
(The unit model, manufacturing number, and contact information need to be registered in
advance to be displayed.)
Maintenance Manual
vane angle
Use to set the vane angle for each vane to a xed position.
Initial setting Clock Use to set the current time.
Main display Use to switch between "Full" and "Basic" modes for the Main display.
• The initial setting is "Full."
Contrast Use to adjust screen contrast.
Language
selection
Use to select the desired language.
*Clock setting is required.
Main menu list
Continue to the next page
OCH611D

9
Setting and display items Setting details
Input
maintenance
Select "Input maintenance Info." from the Service menu to bring up the Maintenance
information screen.
The following settings can be made from the Maintenance Information screen.
• Model name input • Serial No. input • Dealer information input
LOSSNAY
setting
This setting is required only when the operation of City Multi units is interlocked with
LOSSNAY units.
Check Error history: Display the error history and execute delete error history.
Self check Error history of each unit can be checked via the remote controller.
Maintenance
password
Use to change the maintenance password.
Remote
controller
check
When the remote controller does not work properly, use the remote controller checking
function to troubleshoot the problem.
OCH611D

10
2-2-2. Wired Remote Controller <PAC-YT53CRAU>
.
Backlit LCD
ON/OFF lamp
ON/OFF button
FAN button
VANE button
Note: To set the functions that are not available on this controller (PAC-YT53CRAU)such as Louver,
use the centralized controller.
The lamp will light up in green when
turned on, and blink during startup
and when an error occurs.
Pressing this button starts and
stops the operation.
TEMP. button
MODE button
Note:
The phrase "Wired remote controller" in this manual refers only to the PAC-YT53CRAU.
If you need any information for the other remote controller, please refer to either the installation manual or initial setting manual which are included in
remote controller's box.
GB
Display section
*2 icon
For City Multi, when an error occurs, power indicator will blink, and unit address (3 digits) and check code (4
digits) will blink.
Check the error status, stop the operation, and consult your dealer.
icon appears while the unit is operated in the
energy-save mode
Note: All icons are displayed for explanation
purpose.
icon appears when Operation lock setting is
effective.
icon appears when indoor unit functions are set up.
(Refer to the Installation Manual.)
Fan speed icon
Vane icon
icon appears when the power is on.
Indoortemperature
Operation modes
CENTRAL icon *1
CHECK icon *2
Preset temperature *3
*1 icon
Appears when one of the following local operations is prohibited: ON/OFF; operation mode; preset temperature;
fan speed; vane.
CENTRAL
*3 Preset temperature
* Centigrade or Fahrenheit is selectable. Refer to the Installation Manual for details.
In COOL, DRYING, HEAT, or
AUTO (single set point) modes
In AUTO (dual set point) or
SETBACK modes
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Preset
temperature
Room Set to
AUTO COOLHEATFAN
DRYING VENTI. SETBACK
Heating preset
temperature
Cooling preset
temperature
OCH611D

11
3-1. SPECIFICATIONS
3SPECIFICATIONS
Service Ref. PLFY-P08NEMU-E PLFY-P12NEMU-E PLFY-P15NEMU-E PLFY-P18NEMU-E
Power source 1-Phase 208–230 V, 60 HZ
Cooling capacity
( N o m i n a l )
*1
*1
BTU/h 8,000
2.4
12,000
3.5
15,000
4.4
18,000
5.3
kW
Power input kW 0.02 0.02 0.02 0.02
Current input A0.25 0.26 0.29 0.29
Heating capacity
(Nominal)
*2
*2
BTU/h 9,000
2.7
13,500
4.0
17,000
5.0
20,000
5.9
kW
Power input kW 0.02 0.02 0.02 0.02
Current input A0.20 0.21 0.24 0.24
External nish Galvanized steel sheet
External dimension H × W × D in 10-3/16 × 33-3/32 × 33-3/32
258 × 840 × 840
10-3/16 × 33-3/32 × 33-3/32
258 × 840 × 840
10-3/16 × 33-3/32 × 33-3/32
258 × 840 × 840
10-3/16 × 33-3/32 × 33-3/32
258 × 840 × 840
mm
Net weight lb [kg] 42 [19] 42 [19] 42 [19] 42 [19]
Grille Model PLP-40EAU PLP-40EAU PLP-40EAU PLP-40EAU
External nish MUNSELL (6.4Y 8.9/0.4)
Dimension
H × W × D
in 1-9/16 × 37-3/8 × 37-3/8
40 × 950 × 950
1-9/16 × 37-3/8 × 37-3/8
40 × 950 × 950
1-9/16 × 37-3/8 × 37-3/8
40 × 950 × 950
1-9/16 × 37-3/8 × 37-3/8
40 × 950 × 950
mm
Net weight lb [kg] 11 [5] 11 [5] 11 [5] 11 [5]
Heat exchanger Cross n
FAN Type × Quantity Turbo fan × 1 Turbo fan × 1 Turbo fan × 1 Turbo fan × 1
External static
press.
in. WG 0.000 (208 V)
0
0.000 (208 V)
0
0.000 (208 V)
0
0.000 (208 V)
0
Pa
in. WG 0.000 (230 V)
0
0.000 (230 V)
0
0.000 (230 V)
0
0.000 (230 V)
0
Pa
Motor type DC motor
Motor output kW 0.050 0.050 0.050 0.050
Driving mechanism Direct drive
Airow rate
(Low-Mid2-
Mid1-High)
cfm 424-459-494-530
12.0-13.0-14.0-15.0
200-217-233-250
459-494-530-565
13.0-14.0-15.0-16.0
217-233-250-267
459-494-530-600
13.0-14.0-15.0-17.0
217-233-250-283
459-494-565-636
13.0-14.0-16.0-18.0
217-233-267-300
m³/min
L/s
Sound pressure level
(Low-Mid2-Mid1-High)
(measure in anechoic room)
dB <A> 27-29-30-31 (208–230 V)
―
―
27-29-30-31 (208–230 V)
―
―
28-29-30-31 (208–230 V)
―
―
28-30-31-32 (208–230 V)
―
―
dB <A>
dB <A>
Insulation material PS
Air lter PP honeycomb (long life lter, anti-bacterial type)
Protection device Fuse
Refrigerant control device LEV
Connectable outdoor unit R410, CITY MULTI
Diameter of refrigerant
pipe (O.D.)
Liquid in [mm] 1/4 [6.35] Flare 1/4 [6.35] Flare 1/4 [6.35] Flare 1/4 [6.35] Flare
Gas in [mm] 1/2 [12.7] Flare 1/2 [12.7] Flare 1/2 [12.7] Flare 1/2 [12.7] Flare
Field drain pipe size in [mm] O.D 1-1/4 [32] O.D 1-1/4 [32] O.D 1-1/4 [32] O.D 1-1/4 [32]
Standard attachment Document, accessory Installation Manual, Instruction Book
Optional parts Air outlet shutter plate PAC-SJ37SP-E PAC-SJ37SP-E PAC-SJ37SP-E PAC-SJ37SP-E
High efciency lter element PAC-SH59KF-E PAC-SH59KF-E PAC-SH59KF-E PAC-SH59KF-E
Multi-function casement PAC-SJ41TM-E PAC-SJ41TM-E PAC-SJ41TM-E PAC-SJ41TM-E
Remarks Installation
Details on foundation work, duct work, insulation work, electrical wiring, power source switch, and other items
shall be referred to the Installation Manual.
*1 Nominal cooling conditions *2 Nominal heating conditions
Indoor: 80°F D.B./67°F W.B 70°F D.B.
[26.7°C D.B./19.4°C W.B ] [21.1°C D.B.]
Outdoor: 95°F D.B. 47°F D.B./43°F W.B
[35°C D.B.] [8.3°C D.B./6.1°C W.B]
Pipe length: 25 ft [7.6m] 25 ft [7.6m]
Level difference: 0 ft [0 m] 0 ft [0 m]
Note: Due to continuing improvement, above specication may be subject to change without notice.
Unit converter
kcal/h = kW × 860
BTU/h = kW × 3,412
cfm = m3/min x 35.31
lb = kg/0.4536
Above specication data is
subject to rounding variation
.
OCH611D

12
Service Ref. PLFY-P24NEMU-E PLFY-P30NEMU-E PLFY-P36NEMU-E PLFY-P48NEMU-E
Power source 1-Phase 208–230 V, 60 HZ
Cooling capacity
( N o m i n a l )
*1
*1
BTU/h 24,000
7.0
30,000
8.8
36,000
10.5
48,000
14.1
kW
Power input kW 0.04 0.05 0.08 0.10
Current input A0.41 0.56 0.90 0.99
Heating capacity
(Nominal)
*2
*2
BTU/h 27,000
7.9
34,000
10.0
40,000
11.7
54,000
15.8
kW
Power input kW 0.04 0.05 0.08 0.10
Current input A0.36 0.51 0.85 0.94
External nish Galvanized steel sheet
External dimension H × W × D in 10-3/16 × 33-3/32 × 33-3/32
258 × 840 × 840
10-3/16 × 33-3/32 × 33-3/32
258 × 840 × 840
11-3/4 × 33-3/32 × 33-3/32
298 × 840 × 840
11-3/4 × 33-3/32 × 33-3/32
298 × 840 × 840
mm
Net weight lb [kg] 46 [21] 46 [21] 51 [23] 55 [25]
Grille Model PLP-40EAU PLP-40EAU PLP-40EAU PLP-40EAU
External nish MUNSELL (6.4Y 8.9/0.4)
Dimension
H × W × D
in 1-9/16 × 37-3/8 × 37-3/8
40 × 950 × 950
1-9/16 × 37-3/8 × 37-3/8
40 × 950 × 950
1-9/16 × 37-3/8 × 37-3/8
40 × 950 × 950
1-9/16 × 37-3/8 × 37-3/8
40 × 950 × 950
mm
Net weight lb [kg] 11 [5] 11 [5] 11 [5] 11 [5]
Heat exchanger Cross n
FAN Type × Quantity Turbo fan × 1 Turbo fan × 1 Turbo fan × 1 Turbo fan × 1
External static
press.
in. WG 0.000 (208 V)
0
0.000 (208 V)
0
0.000 (208 V)
0
0.000 (208 V)
0
Pa
in. WG 0.000 (230 V)
0
0.000 (230 V)
0
0.000 (230 V)
0
0.000 (230 V)
0
Pa
Motor type DC motor
Motor output kW 0.050 0.050 0.120 0.120
Driving mechanism Direct drive
Airow rate
(Low-Mid2-
Mid1-High)
cfm 494-565-671-777
14.0-16.0-19.0-22.0
233-267-317-367
494-600-742-883
14.0-17.0-21.0-25.0
233-283-350-417
706-883-1,060-1,201
20.0-25.0-30.0-34.0
333-417-500-567
742-918-1,060-1,236
21.0-26.0-30.0-35.0
350-433-500-583
m³/min
L/s
Sound pressure level
(Low-Mid2-Mid1-High)
(measure in anechoic room)
dB <A> 28-31-34-37 (208–230 V)
―
―
28-32-35-38 (208–230 V)
―
―
35-38-41-44 (208–230 V)
―
―
36-39-42-45 (208–230 V)
―
―
dB <A>
dB <A>
Insulation material PS
Air lter PP honeycomb (long life lter, anti-bacterial type)
Protection device Fuse
Refrigerant control device LEV
Connectable outdoor unit R410, CITY MULTI
Diameter of refrigerant
pipe (O.D.)
Liquid in [mm] 3/8 [9.52] Flare 3/8 [9.52] Flare 3/8 [9.52] Flare 3/8 [9.52] Flare
Gas in [mm] 5/8 [15.88] Flare 5/8 [15.88] Flare 5/8 [15.88] Flare 5/8 [15.88] Flare
Field drain pipe size in [mm] O.D 1-1/4 [32] O.D 1-1/4 [32] O.D 1-1/4 [32] O.D 1-1/4 [32]
Standard attachment Document, accessory Installation Manual, Instruction Book
Optional parts Air outlet shutter plate PAC-SJ37SP-E PAC-SJ37SP-E PAC-SJ37SP-E PAC-SJ37SP-E
High efciency lter element PAC-SH59KF-E PAC-SH59KF-E PAC-SH59KF-E PAC-SH59KF-E
Multi-function casement PAC-SJ41TM-E PAC-SJ41TM-E PAC-SJ41TM-E PAC-SJ41TM-E
Remarks Installation
Details on foundation work, duct work, insulation work, electrical wiring, power source switch, and other items
shall be referred to the Installation Manual.
*1 Nominal cooling conditions *2 Nominal heating conditions
Indoor: 80°F D.B./67°F W.B 70°F D.B.
[26.7°C D.B./19.4°C W.B ] [21.1°C D.B.]
Outdoor: 95°F D.B. 47°F D.B./43°F W.B
[35°C D.B.] [8.3°C D.B./6.1°C W.B]
Pipe length: 25 ft [7.6m] 25 ft [7.6m]
Level difference: 0 ft [0 m] 0 ft [0 m]
Note: Due to continuing improvement, above specication may be subject to change without notice.
Unit converter
kcal/h = kW × 860
BTU/h = kW × 3,412
cfm = m3/min x 35.31
lb = kg/0.4536
Above specication data is
subject to rounding variation
.
OCH611D

13
3-2. SOUND PRESSURE LEVEL
Note: Measured in anechoic room.
PLFY-P•NEMU-E
PLFY-P12NEMU-E
PLFY-P15NEMU-E
PLFY-P18NEMU-E
PLFY-P24NEMU-E
PLFY-P30NEMU-E
PLFY-P36NEMU-E
27-29-30-31
27-29-30-31
28-31-34-37
28-32-35-38
35-38-41-44
Sound pressure level dB (A)
Sound pressure level in anechoic room: Low-Mid2-Mid1-High
5 ft (1.5m)
Measurement location
PLFY-P08NEMU-E
PLFY-P48NEMU-E 36-39-42-45
28-29-30-31
28-30-31-32
OCH611D

14
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60Hz
Middle2 60Hz
Low 60Hz
60Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
PLFY-P08NEMU-E
External Static Pressure: 0Pa [0.00in.WG]
Power Source: 208-230V 60Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60Hz
Middle2 60Hz
Low 60Hz
60Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
PLFY-P12NEMU-E
External Static Pressure: 0Pa [0.00in.WG]
Power Source: 208-230V 60Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60Hz
Middle2 60Hz
Low 60Hz
60Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
PLFY-P15NEMU-E
External Static Pressure: 0Pa [0.00in.WG]
Power Source: 208-230V 60Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60Hz
Middle2 60Hz
Low 60Hz
60Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
PLFY-P18NEMU-E
External Static Pressure: 0Pa [0.00in.WG]
Power Source: 208-230V 60Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60Hz
Middle2 60Hz
Low 60Hz
60Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
PLFY-P24NEMU-E
External Static Pressure: 0Pa [0.00in.WG]
Power Source: 208-230V 60Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60Hz
Middle2 60Hz
Low 60Hz
60Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
PLFY-P30NEMU-E
External Static Pressure: 0Pa [0.00in.WG]
Power Source: 208-230V 60Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60Hz
Middle2 60Hz
Low 60Hz
60Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
PLFY-P36NEMU-E
External Static Pressure: 0Pa [0.00in.WG]
Power Source: 208-230V 60Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
NC-30
NC-20
High
Middle 60Hz
Middle2 60Hz
Low 60Hz
60Hz
63 125 250 500 1k 2k 4k 8k
Octave band center frequencies (Hz)
PLFY-P48NEMU-E
External Static Pressure: 0Pa [0.00in.WG]
Power Source: 208-230V 60Hz
3-3. NC CURVES
OCH611D

15
3-4. ELECTRICAL PARTS SPECIFICATIONS
Parts name
Service Ref.
Symbol
TH21
TH22
TH23
FUSE
MF
MV
DP
FS
LEV
TB2
TB5
TB15
Resistance 30_F/15.8 k", 50_F/9.6 k", 70_F/6.0 k", 80_F/4.8 k", 90_F/3.9 k", 100_F/3.2 k"
Resistance 30_F/15.8 k", 50_F/9.6 k", 70_F/6.0 k", 80_F/4.8 k", 90_F/3.9 k", 100_F/3.2 k"
Resistance 30_F/15.8 k", 50_F/9.6 k", 70_F/6.0 k", 80_F/4.8 k", 90_F/3.9 k", 100_F/3.2 k"
UL 6.3A 250 V AC
(L1, L2, GR) 330 V, 30 A
(M1, M2, S) 250 V, 20 A
(1, 2) 250 V, 10 A
Liquid pipe thermistor
Gas pipe thermistor
Vane motor
Drain pump
Drain float switch
Linear expansion valve
PLFY-P08NEMU-E
PLFY-P12NEMU-E PLFY-P18NEMU-EPLFY-P15NEMU-E PLFY-P24NEMU-E PLFY-P30NEMU-E PLFY-P36NEMU-E
PLFY-P48NEMU-E
Room temperature
thermistor
Fuse
(Indoor controller board)
Fan motor
Power supply terminal
block
Transmission terminal
block
MA remote controller
terminal block
8-pole OUTPUT 50W 8-pole OUTPUT,
120W
MSBPC20M04
12 V DC, 300
" /phase
PLD-12230ME-1
INPUT 12/10.8W 24R/Hr
Open/short detection
12 V DC Stepping motor drive port dimension [3.2 (0–2000pulse)
EDM-40YGME
12 V DC Stepping motor drive port
dimension [
5.2 (0–2000pulse)
EDM-80YGME
OCH611D

16
44-WAY AIRFLOW SYSTEM
4-1. PLACEMENT OF THE AIR OUTLETS
• For this grille, the blowout direction comes in 11 patterns.
Also, by setting the remote controller to the appropriate settings, you can adjust the airflow and speed. Select the settings
from Table1 according to the location in which you want to install the unit.
1) Decide on the pattern of the airflow direction.
Blowout direction
pattern
4-direction<Table 1> 3-direction 2-direction
Note: For 3 and 2-direction settings, please use the air outlet shutter plate (option).
Pattern 1 Initial setting Pattern 4 One air outlet
fully closed
Pattern 6 2 air outlet
fully closed
PLFY-P08/12/15/18/24/30NEMU-E PLFY-P36/48NEMU-E
Silent Standard High ceiling Silent Standard High ceiling
SW21-1 SW21-2 SW21-1 SW21-2 SW21-1 SW21-2 SW21-1 SW21-2 SW21-1 SW21-2 SW21-1 SW21-2
OFF ON OFF OFF ON OFF OFF ON OFF OFF ON OFF
4 direction SW21-3 OFF
SW21-4 ON
3 direction SW21-3 OFF
SW21-4 OFF
2 direction SW21-3 ON
SW21-4 OFF
8.2 ft [2.5 m]
8.9 ft [2.7 m]
9.8 ft [3.0 m]
8.9 ft [2.7 m]
9.8 ft [3.0 m]
10.8 ft [3.3 m]
11.5 ft [3.5 m]
11.5 ft [3.5 m]
11.5 ft [3.5 m]
8.9 ft [2.7 m]
9.8 ft [3.0 m]
10.8 ft [3.3 m]
10.5 ft [3.2 m]
11.8 ft [3.6 m]
13.1 ft [4.0 m]
14.8 ft [4.5 m]
14.8 ft [4.5 m]
14.8 ft [4.5 m]
2) According to the number of air outlets and height of the ceiling to install the unit, be sure to set up the switch (SW21) on
the indoor controller board to the appropriate setting.
• Correspondence of ceiling heights to numbers of air outlets
OCH611D

17
CN51
Multiple remote
controller adapter
PAC-SA88HA-E
Indoor controller board
Distance between indoor
controller board and relay
must be within 33 ft [10 m].
Be sure to secure insulation
material by tape, etc.
5Green
Yellow
Orange
Connector (5P)
Indoor unit side
Multiple remote
controller adapter
PAC-SA88HA-E
Be sure to secure insulation
material by tape, etc.
Installation at site
CN51
on
indoor
controller
board Red
Brown
1
~
CN51
MB
-
+
4-3. OPERATION IN CONJUNCTION WITH
DUCT FAN (Booster fan)
• Whenever the indoor unit is operating, the duct fan also
operates.
(1) Connect the optional multiple remote controller adapter
(PAC-SA88HA-E) to the connector CN51 on the indoor
controller board.
(2) Drive the relay after connecting the 12 V DC relay
between the Yellow and Orange connector lines.
MB: Electromagnetic switch power relay for duct fan.
X: Auxiliary relay (For 12 V DC, coil rating: 1.0W or
smaller)
Unit : in (mm)
Branch duct hole
A
A
A
Drain pipe
Fresh air intake hole diagram
Refrigerant pipe
Branch duct hole diagram
(view from either side)
350×100 cutout hole
ø150 cut out hole
ø175 burring hole pitch
ø4-29/32
(ø125) burring hole pitch
ø3-15/16
(ø100) cut out hole
Ceiling
Fresh air intake hole
A
A
6-7/32 (158)
15-11/32
(390)
13-25/32
(350)
3-15/16
(100)
3-15/16 (100)
6-3/32 (155)
6-9/16 (167)
3-15/16
(100)
5-1/8 (130)
3-17/32
(90)
3-17/32
(90)
4-2. BRANCH DUCT HOLE AND FRESH AIR INTAKE HOLE
At the time of installation, use the duct holes (cut out) located at the positions shown in following diagram, as and when required.
• A fresh air intake hole for the optional multi function casement can also be made.
Note:
The figures marked with * in the drawing below represent the dimensions of the main unit excluding those of the optional multi
function casement.
When installing the optional multi function casement, add 5-5/16” (135 mm) to the dimensions marked on the figure.
When installing the branch ducts, be sure to insulate adequately.
Otherwise, condensation and dripping may occur.
OCH611D

18
Static pressure [
Pa(in.W.G.o10-2)
]
Airflow rate
Static pressure [
Pa(in.W.G.o10-2)
]Static pressure [
Pa(in.W.G.o10
-2
)
] Static pressure [
Pa(in.W.G.o10
-2
)
] Static pressure [
Pa(in.W.G.o10
-2
)
]
Static pressure [
Pa(in.W.G.o10-2)
]
Airflow rate
Airflow rate
0 0.2 0.4 0.6 0.8 1 1.2 1.4 0 1 2 3 4 5 6
0 1 2 3 4 5 6
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
-150 (-60)
-200 (-80)
-100 (-40)
-50 (-20)
0
50 (20)
0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8
0 1 2 3 4 5 6 7
0 1 2 3 4 5 76
2 - inlet
2 - inlet
2 - inlet
1 - inlet
1 - inlet
1 - inlet
2 - inlet
1 - inlet
10 20 30 40 [CFM]
Airflow rate
50 100 150 200
Airflow rate
10 20 30 40 50 60 50 100 150 200
[CMM]
[CFM]
[CMM]
[CFM]
[CMM]
[CFM]
[CMM]
50 100 150 200
Airflow rate
[CFM]
[CMM]
50 100 150 200 [CFM]
[CMM]
Q
0
BA
C
1Curve in the
graphs.
Duct characteristics
at site
Q
A
E C
2
Q
Qa
A D
3
Q…Designed amount of fresh air intake
<CMM (CFM)>
A…Static pressure loss of fresh air
intake duct system with airflow
amount Q <Pa (in.W.G.o10-2)>
B…Forced static pressure at air condi-
tioner inlet with airflow amount Q
<Pa (in.W.G.o10-2)>
C…Static pressure of booster fan with
airflow amount Q <Pa (in.W.G.o10-
2)>
D…Static pressure loss increase amount
of fresh air intake duct system for
airflow amount Q <Pa (in.W.G.o10-
2)>
E…Static pressure of indoor unit with
airflow amount Q <Pa (in.W.G.o10-
2)>
Qa…Estimated amount of fresh air
intake without D <CMM (CFM)>
2PLFY-P36/48NEMU-E
Taking air into the unit Multifunction casement + Standard filter
Multifunction casement + High efficiency filter
Multifunction casement + High efficiency filter
4-4. FRESH AIR INTAKE AMOUNT & STATIC PRESSURE CHARACTERISTICS
1PLFY-P08/12/15/18/24/30NEMU-E
Taking air into the unit Multifunction casement + Standard filter
How to read curves
OCH611D

19
5OUTLINES AND DIMENSIONS
12(305)
OR MORE 177-5/32(4500)
OR LESS
137-25/32(3500)
OR LESS
FE
10-7/16(265)
OR MORE
36/48
24/30
REFRIGERANT PIPEΦ6.35 FLARED CONNECTION 1/4F
REFRIGERANT PIPEΦ12.7 FLARED CONNECTION 1/2F
REFRIGERANT PIPEΦ9.52 FLARED CONNECTION 3/8F
REFRIGERANT PIPEΦ15.88 FLARED CONNECTION 5/8F
AB
9-1/2
(241)
11-1/16
(281)
11-23/32
(298)
10-5/32
(258)
3(76)
3-1/8
(79.5)
C
3(76.5)
3-1/8
(79.5)
D
P.NEMU
08~18
●CAPACITY OF EACH MODEL AS FOLLOWING
PLFY-P.NEMU-E*:08/12/15/18/24/30/36/48
WALL
CELLING HEIGHT SPACE TO THE
CELLING
GRILLE FROM FLOOR
70-7/8(1800) OR MORE
INDOOR UNIT
INDOOR UNIT
FLOOR
BETWEEN INDOOR UNIT
OBSTRUCTION
CELLING
OR MORE
118-1/8(3000) OR MORE
59-1/16(1500) OR MORE
39-3/8(1000) OR MORE
9/32(7) OR MORE
E
FOR LESS
BETWEEN THE TOP OF
UNIT AND CELLING SLAB
NOTE1.PLEASE CHOOSE THE GRILLE FROM A STANDARD GRILLE, AUTO-GRILLE.
2.REINFORCE THE SUSPENSION BOLT BY EARTHQUAKE RESISTANCE SUPPORTING MATERIAL WHICH USING FOR SWING PREVENTION IN ACCORDANCING WITH THE NECESSARY OF EARTHQUAKE RESISTANCE ETC.SPECIALLY IN THE CASE WITHOUT CELLING MATERIAL, CONFIRM REINFORCING 3.AS FOR SUSPENSION BOLT, PLEASE USE M10 OR W3/8. (PROCURED AT LOCAL SITE) 4.AS FOR DRAIN PIPE, PLEASE USE VP-25(O.D. φ1-1/4"(φ32) PVC TUBE). DRAIN PUMP INCLUSION. RAISE IS MAX 70-7/18"(850mm) FROM THE CEILING. 5.ELECTRICAL BOX MAY BE REMOVED FOR THE SERVICE PURPOSE. MAKE SURE TO SLACK THE ELECTRICAL WIRE LITTLE BIT FOR CONTROL/POWER WIRES CONNECTION. 6.THE HEIGHT OF THE INDOOR UNIT IS ABLE TO BE ADJUSTED WITH THE GRILLE ATTACHED. 7.WHEN INSTALLING THE BRANCH DUCTS, BE SURE TO INSULATE ADEQUATELY. OTHERWISE CONDENSATION AND DRIPPING MAY OCCUR. (IT BECOMES THE CAUSE OF DEW DROPS/WEAR DEW.) 8.AS FOR NECESSARY INSTALLATION/SERVICE SPACE, PLEASE REFER TO THE RIGHT AT FIGURE. 9.OUTLINE DWG REFER TO EXCLUSIVE OUTLINE DWG WHEN INSTALL OPTION MULTIFUNCTION CASEMENT AND OPTION HIGH PERFORMANCE FILTER
CELLING
Φ3-15/16(Φ100) CUTTING OUT HOLE
Φ4-29/32(φ125) BURRING HOLE PITCH
SELF-TAP 4 SCREWS:3 PLACES
DETAIL DRAWING OF FRESH AIR INTAKE HOLE
6-7/32
(158)
120 ˚
120 ˚
2
1
MAIN BODY
SUSPENSION BOLT M10
OR W3/8 SCREW
POWER SUPPLY WIRE ENTRY
GRILLE
DRAIN PIPE
CONNECT TO VP-25
CELLING
CONNECTING TO SOCKET OR
ATTACHED FLEXIBLE HOSE
(CONNECTING BY VINYL CHLORIDE
SERIES ADHESIVE)
THE BOTTOM OF
SUSPENSION BOLT THE BOTTOM OF MOVE
EYE SENSOR
(17 )
+5
0
0
+3/16
2-9/32 (58)
1-31/32 TO 2-3/4
(50~70) 5-1/2
(140)
6-11/16
(170)
4-1/8 (105)
7-15/32
(190)
21/32
A
1-9/16 (40)
B
2-3/8
(60)
24-23/32(628)
GRILLE
CELLING
Φ6-7/8(Φ175) BURRING HOLE PITCH SELF-TAP 4 SCREWS:4 PLACES
(BRANCH DUCT HOLE)
Φ5-29/32(Φ150) CUTTING OUT HOLE
(BRANCH DUCT HOLE)
6-9/16
(167)
6-3/32
(155)
15-11/32(390)
3-17/32
(90)
3-15/16
(100)
3-15/16
(100)
3-17/32
(90)
13-25/32(350)
5-1/8
(130)
3-15/16
(100)
70 ˚
(CELLING HOLE)
(SUSPENSION BOLT PITCH)
(SUSPENSION BOLT PITCH)
(CELLING HOLE)
FRESH AIR
INTAKE HOLE
BRANCH DUCT
HOLE
REMOTE CONTROLLER
WIRE ENTRY
POWER SUPPLY
TERMINAL BLOCK
INDOOR UNIT
/OUTDOOR UNIT
CONNECTING
TERMINAL BED
(BOARD PACKAGING)
BRANCH DUCT HOLE HUMIDIFIER HOLE
+40
0
0
+1-9/16
(660 )
TERMINAL BED
FOR REMOTE CONTROLLER
(BOARD PACKAGING)
25/32 TO 1-25/32
(20~45)
33-27/32 TO 35-13/16(860~910)
( 25/32 )
(20)
26
25/32 TO 1-25/32
(20~45)
25/32 TO 1-25/32
(20~45)
25/32 TO 1-25/32
(20~45)
31-5/16 (795)
31-7/8 TO 35-13/16(810~910)
33-1/16(840)
33-1/16(840)
5-23/32
(145)
5-5/8
(145)
1/4(6)
5-23/32
(145)
5-23/32(145)
( 25/32 )
(20)
8-3/4
(222)
7-19/32
(193)
3-1/8(79.5)
5-1/8
(133)
D
C
REMOTE CONTROLLER
WIRE ENTRY
GRILLE
Φ5-29/32(Φ150) CUTTING OUT HOLE
(CONNECTING TO BRANCH DUCT)
Φ6-7/8(Φ175) BURRING HOLE PITCH SELF-TAP 4 SCREWS:4 PLACES
(CONNECTING TO BRANCH DUCT)
CELLING
17-23/32(450)
70 ˚
VANE MOTOR(1 PCS/CONNER)
COMPANY NAME
DISPLAY PART
*IN CASE OF STANDARD GRILLE
WITHOUT RADIATION SENSOR
*CAN INSTALL TO THE CONNER
EXCEPT DRAIN PIPE CORNER
(BUT NEED TO SELECT FUNCTION
BY REMOTE CONTROLLER)
AIR INTAKE GRILLE
(AIR INTAKE HOLE)
EASY CORNER POCKET
DRAIN PUNCH HOLE
AUTOVANE(AIR
OUTLET HOLE)
(AIR OUTLET HOLE)
(AIR OUTLET HOLE)
(AIR INTAKE HOLE)
(AIR INTAKE HOLE)
OPTION WIRELESS RECEIVING PART KIT
RECEIVING PART STANDARD INSTALLATION POSITION
*NONE IN THE CASE OF STANDARD GRILLE
20-7/8(530)
20-7/8(530)
37-13/32(950)
37-13/32(950)
20(508)
20(508)
3-1/2
(89)
1-15/32(37)
3-1/2
(89)
1-15/32
(37)
DEFROST/STAND BY LAMP
OPERATION
LAMP
RECEIVING
PA R T
EMERGENCY OPERATION
SWITCH <HEATING> AND
EMERGENCY UP/DOWN
SWITCH<DOWN>
EMERGENCY OPERATION
SWITCH <COOLING> AND
EMERGENCY UP/DOWN
SWITCH<UP>
IN CASE OF OPTION WIRELESS RECEIVING PART KIT
RECEIVING PART
PLFY-P08NEMU-E PLFY-P12NEMU-E PLFY-P15NEMU-E PLFY-P18NEMU-E
PLFY-P24NEMU-E PLFY-P30NEMU-E PLFY-P36NEMU-E PLFY-P48NEMU-E
Unit: in (mm)
OCH611D

20
WIRING DIAGRAM
6
PLFY-P08NEMU-E PLFY-P12NEMU-E PLFY-P15NEMU-E PLFY-P18NEMU-E
PLFY-P24NEMU-E PLFY-P30NEMU-E PLFY-P36NEMU-E PLFY-P48NEMU-E
1
19 20
20
2
CNV
(WH)
CN20
(RD)
I-SEE
SENSOR
CN44
(WH)
5555
MV
I-SEE SENSOR
(CORNER PANEL
OPTION PART)
MVMVMV
M M M M
LEV
M
MT
M
LED1
LED2
1
1
3
74
1
DP
3~
MF
CNP
(WH)
MS
12
3~
MS
CN5Y
(WH)
W.B
I.B
RU
LED2 LED1
SW2SW1
CNB
96
9
BZ
5
31
1
4
CND
(BK)
BK
RD
CNMF
(WH)
1
41
4
1
6
1
9
CN51
(WH)
CN52
(GN)
S
M2
M1
2
1
TB5
TB15
10s DIGIT1s DIGIT
SW1
SW12SW11 SW14
0987654321
SW3
0987654321
SW2
654321
SW21
654321
SW4
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
SW22
4321
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
31
CN90
(WH)
CN4F
(WH)
CN4Z
(WH)
CN32
(WH)
1
51 5
1
5
SWE
ONOFF
tº
TH21
FS
tº
TH23
tº
TH22
CN60
(WH)
BU
F1
+-
Refer to table 2. Refer to table 1.
TO NEXT
INDOOR UNIT
PULL BOX
FUSE(16A)
BREAKER
(16A)
L1
L2
1
2
CN24
(YE)
1
2
CN27
(RD)
TO OUTDOOR UNIT
BC CONTROLLER
REMOTE CONTROLLER
24-30V DC
TO MA-REMOTE
CONTROLLER
8.7-13V DC
*1
POWER SUPPLY
208/230V AC 60Hz
* Be sure to turn off the source power and then
disconnect fan motor connector.
(Failure to do so will cause trouble in Fan motor)
BRANCH No.
NOTES:
1. At servicing for outdoor unit, always follow the wiring diagram of outdoor unit.
2. In case of using MA-Remote controller, please connect to TB15. (Remote controller wire is non-polar.)
3. In case of using M-NET-Remote controller, please connect to TB5. (Transmission line is non-polar.)
4. Symbol [S]of TB5 is the shield wire connection.
5. Symbols used in wiring diagram above are, : terminal block, : connector.
6. The setting of SW2 and SW4 differs in the capacity and model. For the detail, refer the table 1 and 2.
7. Make sure to turn off the indoor and the outdoor units before replacing indoor controller board.
8. is the switch position.
*1. Use copper supply wires.
*1. Utilisez des fils d'alimentation en cuivre.
CN27
CN32
CN51
CN52
SW2
SW3
SW4
F1
MF
MV
DP
FS
TB2
TB5
TB15
TH22
TH23
LEV
W.B
RU
BZ
LED1
LED2
SW1
SW2
POWER SUPPLY
TRANSMISSION
MA-REMOTE CONTROLLER
PIPE TEMP. DETECTION / LIQUID
(32ºF/15kΩ, 77ºF/5.4kΩ)
PIPE TEMP. DETECTION / GAS
(32ºF/15kΩ, 77ºF/5.4kΩ)
FAN MOTOR
VANE MOTOR
MT I-SEE SENSOR MOTOR
DRAIN PUMP
DRAIN FLOAT SWITCH
TERMINAL
BLOCK
THERMISTOR
LINEAR EXPANSION VALVE
I. B
INDOOR CONTROLLER BOARD
CONNECTOR
DAMPER
EXTERNAL HEATER
REMOTE SWITCH
CENTRALLY CONTROL
REMOTE INDICATION
CAPACITY CODE
SW1
MODE SELECTION
MODE SELECTION
MODEL SELECTION
SW11 ADDRESS SETTING 1s DIGIT
SW12 ADDRESS SETTING 10s DIGIT
SW14 BRANCH NO.
SW21
CEILNG HEIGHT/DISCHARGE OUTLET
NUMBER/OPTION SELECTOR
SW22
SWE
DRAIN PUMP (TEST MODE)
PAIR NO. SETTING
SWITCH
FUSE (UL 6.3A 250V AC)
SYMBOL
OPTION PART
PCB FOR WIRELESS REMOTE CONTROLLER
RECEVING UNIT
BUZZER
LED (OPERATION INDICATION : GREEN)
LED (PREPARATION FOR HEATING : ORANGE)
EMERGENCY OPERATION (HEAT / DOWN)
EMERGENCY OPERATION (COOL / UP)
SYMBOLNAME NAME
CN24
TH21 ROOM TEMP. DETECTION
(32ºF/15kΩ, 77ºF/5.4kΩ)
THERMISTOR
Mark
LED1
Main power supply
Power supply for
MA-Remote controller
Main Power supply (Indoor unit:208/230V AC)
power on → lamp is lit
Power supply for MA-Remote controller
on → lamp is lit
LED2
Meaning Function
LED on indoor board for service
ON
OFF
123456
ON
OFF
123456
ON
OFF
123456
ON
OFF
123456
ON
OFF
123456
ON
OFF
123456
12
MODELS MODELSSW2 SW2
15
18
24
30
36
ON
OFF
123456
08
ON
OFF
123456
48
<Table 1> SW2 (CAPACITY CODE)
MODELS
SW equipped
ON
OFF
123456
PLFY-P.
NEMU-E
<Table 2> SW4 (MODEL SELECTION)
OCH611D
